CN201200964Y - Optical fiber coating and feeding system with function for preventing return of product - Google Patents
Optical fiber coating and feeding system with function for preventing return of product Download PDFInfo
- Publication number
- CN201200964Y CN201200964Y CNU2008200338766U CN200820033876U CN201200964Y CN 201200964 Y CN201200964 Y CN 201200964Y CN U2008200338766 U CNU2008200338766 U CN U2008200338766U CN 200820033876 U CN200820033876 U CN 200820033876U CN 201200964 Y CN201200964 Y CN 201200964Y
- Authority
- CN
- China
- Prior art keywords
- barrel
- paint
- buffer barrel
- liquid level
- buffering
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Landscapes
- Coating Apparatus (AREA)
Abstract
The utility model discloses a fiber coating feeding system with the function of preventing feed and from returning, and relates to a feeding system for preventing the feed from returning in manufacturing fiber. The system consists of a paint barrel storage tank, a buffering barrel and a coating cup, wherein the paint barrel is arranged inside the paint barrel storage tank; the paint barrel storage tank is provided with a storage tank cover; an air inlet pipeline is arranged on the storage tank cover and extends into the paint barrel; an electromagnetic valve is arranged on the air inlet pipeline; the upper part of the buffering barrel is provided with a buffering barrel cover; the inside of the buffering barrel is provided with an inner interlayer; three liquid level sensors are arranged on the buffering barrel cover; the liquid level sensor I is arranged above the buffering barrel; the liquid level sensor II is arranged on the bottom of the buffering barrel; the upper part of one side of the inner interlayer of the buffering barrel is provided with an overflow port; the top of the other side is provided with the liquid level sensor III; the side of the buffering barrel is provided with an air inlet pipeline; the paint barrel storage tank is connected with the buffering barrel through a feeding pipe which is inserted into the bottoms of the paint barrel storage tank and the buffering barrel; a liquid electromagnetic valve is arranged on the feeding pipe; and the buffering barrel and the coating cup are connected through a discharging pipe. The system has the advantages of reasonable design, low cost, simple structure, effective inhibition on a paint return field and wide application.
Description
Technical field
What the utlity model has that the optical fiber coating feed system of revert prevention function relates to is the feed system of anti-coating returning charge during a kind of optical fiber is made.
Background technology
Coating processes is a step process important in the telecommunication optical fiber manufacturing process, has very important effect in the whole technologies of optical fiber manufacturing.Coating feed process commonly used has two kinds: central authorities concentrate material filling and are that the unit is established feed system separately with the production line.The former carries out feed by large-scale tank system to the small-sized paint can of a plurality of production lines, the bare fibre in the mould is quantitatively applied by small-sized coating buffer barrel by control system again.Its major defect is a system complex, the energy consumption height; And the latter is to be unit with the production line, establish the paint can holding vessel separately and carry out material filling to small-sized coating buffer barrel, bare fibre in the mould is quantitatively applied by small-sized coating buffer barrel by control system again, its shortcoming is need by the pressure effect to the frequent charging of small-sized coating buffer barrel to produce midway, particularly when the system electrical element is unusual, be easy to cause returning charge to being coated with cup etc., cause that optical fiber is unusual and produce interruption, influenced equipment operating efficiency.
The utility model content
The purpose of this utility model is the optical fiber coating feed system that a kind of revert prevention function is provided at above-mentioned weak point, and is simple in structure to being that the feeding system of unit is made optimization with the production line, and the returning charge phenomenon is had obvious inhibition effect.
At the outer wall of buffer barrel structure, set up an intraformational bed, have overfall on the top of a side of intraformational bed, be provided with air inlet on the opposite side top of interlayer.Intraformational bed in air inlet one side is equipped with liquid level sensor, and the intraformational bed material that whole transformation relates to is the stainless steel 316L material of interior polishing.On the feed pipe of small-sized coating buffer barrel, be provided with simultaneously the liquid normally open solenoid valve.
Optical fiber coating feed system with revert prevention function by paint can holding vessel, buffer barrel, be coated with cup and form.Be placed with paint can in the paint can holding vessel, the paint can holding vessel is equipped with the storage cover, and holding vessel covers admission line is housed, and extends in the paint can, and magnetic valve is housed on the admission line; The buffering bung is equipped with on buffer barrel top, is provided with intraformational bed in the buffer barrel.Buffer barrel covers three high low level P+F inductance type liquid level sensors of commercially available Germany's product is housed, liquid level sensor I is contained in buffer barrel top, liquid level sensor II is contained in the buffer barrel bottom, buffer barrel intraformational bed one upper lateral part has overfall, German P+F inductance type liquid level sensor is equipped with at the opposite side top, and the buffer barrel sidepiece is equipped with admission line.Be connected with feed pipe between paint can holding vessel and the buffer barrel, be inserted into the bottom of paint can holding vessel and buffer barrel respectively, CKD liquid normally open solenoid valve is housed on the feed pipe; Buffer barrel is connected with discharge nozzle with being coated with between the cup.
Optical fiber coating feed system with revert prevention function is reasonable in design, and expense is cheap, and is simple in structure, can play effective inhibitory action to the coating returning charge is on-the-spot, is with a wide range of applications.
Description of drawings
Below in conjunction with accompanying drawing the utility model is described in further detail.

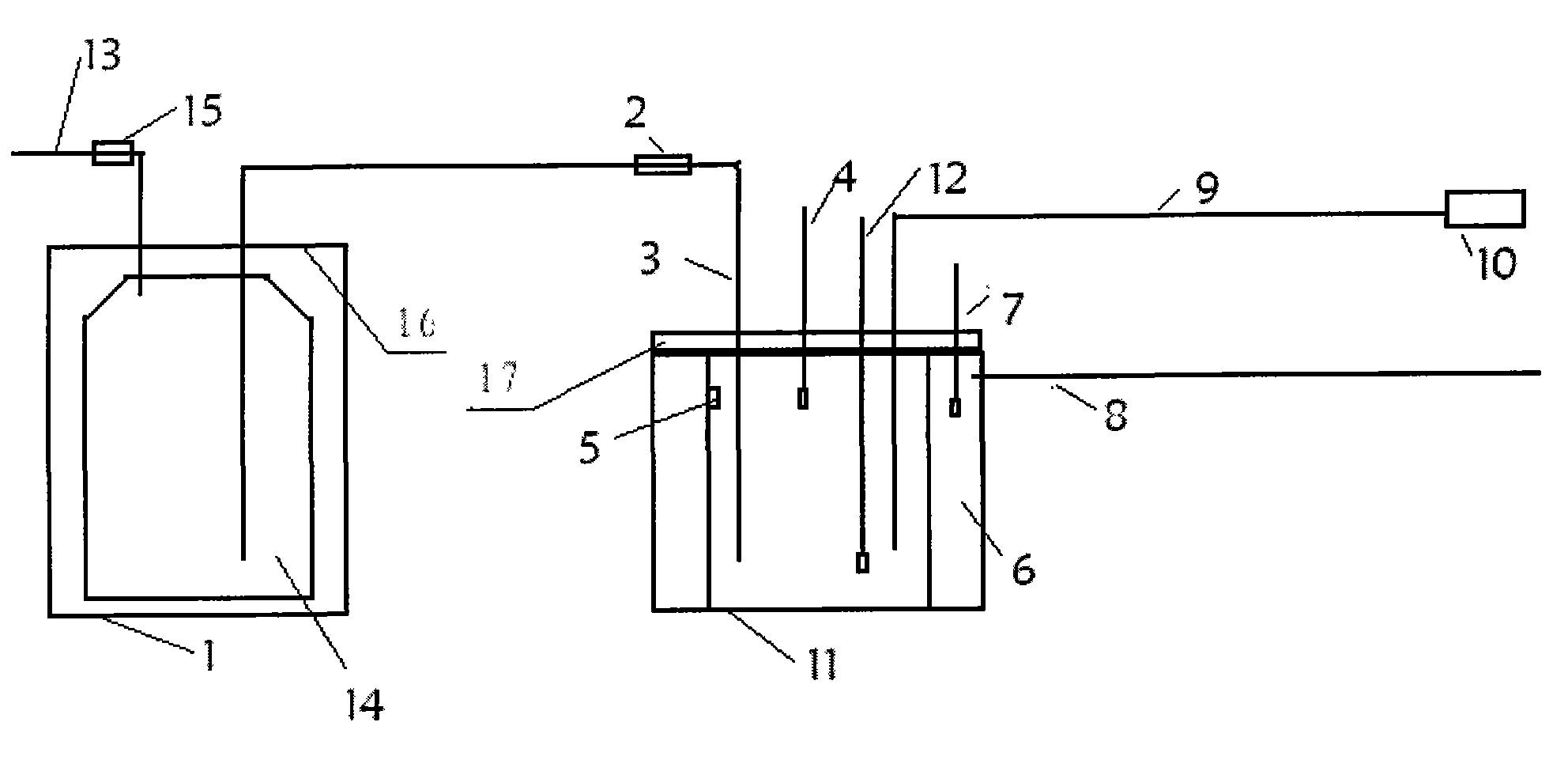

Fig. 1 is the structural representation with optical fiber feed system of anti-coating returning charge.
The specific embodiment
With reference to accompanying drawing 1, the optical fiber coating feed system with revert prevention function mainly by paint can holding vessel 1, buffer barrel 11, be coated with cup 10 and form.Be placed with paint can 14 in paint can holding vessel 1, paint can holding vessel 1 is equipped with and stores cover 16, stores on the cover 16 admission line 13 is housed, and extend in the paint can 14, and magnetic valve 15 is housed on the admission line 13; Buffering bung 17 is equipped with on buffer barrel 11 tops, is provided with intraformational bed 6 in the buffer barrel 11.Three commercially available Germany are housed on the buffering bung 17 produce high low level P+F inductance type liquid level sensor, liquid level sensor I4 is contained in buffer barrel 11 tops, liquid level sensor II12 is contained in buffer barrel 11 bottoms, buffer barrel 11 intraformational beds 6 one upper lateral parts have overfall 5, German P+F inductance type liquid level sensor III7 is equipped with at the opposite side top, and buffer barrel 11 sidepieces are equipped with admission line 8.Be connected with feed pipe 3 between paint can holding vessel 1 and the buffer barrel 11, be inserted into the bottom of paint can holding vessel 1 and buffer barrel 11 respectively, CKD liquid normally open solenoid valve 2 is housed on the feed pipe 3; Buffer barrel 11 be coated with cup and be connected with discharge nozzle 9 between 10.
Operation principle
Operation principle with optical fiber coating feed system of revert prevention function: under the promotion of compressed air 13, coating in the paint can 14 enters in the buffer barrel 11 through feed pipe 3, coating liquid level arrival sensor 4 when buffer barrel 11, then stop charging, meanwhile the coating in the buffer barrel 11 enters and is coated with cup 10 under the admission pressure of air inlet 8 promotes.When the coating liquid level of buffer barrel 11 arrives sensor 12, feed pipe 3 beginning chargings, so repeatedly.Practice shows, the magnetic valve 15 of control air inlet pipe 13 and sensor 4 are prone to technical failure when producing, for avoiding when above element breaks down, continued material filling in the buffer barrel 11, can backflow to more than the coating of buffer barrel 11 capacity is coated with in cup 10 and the air inlet pipe 8, causes the unusual interruption accident of producing.Use the utility model device, in case aforementioned electronic element magnetic valve 15, liquid level sensor 4 are beset by technical hitches in process of production, continued material filling in the buffer barrel 11, more than the coating of buffer barrel 11 volumes then the very first time can flow out to the intraformational bed 6 from overfall 5, and liquid level continues to rise in intraformational bed 6, when liquid level arrives sensor 7, liquid magnetic valve 2 is given in the signal immediate feedback, magnetic valve 2 cuts out rapidly, pins feed pipe 3, stops charging.And the coating in the buffer barrel 11 continues under the pressure of air inlet pipe 8 promotes to being coated with cup 10 feed, the liquid level of buffer barrel 11 descends, the coating that is in the intraformational bed 6 then enters in the buffer barrel 11 from overfall 5 under the driving of pressure, and the liquid level in the intraformational bed 6 descends, and this moment, magnetic valve 2 was opened.Paint can 4 begins again to its charging when the liquid level in the buffer barrel 11 is lower than sensor 12.
Claims (2)
1, a kind of optical fiber coating feed system with revert prevention function, it is characterized in that system by paint can holding vessel, buffer barrel, be coated with the cup form, in the paint can holding vessel, be placed with paint can, the paint can holding vessel is equipped with the storage cover, holding vessel covers admission line is housed, and extend in the paint can, magnetic valve is housed on the admission line; The buffering bung is equipped with on buffer barrel top, is provided with intraformational bed in the buffer barrel; Buffer barrel covers three liquid level sensors is housed, liquid level sensor I is contained in buffer barrel top, and liquid level sensor II is contained in the buffer barrel bottom, and buffer barrel intraformational bed one upper lateral part has overfall, liquid level sensor III is equipped with at the opposite side top, and the buffer barrel sidepiece is equipped with admission line; Be connected with feed pipe between paint can holding vessel and the buffer barrel, be inserted into the bottom of paint can holding vessel and buffer barrel respectively, liquid electromagnetic valve is housed on the feed pipe; Buffer barrel is connected with discharge nozzle with being coated with between the cup.
2, the optical fiber coating feed system with revert prevention function according to claim 1 is characterized in that described liquid level sensor adopts P+F inductance type liquid level sensor.
