Abstract
The utility model discloses a device which can save water for reuse, pertaining to the technical field of water-saving engineering. A filter screen is vertically arranged in the water tank; the lower end of the filter screen is connected with the bottom of the water tank; a drain outlet and a water inlet are arranged in the water tank on one side of the filter screen respectively; the drain outlet is arranged at the bottom of the water tank, and the water inlet is arranged at the upper part of the water tank; an intake opening is arranged at the bottom of the other side of the filter screen, and an intake pipe is arranged at the other side of the filter screen; the upper end of the intake pipe is connected with a pump; and a joint interface which is connected with the toilet bowl is arranged at the other end of the pump. The domestic water from the kitchen, washing machine and bath is collected into the water inlet, and the collected water is filtered by the filter screen and then the water enters into the pump through an intake pipe for toilet bowl flushing. When the end cap is switched on, the sewage sediment is discharged from the drain outlet. The device has a simple and rational structure, the manufacturing cost is low, one-time investment can make life-long benefits, the water resource can be sufficiently used, the water can be saved and the environmental pollution can be reduced.
Description
Technical field
The utility model relates to the water-saving engineering technical field.
Background technology
Water is human Source of life, and operable water resource is limited, and especially the shortage of water resources that has occurred in China some areas makes water saving have more urgency.The task of top priority is rationally to utilize limited water resource, and it is crucial that using water wisely, minimizing are polluted.
Living water use just once uses at present, a large amount of quilts directly discharge, this this come from rice washing, the slurry in kitchen, the laundry water that comes from washing machine, the water that washes one's face, takes a shower that comes from the shower room has also strengthened cost of water treatment to the not still waste of fund that nuclear family, flatlet bring.
The utility model content
The utility model purpose is to make full use of the daily life water of family, unit, uses the water saving fixtures of living water use as the secondary of the use of flushing device for toilet water, water saving.
The utility model comprises a storage tank, upright to screen pack is set in storage tank, the lower end of described screen pack is sealedly connected on the storage tank bottom, in the storage tank of screen pack one side, arrange sewage draining exit, water inlet respectively, described sewage draining exit is arranged in the bottom of storage tank, water inlet is arranged in the top of storage tank, intake is arranged in bottom at the opposite side of screen pack, layout intake pipe at the opposite side of screen pack, connect water pump, the connector that the other end setting of described water pump can be connected with toilet in the intake pipe upper end.
To be collected into water inlet by pipeline from the various living water uses of kitchen, washing machine, shower, and after filtering by screen pack, enter water pump by intake pipe and be used for dashing just.Open plug, emit the dirt of heavy collection by sewage draining exit.The utility model is simple and reasonable for structure, and cost is low, and once investment is lifelong is benefited, and can make full use of water resource, reaches using water wisely, reduces environment pollution.
In order to prevent that water level is too high in the storage tank, on the storage tank of arranging sewage draining exit, water inlet one side, overfall gap is set also.
In order to improve the filtration water level, the upper end of screen pack is connected the top of storage tank.
The mesh of described screen pack is gradually big from bottom to top.
Description of drawings

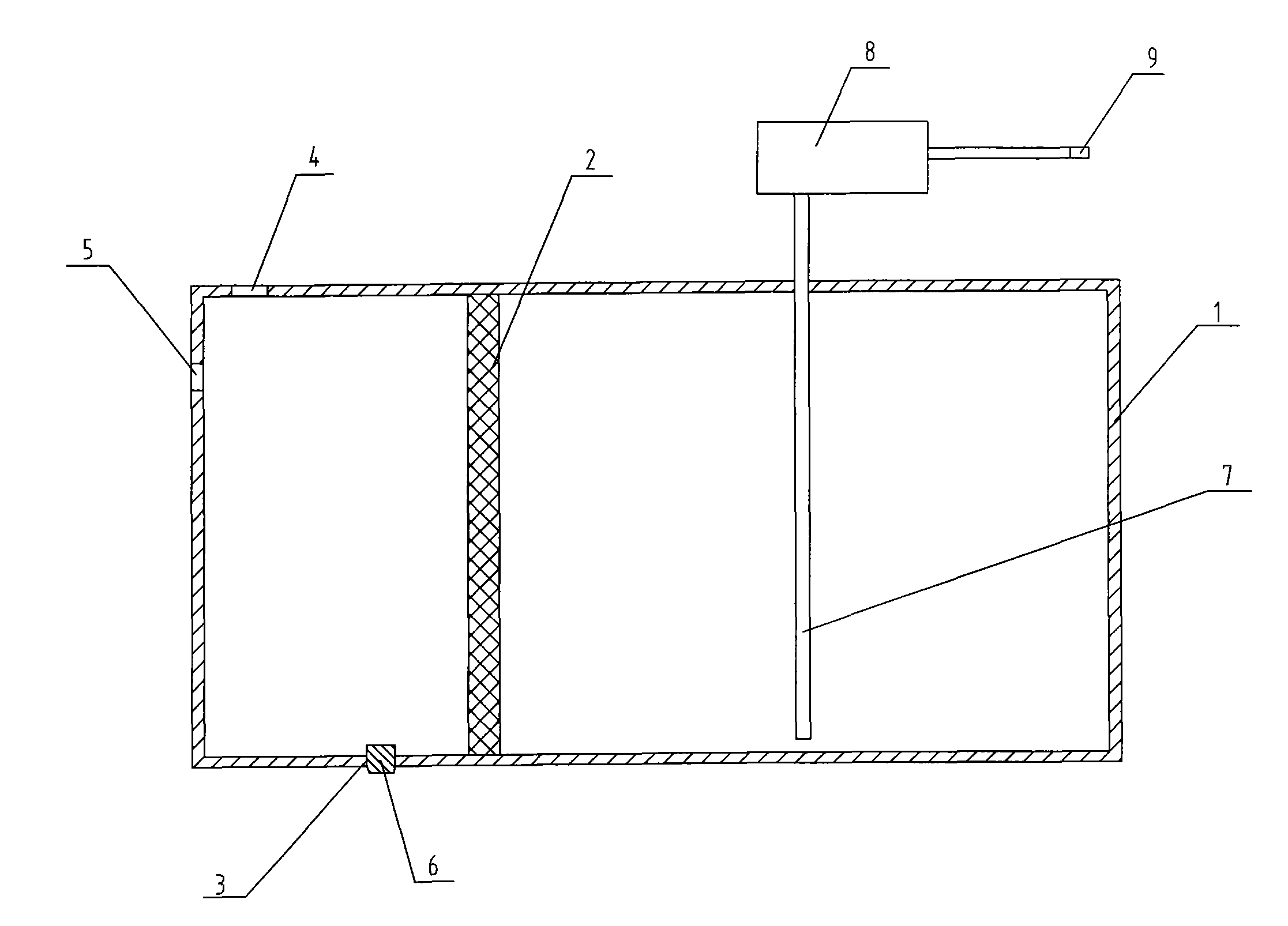

Fig. 1 is a kind of structural representation of the present utility model.
The specific embodiment
As shown in Figure 1, upright in the storage tank 1 of wall sealing the lower end of screen pack 2 is sealedly connected on storage tank 1 bottom to the gradually big from bottom to top screen pack 2 of mesh is set, and the upper end is connected the top of storage tank 1.
Arrange sewage draining exit 3, water inlet 4 and overfall gap 5 in the storage tank 1 of screen pack 2 one sides respectively, water inlet 4 is arranged in the top of storage tank 1, and sewage draining exit 3 is arranged in the bottom of storage tank 1, and plug 6 is set on sewage draining exit 3, and overfall gap 5 is arranged in water inlet 4 belows.
Also the outer end of overfall gap 5 and sewage draining exit 3 can be connected on the blowdown main of building by pipeline.
Claims (4)
1. secondary uses the water saving fixtures of living water use, it is characterized in that comprising a storage tank, upright to screen pack is set in storage tank, the lower end of described screen pack is sealedly connected on the storage tank bottom, in the storage tank of screen pack one side, arrange sewage draining exit, water inlet respectively, described water inlet is arranged in the top of storage tank, sewage draining exit is arranged in the bottom of storage tank, plug is set on sewage draining exit, layout intake pipe at the opposite side of screen pack, connect water pump, the connector that the other end setting of described water pump can be connected with toilet in the intake pipe upper end.
2. use the water saving fixtures of living water use according to the described secondary of claim 1, it is characterized in that on the storage tank of arranging sewage draining exit, water inlet one side, overfall gap being set also.
3. according to the water saving fixtures of claim 1 or 2 described secondaries use living water uses, it is characterized in that the upper end of described screen pack is connected the top of storage tank.
4. use the water saving fixtures of living water use according to the described secondary of claim 1, it is characterized in that the mesh of described screen pack is gradually big from bottom to top.
