Abstract
The utility model discloses a bolt fastener for substation equipment, which has structural main points that the fastener comprises an insulated operating rod and a universal joint; the universal joint is a universal joint which can be connected with a bolt fastening sleeve; the universal joint is arranged at one end of the insulated operating rod; and the insulated operating rod is an insulated drive rod. The fastener has the advantages that due to the general suitability of the universal joint, the bolt fastening sleeve can be conveniently replaced according to the models of bolts, and angles can be adjusted through the universal joint when the threading directions of the insulated operating rod and a bolt are not on the same straight line, so as to guarantee normal fastening operation; therefore, people can directly stand on ground or frames and keep away from electrified bodies to work by adopting the bolt fastener.
Description
Technical field:
The utility model relates to a kind of bolt tightener, particularly a kind of substation equipment cable clip bolt fastener.
Background technology:
Being connected and mainly adopting device clamp between all kinds of electrical equipments of transformer station and the lead-in wire, and the connecting bolt of wire clip body or drainage plate, loosening heating phenomenon usually appears through long-time running, because the needs of electric power netting safe running, the method of frequent employing livewire work is carried out fastening, adopts the equipotential live line work method in the past, though effect is comparatively desirable, but equipotential live line work complicated operating process work efficiency is lower, security risk is bigger, handles apart from next must the power failure of the situation of deficiency at some device securities.
The utility model content
The purpose of this utility model is to overcome the deficiencies in the prior art part and provides a kind of method of earth potential working that adopts that loosening device clamp is carried out charged fastening substation equipment bolt tightener.
The purpose of this utility model is achieved through the following technical solutions:
A kind of substation equipment bolt tightener, its structural feature is: comprise insulating bar, universal joint, the universal joint of described universal joint for being connected with the bolted sleeve, universal joint is arranged at an end of insulating bar, and described insulating bar is an insulating driving rod.
An end setting of common insulating bar can with the bolted sleeve universal joint of wildcard mutually, because the compatibility of universal joint, therefore can change the bolted sleeve according to the bolt model easily, and can wear when being out of line at insulating bar and bolt and adjust angle, guarantee that fastening operation is normal by universal joint.Therefore adopt bolt tightener of the present utility model, just need not to adopt the equipotential live line work method like that to prior art, must directly contact with electrical body, increased staff's workload, also brought security threat, such as might operating personnel's scald etc. seriously taking place because of the heating of bolt node to the staff.And can stand directly on ground or the framework, transport out of electrical body work.
The other end in insulating driving rod is provided with jockey, and described jockey can be connected with another insulating driving rod.
End in insulating driving rod is provided with this jockey, just can random as required flexibly lengthening insulating driving rod, thus make this bolt tightener be applicable to more conditions.
Described jockey or be the used general bayonet joint of common insulating bar.
Described jockey can also be the connector that is provided with nipple at two ends, and common insulating bar is provided with the screw connection that connector therewith matches.
Described insulating driving rod is that fiber glass epoxy draws tube pulling.
Described substation equipment bolt tightener also includes the thorn wheel spanner, adopts the general bayonet joint of insulating bar to be connected between thorn wheel spanner and the insulating bar.
At the other end of insulating bar the thorn wheel spanner is set, connects by bayonet joint between the two, like this, just can in good time as required assembling, to be suitable for the bolts assemblies of multiple different angles.
Be rotating flexible connection between described thorn wheel spanner and the bayonet joint.
To sting and adopt rotating flexible connection between wheel spanner and the bayonet joint, and so just can make the thorn wheel spanner realize relatively rotating, can carry out the front and back push-and-pull again, screw or unscrew nut thereby make this fastener can realize rotating with respect to bayonet joint.
Rotation between described thorn wheel spanner and the bayonet joint is that 360 degree rotate.
Flexible connection between thorn wheel spanner and the bayonet joint is for to be connected by connector, stings that wheel spanner is rotating to be connected on the connector, and bayonet joint is rotating to be connected on the connector.
Described connector is a panel with connecting elements.
Bolted sleeve at bolt tightener is embedded with alnico magnets.
Bolted sleeve at bolt tightener is embedded in alnico magnets, can utilize the suction realization bolt of magnet, the dismounting or the installation of nut.
Advantage of the present utility model is:
Converting equipment cable clip bolt fastener of the present utility model, to vertically wear on the electrical equipment to and level wear to bolt all can carry out fastening easily, both can fastening disconnecting link etc. the connecting bolt of ground installation, the bolt that also can fastening high-altitude median generatrix node and the bolt of power transmission sequence drainage thread node, it is comparatively convenient to operate, and can reach re-set target substantially.The utility model also has simultaneously:
1. charged in the past fastening apparatus heating bolt must be installed instruments such as insulated flexible ladder, hard ladder for adopting equipotential live line work during operation, need 1 of equipotential live line work electrician, cooperates 4 of electricians, and finishing a setting needs 40-50 minute.Use the charged fastener operation of converting equipment cable clip bolt, only need 2 of earth potential working personnel, finish a setting and need 10-20 minute.
2. safe: use the equipotential live line work method, must directly contact with electrical body, the converting equipment clearance is less, and safe distance be cannot say for sure card, when equipment bolt node generate heat when serious the operating personnel have scald dangerous.Use the charged fastener operation of converting equipment cable clip bolt, stand directly on ground or framework when the operating personnel operates,, be not subjected to the constraint of equipment clearance substantially away from electrical body, safer reliable.
Description of drawings
Fig. 1 is the structural representation of the substation equipment bolt tightener of the utility model embodiment 1

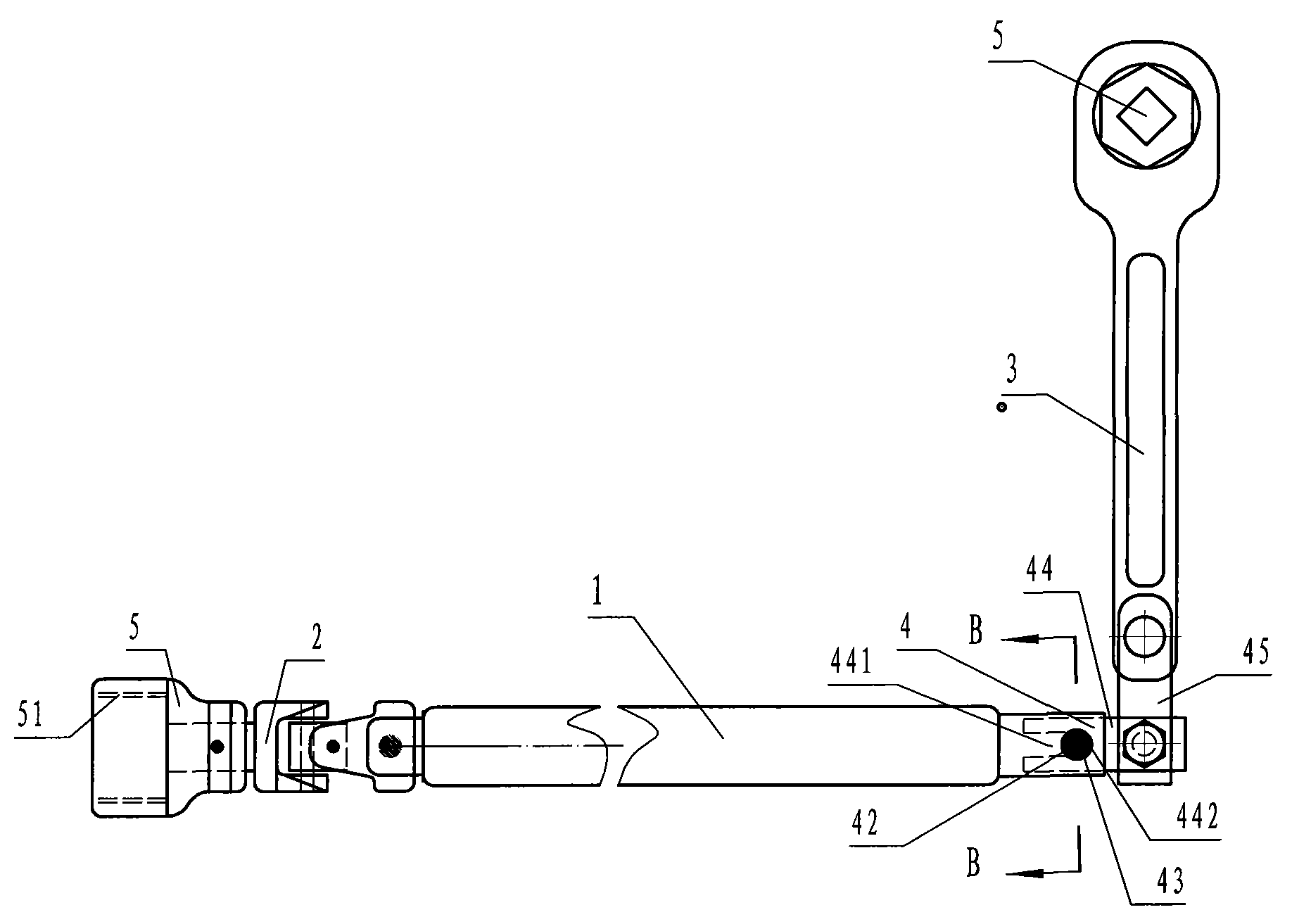

Fig. 2 is the structural representation of the substation equipment bolt tightener of the utility model embodiment 2
Fig. 3 is that the A of Fig. 2 is to view
Fig. 4 is the B-B cutaway view of Fig. 2
The specific embodiment
Below in conjunction with accompanying drawing the utility model is carried out concrete description:
A kind of substation equipment bolt tightener as shown in Figure 1 comprises insulating bar 1, universal joint 2.The universal joint of described universal joint for being connected with the bolted sleeve, universal joint is arranged at an end of insulating bar, and described insulating bar is an insulating driving rod.Described insulating driving rod is that fiber glass epoxy draws tube pulling.
It is same as the prior art that present embodiment is not stated part.
A kind of substation equipment bolt tightener shown in Fig. 2,3 comprises insulating bar 1, universal joint 2, thorn wheel spanner 3.Insulating bar is a kind of drive link.The universal joint of described universal joint for being connected with the bolted sleeve, universal joint is arranged at an end of insulating driving rod, and insulating driving rod is that fiber glass epoxy draws tube pulling.The other end in insulating driving rod is provided with jockey 4, and described jockey is the used general bayonet joint of common insulating bar.Described substation equipment bolt tightener also includes the thorn wheel spanner, is connected by the bayonet joint that is arranged at insulating bar one end between thorn wheel spanner and the insulating bar.Be that rotating 360 degree rotate between described thorn wheel spanner and the bayonet joint, described connector is flat connector, is embedded with alnico magnets 51 at the bolted sleeve 5 of bolt tightener.Described bayonet joint such as Fig. 4, be included in the slotted recess 41 that is provided with on the insulating bar, and the latch 42 of perforation two trough rims that on two trough rims of groove, are provided with and be set in spring 43 springs on the latch, bayonet joint also comprises can insert the plates 44 in the slotted recess on the insulating bar, described plates are vertically arranged with the groove 441 of strip along it, the notch end of plates is provided with the circular hole 442 greater than groove, the latch on this circular hole and the insulator end and on the spring use that matches.Be being rotationally connected of 360 degree between described thorn wheel spanner and the bayonet joint, connect by connector 45 that wheel spanner is rotating is connected on the connector for thorn between the two, bayonet joint is rotating to be connected on the connector.Described connector is a kind of panel with connecting elements.
Bolted sleeve at bolt tightener is embedded with alnico magnets.
It is identical with embodiment 1 that present embodiment is not stated part.
Claims (10)
1, a kind of substation equipment bolt tightener, it is characterized in that: comprise insulating bar (1), universal joint (2), the universal joint of described universal joint for being connected with bolted sleeve (5), universal joint is arranged at an end of insulating driving rod, and described insulating bar is an insulating driving rod.
2, substation equipment bolt tightener according to claim 1 is characterized in that: the other end in insulating driving rod is provided with jockey (4), and described jockey can be connected with another insulating driving rod.
3, substation equipment bolt tightener according to claim 2 is characterized in that: described jockey is the used general bayonet joint of common insulating bar.
4, substation equipment bolt tightener according to claim 2, it is characterized in that: described jockey (4) can also be the connector that is provided with nipple at two ends, and common insulating bar is provided with the screw connection that connector therewith matches.
5, according to claim 3 or 4 described substation equipment bolt tighteners, it is characterized in that: described insulating driving rod is that fiber glass epoxy draws tube pulling.
6, substation equipment bolt tightener according to claim 5, it is characterized in that: described substation equipment bolt tightener also includes thorn wheel spanner (3), adopts the general bayonet joint of insulating bar to be connected between thorn wheel spanner and the insulating bar.
7, substation equipment bolt tightener according to claim 6 is characterized in that: be rotating flexible connection between described thorn wheel spanner and the bayonet joint.
8, substation equipment bolt tightener according to claim 7 is characterized in that: the rotation between described thorn wheel spanner and the bayonet joint is that 360 degree rotate.
9, substation equipment bolt tightener according to claim 8, it is characterized in that: the flexible connection between thorn wheel spanner and the bayonet joint is for to be connected by connector (45), wheel spanner is rotating is connected on the connector for thorn, and bayonet joint is rotating to be connected on the connector.
10, substation equipment bolt tightener according to claim 9 is characterized in that: the bolted sleeve (5) at bolt tightener is embedded with alnico magnets (51).
