CN201139210Y - Wide neck container cleaner - Google Patents
Wide neck container cleaner Download PDFInfo
- Publication number
- CN201139210Y CN201139210Y CNU2007200150930U CN200720015093U CN201139210Y CN 201139210 Y CN201139210 Y CN 201139210Y CN U2007200150930 U CNU2007200150930 U CN U2007200150930U CN 200720015093 U CN200720015093 U CN 200720015093U CN 201139210 Y CN201139210 Y CN 201139210Y
- Authority
- CN
- China
- Prior art keywords
- brush holder
- brush
- electric motor
- container
- handle
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Brushes (AREA)
Abstract
The utility model relates to a widemouth container cleaner which comprises a handle, a brush holder and brush of kernel. An electric motor is arranged in the handle, the rotary shaft of the electric motor extends out of the bottom end of the handle, and the bottom end of the rotary shaft is connected with two equilong brush holder shafts; the brush of kernel is arranged at the top end of the brush holder. When the cleaner is used, a user inserts the brush holder and the rotary shaft into the inside of the container and turns on the switch of the electric motor, the electric motor drives the rotary shaft and the brush holder to rotate at high speed, the brush holder can not remain vertical state under the action of the centrifugal force to continually raise along with the raise of the rotate speed of the electric motor, and when the brush of kernel on the top end of the brush holder contacts the inner wall of the container, the brush holder can not raise any more, and then the brush of kernel begins to clean the inner wall of the container. The widemouth container cleaner has the advantages of simple structure, beautiful appearance, flexible operation, reasonable process, etc.
Description
Technical field
The utility model relates to a kind of container washing apparatus, especially a kind of wide-mouth bottle washer.
Background technology
Finding in chemical experiment, be difficult to the inside of wide-mouth bottle is cleaned up with common brush, trace it to its cause, is because bristle can't contact with the bottle inwall sometimes at all, causes impurity residual.And present brush can't change the length or the width of bristle and brush holder support, can not effectively clear up wide-mouth bottle.For this reason, we provide a kind of wide-mouth bottle washer very necessary.
Summary of the invention
The purpose of this utility model provides a kind of wide-mouth bottle washer, is used to solve problems such as common washer cleaning area is little, operation inconvenience.
For achieving the above object, the utility model wide-mouth bottle washer comprises handle, brush holder and bristle, and motor is installed in handle, and the rotating shaft of motor is vertically stretched out from the handle bottom, and the rotating shaft bottom is connected with two isometric brush holder axles; Bristle is arranged on the brush holder top.
After adopting said structure, the user inserts bottle inside to brush holder and rotating shaft, and closed then motor switch rotates at a high speed by the driven by motor rotating shaft, rotating shaft drives two brush holder rotations of bottom, brush holder is subjected to centrifugal action and no longer keeps vertical state, and along with the continuous rising of motor speed, brush holder dwindles gradually with the angle at the bottle end, when the bristle on brush holder top contacts with the bottle inwall, brush holder can't rise, and at this moment, by bristle the bottle inwall is cleaned.
The utility model has the advantages that: simple in structure, good looking appearance, flexible operation, technology are reasonable, and inwall that can electronic cleaning solution bottle is saved time, raised the efficiency.
Description of drawings

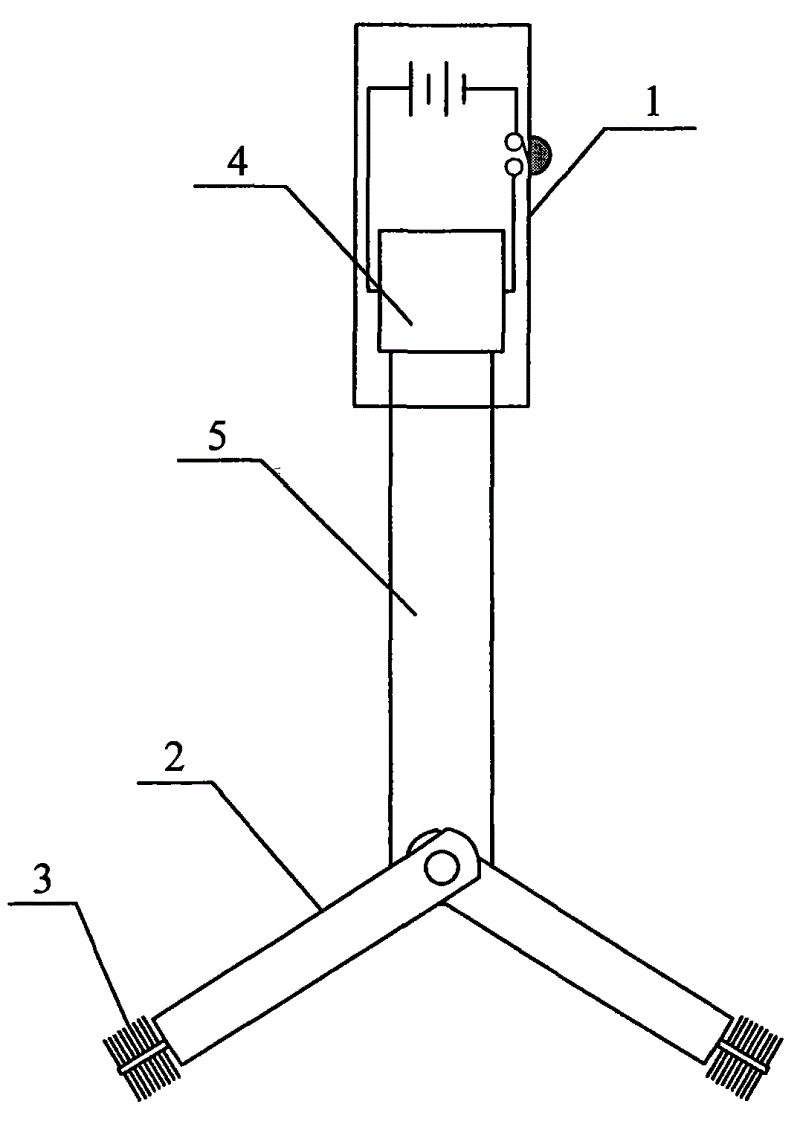

Fig. 1 is the overall structure schematic diagram of the utility model wide-mouth bottle washer.
The specific embodiment
As shown in Figure 1, the utility model wide-mouth bottle washer comprises handle 1, brush holder 2 and bristle 3, and motor 4 is installed in handle 1, and the rotating shaft 5 of motor 4 is vertically stretched out from handle 1 bottom, and rotating shaft 5 bottoms are connected with 2 of two isometric brush holders; Bristle 3 is arranged on brush holder 2 tops.
Claims (1)
1, a kind of wide-mouth bottle washer, comprise handle (1), brush holder (2) and bristle (3), it is characterized in that: motor (4) is installed in handle (1), and the rotating shaft (5) of motor (4) is vertically stretched out from handle (1) bottom, and rotating shaft (5) bottom is connected with two isometric brush holders (2) axle; Bristle (3) is arranged on brush holder (2) top.
