Abstract
The utility model relates to a garbage bin, in particular to an underground embedded environment-friendly garbage bin, which comprises a garbage bin body and an upper cover arranged on the bin body. The utility model is characterized in that a garbage can is arranged in the garbage bin body; the upper cover comprises a big cover matched with the garbage bin body and a small cover connected with the big cover through a hinge; a hole for throwing the garbage is opened on the corresponding position of the big cover and the small cover; a treading and cover-lifting mechanism is arranged on one side of the big cover. As the garbage bin adopts the embedded type together with the corresponding structure, the technical proposal is characterized in that: 1. the adopted embedded garbage bin can reduce the occupied ground space of the garbage bin, which is conducive to environmental beauty; 2. the treading type is adopted when throwing the garbage with sanitary and convenient use and good closeness, which solves the environmental pollution caused by bad closeness of the prior art; 3. the cover lifting method of the garbage bin adopts the planar linkage mechanism with simple and reasonable structure and long service life.
Description
Affiliated technical field
The utility model relates to a kind of rubbish container, particularly a kind ofly is placed on underground flush type environment-protection garbage can.
Background technology
Along with the raising of living standard and environmental consciousness, people propose higher requirement to living environment.The rubbish container that uses in city and the sub-district mostly is greatly and is placed on the ground at present, because sealing is bad, peculiar smell fly worm scatters, cause city environmental pollution in various degree, and after the rubbish container long-term use, the surface can't be cleaned out, and also has influence on the environment of city or sub-district and attractive in appearance, has also occupied bigger space, ground simultaneously.
Summary of the invention
The purpose of this utility model is to solve the defective that the conventional garbage case exists, provide a kind of rational in infrastructure, sealing effect good, open and be placed on underground flush type environment-protection garbage can easily.
The technical solution of the utility model is: a kind of flush type environment-protection garbage can, comprise rubbish container casing and the loam cake that is installed on the casing, it is characterized in that being placed with sewage disposer in the rubbish container casing, loam cake comprises big lid that matches with the rubbish container casing and the tegillum that is connected through the hinge and is covering greatly, have the hole of throwing in rubbish at big lid and tegillum opposite position, in big lid one side pin is installed and steps on uncovery mechanism.
It is hinged with big lid by an end that above-mentioned pin is stepped on uncovery mechanism, the other end and intermediate connecting rod pivotally attached driving lever and an end and intermediate connecting rod are hinged, and the other end and loam cake bonded assembly are taken off and covered the bar composition, and stretcher is fixedly connected on the driving lever, it is hinged with big lid to take off the middle part of covering bar, forms lever.
Above-mentionedly take off that to cover bar and being connected of loam cake be to adopt taking off to cover bar and the tegillum lower plane has roller to the corresponding position by axle mounting.
The utility model adopts the conventional garbage bucket whenever goes into underground mode, cooperates corresponding structure simultaneously, makes the technical program have following characteristics: 1, owing to adopt the flush type sewage disposer, can effectively reduce the shared ground space of conventional garbage bucket, help environmental beauty; 2, when throwing in rubbish, adopt foot-operated mode, easy to use, health, closure is good, has solved the conventional garbage bucket because sealing is bad, the environmental pollution that causes; 3, the mode of lid of taking off of sewage disposer adopts planar linkage mechanism, have simple and reasonable for structure, the characteristics of long service life.
Description of drawings

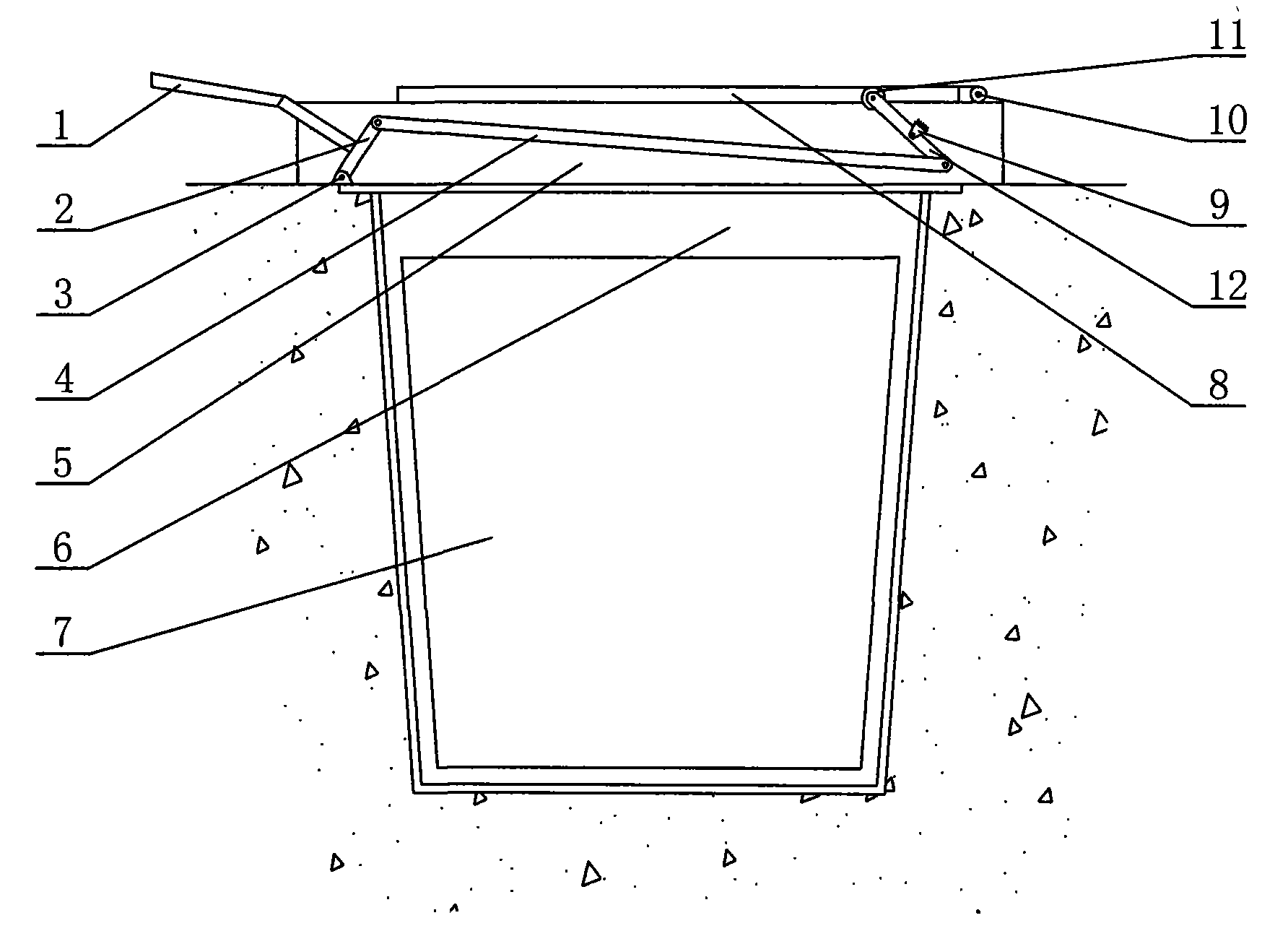

Accompanying drawing 1 is the utility model structural representation;
Accompanying drawing 2 is the utility model accompanying drawing 1 plan structure scheme drawing.
The specific embodiment
As shown in Figure 1, 2, rubbish container casing 6 is to be placed on undergroundly, and the upper edge of casing 6 enters in the rubbish container to prevent water a little more than ground level.In casing 6, be placed with sewage disposer 7, when cleaning rubbish, will take away, just the sewage disposer 7 that holds rubbish can be taken out, clear up with the loam cake that the rubbish container casing matches.
Loam cake comprises the big lid 5 that matches with the rubbish container casing and is connected the tegillum 8 that covers greatly by hinge 10, has the hole of throwing in rubbish at big lid and tegillum opposite position, in big lid one side pin is installed and steps on uncovery mechanism.When throwing in rubbish, only using foot is stepped on uncovery mechanism, just tegillum can be opened, and rubbish is rendered in the sewage disposer 7, and pin is lifted, and tegillum falls to closing under the effect of gravity automatically.
Pin is stepped on uncovery mechanism and is adopted planar linkage mechanism to realize tegillum is opened, this mechanism is hinged by hinge 3 with big lid by the lower end, upper end and intermediate connecting rod 4 pivotally attached driving levers 2 and lower end and intermediate connecting rod 4 are hinged, the upper end is taken off with the loam cake bonded assembly and is covered bar 12 compositions, stretcher 1 is fixedly connected on the driving lever 2, it is hinged by hinge 9 with big lid to take off the middle part of covering bar 12, forms lever.Take off the upper end of covering bar 12 and be installed with axle 13, the other end of axle 13 is stretched below loam cake, and roller 11 is installed on it.When stepping on stretcher 1 downwards, planar linkage mechanism motion drives to take off and cover bar 12 and clockwise rotate along hinge 9, and roller 11 heads on tegillum 8 covers input rubbish greatly along overturning in hinge 10 clockwise directions, opening hole, can throw in rubbish.When unclamping stretcher 1, tegillum falls to closing the hole of throwing in rubbish automatically under the effect of gravity.
Take off and cover bar 12 and can adopt other versions, as long as tegillum can be opened with being connected also of loam cake.
Claims (3)
1, a kind of flush type environment-protection garbage can, comprise rubbish container casing and the loam cake that is installed on the rubbish container casing, it is characterized in that being placed with in the rubbish container casing (6) sewage disposer (7), loam cake comprises the big lid (5) that matches with the rubbish container casing and is connected the tegillum (8) that covers greatly by hinge (10), have the hole of throwing in rubbish at big lid and tegillum opposite position, in big lid one side pin is installed and steps on uncovery mechanism.
2, flush type environment-protection garbage can according to claim 1, it is characterized in that it is hinged with big lid by an end that above-mentioned pin is stepped on uncovery mechanism, the other end and intermediate connecting rod (a 4) pivotally attached driving lever (2) and an end and intermediate connecting rod (4) are hinged, the other end and loam cake bonded assembly are taken off and are covered bar (12) composition, stretcher (1) is fixedly connected on the driving lever (2), it is hinged with big lid to take off the middle part of covering bar (12), forms lever.
3, flush type environment-protection garbage can according to claim 2 is characterized in that above-mentionedly taking off that to cover bar (12) and being connected of loam cake be to adopt taking off cover bar and the tegillum lower plane is equipped with roller (11) to the corresponding position by spool (13).
