The utility model relates to an adjustable movable scaffold, legs are installed under a footplate, and the height of the legs can be adjusted. A rolling wheel and a rolling wheel bracket are installed under a sleeve foot. A support bar is installed on the footplate, the upper side of the support bar is connected with a gird, and both ends of the gird have a brace strut which is connected with the support bar. A vertical bar is connected with the upper side of the middle part of the gird, and a cross bar is connected with the upper side of both parts of the gird. A telescopic adjustment bar is connected with the upper end of the vertical bar, two to six round holes arranged at each end of the telescopic adjustment bar, and the both ends of the telescopic adjustment bar are respectively sleeved with a loop bar. The loop bar is provided with round holes, and the loop bar round holes are connected with the loop bar round holes which are arranged at different positions of the telescopic adjustment bar by a bolt to realize that the loop bar can be telescoped. The loop bar is arranged on the cross bar which is arranged at the upper side of the gird, an operation platform is arranged at the upper side of the telescopic adjustment bar and the loop bar, and a guard rail is connected with the outer end of the loop bar. By applying the adjustable movable scaffold of the utility model, the height of the scaffold can be adjusted, the length of the operation platform of the scaffold can also be adjusted, and the adjustable movable scaffold has the advantage of convenient movement.
Description
Affiliated technical field
The utility model relates to a kind of mobile scaffold for building, is particularly useful for the mobile scaffold of indoor decoration.
Background technology
The scaffold of existing indoor decoration is the fixed scaffold that sets up with stool, plank.Its weak point is: the fixed scaffold of this structure, and fixed size, unadjustable; And move difficulty.
The utility model content
The purpose of this utility model is that a kind of adjustable mobile scaffold, the height of adjustable foot hand frame, the length that also can regulate the scaffold operating platform, and conveniently moving are provided in order to address the above problem.
The technical scheme that its technical problem that solves the utility model adopts is: adjustable mobile scaffold, the leg that can regulate height is installed below sole, and linking to each other below sole is connected to adjusting rod, and 2-8 transverse holes arranged at the bottom of adjusting rod.Be with the cover pin in the outside of adjusting rod, the cover pin has cross-drilled hole, and the diverse location that will overlap pin and adjusting rod with bolt is connected, to realize the adjusting of scaffold height.Face is equipped with roller and rolling wheel support in the cover underfooting.Cramp bar is housed on sole, on cramp bar, is connected with cross-arm, have strut to be connected on the cramp bar at two of cross-arm.On the central part of cross-arm, be connected with montant, on the position, both sides of cross-arm, be connected with cross bar.Be connected with the telescopic adjustment bar in the montant upper end, at two of telescopic adjustment bar 2-6 circular hole arranged respectively, respectively be with loop bar, circular hole is arranged on loop bar at two of telescopic adjustment bar, with bolt the circular hole of loop bar circular hole with telescopic adjustment bar diverse location is connected, to realize that loop bar can stretch.Loop bar rests on the cross bar above the cross-arm.At telescopic adjustment bar and setting operation platform above the loop bar.Be connected with to protect in the outer end of loop bar and block.
Effective effect of the present utility model is to use adjustable mobile scaffold of the present utility model, the height of adjustable foot hand frame, the length that also can regulate the scaffold operating platform, and conveniently moving.
Description of drawings

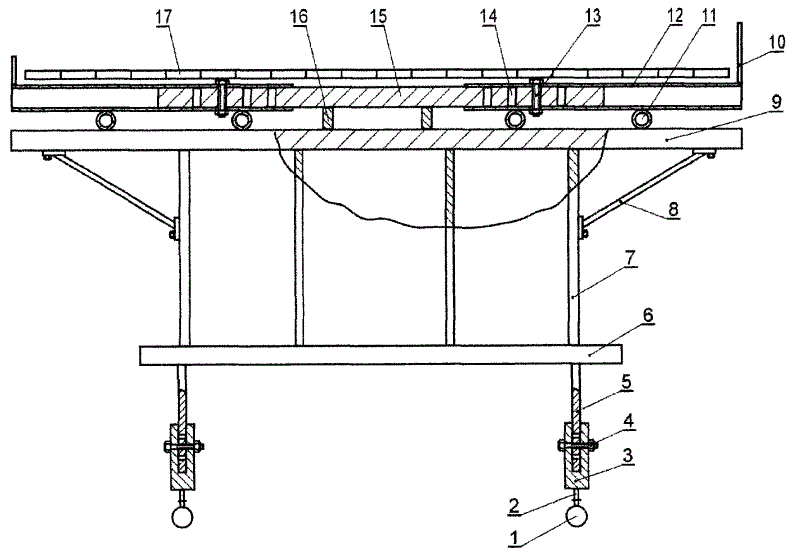

Figure is the structural representation of adjustable mobile scaffold of the present utility model.1-roller among the figure, the 2-rolling wheel support, 3--overlaps pin, 4-bolt, 5-adjusting rod, 6--sole, the 7-cramp bar, the 8-strut, 9--cross-arm, 10--protect and block, 11--cross bar, 12--loop bar, the 13--bolt, 14--circular hole, 15--telescopic adjustment bar, 16--montant, 17--operating platform.
The specific embodiment
Adjustable mobile scaffold is equipped with the leg that can regulate height below sole (6), linking to each other below sole (6) is connected to adjusting rod (5), and 2-8 transverse holes arranged at the bottom of adjusting rod (5).Be with pin (3) in the outside of adjusting rod (5), cover pin (3) has cross-drilled hole, and the transverse holes that will overlap the pin (3) and the diverse location of adjusting rod (5) with bolt (4) is connected, to realize the adjusting of scaffold height.Below cover pin (3), roller (1) and rolling wheel support (2) are installed.Cramp bar (7) is housed on sole (6), on cramp bar (7), is connected with cross-arm (9), have strut (8) to be connected on the cramp bar (7) at two of cross-arm (9).On the central part of cross-arm (9), be connected with montant (16), on the position, both sides of cross-arm, be connected with cross bar (11).Be connected with telescopic adjustment bar (15) in montant (16) upper end, at two of telescopic adjustment bar (15) 2-6 circular hole (14) arranged respectively, respectively be with loop bar (12) at two of telescopic adjustment bar (15), on loop bar (12), circular hole is arranged, with bolt (13) circular hole of loop bar circular hole with telescopic adjustment bar (15) diverse location is connected, can stretches to realize loop bar (12).Loop bar (12) rests on the cross bar (11) above the cross-arm.At telescopic adjustment bar (15) and setting operation platform (17) above the loop bar (12).Be connected with to protect in the outer end of loop bar (12) and block (10).
Claims (4)
1, adjustable mobile scaffold, it is characterized in that: linking to each other below sole is connected to adjusting rod, 2-8 transverse holes arranged at the bottom of adjusting rod, be with the cover pin in the outside of adjusting rod, the cover pin has cross-drilled hole, the diverse location that will overlap pin and adjusting rod with bolt is connected, face is equipped with roller and rolling wheel support in the cover underfooting, cramp bar is housed on sole, on cramp bar, be connected with cross-arm, on the central part of cross-arm, be connected with montant, on the position, both sides of cross-arm, be connected with cross bar, be connected with the telescopic adjustment bar in the montant upper end, at two of telescopic adjustment bar 2-6 circular hole arranged respectively, respectively be with loop bar, circular hole is arranged on loop bar at two of telescopic adjustment bar, with bolt the circular hole of loop bar circular hole with telescopic adjustment bar diverse location is connected, loop bar rests on the cross bar above the cross-arm.
2, adjustable mobile scaffold according to claim 1 is characterized in that: have strut to be connected on the cramp bar at two of cross-arm.
3, adjustable mobile scaffold according to claim 1 is characterized in that: at telescopic adjustment bar and setting operation platform above the loop bar.
4, adjustable mobile scaffold according to claim 1 is characterized in that: be connected with to protect in the outer end of loop bar and block.
