The utility model discloses a microcomputer-controlled damp proof dehumidifying device, which comprises a casing body, a moisture absorbing valve and a moisture removing valve are respectively arranged at the both opposite surfaces of the casing body, the start-up of one of the moisture absorbing valve and the moisture removing valve is controlled by a valve leaf, a dry box and a fan are fixedly arranged in the casing body, the wind direction of the fan directs to the dry box, a heater and a drying agent are arranged in the dry box, a humidity sensor is contacted in the case body, signals of the humidity sensor are transmitted to an controller, the actions of the valve leaf, the heater and the fan are controlled by the controller; when the temperature in the case is lower than the setting value, the moisture absorbing valve is opened, the controller is provided with a plurality of first time segments, and the fan is opened in the first time segment to absorb the moisture; When the temperature in the case is higher than the setting value, the controller controls the moisture removing valve to be opened at the second time segment and to work the heater at the second time segment, to remove the moisture. The microcomputer-controlled damp proof dehumidifying device has the advantages that the control is accurate, the speed is fast, the efficiency is high, the moisture absorbing and the moisture removing effects are excellent, the structure is simple, and the work is reliable.
Description
Technical field
The utility model relates to a kind of moistureproof case (cabinet) moisture separator.
Background technology
In a single day making moist as products such as photographic goods promptly can be mouldy, and influence photography quality, more can corrode the metal part of equipment, therefore, the user can place premium-quality photographic goods in the moistureproof case, and assembles a moistureproof moisture separator on a wherein perisporium of moistureproof case, this protection against the tide moisture separator has the function with the moisture discharge in the casing, guaranteeing the degree of drying of moistureproof case, and rely on natural wind during present moistureproof moisture separator moisture absorption, rely on memorial alloy to open the hydrofuge valve during hydrofuge; The moisture separator one moisture sorption effect of right this structure is relatively poor, shows that mainly rate of moisture absorption is slow, and valve opening is untimely during its two hydrofuge, thereby influences the hydrofuge effect.
Summary of the invention
In order to overcome above-mentioned defective, the utility model provides a kind of microcomputerized control moistureproof moisture separator, and speed is fast during this microcomputerized control protection against the tide moisture separator moisture absorption, hydrofuge is effective and simple in structure, reliable operation.
The utility model for the technical scheme that solves its technical matters and adopt is: the moistureproof moisture separator of a kind of microcomputerized control, comprise housing, the relative two sides of housing are respectively equipped with moisture absorption valve (use when installing and be opened in the case), hydrofuge valve (use when installing and be opened on outside the case), valve leaf control moisture absorption valve and one of them unlatching of hydrofuge valve (i.e. hydrofuge valve closing when the moisture absorption valve opening, otherwise it is opposite), set firmly drying box and fan in the housing, the wind direction of fan is facing to drying box, be provided with temperature booster and desiccant in the drying box, humidity sensor is contacted with in the casing, the signal of humidity sensor passes to controller, controller control cock gate flap, the action of temperature booster and fan; Moisture absorption valve opening when humidity is lower than setting value in the case, controller are set some very first time sections, start at very first time section internal fan and carry out moisture absorption; When humidity in the case is higher than when equaling setting value, then controller control hydrofuge valve is opened in second time period and temperature booster was worked in described second time period of setting setting, and carries out hydrofuge.
The beneficial effects of the utility model are: because this example employing microcomputer controller carries out the control to valve leaf, temperature booster and fan, precise control like this, speed is fast and efficient is high, and moisture absorption, hydrofuge is effective and simple in structure, reliable operation.
Description of drawings
Fig. 1 is provided with the scheme drawing of moisture absorption valve one side for the utility model;
Fig. 2 is provided with the scheme drawing of hydrofuge valve one side for the utility model;

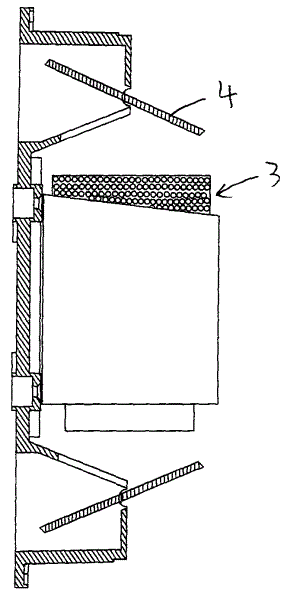

State schematic diagram (for sucting wet state) when Fig. 3 is valve leaf described in the utility model control moisture absorption valve opening;
State schematic diagram (for the hydrofuge state) when Fig. 4 is valve leaf described in the utility model control hydrofuge valve opening.
The specific embodiment
Embodiment: the moistureproof moisture separator of a kind of microcomputerized control, comprise housing, the relative two sides of housing are respectively equipped with moisture absorption valve 1 (use when installing and be opened in the case), hydrofuge valve 2 (use when installing and be opened on outside the case), valve leaf 4 control moisture absorption valves and one of them unlatching of hydrofuge valve (i.e. hydrofuge valve closing when the moisture absorption valve opening, hydrofuge valve opening when the moisture absorption valve closing), set firmly drying box 3 and fan in the housing, the wind direction of fan is facing to drying box, be provided with temperature booster and desiccant in the drying box, humidity sensor is contacted with in the casing, the signal of humidity sensor passes to controller, controller control cock gate flap, the action of temperature booster and fan; Moisture absorption valve opening when humidity is lower than setting value in the case, controller are set some very first time sections, start at very first time section internal fan and carry out moisture absorption; When humidity in the case is higher than when equaling setting value, then controller control hydrofuge valve is opened in second time period and temperature booster was worked in described second time period of setting setting, and carries out hydrofuge.
Course of action of the present utility model is: humidity sensor places in the casing, when humidity in the case surpasses setting value, controller sends the work signal, heater heats and hydrofuge valve opening, temperature booster heats hydrofuge to chemical molecular sieve (being desiccant), carries out hydrofuge in second time period of setting, after finishing, controller sends signal and stops heating, simultaneously hydrofuge valve closing (moisture absorption this moment valve opening).After hydrofuge is finished, controller sends the action of signal control fan, carries out moisture absorption, sets some very first time sections by spacing of controls in this moisture absorption process, move, carry out moisture absorption at each very first time section internal fan, all the other the time fans in the moisture absorption process stop action.
In actual the use, the drying box shell is a mesh aluminium box, be beneficial to moisture absorption and hydrofuge, the air-out front of fan is provided with stuffy aluminium box again, stuffy aluminium box is opened on mesh aluminium box, stuffy aluminium box is the guiding wind path, make wind path more concentrated, fan wind-force sucks moisture in the band mesh drying box, be filtered into to concentrate behind the dry air by chemical molecular sieve and be blown in the case, form dry air, increase in the case wind circulation and promote rate of moisture absorption in the case, be provided with two drying boxes and fan in this example, can increase work efficiency like this.
In this example, the rotation of valve leaf realizes by motor, can establish micro-switch in addition again, and micro-switch is opened when the valve leaf turns to unlatching moisture absorption valve, micro-switch control fan power supply.
Shell can adopt anti-fire-retardant plastics forming materials again, like this can high temperature resistant and firm not cracky; Desiccant adopts high-effect chemical molecular to sieve to carry out moisture absorption.
Claims (1)
1. the moistureproof moisture separator of a microcomputerized control, comprise housing, the relative two sides of housing are respectively equipped with moisture absorption valve, hydrofuge valve, valve leaf control moisture absorption valve and one of them unlatching of hydrofuge valve is characterized in that: set firmly drying box and fan in the housing, the wind direction of fan is facing to drying box, be provided with temperature booster and desiccant in the drying box, humidity sensor is contacted with in the casing, and the signal of humidity sensor passes to controller, the action of controller control cock gate flap, temperature booster and fan; Moisture absorption valve opening when humidity is lower than setting value in the case, controller are set some very first time sections, start at very first time section internal fan and carry out moisture absorption; When humidity in the case is higher than when equaling setting value, then controller control hydrofuge valve is opened in second time period and temperature booster was worked in described second time period of setting setting, and carries out hydrofuge.
