Abstract
The utility model relates to a mobile phone detection device comprising a base seat, a guide rail, a jig, a PCB board detection device and an interface detection device, wherein the guide rail is arranged on the base seat, the jig is disposed on the guide rail, a mobile phone under test is arranged on the jig, and the jig transfers the mobile phone under test from a first initial position to a detection position on the guide rail by means of reciprocating movement; the interface detection device is disposed on the base seat and does the reciprocating movement on the base seat from a second initial position to the detection position, and the interface detection device is in contact with the mobile phone under test positioned at the detection position for detecting the mobile phone under test; and the PCB board detection device is arranged on the base seat, and the PCB board interface device does the reciprocating movement on the base seat from a third initial position to the detection position and is in contact with the mobile phone under test positioned at the detection position for detecting the mobile phone under test. The mobile phone detection device can carry out a plurality of detection to the mobile phone simultaneously with labor and material saving, stable and reliable testing results and rather high efficiency.
Description
Technical field
The utility model relates to detection range, relates in particular to a kind of Mobile Phone Checkout Gear.
Background technology
In mobile phone parts Assembling Production process, for guaranteeing to assemble quality, the function of the product component after assembling is finished detects the check problem that is absolutely necessary.At present, the mode of producer's employing is that different parts are detected respectively mostly, a special checkout equipment will be purchased or make to a kind of parts of every check, detect mobile phone need many people in batches gradation carry out, do like this and not only waste great amount of manpower and financial resources but also occupied a large amount of spaces.
The utility model content
The utility model provides a kind of mobile phone multi-tester, can the function of a plurality of parts of mobile phone be detected respectively.
The utility model provides a kind of Mobile Phone Checkout Gear, comprise base, guide rail, anchor clamps, pcb board checkout gear and interface detection apparatus, above-mentioned guide rail is arranged on the base, guide rail is provided with anchor clamps, anchor clamps are provided with mobile phone to be measured, and anchor clamps reciprocating motion on guide rail is put mobile phone to be measured and is transferred to the detection position from first start bit; Above-mentioned interface detection apparatus is arranged on the base, and interface detection apparatus is reciprocating motion on base, moves to the detection position from second original position, and interface detection apparatus contacts with the mobile phone to be measured that is positioned at the detection position, and mobile phone to be measured is detected; Above-mentioned pcb board checkout gear is arranged on the base, and the reciprocating motion on base of pcb board interface arrangement moves to the detection position from the 3rd original position, and the pcb board interface arrangement contacts with the mobile phone to be measured that is positioned at the detection position, and mobile phone to be measured is detected.
Above-mentioned pcb board checkout gear comprises support column, PCB lower platen and PCB motion cylinder, support column is arranged on the base, being arranged on the support column of PCB lower platen activity, PCB motion cylinder is connected with the PCB lower platen, and control PCB lower platen moves to the detection position from the 3rd original position.
Above-mentioned interface detection apparatus comprises interface motion cylinder and detects the interface mount pad, detect being arranged on the base of interface mount pad activity, interface motion cylinder is arranged on the base, and with detect the interface mount pad and be connected, control detection interface mount pad moves to the detection position from second original position.
Above-mentioned Mobile Phone Checkout Gear also comprises analytical equipment, and analytical equipment is connected with the pcb board checkout gear with described interface detection apparatus, and the test result of docking port checkout gear and pcb board checkout gear is analyzed.
Above-mentioned analytical equipment adopts industrial computer.
The above-mentioned display unit that also comprises, display unit is connected with analytical equipment, and the analysis result of analytical equipment is shown.
The utility model provides a kind of Mobile Phone Checkout Gear can be simultaneously a plurality of functions of mobile phone to be detected, and has saved manpower and materials, and test result is reliable and stable, and efficient is higher.
Description of drawings

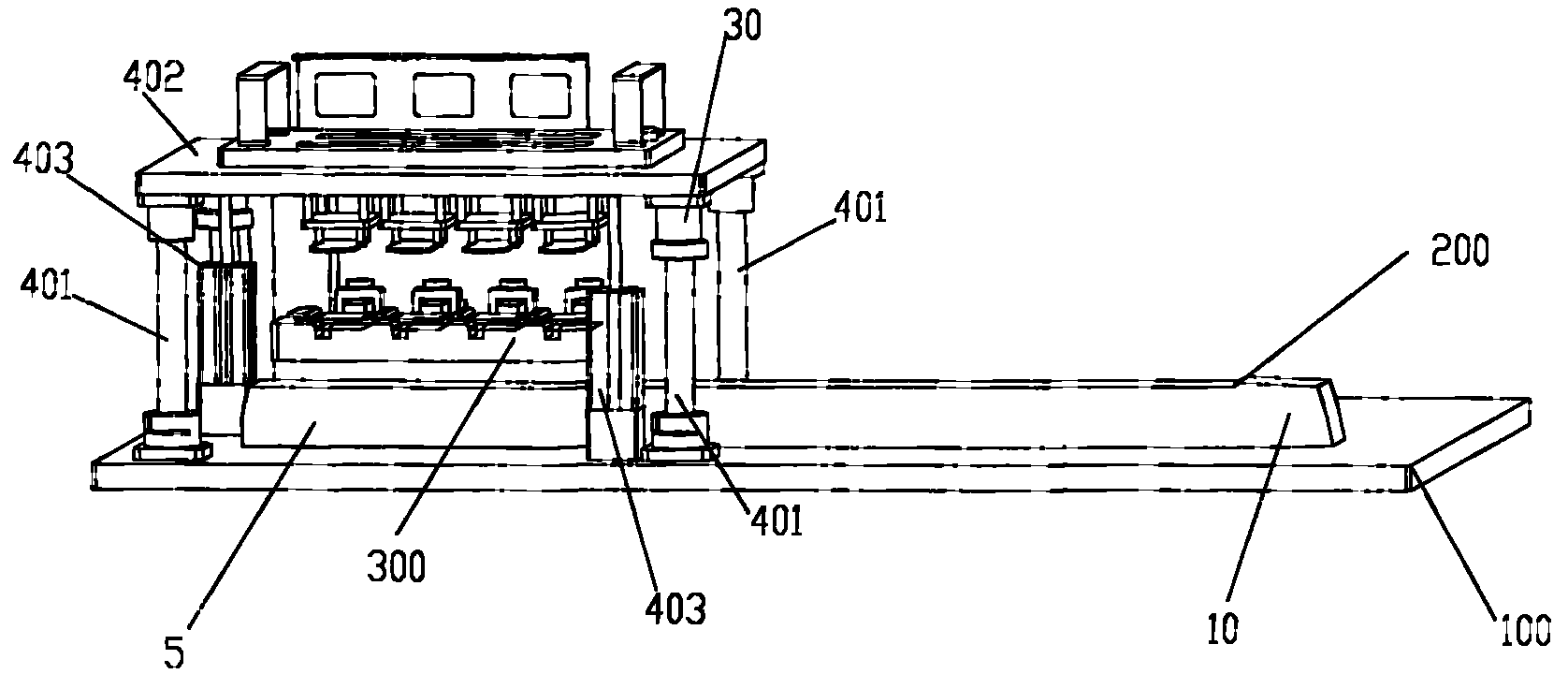

Fig. 1 is the Mobile Phone Checkout Gear front perspective view of the utility model first embodiment;
Fig. 2 is the oblique rear perspective schematic diagram of the Mobile Phone Checkout Gear of the utility model first embodiment;
Fig. 3 is the structural representation of the anchor clamps of the utility model first embodiment;
Fig. 4 is the structural representation of the PCB lower platen of the utility model first embodiment;
Fig. 5 is the detection pcb board structural representation of the utility model first embodiment;
Fig. 6 is the detection interface mount pad structural representation of the utility model first embodiment;
The utility model purpose, function and advantage will be in conjunction with the embodiments, are described further with reference to accompanying drawing.
Embodiment
See figures.1.and.2, Mobile Phone Checkout Gear comprises base 100, guide rail 200, anchor clamps 300, pcb board checkout gear and interface detection apparatus.
With reference to Fig. 3, anchor clamps 300 are provided with mobile phone 1000 to be measured,, the both hands switch of startup anchor clamps 300, anchor clamps 300 reciprocating motion on guide rail 200 is put 10 with mobile phone 1000 to be measured from first start bit and is transferred to detection position 5.First start bit is put 10 and is positioned at the end of guide rail 200 away from pcb board checkout gear and interface detection apparatus, and it is 10 relative that detection position 5 and first start bit are put, at the other end of guide rail 200.
The pcb board checkout gear comprises support column 401, PCB lower platen 402 and PCB motion cylinder 403, support column 401 is arranged on the base 100, PCB lower platen 402 is arranged on the support column 401 versatilely, PCB motion cylinder 403 is connected with PCB lower platen 402, PCB motion cylinder 403 can reciprocating motion, and control PCB lower platen 402 moves to detection position 5 from the 3rd original position 30.The 3rd original position 30 is positioned at the top least significant end of support column 401, PCB lower platen 402 is provided with and detects with pcb board 600 (Fig. 4, shown in Figure 5), when PCB lower platen 402 is positioned at the 3rd original position 30, detect with pcb board 600 and be arranged on the mobile phone to be measured 1000 that is positioned at detection position 5 on the anchor clamps 300 and be separated, can not detect mobile phone 1000 to be measured.When PCB lower platen 402 was positioned at detection position 5, detection contacted with the pcb board of pcb board 600 with mobile phone 1000 to be measured, and mobile phone 100 to be measured is detected.PCB motion cylinder 403 adopts the both hands switch to control start and stop, and adopts the singlehanded PCB of startup of both hands switch quiescing person motion cylinder 403, prevents the other injury that hand may cause of 403 couples of operators of PCB motion cylinder.
With reference to Fig. 6, interface detection apparatus comprises interface motion cylinder 502 and detects interface mount pad 501, detect being arranged on the base 100 of interface mount pad 501 activities, interface motion cylinder 502 is arranged on the base 100, and with detect interface mount pad 501 and be connected, interface motion cylinder 502 can reciprocating motion, and control detection interface mount pad 501 moves to detection position 5 from second original position 20.Detect interface mount pad 501 and be provided with detection interface plug 700.Second original position 20 can not contact the interface plug 700 on the detection interface mount pad 501 that is positioned at second original position 20 with the mobile phone to be measured that is positioned at detection position 5 on the anchor clamps 300 away from detection position 5, various interface that can not detection of handset.When detecting interface mount pad 501 and being positioned at detection position 5, detect interfaces such as charging with interface plug 700 and mobile phone 1000 to be measured, earphone and contact mobile phone 1000 to be measured is detected.Interface motion cylinder 502 also adopts the both hands switch, and reason is the same.
The external computer of Mobile Phone Checkout Gear in the present embodiment, the pcb board checkout gear is connected with external computer with interface detection apparatus, and the detection data that collect are sent to computer analysis.
Operating process is as follows: mobile phone 1000 to be measured is arranged on the anchor clamps 300, by anchor clamps 300 it is fixed.Set in advance the detection pcb board 600 that adapts with mobile phone 1000 to be measured on the PCB lower platen 402, detect interface mount pad 501 and set in advance the test plug 700 that adapts with mobile phone 1000 to be measured.The operator starts the both hands switch of anchor clamps, anchor clamps 300 are put 10 and are moved to detection position 5 along guide rail 200 from first start bit, start the both hands switch of pcb board checkout gear, PCB motion cylinder 403 is started working, the detection that will be positioned at the 3rd original position 30 is pulled to detection position 5 with pcb board 600, because being arranged on the support column 401 of PCB lower platen 402 activities, PCB lower platen 402 can only move along support column 401, support column 401 has limited PCB lower platen 402 moving in the other direction, has guaranteed that PCB lower platen 402 can arrive detection position 5 accurately.Arrive the PCB lower platen 402 of detection position 5, the detection on it contacts with mobile phone 1000 to be measured with pcb board 600, and the pcb board of mobile phone 1000 to be measured is detected, and the method for detection is with the prior art unanimity, so do not give unnecessary details.
After detection was finished, PCB lower platen 402 returned the 3rd original position 30 again under the traction of PCB motion cylinder 403.
The operator starts the both hands switch of interface detection apparatus, and interface motion cylinder 502 work drives and detects interface mount pad 501 and move to detection position 5 from second original position 20.Detect interface mount pad 501 and be provided with the detection interface plug 700 that adapts with mobile phone 1000 to be measured.Detect with contacting with the interface of mobile phone 1000 to be measured behind the interface plug 700 arrival detection positions interfaces such as power supply, earphone are detected, detection method is consistent with prior art, so do not give unnecessary details.
The data that pcb board checkout gear and interface detection apparatus detect are carried out analyzing and processing by external computer, obtain testing result.
Mobile Phone Checkout Gear can detect the mobile phone of multiple different model, can detect a plurality of mobile phones to be measured simultaneously, and efficient is higher.
Among the utility model second embodiment, Mobile Phone Checkout Gear also comprises industrial computer (not shown) and display unit, hard disk in the industrial computer includes test program, the data that pcb board checkout gear and interface detection apparatus detect obtain testing result by the program analysis in the industrial computer, and testing result shows by display unit.
The above only is a preferred embodiment of the present utility model; be not so limit claim of the present utility model; every equivalent structure or equivalent flow process conversion that utilizes the utility model specification and accompanying drawing content to be done; or directly or indirectly be used in other relevant technical fields, all in like manner be included in the scope of patent protection of the present utility model.
Claims (6)
1. Mobile Phone Checkout Gear, it is characterized in that, comprise base, guide rail, anchor clamps, pcb board checkout gear and interface detection apparatus, described guide rail is arranged on the base, guide rail is provided with anchor clamps, anchor clamps are provided with mobile phone to be measured, and anchor clamps reciprocating motion on guide rail is put mobile phone to be measured and is transferred to the detection position from first start bit; Described interface detection apparatus is arranged on the base, and interface detection apparatus is reciprocating motion on base, moves to the detection position from second original position, and interface detection apparatus contacts with the mobile phone to be measured that is positioned at the detection position, and mobile phone to be measured is detected; Described pcb board checkout gear is arranged on the base, and the reciprocating motion on base of pcb board interface arrangement moves to the detection position from the 3rd original position, and the pcb board interface arrangement contacts with the mobile phone to be measured that is positioned at the detection position, and mobile phone to be measured is detected.
2. Mobile Phone Checkout Gear according to claim 1, it is characterized in that, described pcb board checkout gear comprises support column, PCB lower platen and PCB motion cylinder, support column is arranged on the base, being arranged on the support column of PCB lower platen activity, PCB motion cylinder is connected with the PCB lower platen, and control PCB lower platen moves to the detection position from the 3rd original position.
3. Mobile Phone Checkout Gear according to claim 1, it is characterized in that, described interface detection apparatus comprises interface motion cylinder and detects the interface mount pad, detect being arranged on the base of interface mount pad activity, interface motion cylinder is arranged on the base, and with detect the interface mount pad and be connected, control detection interface mount pad moves to the detection position from second original position.
4. according to any described Mobile Phone Checkout Gear of claim 1 to 3, it is characterized in that, also comprise analytical equipment, analytical equipment is connected with the pcb board checkout gear with described interface detection apparatus, and the test result of docking port checkout gear and pcb board checkout gear is analyzed.
5. Mobile Phone Checkout Gear according to claim 4 is characterized in that, described analytical equipment adopts industrial computer.
6. Mobile Phone Checkout Gear according to claim 4 is characterized in that, also comprises display unit, and display unit is connected with analytical equipment, and the analysis result of analytical equipment is shown.
