CN201113310Y - Tool for stripping electric wire and cable plastic protection layer - Google Patents
Tool for stripping electric wire and cable plastic protection layer Download PDFInfo
- Publication number
- CN201113310Y CN201113310Y CNU2007200405677U CN200720040567U CN201113310Y CN 201113310 Y CN201113310 Y CN 201113310Y CN U2007200405677 U CNU2007200405677 U CN U2007200405677U CN 200720040567 U CN200720040567 U CN 200720040567U CN 201113310 Y CN201113310 Y CN 201113310Y
- Authority
- CN
- China
- Prior art keywords
- clipping
- scissors
- shank
- clamp
- handle
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Knives (AREA)
Abstract
The utility model discloses tool for separating the plastic protecting covers from wires and cables. The tool comprises two clipping sections, a clipping bolt and a clipping spring, wherein, each clipping section comprises a clipping handle and a clipping blade; a connecting bar is fixed vertically on one of the clipping section; a fixed clamp section, a clamp section bolt and a movable clamp section are arranged on the other end of the connecting bar; the fixed clamp section and the connecting bar are vertically connected; the movable clamp section comprises a clamp handle and a clamp mouth matched with the fixed clamp section; a plurality of concaves are arranged inside the lower part of the clamp handle and outside the clipping handle with the same side of the clamp handle; a compression spring is arranged between the concave of the clamp handle and that of the clipping handle. The structure enables an operator to complete the peeling of the plastic protecting layer of wires and cables with only one single hand. The tool has the advantages of convenient operation and portability.
Description
Technical field
The utility model relates to the electric wire instrument, especially relates to the instrument of peeling off the electrical wire and cable plastic sheath.
Background technology
It is bigger to peel off the volume that the instrument of electrical wire and cable plastic sheath has at present, the complex structure that has, function singleness, operation is dexterous inadequately, the Chinese patent publication number is the utility model patent of CN2072286U, a kind of multiple wire cable scissors is disclosed, by blade, handle of a knife, cutter shaft and spring are formed, there is the circular arc shear blade at the blade rear portion of scissors, the side of blade has can be along the blade of paying of cutting edge slip, on the knife back of blade and pair blade inlet wire guide groove is arranged, the different semicircle cutting edge of radius is arranged at guide groove bottom, and the knife back and the semicircle cutting edge paid on the blade are combined into the different wire stripping hole of diameter when drawing handle of a knife in, and the cutter shaft next door has coupling spindle will pay blade to locate, the knife back is let alone front end on one side slotted hole is arranged with paying blade, be slidingly connected pin pass slotted hole with the knife back with pay a blade and link to each other.Such structure, the operator needs to help on the other hand electric wire in use, and the another hand is implemented strip operation, and can't finish the occasion operator who needs one-handed performance.
The utility model content
Technical problem to be solved in the utility model is: provide a kind of user can singlehanded finish the instrument of peeling off the electrical wire and cable plastic sheath of strip operation.
Solve this technical problem, the technical solution of the utility model is: a kind of instrument of peeling off the electrical wire and cable plastic sheath, comprise two scissors portions, the scissors bearing pin, the scissors spring, each scissors portion all has shear shank and shearing blade, a vertical affixed connecting rod in the scissors portion of described scissors bearing pin below, the other end of connecting rod is provided with fixed clamp portion, clamping bearing pin and movable clamping part, described fixed clamp portion is vertical affixed with described connecting rod, described movable clamping part is formed by grip shank with the clamp port that fixed clamp portion adapts, the corresponding position in the inboard of described grip shank bottom and the shear shank of the grip shank homonymy outside all is provided with cavity, places a compression spring between cavity on the described grip shank and the shear shank cavity.
Described fixed clamp portion and movable clamping part clamp port all be provided with block rubber mutually to the inside.
Described block rubber has the convex-concave surface that increases frictional resistance.
Be provided with one between described grip shank and the shear shank and protect the rubber bellows that compresses spring.
The instrument that the utility model is peeled off the electrical wire and cable plastic sheath adopts such structure, and operator's one hand can be finished stripping process, and is easy to use, is easy to carry, and is particularly useful for work high above the ground.
Description of drawings
Below in conjunction with accompanying drawing the utility model is done explanation in further detail;

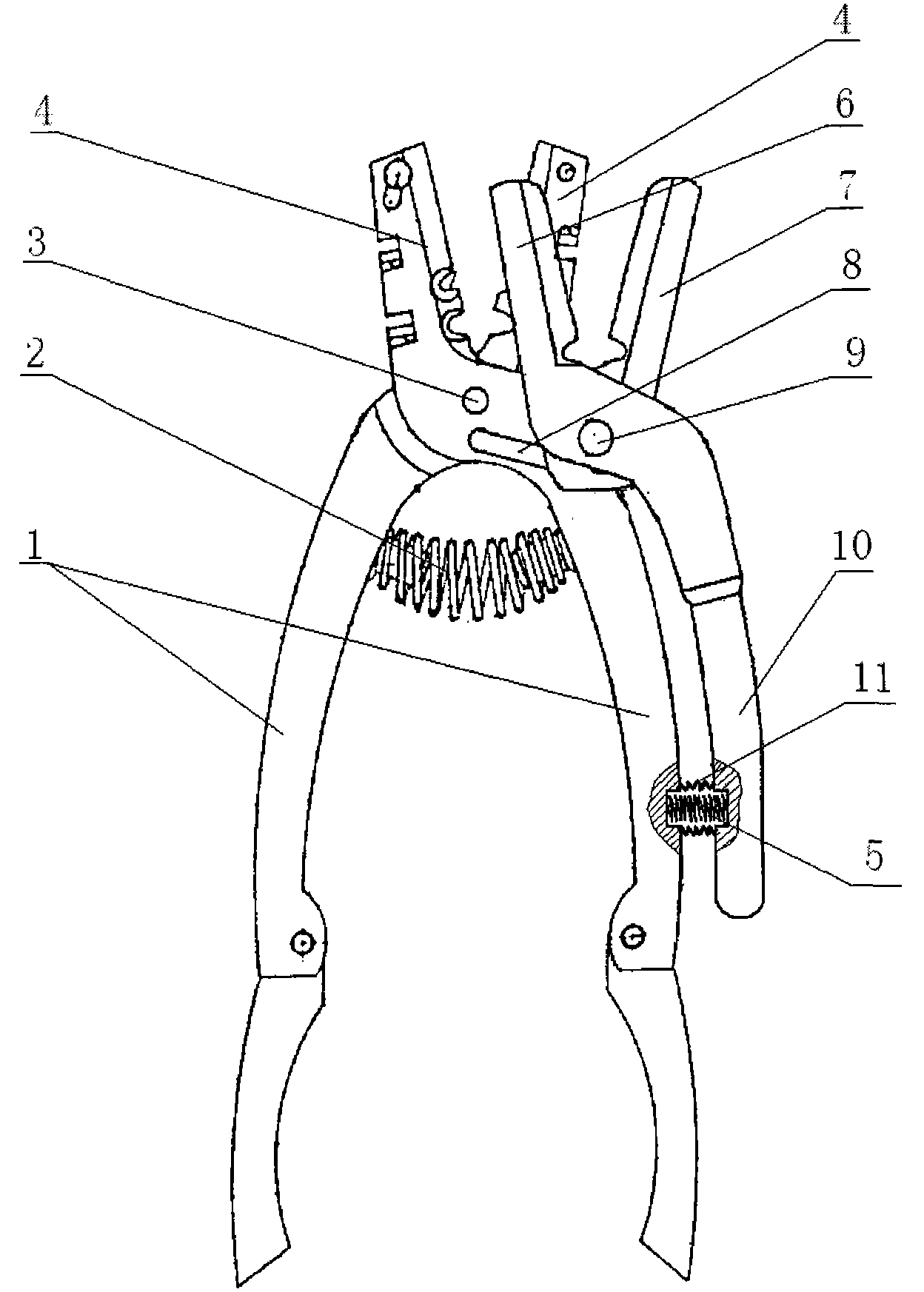

Fig. 1 peels off the structural representation of the instrument of electrical wire and cable plastic sheath for the utility model;
In Fig. 1,1, shear shank; 2, scissors spring; 3, scissors bearing pin; 4, shearing blade; 5, compression spring; 6, clamp port; 7, fixed clamp portion; 8, connecting rod; 9, clamping bearing pin; 10, grip shank; 11, rubber bellows.
Embodiment
As shown in Figure 1, peel off the instrument of electrical wire and cable plastic sheath, comprise two scissors portions, scissors bearing pin 3, scissors spring 2, each scissors portion all has shear shank 1 and shearing blade 4, the vertical affixed connecting rod 8 in scissors bearing pin 3 belows of a scissors portion, the other end of connecting rod 8 is provided with fixed clamp portion 7, clamping bearing pin 9 and movable clamping part, described fixed clamp portion 7 is vertical affixed with described connecting rod 8, described movable clamping part is formed by grip shank 10 with the clamp port 6 that fixed clamp portion 7 adapts, fixed clamp portion 7 and movable clamping part clamp port 6 all be provided with block rubber mutually to the inside, block rubber has the convex-concave surface that increases frictional resistance.The corresponding position in the inboard of described grip shank 10 bottoms and shear shank 1 outside of grip shank 10 homonymies all is provided with cavity, place a compression spring 5 between cavity on the described grip shank 10 and shear shank 1 cavity, grip shank 10 and between the shear shank 1 of grip shank 10 homonymies, be provided with and protect the rubber bellows 11 that compresses spring 5.
Compared with prior art, increase the mechanism that helps electric wire, replaced staff to help electric wire, Operator's one hand can be finished stripping process, and the work high above the ground operator is convenient.
Claims (4)
1. instrument of peeling off the electrical wire and cable plastic sheath, comprise two scissors portions, scissors bearing pin (3), scissors spring (2), each scissors portion all has shear shank (1) and shearing blade (4), it is characterized in that: a vertical affixed connecting rod (8) in the scissors portion of described scissors bearing pin (3) below, the other end of connecting rod (8) is provided with fixed clamp portion (7), clamping bearing pin (9) and movable clamping part, described fixed clamp portion (7) is vertical affixed with described connecting rod (8), described movable clamping part is formed by grip shank (10) with the clamp port (6) that fixed clamp portion (7) adapts, the corresponding position in shear shank (1) outside of the inboard of described grip shank (10) bottom and grip shank (10) homonymy all is provided with cavity, places a compression spring (5) between cavity on the described grip shank (10) and shear shank (1) cavity.
2. the instrument of peeling off the electrical wire and cable plastic sheath according to claim 1 is characterized in that: described fixed clamp portion (7) and movable clamping part clamp port (6) all be provided with block rubber mutually to the inside.
3. the instrument of peeling off the electrical wire and cable plastic sheath according to claim 2 is characterized in that: described block rubber has the convex-concave surface that increases frictional resistance.
4. the instrument of peeling off the electrical wire and cable plastic sheath according to claim 1 is characterized in that: described grip shank (10) and be positioned at and be provided with between the shear shank (1) of grip shank (10) homonymy and protect the rubber bellows (11) that compresses spring (5).
