Abstract
The utility model discloses a lifting rotating shaft which comprises a base and a rotating shaft lower bracket which is fixedly connected with the base, wherein, a sliding track is fixedly arranged in the rotating shaft lower bracket vertically, a rotating shaft upper bracket which can slide along the sliding track is arranged on the sliding track, a draught spring is arranged in the rotating shaft upper bracket, the upper end of the rotating shaft upper bracket is rotatablely connected with a U-shaped bracket by a middle shaft, and the U-shaped bracket is provided with an LCD connection plate. When the lifting rotating shaft is used, the rotating shaft upper bracket can ascend or descend to the required height by the draught spring, thereby realizing the height adjustment of a flat television or a liquid crystal display screen of a computer; the angle adjustment can be carried out by rotating the U-shaped bracket left and right, frontward and backward when the angle adjustment of the flat television or the liquid crystal display screen of the computer is required. The lifting rotating shaft has the advantages of simple structure and convenient use.
Description
Technical field
The utility model relates to a kind of rotating machinery, a kind of lift shaft of more specifically saying so, the liquid crystal display panel or the flat panel TV that are connected with this lift shaft can be rotated motion, can adjust the angle of liquid crystal display panel or flat panel TV, also can adjust the height of liquid crystal display panel or flat panel TV.
Background technique
People are when installing and using the computer that wall hung flat panel television or use dispose liquid crystal display panel, and the user often needs custom or the environmental conditions according to oneself, adjust to the angle of the liquid crystal display panel of flat panel TV or computer with the height of human body sight line.And traditional product can only be by adjusting behind the artificial unloading, promptly pass through artificial with the flat panel TV of wall hanging or the liquid crystal display panel of computer, the required accessory of packing into after pulling down installs again, and product can not angle of swing, there is following defective in such adjusting method, adopts artificial unloading's operation, operation inconvenience, can not and highly adjust the angle of the liquid crystal display panel of flat panel TV or computer, use inconvenience.Thereby be necessary to design a kind of controlling mechanism that can be connected with the liquid crystal display panel of flat panel TV or computer, the liquid crystal display panel or the flat panel TV that are connected with this adjusting rotation mechanism can carry out parallel rotation, lifting, to the angle of liquid crystal display panel or flat panel TV and highly adjust.Bring more joyful enjoyment for viewer or operator, satisfy viewer or operator's needs better, effectively improve people's quality of life.
The model utility content
The purpose of this utility model is to overcome above-mentioned defective of the prior art, provides a kind of simple in structure, easy to use, can be rotated liquid crystal display panel or flat panel TV, also the lift shaft that can adjust the height of liquid crystal display panel or flat panel TV.
For achieving the above object, the technological scheme that the utility model provides is as follows: construct a kind of lift shaft, comprise base, also comprise the rotating shaft lower support frame of fixedlying connected with base, vertically be installed with a slide rail in this rotating shaft lower support frame, be equiped with on the slide rail and can be equiped with draught spring in the rotating shaft upper bracket along the rotating shaft upper bracket of this slide rail slip, rotating shaft upper bracket upper end is rotationally connected by axis with " U " type support, and " U " type support is equiped with the LCD connecting plate.
The beneficial effect of lift shaft described in the utility model is: by constructing a base, on base, be fixedly connected with the rotating shaft lower support frame, vertically be installed with a slide rail in this rotating shaft lower support frame, being equiped with on the slide rail can be along the rotating shaft upper bracket of this slide rail slip, be equiped with draught spring in the rotating shaft upper bracket, rotating shaft upper bracket upper end is rotationally connected by axis with " U " type support, and " U " type support is equiped with the LCD connecting plate.During use, can make the rising of rotating shaft upper bracket or drop to needed height by draught spring, thereby realization is adjusted the height of the liquid crystal display panel of flat panel TV or computer, in the time of need adjusting the angle of the liquid crystal display panel of flat panel TV or computer, about can passing through, front and back rotations U " the type support; carry out angle adjustment, have advantage simple in structure, easy to use.
Below in conjunction with drawings and Examples lift shaft described in the utility model is described further:
Description of drawings

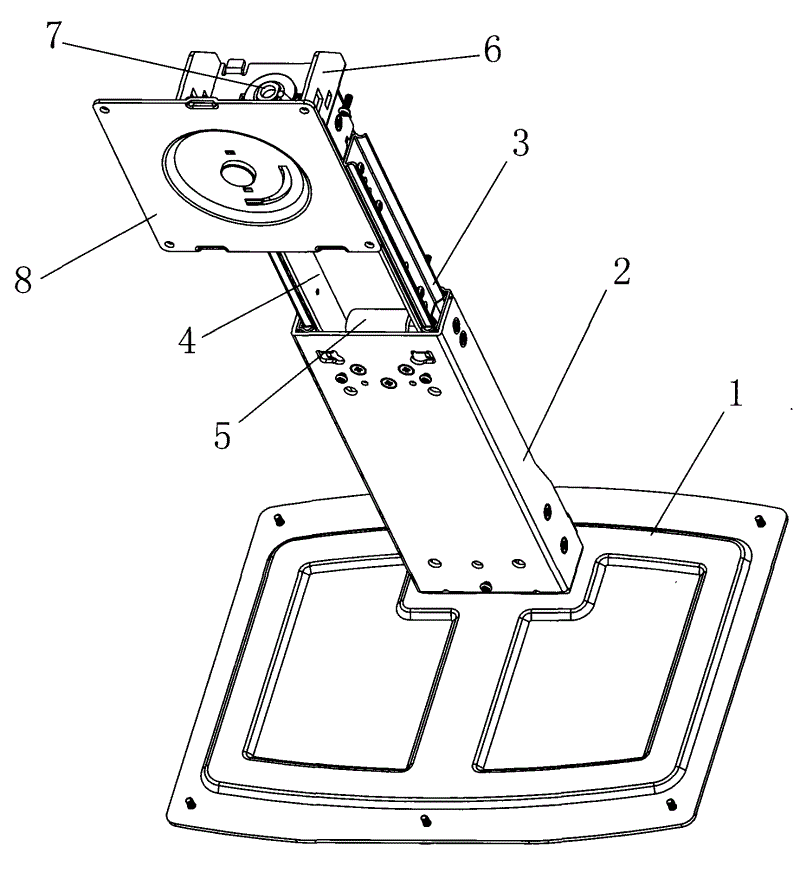

Fig. 1 is the perspective view that the utility model lift shaft is not equiped with plastic shell;
Fig. 2 is the perspective view that the utility model lift shaft is equiped with plastic shell;
Embodiment
Below be the most preferred embodiment of lift shaft described in the utility model, therefore do not limit protection domain of the present utility model.
With reference to Fig. 1, a kind of lift shaft is provided, comprise base 1, also comprise the rotating shaft lower support frame 2 of fixedlying connected with base 1, vertically be installed with a slide rail 3 in this rotating shaft lower support frame 2, be equiped with on the slide rail 3 and can be equiped with draught spring 5 in the rotating shaft upper bracket 4 along the rotating shaft upper bracket 4 of these slide rail 3 slips, rotating shaft upper bracket 4 upper ends are rotationally connected by axis 7 with " U " type support 6, and " U " type support 6 is equiped with LCD connecting plate 8.
With reference to Fig. 2, respectively be equiped with a plastic shell 9,10,11,12 on described base 1, rotating shaft lower support frame 2, rotating shaft upper bracket 4, " U " type support 6, decorate.
During use, can make 4 risings of rotating shaft upper bracket or drop to needed height by draught spring 5, thereby realization is adjusted the height of the liquid crystal display panel of flat panel TV or computer, in the time of need adjusting the angle of the liquid crystal display panel of flat panel TV or computer, about can passing through, front and back rotations U " type support 6, carry out angle adjustment.
Claims (2)
1, a kind of lift shaft, comprise base (1), it is characterized in that, also comprise the rotating shaft lower support frame (2) of fixedlying connected with base (1), vertically be installed with a slide rail (3) in this rotating shaft lower support frame (2), be equiped with on the slide rail (3) and can be equiped with draught spring (5) in the rotating shaft upper bracket (4) along the rotating shaft upper bracket (4) of this slide rail (3) slip, rotating shaft upper bracket (4) upper end is rotationally connected by axis (7) with " U " type support (6), and " U " type support (6) is equiped with LCD connecting plate (8).
2, lift shaft according to claim 1 is characterized in that, respectively is equiped with a plastic shell (9), (10), (11), (12) on described base (1), rotating shaft lower support frame (2), rotating shaft upper bracket (4), " U " type support (6).
