Combined type plate hydraulic press
Technical field
The utility model belongs to hydraulic press, relates in particular to a kind of combined type plate hydraulic press that is applied to the shallow stretching of thin plate sheet.
Background technology
The hydraulic press that is used for the compacting of plate type heat exchanger plate at present all belongs to special mechanical equipment.Normally with the plate of large hydraulic press compacting large tracts of land size, the small-sized hydraulic machine is suppressed the plate of small size size.After the factory with large hydraulic press accepts the small-sized plate order of compacting,, can't operate sometimes or the bad feeding of little plate because the large hydraulic press table top is long.If the blowing position is inaccurate, then can cause waste product, therefore press little plate not only to cause energy waste, and efficient is low, dangerous with large hydraulic press.Therefore most of factories need dispose one or two small-sized hydraulic machines and only accept to process the order of little plate, or buy one and big satisfy the demand in market with a little hydraulic press.Because large tracts of land plate demand is less on the market, and the small size plate is in great demand, so the scheme that factory purchases small one and large one hydraulic press then can cause the idle of large hydraulic press.Certainly, if only buy the processing that the small-sized hydraulic machine then can't be accepted the large tracts of land plate.
The utility model content
The purpose of this utility model is to overcome the deficiency of above-mentioned technology, can suppress the combined type plate hydraulic press that big plate can satisfy large batch of platelet sheet production and provide a kind of.
The utility model for achieving the above object, by the following technical solutions: a kind of combined type plate hydraulic press, comprise two load-bearing frames, the underbeam part of two load-bearing frames is fixed into integral body by two bolts and nut, be with locating sleeve on the bolt of load-bearing frame inboard, the unitary fixed workbench by bolted on the lower plane of load-bearing frame, load-bearing frame top has been bolted to connection oil cylinder, it is characterized in that: described oil cylinder is made as two oil cylinders and is connected with two top shoes by bolt and trim ring respectively, described two top shoes respectively with load-bearing frame on four guide rails be slidingly matched.
Described oil cylinder is connected driving with separate hydraulic system respectively.
Its length dimension of described stationary work-table is two top shoe length dimension sums, and width dimensions is identical with top shoe.
The beneficial effects of the utility model: compare with adopting a large-scale configuration with a small-sized press, the utility model can reduce the investment that is equivalent to a subpress, and platelet sheet output can improve 1 times, then can realize the function of large press fully for the less large-scale plate of batch, reduce the standby time of big press, thoroughly solved the shortcoming that big press is pressed the inconvenience of small pieces, dangerous, poor efficiency and high energy consumption.
Description of drawings
The front view of Fig. 1 combined type plate hydraulic press;

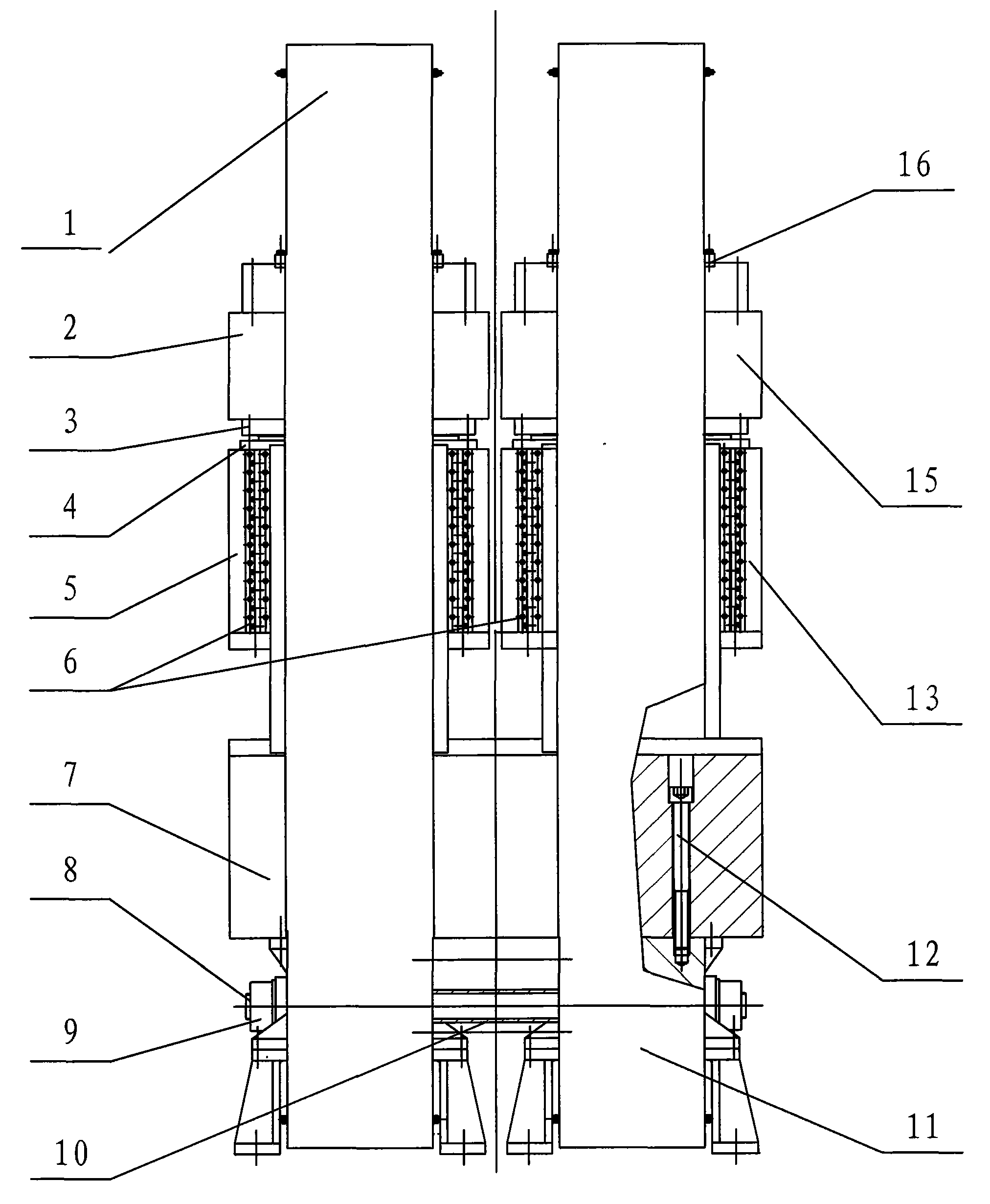

The side view of Fig. 2 combined type plate hydraulic press;
The spring that is used for embodiment 2 in Fig. 3 combined type plate hydraulic press is opened large mold figure.
The specific embodiment:
Describe the specific embodiment of the present utility model in detail below in conjunction with accompanying drawing:
As shown in the figure, a kind of combined type plate hydraulic press, comprise two load-bearing frames 1,11, described load-bearing frame 1 and 11 can adopt the compressor wire wound form, also can adopt stacked plate type, and bolt pretension box-shaped formula, the underbeam part of two load-bearing frames is fixed into integral body by two bolts 8 and nut 9, be with locating sleeve 10 on the bolt of load-bearing frame inboard, work to guarantee that two frameworks 1 and 11 are in certain relative position, unitary fixed workbench 7 is fastened on the lower plane of load-bearing frame by bolt 12, load-bearing frame top has been bolted to connection oil cylinder, described oil cylinder is made as two oil cylinders 2,15 respectively by bolt 3 and trim ring 4 and two top shoes 5,13 connect, move up and down, described two top shoes respectively with load-bearing frame on four guide rails 6 be slidingly matched.Described oil cylinder is connected driving with separate hydraulic system respectively.Its length dimension of described stationary work-table is two top shoe length dimension sums, and width dimensions is identical with top shoe.
Embodiment 1, when need are suppressed small size size plates with two small-sized hydraulic machines, operating cylinder 2 and 15 is subjected to separate hydraulic system respectively and drives, by two top shoes 5 and 13, the small size mould that is placed on fixed mesa 7 two ends is suppressed, at this moment, just realized of the compacting of two small-sized hydraulic machines to two kinds of plates, two workbench backhauls can be passed through working cylinder, also can realize, so because the sort of inconvenience and the poor efficiency when the operation of the two ends of large hydraulic press does not exist with large press compacting platelet sheet respectively by the backhaul oil cylinder that other establishes.
Embodiment 2, when need are suppressed the large tracts of land plate, compacting floating die assembly 14 by patrix 14-1 and counterdie 14-2 combination is installed on stationary work-table, describedly is provided with some guide pillars 17 and spring 16 between the mould up and down, to guarantee the centering between the upper die and lower die.Mould always is in opening under the effect of spring, have only when two top shoes are exerted pressure to its patrix simultaneously, and patrix just can be pressed to the plate that is placed on the counterdie.After compacting finished, along with the backhaul of two top shoes, patrix was also got back to the position of original unlatching under spring action.This structure mold patrix is not fixed on the top shoe, stationary problem does not require during for two top shoe backhauls, and when pressing down, because the position of two top shoes is all adjusted to almost the same with patrix, so when very short-range descending pressurization, just be easier to synchronously realize, thereby reached the purpose of split top shoe same large-area sheet die pressurization.
The above only is the preferred embodiment of combined type plate press, is not its structure is done any pro forma restriction.Every foundation technical spirit of the present utility model all still belongs in the scope of the technical solution of the utility model any simple modification, equivalent variations and modification that above embodiment did.

Claims (3)

1, a kind of combined type plate hydraulic press, comprise two load-bearing frames, the underbeam part of two load-bearing frames is fixed into integral body by two bolts and nut, be with locating sleeve on the bolt of load-bearing frame inboard, the unitary fixed workbench by bolted on the lower plane of load-bearing frame, load-bearing frame top has been bolted to connection oil cylinder, it is characterized in that: described oil cylinder is made as two oil cylinders and is connected with two top shoes by bolt and trim ring respectively, described two top shoes respectively with load-bearing frame on four guide rails be slidingly matched.
2, combined type plate hydraulic press according to claim 1 is characterized in that: described oil cylinder is connected driving with separate hydraulic system respectively.
3, combined type plate hydraulic press according to claim 1 is characterized in that: its length dimension of described stationary work-table is two top shoe length dimension sums, and width dimensions is identical with top shoe.
