Abstract

The utility model relates to a fuel gas appliance used in daily life, in particular to a fuel gas heating water heater with a bathroom warming function. The utility model comprises a casing, a smoke helmet, a heat exchanger, a water valve and a fuel gas valve, wherein a high-temperature pipe of the heat exchanger is connected with a heat exchanger through a three-way valve; the other end of the three-way valve is a hot water outlet. When generated high-temperature steam or high-temperature hot water passes through the heat exchanger, heat exchange is carried out to form hot blast, thereby realizing the function of bathroom warming; meanwhile, a user can have a hot water bath through making direct use of the generated hot water. The fuel gas appliance has a simple structure, low cost and convenient use.

Description

A kind of gas water heater with heating function
Technical field:
The utility model relates to the water heater with bathing and heating function, more particularly, is a kind of gas water heater with heating function.
Background technology:
In the prior art, the major function of gas heater is the usefulness of having a bath for people, and the many potential functions of water heater are not because there are auxiliary products, and can not get good performance; China Patent No. 20052008093.9 discloses " gas heater that has bathroom intensification function "; China Patent No. 200520019826.9 discloses " electronic control formula combustion and steam water heater "; Producing steam with water heater to heat up to the bathroom; This scheme can effectively solve the problem that the bathroom heats up, but the product function supporting with it is still more single, to the people of some incompatibility steam baths, select to be restricted, the potential function of water heater is not brought into play to greatest extent.
Summary of the invention:
Technical problem to be solved in the utility model is, a kind of gas water heater with heating function is provided, and can produce a large amount of hot blasts and be used for the bathroom heating when being cold.
The utility model technical scheme that is adopted of dealing with problems is achieved in that the utility model mainly includes housing, flue, heat exchanger, water valve, gas valve, burner and petticoat pipe; Gas valve communicates with burner; The heat exchanger upper end is mounted with petticoat pipe, and the lower end connects with burner; It is characterized in that: connect with heat exchanger by triple valve on the high temperature pipe of heat exchanger; Another end of triple valve is a hot water outlet; Triple valve is controlled by electronic, manual or hydraulic drives; Heat exchanger be arranged in the housing or housing outside.
The utility model compared with the prior art, beneficial effect is embodied in;
1, the high-temperature steam of the utility model generation or high-temperature-hot-water carry out heat exchange and form hot blast, to reach bathroom intensification function by heat exchanger the time.
2, the utility model can directly utilize the hot water of generation to carry out hot bath.
3, the utility model is simple in structure, cheap, easy to use.
Description of drawings:

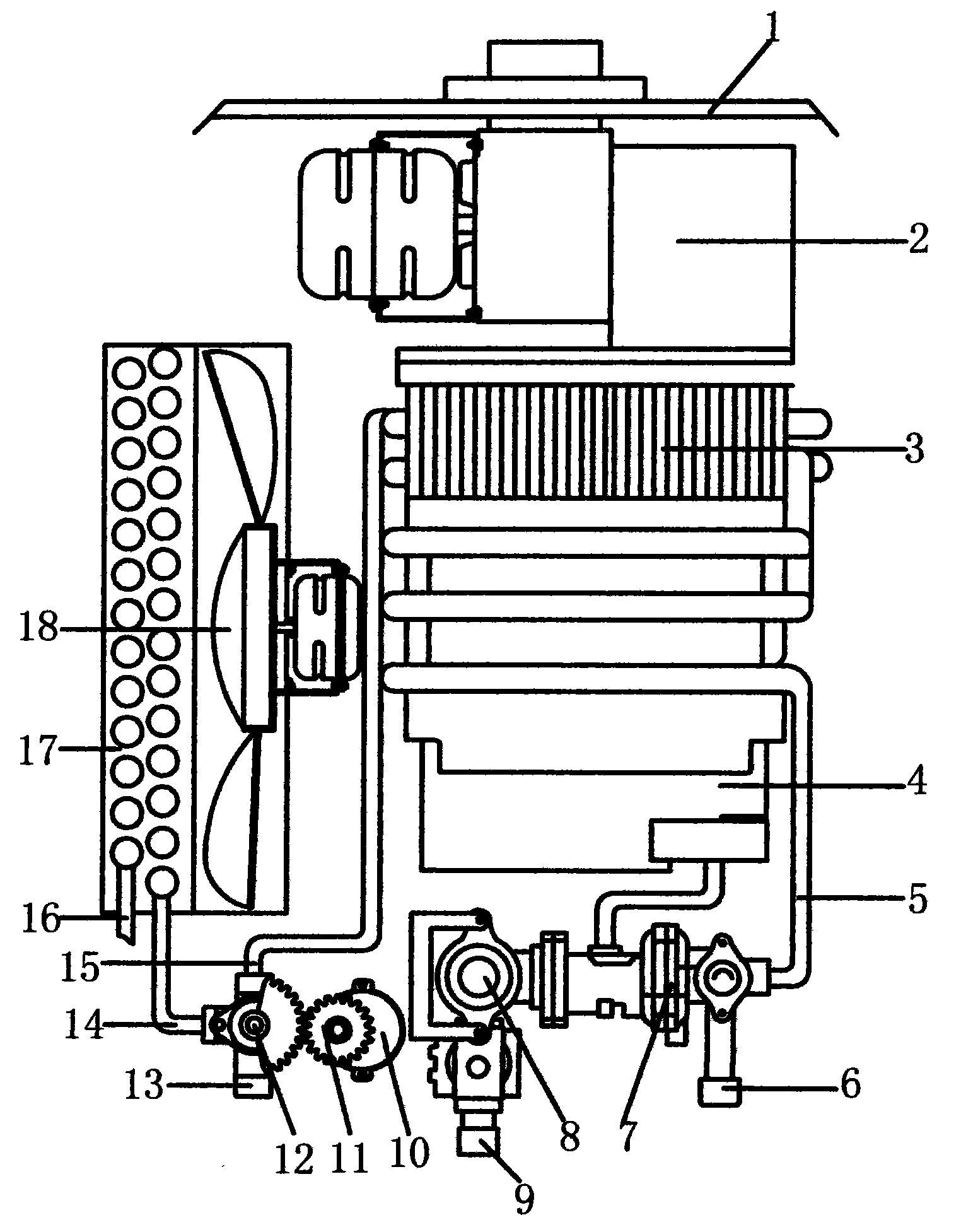

Fig. 1 executes the structural representation of example 1 for the utility model;
Fig. 2 executes the structural representation of example 2 for the utility model;
By the following examples, to closing accompanying drawing the utility model is further described;
Embodiment 1:
Referring to accompanying drawing 1, present embodiment includes housing 1, petticoat pipe 2, heat exchanger 3, burner 4, water inlet pipe 5, water inlet 6, water valve 7, gas valve 8, fuel gas inlet 9, motor 10, gear 11, triple valve 12, hot water outlet 13, steam pipe 14, high temperature pipe 15, condensate pipe 16, heat exchanger 17 and fan 18; Gas valve 8 communicates with burner 4; Heat exchanger 3 upper ends are mounted with petticoat pipe 2, and the lower end connects with burner 4; Connect with heat exchanger 17 by triple valve 12 on the high temperature pipe 15 of heat exchanger 3; The end in addition of triple valve 12 is hot water outlets 13; Triple valve 12 drives by motor 10 and gear 11 and controls; Heat exchanger 17 is arranged in the housing 1; During use, Gas Pipe is connected to fuel gas inlet 9, running water pipe is connected to water inlet 6; When carrying out bathing, open running water, automatically ignition operation; The usefulness that hot water flows out for people's bathing from hot water outlet 13; When using the hot blast heating, with extremely heating grade (not drawing among the figure) of switch transition, high-temperature steam or high-temperature-hot-water,, enter in the heat exchanger 17 through triple valve 12 and steam pipe 14 from high temperature pipe 15, heat is passed to fin, fan 18 work blow out hot blast, for the bathroom heat temperature raising; Condensed water flows out by condensate pipe 16.
Embodiment 2:
As shown in Figure 2, execute example 1 different is that in the present embodiment, heat exchanger 17 is arranged on outside the housing 1, so that provide more installation method to the user with above-mentioned.

Claims (2)

1. a gas water heater with heating function mainly includes housing, heat exchanger, water valve, gas valve, burner and petticoat pipe; Gas valve communicates with burner; The heat exchanger upper end is mounted with petticoat pipe, and the lower end connects with burner; It is characterized in that: connect with heat exchanger by triple valve on the high temperature pipe of heat exchanger; Another end of triple valve is a hot water outlet; Triple valve is controlled by electronic, manual or hydraulic drives.
2. a kind of gas water heater with heating function according to claim 1 is characterized in that: heat exchanger be arranged in the housing or housing outside.
