Abstract
本实用新型公开了一种环保卫生畚箕，由提手和畚箕斗组成，提手的下端固定连接在畚箕斗的三周边上；其要点是所述畚箕斗的后端开口，其上设有垃圾储存袋，垃圾储存袋口的上下角分别与提手的支撑杆和畚箕斗的底面固定连接。本实用新型结构简单、使用方便，打扫的垃圾经后端开口的畚箕斗进入垃圾储存袋，解决了现有技术畚箕斗浅、垃圾存放量少、垃圾容易抛洒的技术问题，本实用新型特别适合城市清扫街道的环卫工人使用。
The utility model discloses an environment-friendly and sanitary dustpan, which is composed of a handle and a dustpan bucket. The lower end of the handle is fixedly connected to the three peripheries of the dustpan bucket; In the storage bag, the upper and lower corners of the mouth of the garbage storage bag are respectively fixedly connected with the support bar of the handle and the bottom surface of the dustpan bucket. The utility model is simple in structure and easy to use. The cleaned garbage enters the garbage storage bag through the dustpan bucket opened at the rear end, which solves the technical problems of the prior art that the dustpan bucket is shallow, the garbage storage is small, and the garbage is easy to be thrown away. The utility model is particularly suitable for Used by city sanitation workers who sweep streets.
Description
Technical field the utility model belongs to the sanitary apparatus technical field, relates to a kind of environmentally-friendly sanitary dustpan.
The dustpan of background technology prior art is made up of handle and dustpan bucket, and the lower end of dustpan bucket handle is fixedly connected on three peripheries of dustpan bucket.The dustpan of this structure, the front end of dustpan bucket is uncovered, and back-end closure uses more convenient, laborsaving.But because the dustpan bucket of prior art is superficial, the waste deposit amount is less, and when proposing walking, the rubbish in the dustpan bucket is shed easily, need sweep again, has increased sanitationman's workload.
The summary of the invention the purpose of this utility model is to solve the technical problem that prior art dustpan bucket is shallow, the waste deposit amount is few, rubbish is shed easily, provides a kind of environmentally-friendly sanitary dustpan, to overcome the deficiencies in the prior art.
To achieve these goals, the utility model environmentally-friendly sanitary dustpan is made up of handle and dustpan bucket, and the lower end of handle is fixedly connected on three peripheries of dustpan bucket; Its main points are open rearward end of described dustpan bucket, which is provided with the rubbish reservoir bag, and the last inferior horn of rubbish storage sack is fixedlyed connected with the bottom surface of dustpan bucket with the support bar of handle respectively.
The utility model is simple in structure, easy to use, the rubbish of sweeping enters the rubbish reservoir bag through the dustpan bucket of open rearward end, solved the technical problem that prior art dustpan bucket is shallow, the waste deposit amount is few, rubbish is shed easily, the utility model is particularly suitable for sanitationman's use that the city cleans Streets.

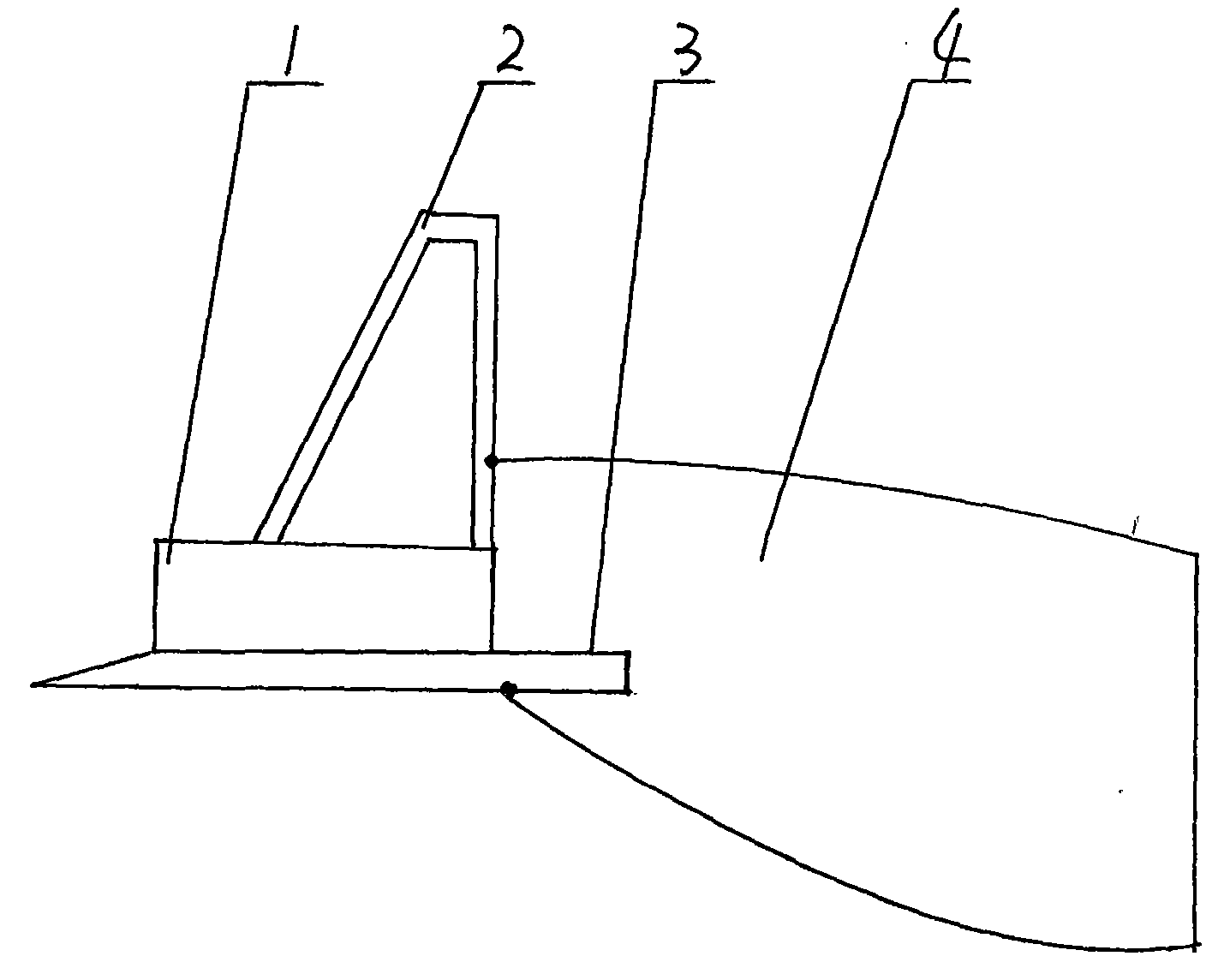

Appended drawings is the utility model structural representation.
The specific embodiment with reference to the accompanying drawings, the utility model is made up of handle 2 and dustpan bucket 1, the lower end of handle 2 is fixedly connected on three peripheries of dustpan bucket 1; The open rearward end of described dustpan bucket 1 which is provided with rubbish reservoir bag 4, and the last inferior horn of rubbish storage sack is fixedlyed connected with the support bar of handle 2 and the bottom surface 3 of dustpan bucket respectively.
Claims (1)
1, a kind of environmentally-friendly sanitary dustpan is made up of handle and dustpan bucket, and the lower end of handle is fixedly connected on three peripheries of dustpan bucket; The open rearward end that it is characterized in that described dustpan bucket which is provided with the rubbish reservoir bag, and the last inferior horn of rubbish storage sack is fixedlyed connected with the bottom surface of dustpan bucket with the support bar of handle respectively.
