The utility model relates to an inorganic heat tube spraying evaporator, which belongs to a heat exchanging device. The evaporator of the utility model comprises an ejector 1, a valve 2, a water pump 3, a pump 4, a foam-catch device 5, a sprayer 6, a foam-catch device 7, a sprayer 9, a shell 11, a liquid collection sink12 and a liquid collection sink 14. The evaporator of the utility model is characterized in that a clapboard 8 can be used for separating a plurality of inorganic heat tubes into a preheating section tube bundle 10, a heating section tube bundle 13 and a liquid evaporating section tube bundle 15. The clapboard 8 is provided with a plurality of through holes, and the diameter of the through hole is equal to that of the inorganic heat tube. The joint between the clapboard 8 and the inorganic heat tube is sealed. The heat exchanger of the utility model is characterized in that the heat-transfer capability of the prior spraying evaporator can be improved; and needed heat-transfer area and the size of the evaporator can be reduced; the liquid preheating and evaporating can be finished in the same heat exchanger; and tube bundles can be cleaned and descaled easily and conveniently.
Description
Technical field
The utility model relates to a kind of inorganic heat pipe spray-type evaporator, belongs to a kind of heat-exchanger rig.
Background technology
Evaporimeter is the equipment that is used for evaporation operation, and is of a great variety, and structure has nothing in common with each other.Can be divided into according to circulation theory: various ways such as natural-circulation evaporator, forced-circulation evaporator, spray-type evaporator.
Existing spray-type evaporator only is used for hot and cold two fluid streams heat exchange, and pipe is outer to be hydraulic fluid side to be evaporated, is the cool stream side in the pipe.Heat-transfer pipe mainly adopts snakelike light pipe or finned tube.Be subjected to the restriction of heat-transfer pipe heat transfer property, the heat transfer area and the volume of spray-type evaporator are bigger, and exist and to clean relative problem such as difficult with scale removal in the pipe.
The utility model content
The technical problem that solves
For improving the heat-transfer capability of existing spray-type evaporator, reduce the volume of required heat transfer area and evaporimeter, liquid preheating and evaporation can be finished in same heat exchanger, and make the cleaning of tube bank and scale removal convenient, the utility model proposes the inorganic heat pipe spray-type evaporator of a kind of three fluid streams heat exchange simultaneously.Substitute coiled pipe with the inorganic heat pipe of the strong straight pipe type of heat-transfer capability, make spray-type evaporator.Be closed owing to fill working medium in the high-efficiency heat pipe, do not allow fluid and pass through, so this device done change to the heat exchange mode of general cold fluid and hot fluid dividing wall type, designed diabatic process and only restrained the New Evaporator structure that outer surface carries out.
Technical scheme
The utility model comprises injector 1, valve 2, water pump 3, pump 4, mist eliminator 5, spray thrower 6, mist eliminator 7, spray thrower 9, housing 11, collecting tank 12 and collecting tank 14, it is characterized in that: utilize dividing plate 8 that several inorganic heat pipes are divided into liquid preheating section tube bank 10, bringing-up section tube bank 13 and liquid evaporator section tube bank 15; Design has some through holes on the described dividing plate 8, and the diameter of through hole equals the diameter of inorganic heat pipe; Described dividing plate 8 carries out encapsulation process with the junction of inorganic heat pipe.
The length of described liquid preheating section tube bank 10, bringing-up section tube bank 13 and liquid evaporator section tube bank 15 is separated ratio, equals the ratio of the heat transfer area of liquid preheating section, bringing-up section and liquid evaporator section.
Number of openings on the described dividing plate 8 is consistent with the quantity of inorganic heat pipe.
The nearly horizontal positioned of described inorganic heat pipe, tube bank angle of inclination are 3～5 degree.The liquid preheating section is restrained 10 ends and is lower than the liquid evaporator section and restrains 15 ends.
Beneficial effect
The utility model adopts the efficient inorganic heat pipe to make heating surface bank, has constituted a kind of spray-type evaporator.Compare with existing spray-type evaporator, advantage is:
(1) heating surface bank of evaporimeter is divided into three sections, i.e. liquid preheating section, bringing-up section and liquid evaporator section.Liquid preheating and evaporation are finished at the two ends of same heating surface bank, liquor preheater need not be set separately, or adopt baroque multiple flow heat exchanger;
(2) the fluid heat transfer process all carries out at the tube bank outer surface, has changed traditional dividing wall type heat transfer type, and it is convenient to make evaporimeter in use restrain replacing, cleaning and scale removal;
(3) because the efficient heat conducting tube axial thermal conductivity is rapid, the intimate isothermal of each point in the tube bank, the overall heat-transfer coefficient height under identical thermic load, reduces about 60% than the heat transfer area of common shell and tube evaporator.
(4) tube bank is divided into three sections, and the pressure in each space, pipeline section place can optionally independent regulation and control, not influence each other.It is comparatively favourable when this makes the present invention be used for low-temperature multi-effect seawater desalination device.
Description of drawings

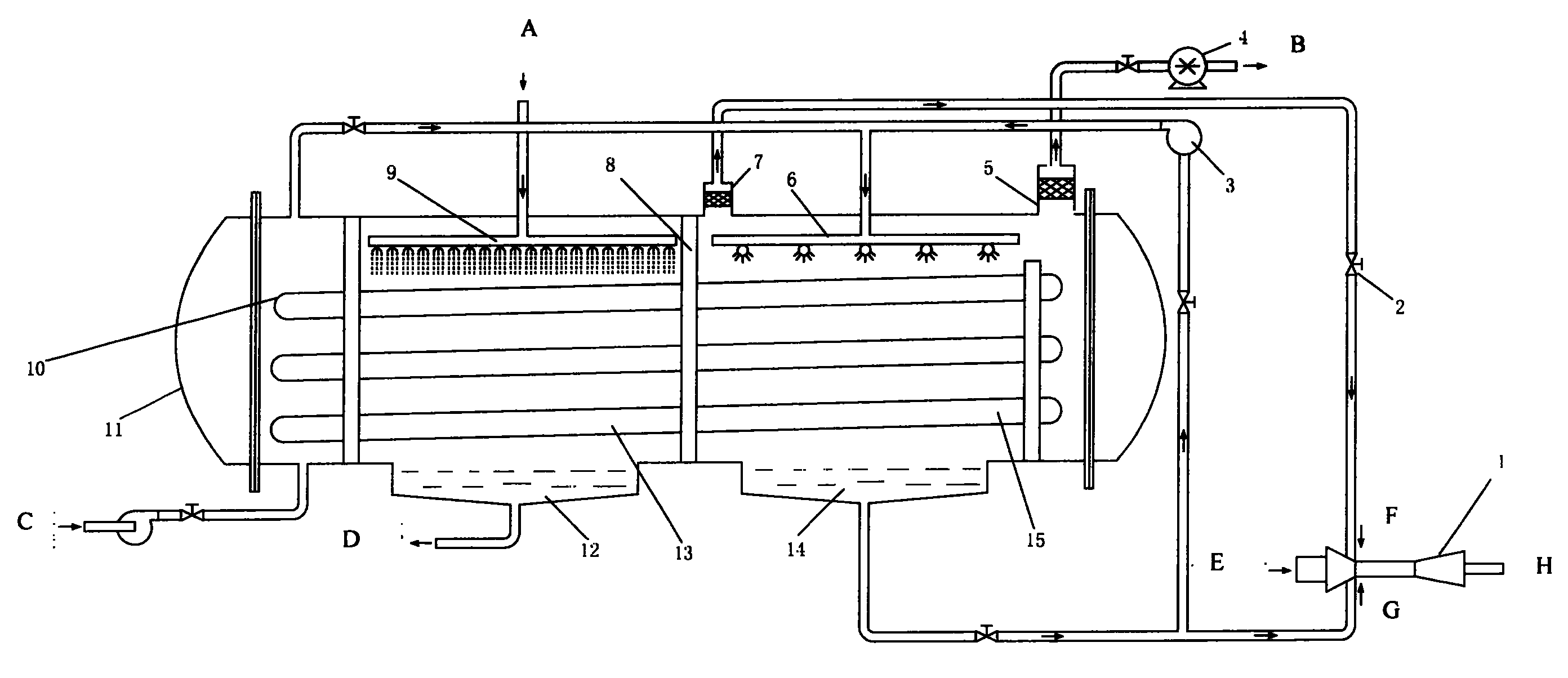

Fig. 1: inorganic heat pipe spray-type evaporator schematic diagram
The 1-injector; The 2-valve; The 3-water pump; The 4-pump; The 5-mist eliminator; The 6-spray thrower; 7 mist eliminators; The 8-dividing plate; The 9-spray thrower; The tube bank of 10-liquid preheating section; The 11-housing; The 12-collecting tank; The tube bank of 13-bringing-up section; The 14-collecting tank; The tube bank of 15-liquid evaporator section; A-adds hot fluid and advances; The B-steam goes out; C-fluid to be evaporated advances; D-adds hot fluid and goes out; The E-pressurised seawater is advanced; The F-fixed gas advances; The G-strong brine advances; H-fixed gas, strong brine, seawater go out.
The specific embodiment
Now in conjunction with the accompanying drawings the utility model is further described:
The present embodiment structural group becomes: injector 1, valve 2, water pump 3, pump 4, mist eliminator 5, spray thrower 6, mist eliminator 7, dividing plate 8, spray thrower 9, liquid preheating section tube bank 10, housing 11, collecting tank 12, bringing-up section tube bank 13, collecting tank 14 and liquid evaporator section tube bank 15.
The efficient inorganic heat pipe is present state-of-the art heat transfer element, and it is all inequality with the principle and the heat-transfer effect of general heat pipe.Its working medium is made into by multiple inorganic elements, and working medium is poured into body or sheet interlayer inner chamber, vacuumizes and gets through sealing.Its radially heat-transfer capability reach 44kW/m
2, the axial heat conduction ability reaches 8600kW/m
2, can reach in the short time and keep isothermal at the utmost point.The thermal conductivity factor of efficient inorganic heat pipe is 10000～30000 times of silver, and the thermal conductivity factor of general heat pipe is 300～1000 times of silver, so its capacity of heat transmission surpasses general heat pipe.
Adopt 16 diameters to be the inorganic heat pipe that 25mm, length be 1m in the present embodiment and form tube bank, dividing plate 8 is passed in tube bank, is divided into three sections by dividing plate.Have straight-through pore on the dividing plate, be square arrangement, pore diameter is identical with inorganic heat pipe diameter.The length separation ratio of liquid preheating section tube bank 10, bringing-up section tube bank 13 and liquid evaporator section tube bank 15 is 1: 2: 2.The liquid preheating section is restrained 10 ends and is lower than the liquid evaporator section and restrains 15 ends, and the tube bank inclination angle is 4 degree.Liquid preheating section tube bank space, bringing-up section tube bank space and separate, the sealing in liquid evaporator section tube bank space.
The combination of aforementioned barriers 8 with liquid preheating section tube bank 10, bringing-up section tube bank 13 and the liquid evaporator section tube bank 15 of inorganic heat pipe composition is fixed in the housing 11.
The course of work of this evaporimeter is: add hot fluid with works such as hot water or steam or combustion gas or flue gases, top by the stage casing tube bank enters, spray from top to bottom in tube bank through spray thrower 9 and (need not use spray thrower when the Steam Heating), tube bank is heated, and tube bank passes heat to its two ends, left and right sides rapidly; The desire evaporated liquid is introduced into the preheating section tube bank space of evaporimeter, flow from bottom to top, heat up from tube bank heat absorption back, flow out evaporimeter, be transported to the liquid evaporator section of the evaporimeter other end through pipeline, after converging with liquid from collecting tank 13, by spray thrower 6 sprays in the evaporator section tube bank, flow downward with form of film again, absorb the heat in the tube bank and evaporate.The steam that produces is pumped out, and unevaporated liquid is drawn the back pressurization from the collecting tank bottom, and the liquid that comes out with preheating section top converges, and reenters the inlet of liquid evaporator section, continues vaporization cycle.Optionally and the independently regulation and control of each section tube bank space pressure.In the accompanying drawing, liquid evaporator section space is evacuated with injector exactly, to be used for low-temperature evaporation.
This device combines with the efficient inorganic heat pipe condenser, operates under negative pressure, can constitute new type low temperature multi-effect seawater desalination device technology.
