Abstract
The utility model discloses a deviation rectification device of an X cycloid for a band steel within the linear traveling area, which is characterized in that a main shaft is positioned vertically in the center of a base seat, a horizontal revolving platform is positioned on the upper end of the main shaft, a servo hydraulic cylinder is hinged horizontally on one side of the base seat, a reinforcing plate is fixed vertically on the bottom surface of one side of the horizontal revolving platform, the lower end of the reinforced plate is hinged with the free end of a piston rod of the servo hydraulic cylinder together, a pinch roll frame is positioned vertically respectively on two sides of the top surface of the horizontal revolving platform, a lower and a upper pinch roll are positioned between two pinch roll frames, one end of a rotating shaft of the lower pinch roll is connected with a motor shaft, a motor is fixed on the horizontal revolving platform, two depress cylinders are vertically positioned respectively on the top end of the pinch roll frame, the lower ends of the two piston rods of two depress cylinders are respectively connected with two ends of the upper pinch roll together, the upper pinch roll is sliding up and down in relation to the lower pinch roll. The utility model has the advantages of effectively ensuring the band steel traveling in the linear area of the production lines such as color coating, galvanizing, cold rolling, acid cleaning, and straightening, to run stably, and avoiding the band steel to have the deviation accident.
Description
Technical field
The utility model relates to a kind of being installed on the output strip line in order to prevent the deviation correcting device of strip running deviation, particularly is with the steel X cycloid corrector in straight-line running region.
Background technology
The correction machine on color coating or zinc-plated and cold-rolling pickling and the smooth manufacturing line of being applied at present all be manufacturing line turn to or the turning utilizes one group of shuttle-type correction machine to change the position that the band steel enters next group roller-way or roll surface, thereby be implemented on the manufacturing line function and the purpose of correction continuously.But in concrete production process owing to exist the working environment that much has only linear running zone load-transfer device steel on most of manufacturing line, if the sideslip accident takes place in the band steel when this linear running of process is regional aborning, just can't lean on traditional be installed in manufacturing line turn to or the swing type deviation rectifying machine at turning changes the position that the band steel enters next group roller-way or roll surface, thereby can't eliminate the sideslip accident of this linear running district band steel.If in normal production, exist this band steel, just can't improve the productive capacity of producing unit in linear running district sideslip accident.
The utility model content
The purpose of this utility model is to provide a kind of band steel X cycloid corrector in straight-line running region, it is simple in structure, be easy to make and install, can guarantee the band steel smooth operation that advance in the linear running district on color coating or zinc-plated and cold-rolling pickling and smooth manufacturing line effectively, avoid taking place aborning the accident of strip running deviation.
The purpose of this utility model is achieved in that a kind of band steel X cycloid corrector in straight-line running region, comprise base, center at base vertically is installed with main shaft, main shaft upper end is installed with a horizontal rotation platform that can produce relative rotation with base, on a side of base level affixed a servo-cylinder, one side bottom surface of horizontal rotation platform down vertically affixed a gusset that extends downwards, the piston rod free end of gusset lower end and servo-cylinder is hinged, end face both sides at the horizontal rotation platform vertically are being provided with the pinch roll frame respectively, be horizontally disposed with between the two pinch roll frames, bottom pinch roll, rotating shaft one end of bottom pinch roll links to each other with a motor shaft, this motor is fixed on the horizontal rotation platform, vertically be installed with respectively on the top of pinch roll frame and depress cylinder, two piston-rod lower ends of depressing cylinder link together with the top pinch roll two ends respectively, and top pinch roll can be gone up with respect to bottom pinch roll, lower slider.
When the utility model uses, it is installed in the linear running district of output strip line, cylinder is depressed in adjustment makes upper and lower pinch roll clamp the band steel, if deviation phenomenon takes place in the band steel in the linear running district, then adjusting servo-cylinder drive horizontal rotation platform turns an angle with respect to base, can rectify a deviation to the band steel in linear running district on one side,, thereby guarantee normally carrying out in order with steel production on one side by the driven by motor bottom pinch roll running load-transfer device steel that is installed on the horizontal rotation platform.The utility model is simple in structure, be easy to make and install, can guarantee the band steel smooth operation that advance in the linear running district on color coating or zinc-plated and cold-rolling pickling and smooth manufacturing line effectively, avoid taking place aborning the accident of strip running deviation, reduce enterprise's productive costs.
Description of drawings
The utility model is described in further detail below in conjunction with accompanying drawing.

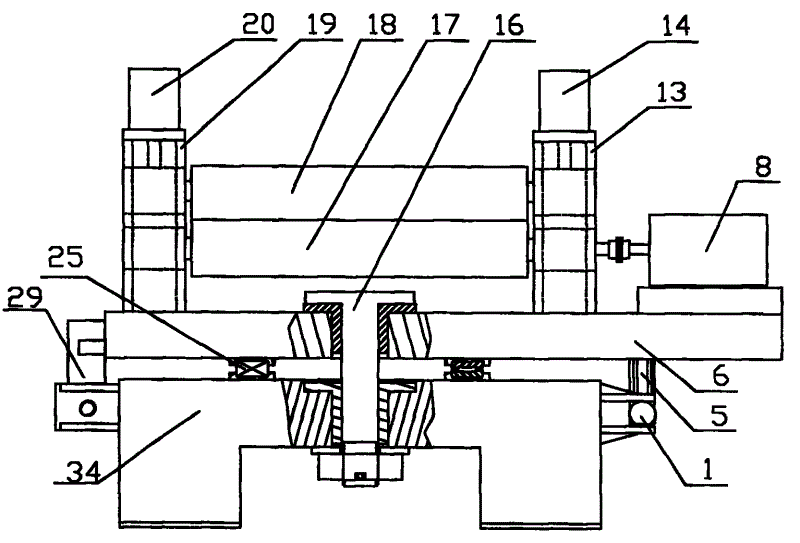

Fig. 1 is a main TV structure scheme drawing of the present utility model;
Fig. 2 is a right TV structure scheme drawing of the present utility model.
The specific embodiment
A kind of band steel X cycloid corrector in straight-line running region as shown in Figure 1 and Figure 2, comprises base 34, in the center of base 34 main shaft 16 is installed vertically, and main shaft 16 upper ends are installed with a horizontal rotation platform 6 that can produce relative rotation with base 34.For the run stability of the rotary table 6 of improving the standard, between horizontal rotation platform 6 and base 34, thrust baring 25 is being set; Can also be under the bottom surface of horizontal rotation platform 6 the uniform support wheel that is installed with, support wheel slides on the end face of base 34; Can also on the end face of base 34, annular groove be set, the uniform slide block that is installed with under the bottom surface of horizontal rotation platform 6, slide block slides in annular groove.Horizontally hinged a servo-cylinder 1 on a side of base 34, a side bottom surface of horizontal rotation platform 6 vertically affixed down a gusset 5 that extends downwards, the piston rod free end of gusset 5 lower ends and servo-cylinder 1 is hinged.Just can drive horizontal rotation platform 6 by servo-cylinder 1 rotates with respect to base 34.End face both sides at horizontal rotation platform 6 vertically are being provided with pinch roll frame 13,19 respectively, be horizontally disposed with upper and lower pinch roll 18,17 between the two pinch roll frames 14,20, rotating shaft one end of bottom pinch roll 17 links to each other with a motor shaft by coupler, and this motor 8 is fixed on the horizontal rotation platform 6.Vertically be installed with respectively on the top of pinch roll frame 13,19 and depress cylinder 14,20, two piston-rod lower ends of depressing cylinder 14,20 link together with top pinch roll 18 two ends respectively, depress cylinder 14,20 by adjustment and can adjust top pinch roll 18, in order to clamp the band steel with respect to bottom pinch roll 17 upper and lower slips.At the base relative with servo-cylinder 1 and the opposite side of horizontal rotation platform inhibiting device 29 is installed, this inhibiting device 29 is postive stop baffle or travel switch, produces the excessive anglec of rotation in order to prevent horizontal rotation platform 6.
Claims (3)
1. be with the steel X cycloid corrector in straight-line running region for one kind, comprise base (34), it is characterized in that: main shaft (16) vertically is installed in the center of base (34), main shaft (16) upper end is installed with a horizontal rotation platform (6) that can produce relative rotation with base (34), horizontally hinged a servo-cylinder (1) on a side of base (34), one side bottom surface of horizontal rotation platform (6) down vertically affixed a gusset (5) that extends downwards, the piston rod free end of gusset (5) lower end and servo-cylinder (1) is hinged, end face both sides at horizontal rotation platform (6) vertically are being provided with pinch roll frame (13 respectively, 19), two pinch roll frames (14,20) on being horizontally disposed with between, bottom pinch roll (18), (17), rotating shaft one end of bottom pinch roll (17) links to each other with a motor shaft, this motor (8) is fixed on the horizontal rotation platform (6), in pinch roll frame (13,19) top vertically is installed with respectively depresses cylinder (14,20), two depress cylinder (14,20) piston-rod lower end links together with top pinch roll (18) two ends respectively, and top pinch roll (18) can be gone up with respect to bottom pinch roll (17), lower slider.
2. band steel X cycloid corrector in straight-line running region according to claim 1 is characterized in that: the opposite side at base relative with servo-cylinder (1) and horizontal rotation platform is installed with inhibiting device (29),
This inhibiting device (29) is postive stop baffle or travel switch.
3. band steel X cycloid corrector in straight-line running region according to claim 1 is characterized in that: between horizontal rotation platform (6) and base (34) thrust baring (25) is being set.
