Abstract
A compound package bag capable of sealing punched hole repeatedly consists essentially of a bag body (1) having an upper and a lower sections sealed and adhered with each other. The utility model is characterized in that a punched hole (3) is formed on one surface of the bag body (1); a seal strip (2) is adhered in the position of the punched hole (3); a self-adhesive (4) is applied at the periphery of the seal strip adhered on the punched hole (3) or at the periphery of the punched hole (3) corresponding to the seal strip (2). The package bag has the advantages that the sealing of the package bag can be opened conveniently only by tearing the seal strip (2) so as to take or spill the articles in the bag; the punched hole (3) can be sealed by pressing the seal strip (2) on the punched hole (3) due to the action of the self-adhesive (4), thus resealing the package bag.
Description
Technical field
The utility model belongs to a kind of combined package bag, relates to a kind of punching of stickup repeatedly combined package bag that can conveniently repeat to open with sealing function that has.
Background technology
Prior art is used to pack the wrapping various packaging bags of daily life such as laundry soap powder, candy, milk powder, usually to tear or cut just and can open it with scissors, this operation is trouble not only, and in a single day open and just want to seal again relatively difficulty, above-mentioned article are not that one-shot usage is intact after opening bag, will open the package one after another, time ground is good with packaging bags again after taking out article, suitable trouble, if even sealing with great difficulty not cause the content product to make moist mildew and rot, cause waste.
Summary of the invention
The purpose of this novel product is the defective that exists at packaging bag of the prior art, and a kind of punching of stickup repeatedly combined package bag that can conveniently repeat to open with pressurizing window is provided.
The punching combined package bag of pasting repeatedly of the present utility model: mainly comprise bag 1, the upper and lower opening seal bond of bag 1, it is characterized in that: on a face of bag 1, offer a punching 3, Feng Youyi sealing strip 2 on the position of punching 3, with cooresponding sealing strip 2 peripheral positions that punching 3 is pasted mutually on scribble non-drying glue 4, or on the peripheral position of the cooresponding punching 3 of pasting mutually with sealing strip 2, scribble non-drying glue 4.
The utility model packaging bag compared with prior art has following advantage: only need tear sealing strip 2, just can be easy to open sealing of packaging bag, thereby take out or pour out article in bag; After taking out article, only need sealing strip 2 compressed and stick in the punching 3, because the stickup effect of non-drying glue 4, sealing strip 2 is just sealed punching 3 again, thereby again that the envelope of packaging bag is close.
Description of drawings
Below in conjunction with drawings and Examples the utility model being pasted the punching combined package bag repeatedly is described in further details.

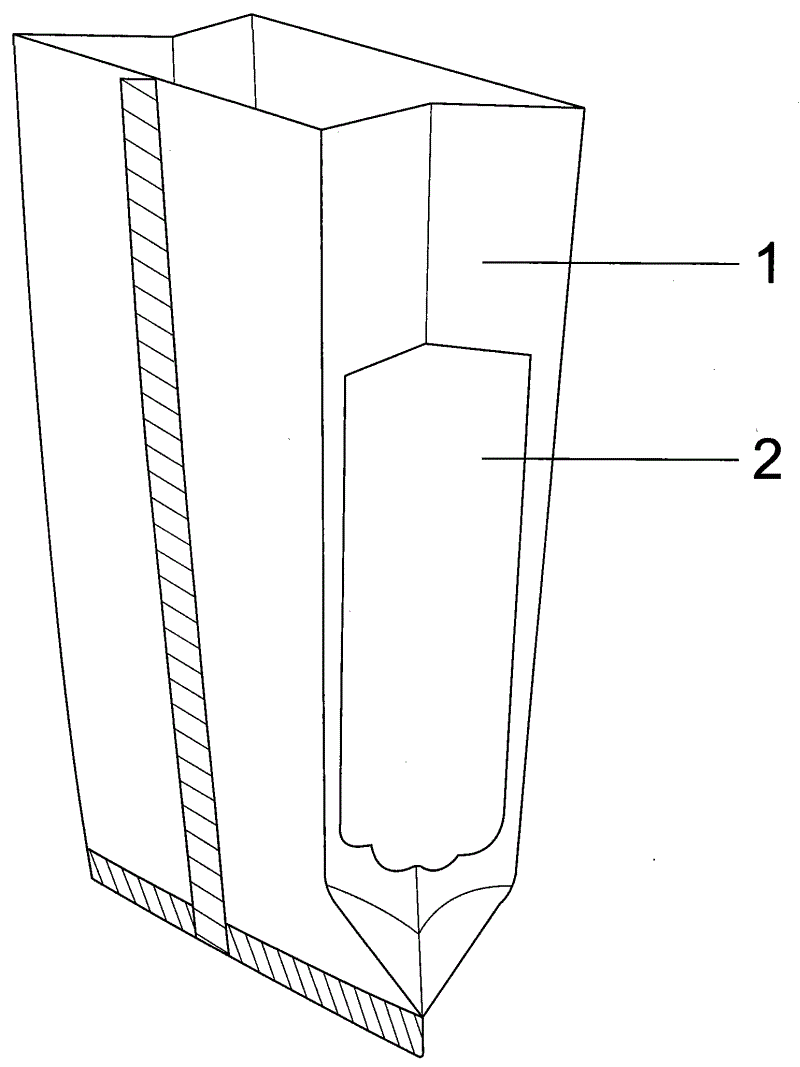

Structural representation when Fig. 1 pastes sealing strip 2 sealings in the punching of punching combined package bag repeatedly for the utility model;
Structural representation when Fig. 2 pastes sealing strip 2 in the punching of punching combined package bag repeatedly and opens for the utility model;
1. bags, 2. sealing strips, 3. punchings, 4. non-drying glues among the figure
The specific embodiment
As shown in Figure 1 and Figure 2: the utility model is pasted the punching combined package bag repeatedly: mainly comprise bag 1, the upper and lower opening seal bond of bag 1, it is characterized in that: on a face of bag 1, offer a punching 3, Feng Youyi sealing strip 2 on the position of punching 3, with cooresponding sealing strip 2 peripheral positions that punching 3 is pasted mutually on scribble non-drying glue 4, or on the peripheral position of the cooresponding punching 3 of pasting mutually with sealing strip 2, scribble non-drying glue 4.
Described a kind of punching combined package bag of pasting repeatedly is characterized in that bag 1 is for being made by anter and two of rear panels and peripheral four limit heat-sealing bonding; Before bag 1 also can be folded into by a composite plastic film, four faces in back and two sides, and therein on face centre joint heat-sealing bonding form 1 (as depicted in figs. 1 and 2) of volumetric packaging bag, the whole heat-sealing bonding sealings of lower bag mouth on it, usually be located at the punching on the bag 13 on the side of two sides this moment, the sealing strip (2) that scribbles non-drying glue (4) accordingly is sealed in the punching (3) of side, so just make that punching 2 and sealing strip 3 positions on the bag are more hidden slightly, make the positive back side of bag look more smooth, keep sack integral body more attractive in appearance.
Claims (2)
1. paste the punching combined package bag repeatedly for one kind: mainly comprise bag (1), the upper and lower opening seal bond of bag (1), it is characterized in that: on a face of bag (1), offer a punching (3), on the position of punching (3), go up Feng Youyi sealing strip (2), with cooresponding sealing strip (2) peripheral position that punching (3) is pasted mutually on scribble non-drying glue (4), or on the peripheral position of the cooresponding punching (3) of pasting mutually with sealing strip (2), scribble non-drying glue (4).
2. a kind of punching combined package bag of pasting repeatedly according to claim 1: it is characterized in that: bag (1) by a composite plastic film be folded into forward and backward and four faces in two sides, and therein on face centre joint heat-sealing bonding form the volumetric packaging bag, the whole heat-sealing bonding sealings of lower bag mouth on it, be located at the punching (3) on the bag (1) on the side of two sides this moment, and the sealing strip (2) that scribbles non-drying glue (4) accordingly is sealed in the punching (3) of side.
