Abstract
A centrifugal refrigerating unit cooling system comprises a condenser, an evaporator and a centrifugal compressor, wherein two paths of input cooling pipelines led out from the condenser are respectively connected with a motor of the centrifugal compressor and a heat exchanger of the centrifugal compressor, output cooling pipelines led out from the motor of the centrifugal compressor and the heat exchanger are respectively combined and then connected with the evaporator, throttle orifice plates are respectively connected in series on the input cooling pipelines respectively connected with the motor and the heat exchanger, and the throttle orifice plates are respectively connected in parallel with electronic expansion valves; when the system works, high-temperature and high-pressure refrigerant from the condenser is divided into two paths, the electronic expansion valve is gradually opened after the oil temperature exceeds a set temperature point, the refrigerant is changed into a low-temperature and low-pressure liquid state after passing through the throttling orifice plate and the electronic expansion valve, and one path of refrigerant is evaporated on the surfaces of the heat exchanger and the motor winding through latent heat of vaporization, so that the motor winding and system lubricating oil are cooled; and the bearing and the gear are directly cooled after the other path of lubricating oil is cooled, so that the normal work of the motor is ensured.
Description
[technical field]
The present invention relates to a kind of refrigeration unit cooling system, especially a kind of centrifugal refrigerating unit cooling system.
[background technology]
At present, centrifugal refrigerating machines in the air conditioner industry utilization, the water quench machine set systems that adopt more, it is air-cooled that the compression motor of this unit partly cools off most employing simultaneously, and above cooling provision is controlled complexity, and be subjected to the extraneous factor influence easily, wayward, complete machine temperature is raise, cause the bearing and the compression motor scaling loss of equipment unit, so must be reliable and stable the cooling of bearing and motor.
[utility model content]
The present invention overcomes the deficiencies in the prior art, provide a kind of simple and easy, energy-conservation, maintain easily, reliable and stable, avoid catastrophic failure to cause the centrifugal refrigerating unit cooling system of unit damage and the circulation of unit cooling can carrying out two parts self.
In order to solve the technical problem of above-mentioned existence, the present invention adopts following technical proposals to realize:
A kind of centrifugal refrigerating unit cooling system, comprise condenser, evaporimeter and centrifugal compressor, drawing two-way input cooling line from condenser is connected with the motor of centrifugal compressor and the heat exchanger of centrifugal compressor respectively, the output cooling line of drawing from the heat exchanger of the motor of centrifugal compressor and centrifugal compressor merges the back and is connected with evaporimeter respectively, be in series with restricting orifice respectively on the input cooling line that it is characterized in that being connected respectively with motor and heat exchanger, described restricting orifice is parallel with electric expansion valve respectively.
Aforesaid a kind of centrifugal refrigerating unit cooling system is characterized in that described heat exchanger is a plate type heat exchanger.
Compared with prior art, advantage of the present invention:
This version has guaranteed the reliability service of centrifugal refrigerating machines, and having reduced may be because of the unit damage and the unnecessary parking of cutting off the water supply, cutting off the power supply and other outside catastrophic failures causing in the unit running process.By the part refrigerant cooling heating of kind of refrigeration cycle, more energy-conservation than other radiating mode, guaranteed efficiency of energy utilization.
[description of drawings]

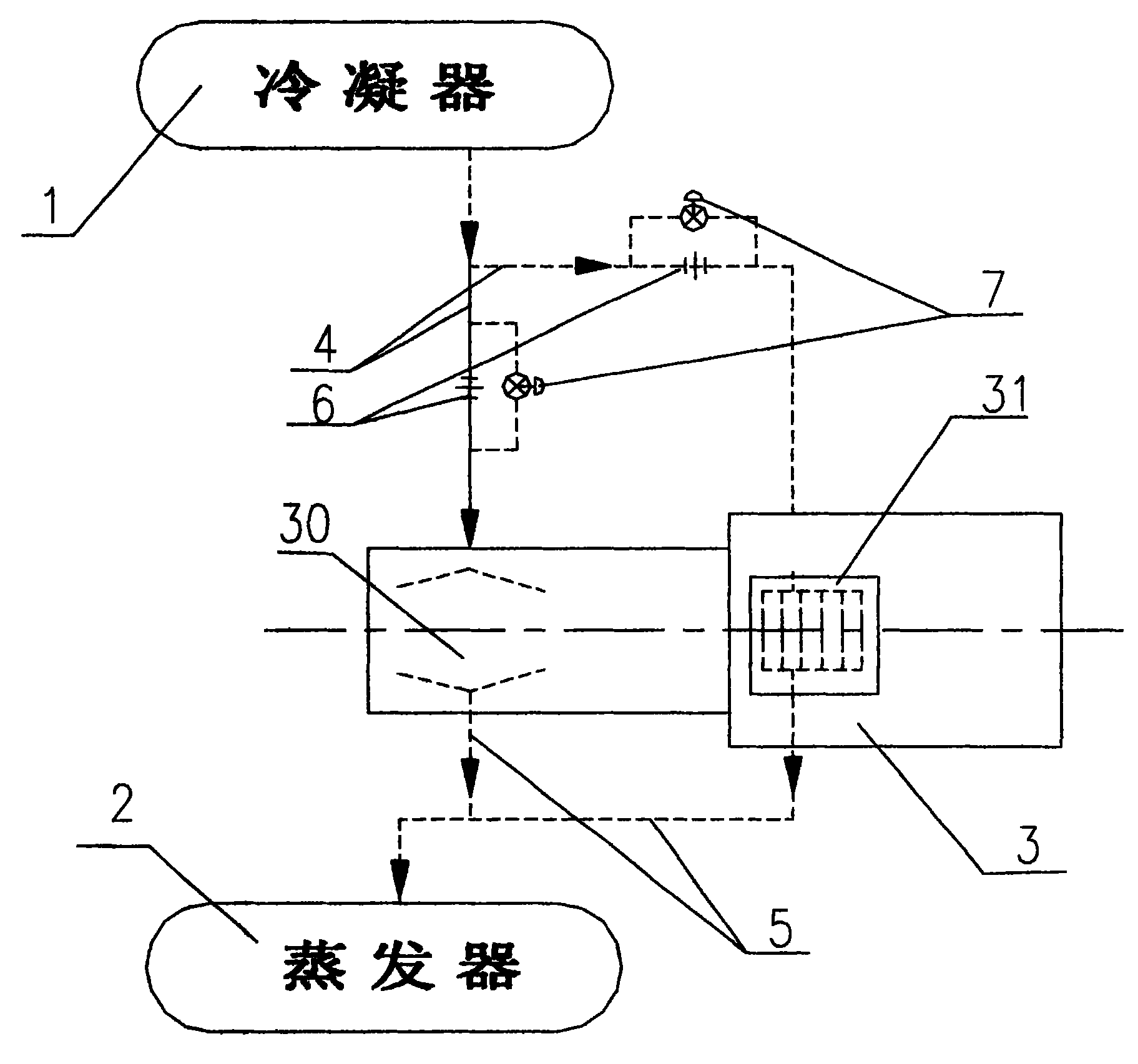

Fig. 1 is a circulatory system schematic diagram of the present utility model.
[specific embodiment]
The present invention is described in further detail below in conjunction with the drawings and specific embodiments:
A kind of centrifugal refrigerating unit cooling system, comprise condenser 1, evaporimeter 2 and centrifugal compressor 3, drawing two-way input cooling line 4 from condenser 1 is connected with the motor 30 of centrifugal compressor 3 and the heat exchanger 31 of centrifugal compressor 3 respectively, the output cooling line 5 of drawing from the heat exchanger 31 of the motor 30 of centrifugal compressor 3 and centrifugal compressor 3 merges the back and is connected with evaporimeter 2 respectively, with motor 30 and input cooling line 4 that heat exchanger 31 is connected respectively on be in series with restricting orifice 6 respectively, described restricting orifice 6 is parallel with electric expansion valve 7 respectively.During this system works, the HTHP refrigerant that comes out from condenser 1 is divided into two-way, (＜52 ℃) restricting orifice 6 leads in the normal range (NR) when oily temperature is in, electric expansion valve 7 full cut-offs, keep general system cools, electric expansion valve 7 is progressively opened after the oil temperature surpasses design temperature point, refrigerant is simultaneously by behind restricting orifice 6 and the electric expansion valve 7, refrigerant becomes the low-temp low-pressure liquid condition, one the tunnel evaporates by the latent heat of vaporization at heat exchanger 31 and motor 30 winding surfaces, thus cooling motor 30 windings and system oil; Another lubricating oil cooling back, road is cooling bearing and gear directly, guarantees motor 30 operate as normal.
The utility model in use, motor adopts the insulating materials of anti-R134a to make, model specification according to unit, determine motor 30 caloric values and gear, the caloric value of bearing etc., calculated the required heat exchange amount of motor and lubricating oil, realize oil circulation by the separate unit oil pump then, one plate type heat exchanger 31 is set on oil circuit, carry out the heat exchange designing and calculating according to plate type heat exchanger 31 and refrigerant cooling fluid differential pressure flow then, determine that required caliber and one section pipeline in parallel carry out the safeguard protection setting, use evaporation, condensation side pressure reduction and latent heat discharge and reach the cooling purpose, the heating of gear-bearing is cooled off by lubricating oil, guarantee the absolute safe and reliable operation of unit; Wherein on input cooling line 4, adopt restricting orifice 6 and electric expansion valve 7 parallel connections to control, utilize to be arranged on motor 30 inner hydrojet positions, adopt the hydrojet type of cooling to guarantee that inner winding evenly cools off.
Above embodiment is the unrestricted technical scheme of the present invention in order to explanation only.If those skilled in the art makes unsubstantiality, conspicuous changes and improvements according to the present invention, all should belong to the scope of claim protection of the present invention.
Claims (2)
1. centrifugal refrigerating unit cooling system, comprise condenser (1), evaporimeter (2) and centrifugal compressor (3), drawing two-way input cooling line (4) from condenser (1) is connected with the motor (30) of centrifugal compressor (3) and the heat exchanger (31) of centrifugal compressor (3) respectively, the output cooling line (5) of drawing from the heat exchanger (31) of the motor (30) of centrifugal compressor (3) and centrifugal compressor (3) merges the back and is connected with evaporimeter (2) respectively, it is characterized in that with motor (30) and input cooling line (4) that heat exchanger (31) is connected respectively on be in series with restricting orifice (6) respectively, described restricting orifice (6) is parallel with electric expansion valve (7) respectively.
2. a kind of centrifugal refrigerating unit cooling system according to claim 1 is characterized in that described heat exchanger (31) is a plate type heat exchanger.
