CN201002789Y - High-sealing easy-opening bottle stopper - Google Patents
High-sealing easy-opening bottle stopper Download PDFInfo
- Publication number
- CN201002789Y CN201002789Y CNU2007201235758U CN200720123575U CN201002789Y CN 201002789 Y CN201002789 Y CN 201002789Y CN U2007201235758 U CNU2007201235758 U CN U2007201235758U CN 200720123575 U CN200720123575 U CN 200720123575U CN 201002789 Y CN201002789 Y CN 201002789Y
- Authority
- CN
- China
- Prior art keywords
- bottle
- plug
- bottle stopper
- chock plug
- cover ring
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model relates to a bottle plug which has the high sealing property and is easy to be opened and closed. The utility model consists of a cover ring provided with the screw threads and high sealing plug head provided with the a conical surface, wherein, the plug head is arranged in the cover ring; the plug is cylindrical and is large at the upper part while small at the lower part; the plug head can be closely matched with the bottle neck; a convex circular muscle is arranged on the conical surface, guaranteeing the high sealing property; the cover ring is provided with the inner screw threads, which are matched with the outer screw threads of the bottle neck, providing the upward and downward force for the opening and sealing of the bottle plug; the plug head is connected with the cover ring and ca move up and down along with the rotation of the cover ring, thus, the plug can be revolved out of the bottle neck by revolving the cover ring when opening the bottle cover; the bottle can be revolved in along the reverse direction when sealing again. The utility model has the advantages of the convenience for opening and high sealing property.
Description
Technical field
The utility model relates to packing technique, is specifically related to bottle sealing and opening technology
Technical background
Along with the raising of people's living standard, the drink industry develops rapidly.A lot of occasions, people usually add to the fun with wine and beverage.Though the sealing of some red wines is better, must be in the time of unlatching by bottle opener, cumbersome.And the bottle stopper after opening breaks down easily, the wine of cannot not drinking intactly, and bottle stopper can't carry out once more jam-pack, sealing.
Summary of the invention
The purpose of this utility model has been to overcome the shortcoming of ordinary bottle plug in the daily life, and a kind of high sealing of the advantage of general screw top closure and bottle stopper, bottle stopper that easily opens and closes of integrating is provided.
The technical scheme that realizes the foregoing invention purpose is as follows:
A kind of high sealing, the bottle stopper that easily opens and closes are made up of bezel ring, and chock plug, and bezel ring, has negative thread, cooperates with the outside thread of bottleneck, and chock plug is loaded in the bezel ring,, and chock plug and bottleneck internal diameter are up big and down small taper shape for closely cooperating.Only need rotate bezel ring, during use and just can open and seal bottleneck, in the rotation bezel ring,, apply a very little pressure on the bottle stopper top, when bottle cap screws in 3/4, bottle stopper and bottleneck are in transition fit, because the existence of chock plug conical surface angle can make the pressure of outer bound pair bottle stopper increase the application force that doubly is converted between chock plug and bottleneck, when continuing to screw in bottle cap, make bevelled chock plug clog bottleneck tightly, can reach effective sealing, very convenient.In addition, the helicitic texture that bezel ring, has can change the up-and-down movement of bottle stopper into rotatablely moving of bottle stopper, can make in unlatching and the leak free process more laborsaving like this.
Further, the upper end of chock plug snaps in by a bulge loop in the annular groove at bezel ring, top and connects as one, and bottle stopper can only move up and down like this.In addition, design has the raised annular muscle on the conical surface of chock plug, to play better sealing function.
By said structure as seen, the utlity model has good sealing effect, open advantage quickly and easily, be fit to repeated multiple times and use, can solve the inconvenience that existing bottle stopper uses, satisfy people's needs.
Description of drawings

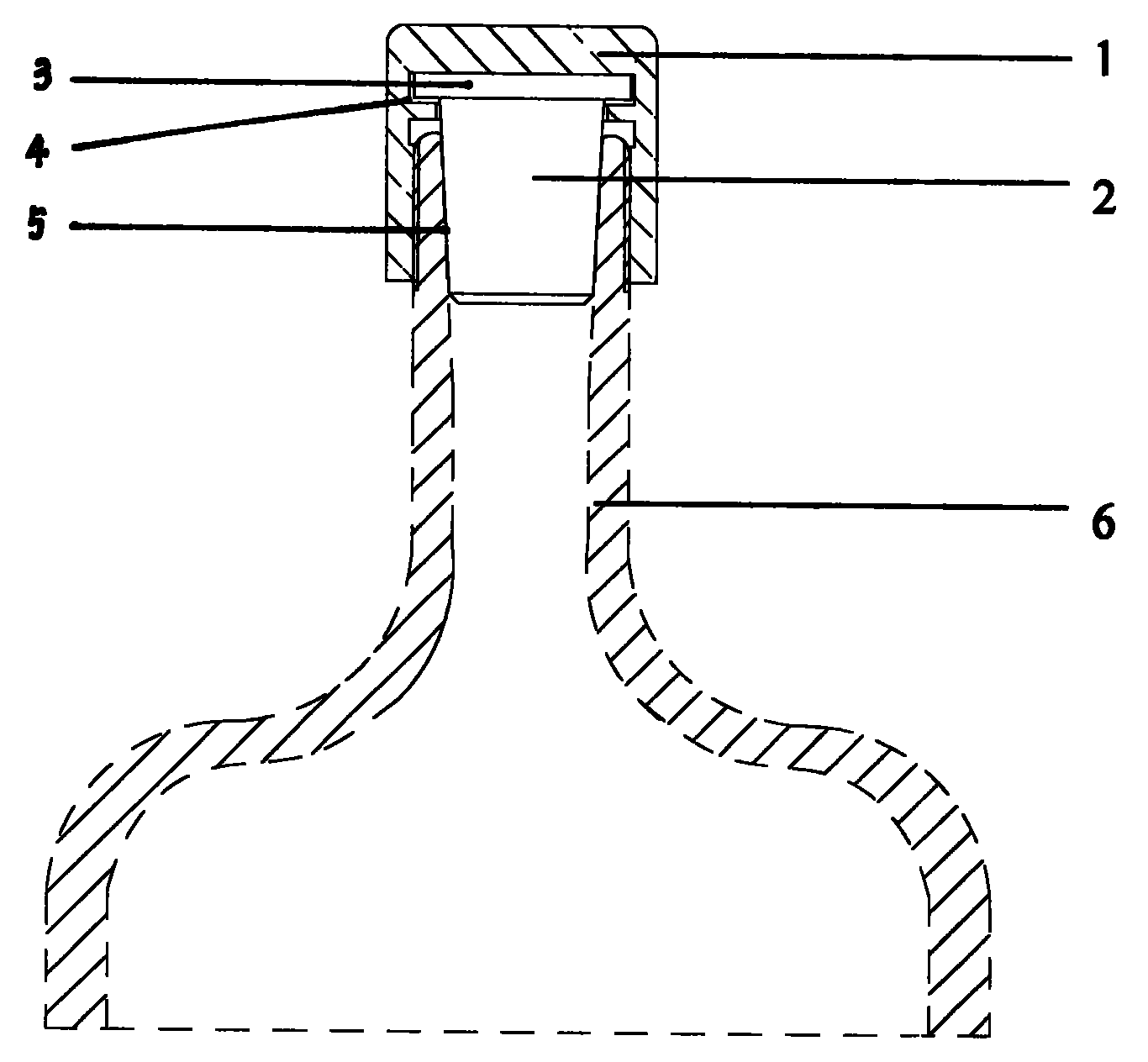

Fig. 1 is a structural representation of the present utility model.
The specific embodiment
Referring to Fig. 1, bottle stopper comprises bezel ring, 1 and chock plug 2 two parts, and there is a bulge loop 3 upper end of chock plug 2, and bezel ring, 1 top is to there being an annular groove 4, and bulge loop 3 snaps in the annular groove 4, and both are held together, chock plug 2 up-and-down movement together under the drive of bezel ring, 1.In the bezel ring, 1 screw thread is arranged, cooperate, realize screwing with the outside thread of bottleneck 6.Chock plug 2 is up big and down small taper shape in bezel ring, 1, be used to fill in bottleneck 6, closely cooperates with bottleneck 6 internal diameters, establishes raised annular muscle 5 on chock plug 2 conical surfaces, plays efficient sealed effect.
Claims (3)
1. a high sealing, the bottle stopper that easily opens and closes are made up of bezel ring, and chock plug, and it is characterized in that: bezel ring, (1) has negative thread, cooperate with the outside thread of bottleneck, chock plug (2) is loaded in the bezel ring, (1), and chock plug (2) and bottleneck internal diameter are up big and down small taper shape for closely cooperating.
2. high sealing according to claim 1, the bottle stopper that easily opens and closes is characterized in that: the upper end of chock plug (2) snaps in by a bulge loop (3) in the annular groove (4) at bezel ring, (1) top and connects as one.
3. high sealing according to claim 1 and 2, the bottle stopper that easily opens and closes is characterized in that: raised annular muscle (5) is arranged on the circular conical surface of chock plug (2).
