一种音乐发光刀，属于生活用具，包括刀把(1)和刀体(2)；其特征在于刀把(1)内部为空槽结构，在刀把(1)内部放有电池盒(3)和单片机(4)，解码电路(5)，数模转换功放电路(6)，内置存储电路(7)，拾音放大电路(8)，开关电路(9)，在刀把(1)上设有控制开关(10)和喇叭(11)，在刀体(2)的侧面上镶有多个小灯泡(12)，各个电子元件为有效的电联连接。本实用新型的优越性为：结构简单，使用方便，在已有刀具有的功能上又增加了它可以辅助我们在切碎食物的同时还可以发出光芒和美妙音乐功能。
A music luminous knife, which belongs to daily life tools, includes a knife handle (1) and a knife body (2); it is characterized in that the inside of the knife handle (1) is an empty slot structure, and a battery box (3) and a single-chip microcomputer are placed inside the knife handle (1) (4), decoding circuit (5), digital-to-analog conversion power amplifier circuit (6), built-in storage circuit (7), sound pickup amplifier circuit (8), switch circuit (9), is provided with control switch on knife handle (1) (10) and loudspeaker (11), are inlaid with a plurality of small bulbs (12) on the side of cutter body (2), and each electronic component is an effective electrical connection. The advantages of the utility model are: simple structure, easy to use, added to the functions of the existing knife, it can assist us to emit light and wonderful music while chopping food.
Description
(一)技术领域(1) Technical field
本实用新型属于生活工具，特别是涉及一种音乐发光刀。The utility model belongs to living tools, in particular to a music light-emitting knife.
(二)背景技术(2) Background technology
在我们的日常生活中刀是必不可少的生活用具。但是，现有的刀只有辅助我们把东西切碎的功能。根据使用者的需求，可以辅助我们在切碎食物的同时还可以发出光芒和美妙音乐的音乐发光刀，目前还没有发现。Knife is an essential living utensil in our daily life. However, existing knives only have the function of assisting us in chopping things. According to the needs of users, a musical luminous knife that can assist us in chopping food and emit light and beautiful music has not yet been found.
(三)发明内容(3) Contents of the invention
为了克服现有产品的不足之处，本实用新型设计一种音乐发光刀，它可以辅助我们在切碎食物的同时还可以发出光芒和美妙音乐功能得以增加。In order to overcome the shortcomings of the existing products, the utility model designs a musical light-emitting knife, which can assist us in chopping food and can also emit light and increase the function of beautiful music.
本实用新型解决其技术问题所采用的技术方案是：一种音乐发光刀，包括刀把和刀体；其特征在于刀把内部为空槽结构，在刀把内部放有电池盒和单片机，解码电路，数模转换功放电路，内置存储电路，拾音放大电路和开关电路，在刀把上设有控制开关和喇叭，在刀体的侧面上镶有多个小灯泡，各个电子元件为有效的电联连接。The technical solution adopted by the utility model to solve the technical problem is: a musical luminous knife, including a knife handle and a knife body; it is characterized in that the inside of the knife handle is an empty groove structure, and a battery box and a single-chip microcomputer are placed inside the knife handle. Analog conversion power amplifier circuit, built-in storage circuit, sound pickup amplifier circuit and switch circuit, control switch and horn are set on the knife handle, a plurality of small light bulbs are embedded on the side of the knife body, and each electronic component is an effective electrical connection.
本实用新型的优越性为：结构简单，使用方便，在已有刀具有的功能上又增加了它可以辅助我们在切碎食物的同时还可以发出光芒和美妙音乐功能。The advantages of the utility model are: simple structure, easy to use, added to the functions of the existing knife, it can assist us to emit light and wonderful music while chopping food.
(四)附图说明(4) Description of drawings

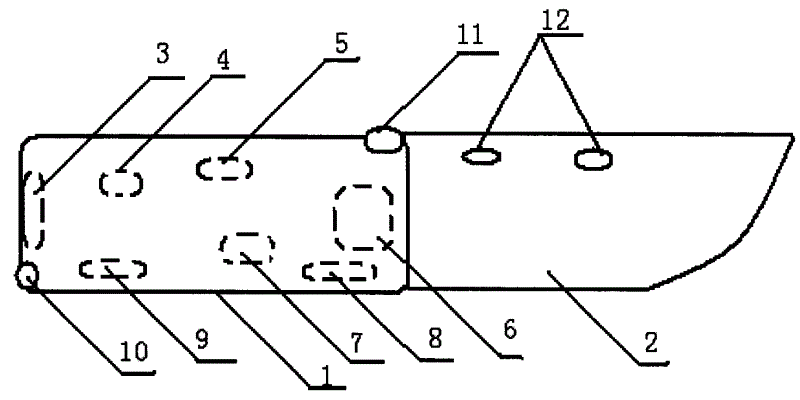

附图是音乐发光刀的结构示意图，其中：(1)为刀把，(2)为刀体，(3)为电池盒，(4)为单片机，(5)为解码电路，(6)为数模转换功放电路，(7)为内置存储电路，(8)为拾音放大电路，(9)为开关电路，(10)为控制开关，(11)为喇叭，(12)为小灯泡。The accompanying drawing is a schematic diagram of the structure of the music luminous knife, in which: (1) is the knife handle, (2) is the knife body, (3) is the battery box, (4) is the single-chip microcomputer, (5) is the decoding circuit, (6) is the digital Analog conversion power amplifier circuit, (7) is a built-in storage circuit, (8) is a sound pickup amplifier circuit, (9) is a switch circuit, (10) is a control switch, (11) is a loudspeaker, and (12) is a small light bulb.
(五)具体实施方式(5) Specific implementation methods
如附图的一种音乐发光刀，包括刀把(1)和刀体(2)；其特征在于刀把(1)内部为空槽结构，在刀把(1)内部放有电池盒(3)和单片机(4)，解码电路(5)，数模转换功放电路(6)，内置存储电路(7)，拾音放大电路(8)，开关电路(9)，在刀把(1)上设有控制开关(10)和喇叭(11)，在刀体(2)的侧面上镶有多个小灯泡(12)，各个电子元件为有效的电联连接。A musical luminous knife as shown in the accompanying drawing, including a knife handle (1) and a knife body (2); it is characterized in that the inside of the knife handle (1) is a hollow structure, and a battery box (3) and a single-chip microcomputer are placed inside the knife handle (1) (4), decoding circuit (5), digital-to-analog conversion power amplifier circuit (6), built-in storage circuit (7), sound pickup amplifier circuit (8), switch circuit (9), is provided with control switch on knife handle (1) (10) and loudspeaker (11), are inlaid with a plurality of small bulbs (12) on the side of cutter body (2), and each electronic component is an effective electrical connection.
