Abstract
An expendable auxiliary tool for the oral therapy in order to provide a sufficient therapeutic space in oral cavity is composed of a local tooth sleeve, a supporting rod, a buccal plate and a position fixing ring for fixing and protecting tongue and fixing a saliva sucking tube.
Description
Technical field
Auxiliary implement when the present invention relates to a kind of dental care.
Background technology
The treatment of oral disease needs the cooperation of dehiscing of patient's long period, and the visual field of treatment operation clearly is provided, and the treatment environment of no saliva contamination also need be avoided swallowing because of remaining silent suddenly, and tongue body is touched the unexpected injury that causes.Existing oral appliance is difficult to satisfy simultaneously these needs.And mouthfeel is uncomfortable, and patient's compliance is poor.
Summary of the invention
The object of the present invention is to provide a kind of dental care needs that meet, easy to use, with low cost, patient's compliance is good, avoids the disposable auxiliary implement of dental care of cross-contamination.
Technical scheme of the present invention is: oral treatment supplementary instrument comprises local facing, cheek and connect both support bar and support bar on mobilizable maintenance ring.The maintenance strength by local facing and the supporting strength of the buccinator muscle of facing cheek side link to each other support bar with it cheek is pointed struts the treatment side, needed treatment space is provided, can makes the patient in the dental care process, keep bigger opening degree comparatively easily.Mobilizable maintenance ring is placed on treatment side tongue body lateral margin, and the maintenance ring plays maintenance and protective effect with support bar and local facing to tongue body.The maintenance ring is ptysma-absorbing tube fixedly, in time blots liquid in the oral cavity.Guarantee to treat the visual field clearly, avoid the pollution of saliva therapeutic process.The disposable use of this apparatus, safe and sanitary.
Description of drawings

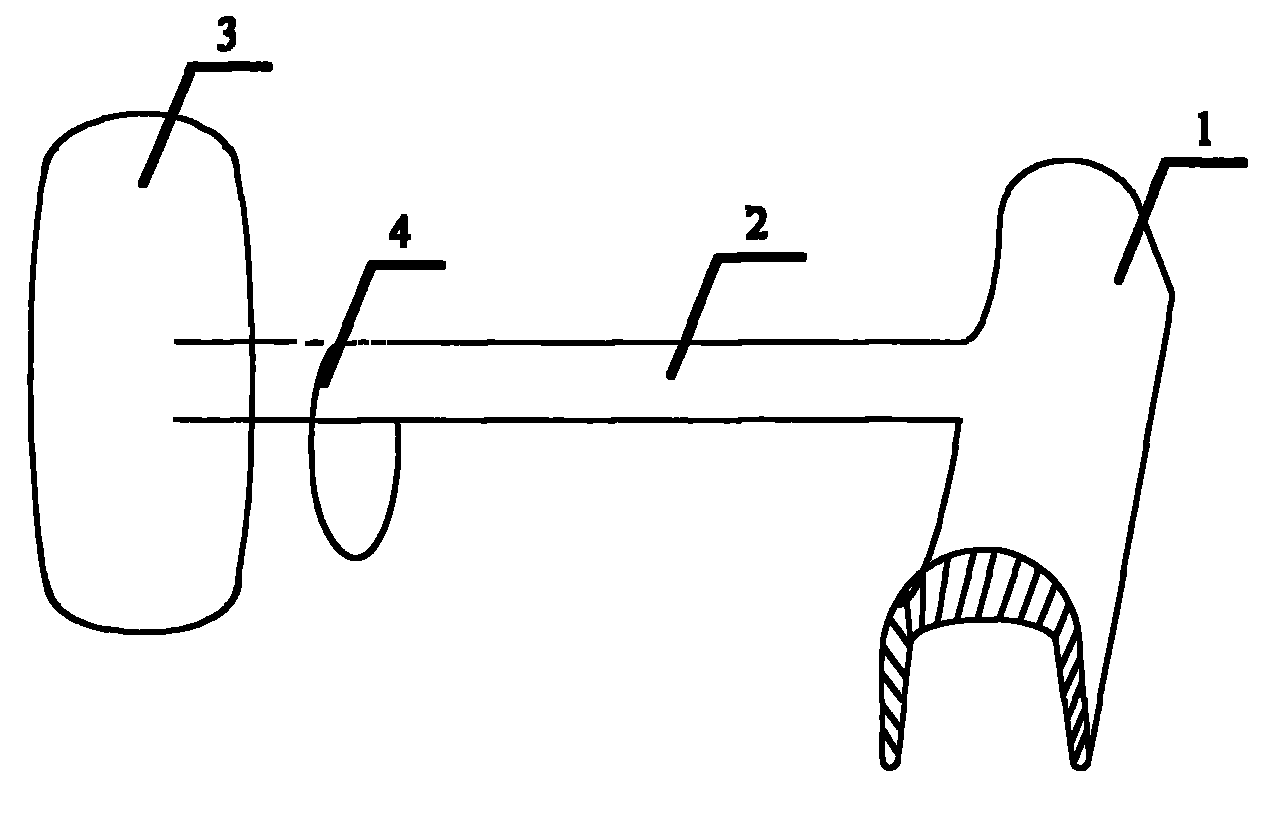

Accompanying drawing is the structural representation of oral treatment supplementary instrument
The specific embodiment
As shown in drawings: oral treatment supplementary instrument comprises local facing 1, support bar 2, and mobilizable maintenance ring 4 constitutes on cheek 3 and the support bar.Local facing 1 is made by elastoplast.Be enclosed within on local tooth and the dental bed, surface and edge are smooth, and the facing upper limb is thicker, and both side edges is thinner.2 one of support bars are connected the facing upper limb, and one is connected in the middle of the cheek.Form is flat, and the edge is smooth.Cheek 3 is the smooth oblate arc of fitting with cheek pleural muscle meat form.Maintenance ring 4 is enclosed within on the support bar movable, is placed on treatment side tongue body lateral margin.Local facing 1 is enclosed within on treatment side offside tooth and the dental bed; the bracing force of the maintenance strength by local facing 1 and the buccinator muscle of facing cheek side with support bar 2 and coupled cheek 3 pointed strut the treatment side; needed space when dental care is provided; make the patient keep enough treatment spaces comparatively easily for a long time, maintenance ring 4 plays maintenance and protective effect with support bar 2 and local facing 1 to tongue body.Maintenance ring 4 is ptysma-absorbing tube and in time blot liquid in the oral cavity fixedly.Guarantee that the doctor treats the visual field clearly, avoid the pollution of saliva therapeutic process.
Claims (6)
1. oral treatment supplementary instrument, it is characterized in that by local facing, support bar, cheek, this four part of maintenance ring is formed whole smooth-shaped, one of support bar is connected the facing upper limb, one is connected in the middle of the cheek, and the maintenance ring set is movable on support bar, and cheek is the smooth oblate arc of fitting with cheek pleural muscle meat form.
2. oral treatment supplementary instrument according to claim 1, it is characterized in that the supporting strength of the buccinator muscle of the maintenance strength of local facing and facing cheek side is delivered to support bar and cheek, pointed treatment side, needed space when dental care is provided of strutting.
3. oral treatment supplementary instrument according to claim 1 is characterized in that local facing made by elastic plastic material.
4. oral treatment supplementary instrument according to claim 1 is characterized in that the maintenance ring places treatment side tongue body lateral margin, and maintenance ring, support bar and local facing play maintenance and protection to tongue body together.
5. dental care axle according to claim 1 helps device, and head is characterised in that fixedly ptysma-absorbing tube of maintenance ring.
6. oral treatment supplementary instrument according to claim 1 is characterized in that material made by the safety non-toxic plastics.
