CN115663640A - Power grid operation and maintenance device convenient for real-time monitoring - Google Patents
Power grid operation and maintenance device convenient for real-time monitoring Download PDFInfo
- Publication number
- CN115663640A CN115663640A CN202211402776.7A CN202211402776A CN115663640A CN 115663640 A CN115663640 A CN 115663640A CN 202211402776 A CN202211402776 A CN 202211402776A CN 115663640 A CN115663640 A CN 115663640A
- Authority
- CN
- China
- Prior art keywords
- supporting seat
- column
- supporting
- bearing
- block
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Landscapes
- Workshop Equipment, Work Benches, Supports, Or Storage Means (AREA)
Abstract
The invention discloses a power grid operation and maintenance device convenient for real-time monitoring, which comprises a supporting seat, a workbench for bearing and monitoring equipment arranged at the upper end of a mounting bracket for supporting; still including supplementary bearing mechanism, supporting mechanism, the guard plate, setting through supervisory equipment, monitor the equipment in the electric wire netting in real time, guarantee power equipment's normal operating, in time report to the police when breaking down, and in-process maintaining the maintenance to equipment, setting through supplementary bearing mechanism, carry out the auxiliary stay to the device, prevent that the device from taking place to empty or turn on one's side, the stability of device has been promoted, it goes up and down in the upper end of supporting seat to combine the workstation to pass through the support column, be convenient for highly adjust the use of workstation, and supporting mechanism carries out the auxiliary stay to the workstation, the stability of workstation in the use has been promoted, combine the setting of guard plate and fender rod, the guard plate is the setting of equal angle in the edge of workstation, can protect maintainer.
Description
Technical Field
The invention relates to the field of power grid operation and maintenance devices, in particular to a power grid operation and maintenance device convenient for real-time monitoring.
Background
The power grid refers to a whole formed by a substation with various voltages and a power transmission and distribution line in a power system and comprises three units of power transformation, power transmission and power distribution, in order to guarantee normal and safe operation of the power grid, power related equipment in a power distribution room needs to be regularly maintained, and in the process of maintaining the power related equipment, particularly equipment at a higher position and during maintenance and overhaul, workers need to perform auxiliary ascending operation by means of corresponding operation and maintenance devices.
Chinese patent publication No. CN114204497A discloses a self-locking type cable laying bearing bracket convenient for maintenance, which comprises a horizontal installation carrier plate, a cable body, fixing clamping blocks for bearing and a protection bottom plate, wherein the left and right sides of the cable body are respectively provided with the fixing clamping blocks for bearing, the protection bottom plate is arranged at the lower end of a fixing plate in a vertical state, the fixing clamping blocks are used for clamping and limiting the cable body, and the connection mechanism is arranged at the joint of the protection bottom plate and the protection bottom plate. This from locking-type cable laying with bearing bracket convenient to maintain, through stop gear's setting, can drive fixed clamp splice and lock the cable body automatically, combine fixed mechanism's setting, can further carry on spacingly between fixed clamp splice and the fixed clamp splice, and through the setting that the protection bottom plate combines the protection curb plate, can play the effect of protection to the cable body, moreover can be very convenient regularly maintain and overhaul the cable body.
If chinese patent publication No. CN114094456A discloses a protection type intelligent power distribution cabinet that can prevent rainwater from immersing again, include through the switch board body of bolt mounting in fixed mounting seat upper end, rainfall sensor installs in the upper end of switch board body, and rainfall sensor is used for detecting the size of rainfall, fixed stop rotates the left and right sides of connecting at the switch board body, and fixed stop's rear end fixedly connected with is used for the first gear of regulation, the dust screen, dust screen fixed connection is at the middle part of fixed frame. This but protection type intelligent power distribution cabinet that rain-proof water immerges can play the guard action to the switch board, prevents that non professional from being close to the switch board to can prevent under the state of rainy day that the rainwater from immerging the inside of switch board, play the effect of protection to the inside components and parts of switch board, simultaneously in the radiating, can prevent that the dust from getting into the inside of switch board, the practicality is high.
However, the commonly used power grid operation and maintenance device still has the following disadvantages:
1. in the actual use process of the existing power grid operation and maintenance device, a monitoring function is not set, so that when equipment breaks down, maintenance and overhaul cannot be carried out at the first time easily, and the timeliness of the maintenance needs to be improved;
2. the existing power grid operation and maintenance device has poor stability in the process of maintaining equipment, is easy to topple or turn over during use, causes maintenance personnel to fall down, and has larger potential safety hazard;
3. current electric wire netting fortune dimension device, maintainer do not set up corresponding protection machanism in the use, and the high fixed of device is inconvenient moreover makes corresponding adjustment according to the actual height of equipment, and is inconvenient moreover accomodate it after the use.
Disclosure of Invention
Aiming at the defects of the prior art, the invention provides a power grid operation and maintenance device convenient for real-time monitoring, so as to solve the problems.
In order to achieve the above purpose, the invention is realized by the following technical scheme.
A power grid operation and maintenance device convenient for real-time monitoring comprises a supporting seat, a workbench for bearing and monitoring equipment arranged at the upper end of a mounting bracket for supporting;
the auxiliary bearing mechanisms are symmetrically arranged at the left end and the right end of the supporting seat and are used for carrying out auxiliary supporting on the supporting seat;
the auxiliary bearing mechanism comprises a movable column for connection, a mounting block fixedly connected to one side of the movable column, which is far away from a vertical central axis of the supporting seat, a vertical mounting column, a bearing plate for supporting and a fixing bolt with a limiting effect;
the supporting mechanisms are used for supporting the workbench, and are symmetrically arranged on the left side and the right side of the lower end of the workbench;
the protection plates are arranged at the edge of the workbench at equal angles, the protection rods in a vertical state are arranged in the middle of the protection plates at equal intervals, a vertical sliding structure is formed between each protection plate and the workbench, each protection plate, each protection rod and each fixing block are arranged, the protection rods are arranged inside the protection plates at equal intervals, the protection plates are arranged at the edge of the workbench at equal angles, the protection plates are limited by the fixing blocks, and through the arrangement of the protection plates and the protection rods, a protection effect can be achieved on maintenance personnel, and the maintenance personnel are prevented from falling down in the process of overhauling and maintaining;
carry on spacingly through the fixed block between guard plate and the workstation, be equipped with supplementary mechanism and the supervisory equipment of bearing, supplementary mechanism symmetry that bears sets up in the left and right sides of supporting seat, supplementary mechanism of bearing includes the movable column, the installation piece, the erection column, the loading board, gim peg and fly leaf, setting through supplementary mechanism of bearing, be convenient for carry out the auxiliary stay to the device when using, stability is good, prevent that the device from taking place to empty or turning on one's side in the use, combine supervisory equipment's setting, can carry out real time monitoring to the equipment of joining in marriage electrical room inside.
Preferably, the universal wheel is all installed to the left and right sides of supporting seat lower extreme, and the supporting seat directly arranges ground in through the universal wheel to be connected through gliding mode between supporting seat and the activity post, the activity post drives to constitute extending structure between erection column and the supporting seat moreover.
Preferably, the lower extreme of erection column and fixed connection between the loading board, and be connected through the gliding mode between erection column and the installation piece to carry on spacingly through the gim peg between erection column and the installation piece, be threaded connection moreover between gim peg and installation piece and gim peg and the erection column.
Preferably, the movable column and the support seat are limited by the movable plate, the movable column and the movable plate are connected in a clamping manner, and the upper end of the movable plate is fixedly connected with a movable handle.
Preferably, a spring is arranged between the movable handle and the support seat, the movable handle drives the movable plate and the support seat to slide, the movable plate and the support seat are limited by a convex block, and the convex block is connected with the movable plate in a clamping manner;
the convex block is inserted into the side face of the supporting seat, the convex block is connected with the connecting bolt in a rotating mode, and the connecting bolt is connected with the supporting seat in a threaded mode.
Preferably, the workbench is slidably connected with the vertical mounting bracket, the mounting bracket is fixedly connected to the middle of the upper end of the supporting seat, the outer side of the supporting seat is provided with accommodating grooves at equal angles, and the accommodating grooves and the protection plates are arranged in a one-to-one correspondence manner;
wherein, the middle part fixedly connected with support column of workstation lower extreme is equipped with supplementary mechanism and the supervisory equipment of bearing, and supplementary mechanism symmetry setting of bearing sets up the left and right sides at the supporting seat, and supplementary mechanism of bearing includes movable post, installation piece, erection column, loading board, gim peg and fly leaf, through the setting of supplementary mechanism of bearing, is convenient for carry out the auxiliary stay to the device when using, and stability is good, prevents that the device from taking place to empty or turning on one's side in the use, combines supervisory equipment's setting, can carry out real time monitoring to the inside equipment of block terminal.
Preferably, the right lower end of the supporting column is connected with a screw rod with an adjusting function in a threaded manner, the screw rod is fixedly connected with the output end of a servo motor for driving, the supporting column is slidably connected to the upper end of the supporting seat, and the left lower end of the supporting column is connected with the connecting rod in an inserting manner;
meanwhile, the connecting rod is fixedly connected with the supporting seat.
Preferably, the supporting mechanism comprises a lower bearing column with a thread on the outer surface, an upper bearing column connected to the upper end of the lower bearing column in a sliding manner, and an adjusting cap arranged on the outer surface of the lower bearing column;
the lower end of the lower bearing column is connected with the supporting seat in a clamping mode, the lower bearing column is connected with the adjusting cap in a threaded mode, the adjusting cap is attached to the lower end of the upper bearing column, and the upper end of the upper bearing column is connected with the lower end of the workbench in a clamping mode.
Preferably, the fixed block is in threaded connection with the lower end of the protection plate, a rotating structure is formed between the fixed block and the connecting block in an L-shaped structure, and a sliding structure is formed between the connecting block and the side rod in a T-shaped structure.
Preferably, the connecting block drives the fixed block and constitutes flip structure at the lower extreme of workstation side lever, and side lever fixed connection is in the side of workstation.
Compared with the prior art, the invention discloses a power grid operation and maintenance device convenient for real-time monitoring, which comprises a supporting seat, a workbench for bearing and monitoring equipment arranged at the upper end of an installation bracket for supporting; the auxiliary supporting device comprises an auxiliary bearing mechanism, a supporting mechanism and a protection plate, wherein in the actual use process, the equipment in a power grid can be monitored in real time through the arrangement of monitoring equipment, the normal operation of power equipment is guaranteed, when the equipment breaks down, an alarm is given in time, in the process of maintaining and repairing the equipment, the auxiliary supporting is carried out on the equipment through the arrangement of the auxiliary bearing mechanism, the device is prevented from toppling or turning over in the use process, the stability of the device is improved, the auxiliary supporting mechanism is used for supporting the workbench in an auxiliary mode in combination with the fact that the workbench is lifted up and down at the upper end of a supporting seat through a supporting column, the use height of the workbench is convenient to adjust, the supporting mechanism is used for supporting the workbench in an auxiliary mode, the stability of the workbench in the use process is improved, the auxiliary supporting mechanism is used for protecting maintenance personnel in combination with the arrangement of the protection plate and the protection rod, and is arranged at equal angles at the edge of the workbench, and the use safety of the device is improved;
1. the auxiliary bearing mechanism comprises a movable column, an installation block, an installation column, a bearing plate, a fixing bolt and a movable plate, is convenient for auxiliary support of the device in use through the arrangement of the auxiliary bearing mechanism, has good stability, prevents the device from toppling or turning over during use, and can monitor equipment in a power distribution room in real time by combining the arrangement of the monitoring equipment;
2. the workbench is provided with a lifting structure at the upper end of the supporting seat through the supporting column, so that the height of the workbench can be conveniently adjusted, and the supporting mechanism comprises a lower bearing column, an upper bearing column and an adjusting cap and can be used for supporting the workbench in an auxiliary manner by combining the arrangement of the supporting mechanism, so that the stability of the workbench in the using process is improved;
3. be equipped with guard plate, fender rod and fixed block, the fender rod is equidistant setting in the inside of guard plate to the guard plate is angle setting such as in the edge of workstation, carries on spacingly through the fixed block between guard plate and the workstation, through the setting of guard plate and fender rod, can play the effect of protection to maintainer, prevents that maintainer from taking place to fall down in the in-process of overhauing and maintaining.
Drawings

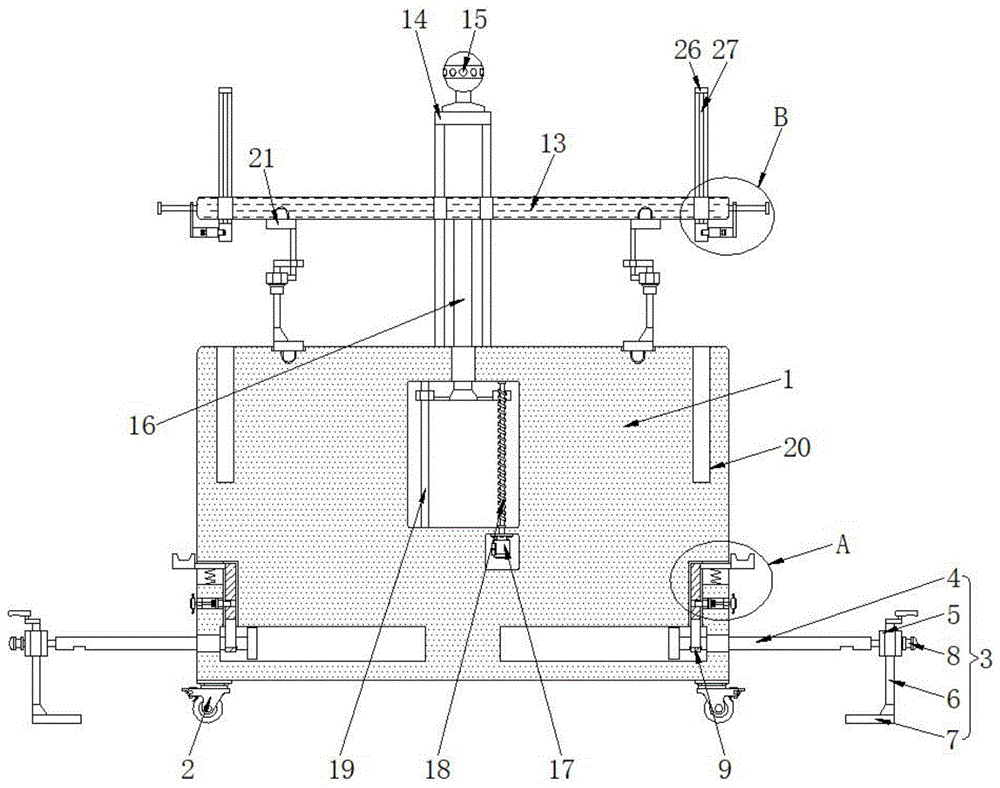

FIG. 1 is a front view of a cutaway structure of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A in FIG. 1 according to the present invention;
FIG. 3 is a schematic view of the front view of the connection structure of the movable column, the movable plate and the mounting block;
FIG. 4 is a schematic view of the connection structure of the movable plate and the bump according to the present invention;
FIG. 5 is a schematic view of the connection structure of the supporting base, the mounting bracket, the monitoring device and the accommodating groove of the present invention;
FIG. 6 is a schematic view of the overall structure of the supporting mechanism of the present invention;
FIG. 7 is a schematic top view of the connection between the worktable and the protection board according to the present invention;
FIG. 8 is an enlarged view of the structure at B in FIG. 1 according to the present invention;
FIG. 9 is a schematic view of a front view of the connection between the protection plate and the protection rod according to the present invention;
FIG. 10 is a front view of the side rods, the connecting blocks and the fixing blocks of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
The utility model provides a power grid fortune dimension device convenient to real time monitoring, including supporting seat 1, universal wheel 2, supplementary load bearing mechanism 3, activity post 4, installation piece 5, erection column 6, loading board 7, gim peg 8, fly leaf 9, the activity is 10, connecting bolt 11, lug 12, workstation 13, installing support 14, supervisory equipment 15, support column 16, servo motor 17, lead screw 18, connecting rod 19, accomodate groove 20, supporting mechanism 21, spring 22, lower load bearing post 23, go up load bearing post 24, adjust the cap 25, guard plate 26, guard bar 27, side lever 28, connecting block 29 and fixed block 30.
When the power grid operation and maintenance device convenient for real-time monitoring is used, as shown in fig. 1 and 5, a universal wheel 2 is installed at the lower end of a supporting seat 1, the supporting seat 1 is directly placed on the ground through the universal wheel 2, a workbench 13 in a horizontal state is arranged at the upper end of the supporting seat 1, an installation support 14 is connected to the middle of the workbench 13 in a penetrating mode, monitoring equipment 15 is installed at the upper end of the installation support 14, electric equipment inside a power distribution room can be monitored in real time through the monitoring equipment 15, when the equipment is monitored to be in fault, a fault signal is transmitted to a central processing unit in time, an alarm inside the power distribution room is controlled to be started through the central processing unit to give an alarm, maintenance personnel are reminded of maintaining and overhauling the electric equipment in time, normal and stable operation of the electric equipment is guaranteed, and when the electric equipment needs to be maintained and is overhauled due to the fault, the equipment, the universal wheel 2 at the lower end of the supporting seat 1 drives the device to move, and enables the device to move to the corresponding position;
when the universal wheel 2 is locked at a maintenance point, the auxiliary bearing mechanisms 3 are arranged symmetrically at the left side and the right side of the supporting seat 1 in combination with the arrangement of the auxiliary bearing mechanisms 3, the auxiliary bearing mechanisms 3 are used for carrying out auxiliary support on the supporting seat 1, the auxiliary bearing mechanisms 3 comprise movable columns 4 for connection, mounting blocks 5 fixedly connected to one sides of the movable columns 4 far away from the vertical central axis of the supporting seat 1, mounting columns 6 in a vertical state, a supporting plate 7 for support and fixing bolts 8 with a limiting effect, as shown in figures 1, 2, 3 and 4, the movable columns 4 are inserted at the left end and the right end of the supporting seat 1, the movable columns 4 and the supporting seat 1 are limited by movable plates 9, and movable handles 10 are fixedly connected to the upper ends of the movable plates 9, the movable handle 10 is pressed downwards, the movable handle 10 drives the movable plate 9 to slide in the supporting seat 1, the movable handle 10 extrudes the spring 22, the spring 22 is elastically deformed, meanwhile, the movable plate 9 slides downwards to be separated from the movable column 4, the limit between the movable column 4 and the supporting seat 1 is loosened, then the movable column 4 is pulled outwards, the movable column 4 and the supporting seat 1 slide, when the movable column is pulled to the position shown in the figure 1, the movable handle 10 is loosened, the spring 22 recovers elastic deformation at the moment, the movable handle 10 is pushed to move upwards, the movable handle 10 drives the movable plate 9 to move upwards to be clamped with the movable column 4, and the movable column 4 and the supporting seat 1 can be limited;
then, a connecting bolt 11 which is in threaded connection with the outer side of the supporting seat 1 is rotated, the connecting bolt 11 is in rotational connection with a convex block 12, the connecting bolt 11 and the convex block 12 rotate to further drive the convex block 12 to move inside the supporting seat 1, the connecting bolt 11 drives the convex block 12 to be clamped with the movable plate 9, and further the movable plate 9 and the supporting seat 1 can be limited, the movable plate 9 and the movable column 4 are prevented from being loosened due to mistaken contact, further the tightness of the connection between the movable column 4 and the supporting seat 1 is improved, after the limitation between the movable column 4 and the supporting seat 1 is completed, the mounting column 6 is pulled downwards, the mounting column 6 and the mounting block 5 slide, the mounting column 6 drives the bearing plate 7 to be placed on the ground, then the fixing bolt 8 with a limiting effect is rotated, the fixing bolt 8 is in threaded connection with the mounting column 6, the fixing bolt 8 is in threaded connection with the mounting block 5, so that the mounting block 5 and the mounting column 6 are limited, and the auxiliary bearing mechanism 3 is arranged, the supporting seat 1 can be supported in an auxiliary manner, the stability of the supporting seat 1 in the using process is improved, and the supporting seat 1 is prevented from being turned on the side or toppled over;
then according to the actual height of the device, the height of the workbench 13 is adjusted, a servo motor 17 installed inside the support seat 1 is started, the output end of the servo motor 17 is fixedly connected with a screw rod 18, the servo motor 17 drives the screw rod 18 to rotate inside the support seat 1, the screw rod 18 is in threaded connection with the right lower end of a support column 16, the support column 16 is inserted in the middle of the upper end of the support seat 1, the support column 16 is fixedly connected with the lower end of the workbench 13, the screw rod 18 drives the support column 16 and the support seat 1 to slide, meanwhile, the left lower end of the support column 16 and a connecting rod 19 slide, so that the movement of the support column 16 is more stable, the workbench 13 is driven to lift at the upper end of the support seat 1 by combining the sliding between the support column 16 and the support seat 1, meanwhile, the workbench 13 and a mounting bracket 14 slide, and further facilitate the adjustment of the height of the workbench 13, as shown in fig. 7 and 9, the edge of the workbench 13 is provided with protection plates 26 at equal angles, the middle of the protection plates 26 is provided with protection rods 27 at equal intervals, the protection plates 26 and the accommodating grooves 20 are arranged in a one-to-one correspondence, the workbench 13 drives the protection plates 26 to move out of the accommodating grooves 20, after the adjustment is completed, the support mechanism 21 is arranged, as shown in fig. 6, the support mechanism 21 comprises a lower bearing column 23 with a thread on the outer surface, an upper bearing column 24 slidably connected to the upper end of the lower bearing column 23 and an adjusting cap 25 arranged on the outer surface of the lower bearing column 23, the lower end of the lower bearing column 23 is clamped at the corresponding position on the upper end of the support seat 1, then the adjusting cap 25 connected to the outer surface of the lower bearing column 23 is rotated, the adjusting cap 25 is arranged at the lower end of the upper bearing column 24 in a fitting manner, and further pushes the adjusting cap 25 and the lower bearing column 23 to slide, make and adjust cap 25 and upwards remove, adjust cap 25 and carry out the block with the lower extreme of workstation 13, can carry out auxiliary stay to workstation 13, promote the stability of workstation 13 in the use.
In addition, as shown in fig. 1, 8 and 10, the protection plate 26 is pulled upwards, the protection plate 26 and the protection rod 27 both slide with the workbench 13, so that the protection plate 26 and the workbench 13 are in a state shown in fig. 1, then the connection block 29 is turned downwards, the connection block 29 rotates with the side lever 28 in a T-shaped structure, and the connection block 29 is pulled to one side close to the vertical central axis of the workbench 13, the connection block 29 rotates with the side lever 28, then the fixing block 30 rotates, the fixing block 30 rotates with the connection block 29, and meanwhile, the fixing block 30 is connected with the lower end of the protection plate 26 in a threaded manner, so that the protection plate 26 and the workbench 13 are fixed and limited conveniently.
It is noted that the terminology used herein is for the purpose of describing particular embodiments only and is not intended to be limiting of exemplary embodiments according to the present application. As used herein, the singular forms "a", "an", and "the" are intended to include the plural forms as well, and it should be understood that when the terms "comprises" and/or "comprising" are used in this specification, they specify the presence of stated features, steps, operations, devices, components, and/or combinations thereof, unless the context clearly indicates otherwise.
It should be noted that the terms "first," "second," and the like in the description and claims of this application and in the drawings described above are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It is to be understood that the data so used is interchangeable under appropriate circumstances such that the embodiments of the application described herein are capable of operation in sequences other than those illustrated or described herein.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
1. A power grid operation and maintenance device convenient for real-time monitoring comprises a supporting seat (1), a workbench (13) for bearing and monitoring equipment (15) arranged at the upper end of a mounting bracket (14) for supporting;
the device is characterized by further comprising auxiliary bearing mechanisms (3), supporting mechanisms (21) and protection plates (26), wherein the auxiliary bearing mechanisms (3) are symmetrically arranged at the left end and the right end of the supporting seat (1), and the auxiliary bearing mechanisms (3) are used for carrying out auxiliary supporting on the supporting seat (1);
the auxiliary bearing mechanism (3) comprises a movable column (4) for connection, a mounting block (5) fixedly connected to one side, away from the supporting seat (1), of the movable column (4) and perpendicular to the central axis, a mounting column (6) in a vertical state, a bearing plate (7) for supporting and a fixing bolt (8) with a limiting effect;
the supporting mechanisms (21) are used for supporting the workbench (13), and the supporting mechanisms (21) are symmetrically arranged on the left side and the right side of the lower end of the workbench (13);
the protection plates (26) are arranged at the edge of the workbench (13) at equal angles, the protection rods (27) in a vertical state are arranged in the middle of the protection plates (26) at equal intervals, and an up-and-down sliding structure is formed between each protection plate (26) and each protection rod (27) and the workbench (13);
the protection plate (26) and the workbench (13) are limited through a fixing block (30).
2. The power grid operation and maintenance device convenient for real-time monitoring according to claim 1, characterized in that: universal wheel (2) are all installed to the left and right sides of supporting seat (1) lower extreme, and ground is directly arranged in through universal wheel (2) supporting seat (1) to sliding connection between supporting seat (1) and activity post (4), constitute extending structure between activity post (4) drives erection column (6) and supporting seat (1) moreover.
3. The grid operation and maintenance device facilitating real-time monitoring according to claim 2, wherein: the lower end of the mounting column (6) is fixedly connected with the bearing plate (7), the mounting column (6) is connected with the mounting block (5) in a sliding mode, the mounting column (6) is limited with the mounting block (5) through a fixing bolt (8), and the fixing bolt (8) is in threaded connection with the mounting block (5) and the fixing bolt (8) is in threaded connection with the mounting column (6).
4. The power grid operation and maintenance device convenient for real-time monitoring according to claim 2, characterized in that: the movable column (4) and the supporting seat (1) are limited through a movable plate (9), the movable column (4) and the movable plate (9) are connected in a clamping mode, and a movable handle (10) is fixedly connected to the upper end of the movable plate (9).
5. The grid operation and maintenance device convenient for real-time monitoring according to claim 4, wherein: a spring (22) is arranged between the movable handle (10) and the supporting seat (1), the movable handle (10) drives the movable plate (9) and the supporting seat (1) to slide, the movable plate (9) and the supporting seat (1) are limited by a convex block (12), and the convex block (12) is clamped and connected with the movable plate (9);
the convex block (12) is inserted into the side face of the supporting seat (1), the convex block (12) is connected with the connecting bolt (11) in a rotating mode, and the connecting bolt (11) is connected with the supporting seat (1) in a threaded mode.
6. The power grid operation and maintenance device convenient for real-time monitoring according to claim 1, characterized in that: the workbench (13) is in sliding connection with the mounting support (14) in a vertical state, the mounting support (14) is fixedly connected to the middle of the upper end of the supporting seat (1), the outer side of the supporting seat (1) is provided with accommodating grooves (20) at equal angles, and the accommodating grooves (20) and the protection plates (26) are arranged in a one-to-one correspondence manner; the middle part of the lower end of the workbench (13) is fixedly connected with a supporting column (16).
7. The grid operation and maintenance device facilitating real-time monitoring according to claim 6, wherein: the right lower end of the supporting column (16) is connected with a screw rod (18) with an adjusting function in a threaded mode, the screw rod (18) is fixedly connected with the output end of a servo motor (17) used for driving, the supporting column (16) is slidably connected to the upper end of the supporting seat (1), and the left lower end of the supporting column (16) is connected with a connecting rod (19) in an inserting mode; meanwhile, the connecting rod (19) is fixedly connected with the supporting seat (1).
8. The power grid operation and maintenance device convenient for real-time monitoring according to claim 1, characterized in that: the supporting mechanism (21) comprises a lower bearing column (23) with threads on the outer surface, an upper bearing column (24) connected to the upper end of the lower bearing column (23) in a sliding manner, and an adjusting cap (25) arranged on the outer surface of the lower bearing column (23);
lower extreme and the supporting seat (1) of bearing post (23) down between the block be connected, and bear post (23) down and adjust and be connected through the mode of screw thread between cap (25) to adjust cap (25) laminating and set up the lower extreme at last bearing post (24), the upper end of going up bearing post (24) in addition is connected with the lower extreme block of workstation (13).
9. The grid operation and maintenance device facilitating real-time monitoring according to claim 1, wherein: the fixed block (30) is in threaded connection with the lower end of the protection plate (26), a rotating structure is formed between the fixed block (30) and the connecting block (29) which is of an L-shaped structure, and a sliding structure is formed between the connecting block (29) and the side rod (28) which is of a T-shaped structure.
10. The grid operation and maintenance device facilitating real-time monitoring according to claim 9, wherein: connecting block (29) drive fixed block (30) constitute flip structure at the lower extreme of workstation (13) side lever (28), and side lever (28) fixed connection is in the side of workstation (13).
