The invention relates to a driving mechanism for power generation and a power generation device with the same, wherein the driving mechanism for power generation comprises a rotating part and a swinging part; the inside of the rotating part is a duct, the duct can be used for fluid to flow through, and can better restrict the flow direction of the fluid, so that the kinetic energy of the fluid can be better utilized by the swinging part, and the utilization rate of the kinetic energy of the fluid is improved. The plurality of swinging parts are arranged in the rotating part and are uniformly distributed around the axis of the rotating part; one side of each swinging part is a fixed side and is connected with the rotating part, and the other side of each swinging part is a swinging side; the fixed side of one of the two adjacent swinging parts is arranged adjacent to the swinging side of the other swinging part; in the fluid can flow into the duct from the arbitrary one end of rotation portion, ordered about the swing side pendulum of every swing portion to the other end of rotation portion, and then drive rotation portion and carry out the unidirectional rotation for the rotation process of rotation portion has improved the utilization ratio to the fluid energy effectively for effective rotation process all the time.

Description

Driving mechanism for power generation and power generation device with same
Technical Field
The invention relates to the technical field of fluid power generation, in particular to a driving mechanism for power generation and a power generation device with the driving mechanism.
Background
The new energy power generation refers to a process of generating power by utilizing solar energy, biomass energy, geothermal energy, hydrogen energy or fluid energy. Compared with the mode of generating power by utilizing coal, oil, natural gas and nuclear transformation energy, the method reduces the consumption of non-renewable energy sources. The fluid energy includes wind energy, wave energy, tidal energy, ocean current energy, and the like. In the process of generating power by utilizing fluid energy, the fluid can flow through the driving mechanism for generating power to drive the rotatable part of the driving mechanism for generating power to rotate, and the rotatable part drives the input shaft of the generator to rotate so as to finish the power generation process.
However, for wind, waves, tides or ocean currents from nature, the direction of flow may differ at different times. Therefore, when the fluid flows through the power generation drive mechanism, the rotatable member may be driven to rotate forward or reverse. If the rotatable component rotates forwards and drives the input shaft of the generator to rotate forwards, the generator can generate electric energy. Then, when the rotatable component rotates reversely and drives the input shaft of the generator to rotate reversely, the generator cannot generate electric energy, and at this time, the process of rotating the rotatable component is an invalid rotation process.
At present, the traditional driving mechanism for power generation has low utilization rate of fluid energy, and limits the power generation efficiency and the generated energy.
Disclosure of Invention
The invention provides a driving mechanism for power generation and a power generation device with the same, aiming at solving the problems that the traditional driving mechanism for power generation has low utilization rate of fluid energy and restricts the power generation efficiency and the power generation amount.
The driving mechanism for power generation provided for achieving the purpose of the invention comprises a rotating part and a swinging part;
the rotating part is hollow and has a structure with two open ends; the inside of the rotating part is a duct, and one end of the rotating part is suitable for being in transmission connection with an input shaft of the generator;
the plurality of swinging parts are arranged in the rotating part and are uniformly distributed around the axis of the rotating part; one side of each swinging part is a fixed side and is connected with the rotating part, and the other side of each swinging part is a swinging side; the fixed side of one of the two adjacent swinging parts is adjacent to the swinging side of the other swinging part;
fluid can flow into the duct from the arbitrary one end of rotation portion in, orders about the swing side pendulum of every swing portion to the other end of rotation portion, and then drives the rotation portion and carry out the unidirectional rotation.
In some of these embodiments, the rotating portion is a cylindrical structure;
the swinging part is of a plate-shaped structure, and the orthographic projection from one side surface to the other side surface is of a fan-shaped structure.
In some specific embodiments, the side wall of the rotating part is provided with a plurality of abdicating holes, and the abdicating holes are uniformly distributed around the axis of the rotating part;
the device also comprises a rotating shaft, a limiting piece and a first limiting rod;
the rotating shaft is provided with a plurality of rotating shafts, one end of each rotating shaft is arranged in the rotating part, and the other end of each rotating shaft penetrates through the abdicating holes in a one-to-one correspondence manner to extend out of the rotating part;
the limiting pieces correspond to the rotating shafts one by one and are uniformly fixed on the outer wall of the rotating part around the axis of the rotating part; each limiting piece comprises a second limiting rod and a third limiting rod which are arranged in parallel;
the first limiting rods are arranged outside the rotating part, are fixed at one end of the rotating shaft, extending out of the rotating part, in a one-to-one correspondence manner with the rotating shafts, and are vertical to the axis of the rotating shaft;
the arc sides of the swinging parts are respectively arranged towards the inner wall of the rotating part, one straight side and the rotating shafts are fixed on the side wall of the rotating shaft in a one-to-one correspondence manner, and the swinging parts and the rotating shafts are alternately arranged around the axis of the rotating part; each swinging part can drive one rotating shaft and one first limiting rod to rotate; the outer wall of one end of each first limiting rod can abut against the side wall of the second limiting rod or the third limiting rod of one limiting part.
In some of these embodiments, further comprising a support frame;
the support frame is arranged outside the rotating part, and the inner side of the support frame is rotatably connected with the outer side of the rotating part.
In some of these embodiments, the support frame includes a support ring and a connecting rod;
the two support rings are respectively arranged outside the two opposite ends of the rotating part in a circle mode;
the number of the connecting rods is multiple; the two opposite ends of each connecting rod are respectively fixedly connected with the two supporting rings.
In some of these embodiments, the device further comprises a moving part;
the moving parts are multiple, at least one moving part is arranged at one end of the rotating part and can move along the circumferential direction of one of the support rings; at least one of the support rings is provided at the other end of the rotating portion and is movable in the circumferential direction of the other support ring.
In some embodiments, the material of the swing portion is rigid.
In some of these embodiments, further comprising an interception net;
the intercepting net is two, and one of them knot is located the one end of rotation portion, and another knot is located the other end of rotation portion.
The power generation device with the power generation driving mechanism based on the same conception comprises a power generator and the power generation driving mechanism provided by any one of the specific embodiments;
one end of the rotating part is in transmission connection with an input shaft of the generator.
In some embodiments, the outer wall of one end of the rotating part is in meshing connection with the outer wall of the input shaft of the generator.
The invention has the beneficial effects that: the tire sander of the invention is provided with a rotating part and a swinging part. The rotating part is hollow, the two ends of the rotating part are provided with openings, the inside of the rotating part is provided with the duct, the duct can be used for flowing through fluid, the flowing direction of the fluid can be restrained better, the kinetic energy of the fluid can be utilized by the swinging part better, and the utilization rate of the kinetic energy of the fluid is improved. The fluid of flowing through the duct orders about the swing side pendulum of every swing portion to the one end or the other end of rotation portion to drive rotation portion and continuously carry out unidirectional rotation, and then the input shaft that drives the generator continuously carries out unidirectional rotation all the time, thereby make the rotation process of rotation portion be effective rotation process all the time, improved the utilization ratio of actuating mechanism for the electricity generation to fluid energy effectively, and then improved generating efficiency and generated energy.
Drawings

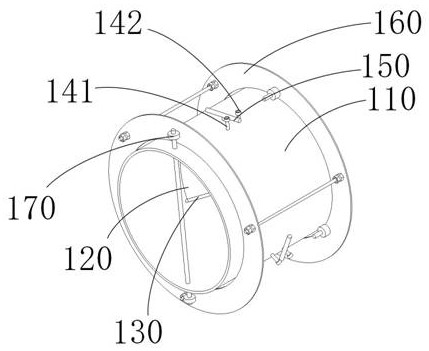

FIG. 1 is a schematic structural view of some embodiments of a power generation drive mechanism of the present invention;
fig. 2 is a side view of the power generation drive mechanism shown in fig. 1;
FIG. 3 is an end view of the power generation drive mechanism shown in FIG. 1;
fig. 4 isbase:Sub>A sectional viewbase:Sub>A-base:Sub>A of the power generation drive mechanism shown in fig. 3.
In the figure, 110, a rotating part; 120. a swing portion; 130. a rotating shaft; 141. a second limiting rod; 142. a third limiting rod; 150. a first limit rod; 160. a support frame; 170. a moving part.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the accompanying drawings are illustrative and intended to explain the present invention and should not be construed as limiting the present invention.
In the description of the present invention, it is to be understood that the terms "top," "bottom," "inner," "outer," "axial," "circumferential," and the like are used in the orientations and positional relationships indicated in the drawings for convenience in describing the present invention or for simplicity in description, and do not indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus are not to be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or to implicitly indicate the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.
In the present invention, unless otherwise specifically stated or limited, the terms "mounted," "connected," "fixed," "engaged," "hinged," and the like are to be construed broadly, e.g., as meaning either fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other suitable relationship. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
Referring to fig. 1, 2, 3, and 4, a driving mechanism for power generation includes a rotating portion 110 and a swinging portion 120. The rotating portion 110 is hollow and has two open ends. The interior of the rotating part 110 is a duct, one end of which is adapted to be in driving connection with the input shaft of the generator. The swing portion 120 is a plurality of, all locate in the rotation portion 110, and around the axis evenly distributed of rotation portion 110. One side of each of the swing portions 120 is a fixed side connected to the rotating portion 110, and the other side is a swing side. The fixed side of one of the adjacent two swing portions 120 is disposed adjacent to the swing side of the other. Fluid can flow into the duct from any end of the rotating part 110, and the swinging side of each swinging part 120 is driven to swing to the other end of the rotating part 110, so that the rotating part 110 is driven to rotate in one direction continuously.
In this embodiment, the fluid may be wind, waves, tides or ocean currents. When the fluid is wind, the driving mechanism for power generation is arranged on an iron tower for wind power generation or an aircraft. When the fluid is wave, tide or ocean current, the driving mechanism for generating electricity is arranged on the floating body or the submarine. One end of the rotating portion 110 can be in transmission connection with an input shaft of a generator, and the rotating portion 110 can drive the input shaft of the generator to rotate, so that the generator can generate electricity. The fact that the fixed side of one of the two adjacent swinging parts 120 is adjacent to the swinging side of the other swinging part means that the fixed side of one of the two swinging parts 120 is relatively close to the swinging side of the other swinging part, and the swinging side of one swinging part is relatively far from the fixed side of the other swinging part. In this way, the direction in which each swing portion 120 drives the rotation portion 110 to rotate is consistent, and it should be noted that the unidirectional rotation means that the rotation portion 110 always rotates counterclockwise around its own axis or rotates clockwise around its own axis.
For example, one end of the rotating part 110 is defined as a left end, and the other end is defined as a right end. Fluid can continuously flow into the bypass from the left opening of the rotating portion 110 and flow out from the right opening. The fluid flowing from left to right forces the swing side of each swing portion 120 to swing to the right, and each swing portion 120 forces the rotation portion 110 to continuously rotate counterclockwise. Fluid can also continuously flow into the duct from the right opening of the rotating portion 110 and out of the left opening. The fluid flowing from the right to the left forces the swing side of each swing portion 120 to swing toward the left, and each swing portion 120 forces the rotation portion 110 to continuously rotate counterclockwise. No matter fluid flows from left to right or from right to left, the rotating part 110 continuously performs unidirectional rotation all the time, and then the input shaft of the generator is driven to continuously perform unidirectional rotation all the time, so that the rotating process of the rotating part 110 is an effective rotating process all the time, the utilization rate of the driving mechanism for power generation on fluid energy is effectively improved, and the power generation efficiency and the power generation amount are further improved. Compared with the mode of fixing the swing part 120 on the rotating shaft 130, the hollow-structure rotating part can better restrict the flow direction of the fluid, so that the kinetic energy of the fluid can be better utilized by the swing part, and the utilization rate of the kinetic energy of the fluid is improved. It should be noted that the direction of fluid flow may change many times over a period of time, which is complicated by the fact that the direction of fluid flow may change many times. If a mechanical structure is adopted to actively drive the swing portion 120 to swing, not only much electric energy is consumed, but also the swing direction of the swing portion 120 needs to be frequently adjusted to adapt to the change of the fluid flow direction, so that the mechanism and the control system for actively driving the swing portion to swing are extremely complex. Therefore, compared with the traditional form of actively adjusting the swing direction of the swing part, the swing part of the driving mechanism for power generation adopts a passive adjustment form, the adjustment of the swing direction is realized only by depending on the flow of fluid, more electric energy is not required to be consumed, and the flow direction of the fluid is not required to be actively captured to adjust the swing part, so that the whole structure is simplified, and the swing mechanism is easy to produce, manufacture, popularize and use.
In some embodiments of the present invention, the rotating portion 110 is a cylinder structure, and has a triangular, square or rhombic cross section, so that the occurrence of corners is avoided, the resistance of the fluid during rotation is small, the conversion of kinetic energy to internal energy is reduced, and the utilization rate of the fluid energy is further improved. The swing portion 120 has a plate-shaped structure, and the weight of the swing portion is light, so that fluid energy can be better converted into kinetic energy, and the utilization rate of the fluid energy is effectively improved. The orthogonal projection of the swing portion 120 from one side to the other side is a fan-shaped structure, and the utilization rate of fluid energy is also improved compared with a polygonal structure.
In some embodiments of the present invention, the side wall of the rotating portion 110 is provided with a plurality of yielding holes, and the plurality of yielding holes are uniformly distributed around the axis of the rotating portion 110. The driving mechanism for power generation further includes a rotating shaft 130, a limiting member, and a first limiting rod 150. Wherein, pivot 130 is a plurality of, and one end all is located in rotation portion 110, and the other end passes the hole of stepping down with a plurality of holes of stepping down one-to-one and extends to outside the rotation portion 110. The plurality of limiting members correspond to the plurality of rotating shafts 130 one by one, and are uniformly fixed on the outer wall of the rotating part 110 around the axis of the rotating part 110. Each limiting member comprises a second limiting rod 141 and a third limiting rod 142 which are arranged in parallel. The first limiting rods 150 are disposed outside the rotating portion 110, and are fixed to one end of the rotating portion 110, where the rotating portion 110 extends from the rotating portion 130, corresponding to the plurality of rotating shafts 130, and the axes of the first limiting rods are perpendicular to the axes of the rotating shafts 130. The arc sides of the swinging portions 120 are respectively disposed toward the inner wall of the rotating portion 110, a straight side and the rotating shafts 130 are fixed to the side walls of the rotating shafts 130 in a one-to-one correspondence, and the swinging portions 120 and the rotating shafts 130 are alternately disposed around the axis of the rotating portion 110. Each of the swinging portions 120 can drive one of the rotating shafts 130 and one of the first limiting rods 150 to rotate. The outer wall of one end of each first limiting rod 150 can abut against the sidewall of the second limiting rod 141 or the third limiting rod 142 of one limiting member. As shown in fig. 1, when the fluid flows from left to right, the fluid drives the swing side of each swing portion 120 to swing towards right, each swing portion 120 drives a rotating shaft 130 and a first limiting rod 150 to rotate, an outer wall of one end of each first limiting rod 150 abuts against the third limiting rod 142 of each limiting member, and the rotating portion 110 is forced to rotate counterclockwise around its own axis. When the fluid flows from right to left, the fluid drives the swing side of each swing portion 120 to swing towards left, each swing portion 120 drives one rotating shaft 130 and one first limiting rod 150 to rotate, the outer wall of one end of each first limiting rod 150 abuts against the second limiting rod 141 of each limiting member, and then the rotation portion 110 is forced to rotate counterclockwise around the axis of the rotation portion. It should be noted that a preset distance is reserved between the axes of the second limiting rod 141 and the third limiting rod 142 of each limiting member. Specifically, the preset distance is 5-15cm. In this way, the rotation angle of each first stopper rod 150 and each rotating shaft 130 can be effectively controlled, and thus the swing amplitude of the swing side of each swing portion 120 can be effectively controlled. The whole structure is simple, the manufacturing cost is low, the rotating part 110 can be effectively controlled to continuously rotate in one direction, the rotating process of the rotating part 110 is always an effective rotating process, the utilization rate of the fluid energy of the driving mechanism for power generation is effectively improved, and the power generation efficiency and the power generation amount are further improved.
In some embodiments of the present invention, the power generation driving mechanism further includes a support frame 160, and the support frame 160 is disposed outside the rotating part 110, and the inner side of the support frame 160 is rotatably connected to the outer side of the rotating part 110, so as to effectively support the rotating part 110. The rotating part 110 can be installed on an iron tower for wind power generation, an aircraft, a floating body, or a submarine through the support frame 160.
In some embodiments of the present invention, the support frame 160 comprises a support ring and a connecting rod. The two support rings are of a circular structure and are respectively arranged outside the two opposite ends of the rotating part 110 in a circle, so that the two opposite ends of the rotating part 110 can be effectively supported. The connecting rod is a plurality of, and the relative both ends of every connecting rod respectively with two support ring fixed connection. The plurality of connecting rods effectively improve the stability of the entire structure of the support frame 160. Specifically, each support ring is provided with 3-5 mounting holes, and the 3-5 mounting holes are uniformly distributed along the circumferential direction of the support ring. Correspondingly, the number of the connecting rods is 3-5, each connecting rod can be a screw rod, and two opposite ends of each connecting rod are fixedly connected with the support ring through mounting holes and limit nuts respectively. Thus, the support frame 160 is convenient to assemble, use, disassemble and maintain. The whole weight of the support frame 160 is light, the lightweight design is realized, the structure is simple, and the manufacturing cost is reduced. In other embodiments, the connecting rod and the support ring are connected in a welding mode, so that the stability of the integral structure is stronger.
In some embodiments of the invention, each support ring is provided with a plurality of first bearings on a side facing the other support ring. The first bearings are uniformly distributed along the circumferential direction of the support ring, and the axis of each first bearing is parallel to the axis of the support ring. The middle part of each first bearing is rotatably connected with the support ring through a first support rod, and the side wall of each first bearing is abutted against the outer wall of the rotating part 110. The plurality of first bearings effectively reduce the friction force from the support frame 160 when the rotation part 110 rotates, thereby improving the utilization rate of fluid kinetic energy during power generation.
In some embodiments of the present invention, the power generation driving mechanism further includes a moving part 170. The moving portion 170 is provided in plurality, and at least one of the moving portions is provided at one end of the rotating portion 110 and can move in a circumferential direction of one of the support rings. At least one of which is provided at the other end of the rotating portion 110 and is movable in the circumferential direction of the other support ring. The moving part 170 can effectively improve the smoothness and smoothness of the rotation of the two opposite ends of the rotating part 110, thereby improving the utilization rate of fluid energy.
In some embodiments of the present invention, two moving portions 170 are provided on the back sides of the two support rings. The middle portions of the two moving portions 170 are fixedly connected to the opposite ends of the rotating portion 110, respectively. Specifically, each moving part 170 includes one second support bar and two second bearings. The two second bearings are respectively sleeved at the two opposite ends of the second supporting rod. The side walls of the two bearings of one moving part 170 are respectively abutted against the end surface of one of the support rings, and the side walls of the two bearings of the other moving part 170 are respectively abutted against the end surface of the other support ring. Thus, the smoothness and smoothness of the rotation of the rotating part are greatly improved. In addition, in the case where the axes of the two second support rods of the two moving portions 170 are perpendicular to each other and the axes of the two second support rods are parallel to each other, the smoothness and smoothness of the rotation of the rotating portion can be further improved.
In some embodiments of the present invention, the material of the swinging portion 120 is a rigid material. Here, the rigid material means a material having a certain strength and being less likely to be deformed when subjected to an external force. Compared with a flexible material, the deformation amount of the rigid swinging part 120 caused by external force is small, the energy required for starting rotation is small, and the rotational inertia is reduced, so that the impact force of the fluid on the swinging part 120 can be converted into the kinetic energy of the swinging part 120 more quickly. Specifically, the material of the oscillating portion 120 may be steel, iron, manganese, copper, or a high-strength non-metallic material.
In some embodiments of the invention, the power generation drive mechanism further comprises an interception net. The intercepting net is two, one of which is buckled at one end of the rotating part 110, and the other is buckled at the other end of the rotating part 110. The intercepting nets at the two ends can effectively prevent sundries mixed in the fluid from flowing into the duct, so that the working stability of the swinging part 120 is guaranteed, and the power generation stability is further guaranteed.
Based on the same concept, the power generation device with the power generation driving mechanism comprises a power generator and the power generation driving mechanism provided by any one of the above embodiments, wherein one end of the rotating part 110 is in transmission connection with an input shaft of the power generator.
In this embodiment, the generator is adapted to be fixedly mounted on a tower for wind power generation, an aircraft, a floating body or a submarine. The rotating part 110 can rotate an input shaft of the generator, so that the generator can generate electricity. No matter the fluid flows from left to right or from right to left, the rotating part 110 continuously rotates anticlockwise all the time, and then the input shaft of the generator is driven to continuously rotate anticlockwise all the time, so that the rotating process of the rotating part 110 is an effective rotating process all the time, the utilization rate of the driving mechanism for power generation to the fluid energy is effectively improved, and the power generation efficiency and the power generation amount are further improved.
In some embodiments of the present invention, the outer wall of one end of the rotating part 110 is provided with engaging teeth, the outer wall of the input shaft of the generator is also provided with engaging teeth, and one end of the rotating part 110 is engaged with the outer wall of the input shaft of the generator through the engaging teeth. The form of meshing connection effectively improves the transmission precision, further reduces the energy loss caused by transmission, and ensures the generating efficiency and the generating capacity.
In other embodiments of the present invention, a gear is disposed at one end of the rotating portion 110, a gear is also disposed on the input shaft of the generator, and one end of the rotating portion 110 is in transmission connection with the input shaft of the generator through a belt or a chain. Compared with the mode that the rotating part 110 is in direct contact connection with the input shaft of the generator, the flexible connection mode is adopted, so that the impact force can be effectively buffered, and the service lives of the transmission part and the generator are prolonged.
In the description herein, reference to the description of the terms "one embodiment," "some embodiments," "an example," "a specific example," "one specific embodiment," or "some examples," etc., means that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, a schematic representation of the term does not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be able to cover the scope of the present invention by equivalent replacement or change according to the technical solution and the inventive concept of the present invention within the scope of the present disclosure.

Claims (10)

1. A drive mechanism for power generation, comprising:
a rotating part and a swinging part;
the rotating part is hollow and has a structure with two open ends; the inside of the rotating part is a duct, and one end of the rotating part is suitable for being in transmission connection with an input shaft of the generator;
the plurality of swinging parts are arranged in the rotating part and are uniformly distributed around the axis of the rotating part; one side of each swinging part is a fixed side and is connected with the rotating part, and the other side of each swinging part is a swinging side; the fixed side of one of the two adjacent swinging parts is arranged adjacent to the swinging side of the other swinging part;
fluid can flow into the duct from any end of the rotating part, and the swinging side of each swinging part is driven to swing to the other end of the rotating part, so that the rotating part is driven to rotate in a single direction.
2. The drive mechanism for power generation according to claim 1, wherein the rotating portion has a cylindrical structure;
the swing part is of a plate-shaped structure, and the orthographic projection from one side surface to the other side surface is of a fan-shaped structure.
3. The driving mechanism for power generation as claimed in claim 2, wherein the side wall of the rotating part is provided with a plurality of abdicating holes, and the abdicating holes are uniformly distributed around the axis of the rotating part;
the device also comprises a rotating shaft, a limiting piece and a first limiting rod;
the rotating part is provided with a plurality of rotating shafts, one end of each rotating shaft is arranged in the rotating part, and the other end of each rotating shaft and the plurality of abdicating holes penetrate through the abdicating holes in a one-to-one correspondence manner and extend out of the rotating part;
the limiting pieces are in one-to-one correspondence with the rotating shafts and are uniformly fixed on the outer wall of the rotating part around the axis of the rotating part; each limiting piece comprises a second limiting rod and a third limiting rod which are arranged in parallel;
the first limiting rods are arranged outside the rotating part, are fixed at one end of the rotating shaft extending out of the rotating part in a one-to-one correspondence manner with the rotating shafts, and are vertical to the axis of the rotating shaft;
the arc sides of the swinging parts are respectively arranged towards the inner wall of the rotating part, a straight line side and the rotating shafts are fixed on the side wall of the rotating shaft in a one-to-one correspondence manner, and the swinging parts and the rotating shafts are alternately arranged around the axis of the rotating part; each swinging part can drive one rotating shaft and one first limiting rod to rotate; the outer wall of one end of each first limiting rod can abut against the side wall of the second limiting rod or the third limiting rod of one limiting part.
4. The drive mechanism for power generation according to any one of claims 1 to 3, further comprising a support frame;
the support frame is arranged outside the rotating part, and the inner side of the support frame is rotatably connected with the outer side of the rotating part.
5. The drive mechanism for power generation according to claim 4, wherein the support frame includes a support ring and a connecting rod;
the two support rings are respectively arranged outside the two opposite ends of the rotating part in a circle mode;
the number of the connecting rods is multiple; and the two opposite ends of each connecting rod are respectively fixedly connected with the two support rings.
6. The drive mechanism for power generation according to claim 5, further comprising a moving portion;
the plurality of moving parts are arranged, at least one moving part is arranged at one end of the rotating part and can move along the circumferential direction of one of the support rings; at least one of the support rings is provided at the other end of the rotating portion and is movable in the circumferential direction of the other support ring.
7. The power generation drive mechanism according to any one of claims 1 to 3, wherein the material of the swing portion is a rigid material.
8. The drive mechanism for power generation as recited in any one of claims 1 to 3, further comprising an intercepting net;
the intercepting net is two, and one of them knot is located the one end of rotation portion, another knot is located the other end of rotation portion.
9. An electric power generation apparatus having a drive mechanism for electric power generation, characterized by comprising an electric power generator and the drive mechanism for electric power generation of any one of claims 1 to 8;
one end of the rotating part is in transmission connection with an input shaft of the generator.
10. The power generation drive mechanism according to claim 9, wherein an outer wall of one end of the rotating portion is engaged with an outer wall of an input shaft of the power generator.
CN202211081886.8A 2022-09-06 2022-09-06 Driving mechanism for power generation and power generation device with same Pending CN115539270A (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202211081886.8A CN115539270A (en) 2022-09-06 2022-09-06 Driving mechanism for power generation and power generation device with same

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202211081886.8A CN115539270A (en) 2022-09-06 2022-09-06 Driving mechanism for power generation and power generation device with same

Publications (1)

Publication Number Publication Date
CN115539270A true CN115539270A (en) 2022-12-30

Family

ID=84724891

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202211081886.8A Pending CN115539270A (en) 2022-09-06 2022-09-06 Driving mechanism for power generation and power generation device with same

Country Status (1)

Country Link
CN (1) CN115539270A (en)

Similar Documents

Publication Publication Date Title
CN110219766B (en) Wave power generation device driven by planet wheel
AU2007357692B2 (en) System and method for conversion of wave energy into electrical energy
US11215160B2 (en) Horizontal-axis ocean current power generation device for underwater vehicle
US20060273594A1 (en) Ocean wave generation
BRPI0622157A2 (en) completely submerged wave power converter
EP3049670B1 (en) Energy production device and system
CN100427754C (en) Wave power generator
WO2012146197A1 (en) Floating-type ocean current combination power generation device
WO2013013534A1 (en) Floating water wave energy collecting and transducing system
JP5926428B2 (en) Power generation system and reciprocating mechanism for power generation system
CN109268195A (en) The wave swing blade type hydroelectric installation of marine drilling platform
JP7213581B2 (en) Potential energy generator
CN113217259B (en) Wave energy buoyancy pendulum type power generation device
JP2012087891A (en) Power conversion device and power generator
CN201943876U (en) Semi-submerged type wind-wave electricity-generating device
KR100925253B1 (en) Device for supporting solar cell panel
CN115539270A (en) Driving mechanism for power generation and power generation device with same
KR101287244B1 (en) Apparatus for wave power generation
CN101029623A (en) Scale marine wave-energy generator with collector
KR101700570B1 (en) turbine with ring gear and, systems of gathering or appling hydro dynamic energy by fluid in using it
TWI644019B (en) One-way conversion device and power system having the same
KR102183633B1 (en) Wave Power Generator Having Pendulum Movement Part
CN210714918U (en) Dual-mode ocean energy power generation device
CN109209750B (en) Tidal current energy and wave energy coupling power generation device
US20210062779A1 (en) Rocking lever assembly for harnessing energy from surface waves

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
