CN115318025A - Self-cleaning air filtering device for atmosphere pollution prevention and control - Google Patents
Self-cleaning air filtering device for atmosphere pollution prevention and control Download PDFInfo
- Publication number
- CN115318025A CN115318025A CN202211264071.3A CN202211264071A CN115318025A CN 115318025 A CN115318025 A CN 115318025A CN 202211264071 A CN202211264071 A CN 202211264071A CN 115318025 A CN115318025 A CN 115318025A
- Authority
- CN
- China
- Prior art keywords
- filter plate
- connecting piece
- rod
- adjusting
- self
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D46/00—Filters or filtering processes specially modified for separating dispersed particles from gases or vapours
- B01D46/10—Particle separators, e.g. dust precipitators, using filter plates, sheets or pads having plane surfaces
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D46/00—Filters or filtering processes specially modified for separating dispersed particles from gases or vapours
- B01D46/66—Regeneration of the filtering material or filter elements inside the filter
- B01D46/68—Regeneration of the filtering material or filter elements inside the filter by means acting on the cake side involving movement with regard to the filter elements
- B01D46/681—Regeneration of the filtering material or filter elements inside the filter by means acting on the cake side involving movement with regard to the filter elements by scrapers, brushes or the like
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A50/00—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE in human health protection, e.g. against extreme weather
- Y02A50/20—Air quality improvement or preservation, e.g. vehicle emission control or emission reduction by using catalytic converters
- Y02A50/2351—Atmospheric particulate matter [PM], e.g. carbon smoke microparticles, smog, aerosol particles, dust
Landscapes
- Chemical & Material Sciences (AREA)
- Chemical Kinetics & Catalysis (AREA)
- Filtering Of Dispersed Particles In Gases (AREA)
Abstract
The invention relates to the field of filters for separating particles from gas, in particular to a self-cleaning air filtering device for preventing and treating atmospheric pollution. A self-cleaning air filtering device for preventing and treating air pollution comprises a shell, a supporting component, a filter plate, a scraper, an adjusting structure and a driving structure. The support assembly comprises a first connecting piece, a second connecting piece and a support. In the invention, after dust is accumulated in front of the filter plate, the first connecting piece moves backwards under the action of wind, the vertical distance between the support and the filter plate is reduced, the adjusting structure drives the scraper to be quickly close to the filter plate until the scraper abuts against the filter plate, and the driving structure drives the scraper to move from the second end to the first end so as to scrape the dust to the first connecting piece. Meets the requirement of manufacturing special equipment for protecting the environment with atmospheric pollution, and promotes the development of advanced environment-friendly industry.
Description
Technical Field
The invention relates to the field of filters for separating particles from gas, in particular to a self-cleaning air filtering device for preventing and treating atmospheric pollution.
Background
With the continuous and rapid development of Chinese economy, the urban process and the industrial process are continuously increased, the environmental pollution is increasingly serious, but in the industrial production process, a large amount of waste gas is generated, and the waste gas contains dust, and if the waste gas is directly discharged without treatment, the waste gas pollutes air and causes harm to human health. Therefore, the national attention on environmental protection is also getting higher and higher, the advanced environmental protection industry becomes an important strategic industry of national sustainable development, and the advanced environmental protection industry is an industry which saves energy resources, develops circular economy, protects ecological environment and provides material basis and technical guarantee. The air pollution prevention direction comprises the manufacture of special equipment for protecting the environment from air pollution, the production and operation of environment-friendly products, the integration of environment-friendly technology and related service industries.
The special equipment for protecting the atmosphere from polluting the environment comprises a filtering device for treating the waste gas so as to avoid environmental pollution caused by dust emission in the waste gas and harm to human health; however, in the filtering device in the prior art, the filter screen is easy to be blocked, and the filter screen needs to be cleaned manually.
Disclosure of Invention
The invention provides a self-cleaning air filtering device for preventing and treating air pollution, which aims to solve the problem that a filtering plate is blocked after a conventional gas filtering device is used for a period of time and needs to be cleaned manually.
The invention relates to a self-cleaning air filtering device for preventing and treating atmospheric pollution, which adopts the following technical scheme: comprises a shell, a supporting component, two filter plates and two cleaning mechanisms; the shell is arranged along the front-back direction, and a filtering channel for filtering dust in air is surrounded by the shell; the supporting assembly comprises a first connecting piece arranged in the filtering channel, two sides of the first connecting piece facing the outer shell are respectively hinged with a bracket, and one ends of the two brackets facing the outer shell are respectively hinged with a second connecting piece; a second link slidably connected to the housing back and forth; the other second connecting piece is connected with a blocking structure so as to block a gap between the second connecting piece and the shell; the two filter plates are respectively and vertically arranged in front of the two brackets; two vertical edges of the filter plate are respectively a first end and a second end; the first end is hinged to the first connecting piece; the second end is hinged with the second connecting piece; on the horizontal projection, the bracket and the filter plate which are connected with the same second connecting piece are always parallel; an upper limiting block is further arranged between the first connecting piece and the second connecting piece, the upper limiting block can slide left and right relative to the shell, and the distance between the upper limiting block and the first connecting piece is larger than the distance between the upper limiting block and the second connecting piece; the rear end of the upper limiting block is provided with a first vertical rod inserted in the bracket; the front end of the upper limiting block is provided with a second vertical rod inserted in the filter plate; when the first connecting piece is stressed, the support and the filter plate respectively rotate around the first vertical rod and the second vertical rod; at the moment, the vertical distance between the filter plate and the bracket is reduced; the two cleaning mechanisms are respectively arranged on the two filter plates; the cleaning mechanism comprises a scraper blade, an adjusting structure and a driving structure; the scraping plate is vertically arranged in front of the filter plate; the scraper can move along the left and right directions and the front and back directions; the adjusting structure is configured to enable the scraper to be quickly close to the filter plate until the filter plate and the support are abutted when the vertical distance between the filter plate and the support is reduced; the drive structure is configured to move the scraper from the second end to the first end as a vertical distance between the filter plate and the holder decreases.
Furthermore, the adjusting structure comprises an installation rod, a first adjusting rod, a second adjusting rod and an adjusting wheel, wherein the installation rod can move front and back and can be arranged on the filter plate in a left-right moving mode; the scraper is fixedly arranged on the mounting rod; one end of the first adjusting rod is fixedly connected to the support, the other end of the first adjusting rod is in friction transmission with the adjusting wheel, and one end of the second adjusting rod is slidably connected to the mounting rod; the other end is always in friction transmission with the adjusting wheel; the adjusting wheel can rotate around the axis of the adjusting wheel and can be installed with the filter plate in a way of moving left and right.
Further, the driving assembly comprises a driving disc, a telescopic rod and a driving rod; the telescopic rod is horizontally arranged between the bracket and the filter plate; one end of the telescopic rod is fixedly connected to the bracket, and the other end of the telescopic rod is connected to the driving disc in a friction transmission manner; the driving disc is rotatably arranged on the filter plate; the driving rod and the driving disk are in friction transmission, and the mounting rod is mounted on the driving rod in a sliding manner in a manner of moving back and forth.
Furthermore, the upper end of the filter plate is provided with a slide rail, and the adjusting wheel is slidably arranged in the slide rail; the mounting rod is provided with a sliding groove, and the second adjusting rod is slidably arranged in the sliding groove.
Furthermore, a spring is arranged between the second adjusting rod and the sliding groove, and the spring enables the second adjusting rod to be in friction transmission with the adjusting wheel all the time.
Furthermore, a reset pressure spring is connected to the rear of the first connecting piece, and the other end of the reset pressure spring is connected to the shell.
Furthermore, the plugging structure comprises two guide plates which are symmetrical front and back, one end of each guide plate is hinged to the second connecting piece, and the other end of each guide plate is arranged on the shell in a front-back sliding mode.
Furthermore, a dust collection pit is arranged on the bottom wall of the shell and is positioned right in front of the first connecting piece.
Furthermore, two groups of supporting components are arranged and are respectively positioned at the upper side and the lower side of the filter plate, and lower limiting blocks are fixedly connected below the first vertical rod and the second vertical rod; the lower limiting block is connected to the outer shell in a manner of moving left and right.
Furthermore, one cleaning mechanism comprises two adjusting structures and two driving structures; the two adjusting structures are respectively arranged on the upper side and the lower side of the filter plate; the two driving structures are also respectively arranged on the upper side and the lower side of the filter plate.
The beneficial effects of the invention are: according to the self-cleaning air filtering device for preventing and treating air pollution, the support, the filter plate, the first connecting piece and the second connecting piece are arranged into a parallelogram structure, the first vertical rod and the second vertical rod are used as rotating shafts, so that after dust is accumulated in front of the filter plate, the first connecting piece moves backwards under the action of wind, the vertical distance between the support and the filter plate is reduced, then the scraper is driven to quickly approach the filter plate to be abutted against the filter plate under the action of the adjusting structure, meanwhile, the scraper is driven to move from the second end to the first end by the driving structure, so that the scraper scrapes the dust deposited on the filter plate from the filter plate to the first connecting piece, and the filtering device can also automatically complete cleaning work under the condition that no worker cleans the filter plate, and the subsequent filtering work and the filtering effect are prevented from being influenced due to the blockage of the filter plate. Meets the requirement of manufacturing special equipment for protecting the environment with atmospheric pollution, and promotes the development of advanced environment-friendly industry.
Furthermore, after the scraper scrapes dust to the first connecting piece, waste gas easily passes through the filter plate, wind force applied to the filter plate is reduced, the reset pressure spring is released to enable the filter plate to reset automatically, and the dust falls to the dust collection pit. Meanwhile, the distance between the filter plate and the support is increased, the scraper is far away from the filter plate, and dust and ash cannot be scraped to the second end of the filter plate when the filter plate moves from the first end to the second end. Further guarantee filterable effect, improve filterable efficiency.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

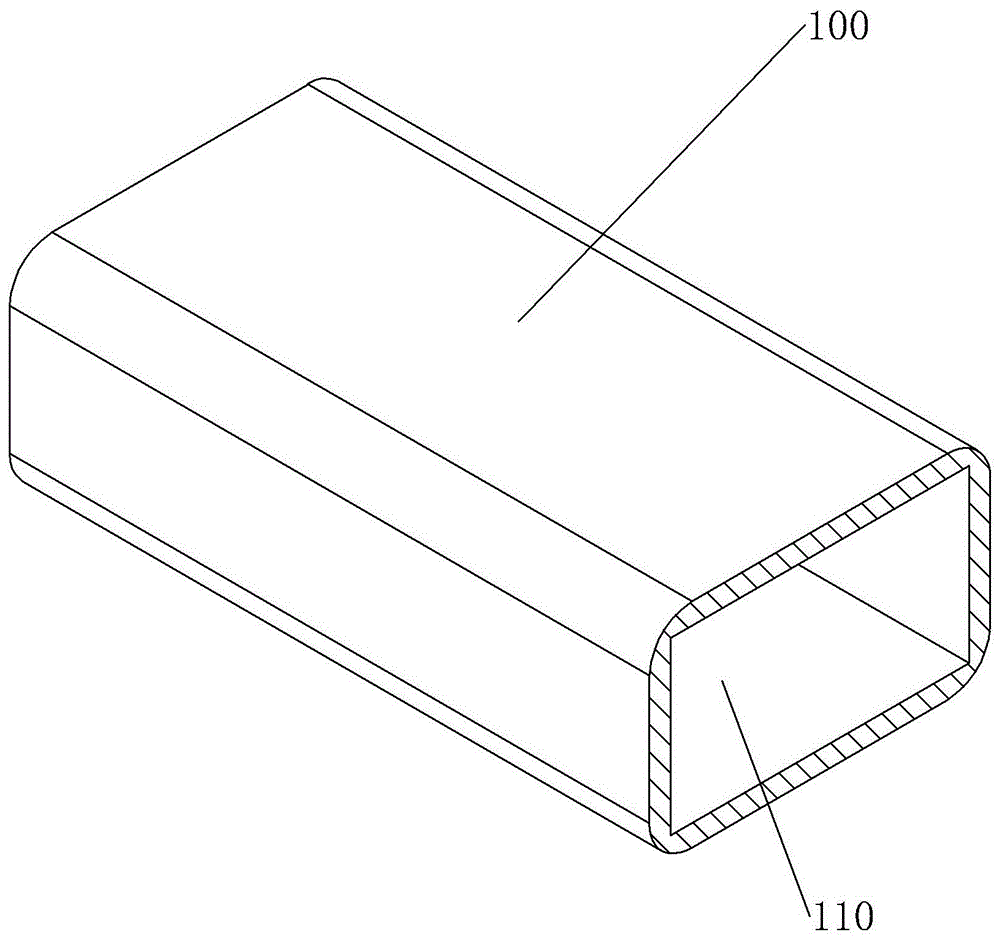

FIG. 1 is a schematic structural diagram of an embodiment of a self-cleaning air filtering device for preventing and treating air pollution according to the present invention;
FIG. 2 is a cross-sectional view of an embodiment of a self-cleaning air filtration device for atmospheric pollution control in accordance with the present invention;
FIG. 3 is a schematic diagram of the structure of a support assembly, filter plate and cleaning structure in an embodiment of the invention;
FIG. 4 is an enlarged view of FIG. 3 at A;
FIG. 5 is a schematic illustration of the structure of a support assembly, filter plate and cleaning structure in an embodiment of the invention;
FIG. 6 is an enlarged view of FIG. 5 at B;
FIG. 7 is a schematic structural diagram of an embodiment of the present invention in an operating state;
FIG. 8 is an enlarged view at C of FIG. 7;
FIG. 9 is a schematic structural diagram of the reset state of the embodiment of the present invention;
FIG. 10 is an enlarged view of FIG. 9 at D;
in the figure: 100. a housing; 110. a filtration channel; 120. a dust collection pit; 200. a support assembly; 210. a first connecting member; 220. a second connecting member; 230. a support; 300. a blocking structure; 310. a baffle; 400. filtering the plate; 401. a slide rail; 410. a first end; 420. a second end; 430. an upper limit block; 431. a first vertical bar; 432. a second vertical bar; 440. a lower limiting block; 500. a cleaning mechanism; 510. a squeegee; 520. an adjustment structure; 521. a first adjusting lever; 522. a second adjusting lever; 523. mounting a rod; 524. an adjustment wheel; 525. a chute; 530. a drive structure; 531. a drive plate; 532. a telescopic rod; 533. a drive rod; 600. and a pressure spring is reset.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
An embodiment of a self-cleaning air filtering device for preventing and treating air pollution of the present invention, as shown in fig. 1 to 10, includes a housing 100, a support assembly 200, two filter plates 400, and two cleaning mechanisms 500; the housing 100 is arranged along the front-back direction, and the housing 100 encloses a filtering channel 110 for filtering dust in air; the support assembly 200 comprises a first connecting piece 210 arranged in the filtering channel 110, wherein two sides of the first connecting piece 210 facing the outer casing 100 are hinged with brackets 230, and one ends of the two brackets 230 facing the outer casing 100 are hinged with a second connecting piece 220; a second link 220 slidably connected to the housing 100 back and forth; the other second connecting member 220 is connected with a blocking structure 300 to block the gap between the second connecting member 220 and the casing 100; the two filter plates 400 are respectively vertically arranged in front of the two brackets 230; the two vertical edges of the filter plate 400 are a first end 410 and a second end 420, respectively; the first end 410 is hinged to the first connector 210; second end 420 is hinged to second link 220; in horizontal projection, the bracket 230 and the filter plate 400 connected to the same second connector 220 are always parallel; an upper limiting block 430 is further arranged between the first connecting piece 210 and the second connecting piece 220, the upper limiting block 430 can slide left and right relative to the shell 100, and the distance between the upper limiting block 430 and the first connecting piece 210 is larger than the distance between the upper limiting block 430 and the second connecting piece 220; the rear end of the upper limiting block 430 is provided with a first vertical rod 431 inserted in the bracket 230; the front end of the upper limiting block 430 is provided with a second vertical rod 432 inserted into the filter plate 400; so that when the first connecting member 210 is stressed, the bracket 230 and the filter plate 400 rotate around the first vertical rod 431 and the second vertical rod 432, respectively; the vertical distance between the filter plate 400 and the holder 230 is reduced; the two cleaning mechanisms 500 are respectively arranged on the two filter plates 400; the cleaning mechanism 500 includes a squeegee 510, an adjustment structure 520, and a drive structure 530; the scraper 510 is vertically disposed in front of the filter plate 400; the squeegee 510 is movable in the left-right direction as well as in the front-rear direction; the adjustment structure 520 is configured to bring the scraper 510 into rapid proximity to the filter plate 400 into abutment therewith as the vertical distance between the filter plate 400 and the holder 230 decreases; the drive structure 530 is configured to move the scraper 510 from the second end 420 toward the first end 410 as the vertical distance between the filter plate 400 and the holder 230 decreases.
In the present embodiment, as shown in fig. 4, 6, 8, and 10, the adjusting structure 520 includes a mounting rod 523, a first adjusting rod 521, a second adjusting rod 522, and an adjusting wheel 524, and the mounting rod 523 is provided to the filter plate 400 so as to be movable forward and backward and movable leftward and rightward; the scraper 510 is fixedly mounted to the mounting bar 523; one end of the first adjusting rod 521 is fixedly connected to the bracket 230, the other end of the first adjusting rod 521 is in friction transmission with the adjusting wheel 524, and one end of the second adjusting rod 522 is slidably connected to the mounting rod 523; the other end is always in friction transmission with the adjusting wheel 524; the adjusting wheel 524 can rotate around the axis of the adjusting wheel and can be installed on the filter plate 400 in a left-right moving mode; when the vertical distance between the filter plate 400 and the support 230 is reduced, the first adjusting rod 521 moves forward relative to the filter plate 400, so as to drive the adjusting wheel 524 to rotate, the adjusting wheel 524 rotates to drive the second adjusting rod 522 to approach the filter plate 400, and the second adjusting rod 522 drives the scraper 510 to rapidly approach the filter plate 400 through the mounting rod 523 and to be attached to the filter plate 400. .
In this embodiment, as shown in fig. 6, the driving assembly comprises a driving disk 531, a telescopic rod 532 and a driving rod 533; the expansion link 532 is horizontally arranged between the bracket 230 and the filter plate 400; one end of the telescopic rod 532 is fixedly connected to the bracket 230, and the other end is connected to the driving disc 531 in a friction transmission manner; the driving disc 531 is rotatably mounted on the filter plate 400; the driving rod 533 is in friction transmission with the driving disk 531, and the mounting rod 523 is mounted on the driving rod 533 in a manner of being capable of moving back and forth and sliding; the reduction of the vertical distance between the filter plate 400 and the bracket 230 shortens the telescopic rod 532, which in turn rotates the driving disk 531, which in turn drives the driving rod 533 to move from the second end 420 to the first end 410, drives the scraper 510 to move from the second end 420 to the first end 410 through the mounting rod 523, and scrapes the dust on the filter plate 400 to the vicinity of the first connecting member 210.
In this embodiment, as shown in fig. 4, the upper end of the filter plate 400 is provided with a slide rail 401, and the adjusting wheel 524 is slidably disposed in the slide rail 401; the mounting rod 523 is provided with a sliding groove 525, and the second adjustment rod 522 is slidably disposed in the sliding groove 525.
In this embodiment, a spring is provided between the second adjustment lever 522 and the slide groove 525, and the spring keeps the second adjustment lever 522 in frictional engagement with the adjustment wheel 524.
In this embodiment, as shown in fig. 5, a return compression spring 600 is connected to the rear of the first connecting member 210, and the other end of the return compression spring 600 is connected to the housing 100, so that when the first connecting member 210 moves backward, the return compression spring 600 stores power, and when dust is scraped to the vicinity of the first connecting member 210 by the scraper 510, the backward acting force of the exhaust gas on the filter plate 400 is reduced, and the return compression spring 600 is released to drive the first connecting member 210 to return to the initial position.
In this embodiment, as shown in fig. 2, 3, 7 and 9, the blocking structure 300 includes two baffles 310 that are symmetrical front and back, one end of the baffle 310 is hinged to the second connector 220, and the other end of the baffle 310 is slidably disposed in the housing 100 front and back. So that the guide plate 310 always seals the gap between the connected second connector 220 and the housing 100 and guides the received exhaust gas onto the filter plate 400 during the movement of the first connector 210, thereby ensuring the filtering effect.
In the present embodiment, as shown in fig. 2, a dust collection pit 120 is provided on the bottom wall of the housing 100, and the dust collection pit 120 is located right in front of the first connector 210. So that the dust falls off the filter plate 400 and falls into the dust collection pit 120 during the reset process of the self-cleaning air filtering device for preventing and treating air pollution.
In this embodiment, as shown in fig. 5, two groups of support assemblies 200 are provided, which are respectively located at the upper and lower sides of the filter plate 400, and the lower limiting blocks 440 are further fixedly connected below the first vertical rods 431 and the second vertical rods 432; the lower stopper 440 is coupled to the housing 100 to be movable left and right, so that the filter sheet 400 is always maintained in a vertical state to ensure a filtering effect.
In this embodiment, as shown in fig. 5, one cleaning mechanism 500 includes two adjustment structures 520 and two drive structures 530; the two adjusting structures 520 are respectively arranged at the upper and lower sides of the filter plate 400; the two driving structures 530 are also respectively disposed on the upper and lower sides of the filter plate 400, so that after the filter plate 400 is forced to move, the scraper 510 is more stable to move relative to the aluminum plate, and the phenomenon of locking due to asynchronous up and down movement is avoided.
With the above embodiments, the usage principle and the working process of the present invention are as follows: the exhaust gas is introduced into a self-cleaning air filter device for atmospheric pollution control from the front end of the filter passage 110, dust in the exhaust gas is deposited on the filter sheet 400 when the exhaust gas passes through the filter sheet 400, and the exhaust gas without dust is discharged from the rear end of the filter passage 110 through the filter sheet 400. When the dust deposits on the filter sheet 400 are large and the exhaust gas passes through the filter sheet 400, the filter sheet 400 is subjected to a force acting backward. Since the upper and lower stoppers 430 and 440 are spaced apart from the first connection member 210 by a distance greater than the distance between the first and second connection members 220, the first end 410 of the filter plate 400 is subjected to a greater rearward force than the second end 420, and the first connection member 210 tends to move rearward, with an increase in dust deposition, and an increase in the rearward tendency of the first connection member 210 until the first connection member 210 breaks through the frictional force between the first connection member 210 and the housing 100, and moves rearward. During this process, the bracket 230 and the filter plate 400 rotate about the first vertical rod 431 and the second vertical rod 432, respectively; the shape of the bracket 230, the first connecting piece 210, the filter plate 400 and the second connecting piece 220 in horizontal projection is changed from rectangle to parallelogram, the vertical distance between the filter plate 400 and the bracket 230 is reduced, the first adjusting rod 521 moves forward relative to the filter plate 400 to drive the adjusting wheel 524 to rotate, the adjusting wheel 524 rotates to drive the second adjusting rod 522 to approach the filter plate 400, and the second adjusting rod 522 drives the scraper 510 to rapidly approach the filter plate 400 through the mounting rod 523 and attach to the filter plate 400. The reduction of the vertical distance between the filter plate 400 and the bracket 230 shortens the telescopic rod 532, so that the driving disk 531 rotates to drive the driving rod 533 to move from the second end 420 to the first end 410, and the installation rod 523 drives the scraper 510 to move from the second end 420 to the first end 410, so as to scrape the dust on the filter plate 400 to the vicinity of the first connecting piece 210. Since the first connecting member 210 is forced to move backward, the restoring compression spring 600 accumulates force while the first connecting member 210 moves backward, and when dust is scraped to the vicinity of the first connecting member 210 by the scraper 510, the backward acting force of the exhaust gas on the filter plate 400 is reduced, and the restoring compression spring 600 is released to drive the first connecting member 210 to return to the initial position. The shape of the bracket 230, the first connection member 210, the filter plate 400, and the second connection member 220 in horizontal projection is restored to a rectangular shape. At this time, the vertical distance between the bracket 230 and the filter plate 400 is increased, and the scraper 510 is driven by the adjusting structure 520 to be away from the filter plate 400 quickly; the scraper 510 moves from the first end 410 to the second end 420 by the driving structure 530 until the initial state is recovered. In this process, since the scraper 510 is already away from the filter sheet 400, the scraper 510 does not scrape dust from the first connection member 210 to both sides. During the reset process, the dust falls off and falls into the dust collection pit 120. And finishing the self-cleaning work. And continuing the filtering work under the normal state.
In the process of moving the first connector 210, the side of the guide plate 310 connected to the housing 100 slides relative to the housing 100, the guide plate 310 always seals the gap between the connected second connector 220 and the housing 100, and guides the received exhaust gas to the filter plate 400, thereby ensuring the filtering effect.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and should not be taken as limiting the scope of the present invention, which is intended to cover any modifications, equivalents, improvements, etc. within the spirit and scope of the present invention.
Claims (10)
1. The utility model provides an atmosphere pollution prevention and cure is with automatically cleaning air filter equipment which characterized in that: comprises a shell, a supporting component, two filter plates and two cleaning mechanisms;
the shell is arranged along the front-back direction, and a filtering channel for filtering dust in air is surrounded by the shell;
the supporting assembly comprises a first connecting piece arranged in the filtering channel, the two sides of the first connecting piece facing the outer shell are both hinged with a support, and one ends of the two supports facing the outer shell are both hinged with a second connecting piece; a second link slidably connected to the housing in a back-and-forth manner; the other second connecting piece is connected with a blocking structure to block a gap between the second connecting piece and the shell;
the two filter plates are respectively and vertically arranged in front of the two brackets; two vertical edges of the filter plate are respectively a first end and a second end; the first end is hinged with the first connecting piece; the second end is hinged with the second connecting piece; on the horizontal projection, the bracket and the filter plate which are connected with the same second connecting piece are always parallel; an upper limiting block is further arranged between the first connecting piece and the second connecting piece, the upper limiting block can slide left and right relative to the shell, and the distance between the upper limiting block and the first connecting piece is larger than the distance between the upper limiting block and the second connecting piece; the rear end of the upper limiting block is provided with a first vertical rod inserted in the bracket; the front end of the upper limiting block is provided with a second vertical rod inserted in the filter plate; when the first connecting piece is stressed, the support and the filter plate respectively rotate around the first vertical rod and the second vertical rod; at the moment, the vertical distance between the filter plate and the bracket is reduced;
the two cleaning mechanisms are respectively arranged on the two filter plates; the cleaning mechanism comprises a scraper blade, an adjusting structure and a driving structure; the scraping plate is vertically arranged in front of the filter plate; the scraper can move along the left and right directions and the front and back directions; the adjusting structure is configured to enable the scraper to be quickly close to the filter plate until the filter plate and the support are abutted when the vertical distance between the filter plate and the support is reduced; the drive structure is configured to move the scraper from the second end to the first end as a vertical distance between the filter plate and the holder decreases.
2. A self-cleaning air filtering device for preventing and treating atmospheric pollution as recited in claim 1, wherein: the adjusting structure comprises an installation rod, a first adjusting rod, a second adjusting rod and an adjusting wheel, wherein the installation rod is arranged on the filter plate in a manner of moving forwards and backwards and moving leftwards and rightwards; the scraper is fixedly arranged on the mounting rod; one end of the first adjusting rod is fixedly connected to the bracket, the other end of the first adjusting rod is in friction transmission with the adjusting wheel, and one end of the second adjusting rod is slidably connected to the mounting rod; the other end is always in friction transmission with the adjusting wheel; the adjusting wheel can rotate around the axis of the adjusting wheel and can be installed with the filter plate in a left-right moving way.
3. A self-cleaning air filtering device for preventing and treating atmospheric pollution as recited in claim 2, wherein: the driving assembly comprises a driving disc, a telescopic rod and a driving rod; the telescopic rod is horizontally arranged between the bracket and the filter plate; one end of the telescopic rod is fixedly connected to the bracket, and the other end of the telescopic rod is connected to the driving disc in a friction transmission manner; the driving disc is rotatably arranged on the filter plate; the driving rod and the driving disk are in friction transmission, and the mounting rod is mounted on the driving rod in a sliding manner in a manner of moving back and forth.
4. A self-cleaning air filtering device for preventing and treating atmospheric pollution as recited in claim 3, wherein: the upper end of the filter plate is provided with a slide rail, and the adjusting wheel is arranged in the slide rail in a sliding way; the mounting rod is provided with a sliding groove, and the second adjusting rod is slidably arranged in the sliding groove.
5. The self-cleaning air filtering device for preventing and treating atmospheric pollution of claim 4, wherein: a spring is arranged between the second adjusting rod and the sliding chute, and the spring enables the second adjusting rod to be in friction transmission with the adjusting wheel all the time.
6. A self-cleaning air filtering device for preventing and treating atmospheric pollution, as claimed in any one of claims 1 to 5, wherein: the rear of the first connecting piece is connected with a reset pressure spring, and the other end of the reset pressure spring is connected to the shell.
7. The self-cleaning air filtering device for preventing and treating atmospheric pollution of claim 6, wherein: the plugging structure comprises two guide plates which are symmetrical front and back, one end of each guide plate is hinged to the second connecting piece, and the other end of each guide plate is arranged on the shell in a front-back sliding mode.
8. The self-cleaning air filtering device for preventing and treating atmospheric pollution of claim 6, wherein: the bottom wall of the shell is provided with a dust collecting pit which is positioned right ahead the first connecting piece.
9. The self-cleaning air filtering device for preventing and treating atmospheric pollution of claim 6, wherein: two groups of supporting components are arranged and are respectively positioned at the upper side and the lower side of the filter plate, and lower limiting blocks are fixedly connected below the first vertical rod and the second vertical rod; the lower limit block is connected to the outer shell in a manner of moving left and right.
10. A self-cleaning air filtering device for preventing and treating atmospheric pollution as claimed in claim 9, wherein: one cleaning mechanism comprises two adjusting structures and two driving structures; the two adjusting structures are respectively arranged on the upper side and the lower side of the filter plate; the two driving structures are also respectively arranged on the upper side and the lower side of the filter plate.
