Abstract
The invention relates to a contact type electric connector which comprises a socket and a plug, wherein more than one jack piece with an outward opening and a spherical concave structure is arranged on the insertion end surface of a socket shell of the socket, a plurality of pin pieces corresponding to the jack pieces are connected on a pin insulator in a head shell of the plug in a penetrating way, the head of each pin piece extending out of the pin insulator is of a ball head structure corresponding to the spherical concave structure of the jack piece, each pin piece comprises a spring pin and a pin base, the spring pin and the pin base are inserted in a penetrating cavity in the middle of the pin insulator, a pressure spring is sleeved in the penetrating cavity, and the pressure spring is abutted between the spring pin and the rear part of the penetrating cavity. The structure is simple, the axial small-size insertion can be met, the insertion joint surface is large, and the transmission performance is favorably improved.
Description
Technical Field
The invention relates to a connector, in particular to a contact type electric connector.
Background
The connector is used as an important component of modern signal transmission, the performance requirements of the connector on respective applicable occasions are increasingly improved, and the pin and jack type connector with the traditional structure is limited by a pin hole plugging mode, the axial length of the connector, the size precision of a pin hole joint surface and the like, so that the use performance of the connector is directly influenced, and the applicability of the occasions is limited.
Disclosure of Invention
The invention provides a contact type electric connector which is simple in structure, can meet the requirements of small-size axial insertion and large insertion joint surface and is beneficial to improving transmission performance.
The technical scheme adopted by the invention is as follows: a contact type electric connector comprises a socket and a plug, and is characterized in that: the socket comprises a socket shell and is characterized in that more than one jack piece with outward openings and a spherical concave structure is arranged on the inserting end face of the socket shell, a plurality of pin pieces corresponding to the jack pieces are connected on a pin insulator in the socket shell of the plug in a penetrating manner, the head of each pin piece extending out of the pin insulator is of a ball head structure corresponding to the spherical concave structure of the jack piece, each pin piece comprises a spring needle and a pin seat, the spring needle and the pin seat are connected in a penetrating cavity in the middle of the pin insulator in an inserting manner, a pressure spring is sleeved outside the penetrating cavity, and the pressure spring is abutted between the spring needle and the rear part of the penetrating cavity.
Furthermore, the tail part of the spring needle is sleeved on the needle inserting seat in a matching manner.
Furthermore, a sheath is arranged outside the spring needle and the needle base in the penetrating cavity in the middle of the needle inserting insulator, and a pressure spring is sleeved outside the sheath.
Furthermore, the needle inserting piece is of a hair button structure.
The invention improves the traditional inserting structure of the contact pin and the jack with longer axial length into the inserting combination of the ball head and the spherical concave structure with shorter and larger contact surface and more stable, is beneficial to simplifying the axial length of the connector, meets the requirements of small-size axial inserting and large inserting combination surface, and can further improve the transmission performance.
Drawings

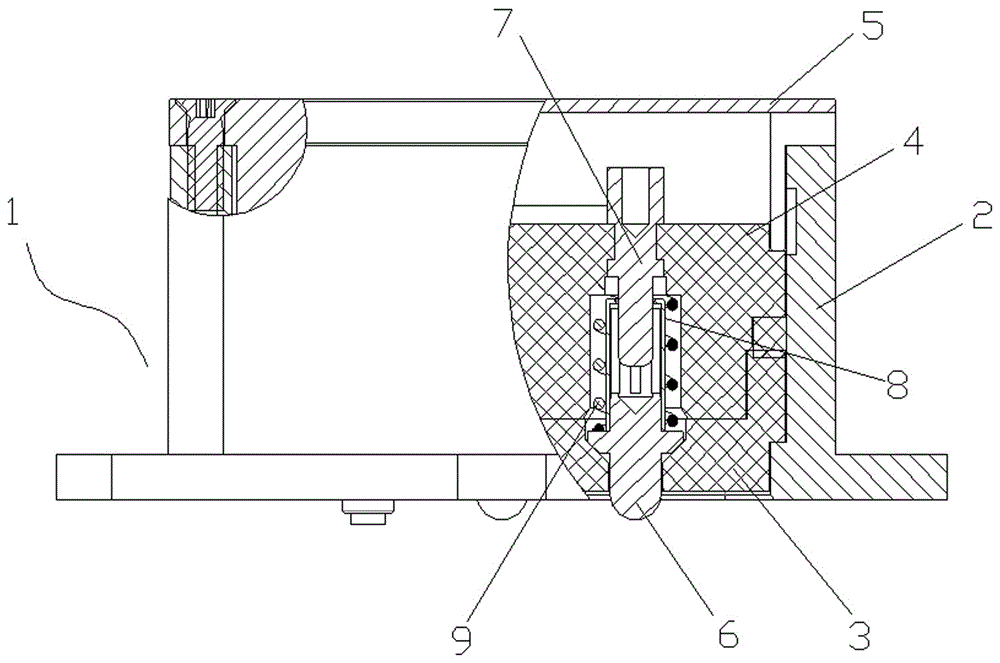

FIG. 1 is a schematic view of a plug according to the present invention;
FIG. 2 is a bottom view of FIG. 1;
FIG. 3 is a schematic view of a socket structure according to the present invention;
fig. 4 is a top view of fig. 3.
In the figure: the plug comprises a plug 1, a head shell 2, a pin insulator 3, a pin insulating cover plate 4, a rear pressing plate 5, a spring pin 6, a pin seat 7, a sheath 8, a pressure spring 9, a socket 10, a seat shell 11, a jack piece 12, a connecting embedded head 13 and a sealing ring 14.
Detailed Description
The following is further described with reference to the accompanying drawings.
As shown in fig. 1 to 4, a contact type electric connector comprises a plug 1 and a socket 10, a contact pin insulation assembly which is pressed by a back pressure plate 5 and consists of a contact pin insulator 3 and a contact pin insulation cover plate 4 is arranged in a head shell 2 of the plug 1, a plurality of contact pin pieces corresponding to the contact pin pieces are connected on the contact pin insulation assembly in a penetrating way, each contact pin piece comprises a spring pin 6 and a contact pin base 7, the head of the spring pin extending out of the contact pin insulator is of a ball head structure corresponding to a spherical concave structure of the contact pin piece, the spring pin and the contact pin base are connected in a penetrating way in the middle of the contact pin insulation assembly in an inserting way and are sleeved with a sheath 8, a pressure spring 9 is sleeved outside the sheath 8, and the pressure spring is abutted between the spring pin and the rear part of the penetrating way. More than one jack piece 12 with an outward opening and a spherical concave structure is arranged on the plugging end face of a socket shell 11 of the socket 10 shown in fig. 3 and 4, a circle of sealing ring 14 is arranged on the plugging end face of the socket shell, and when the plug 1 is plugged, a spring needle ball head structure is in contact type joint corresponding to the jack piece 12. In fig. 3, the receptacle member 12 is not shown connected to the upper mating end face for reasons of section view, and in the art the receptacle member 12 necessarily extends to the upper mating end face.
In the above embodiment, more than one connecting embedded head 13 is arranged on the insertion end face of the socket shell, and the connecting embedded head is used for guiding insertion and insertion when being assembled with the socket short circuit cover plate.
On the basis of the above embodiments, any one of the pin inserting pieces can be replaced by a hair button structure, the structure belongs to the hair button connection conventional technology, and details are not described in the application and the embodiments.
Claims (4)
1. A contact type electric connector comprises a socket and a plug, and is characterized in that: the socket comprises a socket shell and is characterized in that more than one jack piece with outward openings and a spherical concave structure is arranged on the inserting end face of the socket shell, a plurality of pin pieces corresponding to the jack pieces are connected on a pin insulator in the socket shell of the plug in a penetrating manner, the head of each pin piece extending out of the pin insulator is of a ball head structure corresponding to the spherical concave structure of the jack piece, each pin piece comprises a spring needle and a pin seat, the spring needle and the pin seat are connected in a penetrating cavity in the middle of the pin insulator in an inserting manner, a pressure spring is sleeved outside the penetrating cavity, and the pressure spring is abutted between the spring needle and the rear part of the penetrating cavity.
2. A contact electrical connector according to claim 1, wherein: the tail part of the spring needle is sleeved on the needle inserting seat in a matching manner.
3. A contact electrical connector as defined in claim 1, wherein: and the spring needle and the needle seat are externally provided with a sheath in the penetrating cavity in the middle of the needle inserting insulator, and a pressure spring is sleeved outside the sheath.
4. A contact electrical connector according to claim 1, wherein: the needle inserting piece is of a hair button structure.
