Abstract

The invention discloses a sewage treatment tank with an antibiotic degrading function, relates to the technical field of sewage treatment, and aims to solve the problem that the existing sewage treatment tank is poor in antibiotic treatment effect on wastewater. The medicine sedimentation tank adds, the one side that adds the medicine sedimentation tank is provided with the photocatalysis pond, one side of photocatalysis pond is provided with the adsorption filtration pond, the bottom that adds the medicine sedimentation tank is provided with the skew wall, the one side that adds the medicine sedimentation tank bottom is provided with the drain, add the inside one side of medicine sedimentation tank and install the cartridge filter, the inside of photocatalysis pond is provided with the InTi nanoribbon, the aerator pipe is installed to the bottom of photocatalysis pond, and the one end of aerator pipe extends to the outside of photocatalysis pond, the inside of adsorption filtration pond has set gradually metalling, cobble layer and slag layer from top to bottom, the inside lower extreme of adsorption filtration pond is provided with the activated carbon layer, the lower extreme of adsorption filtration pond one side is provided with the outlet.

Description

Sewage treatment pond with antibiotic function of degradation
Technical Field
The invention relates to the technical field of sewage treatment, in particular to a sewage treatment tank with an antibiotic degrading function.
Background
At present, more than 300 antibiotic production enterprises exist in China, the yield accounts for about 30% of the world total output, antibiotic raw materials are produced annually, antibiotic waste water is discharged annually, the yield is more than 5000 million tons, and antibiotics are chemical substances which are generated by microorganism metabolism and can inhibit or kill other microorganisms at low concentration. The antibiotic wastewater has high chroma, contains various refractory and biological toxic substances, and is high-concentration organic wastewater. Residual antibiotics in the wastewater can cause potential influence on the environment, and the treatment method of the antibiotic wastewater mainly comprises a physical method, a chemical method, a biological method and the like. The physical method mainly comprises an air floatation method, an adsorption method and a membrane technology, the chemical method mainly comprises an ozone oxidation method, a Fenton oxidation method and an electrochemical technology, and the biological method mainly comprises an SBR method, an MBR method and an up-flow anaerobic sludge bed method.
However, the existing wastewater treatment method containing antibiotics is single, advanced treatment cannot be carried out from multiple aspects, the efficiency of the wastewater treatment process is low, and the treated wastewater still contains antibiotic residues, so that the existing requirement is not met.
Disclosure of Invention
The invention aims to provide a sewage treatment tank with a function of degrading antibiotics, so as to solve the problem that the sewage treatment tank provided by the background technology has poor effect on treating the antibiotics in the wastewater.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a sewage treatment pond with antibiotic function degrades, includes and adds the medicine sedimentation tank, the one side that adds the medicine sedimentation tank is provided with the photocatalysis pond, one side of photocatalysis pond is provided with adsorbs filtering ponds, the bottom that adds the medicine sedimentation tank is provided with the skew wall, the one side that adds the medicine sedimentation tank bottom is provided with the drain, add the inside one side of medicine sedimentation tank and install the cartridge filter, the inside of photocatalysis pond is provided with the InTi nanoribbon, and it is spacing that the draw-in groove is passed through with the photocatalysis pond to the InTi nanoribbon, the aeration pipe is installed to the bottom of photocatalysis pond, and the one end of aeration pipe extends to the outside of photocatalysis pond, the inside of adsorbing the filtering ponds has set gradually metalling, cobble layer and slag layer from top to bottom, the inside lower extreme of adsorbing the filtering ponds is provided with the activated carbon layer, the lower extreme of adsorbing filtering ponds one side is provided with the outlet.
Preferably, be provided with first connecting pipe between medicine sedimentation tank and the photocatalysis pond, and the one end of first connecting pipe extends to the inside of cartridge filter, the pump is installed to the intermediate position department of first connecting pipe, the outer wall of cartridge filter twines has reverse osmosis membrane, and reverse osmosis membrane is formed by crosslinked aromatic polyamide, polysulfone and polyester non-woven fabrics are compound.
Preferably, the fixed first fixed plate that is provided with in upper end of medicine sedimentation tank, first motor is installed to the intermediate position department of first fixed plate up end, the rotation axis is installed to the output shaft of first motor, and the rotation axis extends to the inside of adding medicine sedimentation tank, the lower extreme fixed mounting of rotation axis has stirring vane.
Preferably, be provided with the scraper blade on the inner wall of medicine sedimentation tank, the scraper blade is provided with a plurality of, and the scraper blade equidistance sets up in proper order, the inside of scraper blade is fixed to be provided with cuts apart the strip, it forms the gap to cut apart between strip and the scraper blade.
Preferably, the upper end of the photocatalytic tank is fixedly provided with two second fixing plates, the lower ends of the two second fixing plates are provided with high-pressure pump lamps, and the high-pressure pump lamps are located above the InTi nanobelts.
Preferably, a third fixing plate is arranged at the upper end of the adsorption and filtration tank, a driving box is arranged at the middle position of the third fixing plate, a second connecting pipe is arranged between the photocatalytic tank and the adsorption and filtration tank, and a water pump is arranged at the middle position of the second connecting pipe.
Preferably, a second motor is fixedly installed inside the driving box, a transmission shaft is arranged on one side of the second motor, the transmission shaft is in rotating fit with the third fixing plate, the output end of the second motor is in driving fit with the transmission shaft through a transmission belt, one end of the second connecting pipe is in rotating fit with the transmission shaft, a water distribution pipe is fixedly installed at the lower end of the transmission shaft, and five nozzles which are symmetrically distributed are arranged at the lower end of the water distribution pipe.
Preferably, a water distribution plate is arranged between the slag layer and the activated carbon layer, the water distribution plate and the adsorption filtration tank are fixed through bolts, a plurality of grooves distributed at equal intervals are formed in the water distribution plate, and flow pipes are arranged at the bottoms of the grooves.
Compared with the prior art, the invention has the beneficial effects that:
1. the invention adopts the mutual cooperation of a dosing sedimentation tank, a photocatalytic tank and an adsorption filtration tank to realize the advanced treatment of antibiotics in water, workers in the dosing sedimentation tank can preferentially adjust the pH value of wastewater, then dosing is carried out to start a first motor, an output shaft of the first motor drives a stirring blade to rotate so as to form the rapid mixing of the wastewater and a medicament, the wastewater is kept still after being mixed for a set time, harmful substances in the wastewater are gradually separated from the wastewater under the action of the medicament to form floccules, the floccules are accumulated and deposited on an inclined wall, then the wastewater subjected to the floccules deposition is conveyed to the photocatalytic tank under the action of a pump, the rapid degradation of the antibiotics in the wastewater is formed through the mutual cooperation with an aeration pipe, finally, the water subjected to photocatalysis and aeration is conveyed to the adsorption filtration tank, a biological filter bed is arranged in the adsorption filtration tank, the biological filter bed is composed of a crushed stone layer, a slag layer and an active carbon layer, the large specific surface area is utilized, the rapid growth of microorganisms is favorable for degrading the antibiotics and the like in an environment-friendly and efficient way, and finally, the wastewater containing different antibiotic degradation efficiency is improved through the multi-level wastewater treatment by the drainage mode of wastewater filtered by utilizing the microorganisms.
2. According to the invention, the filter cartridge is arranged, the reverse osmosis membrane inside the filter cartridge is compounded by the crosslinked aromatic polyamide, the polysulfone and the polyester non-woven fabric, negative pressure is formed inside the filter cartridge in the process of pumping out water in the dosing sedimentation tank, the external water is gradually sucked into the filter cartridge through the reverse osmosis membrane, impurities in water can be combined in the process of passing through the reverse osmosis membrane, flocculate is prevented from entering the inside of the photocatalysis tank through the first connecting pipe, meanwhile, the polysulfone can be used for preliminarily degrading microorganisms in the water, the integral antibiotic degradation efficiency is effectively improved, only the pump is required to be reversely started in the cleaning process, the external water is backflushed into the filter cartridge, the cleanness of the reverse osmosis membrane can be realized, and the practicability is effectively improved.
3. According to the invention, the In2Ti05 nanobelt is selected as the photocatalyst, the high-pressure pump lamp is started In the process of photocatalysis, the photocatalytic reaction is gradually formed, the charged property of the In2Ti05 nanobelt has larger adsorption force on the antibiotics In neutral or weakly alkaline water, and the In2Ti05 nanobelt has larger specific surface area, so that the degradation effect on the antibiotics is particularly obvious, and the treatment efficiency of the antibiotics In the wastewater is further improved.
4. The water distributor is arranged at the upper end of the adsorption and filtration tank, the second motor is synchronously started in the process of starting the water pump on the second connecting pipe, the output shaft of the second motor drives the transmission shaft to rotate through the transmission belt, so that the water distributor is driven to rotate, the water body after photocatalysis enters the water distributor through the second connecting pipe, then the water body is sprayed towards the lower gravel layer by the spray head on the water distributor, and under the action of centrifugal force, the water body is distributed in a scattering shape and can uniformly cover the surface of the gravel layer, so that the adsorption efficiency is improved.
Drawings

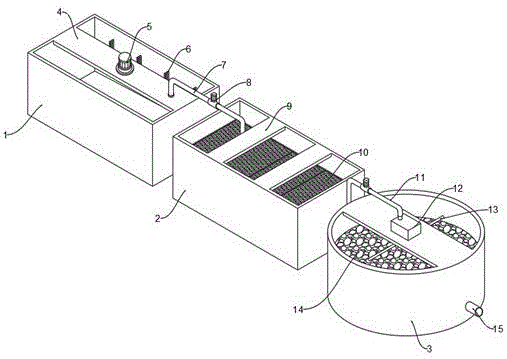

FIG. 1 is a perspective view of the present invention;
FIG. 2 is a schematic view of the internal structure of the present invention;
FIG. 3 is a schematic view of the filter cartridge of the present invention;
FIG. 4 is an enlarged view of a portion of the area A of FIG. 2 in accordance with the present invention;
fig. 5 is a partial enlarged view of the area B in fig. 2 according to the present invention.
In the figure: 1. a dosing sedimentation tank; 2. a photocatalytic cell; 3. an adsorption filtration tank; 4. a first fixing plate; 5. a first motor; 6. a squeegee; 7. a first connecting pipe; 8. pumping; 9. a second fixing plate; 10. an In2Ti05 nanobelt; 11. a second connecting pipe; 12. a drive box; 13. a water distribution pipe; 14. a crushed stone layer; 15. a water discharge port; 16. a sewage draining port; 17. a rotating shaft; 18. a stirring blade; 19. a sloped wall; 20. cutting the strips; 21. a filter cartridge; 22. a reverse osmosis membrane; 23. an aeration pipe; 24. a high-pressure pump lamp; 25. a pebble layer; 26. a slag layer; 27. an activated carbon layer; 28. a third fixing plate; 29. a drive shaft; 30. a second motor; 31. a transmission belt; 32. a water distribution plate; 33. a groove; 34. a flow tube.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-5, an embodiment of the present invention is shown: the utility model provides a sewage treatment pond with antibiotic function degrades, including adding medicine sedimentation tank 1, one side of adding medicine sedimentation tank 1 is provided with photocatalysis pond 2, one side of photocatalysis pond 2 is provided with adsorbs filtering ponds 3, the bottom of adding medicine sedimentation tank 1 is provided with skew wall 19, one side of adding medicine sedimentation tank 1 bottom is provided with drain 16, add medicine sedimentation tank 1 inside one side and install cartridge filter 21, photocatalysis pond 2's inside is provided with In2Ti05 nanoribbon 10, and In2Ti05 nanoribbon 10 is spacing through the draw-In groove with photocatalysis pond 2, aeration pipe 23 is installed to photocatalysis pond 2's bottom, and the one end of aeration pipe 23 extends to photocatalysis pond 2's outside, the inside of adsorbing filtering ponds 3 has set gradually metalling 14 from top to bottom, cobble layer 25 and slag layer 26, the inside lower extreme of adsorbing filtering ponds 3 is provided with activated carbon layer 27, the lower extreme of adsorbing filtering ponds 3 one side is provided with outlet 15.
Further, it is provided with first connecting pipe 7 to add between medicine sedimentation tank 1 and the photocatalysis pond 2, and the one end of first connecting pipe 7 extends to the inside of cartridge filter 21, the intermediate position department of first connecting pipe 7 installs pump 8, the outer wall kinking of cartridge filter 21 has reverse osmosis membrane 22, and reverse osmosis membrane 22 is by crosslinked aromatic polyamide, polysulfone and polyester non-woven fabrics are compound to form, utilize polysulfone can carry out preliminary degradation to the microorganism of aquatic, effectively improve holistic antibiotic degradation efficiency, only need to open pump in reverse on clean, recoil outside water to inside the cartridge filter, can realize the cleanness to reverse osmosis membrane, the practicality effectively obtains improving.
Further, add fixed first fixed plate 4 that is provided with in upper end of medicine sedimentation tank 1, first motor 5 is installed to the intermediate position department of 4 up end of first fixed plate, and rotation axis 17 is installed to the output shaft of first motor 5, and rotation axis 17 extends to the inside of adding medicine sedimentation tank 1, and rotation axis 17's lower extreme fixed mounting has stirring vane 18, and first motor 5 drives stirring vane 18 and rotates, makes the medicament mix with waste water fast.
Further, be provided with scraper blade 6 on the inner wall that adds medicine sedimentation tank 1, scraper blade 6 is provided with a plurality of, and scraper blade 6 equidistance sets up in proper order, and the fixed strip 20 of cutting apart that is provided with in inside of scraper blade 6, cuts apart and forms the gap between strip 20 and the scraper blade 6, and when rotatory waste water and scraper blade 6 contact, it flows because of the striking production wadding to form complicated motion in the inside that adds medicine sedimentation tank 1, with higher speed with the quick fusion of medicament.
Further, the fixed second fixed plate 9 that is provided with In upper end of photocatalysis pond 2, and second fixed plate 9 is provided with two, and high-pressure pump lamp 24 is all installed to the lower extreme of second fixed plate 9, and high-pressure pump lamp 24 is located the top of In2Ti05 nanoribbon 10, and In2Ti05 nanoribbon 10 has great specific surface area for degradation effect to the antibiotic is especially obvious, has further improved the treatment effeciency of antibiotic In the waste water.
Further, a third fixing plate 28 is arranged at the upper end of the adsorption filtration tank 3, a driving box 12 is arranged at the middle position of the third fixing plate 28, a second connecting pipe 11 is arranged between the photocatalytic tank 2 and the adsorption filtration tank 3, and a water pump is arranged at the middle position of the second connecting pipe 11.
Further, a second motor 30 is fixedly installed inside the driving box 12, a transmission shaft 29 is arranged on one side of the second motor 30, the transmission shaft 29 is in rotating fit with the third fixing plate 28, an output end of the second motor 30 is in driving fit with the transmission shaft 29 through a transmission belt 31, one end of the second connecting pipe 11 is in rotating fit with the transmission shaft 29, a water distribution pipe 13 is fixedly installed at the lower end of the transmission shaft 29, five nozzles which are symmetrically distributed are arranged at the lower end of the water distribution pipe 13, and under the action of centrifugal force, the water body is distributed in a scattering shape and can uniformly cover the surface of the gravel layer, so that the adsorption efficiency is improved.
Further, a water distribution plate 32 is arranged between the slag layer 26 and the activated carbon layer 27, the water distribution plate 32 and the adsorption filtration tank 3 are fixed through bolts, a plurality of grooves 33 distributed at equal intervals are formed in the water distribution plate 32, and flow pipes 34 are arranged at the bottoms of the grooves 33, so that water uniformly enters the activated carbon layer 27, filtration is achieved, and the practicability is further improved.
The working principle is as follows: during the use, the staff can be preferred in adding medicine sedimentation tank 1 and adjust waste water pH value, add medicine afterwards and open first motor 5, its output shaft drives stirring vane 18 and rotates, form the flash mixed of waste water and medicament, mix to the settlement time after, the waste water of stewing, under the effect with the medicament, harmful substance takes place to separate with waste water gradually in the waste water, form the floccule, pile up the deposit on sloping wall 19, later carry the waste water through flocculation and precipitation to photocatalysis pond 2 under the effect of suction pump 8, to the in-process that adds medicine sedimentation tank 1 in-process that the water body was taken out, the inside of cartridge filter 21 forms the negative pressure, with outside water body through reverse osmosis membrane 22 inhale to inside gradually, in-process through reverse osmosis membrane 22, not only can make up the aquatic impurity, avoid getting into inside photocatalysis floc 2 through first connecting pipe 7, utilize polysulfone can carry out preliminary degradation to the microorganism in the water simultaneously, form the fast degradation to the antibiotic in the waste water through mutually supporting with aeration pipe 23, carry out the fast degradation to the water body through photocatalysis and absorption filtration pond 3, the absorption filtration pond 3 sets up by the biological filter bed of activated carbon, the last biological filter bed is favorable to carry out degradation of biological activated carbon, the waste water purification layer through 14, the high-efficient biological filter bed 14, the waste water discharge layer is favorable to carry out through the high-efficient biological filter bed 14, the waste water purification of the active carbon filter bed, the waste water purification of the environmental protection, the waste water is favorable to utilize waste water, the waste water.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (8)

1. The utility model provides a sewage treatment pond with degrade antibiotic function, is including adding medicine sedimentation tank (1), its characterized in that: one side of adding medicine sedimentation tank (1) is provided with photocatalysis tank (2), one side of photocatalysis tank (2) is provided with adsorption filtration pond (3), the bottom of adding medicine sedimentation tank (1) is provided with skew wall (19), it is provided with drain (16) to add one side of medicine sedimentation tank (1) bottom, it installs cartridge filter (21) to add the inside one side of medicine sedimentation tank (1), the inside of photocatalysis tank (2) is provided with In2Ti05 nanoribbon (10), and In2Ti05 nanoribbon (10) is spacing through the draw-In groove with photocatalysis tank (2), aeration pipe (23) are installed to the bottom of photocatalysis tank (2), and the one end of aeration pipe (23) extends to the outside of photocatalysis tank (2), the inside of adsorption filtration pond (3) has set gradually metalling (14), pebble layer (25) and slag layer (26) from top to bottom, the inside lower extreme of adsorption filtration pond (3) is provided with activated carbon layer (27), the lower extreme of adsorption filtration pond (3) one side is provided with outlet (15).
2. The sewage treatment tank with the function of degrading antibiotics as claimed in claim 1, wherein: add and be provided with first connecting pipe (7) between medicine sedimentation tank (1) and photocatalysis pond (2), and the one end of first connecting pipe (7) extends to the inside of cartridge filter (21), pump (8) are installed to the intermediate position department of first connecting pipe (7), reverse osmosis membrane (22) have been twined to the outer wall of cartridge filter (21), and reverse osmosis membrane (22) are formed by crosslinked aromatic polyamide, polysulfone and polyester non-woven fabrics complex.
3. The sewage treatment pool with the function of degrading antibiotics according to claim 1, characterized in that: the fixed first fixed plate (4) that is provided with in upper end of adding medicine sedimentation tank (1), first motor (5) are installed to the intermediate position department of first fixed plate (4) up end, rotation axis (17) are installed to the output shaft of first motor (5), and rotation axis (17) extend to the inside of adding medicine sedimentation tank (1), the lower extreme fixed mounting of rotation axis (17) has stirring vane (18).
4. The sewage treatment tank with the function of degrading antibiotics as claimed in claim 3, wherein: be provided with scraper blade (6) on the inner wall of medicine sedimentation tank (1), scraper blade (6) are provided with a plurality of, and scraper blade (6) equidistance sets up in proper order, the inside of scraper blade (6) is fixed to be provided with and cuts apart strip (20), it forms the gap to cut apart between strip (20) and scraper blade (6).
5. The sewage treatment pool with the function of degrading antibiotics according to claim 1, characterized in that: the upper end of photocatalysis pond (2) is fixed and is provided with second fixed plate (9), and second fixed plate (9) are provided with two, high-pressure pump lamp (24) are all installed to the lower extreme of second fixed plate (9), and high-pressure pump lamp (24) are located the top of In2Ti05 nanobelt (10).
6. The sewage treatment tank with the function of degrading antibiotics as claimed in claim 1, wherein: the upper end of the adsorption and filtration tank (3) is provided with a third fixing plate (28), the middle position of the third fixing plate (28) is provided with a driving box (12), a second connecting pipe (11) is arranged between the photocatalytic tank (2) and the adsorption and filtration tank (3), and the middle position of the second connecting pipe (11) is provided with a water pump.
7. The sewage treatment pool with the function of degrading antibiotics according to claim 6, characterized in that: the inside fixed mounting of drive case (12) has second motor (30), one side of second motor (30) is provided with transmission shaft (29), transmission shaft (29) and third fixed plate (28) normal running fit, and the output of second motor (30) passes through drive belt (31) normal running fit with transmission shaft (29), the one end and the transmission shaft (29) normal running fit of second connecting pipe (11), the lower extreme fixed mounting of transmission shaft (29) has water distributor (13), the lower extreme of water distributor (13) is provided with five symmetric distribution's nozzle.
8. The sewage treatment pool with the function of degrading antibiotics according to claim 1, characterized in that: be provided with water distribution plate (32) between slag layer (26) and activated carbon layer (27), and water distribution plate (32) pass through the bolt fastening with adsorption filtration pond (3), the inside of water distribution plate (32) is provided with recess (33) that a plurality of equidistance distribute, the bottom of recess (33) all is provided with flow tube (34).
