CN114919140A - Mould for machining router shell based on inner and outer sliding block core-pulling mechanism - Google Patents
Mould for machining router shell based on inner and outer sliding block core-pulling mechanism Download PDFInfo
- Publication number
- CN114919140A CN114919140A CN202210687218.3A CN202210687218A CN114919140A CN 114919140 A CN114919140 A CN 114919140A CN 202210687218 A CN202210687218 A CN 202210687218A CN 114919140 A CN114919140 A CN 114919140A
- Authority
- CN
- China
- Prior art keywords
- sliding block
- die
- slider
- router
- kink
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B29—WORKING OF PLASTICS; WORKING OF SUBSTANCES IN A PLASTIC STATE IN GENERAL
- B29C—SHAPING OR JOINING OF PLASTICS; SHAPING OF MATERIAL IN A PLASTIC STATE, NOT OTHERWISE PROVIDED FOR; AFTER-TREATMENT OF THE SHAPED PRODUCTS, e.g. REPAIRING
- B29C45/00—Injection moulding, i.e. forcing the required volume of moulding material through a nozzle into a closed mould; Apparatus therefor
- B29C45/17—Component parts, details or accessories; Auxiliary operations
- B29C45/40—Removing or ejecting moulded articles
- B29C45/44—Removing or ejecting moulded articles for undercut articles
- B29C45/4435—Removing or ejecting moulded articles for undercut articles using inclined, tiltable or flexible undercut forming elements driven by the ejector means
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B29—WORKING OF PLASTICS; WORKING OF SUBSTANCES IN A PLASTIC STATE IN GENERAL
- B29C—SHAPING OR JOINING OF PLASTICS; SHAPING OF MATERIAL IN A PLASTIC STATE, NOT OTHERWISE PROVIDED FOR; AFTER-TREATMENT OF THE SHAPED PRODUCTS, e.g. REPAIRING
- B29C45/00—Injection moulding, i.e. forcing the required volume of moulding material through a nozzle into a closed mould; Apparatus therefor
- B29C45/17—Component parts, details or accessories; Auxiliary operations
- B29C45/26—Moulds
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B29—WORKING OF PLASTICS; WORKING OF SUBSTANCES IN A PLASTIC STATE IN GENERAL
- B29C—SHAPING OR JOINING OF PLASTICS; SHAPING OF MATERIAL IN A PLASTIC STATE, NOT OTHERWISE PROVIDED FOR; AFTER-TREATMENT OF THE SHAPED PRODUCTS, e.g. REPAIRING
- B29C45/00—Injection moulding, i.e. forcing the required volume of moulding material through a nozzle into a closed mould; Apparatus therefor
- B29C45/17—Component parts, details or accessories; Auxiliary operations
- B29C45/26—Moulds
- B29C45/33—Moulds having transversely, e.g. radially, movable mould parts
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02D—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN INFORMATION AND COMMUNICATION TECHNOLOGIES [ICT], I.E. INFORMATION AND COMMUNICATION TECHNOLOGIES AIMING AT THE REDUCTION OF THEIR OWN ENERGY USE
- Y02D30/00—Reducing energy consumption in communication networks
- Y02D30/70—Reducing energy consumption in communication networks in wireless communication networks
Abstract
The application relates to the field of injection mold forming, and provides a mold for machining a router shell based on an inner and outer sliding block core-pulling mechanism, which comprises: the outer slide block, the inner slide block, the slide block locking block, the movable die and the fixed die; the slider latch segment includes first kink and second kink, and during the compound die, outer slider is inserted to first kink, and the slider is inserted to the second kink, and during the drawing of patterns, outer slider removes towards the direction of keeping away from the cover half, and interior slider removes towards the direction that is close to the movable mould center. Because during the drawing of patterns, preferentially release interior slider and the outer slider that louvre and wiring hole department correspond, the louvre that leads to the router shell of processing embraces that the power preferentially releases and takes out before the slider die sinking of wiring hole department guarantees normal die sinking, and then whole router shell does not have almost and embraces the power, and then the shell can remove to mould one side when avoiding the drawing of patterns, the shell of the router of fish tail processing.
Description
Technical Field
The application relates to the field of injection mold forming, in particular to a mold for machining a router shell based on an inner sliding block and outer sliding block core-pulling mechanism.
Background
With the advent of the information-oriented era, the interconnection of everything has become a great industry development trend. Among them, the importance and attention of wireless signal transmission are increasing, and wireless products are divided into a plurality of kinds according to power, and most common are home routers and commercial routers.
Along with the increase to wireless signal quality requirement, consequently the increase of router power to the router produces more heats, concentrates on the router the inside, and in order to dispel the heat to the router, the side of router shell can be provided with the louvre, and the heat dissipation of being convenient for, in addition because of the consideration of safety, the size of louvre can receive the trade specification restriction (about 0.8mm at present), under the circumstances that can not add the hole diameter, the design of louvre just becomes especially important.
The heat dissipation hole and the wiring interface of the router are designed on the same side, the distance between the two holes is only the thickness of a product wall, the wiring interface outputs the wiring outwards, the heat of the heat dissipation hole is released outwards from the inside, and the angle direction of the heat dissipation hole is large in the inside and small in the outside, so that the heat dissipation hole and the wiring hole are opposite in direction.
In actual production, in order to process the shell of this type of router, need use the mould, the side of shell sets up the hole, has just become the back-off part on corresponding the mould, and because router itself is asymmetric, louvre and wiring hole position are because porose, hold tightly power big, because the opposite face in louvre and wiring hole is flat (do not have the hole), do not hold tightly power again, consequently the router shell is different to the power of holding tightly of mould, the shell can remove to mould one side (the big side of holding tightly power) when leading to the drawing of patterns to can fish tail the shell of the router of processing.
Disclosure of Invention
The application aims at providing a mould based on mechanism processing router shell of loosing core of interior outer slider to solve the shell that uses mould processing router, the shell can remove to mould one side when the drawing of patterns, the technical problem of fish tail shell.
The application provides a mould based on mechanism processing router shell of loosing core inside and outside slider, includes: outer slider, interior slider, slider latch segment, movable mould and cover half.
The outer slide block is movably connected with the side face of the fixed die, the inner slide block is movably connected with the side face of the movable die, a fixed die back plate is arranged on the fixed die, the slide block locking block is fixed on the fixed die back plate, and the outer slide block, the inner slide block and the slide block locking block are located on the same side.
The sliding block locking block comprises a first bending part and a second bending part, when the die is closed, the first bending part is inserted into the outer sliding block, the first bending part is in contact with the outer sliding block, the second bending part is inserted into the inner sliding block, and the second bending part is in contact with the inner sliding block.
The first bending part and the second bending part are integrally formed, an included angle between the first bending part and the second bending part is an obtuse angle, and the joint of the first bending part and the second bending part is bent towards the direction away from the movable die, so that the outer sliding block moves towards the direction away from the fixed die and the inner sliding block moves towards the direction close to the movable die during demolding.
Optionally, the outer slider includes: the outer sliding block body, the inclined pin hole and the outer hole are loose cores and arranged on the outer sliding block body, the orientation of the inclined pin hole is consistent with that of the first bending portion, and during die assembly, the sliding block locking block is inserted into the inclined pin hole.
Optionally, the shape of the outer hole loose core is a prism or a cylinder, and the outer hole loose core is used for forming a wiring hole on the router shell.
Optionally, the inner slide includes: interior slider body, taper pin pull groove and hole are loosed core and are set up interior slider body is last, the orientation of taper pin pull groove is unanimous with the second kink orientation, during the compound die, the slider latch segment inserts the taper pin pull groove.
Optionally, the inner hole loose core is a plurality of sheet-shaped protrusions, and the inner hole loose core is used for forming a heat dissipation hole in the router shell.
Optionally, the outer sliding block is movably connected with the side surface of the fixed die through a pressing piece.
Optionally, the inner sliding block is movably connected with the side surface of the movable die through a pressing sheet.
Optionally, the outer slider is made of: cold work die steel SKD11, NAK80, or S136.
Optionally, the inner slider is made of: cold work die steel SKD11, NAK80, or S136.
Optionally, the material of the slider locking block is: cold work die steel SKD11, NAK80, or S136.
According to the above technical scheme, the application provides a mould based on mechanism processing router shell is loosed core to interior outer slider includes: the outer slide block, the inner slide block, the slide block locking block, the movable die and the fixed die; the outer sliding block is movably connected with the side face of the fixed die, the inner sliding block is movably connected with the side face of the movable die, a fixed die back plate is arranged on the fixed die, the sliding block locking block is fixed on the fixed die back plate, and the outer sliding block, the inner sliding block and the sliding block locking block are positioned on the same side; the sliding block locking block comprises a first bending part and a second bending part, when the die is closed, the first bending part is inserted into the outer sliding block, the first bending part is in contact with the outer sliding block, the second bending part is inserted into the inner sliding block, and the second bending part is in contact with the inner sliding block; the first bending part and the second bending part are integrally formed, an included angle between the first bending part and the second bending part is an obtuse angle, and the joint of the first bending part and the second bending part is bent towards the direction away from the movable die, so that the outer sliding block moves towards the direction away from the fixed die and the inner sliding block moves towards the direction close to the movable die during demolding.
In practical application, when the die for machining the router shell based on the inner and outer sliding block core pulling mechanism is used, the moving die is tightly attached to the fixed die during die assembly, the first bent part of the sliding block locking block is inserted into the outer sliding block, the first bent part is in contact with the outer sliding block, the second bent part of the sliding block locking block is inserted into the inner sliding block, and the second bent part is in contact with the inner sliding block; during demolding, a fixed die back plate on the fixed die is firstly separated to drive the sliding block locking block to be pulled out from the outer sliding block and the inner sliding block, the outer sliding block moves towards the direction far away from the fixed die, the inner sliding block moves towards the direction close to the movable die, after the heat dissipation holes and the wiring holes are demolded, the whole router shell is ejected out of the die, and demolding is completed. Because when the drawing of patterns, preferentially loosen interior slider and the outer slider that louvre and wiring hole department correspond, the louvre that leads to the router shell of processing and the power of hugging closely of wiring hole department reduce, and then whole router shell does not have nearly and hugs closely the power, and then the shell can remove to mould one side when avoiding the drawing of patterns, the shell of the router of fish tail processing.
Drawings
In order to more clearly explain the technical solution of the present application, the drawings needed to be used in the embodiments are briefly described below, and it is obvious for those skilled in the art to obtain other drawings without creative efforts.
FIG. 1 is a schematic structural diagram of an outer slide block on a fixed die;
FIG. 2 is a schematic structural diagram of an inner slide block on a movable mold;
fig. 3 is a front view of a mold for processing a router housing based on an inner and outer slide block core-pulling mechanism according to an embodiment of the present application when the mold is closed;
FIG. 4 is an enlarged view of the core-pulling mechanism;
FIG. 5 is a schematic view of an outer slider structure;
FIG. 6 is a schematic view of an inner slide structure;
FIG. 7 is a schematic diagram showing the moving directions of the outer slide block, the inner slide block and the slide block locking block in the core-pulling mechanism during demolding;
fig. 8 is a front view of a mold for machining a router housing based on an inner and outer slider core pulling mechanism according to an embodiment of the present application during demolding.
In the figure:
1-an outer slide block, 11-an outer slide block main body, 12-an inclined pin hole, 13-an outer hole loose core, 2-an inner slide block, 21-an inner slide block body, 22-an inclined pin pull groove, 23-an inner hole loose core, 3-a slide block locking block, 31-a first bending part, 32-a second bending part, 4-a movable die, 5-a fixed die, 51-a fixed die back plate and 6-a pressing plate.
Detailed Description
The technical solutions in the embodiments of the present application will be fully and clearly described below with reference to the drawings in the embodiments of the present application. It is to be understood that the embodiments described are only a few embodiments of the present application and not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.
FIG. 1 is a schematic structural view of an outer slide block on a fixed die; fig. 2 is a schematic structural view of the inner slide block on the movable die; fig. 3 is a front view of a mold for machining a router housing based on an inner and outer slide block core-pulling mechanism according to an embodiment of the present application when the mold is closed; FIG. 4 is an enlarged view of the core-pulling mechanism; fig. 7 is a schematic view showing the moving directions of the outer slide block, the inner slide block and the slide block locking block in the core-pulling mechanism during demolding, and fig. 8 is a front view of a mold for processing a router housing based on the inner and outer slide block core-pulling mechanism according to an embodiment of the present application during demolding.
The embodiment of the application provides a mould based on mechanism processing router shell of loosing core inside and outside slider, includes: the device comprises an outer slide block 1, an inner slide block 2, a slide block locking block 3, a movable die 4 and a fixed die 5.
The first bending part 31 and the second bending part 32 are integrally formed, an included angle between the first bending part 31 and the second bending part 32 is an obtuse angle, and the joint of the first bending part 31 and the second bending part 32 is bent towards the direction away from the movable die 4, so that the outer slider 1 moves towards the direction away from the fixed die 5 and the inner slider 2 moves towards the direction close to the movable die 4 during demolding.
In the embodiment of the present application, since the first bent portion 31 and the second bent portion 32 are integrally formed, an included angle between the first bending portion 31 and the second bending portion 32 is an obtuse angle, the joint of the first bending portion 31 and the second bending portion 32 is bent towards a direction far away from the movable die 4, therefore, when the slide block locking block 3 is driven by the fixed die back plate 51 to leave the movable die 4, the first bent portion 31 of the slider lock block 3 gives a horizontal outward force (a force in a direction away from the fixed mold 5) to the outer slider 1, and the second bent portion 32 gives a horizontal inward force (a force in a direction toward the movable mold 4) to the inner slide 2, under the action of the two horizontal forces, the forming of the heat dissipation holes and the wiring holes can be completed, the holding force of the heat dissipation holes and the wiring holes is relieved, and the whole router shell can be smoothly demoulded.
It should be noted that the router housing processed according to the embodiment of the present application is a common router housing in the market, but the wiring holes and the heat dissipation holes thereof must be on one side of the router housing. The size of router wiring hole and router louvre can be selected according to actual need, and the shell model of router that can process has: v2, BELL, or PATHOS.
Fig. 5 is a schematic view of the structure of the outer slider.
Further, the outer slider 1 includes: outer slider body 11, taper pin hole 12 and outer hole 13 of loosing core set up on the outer slider body 11, the orientation of taper pin hole 12 is unanimous with the orientation of first kink 31, during the compound die, slider latch segment 3 inserts taper pin hole 12. The shape of the outer hole loose core 13 is prism or cylinder, and the outer hole loose core 13 is used for forming a wiring hole on the router shell.
The orientation of the inclined pin hole 12 is consistent with the orientation of the first bent portion 31, so that the first bent portion 31 can be conveniently inserted into the inclined pin hole 12. The shape of the outer hole loose core 13 can be selected according to the requirements of actual wiring holes, and is preferably a prism.
Fig. 6 is a schematic diagram of the inner slide structure.
Further, the inner slide 2 includes: interior slider body 21, taper pin kerve 22 and hole 23 of loosing core set up interior slider body 21 is last, the orientation and the second kink 32 orientation of taper pin kerve 22 are unanimous, during the compound die, slider latch segment 3 inserts the taper pin kerve 22.
The inner hole loose core 23 is a plurality of flaky bulges, and the inner hole loose core 23 is used for forming a heat dissipation hole in the router shell. In order to form the heat dissipation hole, the orientation of the inner hole loose core 23 is consistent with that of the second bent portion 32, so that the second bent portion 32 can be inserted or pulled out conveniently. The shape of the inner hole loose core 23 can be selected according to the shape of a radiating hole in actual production, and is preferably in a plurality of sheet shapes.
Further, the outer sliding block 1 is movably connected with the side surface of the fixed die 5 through a pressing sheet 6. The inner slide block 2 is movably connected with the side surface of the movable die 4 through a pressing sheet 6. The pressing sheet 6 is used for movably connecting the outer sliding block 1 and the inner sliding block 2 with the fixed die 5 or the movable die 4 respectively, so that the outer sliding block 1 and the inner sliding block 2 can move in the horizontal direction, and the moving distance is slightly larger than the depth of the wiring hole and the radiating hole.
Further, the material of outer slider, interior slider, slider latch segment is: cold work die steel SKD11, NAK80, or S136. The materials have high purity, good wear resistance and good toughness, can resist high temperature, can bear sudden temperature change and are not easy to break.
It should be noted that the main steps of the mold core manufacturing method related to the embodiment of the present application include: designing a mold core (an assembly drawing, a part drawing, a standard part and a BOM), customizing a blank material, carrying out NC rough machining, carrying out heat treatment, carrying out NC fine machining, carrying out electro-discharge machining (EDM), carrying out slow-speed Wire machining (Wire EDM) and polishing a mold forming surface, repairing the mold core, assembling a test mold (debugging forming parameters), carrying out drying treatment on a plastic raw material, and finally obtaining a qualified formed product through a forming machine. The above fabrication steps are conventional fabrication methods known to those skilled in the art.
According to the technical scheme, the application provides a mould based on mechanism processing router shell is loosed core to interior outer slider includes: the device comprises an outer slide block 1, an inner slide block 2, a slide block locking block 3, a movable die 4 and a fixed die 5; the outer sliding block 1 is movably connected with the side surface of the fixed die 5, the inner sliding block 2 is movably connected with the side surface of the movable die 4, a fixed die back plate 51 is arranged on the fixed die 5, the sliding block locking block 3 is fixed on the fixed die back plate 5, and the outer sliding block 1, the inner sliding block 2 and the sliding block locking block 3 are positioned on the same side; the slide block locking block 3 comprises a first bending part 31 and a second bending part 32, when the mold is closed, the first bending part 31 is inserted into the outer slide block 1, the first bending part 31 is in contact with the outer slide block 1, the second bending part 32 is inserted into the inner slide block 2, and the second bending part 32 is in contact with the inner slide block 2; first kink 31 and second kink 32 integrated into one piece, the contained angle is the obtuse angle between first kink 31 and the second kink 32, first kink 31 and second kink 32 junction are to keeping away from during the drawing of patterns 4 direction is buckled to make the drawing of patterns, outer slider 1 is towards keeping away from the direction of cover half 5 is removed, interior slider 2 is towards being close to the direction of movable mould 4 is removed.

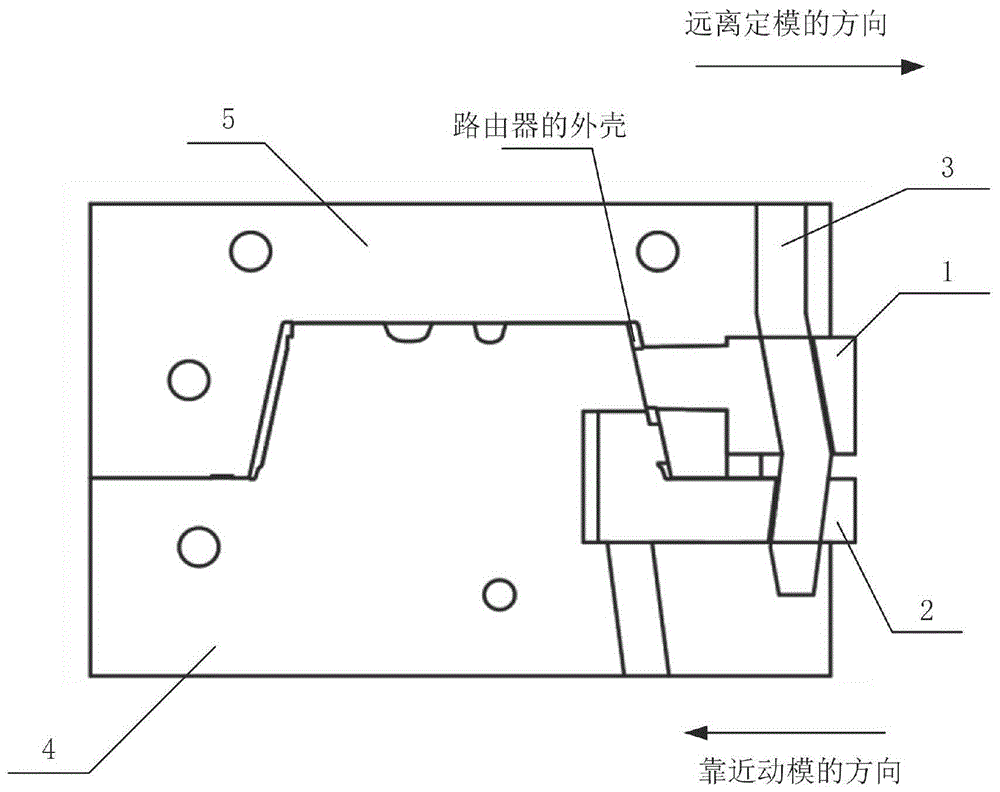

Fig. 7 is a schematic diagram showing the moving direction of the outer slide block, the inner slide block and the slide block locking block in the core-pulling mechanism during demolding. In the figure, the outer slide block moves outwards, namely the outer slide block 1 moves towards the direction far away from the fixed die 5, and the inner slide block moves inwards, namely the inner slide block 2 moves towards the direction close to the movable die 4.
In practical application, when the die for machining the router shell based on the inner and outer slide block core pulling mechanism is used, the movable die 4 is tightly attached to the fixed die 5 during die assembly, the first bent part 31 of the slide block locking block 3 is inserted into the outer slide block 1, the first bent part 31 is contacted with the outer slide block 1, the second bent part 32 of the slide block locking block 3 is inserted into the inner slide block 2, and the second bent part 32 is contacted with the inner slide block 2; during demoulding, the movable mould 4 is separated from the fixed mould 5, the fixed mould backboard 51 on the fixed mould 5 drives the slide block locking block 3 to be pulled out from the outer slide block 1 and the inner slide block 2, the outer slide block 1 moves towards the direction far away from the fixed mould 5, the inner slide block 2 moves towards the direction close to the movable mould 4, after the heat dissipation holes and the wiring holes are demoulded, the whole router shell is ejected out of the mould, and the demoulding is completed. Because when the drawing of patterns, the interior slider 2 and the outer slider 1 that the louvre and the wiring hole department correspond are preferentially loosened, the power of hugging closely that leads to the louvre of router shell of processing and wiring hole department reduces, and then whole router shell does not have nearly and hugs closely the power, and then the shell can remove to mould one side when avoiding the drawing of patterns, the shell of the router of fish tail processing.
The present application has been described in detail with reference to particular embodiments and illustrative examples, but the description is not intended to be construed as limiting the application. Those skilled in the art will appreciate that various equivalent substitutions, modifications or improvements may be made to the presently disclosed embodiments and implementations thereof without departing from the spirit and scope of the present disclosure, and these fall within the scope of the present disclosure. The protection scope of this application is subject to the appended claims.
Claims (10)
1. The utility model provides a mould of mechanism processing router shell of loosing core based on inside and outside slider which characterized in that includes: the device comprises an outer slide block (1), an inner slide block (2), a slide block locking block (3), a movable die (4) and a fixed die (5);
the outer sliding block (1) is movably connected with the side face of the fixed die (5), the inner sliding block (2) is movably connected with the side face of the movable die (4), a fixed die back plate (51) is arranged on the fixed die (5), the sliding block locking block (3) is fixed on the fixed die back plate (5), and the outer sliding block (1), the inner sliding block (2) and the sliding block locking block (3) are positioned on the same side;
the sliding block locking block (3) comprises a first bending part (31) and a second bending part (32), when the die is closed, the first bending part (31) is inserted into the outer sliding block (1), the first bending part (31) is in contact with the outer sliding block (1), the second bending part (32) is inserted into the inner sliding block (2), and the second bending part (32) is in contact with the inner sliding block (2);
first kink (31) and second kink (32) integrated into one piece, contained angle is the obtuse angle between first kink (31) and the second kink (32), first kink (31) and second kink (32) junction is to keeping away from movable mould (4) direction is buckled to during the messenger drawing of patterns, outer slider (1) is towards keeping away from the direction of cover half (5) is removed, interior slider (2) is towards being close to the direction of movable mould (4) is removed.
2. The mould for machining router housings based on inner and outer slider core-pulling mechanisms according to claim 1, wherein the outer slider (1) comprises: outer slider body (11), taper pin hole (12) and outer hole (13) of loosing core set up on outer slider body (11), the orientation of taper pin hole (12) is unanimous with the orientation of first kink (31), during the compound die, slider latch segment (3) insert taper pin hole (12).
3. The die for machining the router shell based on the inner and outer sliding block core pulling mechanism according to claim 2, characterized in that the outer hole core pulling (13) is prism or cylinder in shape, and the outer hole core pulling (13) is used for forming a wiring hole on the router shell.
4. The mould for machining router housings based on the inner and outer slide block core-pulling mechanism according to claim 1, characterized in that the inner slide block (2) comprises: interior slider body (21), taper pin kerve (22) and hole (23) of loosing core set up in interior slider body (21) are last, the orientation and the second kink (32) orientation of taper pin kerve (22) are unanimous, during the compound die, slider latch segment (3) insert taper pin kerve (22).
5. The mold for machining the router shell based on the inner and outer sliding block core pulling mechanism is characterized in that the inner hole core pulling (23) is a plurality of sheet-shaped protrusions, and the inner hole core pulling (23) is used for forming heat dissipation holes in the router shell.
6. The die for machining the router housing based on the inner and outer sliding block core pulling mechanism is characterized in that the outer sliding block (1) is movably connected with the side surface of the fixed die (5) through a pressing sheet (6).
7. The die for machining the router shell based on the inner and outer sliding block core pulling mechanism is characterized in that the inner sliding block (2) is movably connected with the side surface of the movable die (4) through a pressing sheet (6).
8. The mould for machining the router shell based on the inner and outer sliding block core pulling mechanism is characterized in that the outer sliding block (1) is made of the following materials: cold work die steel SKD11, NAK80, or S136.
9. The mould for machining the router shell based on the inner and outer sliding block core pulling mechanism is characterized in that the inner sliding block (2) is made of the following materials: cold work die steel SKD11, NAK80, or S136.
10. The die for machining the router shell based on the inner and outer sliding block core pulling mechanism is characterized in that the sliding block locking block (3) is made of the following materials: cold work die steel SKD11, NAK80, or S136.
