Abstract
The invention is suitable for the technical field of teaching instruments, provides an art education interactive demonstration device, and solves the problem that the position of a display stand of the existing device is inconvenient to adjust, so that the art education demonstration work is inconvenient to perform; the interactive presentation device of art education includes: the movable load bearing main body comprises a demonstration load bearing part and a demonstration adjusting component arranged on the demonstration load bearing part, and the demonstration adjusting component is used for adjusting the position of the interactive demonstration mechanism; the interactive demonstration mechanism is connected with the demonstration adjusting component and is used for performing interactive demonstration work of art education; the interactive demonstration mechanism comprises: the interactive demonstration seat is connected with the demonstration adjusting component; the angle-adjustable demonstration assembly is arranged, the inclination angle and the position of the adjustable demonstration assembly can be flexibly adjusted, the demonstration extension assembly is suitable for use requirements under different environments, the demonstration extension assembly is convenient to retract and release, and the use range of the demonstration extension assembly is expanded.
Description
Technical Field
The invention belongs to the technical field of teaching instruments, and particularly relates to an interactive demonstration device for art education.
Background
Cultural art exchange refers to exchange between two or more relations with obvious cultural source difference, the cultural exchange promotes the existence of people's communication, promotes cultural development and richness, and in different cultural circle layers, also can produce fine cultural exchange, and cultural art often can use various display devices to demonstrate when exchanging.
Chinese patent CN214377134U discloses an art education interactive demonstration device, including the support, its characterized in that: the support is characterized in that a support and a base are fixedly arranged at the bottom end of the support, an inner cavity is formed in the support, a first gear and a second gear which are mutually meshed are arranged in the inner cavity, a connecting shaft extending out of the support is fixedly arranged at the top end of the first gear, a display table is arranged at the top end of the connecting shaft, an electric telescopic rod is arranged on one side of the support, a lighting device is fixedly arranged at the telescopic end at the top of the electric telescopic rod, a connecting seat is fixedly arranged at the top end of the second gear, an inner groove is formed in the connecting seat, a spring and a lifting column are arranged in the inner groove, an ejector block is arranged at the top end of the lifting column, the support is extended out of the top end and is fixedly provided with an ejector block, a clamping groove matched with the clamping block is formed in the top end of the support.
Chinese patent CN211176065U discloses an indoor presentation device for cultural art exchanges, including first stand, display screen, horizontal pole and second stand, first stand and second stand side surface upper and lower end fixed mounting have first ejector pin and second ejector pin, and first ejector pin and second ejector pin pass through the second hinge and rotate the connection, fixed mounting has the horizontal pole in the middle of the side surface of first stand, and the one end fixed mounting of horizontal pole has the sleeve, and the sleeve has been inserted to telescopic inside, and sleeve fixed mounting has a fixture block in the rear surface one end of display screen, and the rear surface other end fixed mounting of display screen has the fixture block, the bottom side fixed mounting of first stand and second stand has first sill bar and second sill bar, and first sill bar and second sill bar rotate the connection through first hinge.
Meanwhile, chinese patent CN215807313U discloses a video propaganda device for public activity art education, comprising: a sliding block, a supporting frame and a supporting rod; the bottom plate is of a rectangular plate-shaped structure, and four corners of the top end of the bottom plate are provided with electric telescopic rods; the bottom end of the electric telescopic rod penetrates through the bottom plate; the supporting seats are respectively arranged at the bottom ends of the electric telescopic rods and are connected with the electric telescopic rods in an embedding mode; the top plate is of a rectangular plate-shaped structure; the limiting blocks are respectively arranged at the four corners of the upper part of the bottom plate and the four corners of the lower part of the top plate. However, the position of the display stand of the existing device is inconvenient to adjust, so that the art education demonstration work is inconvenient to carry out, and therefore the art education interactive demonstration device is provided.
Disclosure of Invention
The invention provides an art education interactive demonstration device, and aims to solve the problem that the position of a display stand of the existing device is inconvenient to adjust, so that the art education demonstration work is inconvenient.
The present invention is achieved as described above, in an art education interactive demonstration apparatus, comprising:
the movable load bearing main body comprises a demonstration load bearing part and a demonstration adjusting component arranged on the demonstration load bearing part, and the demonstration adjusting component is used for adjusting the position of the interactive demonstration mechanism;
the interactive demonstration mechanism is connected with the demonstration adjusting component and is used for performing interactive demonstration work of art education;
the interactive demonstration mechanism comprises:
the interactive demonstration seat is connected with the demonstration adjusting component and is provided with at least one group of demonstration extending grooves;
a demonstration extension assembly disposed within the demonstration extension slot, an
The adjustable demonstration component with adjustable angle is arranged on the interactive demonstration seat.
Preferably, the demonstration adjustment assembly comprises:
the adjusting component rotating part is fixedly arranged on the demonstration bearing part and is used for adjusting the rotating angle of the interactive demonstration mechanism;
with adjusting part rotating part fixed connection's lift supporting part, fixed mounting has adjusting part lift portion on the lift supporting part, adjusting part lift portion is used for adjusting interactive demonstration mechanism's height to and
the lifting guide part is arranged on the lifting bearing part and used for limiting the interactive demonstration mechanism.
Preferably, the demonstration extension assembly comprises:
the extension turnover mechanism is arranged in the demonstration extension groove and used for adjusting the position of the extension display mechanism;
and the extension display mechanism is connected with the extension turnover mechanism and is used for display work for artistic education.
Preferably, the extension and turnover mechanism includes:
the turnover mechanism driving part is fixedly arranged on the interactive demonstration seat;
and the extension overturning seat is fixedly connected with the overturning mechanism driving part, is rotatably arranged in the demonstration extension groove and is used for supporting the extension display mechanism.
Preferably, the extension display mechanism includes:
the display mechanism driving part is fixedly arranged in the extension overturning seat;
the display mechanism transmission part is fixedly connected with the display mechanism driving part, at least one group of display mechanism moving parts are sleeved on the display mechanism transmission part, and the display mechanism moving parts are connected with the extension overturning seat in a sliding manner;
the display mechanism pushing part is connected with the display mechanism moving part and is also connected with a display screen installation part for installing a display screen.
Preferably, the adjustable demonstration assembly comprises:
the demonstration component mounting seat is slidably mounted in the demonstration component mounting groove;
an adjustable demonstration board arranged on the demonstration component mounting seat, the adjustable demonstration board is rotationally connected with the demonstration component mounting seat, and
the angle adjusting component is used for adjusting the inclination angle of the adjustable demonstration board and is installed on the demonstration component installing seat.
Preferably, the angle adjustment assembly includes:
the angle adjusting driving part is fixedly arranged in the demonstration component mounting seat;
the angle adjusting device comprises a main pushing piece connected with an angle adjusting driving part, the other end of the main pushing piece is connected with an auxiliary pushing piece, and one end, far away from the main pushing piece, of the auxiliary pushing piece is connected with the adjustable demonstration board.
Preferably, the adjustable demonstration board is further provided with an auxiliary demonstration seat for assisting the adjustable demonstration board to work, and the auxiliary demonstration seat is obliquely arranged on the adjustable demonstration board.
Preferably, the interactive demonstration device further comprises an auxiliary lighting mechanism arranged on the interactive demonstration seat, wherein the auxiliary lighting mechanism comprises:
the auxiliary lighting part is used for auxiliary lighting work of the interactive demonstration mechanism;
and the lighting adjusting piece is fixedly arranged on the interactive demonstration seat and is used for adjusting the position of the auxiliary lighting part.
Preferably, the display mechanism driving part is a servo motor, the display mechanism transmission part is a threaded rod, the display mechanism transmission part is in threaded connection with the display mechanism moving part, and the display mechanism moving part is a threaded block or an internal threaded sleeve.
Compared with the prior art, the embodiment of the application mainly has the following beneficial effects:
the angle-adjustable demonstration assembly is arranged, the inclination angle and the position of the adjustable demonstration assembly can be flexibly adjusted, the demonstration extension assembly is suitable for use requirements under different environments, the demonstration extension assembly is convenient to retract and release, and the use range of the demonstration extension assembly is expanded.
Drawings

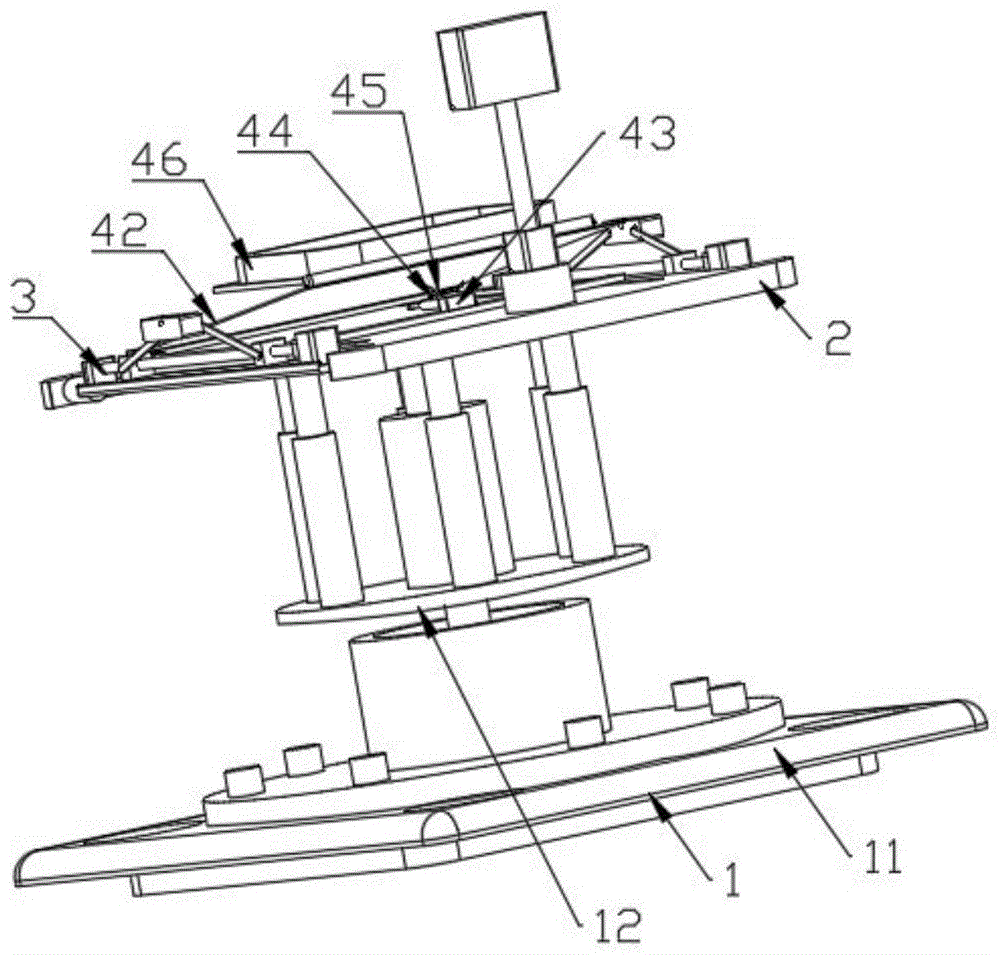

Fig. 1 is a schematic structural diagram of an art education interaction demonstration device provided by the invention.
Fig. 2 is an isometric view of the present invention.
Figure 3 is a top, bottom, isometric view of the present invention.
Fig. 4 is a front view of the present invention.
Fig. 5 is a side view of the present invention.
Fig. 6 is a top view of the present invention.
Figure 7 is a schematic structural view of a loadbearing body provided by the present invention.
Figure 8 is a front view of the loadbearing body provided by the present invention.
Figure 9 is a top view of a loadbearing body provided by the present invention.
In the figure: 1-a bearing main body, 11-a demonstration bearing part, 111-an article placing groove, 12-a demonstration adjusting component, 121-an adjusting component rotating part, 122-a lifting bearing part, 123-an adjusting component lifting part, 13-a lifting guide part, 131-a lifting guide seat, 132-a lifting slide rod, 2-an interactive demonstration mechanism, 21-an interactive demonstration seat, 22-a demonstration component mounting groove, 3-a demonstration extension component, 31-a turnover mechanism driving part, 32-an extension turnover seat, 33-a display mechanism driving part, 34-a display mechanism transmission part, 35-a display mechanism moving part, 36-a display mechanism pushing part, 37-a display screen mounting part, 4-an adjustable demonstration component, 41-a demonstration component mounting seat, 42-an adjustable demonstration plate, a display screen mounting part, a display screen, a display screen, a display, 43-angle adjusting driving part, 44-main pushing part, 45-auxiliary pushing part, 46-auxiliary demonstration seat, 5-auxiliary lighting mechanism, 51-lighting adjusting part and 52-auxiliary lighting part.
Detailed Description
Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this application belongs; the terminology used in the description of the application herein is for the purpose of describing particular embodiments only and is not intended to be limiting of the application; the terms "including" and "having," and any variations thereof, in the description and claims of this application and the description of the above figures are intended to cover non-exclusive inclusions. The terms "first," "second," and the like in the description and claims of this application or in the above-described drawings are used for distinguishing between different objects and not for describing a particular order.
Reference herein to "an embodiment" means that a particular feature, structure, or characteristic described in connection with the embodiment can be included in at least one embodiment of the application. The appearances of the phrase in various places in the specification are not necessarily all referring to the same embodiment, nor are separate or alternative embodiments mutually exclusive of other embodiments. It is explicitly and implicitly understood by one skilled in the art that the embodiments described herein can be combined with other embodiments.
Example 1
An embodiment of the present invention provides an art education interactive demonstration apparatus, as shown in fig. 1 to 6, including:
the movable load-bearing body 1, load-bearing body 1 includes demonstration bearing part 11 and sets up demonstration adjusting part 12 on demonstration bearing part 11, demonstration adjusting part 12 is used for adjusting the position of interactive demonstration mechanism 2.
In this embodiment, demonstration bearing part 11 is rectangle seat or round seat structure, and demonstrates bearing part 11's bottom demountable installation have and be used for removing demonstration bearing part 11's gyro wheel, in order to avoid the device to appear the phenomenon of rocking in the use simultaneously, has seted up multiunit article standing groove 111 on demonstration bearing part 11, and article standing groove 111 is used for placing various instruments and article for the demonstration.
And the interactive demonstration mechanism 2 is connected with the demonstration adjusting component 12 and is used for performing interactive demonstration work of art education.
In this embodiment, the interactive demonstration mechanism 2 includes:
the interactive demonstration seat 21 is connected with the demonstration adjusting component 12, and at least one group of demonstration extending grooves are formed in the interactive demonstration seat 21;
a demonstration extension assembly 3 disposed within the demonstration extension slot, an
The adjustable demonstration component 4 with adjustable angle is arranged on the interactive demonstration seat 21.
In the embodiment, when the adjustable demonstration assembly 4 works, the demonstration angle can be flexibly adjusted, the device can be conveniently used in different environments and can work with the demonstration extension assembly 3 in a matching manner, the demonstration requirements in different environments are met, and the application range of the embodiment of the invention is expanded.
The angle-adjustable demonstration assembly 4 is arranged in the embodiment of the invention, the inclination angle and the position of the adjustable demonstration assembly 4 can be flexibly adjusted, the use requirements under different environments are met, the demonstration extension assembly 3 is convenient to retract and release, and the use range of the embodiment of the invention is expanded.
In a further preferred embodiment of the present invention, as shown in FIGS. 7-9, the play adjustment assembly 12 comprises:
the adjusting component rotating part 121 is fixedly arranged on the demonstration bearing part 11 and is used for adjusting the rotating angle of the interactive demonstration mechanism 2;
with lift support portion 122 of adjusting part rotating part 121 fixed connection, fixed mounting has adjusting part lift 123 on lift support portion 122, adjusting part lift 123 is used for adjusting the height of interactive demonstration mechanism 2 to and
and the lifting guide part 13 is arranged on the lifting bearing part 122, and the lifting guide part 13 is used for limiting the interactive demonstration mechanism 2.
In this embodiment, the adjusting member rotating portion 121 is specifically a servo motor, the lifting support portion 122 is fixedly connected to the adjusting member rotating portion 121 through a bolt or a welding manner, the lifting support portion 122 is specifically a rectangular seat or a circular seat structure, the adjusting member lifting portion 123 is a hydraulic cylinder or an air cylinder, and the telescopic end of the adjusting member lifting portion 123 is fixedly connected to the interactive demonstration seat 21 through a fastening bolt.
In this embodiment, the lifting guide portion 13 is circumferentially arranged with respect to the lifting support portion 122, and the purpose of the arrangement is to avoid shaking generated during the moving or rotating process of the interactive demonstration seat 21, so as to ensure the normal operation of the device.
In this embodiment, the lifting guide portion 13 includes a lifting guide seat 131 and a lifting slide bar 132 that are slidably connected to each other, the lifting guide seat 131 is fixedly installed on the lifting support portion 122, one end of the lifting slide bar 132 is fixedly connected to the interactive demonstration seat 21, the other end of the lifting slide bar 132 extends into the lifting guide seat 131, and meanwhile, a damping spring is fixedly installed in the lifting guide seat 131, and the damping spring is configured to achieve buffering protection for the lifting slide bar 132 and the interactive demonstration seat 21.
Example 2
In a further preferred embodiment of the present invention, as shown in fig. 1-3, the demonstration extension assembly 3 comprises:
the extension turnover mechanism is arranged in the demonstration extension groove and used for adjusting the position of the extension display mechanism;
and the extension display mechanism is connected with the extension turnover mechanism and is used for display work for artistic education.
In this embodiment, during operation, the extension tilting mechanism drives the extension display mechanism and rotates to make things convenient for receiving and releasing of display screen, expanded the usage space of device, improved the space utilization of device simultaneously.
In a further preferred embodiment of the present invention, as shown in fig. 1-2, the extension and turnover mechanism comprises:
the turnover mechanism driving part 31 is fixedly arranged on the interactive demonstration seat 21;
and an extension overturning seat 32 fixedly connected with the overturning mechanism driving part 31 is rotatably arranged in the demonstration extension groove and is used for supporting the extension display mechanism.
In this embodiment, the turnover mechanism driving portion 31 is fixedly mounted on the interactive demonstration base 21 through a bolt, the turnover mechanism driving portion 31 is a servo motor, an output end of the servo motor is connected with an extension turnover base 32 in an interference fit manner, and the extension turnover base 32 is a rectangular base or an arc base structure.
In a further preferred embodiment of the present invention, as shown in fig. 1-6, the extension display mechanism comprises:
a display mechanism driving part 33 fixedly installed in the extension turning seat 32;
the display mechanism transmission part 34 is fixedly connected with the display mechanism driving part 33, at least one group of display mechanism moving parts 35 is sleeved on the display mechanism transmission part 34, and the display mechanism moving parts 35 are in sliding connection with the extension overturning seat 32;
and a display mechanism pushing part 36 connected with the display mechanism moving part 35, wherein the display mechanism pushing part 36 is also connected with a display screen mounting part 37 for mounting a display screen.
In this embodiment, display mechanism drive division 33 is servo motor, and display mechanism drive division 34 is the threaded rod, and through threaded connection between display mechanism drive division 34 and the display mechanism removal portion 35, display mechanism removal portion 35 is thread block or internal thread sleeve, and display mechanism promotion portion 36 is the hinge bar, and display screen installation department 37 is rectangle seat or round seat structure, offers the draw-in groove that is used for fixed display screen on the display screen installation department 37, is provided with the buckle in the draw-in groove, the joint between buckle and the display screen.
When the position of display screen needs to be adjusted, open display mechanism drive division 33, display mechanism drive division 33 drives display mechanism transmission portion 34 and rotates, and display mechanism transmission portion 34 drives display mechanism moving part 35 and removes, and display mechanism moving part 35 drives display mechanism pushing part 36 and removes, and display mechanism pushing part 36 drives the display screen and removes, has made things convenient for the regulation to the display screen position.
In this embodiment, the display mechanism driving portion 33 is a hydraulic cylinder or an electric push rod, the display mechanism transmission portion 34 is a push rod, the display mechanism transmission portion 34 is slidably connected to the extension turning seat 32, the display mechanism moving portion 35 is fixedly connected to the display mechanism transmission portion 34 by a buckle or a bolt, and the display mechanism pushing portion 36 is a push rod.
Example 3
In a further preferred embodiment of the present invention, as shown in fig. 1-6, the adjustable demonstration assembly 4 comprises:
the demonstration component mounting seat 41 is mounted in the demonstration component mounting groove 22 in a sliding mode;
an adjustable demonstration board 42 arranged on the demonstration component mounting seat 41, the adjustable demonstration board 42 is rotatably connected with the demonstration component mounting seat 41, and
and the angle adjusting component is used for adjusting the inclination angle of the adjustable demonstration board 42 and is installed on the demonstration component installation seat 41.
In this embodiment, demonstration component mounting base 41 is rectangle seat or round seat structure, its inside cavity, and the bottom fixed mounting of demonstration component mounting base 41 has the sliding block, the sliding block inlays the dress in demonstration component mounting groove 22, the one end fixed mounting of sliding block has the pneumatic cylinder, the pneumatic cylinder is fixed to be set up in demonstration component mounting groove 22, in operation, when needing to adjust demonstration component mounting base 41 and adjustable demonstration board 42's position, open the pneumatic cylinder, the pneumatic cylinder drives the sliding block and demonstrates component mounting base 41 and removes, the regulation to demonstration component mounting base 41 and adjustable demonstration board 42 position has been realized.
In a further preferred embodiment of the present invention, as shown in fig. 1 to 3, the angle adjusting assembly comprises:
an angle adjustment driving part 43 fixedly installed in the demonstration assembly mounting base 41;
the angle adjusting device comprises a main pushing part 44 connected with an angle adjusting driving part 43, the other end of the main pushing part 44 is connected with an auxiliary pushing part 45, one end, far away from the main pushing part 44, of the auxiliary pushing part 45 is connected with an adjustable demonstration board 42, an auxiliary demonstration seat 46 is arranged on the adjustable demonstration board 42, and the auxiliary demonstration seat 46 is used for placing demonstration articles or a display screen.
In this embodiment, the angle adjustment driving portion 43 is a hydraulic cylinder, and is fixed in the demonstration assembly mounting base 41 through a clamp or a bolt, the main pushing member 44 and the auxiliary pushing member 45 are hinged to each other, both the main pushing member 44 and the auxiliary pushing member 45 are hinged rods, the adjustable demonstration board 42 and the auxiliary pushing member 45 are hinged to each other, when the angle adjustment driving portion 43 is opened during operation and the inclination angle of the adjustable demonstration board 42 needs to be adjusted, the angle adjustment driving portion 43 drives the main pushing member 44 and the auxiliary pushing member 45 to move, and then the adjustment of the inclination angle of the adjustable demonstration board 42 is realized.
Example 4
In a further preferred embodiment of the present invention, as shown in fig. 1-6, the present invention further comprises an auxiliary lighting mechanism 5 disposed on the interactive demonstration seat 21, wherein the auxiliary lighting mechanism 5 comprises:
an auxiliary lighting part 52 for auxiliary lighting work of the interactive demonstration mechanism 2;
and the lighting adjusting piece 51 connected with the auxiliary lighting part 52 is fixedly arranged on the interactive demonstration base 21 and is used for adjusting the position of the auxiliary lighting part 52.
In this embodiment, the auxiliary lighting part 52 is an LED lamp or a lighting panel, the lighting adjusting part 51 is a hydraulic cylinder, an air cylinder or an electric push rod, when the lighting adjusting part 51 is turned on, the lighting adjusting part 51 drives the auxiliary lighting part 52 to move, and the position of the auxiliary lighting part 52 is adjusted.
In summary, the invention provides an art education interactive demonstration device, the angle-adjustable demonstration component 4 is arranged in the embodiment of the invention, the inclination angle and the position of the adjustable demonstration component 4 can be flexibly adjusted, the device is suitable for use requirements under different environments, the demonstration extension component 3 is convenient to fold and unfold, and the use range of the embodiment of the invention is expanded.
It should be noted that, for simplicity of description, the above-mentioned embodiments are described as a series of acts, but those skilled in the art will recognize that the present invention is not limited by the order of acts, as some steps may occur in other orders or concurrently in accordance with the invention. Further, those skilled in the art should also appreciate that the embodiments described in the specification are preferred embodiments and that the acts and modules referred to are not necessarily required by the invention.
In the embodiments provided in the present application, it should be understood that the disclosed apparatus may be implemented in other manners. For example, the above-described embodiments of the apparatus are merely illustrative, and for example, the above-described division of the units is only one type of division of logical functions, and other divisions may be realized in practice, for example, a plurality of units or components may be combined or integrated into another system, or some features may be omitted, or not executed. In addition, the shown or discussed mutual coupling or communication connection may be an indirect coupling or communication connection between devices or units through some interfaces, and may be in a telecommunication or other form.
The units described as separate parts may or may not be physically separate, and parts displayed as units may or may not be physical units, may be located in one place, or may be distributed on a plurality of network units. Some or all of the units can be selected according to actual needs to achieve the purpose of the solution of the embodiment.
The above examples are only used to illustrate the technical solutions of the present invention, and do not limit the scope of the present invention. It is to be understood that the described embodiments are merely exemplary of the invention, and not restrictive of the full scope of the invention. All other embodiments, which can be derived by a person skilled in the art from these embodiments without making any inventive step, fall within the scope of the present invention. Although the present invention has been described in detail with reference to the above embodiments, those skilled in the art may still make various combinations, additions, deletions or other modifications of the features of the embodiments of the present invention according to the situation without conflict, so as to obtain different technical solutions without substantially departing from the spirit of the present invention, and these technical solutions also fall within the protection scope of the present invention.
Claims (10)
1. An interactive presentation device of art education, characterized in that the interactive presentation device of art education comprises:
the movable load bearing main body comprises a demonstration load bearing part and a demonstration adjusting component arranged on the demonstration load bearing part, and the demonstration adjusting component is used for adjusting the position of the interactive demonstration mechanism;
the interactive demonstration mechanism is connected with the demonstration adjusting component and is used for performing interactive demonstration work of art education;
the interactive demonstration mechanism comprises:
the interactive demonstration seat is connected with the demonstration adjusting component and is provided with at least one group of demonstration extending grooves;
a demonstration extension assembly disposed within the demonstration extension slot, an
The adjustable demonstration component with adjustable angle is arranged on the interactive demonstration seat.
2. An artistic educational interactive presentation device, as claimed in claim 1, wherein said presentation adjustment assembly comprises:
the adjusting component rotating part is fixedly arranged on the demonstration bearing part and is used for adjusting the rotating angle of the interactive demonstration mechanism;
with adjusting part rotating part fixed connection's lift supporting part, fixed mounting has adjusting part lift portion on the lift supporting part, adjusting part lift portion is used for adjusting interactive demonstration mechanism's height to and
the lifting guide part is arranged on the lifting bearing part and used for limiting the interactive demonstration mechanism.
3. An artistic educational interactive presentation device, as claimed in claim 2, wherein said presentation extension assembly comprises:
the extension turnover mechanism is arranged in the demonstration extension groove and used for adjusting the position of the extension display mechanism;
and the extension display mechanism is connected with the extension turnover mechanism and is used for display work for artistic education.
4. An artistic educational interactive presentation device, as claimed in claim 3, wherein said extending flip mechanism comprises:
the turnover mechanism driving part is fixedly arranged on the interactive demonstration seat;
and the extension overturning seat is fixedly connected with the overturning mechanism driving part, is rotatably arranged in the demonstration extension groove and is used for supporting the extension display mechanism.
5. An artistic educational interactive presentation device, as claimed in claim 4, wherein said extended display mechanism comprises:
the display mechanism driving part is fixedly arranged in the extension overturning seat;
the display mechanism transmission part is fixedly connected with the display mechanism driving part, at least one group of display mechanism moving parts are sleeved on the display mechanism transmission part, and the display mechanism moving parts are connected with the extension overturning seat in a sliding manner;
the display mechanism pushing part is connected with the display mechanism moving part and is also connected with a display screen installation part for installing a display screen.
6. An artistic educational interactive presentation device, according to any one of claims 1 to 5, wherein said adjustable presentation member comprises:
the demonstration component mounting seat is slidably mounted in the demonstration component mounting groove;
an adjustable demonstration board arranged on the demonstration component mounting seat, the adjustable demonstration board is rotationally connected with the demonstration component mounting seat, and
the angle adjusting component is used for adjusting the inclination angle of the adjustable demonstration board and is installed on the demonstration component installing seat.
7. An artistic educational interactive presentation device, as claimed in claim 6, wherein said angle adjustment assembly comprises:
the angle adjusting driving part is fixedly arranged in the demonstration component mounting seat;
the angle adjusting device comprises a main pushing piece connected with an angle adjusting driving part, the other end of the main pushing piece is connected with an auxiliary pushing piece, and one end, far away from the main pushing piece, of the auxiliary pushing piece is connected with the adjustable demonstration board.
8. The interactive artistic education presentation device of claim 7, wherein the adjustable demonstration board is further provided with an auxiliary demonstration seat for assisting the operation of the adjustable demonstration board, and the auxiliary demonstration seat is obliquely arranged on the adjustable demonstration board.
9. An artistic educational interactive presentation device, as claimed in any one of claims 1 to 5, further comprising an auxiliary lighting mechanism disposed on said interactive presentation base, said auxiliary lighting mechanism comprising:
the auxiliary lighting part is used for auxiliary lighting work of the interactive demonstration mechanism;
and the lighting adjusting piece is fixedly arranged on the interactive demonstration seat and is used for adjusting the position of the auxiliary lighting part.
10. The interactive artistic education demonstration device of claim 5 wherein the display mechanism driving part is a servo motor, the display mechanism transmission part is a threaded rod, the display mechanism transmission part is in threaded connection with the display mechanism moving part, and the display mechanism moving part is a threaded block or an internally threaded sleeve.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202210385465.8A CN114842685A (en) | 2022-04-13 | 2022-04-13 | Interactive presentation device of art education |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202210385465.8A CN114842685A (en) | 2022-04-13 | 2022-04-13 | Interactive presentation device of art education |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN114842685A true CN114842685A (en) | 2022-08-02 |
Family
ID=82564631
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202210385465.8A Pending CN114842685A (en) | 2022-04-13 | 2022-04-13 | Interactive presentation device of art education |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN114842685A (en) |
Citations (11)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| KR19990028397U (en) * | 1997-12-26 | 1999-07-15 | 장준관 | Angle control device of sub blackboard for visual education |
| CN208384957U (en) * | 2018-05-21 | 2019-01-15 | 深圳信息职业技术学院 | A kind of drawing apparatus for demonstrating based on virtual reality |
| CN209433579U (en) * | 2018-12-29 | 2019-09-24 | 宿迁学院 | A kind of information technology teaching displaying device |
| CN209839564U (en) * | 2019-04-18 | 2019-12-24 | 林智宏 | LED display screen with positioning table |
| CN211349754U (en) * | 2020-03-17 | 2020-08-25 | 广州蒙铸贸易有限公司 | University student's career course homework contrast display device |
| CN211533608U (en) * | 2019-12-23 | 2020-09-22 | 四川众森同越科技有限公司 | Show stand for education industry |
| CN211673468U (en) * | 2020-01-06 | 2020-10-16 | 湖南九木堂家具有限责任公司 | Display device for furniture sale |
| CN214663503U (en) * | 2021-04-23 | 2021-11-09 | 乌鲁木齐职业大学 | Animation presentation device based on digital media uses |
| CN215600058U (en) * | 2021-09-17 | 2022-01-21 | 湖南工业大学 | Support special for folk art three-dimensional animation demonstration equipment |
| CN215674567U (en) * | 2021-09-09 | 2022-01-28 | 广州林电智能科技有限公司 | Cell touch display module |
| CN216202059U (en) * | 2021-11-19 | 2022-04-05 | 曾芳 | Teaching is with supplementary education teaching device on net |
-
2022
- 2022-04-13 CN CN202210385465.8A patent/CN114842685A/en active Pending
Patent Citations (11)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| KR19990028397U (en) * | 1997-12-26 | 1999-07-15 | 장준관 | Angle control device of sub blackboard for visual education |
| CN208384957U (en) * | 2018-05-21 | 2019-01-15 | 深圳信息职业技术学院 | A kind of drawing apparatus for demonstrating based on virtual reality |
| CN209433579U (en) * | 2018-12-29 | 2019-09-24 | 宿迁学院 | A kind of information technology teaching displaying device |
| CN209839564U (en) * | 2019-04-18 | 2019-12-24 | 林智宏 | LED display screen with positioning table |
| CN211533608U (en) * | 2019-12-23 | 2020-09-22 | 四川众森同越科技有限公司 | Show stand for education industry |
| CN211673468U (en) * | 2020-01-06 | 2020-10-16 | 湖南九木堂家具有限责任公司 | Display device for furniture sale |
| CN211349754U (en) * | 2020-03-17 | 2020-08-25 | 广州蒙铸贸易有限公司 | University student's career course homework contrast display device |
| CN214663503U (en) * | 2021-04-23 | 2021-11-09 | 乌鲁木齐职业大学 | Animation presentation device based on digital media uses |
| CN215674567U (en) * | 2021-09-09 | 2022-01-28 | 广州林电智能科技有限公司 | Cell touch display module |
| CN215600058U (en) * | 2021-09-17 | 2022-01-21 | 湖南工业大学 | Support special for folk art three-dimensional animation demonstration equipment |
| CN216202059U (en) * | 2021-11-19 | 2022-04-05 | 曾芳 | Teaching is with supplementary education teaching device on net |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN117257048A (en) | Height adjustable device with hidden lifting mechanism | |
| CA2166651A1 (en) | Foldable picnic table with telescoping pedestals | |
| CA2397249A1 (en) | Fold-up sign panel assembly | |
| CN114842685A (en) | Interactive presentation device of art education | |
| CN210203870U (en) | Drawing exhibition is put table for environmental design | |
| CN111035148A (en) | Drawing show stand for architectural design | |
| CN221083281U (en) | Art design display device | |
| CN211065485U (en) | Multifunctional writing desk | |
| CN113425084A (en) | Conveniently-moved announcement platform and using method thereof | |
| CN215925748U (en) | OEL luminous traffic sign | |
| CN218863781U (en) | Height and angle adjustable base for intelligent terminal | |
| CN217791938U (en) | Multifunctional foldable computer office table | |
| CN2464510Y (en) | Dismountable article-holding platform | |
| CN210842031U (en) | Mobile workstation | |
| CN219249729U (en) | Collapsible goods of furniture for display rather than for use frame | |
| CN114098294B (en) | Portable support frame | |
| CN214072934U (en) | Multifunctional panel tea bar machine | |
| CN214202794U (en) | Teaching aid display device for mathematics education | |
| CN211882820U (en) | Automatic folding psychological consultation tutoring table | |
| CN210901985U (en) | Multifunctional workbench for environmental design | |
| CN214181482U (en) | Electric baking lamp for general surgery department | |
| CN209950701U (en) | Foldable bookshelf | |
| CN221307551U (en) | Tilting mechanism and contain tilting furniture of this mechanism | |
| CN218978301U (en) | Multifunctional workbench for image design | |
| CN220173148U (en) | Foldable photovoltaic panel support frame |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| RJ01 | Rejection of invention patent application after publication |
Application publication date: 20220802 |
