Abstract
The utility model belongs to the technical field of building raw materials mixing arrangement and specifically relates to a concrete mixing device is related to, it includes the machine storehouse, connect in the solid feed section of thick bamboo of machine storehouse, connect in the liquid feed section of thick bamboo of machine storehouse, connect in the inside coarse mixing mechanism that is used for mixing of machine storehouse, communicate in coarse mixing mechanism is used for the premixing mechanism of mixing and communicates in premixing mechanism is used for the mixing mechanism of mixing, the solid feed section of thick bamboo with coarse mixing mechanism intercommunication, the liquid feed section of thick bamboo with mixing mechanism intercommunication. This application has the effect that improves concrete mixing efficiency.
Description
Technical Field
The application relates to building raw materials mixing arrangement field especially relates to a concrete mixing arrangement.
Background
Concrete is a general term for engineering composite materials formed by cementing aggregates into a whole by cementing materials, and mainly comprises aggregates, cement, fly ash, water and additives.
At present, when concrete is mixed, a stirrer is required to stir and mix the raw materials, the sequence of adding the raw materials into the stirrer cannot be adjusted, otherwise, the quality of the concrete is low, so that water and additives are fully mixed outside the stirrer in advance during stirring, then aggregate is poured into the stirrer to be stirred, then cement and fly ash are added, the mixed water and additives are added after the raw materials are fully mixed, and finally, the concrete is fully mixed after long-time stirring.
In view of the above-mentioned related art, the inventors have found that since the water and the admixture are finally added as liquid substances, when the dosage of the water and the admixture is small, the water and the admixture are contacted and mixed with a small portion of the solid raw material, the mixing uniformity of the concrete is low, when the dosage of the water and the admixture is gradually increased, the solid raw material can be slowly mixed with the water and the admixture, and the mixing efficiency of the concrete is low.
Disclosure of Invention
In order to improve the mixing efficiency of concrete, this application provides a concrete mixing device.
The application provides a concrete mixing arrangement adopts following technical scheme:
the utility model provides a concrete mixing device, including the machine storehouse, connect in the solid feed section of thick bamboo in machine storehouse, connect in the liquid feed section of thick bamboo in machine storehouse, connect in the inside coarse mixing mechanism that is used for mixing in machine storehouse, communicate in coarse mixing mechanism is used for the mechanism of premixing of mixing and communicates in the mechanism of premixing is used for the mixing mechanism of mixing, the solid feed section of thick bamboo with coarse mixing mechanism intercommunication, the liquid feed section of thick bamboo with mixing mechanism intercommunication.
Through adopting above-mentioned technical scheme, before mixing, at first let in mixing mechanism with water and admixture, with water and admixture intensive mixing, then pour solid starting material into coarse mixing mechanism from solid feed cylinder and carry out preliminary mixing, then solid starting material carries out the secondary mixing after the coarse mixing mechanism gets into premixing mechanism from coarse mixing mechanism, solid starting material gets into in the mixing mechanism after mixing fully, make solid starting material pour into in the liquid starting material, compare in slowly pouring liquid starting material into solid starting material, speed when having improved the raw materials and mixing, and this application carries out the cubic to the raw materials and mixes, the efficiency of mixed concrete and the even degree of mixture have been improved.
Optionally, the coarse mixing mechanism comprises a coarse mixing bin communicated with the solid feeding cylinder and a coarse stirring blade rotatably connected inside the coarse mixing bin, and the coarse mixing bin is obliquely arranged.
By adopting the technical scheme, the rough mixing bin is obliquely arranged downwards, so that when the solid raw materials enter the premixing mechanism, the path of the solid raw materials is lengthened, and the effect of mixing for the first time is improved.
Optionally, the coarse stirring blade is a continuous curved plate.
Through adopting above-mentioned technical scheme for fixed raw materials are after getting into the coarse mixing storehouse, and the surface of coarse stirring leaf is abundant to contact with solid raw materials, improves the effect of mixing for the first time.
Optionally, the premixing mechanism includes a premixing bin fixedly connected to the inside of the machine bin, and a premixing blade rotatably connected to the inside of the premixing bin, and the premixing bin is communicated with one end of the coarse mixing bin, which is far away from the solid feeding cylinder.
Through adopting above-mentioned technical scheme, the leaf mixes the solid raw materials in to premixing storehouse in advance, has realized that the mechanism of premixing carries out intensive mixing to solid raw materials.
Optionally, mixing mechanism include fixed connection in machine storehouse inside mix the storehouse, rotate connect in mix the inside mixing stirring leaf in storehouse, connect mix storehouse side surface in advance and be used for driving mix stirring leaf pivoted drive assembly and connect in drive assembly is used for driven transmission connecting piece, a liquid feed section of thick bamboo with mix the storehouse intercommunication, mix the stirring leaf rotate connect in transmission connecting piece, drive assembly connect in transmission connecting piece.
Through adopting above-mentioned technical scheme, drive assembly makes the transmission connecting piece drive and mixes the stirring leaf at mixing the storehouse internal rotation for mix the stirring leaf and mix liquid feedstock and solid starting material, when solid starting material adds in to liquid starting material, improved the speed when mixing, improved the efficiency of mixing the concrete and the even degree of mixing, realized carrying out the purpose that the cubic mixes to the raw materials.
Optionally, the driving assembly includes a driving motor fixedly connected to the surface of the mixing bin, a driving disc fixedly connected to the output end of the driving motor, and a reciprocating rod hinged to the surface of the driving disc, the other end of the reciprocating rod is hinged to one end of the transmission connector, and the connection position of the reciprocating rod and the driving disc deviates from the rotation center of the driving disc.
Through adopting above-mentioned technical scheme, when driving motor drove the driving-disc and rotates, reciprocating rod can be reciprocating motion, and the transmission connecting piece can drive the reciprocal rotation of mixing stirring leaf, improves the stirring efficiency that the raw materials was mixed and the degree of consistency that the raw materials was mixed.
Optionally, the transmission connecting piece includes a transmission rack slidably connected to the surface of the premixing bin and a transmission gear fixedly connected to the rotating shaft of the mixing stirring blade, the transmission gear is engaged with the transmission rack, and one end of the transmission rack is hinged to one end of the reciprocating rod far away from the driving disk.
Through adopting above-mentioned technical scheme, the drive rack is reciprocating's sliding motion under reciprocating rod's drive for drive gear is reciprocating's rotation, and drive gear drives and mixes the stirring leaf and do reciprocating motion, improves the efficiency that the raw materials was mixed and the degree of consistency of mixing.
Optionally, the transmission connecting rod further includes a sliding rod fixedly connected to the surface of the premixing bin, a sliding groove is formed in the surface of the sliding rod, and the circumferential side wall of the transmission rack is slidably connected to the inner wall of the sliding groove.
Through adopting above-mentioned technical scheme for the slip of driving rack is more stable.
To sum up, this application includes following at least one concrete mixing arrangement beneficial technical effect:
1. according to the concrete mixer, the coarse mixing mechanism, the premixing mechanism and the mixing mechanism are arranged, so that the raw materials are mixed for three times, and the efficiency of mixing concrete and the uniformity of mixing are improved;
2. this application sets up coarse mixing mechanism, mixes mechanism and mixing mechanism in advance for solid raw materials pours into liquid raw materials, compares in slowly pouring liquid raw materials into solid raw materials, speed when having improved the mixture.
Drawings

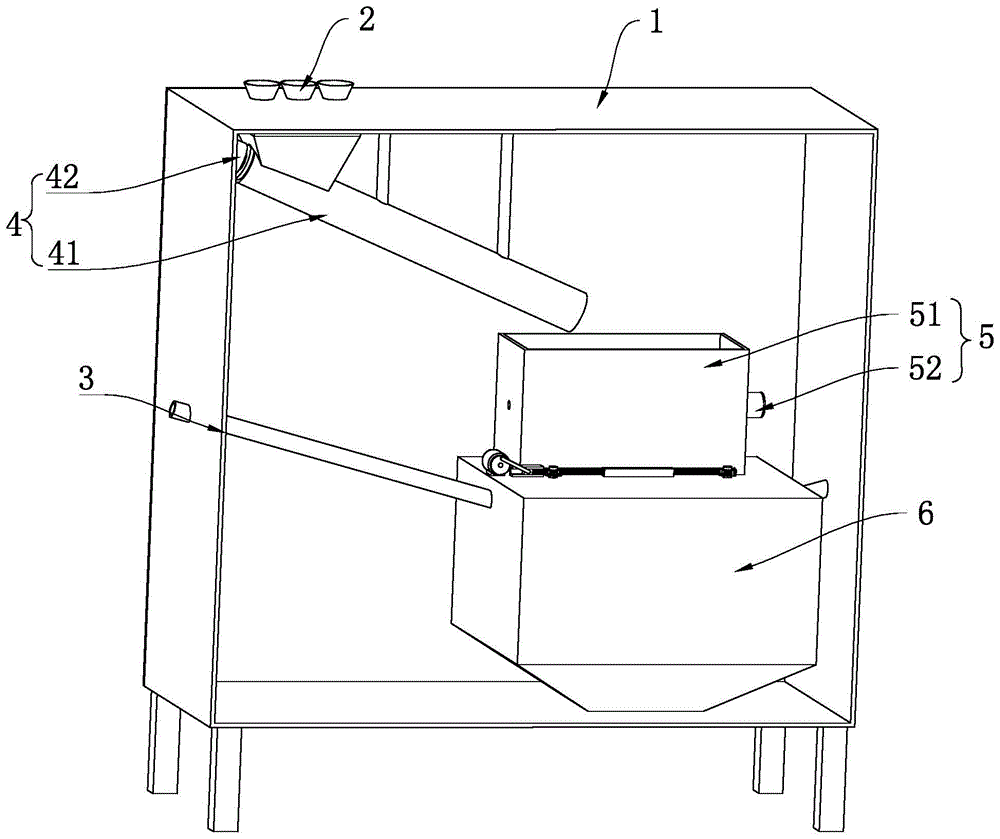

FIG. 1 is a schematic structural view of a concrete mixing apparatus according to an embodiment of the present application;
FIG. 2 is a schematic view for emphasizing the internal structure of a concrete mixing apparatus according to an embodiment of the present application;
FIG. 3 is a schematic diagram of a structure intended to emphasize the structure of the coarse mixing mechanism;
FIG. 4 is a schematic diagram of a configuration intended to emphasize the connection of the premixing mechanism to the mixing mechanism;
fig. 5 is a schematic view of the structure intended to emphasize the structure of the mixing mechanism.
Description of reference numerals: 1. a machine cabin; 2. a solid feed cylinder; 3. a liquid feed cylinder; 4. a coarse mixing mechanism; 41. coarse mixing bin; 42. coarse stirring blades; 5. a premixing mechanism; 51. a premixing bin; 511. a premixing discharging plate; 52. pre-stirring leaves; 6. a mixing mechanism; 61. a mixing bin; 62. a drive assembly; 621. a drive motor; 622. a drive disc; 623. a reciprocating lever; 63. a transmission connection member; 631. a drive rack; 632. a transmission gear; 633. a slide bar; 6331. a sliding groove; 64. mixing and stirring the leaves.
Detailed Description
The present application is described in further detail below with reference to figures 1-5.
The embodiment of the application discloses concrete mixing arrangement. Referring to fig. 1 and 2, a concrete mixing device includes a machine cabin 1, at least one solid feed cylinder 2 connected to the top of the machine cabin 1, at least one liquid feed cylinder 3 connected to the circumferential side wall of the machine cabin 1, a coarse mixing mechanism 4 connected to the inside of the machine cabin 1 for mixing, a premixing mechanism 5 communicated with the coarse mixing mechanism 4 for mixing, and a mixing mechanism 6 communicated with the premixing mechanism 5 for mixing, wherein the solid feed cylinder 2 is communicated with the coarse mixing mechanism 4, and the liquid feed cylinder 3 is communicated with the mixing mechanism 6, in the embodiment of the present application, the number of the solid feed cylinders 2 is three, fly ash, cement and aggregate enter the coarse mixing mechanism 4 from the three solid feed cylinders 2 respectively, in the embodiment of the present application, the number of the liquid feed cylinders 3 is two, and water and admixture enter the mixing mechanism 6 from the two liquid feed cylinders 3 respectively.
Before mixing, firstly, let in mixing mechanism 6 with water and admixture, fully mix water and admixture, then pour fly ash, cement and aggregate into coarse mixing mechanism 4 from three solid feed cylinder 2 respectively and carry out preliminary mixing, then fly ash, cement and aggregate carry out the secondary mixing after getting into premixing mechanism 5 from coarse mixing mechanism 4, fly ash, cement and aggregate get into mixing mechanism 6 after fully mixing, make solid starting material pour into in the liquid starting material, in comparison with in slowly pouring liquid starting material into solid starting material, speed when having improved the mixing, and this application carries out the cubic mixing to the raw materials, the efficiency of mixed concrete and the homogeneous degree of mixing have been improved.
Referring to fig. 2 and 3, the coarse mixing mechanism 4 includes a coarse mixing bin 41 communicated with the solid feeding cylinder 2 and a coarse stirring blade 42 rotatably connected inside the coarse mixing bin 41, wherein one end of the coarse mixing bin 41 is fixedly connected to the top of the machine bin 1, and the top of the coarse mixing bin 41 is communicated with three fixed feeding cylinders, so that the fly ash, cement and aggregate can enter the coarse mixing bin 41, the other end of the coarse mixing bin 41 extends obliquely and downwards towards the direction close to the bottom of the machine bin 1, and the bottom of the coarse mixing bin 41 is communicated with the premixing mechanism 5, so that when the solid raw materials enter the premixing mechanism 5, the path through which the solid raw materials pass is lengthened, and the effect of primary mixing is improved. The axis of rotation of coarse mixing leaf 42 rotates and connects in the top inner wall of coarse mixing storehouse 41, and the axis of rotation of coarse mixing leaf 42 is located inside the inclined part of coarse mixing storehouse 41, and drive coarse mixing leaf 42 pivoted motor fixed connection is in the top outer wall of coarse mixing storehouse 41, and coarse mixing leaf 42 is continuous bent template for fixed raw materials are after getting into coarse mixing storehouse 41, and the surface of coarse mixing leaf 42 is abundant and the contact of solid raw materials, improves the effect of mixing for the first time.
Referring to fig. 4 and 5, the premixing mechanism 5 includes a premixing bin 51 fixedly connected to the inside of the machine bin 1 and a premixing blade 52 rotatably connected to the inside of the premixing bin 51, wherein the top of the premixing bin 51 is located right below the coarse mixing bin 41, the solid raw material enters the inside of the premixing bin 51 after being primarily and coarsely mixed, a premixing discharging plate 511 hinged to the bottom of the side wall of the premixing bin 51 is arranged at the bottom of the premixing bin 51, a motor for driving the premixing discharging plate 511 to rotate is fixedly connected to the outer wall of the bottom of the premixing bin 51, a rotating shaft of the premixing blade 52 is fixedly connected to the inner wall of the premixing bin 51 opposite to each other, the possibility that the premixing blade 52 affects discharging of the premixing bin 61 is reduced, and the motor for driving the premixing blade 52 to rotate is fixedly connected to the outer wall of the premixing bin 51.
Referring to fig. 4 and 5, the mixing mechanism 6 includes a mixing bin 61 fixedly connected to the inside of the machine bin 1, a mixing blade 64 rotatably connected to the inside of the mixing bin 61, a driving component 62 connected to one side surface of the premixing bin 51 and used for driving the mixing blade 64 to rotate, and a transmission connecting component 63 connected to the driving component 62 and used for transmission, wherein the bottom of the premixing bin 51 is fixedly connected to the top of the mixing bin 61, the bottom of the premixing bin 51 is communicated with the top of the mixing bin 61, after the premixing discharge plate 511 is opened, the mixed solid raw material enters the inside of the mixing bin 61, the rotating shaft of the mixing blade 64 is rotatably connected to the top of the mixing bin 61, and after the raw material enters the mixing bin 61, the mixing blade 64 stirs the raw material.
Further, the driving assembly 62 includes a driving motor 621 fixedly connected to the outer wall of the top of the mixing bin 61, a driving disc 622 fixedly connected to the output end of the driving motor 621, and a reciprocating rod 623 hinged to the surface of the driving disc 622, the output end of the driving motor 621 is fixedly connected to the central position of the driving disc 622, the connecting position of the reciprocating rod 623 and the driving disc 622 deviates from the rotation center of the driving disc 622, and when the driving disc 622 rotates, the reciprocating rod 623 reciprocates; the transmission connecting piece 63 comprises a sliding rod 633 fixedly connected to the surface of the premixing bin 51, a transmission rack 631 slidably connected to the sliding rod 633 and a transmission gear 632 fixedly connected to a rotating shaft of the mixing stirring blade 64, the sliding rod 633 is fixedly connected to the bottom of the surface of the premixing bin 51 close to the center of the machine bin 1, a sliding groove 6331 is formed in the surface of one side of the sliding rod 633 away from the premixing bin 51, the transmission rack 631 penetrates through the sliding groove 6331, the transmission rack 631 is slidably connected to the inner wall of the sliding groove 6331, one end of the transmission rack 631 is hinged to the reciprocating rod 623, and when the driving disk 622 rotates, the reciprocating rod 623 drives the transmission rack 631 to reciprocate in the sliding groove 6331; the number of the sliding rods 633 is at least one, in the embodiment of the present application, the number of the sliding rods 633 is two, one sliding rod 633 is located at one end of the transmission rack 631 close to the driving disk 622, the other sliding rod 633 is located at the middle position of the transmission rack 631 in the length direction, and the two sliding rods 633 limit the movement of the transmission rack 631, so that the movement of the transmission rack 631 is more stable; drive gear 632 fixed connection is in the top of mixing stirring leaf 64 axis of rotation, drive gear 632 meshes with transmission rack 631, drive gear 632 drives transmission rack 631 and rotates, when transmission rack 631 is reciprocating motion, drive gear 632 drives mixing stirring leaf 64 and is the reciprocating rotation of opposite direction, the efficiency that improves the raw materials and mixes the degree of consistency, the quantity of drive gear 632 and the quantity of mixing stirring leaf 64 all are one at least, the quantity of drive gear 632 and the quantity of mixing stirring leaf 64 are two in this application embodiment, the stirring efficiency that improves the raw materials and mixes the degree of consistency that the raw materials mixes, two mixing stirring leaves 64 are located the central line of mixing storehouse 61 in this application embodiment, the stirring efficiency that mixes with the raw materials is improved and the degree of consistency that the raw materials mixes. The bottom discharge hole of the mixing bin 61 is communicated with the bottom discharge hole of the machine bin 1, and after the raw materials are fully mixed, the concrete is discharged from the bottom discharge hole of the machine bin 1.
The implementation principle of a concrete mixing arrangement of the embodiment of this application does: firstly, water and an additive are introduced into a mixing bin 61 through a liquid feeding cylinder 3, a driving motor 621 is started, the water and the additive are fully mixed, then a motor of a coarse stirring blade 42 and a motor of a pre-stirring blade 52 are started, the coarse stirring blade 42 and the pre-stirring blade 52 rotate, then cement, fly ash and aggregate are respectively fed into a machine bin 1 from three solid feeding cylinders 2, the coarse stirring blade 42 performs preliminary mixing on solid raw materials in a coarse mixing bin 41, then the solid raw materials enter a pre-mixing bin 51, after the solid raw materials are fully mixed by the pre-stirring blade 52, a pre-mixing discharging plate 511 is started, the solid raw materials enter the mixing bin 61, the raw materials are finally and fully mixed by a mixing blade 64, and then the concrete is discharged through a discharging port at the bottom of the machine bin 1.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
