本发明公开了一种养猪场用饲料投放设备，包括L型板和桶体，所述L型板横边远离竖边的一端顶部安装有收料槽，且桶体位于L型板横边正上方，所述L型板上设有用于固定桶体的固定机构，且桶体内部竖直转动有搅拌杆，所述桶体一侧安装有进料斗，且桶体顶部设有用于转动搅拌杆的转动机构，所述桶体底部连通有下料槽，且下料槽远离桶体的一端连通有连通槽，所述连通槽远离下料槽的一端位于收料槽顶部一侧，且下料槽内部水平转动有转杆，所述转杆弧形面水平固定连接有条形板并转动于下料槽内部。本发明不仅可完成定量投料，还可分批次投料，避免了一次投料过多堵塞下料槽的情况发生，进而提高了该设备的实用性。
The invention discloses a feed feeding device for pig farms, which comprises an L-shaped plate and a barrel. A feeding trough is installed on the top of one end of the horizontal side of the L-shaped plate away from the vertical side, and the barrel is located on the horizontal side of the L-shaped plate. Right above, the L-shaped plate is provided with a fixing mechanism for fixing the barrel, and a stirring rod rotates vertically inside the barrel, a feeding hopper is installed on one side of the barrel, and the top of the barrel is provided with a rotating The rotating mechanism of the stirring rod, the bottom of the barrel is connected with a feeding trough, and the end of the feeding trough away from the barrel is communicated with a communication groove, and the end of the communication groove away from the feeding trough is located on the top side of the receiving trough, and A rotating rod is horizontally rotated inside the feeding chute, and the arc-shaped surface of the rotating rod is horizontally and fixedly connected with a strip plate and rotates inside the feeding chute. The present invention can not only complete quantitative feeding, but also can feeding in batches, avoids the occurrence of too much feeding at one time blocking the feeding chute, and further improves the practicability of the equipment.
Description
Technical Field
The invention relates to the technical field of feed delivery, in particular to feed delivery equipment for a pig farm.
Background
The pigs are vertebrates, mammals and domestic animals, and are ancient omnivorous mammals, which are mainly divided into domestic pigs and wild pigs, wherein half of the pigs are raised in a pig farm, and feed throwing equipment is needed when the pigs are fed.
Present pig farm is with fodder dispensing device does not have the function to pig feed mixing before putting in, leads to the fodder mixing to be even inadequately to still do not have the function that the ration was put in, further reduced dispensing device's result of use, consequently, a pig farm is with fodder dispensing device that needs redesign urgently.
Disclosure of Invention
The invention aims to solve the defects in the prior art, and provides feed feeding equipment for a pig farm.
In order to achieve the purpose, the invention adopts the following technical scheme:
a feed feeding device for a pig farm comprises an L-shaped plate and a barrel body, wherein a material receiving groove is arranged at the top of one end of the transverse edge of the L-shaped plate far away from a vertical edge, the barrel body is positioned right above the transverse edge of the L-shaped plate, a fixing mechanism for fixing the barrel body is arranged on the L-shaped plate, a stirring rod is vertically rotated in the barrel body, a feed hopper is arranged on one side of the barrel body, a rotating mechanism for rotating the stirring rod is arranged at the top of the barrel body, a discharging groove is communicated with the bottom of the barrel body, and one end of the feed chute far away from the barrel body is communicated with a communicating chute, one end of the communicating chute far away from the feed chute is positioned on one side of the top of the feed collecting chute, and a rotating rod horizontally rotates in the blanking groove, the arc surface of the rotating rod is horizontally and fixedly connected with a strip-shaped plate and rotates in the blanking groove, and the strip-shaped plates are four and are uniformly arranged on the surface of the arc-shaped surface of the rotating rod, and the top of the transverse edge of the L-shaped plate is provided with a driving mechanism for driving the rotating rod.
As a further scheme of the invention, the rotating mechanism comprises a rotating motor, the rotating motor is vertically arranged at the center of the top of the barrel body, and an output shaft of the rotating motor penetrates through the top of the barrel body and is arranged at the center of the top of the stirring rod.
As a further scheme of the invention, the driving mechanism comprises a belt and a driving motor, the belt vertically rotates right above the transverse edge of the L-shaped plate, pulleys are arranged at two ends in the belt, a rotating shaft is arranged at one side of one of the pulleys, and the top end of the rotating shaft penetrates through one side of the blanking groove and is arranged at the center of the top end of the rotating rod.
As a further scheme of the invention, the driving motor is horizontally arranged at the top of the transverse edge of the L-shaped plate, the top end of an output shaft of the driving motor is provided with a second gear, half of the second gear is provided with teeth, half of the second gear is toothless, and the top of the transverse edge of the L-shaped plate vertically rotates to be provided with a first gear.
As a further scheme of the invention, the first gear and the second gear are meshed in a toothed part, the other pulley is fixedly connected to the center of one side of the first gear, an L-shaped rod is installed on one side, far away from the pulley, of the first gear through a bearing sleeve, and the vertical edge of the L-shaped rod is fixed to the top of the transverse edge of the L-shaped plate.
As a further scheme of the invention, the fixing mechanism comprises two fixing plates which are horizontally and fixedly connected to the vertical edges of the L-shaped plate, and the two fixing plates are respectively sleeved at the top end and the bottom end of the barrel body.
As a further scheme of the invention, the fixing mechanism comprises four support legs which are fixedly connected to the bottom of the barrel body and vertically arranged, the four support legs are uniformly distributed at the bottom of the barrel body, and the bottoms of the four support legs are all arranged at the top of the transverse edge of the L-shaped plate.
The invention has the beneficial effects that:
1. according to the feed mixing device, when the feed is required to be used, feed enters the barrel body through the feed hopper, the fixed plate is arranged, the stability of the barrel body in use is guaranteed, the stirring rod is driven to rotate through the rotating motor, the feed in the barrel body can be mixed and stirred through the rotation of the stirring rod, the feed mixing effect of the feed mixing device is improved, in addition, when the feed needs to be fed, the strip-shaped plate is driven to rotate only through the driving motor, the feed in the barrel body can fall into the feed receiving groove through the feeding groove and the communicating groove, and the using effect of the feed mixing device is further improved.
2. According to the feeding device, when feeding is needed, the driving motor drives the second gear to rotate, the second gear can drive the first gear to rotate intermittently, the first gear can drive one pulley to rotate intermittently in an intermittent mode, one pulley can drive the belt to rotate intermittently, the belt can drive the other pulley to rotate intermittently, the other pulley can drive the rotating shaft to rotate intermittently, the rotating shaft can drive the rotating rod to rotate intermittently, and the rotating rod can drive the four strip-shaped plates to rotate intermittently, so that quantitative feeding can be completed, feeding can be performed in batches, the situation that a feeding groove is blocked due to too much feeding at one time is avoided, and the practicability of the feeding device is improved.
3. According to the feed mixing device, when the feed is required to be used, feed enters the barrel body through the feed hopper, the support legs are arranged, the stability of the barrel body in use is guaranteed, the stirring rod is driven to rotate through the rotating motor, the feed in the barrel body can be mixed and stirred through the rotation of the stirring rod, the feed mixing effect of the feed mixing device is improved, in addition, when the feed needs to be fed, the strip-shaped plates are driven to rotate only through the driving motor, the feed in the barrel body can fall into the feed receiving groove through the feeding groove and the communicating groove, and the using effect of the feed mixing device is further improved.
Drawings

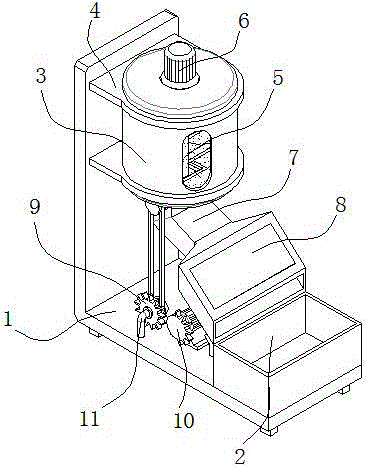

Fig. 1 is a schematic structural view of a feed dispensing device for a pig farm according to embodiment 1 of the present invention;
fig. 2 is a partial structural schematic view of a feed dispensing device for a pig farm according to embodiment 1 of the present invention;
FIG. 3 is a schematic structural view of a rotating rod and a strip-shaped plate of the feed delivery device for a pig farm according to embodiment 1 of the present invention;
fig. 4 is a schematic structural view of a feed dispensing device for a pig farm according to embodiment 2 of the present invention.
In the figure: 1. an L-shaped plate; 2. a material receiving groove; 3. a barrel body; 4. a fixing plate; 5. a stirring rod; 6. a rotating electric machine; 7. a discharging groove; 8. a communicating groove; 9. a first gear; 10. a second gear; 11. an L-shaped rod; 12. a drive motor; 13. a belt; 14. a pulley; 15. a strip plate; 16. a support leg; 17. a rotating shaft; 18. and (4) rotating the rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Example 1
Referring to fig. 1-3, a feed feeding device for pig farm, comprising an L-shaped plate 1 and a barrel 3, wherein a receiving trough 2 is installed at the top of one end of the horizontal side of the L-shaped plate 1 far from the vertical side, the barrel 3 is positioned right above the horizontal side of the L-shaped plate 1, a fixing mechanism for fixing the barrel 3 is arranged on the L-shaped plate 1, a stirring rod 5 is vertically rotated in the barrel 3, a feeding hopper is installed at one side of the barrel 3, a rotating mechanism for rotating the stirring rod 5 is arranged at the top of the barrel 3, a discharging trough 7 is communicated with the bottom of the barrel 3, a communicating trough 8 is communicated with one end of the discharging trough 7 far from the barrel 3, one end of the communicating trough 8 far from the discharging trough 7 is positioned at one side of the top of the receiving trough 2, a rotating rod 18 is horizontally rotated in the discharging trough 7, a strip-shaped plate 15 is horizontally and fixedly connected with the arc-shaped surface of the rotating rod 18 and is rotated in the discharging trough 7, and four strip-shaped plates 15 are uniformly installed on the surface of the arc-shaped surface of the rotating rod 18, and a driving mechanism for driving the rotating rod 18 is arranged at the top of the transverse edge of the L-shaped plate 1.
In this embodiment, the rotating mechanism includes a rotating electrical machine 6, and the rotating electrical machine 6 is vertically installed at the center of the top of the barrel body 3, and the output shaft of the rotating electrical machine 6 passes through the top of the barrel body 3 and is installed at the center of the top of the stirring rod 5.
In this embodiment, actuating mechanism includes belt 13 and driving motor 12, and belt 13 is vertical to be rotated directly over the L template 1 horizontal limit, and belt 13 inside both ends all are equipped with pulley 14, and pivot 17 is installed to one of them pulley 14 one side, and silo 7 one side and install in the 18 top centers of bull stick department under the pivot 17 top is passed.
In the embodiment, the driving motor 12 is horizontally arranged at the top of the transverse edge of the L-shaped plate 1, the top end of the output shaft of the driving motor 12 is provided with the second gear 10, half of the second gear 10 is provided with teeth, and half of the second gear is toothless, and the top of the transverse edge of the L-shaped plate 1 vertically rotates to be provided with the first gear 9.
In this embodiment, the first gear 9 and the second gear 10 are engaged with each other by a toothed portion, and another pulley 14 is fixedly connected to the center of one side of the first gear 9, an L-shaped rod 11 is mounted on one side of the first gear 9 away from the pulley 14 through a bearing sleeve, and the vertical side of the L-shaped rod 11 is fixed to the top of the horizontal side of the L-shaped plate 1.
In this embodiment, fixed establishment includes fixed plate 4, and fixed plate 4 has two and equal horizontal fixed connection in 1 perpendicular limit of L template, and two fixed plates 4 cup joint respectively in 3 tops of staving and bottom.
The working principle of the embodiment is as follows: when the device is used in practice, when the device is needed, feed enters the barrel body 3 through the feed hopper, the fixed plate 4 is arranged, the stability of the barrel body 3 in use is ensured, the stirring rod 5 is driven to rotate by the rotating motor 6, the feed in the barrel body 3 can be mixed and stirred by the rotation of the stirring rod 5, the feed mixing effect of the device is improved, in addition, when the feed needs to be fed, the strip-shaped plate 15 is driven to rotate only by the driving motor 12, the feed in the barrel body 3 can fall into the receiving groove 2 through the feeding groove 7 and the communicating groove 8, the using effect of the device is further improved, when the feed needs to be fed, the driving motor 12 drives the second gear 10 to rotate, the second gear 10 rotates to drive the first gear 9 to rotate intermittently, the intermittent movement of the first gear 9 drives one pulley 14 to rotate intermittently, one pulley 14 drives the belt 13 to rotate intermittently, belt 13 can drive another pulley 14 intermittent type and rotate, and another pulley 14 can drive pivot 17 intermittent type and rotate, and pivot 17 can drive the 18 intermittent type rotations of bull stick, and bull stick 18 can drive the 15 intermittent type rotations of four bar boards to not only can accomplish the ration and throw the material, still can throw the material in batches, avoided once throwing the material too much the condition emergence of silo 7 under the jam, and then improved this equipment's practicality.
Example 2
Referring to fig. 4, a feed feeding device for a pig farm comprises an L-shaped plate 1 and a barrel body 3, wherein a receiving groove 2 is arranged at the top of one end of the transverse edge of the L-shaped plate 1, which is far away from the vertical edge, the barrel body 3 is positioned right above the transverse edge of the L-shaped plate 1, a fixing mechanism for fixing the barrel body 3 is arranged on the L-shaped plate 1, a stirring rod 5 is vertically rotated in the barrel body 3, a feed hopper is arranged at one side of the barrel body 3, a rotating mechanism for rotating the stirring rod 5 is arranged at the top of the barrel body 3, a discharging groove 7 is communicated with the bottom of the barrel body 3, a communicating groove 8 is communicated with one end of the discharging groove 7, which is far away from the barrel body 3, one end of the communicating groove 8 is positioned at one side of the top of the receiving groove 2, a rotating rod 18 is horizontally rotated in the discharging groove 7, a strip-shaped plate 15 is horizontally and fixedly connected with the arc-shaped surface of the rotating rod 18 and is rotated in the discharging groove 7, and four strip-shaped plates 15 are uniformly arranged on the surface of the rotating rod 18, and a driving mechanism for driving the rotating rod 18 is arranged at the top of the transverse edge of the L-shaped plate 1.
In this embodiment, the rotating mechanism includes a rotating electrical machine 6, and the rotating electrical machine 6 is vertically installed at the center of the top of the barrel body 3, and the output shaft of the rotating electrical machine 6 passes through the top of the barrel body 3 and is installed at the center of the top of the stirring rod 5.
In this embodiment, actuating mechanism includes belt 13 and driving motor 12, and belt 13 is vertical to be rotated directly over the L template 1 horizontal limit, and belt 13 inside both ends all are equipped with pulley 14, and pivot 17 is installed to one of them pulley 14 one side, and silo 7 one side and install in the 18 top centers of bull stick department under the pivot 17 top is passed.
In the embodiment, the driving motor 12 is horizontally arranged at the top of the transverse edge of the L-shaped plate 1, the top end of the output shaft of the driving motor 12 is provided with the second gear 10, half of the second gear 10 is provided with teeth, and half of the second gear is toothless, and the top of the transverse edge of the L-shaped plate 1 vertically rotates to be provided with the first gear 9.
In this embodiment, the first gear 9 and the second gear 10 are engaged with each other by a toothed portion, and another pulley 14 is fixedly connected to the center of one side of the first gear 9, an L-shaped rod 11 is mounted on one side of the first gear 9 away from the pulley 14 through a bearing sleeve, and the vertical side of the L-shaped rod 11 is fixed to the top of the horizontal side of the L-shaped plate 1.
In this embodiment, fixed establishment includes landing leg 16, and landing leg 16 fixed connection in 3 bottoms of staving and vertical setting, and landing leg 16 has four and evenly distributed in 3 bottoms of staving, and 16 bottoms of four landing legs all install in the horizontal limit top of L template 1.
The working principle of the embodiment is as follows: when in actual use, when needs use the device, at first through feeder hopper entering staving 3 insides to the fodder, and through the setting of landing leg 16, stability when 3 uses of staving has been guaranteed, drive puddler 5 through rotating electrical machines 6 and rotate, puddler 5 rotates can mix the stirring to the fodder of 3 insides of staving, the fodder mixing effect of this equipment has been improved, in addition when needs throw the material, only need drive strip shaped plate 15 through driving motor 12 and rotate, 3 inside fodder of staving can be through lower silo 7, intercommunication groove 8 falls into and receives 2 insides of silo, and then the result of use of this equipment has been improved.
Having shown and described the basic principles and essential features of the invention and its advantages, it will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential characteristics thereof, and it is therefore intended that the embodiments be considered as illustrative and not restrictive in all respects, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein, any reference signs in the claims being therefore intended to be embraced therein.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (7)
1. A feed feeding device for a pig farm comprises an L-shaped plate (1) and a barrel body (3), and is characterized in that a receiving trough (2) is installed at the top of one end, away from a vertical edge, of a transverse edge of the L-shaped plate (1), the barrel body (3) is located right above the transverse edge of the L-shaped plate (1), a fixing mechanism used for fixing the barrel body (3) is arranged on the L-shaped plate (1), a stirring rod (5) vertically rotates in the barrel body (3), a feeding hopper is installed on one side of the barrel body (3), a rotating mechanism used for rotating the stirring rod (5) is arranged at the top of the barrel body (3), a discharging trough (7) is communicated with the bottom of the barrel body (3), a communicating groove (8) is communicated with one end, away from the barrel body (3), of the communicating groove (8) is located on one side of the top of the receiving trough (2), and a rotating rod (18) horizontally rotates in the lower trough (7), the horizontal fixedly connected with strip-shaped plate (15) of bull stick (18) arcwall face rotates inside unloading groove (7), and strip-shaped plate (15) have four and evenly install in bull stick (18) arcwall face surface, L template (1) horizontal limit top is equipped with the actuating mechanism who is used for driving bull stick (18).
2. The feed delivery device for the pig farm according to claim 1, wherein the rotating mechanism comprises a rotating motor (6), the rotating motor (6) is vertically installed at the center of the top of the barrel body (3), and an output shaft of the rotating motor (6) penetrates through the top of the barrel body (3) and is installed at the center of the top of the stirring rod (5).
3. The feed delivery device for the pig farm according to claim 2, wherein the driving mechanism comprises a belt (13) and a driving motor (12), the belt (13) vertically rotates right above the transverse edge of the L-shaped plate (1), pulleys (14) are arranged at two ends inside the belt (13), a rotating shaft (17) is installed on one side of one pulley (14), and the top end of the rotating shaft (17) penetrates through one side of the discharging groove (7) and is installed at the center of the top end of the rotating rod (18).
4. The feed delivery device for the pig farm according to claim 3, characterized in that the driving motor (12) is horizontally arranged at the top of the transverse edge of the L-shaped plate (1), a second gear (10) is arranged at the top end of an output shaft of the driving motor (12), one half of the second gear (10) is toothed, the other half of the second gear is toothless, and the top of the transverse edge of the L-shaped plate (1) vertically rotates to form a first gear (9).
5. The feed delivery device for the pig farm according to claim 4, characterized in that the first gear (9) and the second gear (10) are partially meshed with each other, the other pulley (14) is fixedly connected to the center of one side of the first gear (9), an L-shaped rod (11) is installed on one side, away from the pulley (14), of the first gear (9) through a bearing sleeve, and the vertical edge of the L-shaped rod (11) is fixed to the top of the transverse edge of the L-shaped plate (1).
6. The feed delivery device for the pig farm according to claim 5, wherein the fixing mechanism comprises two fixing plates (4), the two fixing plates (4) are horizontally and fixedly connected to the vertical edges of the L-shaped plate (1), and the two fixing plates (4) are respectively sleeved at the top end and the bottom end of the barrel body (3).
7. The feed delivery device for the pig farm according to claim 5, characterized in that the fixing mechanism comprises four support legs (16), the support legs (16) are fixedly connected to the bottom of the barrel body (3) and vertically arranged, the support legs (16) are uniformly distributed on the bottom of the barrel body (3), and the bottoms of the four support legs (16) are all arranged on the top of the transverse edge of the L-shaped plate (1).
