Abstract
本发明公开了一种数控平面钻床工件定位压紧机构，包括支撑底座、工件位移定位装置和工件固定夹紧装置，所述工件位移定位装置包括驱动电机、传动螺杆、滑块移动槽、支撑架滑块、移动支撑架、旋转电机、电机减速器和旋转传动轴，所述工件固定夹紧装置包括旋转连接板、升降液压杆、工件固定架、伸缩液压杆和工件移动夹紧板。本发明属于机械加工技术领域，具体是指一种数控平面钻床工件定位压紧机构，有效的解决了目前数控平面钻床工件定位压紧自动化程度低费时费力以及对工件夹紧不够稳固的问题，实现了数控平面钻床工件定位压紧机构自动化程度高省时省力以及对工件夹紧更加稳固的目的，是一种非常实用的数控平面钻床工件定位压紧机构。
The invention discloses a workpiece positioning and pressing mechanism of a numerical control plane drilling machine, which comprises a support base, a workpiece displacement positioning device and a workpiece fixing and clamping device. A sliding block, a moving support frame, a rotating motor, a motor reducer and a rotating transmission shaft, and the workpiece fixing and clamping device includes a rotating connecting plate, a lifting hydraulic rod, a workpiece fixing frame, a telescopic hydraulic rod and a workpiece moving clamping plate. The invention belongs to the technical field of mechanical processing, and specifically refers to a workpiece positioning and pressing mechanism of a numerical control plane drilling machine, which effectively solves the problems that the current numerical control plane drilling machine workpiece positioning and pressing automation degree is low, time-consuming and laborious, and the workpiece clamping is not stable enough. The workpiece positioning and pressing mechanism of the CNC plane drilling machine has a high degree of automation, saves time and labor, and clamps the workpiece more firmly. It is a very practical workpiece positioning and pressing mechanism for the CNC plane drilling machine.
Description
Technical Field
The invention belongs to the technical field of machining, and particularly relates to a workpiece positioning and pressing mechanism of a numerical control plane drilling machine.
Background
The numerical control drilling machine is mainly used for machining of drilling, reaming, tapping and the like. It is a numerically controlled drilling-based hole machining tool, and due to the development of machining centers, most of the numerically controlled drilling machines have been replaced by machining centers. In the automotive, locomotive, shipbuilding, aerospace, engineering machinery industries; especially to overlength type folded plate, the longeron, the structure steel, the drilling processing of various large-scale parts that porous systems such as pipe-type spare become the sea is when being preferred, at present, numerical control plane drilling machine all can fix a position the machined part on the workstation and compress tightly at the in-process that uses, then just can process the machined part, however current numerical control plane drilling machine work piece location hold-down mechanism when using, all need artifical manual regulation, waste time and energy, work efficiency is reduced, and it is firm inadequately to press from both sides the clamp to the work piece, consequently, the above-mentioned problem is solved to an urgent need of numerical control plane drilling machine work piece location hold-down mechanism.
Disclosure of Invention
In order to overcome the defects of the prior art, the invention provides the workpiece positioning and pressing mechanism of the numerical control plane drilling machine, which effectively solves the problems that the workpiece positioning and pressing automation degree of the existing numerical control plane drilling machine is low, time and labor are wasted, the workpiece is clamped insufficiently and stably, the purposes that the workpiece positioning and pressing mechanism of the numerical control plane drilling machine is high in automation degree, time and labor are saved, and the workpiece is clamped more stably are achieved, so that the workpiece positioning and pressing mechanism of the numerical control plane drilling machine is very practical.
In order to realize the functions, the technical scheme adopted by the invention is as follows: a workpiece positioning and pressing mechanism of a numerical control plane drilling machine comprises a supporting base, a workpiece displacement positioning device and a workpiece fixing and clamping device, wherein the workpiece displacement positioning device is arranged on the supporting base, the workpiece fixing and clamping device is arranged on the workpiece displacement positioning device, the workpiece displacement positioning device comprises a driving motor, a transmission screw, a slider moving groove, a supporting frame slider, a moving supporting frame, a rotating motor, a motor reducer and a rotating transmission shaft, the driving motor is arranged on the supporting base, the transmission screw is arranged on the driving motor, the slider moving groove is arranged on the supporting base, the supporting frame slider is arranged on the slider moving groove, the moving supporting frame is arranged on the supporting frame slider, the rotating motor is arranged on the moving supporting frame, the motor reducer is arranged on the rotating motor, the rotating transmission shaft is arranged on the motor reducer, the effect of drive screw rotates and drives the removal support frame and remove, the effect of slider shifting chute makes things convenient for the support frame slider to remove, the effect of support frame slider is that the removal drives the removal support frame and removes, the effect of removing the support frame is that the removal drives the rotating electrical machines and removes, the effect of motor reduction gear is conveniently for the rotating electrical machines speed reduction, the effect of rotatory transmission shaft is to rotate adjustment work piece angle.
In order to smoothly realize the purpose of clamping and stabilizing a workpiece, the workpiece fixing and clamping device comprises a rotating connecting plate, a lifting hydraulic rod, a workpiece fixing frame, a telescopic hydraulic rod and a workpiece moving clamping plate, the rotating connecting plate is arranged on a rotating transmission shaft, the lifting hydraulic rod is arranged on the rotating connecting plate, the workpiece fixing frame is arranged on the lifting hydraulic rod, the telescopic hydraulic rod is arranged on the workpiece fixing frame, the workpiece moving clamping plate is arranged on the telescopic hydraulic rod, the lifting hydraulic rod is used for telescopically driving the workpiece fixing frame to move, the workpiece fixing frame is used for supporting the telescopic hydraulic rod, the telescopic hydraulic rod is used for telescopically driving the workpiece moving clamping plate to move, and the workpiece moving clamping plate is used for moving to fix a workpiece.
In order to realize the high labour saving and time saving of degree of automation and to the purpose that the work piece presss from both sides tightly more firm, the support frame slider is located between slider shifting chute and the removal support frame, it locates between support frame slider and the rotating electrical machines to remove the support frame, rotatory transmission shaft locates between motor reducer and the swivelling joint board, the lift hydraulic stem is located between swivelling joint board and the work piece mount, flexible hydraulic stem is located between work piece mount and the work piece removal clamp plate.
Further, drive screw is perpendicular setting with driving motor, it is perpendicular setting with the support frame slider to remove the support frame, the motor reduction gear is perpendicular setting with the rotating electrical machines, the lift hydraulic stem is perpendicular setting with the swivelling joint board, the work piece mount is perpendicular setting with the lift hydraulic stem, the work piece removes the clamp plate and is perpendicular setting with flexible hydraulic stem.
The supporting base is arranged in a U shape, the movable supporting frame is arranged in a U shape, the rotating connecting plate is arranged in a rectangular shape, the workpiece fixing frame is arranged in a U shape, and the workpiece movable clamping plate is arranged in a U shape.
Preferably, the lifting hydraulic rods are provided with two groups, the telescopic hydraulic rods are provided with two groups, and the workpiece moving clamping plates are provided with two groups.
The invention with the structure has the following beneficial effects: the utility model provides a numerical control plane drilling machine work piece location hold-down mechanism, the effectual numerical control plane drilling machine work piece location compress tightly the problem that degree of automation is low wastes time and energy and press from both sides tightly firm inadequately to the work piece of having solved, realized the high labour saving and time saving of numerical control plane drilling machine work piece location hold-down mechanism degree of automation and press from both sides the purpose that stabilizes more to the work piece clamp, be a very practical numerical control plane drilling machine work piece location hold-down mechanism.
Drawings

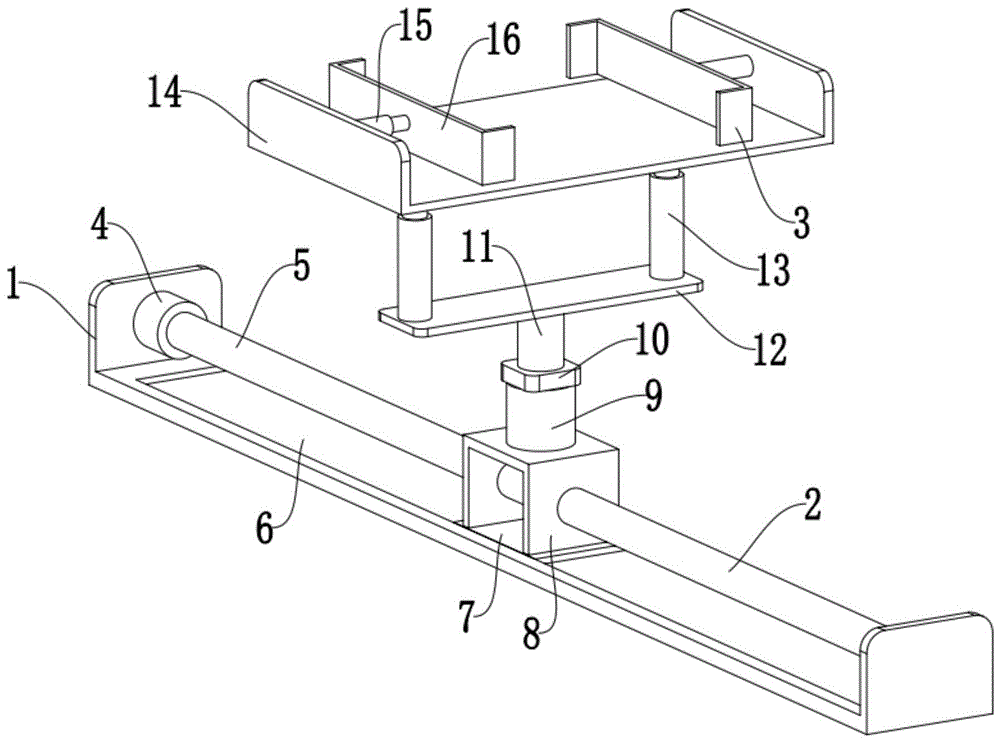

Fig. 1 is a schematic structural diagram of a workpiece positioning and pressing mechanism of a numerical control plane drilling machine according to the present invention.
The device comprises a supporting base 1, a workpiece displacement positioning device 2, a workpiece fixing and clamping device 3, a driving motor 4, a transmission screw rod 5, a sliding block moving groove 6, a sliding block moving groove 7, a supporting frame sliding block 8, a moving supporting frame 9, a rotating motor 10, a motor reducer 11, a rotating transmission shaft 12, a rotating connecting plate 13, a lifting hydraulic rod 14, a workpiece fixing frame 15, a telescopic hydraulic rod 16 and a workpiece moving and clamping plate.
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments; all other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1, in order to realize the above functions, the technical solution adopted by the present invention is as follows: a workpiece positioning and pressing mechanism of a numerical control plane drilling machine comprises a supporting base 1, a workpiece displacement positioning device 2 and a workpiece fixing and clamping device 3, wherein the workpiece displacement positioning device 2 is arranged on the supporting base 1, the workpiece fixing and clamping device 3 is arranged on the workpiece displacement positioning device 2, the workpiece displacement positioning device 2 comprises a driving motor 4, a transmission screw 5, a slider moving groove 6, a supporting frame slider 7, a moving supporting frame 8, a rotating motor 9, a motor reducer 10 and a rotating transmission shaft 11, the driving motor 4 is arranged on the supporting base 1, the transmission screw 5 is arranged on the driving motor 4, the transmission screw 5 and the driving motor 4 are vertically arranged, the slider moving groove 6 is arranged on the supporting base 1, the supporting frame slider 7 is arranged on the slider moving groove 6, the moving supporting frame slider 8 is arranged on the supporting frame slider 7, the supporting frame slider 7 is arranged between the slider moving groove 6 and the moving supporting frame 8, remove support frame 8 and support frame slider 7 and be perpendicular setting, on removal support frame 8 was located to rotating electrical machines 9, removed support frame 8 and located between support frame slider 7 and the rotating electrical machines 9, on rotating electrical machines 9 was located to motor reducer 10, motor reducer 10 was perpendicular setting with rotating electrical machines 9, and rotating transmission shaft 11 is located on motor reducer 10.
As shown in fig. 1, the work fixing and clamping device 3 includes a rotating link plate 12, a lifting hydraulic rod 13, the workpiece fixing frame 14, the telescopic hydraulic rod 15 and the workpiece moving clamping plate 16 are arranged in a vertical mode, the rotating connecting plate 12 is arranged on the rotating transmission shaft 11, the rotating transmission shaft 11 is arranged between the motor reducer 10 and the rotating connecting plate 12, the lifting hydraulic rod 13 is arranged on the rotating connecting plate 12, the lifting hydraulic rod 13 is perpendicular to the rotating connecting plate 12, the workpiece fixing frame 14 is arranged on the lifting hydraulic rod 13, the lifting hydraulic rod 13 is arranged between the rotating connecting plate 12 and the workpiece fixing frame 14, the workpiece fixing frame 14 and the lifting hydraulic rod 13 are arranged perpendicularly, the telescopic hydraulic rod 15 is arranged on the workpiece fixing frame 14, the workpiece moving clamping plate 16 is arranged on the telescopic hydraulic rod 15, the telescopic hydraulic rod 15 is arranged between the workpiece fixing frame 14 and the workpiece moving clamping plate 16, and the workpiece moving clamping plate 16 and the telescopic hydraulic rod 15 are arranged perpendicularly.
As shown in fig. 1, the supporting base 1 is U-shaped, the movable supporting frame 8 is U-shaped, the rotating connecting plate 12 is rectangular, the workpiece fixing frame 14 is U-shaped, and the workpiece movable clamping plate 16 is U-shaped.
As shown in fig. 1, two sets of the lifting hydraulic rods 13, two sets of the telescopic hydraulic rods 15, and two sets of the workpiece moving clamping plates 16 are provided.
When the workpiece positioning and pressing mechanism is used specifically, a user places a workpiece between the two groups of workpiece moving clamping plates 16, then the telescopic hydraulic rod 15 is started to extend, the workpiece moving clamping plates 16 move along with the workpiece moving clamping plates to clamp and fix the workpiece, the lifting hydraulic rod 13 is started to extend and retract, the workpiece fixing frame 14 moves at any time to adjust the height, the driving motor 4 is started, the transmission screw 5 rotates along with the workpiece moving clamping plates to drive the support frame sliding block 7 and the moving support frame 8 to move along the sliding block moving groove 6, the workpiece moves along with the workpiece to adjust the position, the rotating motor 9 is started, the motor reducer 10 decelerates the rotating motor 9, the rotating transmission shaft 11 rotates to drive the workpiece to rotate to adjust the angle, and the whole using process of the workpiece positioning and pressing mechanism of the whole numerical control plane drilling machine is achieved.
