CN113841982A

CN113841982A - Be used for VR glasses to accomodate protection device

Info

Publication number: CN113841982A
Application number: CN202111226543.1A
Authority: CN
Inventors: 齐光可; 杨丽芬; 李靖; 施莉莉; 吴胜波
Original assignee: Wenzhou Polytechnic
Current assignee: Wenzhou Polytechnic
Priority date: 2021-10-21
Filing date: 2021-10-21
Publication date: 2021-12-28

Abstract

The invention discloses a storage and protection device for VR glasses, which includes a box body, the box body includes a bottom plate, a set of opposite sides of the bottom plate are provided with fixed side plates, and the other set of opposite sides is provided with fixed side plates. Both are provided with a flip side plate, and a flip top board is set on the flip side board, and the two flip top boards are half the size of the bottom plate, which are used for VR glasses storage protection device, which is different from the prior art, During the daily storage and use of the VR glasses, the contact plate and the compression spring are used to provide effective buffering when the VR glasses are stored in the box, so that they have efficient impact resistance. The VR glasses in the box are exposed for easy access and placement.

Description

Be used for VR glasses to accomodate protection device

Technical Field

The invention relates to the technical field of VR glasses boxes, in particular to a storage and protection device for VR glasses.

Background

VR glasses are VR head-mounted display, virtual reality head-mounted display device. Since this concept was not seen clearly in the early days, there was no professional call for VR glasses, VR eyecups, VR helmets, etc. according to appearance.

The VR head display utilizes head-mounted display equipment to seal the vision and the hearing of a person to the outside and guide a user to generate the feeling of the person in a virtual environment, the display principle is that left and right eye screens respectively display images of left and right eyes, and the human eyes generate stereoscopic impression in the brain and sea after acquiring the information with the difference.

At present, aiming at daily storage of household VR glasses, no special obvious protection device is available on the market, the VR glasses are basically and directly placed in a drawer or a matched box, the drawer is directly placed in the drawer, the VR glasses are easy to knock and damage due to shaking in the process of pulling and pulling the drawer every time, although the matched box is generally provided with foam, the foam is basically matched with the size of the corresponding VR glasses, namely the foam needs to be taken out together when the glasses are taken out, when the glasses are stored, the foam needs to be taken out firstly and buckled on the surfaces of the glasses, and then the foam is plugged into the box together.

Disclosure of Invention

The invention aims to provide a storage and protection device for VR glasses, which solves the problems in the prior art.

In order to achieve the purpose, the invention provides the following technical scheme: a storage and protection device for VR glasses comprises a box body, wherein the box body comprises a bottom plate, fixed side plates are arranged at positions of one group of opposite sides of the bottom plate, turnover side plates are arranged at positions of the other group of opposite sides of the bottom plate, turnover top plates are arranged on the turnover side plates, and the sizes of the two turnover top plates are half of the sizes of the bottom plate;

the shock absorber is characterized by also comprising buffer parts arranged on the fixed side plates, the turnover top plate and the bottom plate, wherein the buffer parts comprise a plurality of compression springs and contact plates, the compression springs are distributed at two ends of the same surface of the contact plates and are fixed on the corresponding fixed side plates, the turnover top plate and the bottom plate;

still including setting up respectively on two upset roofs and being used for two upset roof lids to close the setting element of location use, and both sides all are provided with respectively and pull the part with the synchronization that two setting elements are connected in the box, and every pull the contact plate on the part of connecting respectively an upset curb plate and the contact plate on a fixed curb plate in step, pull each contact plate and VR glasses and break away from in step during the box.

Preferably, a rubber sheet is arranged on the inner side of each contact plate.

Preferably, the positioning element comprises a rotating shaft arranged on the turnover top plate, the rotating shaft is provided with a stop lever, and the stop lever on each turnover top plate can be turned over and extended to the surface of the other turnover top plate.

Preferably, a pull ring is arranged on one side of each of the stop levers, which is far away from the other stop lever.

Preferably, the opposite sides of the two blocking rods are embedded with magnetic strips, and the opposite surfaces of the two magnetic strips are opposite in magnetism.

Preferably, the rotating shaft penetrates through the turnover top plate, and the synchronous pulling part comprises a worm which is arranged at one end of the rotating shaft in the box body, so that the gear rod is utilized to drive the worm to rotate;

the bottom of each turnover top plate is provided with a first mounting seat, a first reel is arranged on each first mounting seat, one end of each first reel, which is close to the worm, is provided with a worm wheel meshed with the first reel, so that the first reel is driven to rotate by the rotation of the worm, a first pull rope is fixedly wound on each first reel, and the end part of each first pull rope is connected with a contact plate below the turnover top plate respectively so as to pull the contact plate on the turnover top plate to displace when the first reel rotates;

the side turnover side plate is characterized by further comprising a first connecting piece used for pulling a contact plate on the side turnover side plate to move when the first reel is wound, a second connecting piece is arranged between the turnover side plate and the fixed side plate, and the second connecting piece is used for pulling the contact plate on the fixed side plate to move when the turnover side plate is turned over.

Preferably, the first connecting piece comprises a second mounting seat arranged on the inner side of the turnover side plate, a second scroll is arranged on the second mounting seat, a third mounting seat is arranged on the inner side of the turnover side plate and below the second mounting seat, and a third scroll is arranged on the third mounting seat;

the two ends of the pull rope are sequentially wound around the second reel and the third reel and then connected with a contact plate on the turnover side plate.

Preferably, the second connecting piece comprises a fourth mounting seat arranged on the inner side of the fixed side plate, and a fourth reel is arranged on the fourth mounting seat;

the three pull ropes are arranged on the contact plates on the fixed side plates, the side edge positions of the fixed side plates are provided with five reels, the three pull ropes are connected with the turnover side plates after bypassing the five reels, the connecting positions of the three pull ropes and the turnover side plates are located at the bottoms of the turnover side plates, and the three pull ropes on the synchronous pulling component are connected with the two turnover side plates respectively.

Preferably, the second mounting seat is located above the contact plate in the longitudinal height, so that the second pull rope does not contact with the contact plate when passing between the first reel and the second reel.

Preferably, the first roller, the third roller and the fourth roller are respectively positioned at the central position of the contact plate at the corresponding positions.

Compared with the prior art, the invention has the beneficial effects that:

1. be different from prior art, in the daily use of depositing of VR glasses, its VR glasses utilize contact plate and compression spring to provide effective buffering when depositing in the box to make it have efficient shock resistance, and the in-process of taking at VR glasses, can directly expose VR glasses in the box, accomplish the purpose of conveniently taking and placing.

2. In the in-service use process, through the setting element that sets up, the deflection of its shelves pole can be utilized to the lid that effectively makes things convenient for the box closes and opens, and utilizes the design of magnetic stripe simultaneously, can stably laminate in order to guarantee two shelves poles, and then the stability that further improvement box lid closed.

3. Utilize the synchronous pull part that sets up, when the box is opened to the setting element, can be synchronous pull each contact plate and VR glasses break away from, and the aversion process of pulling of each contact plate is simple and convenient, like this at the in-process that the upset curb plate of box and upset roof were opened, can avoid the contact friction on each contact plate and VR glasses surface, and then can effectually guarantee leveling pleasing to the eye of VR glasses outward appearance.

Drawings

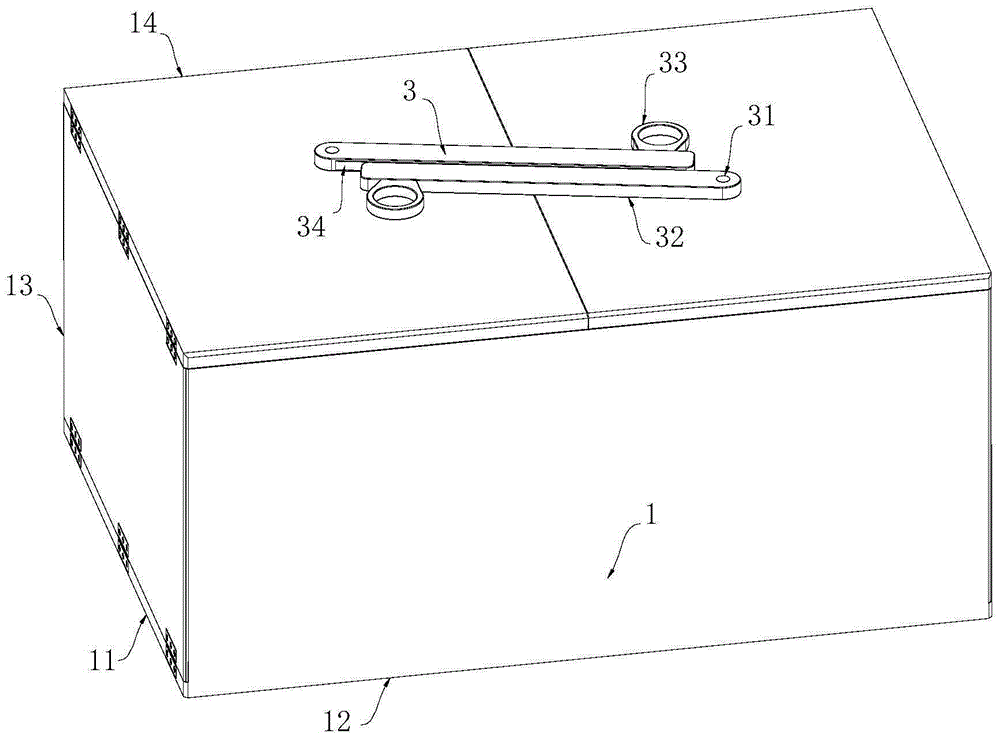

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic structural view of the present invention with the flip top plate removed;

FIG. 3 is a schematic structural view of the present invention with the fixed side plate removed;

FIG. 4 is a schematic structural view of the present invention with the side panel turned over removed;

FIG. 5 is a schematic view of another embodiment of the present invention;

FIG. 6 is a schematic view of another embodiment of the present invention;

FIG. 7 is a schematic view of another orientation structure of FIG. 2 according to the present invention.

In the figure: 1-a box body; 11-a base plate; 12-fixing the side plate; 13-turning over the side plates; 14-turning over the top plate; 2-a buffer member; 21-a compression spring; 22-a contact plate; 23-rubber sheet; 3-a positioning element; 31-a rotating shaft; 32-gear lever; 33-a pull ring; 34-a magnetic strip; 4-synchronous pulling component; 41-worm; 42-mounting seat one; 43-reel one; 44-a worm gear; 45-pulling a rope I; 5, connecting piece one; 51-a second mounting seat; 52-reel II; 53-mounting seat III; 54-reel III; 55-a second pull rope; 6-connecting piece II; 61-mounting seat four; 62-reel four; 63-pulling a third rope; 64-reel five.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

The invention provides a technical scheme that:

please refer to fig. 1-2:

a storage and protection device for VR glasses comprises a box body 1, wherein the box body 1 comprises a bottom plate 11, fixed side plates 12 are arranged at positions of one group of opposite sides of the bottom plate 11, turnover side plates 13 are arranged at positions of the other group of opposite sides of the bottom plate 11, turnover top plates 14 are arranged on the turnover side plates 13, the two turnover top plates 14 are half of the size of the bottom plate 11, so that the two turnover top plates 14 form a complete cover plate, the box body 1 is covered, and in the using process, the turnover top plates 14 and the turnover side plates 13 are used for directly exposing VR glasses stored in the box body 1, so that the VR glasses are convenient to take and place;

the VR glasses are characterized by further comprising buffering members 2 arranged on the fixed side plates 12, the turnover side plates 13, the turnover top plate 14 and the bottom plate 11, wherein the buffering members 2 comprise compression springs 21 and contact plates 22, the compression springs 21 are distributed at two ends of the same face of the contact plates 22 and fixed on the corresponding fixed side plates 12, the turnover side plates 13, the turnover top plate 14 and the bottom plate 11, so that when the VR glasses are placed in the box body 1, the contact plates 22 are in contact with the VR glasses, the VR glasses are buffered and protected by the compression springs 21, and the VR glasses are supplemented by the fact that the compression springs 21 are in a light compression state in the process, and effective stability is provided for the VR glasses;

the glasses box is characterized by further comprising positioning pieces 3 which are respectively arranged on the two turnover top plates 14 and used for covering the two turnover top plates 14 for positioning, synchronous pulling parts 4 which are respectively connected with the two positioning pieces 3 are arranged on two sides in the box body 1, each synchronous pulling part 4 is respectively connected with a contact plate 22 on one turnover side plate 13 and a contact plate 22 on one fixed side plate 12, each contact plate 22 is synchronously pulled to be separated from VR glasses when the box body 1 is opened, and contact friction between the contact plates and the surfaces of the VR glasses is avoided.

Further, referring to fig. 2:

the inner side of each contact plate 22 is provided with a rubber sheet 23, and the rubber sheet 23 is designed to provide soft contact between the contact plate 22 and the VR glasses through the rubber sheet 23 during actual use, so that abrasion of the surfaces of the VR glasses is further avoided.

Referring to fig. 1, the positioning member 3 is further supplemented:

the positioning element 3 comprises a rotating shaft 31 arranged on the turnover top plate 14, a stop lever 32 is arranged on the rotating shaft 31, the stop lever 32 on each turnover top plate 14 can be turned over and extend to the surface of the other turnover top plate 14, in the using process, the stop lever 32 on one turnover top plate 14 is turned to the turnover top plate 14 on the other side to limit the opening of the other turnover top plate 14, meanwhile, the stop lever 32 on the other turnover top plate 14 is also turned to the turnover top plate 14 on one side, magnetic strips 34 are embedded and installed on the opposite sides of the two stop levers 32, the opposite sides of the two magnetic strips 34 are opposite in magnetism and are mutually adsorbed, and the turnover top plate 14 is limited in opening and closing by the two stop levers 32 which are mutually adsorbed.

Furthermore, a pull ring 33 is disposed on a side of each of the stop bars 32 away from the other stop bar 32, and by using the design of the pull ring 33, a finger can pass through the pull ring 33 to pull the stop bar 32 to disengage, thereby facilitating the real-time rotation of the stop bar 32.

Referring now to fig. 3-4, there is shown a further supplementary description of the synchronous pull member 4:

a rotating shaft 31 penetrates through the turnover top plate 14, and the synchronous pulling part 4 comprises a worm 41 arranged at one end of the rotating shaft 31 in the box body 1 so as to drive the worm 41 to rotate by using a stop lever 32;

a first mounting seat 42 is arranged at the bottom of each turnover top plate 14, a first reel 43 is arranged on the first mounting seat 42, a worm wheel 44 meshed with the first reel 43 is arranged at one end, close to the worm 41, of the first reel 43, so that the first reel 43 is driven to rotate by the rotation of the worm 41, a first pull rope 45 is fixedly wound on the first reel 43, and the end parts of the first pull rope 45 are respectively connected with the contact plates 22 below the turnover top plate 14, so that the contact plates 22 on the turnover top plate 14 are pulled to be displaced when the first reel 43 rotates, and therefore the contact plates 22 at the positions of the turnover top plates 14 are pulled to be separated from VR glasses before the box body 1 is opened;

the connecting piece I5 is used for pulling the contact plate 22 on the side turning side plate 13 to be displaced when the reel I43 is wound, the connecting piece II 6 is arranged between the side turning side plate 13 and the fixed side plate 12, the contact plate 22 on the fixed side plate 12 is pulled to be displaced when the side turning plate 13 is turned over by using the connecting piece II 6, and therefore through the design, the contact plates 22 which are possibly moved relative to the surfaces of VR glasses are ensured to be separated from contact with the VR glasses before the box body 1 is opened, and the appearance attractiveness of the VR glasses is ensured.

Further, referring to fig. 4-5, a connector 5 according to the present application is further supplemented:

the first connecting piece 5 comprises a second mounting seat 51 arranged on the inner side of the turnover side plate 13, a second reel 52 is arranged on the second mounting seat 51, a third mounting seat 53 is arranged on the inner side of the turnover side plate 13 and below the second mounting seat 51, and a third reel 54 is arranged on the third mounting seat 53;

the two ends of the two 55 pull ropes are connected with the contact plate 22 on the turnover side plate 13 after sequentially passing around the two reels 52 and the three reels 54, and further through the design, when the contact plate 22 on the turnover top plate 14 is separated from contact with the VR glasses, the contact plate 22 on the turnover side plate 13 is driven to be separated from contact with the VR glasses.

Referring to fig. 6, the second connecting member 6 is further supplemented;

the second connecting piece 6 comprises a fourth mounting seat 61 arranged on the inner side of the fixed side plate 12, and a fourth reel 62 is arranged on the fourth mounting seat 61;

still including stay cord three 63, stay cord three 63 is installed on the contact plate 22 on fixed curb plate 12, and be provided with reel five 64 in fixed curb plate 12 side position, stay cord three 63 is walked around behind reel five 64 and is connected with upset curb plate 13, and stay cord three 63 is located the bottom of upset curb plate 13 with upset curb plate 13 hookup location, and two stay cord three 63 on pulling part 4 in step are connected with two upset curb plates 13 respectively, like this when upset curb plate 13 is opened, will stimulate contact plate 22 on the fixed curb plate 12 to remove, break away from the contact with VR glasses with it.

Further, the reel five 64 is located at the bottom of the side position of the fixed side panel 12 so as to be closer to the hinge position of the flip side panel 13, thereby preventing the pull cord 63 from being excessively pulled when the flip side panel 13 is opened.

Further, please refer to fig. 7:

the second mounting seat 51 is located above the contact plate 22 at a vertical height, so that the second pull rope 55 does not contact the contact plate 22 when passing between the first winding shaft 43 and the second winding shaft 52, the second pull rope 55 is effectively prevented from contacting the contact plate 22 in an actual use process to influence a moving track of the contact plate 22, and friction loss between the second pull rope 55 and the contact plate 22 is avoided.

And the first roller 43, the third roller 54 and the fourth roller 62 are respectively positioned at the central positions of the contact plates 22 at corresponding positions, so that when each rope is pulled, the rope can be pulled from the central stressed position of each contact plate 22, and the contact plates 22 are ensured to be stably directionally moved and separated.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A storage and protection device for VR glasses, comprising a box body (1), characterized in that: the box body (1) includes a bottom plate (11), and the positions of a group of opposite sides of the bottom plate (11) are equal to each other. A fixed side plate (12) is provided, and another set of opposite sides is provided with a flip side board (13), and a flip top board (14) is provided on the flip side board (13). The size of the flip top plate (14) is half of that of the bottom plate (11);

It also includes a buffer member (2) arranged on the fixed side plate (12), the inverting side plate (13), the inverting top plate (14) and the bottom plate (11), the buffer member (2) including a compression spring (21) ) and a contact plate (22), a plurality of the compression springs (21) are provided, and are distributed at both ends of the same surface of the contact plate (22), and are fixed on the corresponding fixed side plates (12), flip side plates (13), turn over the top plate (14) and the bottom plate (11);

It also includes positioning members (3) that are respectively arranged on the two inverting top plates (14) and are used for the two inverting top plates (14) to be covered and positioned, and both sides of the box body (1) are provided with Synchronous pulling components (4) respectively connected with the two positioning members (3), and each of the synchronous pulling components (4) is respectively connected with a contact plate (22) on a flip side plate (13) and a fixed side plate The contact plates (22) on (12), when the box body (1) is opened, the contact plates (22) are pulled synchronously to be separated from the VR glasses.

2 . The storage and protection device for VR glasses according to claim 1 , wherein a rubber sheet ( 23 ) is provided on the inner side of each of the contact plates ( 22 ). 3 .

3 . The storage and protection device for VR glasses according to claim 2 , wherein the positioning member ( 3 ) comprises a rotating shaft ( 31 ) arranged on the flip top plate ( 14 ), and is positioned on the rotating shaft. 4 . (31) is provided with a gear lever (32), and the gear lever (32) on each of the overturned top plates (14) can be overturned and extended to the surface of the other overturned top plate (14);

Magnetic strips (34) are embedded and installed on opposite sides of the two gear rods (32), and the opposite surfaces of the two magnetic strips (34) are magnetically opposite.

4. The storage and protection device for VR glasses according to claim 3, characterized in that: a pulley is provided on the side of each of the gear rods (32) away from the other of the gear rods (32). Ring (33).

5 . The storage and protection device for VR glasses according to claim 4 , wherein the rotating shaft ( 31 ) penetrates through the flip top plate ( 14 ), and the synchronous pulling component ( 4 ) includes a device mounted on the rotating shaft ( 5 . 31) A worm (41) located at one end of the box body (1), so as to use the stop rod (32) to drive the worm (41) to rotate;

A mounting seat (42) is provided at the bottom of each of the flip top plates (14), a reel (43) is arranged on the mounting seat (42), and the reel (43) is close to the worm (43). One end of 41) is provided with a worm wheel (44) engaged with it, so as to use the rotation of the worm (41) to drive the reel one (43) to rotate, and on the reel one (43), a pull rope (43) is fixedly wound. 45), the ends of the first pull rope (45) are respectively connected with the contact plate (22) below the flip top plate (14), so as to pull the rollers on the flip top plate (14) when the reel one (43) rotates. The contact plate (22) is displaced;

Also includes a connecting piece (5) for pulling the contact plate (22) on the side flip side plate (13) to displace when the reel one (43) is wound, and the flip side board (13) on this side A connecting piece ( 6 ) is provided between the fixed side plate ( 12 ) and the second connecting piece ( 6 ) to pull the contact plate ( 22) Shift.

6 . The storage and protection device for VR glasses according to claim 5 , wherein the first connector ( 5 ) comprises a second mounting seat ( 51 ) arranged on the inner side of the flip side plate ( 13 ), 6 . The second mounting seat (51) is provided with a reel two (52), and a mounting seat three (53) is provided on the inner side of the flip side plate (13) at a position below the mounting seat two (51). The third seat (53) is provided with three scrolls (54);

It also includes two pull ropes (55) fixed on the first reel (43). ) on the contact plate (22).

7. A storage and protection device for VR glasses according to claim 6, characterized in that: the second connecting member (6) comprises a fourth mounting seat (61) arranged on the inner side of the fixed side plate (12), The mounting seat four (61) is provided with a reel four (62);

It also includes three pull ropes (63), which are mounted on the contact plate (22) on the fixed side plate (12), and are provided with a side position of the fixed side plate (12). The fifth (64) reel, the third (63) of the pulling rope is connected to the inversion side plate (13) after bypassing the fifth (64), and the connection position of the third (63) of the pulling rope (63) and the inversion side plate (13) is located on the inversion side The bottom of the plate (13), and the three pull ropes (63) on the two synchronous pulling components (4) are respectively connected with the two flip side plates (13).

8. A storage and protection device for VR glasses according to claim 7, characterized in that: the second mounting seat (51) is located above the contact plate (22) in a longitudinal height, so that the second (22) pull cord ( 55) When passing between reel one (43) and reel two (52), it does not contact the contact plate (22).

9 . The storage and protection device for VR glasses according to claim 8 , wherein the first reel ( 43 ), the third reel ( 54 ) and the fourth reel ( 62 ) are respectively located at corresponding positions of the contact plate ( 22 ). 10 . ) center position.
