CN113769187A

CN113769187A - Neurosurgery operation drainage device

Info

Publication number: CN113769187A
Application number: CN202111190028.2A
Authority: CN
Inventors: 曹鹏; 冯思哲
Original assignee: General Hospital of Shenyang Military Region
Current assignee: General Hospital of Shenyang Military Region
Priority date: 2021-10-13
Filing date: 2021-10-13
Publication date: 2021-12-10
Anticipated expiration: 2041-10-13
Also published as: CN113769187B

Abstract

The invention relates to the technical field of medical instruments, in particular to a drainage device for neurosurgery, which comprises a negative pressure suction mechanism and a cranial pressure stabilizing mechanism; the cranial pressure stabilizing mechanism comprises a shell, and a cranial pressure detecting device, a liquid supply assembly and a controller which are positioned in the shell; the cranial pressure detection device is connected with a detection probe through a lead; the liquid supply assembly comprises an antibiotic normal saline storage bottle, an electric valve is arranged on a liquid outlet of the antibiotic normal saline storage bottle, an output end of the electric valve is connected with an infusion catheter, and an annular nozzle is fixedly arranged at one end, far away from the electric valve, of the infusion catheter; the input end of the controller is electrically connected with the detection probe, and the output end of the controller is electrically connected with the electric valve. The invention washes cranial cavity by antibiotic normal saline, effectively avoids pneumatosis of the postoperative cranial cavity and controls intracranial infection, can detect intracranial pressure of a patient while finishing a drainage task, and has the advantages of safety, reliability, simple operation and low manufacturing cost.

Description

Neurosurgery operation drainage device

Technical Field

The invention relates to the technical field of medical instruments, in particular to a drainage device for neurosurgery.

Background

Neurosurgery (neurosurgey) is a branch of surgery, and is a research method of Neurosurgery, which is based on surgery as a main treatment means, and is used for researching the injury, inflammation, tumor, deformity and certain genetic metabolic disorders or dysfunction diseases of human nervous systems, such as brain, spinal cord and peripheral nervous system, and related auxiliary mechanisms, such as skull, scalp, cerebral meninges and other structures, by applying a unique neurosurgical research method, such as: the etiology and pathogenesis of epilepsy, Parkinson's disease, neuralgia and other diseases, and explores a high, precise and advanced discipline of new diagnosis, treatment and prevention technology.

Hypertensive cerebral hemorrhage, subarachnoid hemorrhage and intracerebral tumor are common neurosurgical diseases, and the intracerebroventricular drainage is a conventional treatment means. The external ventricular drainage needs to cut the scalp of a patient, drill a hole on the skull, then insert a drainage tube into the ventricle of the skull of the patient, and connect the other end of the drainage tube with a drainage device, thereby sucking the intracranial cerebrospinal fluid of the patient, reducing the intracranial pressure, partially relieving the illness state of the patient, improving the physical condition, and creating conditions for the later craniotomy.

After the drainage operation outside the brain, pneumatosis exists more or less in the cranial cavity, when having intracranial infection, the continuous dosing of the antibiotic in the cranial cavity to and in the drainage process of the cranial cavity, avoid the too high intracranial pressure all is the problem that awaits solving at present. In addition, the patient needs to lie in bed for a long time during the drainage operation, and when the human body lies in bed for a long time, the waist muscle is numb gradually, and the proper actions of turning over, lifting legs and the like are beneficial to keeping the body health of the patient. However, since the drainage tube is inserted into the cranial cavity of the patient, it may cause the drainage tube to be pulled whenever the patient moves, thereby causing secondary injury to the patient.

Disclosure of Invention

The present invention is directed to a drainage device for neurosurgery operation, which solves the above problems of the prior art.

In order to achieve the purpose, the invention provides the following technical scheme: a neurosurgical operation drainage device comprises a negative pressure suction mechanism and a cranial pressure stabilizing mechanism;

the negative pressure suction mechanism comprises a negative pressure suction device and a drainage bottle, two air nozzles are arranged at the top of the drainage bottle, one air nozzle is connected with the interface of the negative pressure suction device through a first rubber tube, and the other air nozzle is communicated with a flow guide tube through a second rubber tube;

the cranial pressure stabilizing mechanism comprises a shell, and a cranial pressure detecting device, a liquid supply assembly and a controller which are positioned in the shell; the cranial pressure detection device is connected with a detection probe through a lead; the liquid supply assembly comprises an antibiotic normal saline storage bottle, an electric valve is arranged on a liquid outlet of the antibiotic normal saline storage bottle, an output end of the electric valve is connected with an infusion catheter, and an annular nozzle is fixedly arranged at one end, far away from the electric valve, of the infusion catheter; the input end of the controller is electrically connected with the detection probe, and the output end of the controller is electrically connected with the electric valve.

Optionally, the drainage comprehensive rubber tube is a three-cavity catheter, three cavities in the drainage comprehensive rubber tube are respectively a first cavity, a second cavity and a third cavity, one end of the drainage comprehensive rubber tube is inserted into the cranial cavity of a patient, the other end of the drainage comprehensive rubber tube is connected with a tube connector, the top of the tube connector is provided with a first joint, a second joint and a third joint, and the first joint, the second joint and the third joint are respectively communicated with the first cavity, the second cavity and the third cavity of the drainage comprehensive rubber tube; the drainage tube is connected with the first joint, the detection probe penetrates through the second joint and a second cavity in the drainage comprehensive rubber tube and extends into the cranial cavity of the patient, and the infusion catheter is sleeved with the third joint.

Optionally, the hoop shower nozzle include with the liquid outlet fixed connection's of infusion pipe casing, the center department fixedly connected with center tube of pipe casing, the pipe casing still fixedly connected with uses the center tube to be annular evenly distributed's satellite tube as the center, the one end that the pipe casing was kept away from to the satellite tube is through flexible glue pipe fixedly connected with straight tube, the fixed external screw thread ring that is equipped with of outer wall of infusion pipe, external screw thread ring thread knot is connected with the location rotary drum, the crown plate has been cup jointed to the periphery of location rotary drum, the location rotary drum is close to the fixed spacing ring that is equipped with the crown plate butt of one end of pipe casing, the fixed rigidity rope that is equipped with between the outer wall of straight tube and the crown plate.

Optionally, the rubber tube fixing device further comprises a rubber tube fixing mechanism, the rubber tube fixing mechanism comprises a positioning helmet, the upper surface of the positioning helmet is provided with a through hole matched with the comprehensive drainage rubber tube in a penetrating manner, a positioning part is arranged on the upper surface of the positioning helmet and located at the periphery of the through hole, the positioning part comprises a support fixed on the upper surface of the positioning helmet, a friction plate is adhered to the inner side wall of the support, a guide rod is transversely movably inserted into the support, one end, located in the support, of the guide rod is connected with a bulge head, a limiting spring is sleeved outside the guide rod and located outside the support, and two ends of the limiting spring are respectively fixedly connected with the outer wall of the support and the outer end of the guide rod; in the initial state, the limiting spring is in a stretching state.

Optionally, the positioning helmet is including being the position circle of annular form, be connected with many radial distribution's arc strip on the position circle, the inner wall laminating of position circle is equipped with and has elastic sponge layer, many the free end of arc strip is connected with the disk jointly, the central point at the disk is seted up to the through-hole puts.

Optionally, a notch is formed in the positioning ring, a binding band and a binding band buckle are respectively arranged on the outer wall of the positioning ring and located on two sides of the notch, and the free end of the binding band penetrates through the binding band buckle and is fixedly connected with the binding band buckle.

Optionally, a filtering mechanism is arranged between the second rubber tube and the flow guide tube, the filtering mechanism comprises an upper mounting portion and a lower mounting portion, the upper mounting portion and the lower mounting portion are fixedly connected through threads, a first plug hole is formed in the central position of the upper mounting portion in a penetrating mode, a second plug hole is formed in the central position of the lower mounting portion in a penetrating mode, the second rubber tube is inserted into the first plug hole, and the flow guide tube is inserted into the second plug hole.

Optionally, the lower surface of the upper mounting part is provided with an upper cavity, the upper surface of the lower mounting part is provided with a lower cavity, and the upper cavity and the lower cavity are clamped with a filter sheet together.

Compared with the prior art, the invention has the following beneficial effects:

1. the invention washes cranial cavity by antibiotic normal saline, effectively avoids postoperative cranial cavity pneumatosis and controls intracranial infection, can detect intracranial pressure of patients while finishing drainage task, and has the advantages of safety, reliability, simple operation and low cost;

2. according to the invention, by changing the injection angle of the straight pipe, the injection range of the annular spray head can be adjusted adaptively, different washing requirements are met, the annular spray head can be uniformly injected, and the cleaning effect is good;

3. the positioning helmet is worn on the head of a patient, and the positioning helmet and the comprehensive drainage rubber tube can be fixed by the positioning part, so that the comprehensive drainage rubber tube is prevented from being pulled by external force when the patient moves on a hospital bed, and secondary damage to the patient is avoided;

4. the filtering mechanism can filter floccules in the cerebrospinal fluid, so that medical care personnel can conveniently judge the state of an illness of a patient according to the quantity of the cerebrospinal fluid of the patient so as to carry out subsequent medical work.

Drawings

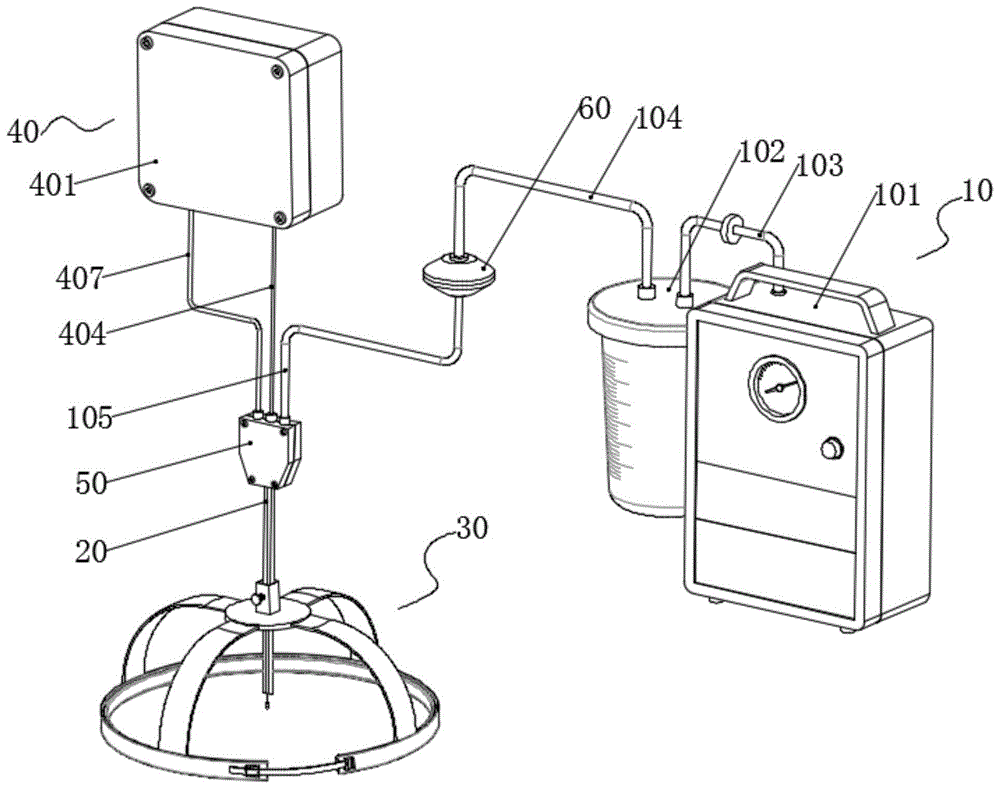

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the pipe connector of the present invention;

FIG. 3 is a schematic structural view of a hose fixing mechanism according to the present invention;

FIG. 4 is a front view of the hose securing mechanism of the present invention;

FIG. 5 is an enlarged view of portion A of FIG. 4;

FIG. 6 is a schematic structural view of a cranial compression stabilization mechanism according to the present invention;

FIG. 7 is a schematic view of the structure of the infusion catheter and the annular nozzle of the present invention;

fig. 8 is a schematic view of the structure of the filter mechanism of the present invention.

In the figure: 10. a negative pressure suction mechanism; 101. a negative pressure aspirator; 102. a drainage bottle; 103. a first hose; 104. a second hose; 105. a flow guide pipe; 20. drainage comprehensive rubber tube; 30. a rubber tube fixing mechanism; 301. positioning a helmet; 3011. positioning rings; 3012. an arc-shaped strip; 3013. a sponge layer; 3014. a wafer; 3015. binding bands; 3016. a strap fastener; 302. a through hole; 303. a positioning part; 3031. a support; 3032. a friction plate; 3033. a guide bar; 3034. a head of the bag is bulged; 3035. a limiting spring; 40. a cranial pressure stabilization mechanism; 401. a housing; 402. a cranial pressure detection device; 403. a low-temperature oxygen-enriched normal saline storage bottle; 404. a wire; 405. detecting a probe; 406. an electrically operated valve; 407. an infusion catheter; 408. a pipe cover; 409. a central tube; 410. a satellite tube; 411. a soft rubber tube; 412. a straight pipe; 413. an externally threaded ring; 414. positioning the rotating drum; 415. a ring plate; 416. a limiting ring; 417. a rigid cord; 50. a pipe connector; 501. a first joint; 502. a second joint; 503. a third joint; 60. a filtering mechanism; 601. an upper mounting portion; 602. a lower mounting portion; 603. a first plug hole; 604. a second plug hole; 605. a filter disc.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Example (b): referring to fig. 1 and 2, a drainage device for neurosurgery comprises a negative pressure suction mechanism 10, a drainage comprehensive rubber tube 20, a rubber tube fixing mechanism 30 and a cranial pressure stabilizing mechanism 40; the negative pressure suction mechanism 10 comprises a negative pressure suction apparatus 101 and a drainage bottle 102, two air nozzles are arranged at the top of the drainage bottle 102, one air nozzle is connected with the interface of the negative pressure suction apparatus 101 through a first rubber tube 103, and the other air nozzle is communicated with a flow guide tube 105 for drawing residual hematocele or oozing blood through a second rubber tube 104; the comprehensive drainage rubber tube 20 is a three-cavity catheter, three cavities in the comprehensive drainage rubber tube 20 are respectively a first cavity, a second cavity and a third cavity, one end of the comprehensive drainage rubber tube 20 is inserted into the cranial cavity of a patient, the other end of the comprehensive drainage rubber tube is connected with a tube connector 50, the top of the tube connector 50 is provided with a first connector 501, a second connector 502 and a third connector 503, the first connector 501, the second connector 502 and the third connector 503 are respectively communicated with the first cavity, the second cavity and the third cavity of the comprehensive drainage rubber tube 20, wherein the drainage tube 105 is connected with the first connector 501, namely the drainage tube 105 is communicated with the first cavity in the comprehensive drainage rubber tube 20 and is used for absorbing residual blood or blood seepage of the patient.

Referring to fig. 3, the rubber tube fixing mechanism 30 includes a positioning helmet 301 fixedly sleeved on the head of the patient, the positioning helmet 301 includes a ring-shaped positioning ring 3011, the positioning ring 3011 is connected with a plurality of arc-shaped strips 3012 distributed radially, an elastic sponge layer 3013 is attached to the inner wall of the positioning ring 3011, the free ends of the arc-shaped strips 3012 are connected with a wafer 3014 together, the central position of the wafer 3014 is provided with a through hole 302 matched with the drainage comprehensive rubber tube 20, and the positioning ring 3011, the arc-shaped strips 3012 and the wafer 3014 are formed integrally and made of plastic material; a notch is formed in the positioning ring 3011, a bandage 3015 and a bandage buckle 3016 for fixing the bandage 3015 are respectively arranged on the outer wall of the positioning ring 3011 and on two sides of the notch, and the free end of the bandage 3015 penetrates through the bandage buckle 3016 and is fixedly connected with the bandage buckle 3016 for being fixed on the head of a patient.

Referring to fig. 4 and 5, a positioning portion 303 for fixing the position of the drainage comprehensive rubber tube 20 is disposed on the top surface of the positioning helmet 301 and at the periphery of the through hole 302, the positioning portion 303 includes a support 3031 fixed on the top surface of the positioning helmet 301, the support 3031 and the positioning helmet 301 are integrally formed, a friction plate 3032 is adhered to the inner side wall of the support 3031, the friction plate 3032 is made of rubber, a guide rod 3033 is transversely and movably inserted into the support 3031, a drum head 3034 is connected to one end of the guide rod 3033 located in the support 3031, the guide rod 3033 and the drum head 3034 are integrally formed, the guide rod 3032 and the support 3031 are made of plastic material and used for extruding the drainage comprehensive rubber tube 20, a limiting spring 3035 is sleeved outside the guide rod 3033 and outside the support 3031, and two ends of the limiting spring 3035 are fixedly connected to the outer wall of the support 3031 and the outer end of the guide rod 3033 respectively; in an initial state, the limiting spring 3035 is in a stretching state, so that the bulging head 3034 always has a certain extrusion acting force on the drainage comprehensive rubber tube 20 and is used for fixing the position of the drainage comprehensive rubber tube 20, in addition, the stiffness coefficient of the limiting spring 3035 is not too large, and the drainage comprehensive rubber tube 20 can be just tightly pressed and is not shrunken.

Referring to fig. 1 and 6, the intracranial pressure stabilizing mechanism 40 includes a housing 401, a intracranial pressure detecting device 402 and a liquid supply assembly, the intracranial pressure detecting device 402 is located in the housing 401, the intracranial pressure detecting device 402 is connected to a detecting probe 405 through a conducting wire 404, and the detecting probe 405 passes through a second joint 502 and a second cavity in the drainage integrated rubber tube 20 and extends into the cranial cavity of the patient for detecting intracranial pressure. The liquid supply assembly comprises an antibiotic normal saline storage bottle 403 for storing antibiotic normal saline, an electric valve 406 is arranged on a liquid outlet of the antibiotic normal saline storage bottle 403, an output end of the electric valve 406 is connected with an infusion catheter 407, an annular nozzle is fixedly arranged at one end, far away from the electric valve 406, of the infusion catheter 407, and the infusion catheter 407 is sleeved with a third connector 503 on the pipe connector 50 and penetrates out of the pipe connector 50. The infusion catheter 407 is used for infusing antibiotic physiological saline into the cranial cavity so as to maintain the cranial pressure to be stable. The intracranial pressure detection device 402 is also internally provided with a controller, the input end of the controller is electrically connected with the detection probe 405, and the output end of the controller is electrically connected with the electric valve 406 and used for controlling the opening and closing of the electric valve 406; when the controller detects that the cranial pressure is higher than the normal value, the electric valve 406 is opened to enable the antibiotic normal saline to enter into the cranium, and the electric valve 406 is controlled to be closed again until the outflow flushing fluid is clear and the cranial pressure is restored to the normal value. The antibiotic normal saline on one hand washes fibrinolytic substances and fibrin degradation products in a hematoma cavity as far as possible to block the dissolution of plasminogen, and on the other hand realizes intracranial air exhaust to avoid overhigh intracranial pressure.

The invention firstly washes the cranial cavity and discharges pneumatosis through the cranial pressure stabilizing mechanism 40, and then carries out drainage through the negative pressure suction mechanism 10. In the use process of the invention, the positioning helmet 301 is firstly worn on the head of a patient, then the medical staff carries out special operation steps to insert the drainage comprehensive rubber tube 20 into the cranial cavity of the patient, and the drainage comprehensive rubber tube 20 is fixed on the head of the patient through the medical adhesive tape, thereby ensuring the position of the drainage comprehensive rubber tube 20 and the cranial cavity of the patient to be in a sealed state. Then the negative pressure aspirator 101 is started to conduct drainage operation, and residual blood or oozing blood in the cranial cavity of the patient is pumped out to the drainage bottle 102.

It is worth to say that the temperature of the antibiotic normal saline is 4-10 ℃, the blood vessel can be contracted, and the bleeding can not be caused by adopting the antibiotic normal saline to wash the cranial cavity. In order to maintain the temperature of the antibiotic saline, a ring frame surrounding the antibiotic saline storage bottle 403 is arranged in the shell 401, and a semiconductor refrigeration piece can be arranged on the ring frame to refrigerate the antibiotic saline storage bottle 403.

Referring to fig. 7, the annular nozzle includes a tube cover 408 screwed to the liquid outlet of the infusion tube 407, the center of the tube cover 408 is connected with a central tube 409 by glue, the tube cover 408 is further connected with satellite tubes 410 uniformly distributed in an annular shape with the central tube 409 as the center by glue, one end of the satellite tube 410 away from the tube cover 408 is connected with a soft rubber tube 411 by glue, and the soft rubber tube 411 is connected with a straight tube 412 by glue. An external thread ring 413 is integrally formed on the outer wall of the infusion catheter 407, the external thread ring 413 is connected with a positioning rotary drum 414 in a threaded mode, a ring plate 415 is sleeved on the periphery of the positioning rotary drum 414, a limiting ring 416 abutted to the ring plate 415 is formed at one end body, close to the tube cover 408, of the positioning rotary drum 414, and a rigid rope 417 is fixedly arranged between the outer wall of the straight tube 412 and the ring plate 415. One end of the rigid rope 417 is fixedly connected with the straight pipe 412 through a pull ring, and the other end of the rigid rope 417 penetrates through the outer edge of the pipe cover 408 and is fixedly connected with the annular plate 415. The rotating cylinder 414 is manually rotated and positioned, the limiting ring 416 can push the ring plate 415, the rigid rope 417 is pulled, the rigid rope 417 can pull the straight pipe 412 when being pulled, so that the spraying angle of the straight pipe 412 is changed, the spraying range of the annular spraying head can be adjusted adaptively, different washing requirements are met, the annular spraying head sprays uniformly, and the cleaning effect is good.

Referring to fig. 8, a filtering mechanism 60 is disposed between the second rubber tube 104 and the flow guide tube 105, the filtering mechanism 60 includes an upper mounting portion 601 and a lower mounting portion 602, the upper mounting portion 601 and the lower mounting portion 602 are fixed by threaded connection, a first inserting hole 603 is formed in the center of the upper mounting portion 601 in a penetrating manner, a second inserting hole 604 is formed in the center of the lower mounting portion 602 in a penetrating manner, the second rubber tube 104 is inserted into the first inserting hole 603, and the flow guide tube 105 is inserted into the second inserting hole 604; an upper cavity is formed in the bottom surface of the upper mounting portion 601, a lower cavity is formed in the top surface of the lower mounting portion 602, and a filter 605 is clamped between the upper cavity and the lower cavity together for filtering floccules in residual hematocele or oozing blood; according to the clinical manifestation shows, when the floccule appears in the residual hematocele or the oozing blood, it indicates that the intracranial of the patient is infected, therefore, the filtering mechanism 60 facilitates the medical care personnel to judge whether the intracranial infection appears in the patient, which is beneficial to timely judging the state of the patient and preventing the aggravation of the patient.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A neurosurgical drainage device, characterized in that: comprises a negative pressure suction mechanism (10) and a cranial pressure stabilizing mechanism (40);

the negative pressure suction mechanism (10) comprises a negative pressure suction device (101) and a drainage bottle (102), two air nozzles are arranged at the top of the drainage bottle (102), one air nozzle is connected with a connector of the negative pressure suction device (101) through a first rubber tube (103), and the other air nozzle is communicated with a flow guide tube (105) through a second rubber tube (104);

the cranial pressure stabilizing mechanism (40) comprises a shell (401) and a cranial pressure detecting device (402), a liquid supply assembly and a controller which are positioned in the shell (401); the cranial pressure detection device (402) is connected with a detection probe (405) through a lead (404); the liquid supply assembly comprises an antibiotic normal saline storage bottle (403), an electric valve (406) is arranged on a liquid outlet of the antibiotic normal saline storage bottle (403), an output end of the electric valve (406) is connected with a transfusion guide pipe (407), and one end, far away from the electric valve (406), of the transfusion guide pipe (407) is fixedly provided with a circumferential spray head; the input end of the controller is electrically connected with the detection probe (405), and the output end of the controller is electrically connected with the electric valve (406).

2. A neurosurgical drainage device according to claim 1, wherein: the drainage comprehensive rubber tube (20) is a three-cavity catheter, three cavities in the drainage comprehensive rubber tube (20) are respectively a first cavity, a second cavity and a third cavity, one end of the drainage comprehensive rubber tube (20) is inserted into the cranial cavity of a patient, the other end of the drainage comprehensive rubber tube (20) is connected with a tube connector (50), the top of the tube connector (50) is provided with a first connector (501), a second connector (502) and a third connector (503), and the first connector (501), the second connector (502) and the third connector (503) are respectively communicated with the first cavity, the second cavity and the third cavity of the drainage comprehensive rubber tube (20); the drainage tube (105) is connected with the first connector (501), the detection probe (405) passes through the second connector (502) and a second cavity in the drainage comprehensive rubber tube (20) and extends into the cranial cavity of the patient, and the infusion catheter (407) is sleeved with the third connector (503).

3. A neurosurgical drainage device according to claim 1, wherein: the annular spray head comprises a pipe cover (408) fixedly connected with a liquid outlet of the infusion catheter (407), the center of the pipe cover (408) is fixedly connected with a central pipe (409), the pipe cover (408) is also fixedly connected with satellite pipes (410) which are uniformly distributed in an annular shape by taking the central pipe (409) as the center, one end of the satellite tube (410) far away from the tube cover (408) is fixedly connected with a straight tube (412) through a soft rubber tube (411), an external thread ring (413) is fixedly arranged on the outer wall of the infusion catheter (407), a positioning rotary drum (414) is connected with the external thread ring (413) in a threaded manner, a ring plate (415) is sleeved on the periphery of the positioning rotary drum (414), a limit ring (416) abutted against the ring plate (415) is fixedly arranged at one end of the positioning rotary drum (414) close to the pipe cover (408), and a rigid rope (417) is fixedly arranged between the outer wall of the straight pipe (412) and the annular plate (415).

4. A neurosurgical drainage device according to claim 1, wherein: also comprises a rubber tube fixing mechanism (30), the rubber tube fixing mechanism (30) comprises a positioning helmet (301), the upper surface of the positioning helmet (301) is provided with a through hole (302) which is matched with the drainage comprehensive rubber tube (20) in a penetrating way, the upper surface of the positioning helmet (301) and the periphery of the through hole (302) are provided with a positioning part (303), the positioning part (303) comprises a bracket (3031) fixed on the upper surface of the positioning helmet (301), a friction plate (3032) is stuck on the inner side wall of the bracket (3031), a guide rod (3033) is movably inserted on the bracket (3031) in the transverse direction, one end of the guide rod (3033) positioned in the bracket (3031) is connected with a drum head (3034), a limiting spring (3035) is sleeved outside the guide rod (3033) and the bracket (3031), two ends of the limiting spring (3035) are respectively fixedly connected with the outer wall of the bracket (3031) and the outer end of the guide rod (3033); in the initial state, the limit spring (3035) is in a stretching state.

5. A neurosurgical drainage device according to claim 4, wherein: location helmet (301) is including being the position circle (3011) of annular form, be connected with many radial distribution's arc strip (3012) on position circle (3011), the inner wall laminating of position circle (3011) is equipped with elastic sponge layer (3013), many the free end of arc strip (3012) is connected with disk (3014) jointly, through-hole (302) are seted up at the central point of disk (3014) and are put.

6. A neurosurgical drainage device according to claim 5, wherein: the positioning ring (3011) is provided with a notch, the outer wall of the positioning ring (3011) is provided with a bandage (3015) and a bandage buckle (3016) on two sides of the notch, and the free end of the bandage (3015) penetrates through the bandage buckle (3016) and is fixedly connected with the bandage buckle.

7. A neurosurgical drainage device according to claim 1, wherein: be provided with filtering mechanism (60) between second rubber tube (104) and honeycomb duct (105), filtering mechanism (60) are including last installation department (601) and lower installation department (602), it is fixed to go up threaded connection between installation department (601) and lower installation department (602), and the central point who goes up installation department (601) puts through and has seted up first spliced eye (603), and the central point who puts down installation department (602) puts through and has seted up second spliced eye (604), second rubber tube (104) insert in first spliced eye (603), honeycomb duct (105) insert in second spliced eye (604).

8. A neurosurgical drainage device according to claim 7, wherein: the lower surface of the upper mounting part (601) is provided with an upper cavity, the upper surface of the lower mounting part (602) is provided with a lower cavity, and the upper cavity and the lower cavity are clamped with a filter (605) together.
