CN113364100A - Fixed multi-angle support of magnetism unifies wireless charger more - Google Patents
Fixed multi-angle support of magnetism unifies wireless charger more Download PDFInfo
- Publication number
- CN113364100A CN113364100A CN202110750097.8A CN202110750097A CN113364100A CN 113364100 A CN113364100 A CN 113364100A CN 202110750097 A CN202110750097 A CN 202110750097A CN 113364100 A CN113364100 A CN 113364100A
- Authority
- CN
- China
- Prior art keywords
- groove
- shell
- mobile phone
- charging
- wireless charger
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Withdrawn
Links
Images
Classifications
-
- H—ELECTRICITY
- H02—GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
- H02J—CIRCUIT ARRANGEMENTS OR SYSTEMS FOR SUPPLYING OR DISTRIBUTING ELECTRIC POWER; SYSTEMS FOR STORING ELECTRIC ENERGY
- H02J7/00—Circuit arrangements for charging or depolarising batteries or for supplying loads from batteries
- H02J7/0042—Circuit arrangements for charging or depolarising batteries or for supplying loads from batteries characterised by the mechanical construction
- H02J7/0044—Circuit arrangements for charging or depolarising batteries or for supplying loads from batteries characterised by the mechanical construction specially adapted for holding portable devices containing batteries
-
- H—ELECTRICITY
- H02—GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
- H02J—CIRCUIT ARRANGEMENTS OR SYSTEMS FOR SUPPLYING OR DISTRIBUTING ELECTRIC POWER; SYSTEMS FOR STORING ELECTRIC ENERGY
- H02J50/00—Circuit arrangements or systems for wireless supply or distribution of electric power
- H02J50/10—Circuit arrangements or systems for wireless supply or distribution of electric power using inductive coupling
-
- H—ELECTRICITY
- H02—GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
- H02J—CIRCUIT ARRANGEMENTS OR SYSTEMS FOR SUPPLYING OR DISTRIBUTING ELECTRIC POWER; SYSTEMS FOR STORING ELECTRIC ENERGY
- H02J7/00—Circuit arrangements for charging or depolarising batteries or for supplying loads from batteries
- H02J7/0042—Circuit arrangements for charging or depolarising batteries or for supplying loads from batteries characterised by the mechanical construction
- H02J7/0045—Circuit arrangements for charging or depolarising batteries or for supplying loads from batteries characterised by the mechanical construction concerning the insertion or the connection of the batteries
-
- H—ELECTRICITY
- H04—ELECTRIC COMMUNICATION TECHNIQUE
- H04M—TELEPHONIC COMMUNICATION
- H04M1/00—Substation equipment, e.g. for use by subscribers
- H04M1/02—Constructional features of telephone sets
- H04M1/04—Supports for telephone transmitters or receivers
Landscapes
- Engineering & Computer Science (AREA)
- Power Engineering (AREA)
- Signal Processing (AREA)
- Computer Networks & Wireless Communication (AREA)
- Telephone Set Structure (AREA)
- Charge And Discharge Circuits For Batteries Or The Like (AREA)
Abstract
The invention discloses a magnetic attraction fixed multi-angle support all-in-one wireless charger which comprises a base and a shell, wherein a storage structure is arranged at the bottom of the base, an adjusting structure is arranged between the base and the shell, an auxiliary structure is arranged at the bottom of the front part of the shell, and a coil and a magnet are arranged inside the shell. The magnetic attraction fixing multi-angle support all-in-one wireless charger has an angle adjusting function, can conveniently place a mobile phone at a proper angle in the process of charging the mobile phone, is convenient for people to use the mobile phone in the charging process, improves the service performance, can provide support for the mobile phone, avoids the phenomenon that the mobile phone drops due to insufficient magnetic attraction in the charging process, increases the stability of the mobile phone, can also conveniently continue to be charged in a wired mode when the mobile phone does not support wireless charging or the wireless charging function is damaged, has the effect of being convenient to carry, and is more beneficial to use.
Description
Technical Field
The invention relates to the field of wireless chargers, in particular to a magnetic attraction fixed multi-angle support all-in-one wireless charger.
Background
Along with social development, mobile phones are gradually intelligentized, and at present, two main methods for charging the mobile phones are provided, wherein one method is limited charging through a charging connector, the other method is wireless charging through a wireless charger, the wireless charger is a device for charging by utilizing the principle of electromagnetic induction, the principle of the wireless charger is similar to that of a transformer, a coil is respectively arranged at a transmitting end and a receiving end, the coil at the transmitting end transmits an electromagnetic signal to the outside under the action of electric power, and the coil at the receiving end receives the electromagnetic signal and converts the electromagnetic signal into current, so that the purpose of wireless charging is achieved;
firstly, the existing wireless charger does not have an angle adjusting function, and the mobile phone can only be laid down or charged at a fixed inclination angle, so that in the charging process, people cannot adjust the angle of the mobile phone according to the self requirement, the mobile phone cannot be used more conveniently during charging, and the practicability is poor; secondly, the existing wireless charger has single functionality, only can support wireless charging of the mobile phone, and cannot be used continuously when the mobile phone does not support wireless charging or the wireless charging function is damaged; in addition, the conventional wireless charger does not have a storage function, and the wireless charger needs to be connected with an external power supply through a power line, so that the power line cannot be stored in the wireless charger, and the wireless charger is inconvenient to carry.
Disclosure of Invention
The invention mainly aims to provide a magnetic attraction fixed multi-angle support all-in-one wireless charger, which can effectively solve the problems in the background technology that: the existing wireless charger does not have an angle adjusting function, and the mobile phone can only be laid down or charged at a fixed inclination angle, so that in the charging process, people cannot adjust the angle of the mobile phone according to the self requirement, the mobile phone cannot be used more conveniently in the charging process, and the practicability is poor; secondly, the existing wireless charger has single functionality, only can support wireless charging of the mobile phone, and cannot be used continuously when the mobile phone does not support wireless charging or the wireless charging function is damaged; in addition, the existing wireless charger does not have a storage function, and the power cord cannot be stored in the wireless charger due to the fact that the wireless charger needs to be connected with an external power supply through the power cord, so that the wireless charger is inconvenient to carry.
In order to achieve the purpose, the invention adopts the technical scheme that:
the utility model provides a fixed multi-angle support of magnetism unifies wireless charger more, includes base and casing, the bottom of base is equipped with accomodates the structure, be equipped with between base and the casing and adjust the structure, the anterior bottom position of casing is equipped with auxiliary structure, the inside of casing is equipped with coil and magnet.
As a further scheme of the present invention, the accommodating structure includes an accommodating groove, a first socket, a second socket, an upright post, a limiting cover, a blind groove, a clamping groove, a sealing plate, an insertion piece, and a clamping block, the accommodating groove is formed in a lower surface of the base, the first socket and the second socket are respectively and fixedly mounted at diagonal positions of inner corners of the accommodating groove, the upright post is fixedly mounted at a top position of an inner side of the accommodating groove, the limiting cover is fixedly mounted at one end of the upright post, the blind groove is formed in a rear surface of an inner wall of the accommodating groove, the clamping groove is formed in a front surface of the inner wall of the accommodating groove, the insertion piece is fixedly connected to a rear portion of the sealing plate, and the clamping block is connected to a front portion of the sealing plate.
As a further scheme of the invention, the inserting pieces are matched with the blind grooves, and the clamping blocks are connected with the clamping grooves in a clamping manner.
As a further scheme of the invention, the stand column and the limiting cover form a winding structure, the number of the winding structures is four, and the four winding structures are in a rectangular array.
As a further scheme of the invention, the adjusting structure comprises a shaft seat, an external gear, an internal gear, a rotating shaft, a notch and a spring, wherein the shaft seat is fixedly installed at the rear position of the upper part of the base, the external gear is fixedly installed at the upper part of the base and is positioned at one side position of the shaft seat, the internal gear is fixedly installed at the bottom of the shell, the notch is arranged on the outer surface of the shaft seat, the rotating shaft penetrates through the shaft seat, and one end of the spring is sleeved outside the rotating shaft through a ring and is positioned at the inner side of the notch.
As a further scheme of the invention, the lower surface of the shell is provided with an installation groove, and the interior of the installation groove is connected with the other end of the spring through a connecting shaft.
As a further scheme of the invention, the external gear is in toothed connection with the internal toothed disc, and the number of the external gear and the internal toothed disc is two.
As a further aspect of the present invention, the auxiliary structure includes a sliding groove, an L-shaped stopper, a charging head, an alignment groove, a folding groove, a pushing bar, and a movable bar, the sliding groove is formed at the bottom of the front surface of the housing, the Z-axis direction of the L-shaped stopper is slidably connected to the sliding groove, the X-axis direction of the charging head is slidably connected to the sliding groove, the alignment groove is formed at the upper surface of the base, the folding groove is formed at the bottom of the rear surface of the housing, one end of the pushing bar penetrates through the housing and is fixedly connected to the charging head, and the movable bar is rotatably connected to the other end of the pushing bar.
As a further scheme of the invention, a charging interface is arranged on the rear surface of the shell, and the charging interface is electrically connected with the coil and the charging head.
As a further aspect of the present invention, the wireless charger specifically includes the following steps when in use:
the method comprises the following steps: placing the base on the table board, then holding the shell by hand and pulling the shell to enable the shell to drive the inner fluted disc to be separated from the outer gear, simultaneously expanding the spring, and then rotating the shell to any direction;
step two: after the shell rotates to a proper angle, the shell is loosened, the spring contracts, the inner fluted disc is clamped with the outer gear, and the position of the shell is fixed at the moment to finish the angle adjustment work;
step three: after the adjustment is finished, the mobile phone is placed at the front part of the shell and is fixedly adsorbed by the magnet, then the power line is inserted into the charging interface at the rear part of the shell, so that the coil is electrified, and the mobile phone is wirelessly charged after the coil is electrified;
step four: in the charging process, the two L-shaped stop blocks can be moved to the bottom of the mobile phone through the sliding grooves to provide support for the mobile phone;
step five: when the mobile phone does not support wireless charging or the wireless charging function is damaged, the movable strip is pulled out of the folding groove, the movable strip and the pushing strip are kept in the same horizontal line, then the pushing strip is pushed through the movable strip, the charging head is pushed out through the pushing strip, and the charging interface of the mobile phone and the charging head can be connected for wired charging after the pushing strip is pushed out;
step six: when the device is not used, the shell is rotatably folded at the upper part of the base, the horizontal part of the L-shaped stop block is inserted into the sliding groove, and the vertical part of the L-shaped stop block is overlapped into the alignment groove;
step seven: extract the power cord from the interface that charges, press the fixture block, make it break away from the draw-in groove, can take off the shrouding, then in inserting the jack of first socket with a plug of power cord, the power cord winding is in the outside of four stands, and is spacing through spacing lid, and the plug of the power cord other end inserts the second socket, finally inserts the inserted sheet of shrouding in the inside of blind slot, presses the shrouding and goes into the draw-in groove with the fixture block card.
Compared with the prior art, the invention has the following beneficial effects:
through setting up the regulation structure, the casing is held by hand and pulled, make the casing drive the internal tooth dish and break away from the external gear, the spring expands simultaneously, then can rotate the casing to arbitrary direction, after rotating to suitable angle, loosen the casing, the spring contracts, make the internal tooth dish and external gear joint, the position of casing is fixed this moment, accomplish angle modulation work, possess the angle modulation function, in the course of charging for the cell-phone, can conveniently put the cell-phone to suitable angle, make things convenient for people to use the cell-phone in the course of charging, improve performance, and possess the folding function, make it more convenient to carry;
by arranging the auxiliary structure, in the charging process, the two L-shaped stop blocks can be moved to the bottom of the mobile phone through the sliding groove to provide support for the mobile phone, the movable strip is pulled out of the folding groove, the movable strip and the push strip are kept on the same horizontal line, then the push strip is pushed through the movable strip, the charge head is pushed out through the push strip, and the charge interface of the mobile phone can be connected with the charge head to carry out wired charging after the push strip is pushed out, so that the support can be provided for the mobile phone on one hand, the phenomenon that the mobile phone drops due to insufficient magnetic attraction in the charging process is avoided, the stability of the mobile phone is improved, on the other hand, when the mobile phone does not support wireless charging or wireless charging function, the mobile phone can be conveniently charged continuously in a wired mode, and the application range is wider;
accomodate the structure through setting up, press the fixture block, make it break away from the draw-in groove, can take off the shrouding, then in inserting the jack of first socket with a plug of power cord, the power cord winding is in the outside of four stands, it is spacing through spacing lid, the plug of the power cord other end inserts the second socket, finally insert the inserted sheet of shrouding the inside of blind groove, press the shrouding with the fixture block card income draw-in groove in, can conveniently accomodate the power cord, in the time of carrying, need not to carry the power cord in addition, the efficiency that possesses portable, do benefit to the use more.
Drawings
FIG. 1 is a schematic diagram of an overall structure of an all-in-one wireless charger with a magnetically-fixed multi-angle bracket according to the present invention;
FIG. 2 is a disassembled view of a base and a sealing plate of the magnetic attraction fixed multi-angle bracket all-in-one wireless charger of the invention;
FIG. 3 is a diagram showing the development of the base and the housing of the magnetic attraction fixed multi-angle bracket all-in-one wireless charger of the present invention;

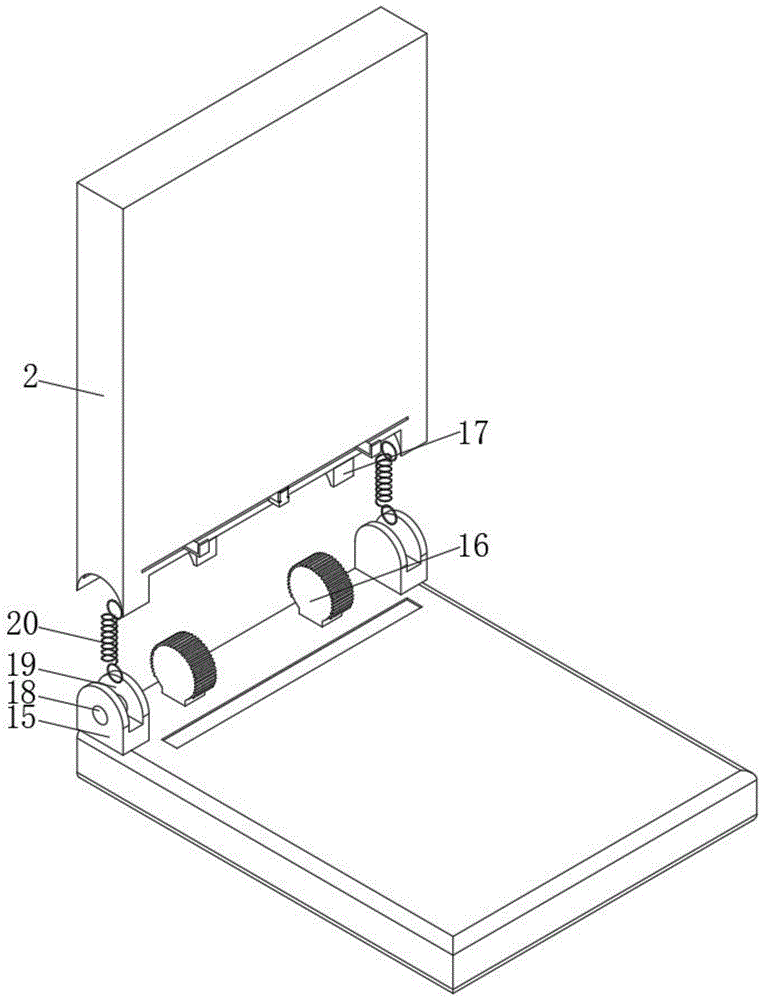

FIG. 4 is a disassembled view of a base and a housing of the magnetic attraction fixed multi-angle bracket all-in-one wireless charger of the present invention;
FIG. 5 is a rear perspective view of a housing of an all-in-one wireless charger with a magnetically attracted multi-angle stand according to the present invention;
FIG. 6 is an enlarged view of an external gear and an internal gear disk of the magnetic attraction fixed multi-angle bracket all-in-one wireless charger of the invention.
In the figure: 1. a base; 2. a housing; 3. a receiving structure; 4. a receiving groove; 5. a first socket; 6. a second socket; 7. a column; 8. a limiting cover; 9. a blind groove; 10. a card slot; 11. closing the plate; 12. inserting sheets; 13. a clamping block; 14. an adjustment structure; 15. a shaft seat; 16. an outer gear; 17. an inner fluted disc; 18. a rotating shaft; 19. notching; 20. a spring; 21. an auxiliary structure; 22. a chute; 23. an L-shaped stop block; 24. a charging head; 25. a positioning groove; 26. a folding slot; 27. pushing the strips; 28. a movable bar.
Detailed Description
In order to make the technical means, the creation characteristics, the achievement purposes and the effects of the invention easy to understand, the invention is further described with the specific embodiments.
As shown in fig. 1-6, a magnetic attraction fixed multi-angle support all-in-one wireless charger comprises a base 1 and a shell 2, wherein a receiving structure 3 is arranged at the bottom of the base 1, an adjusting structure 14 is arranged between the base 1 and the shell 2, an auxiliary structure 21 is arranged at the bottom of the front part of the shell 2, and a coil and a magnet are arranged inside the shell 2;
the accommodating structure 3 comprises an accommodating groove 4, a first socket 5, a second socket 6, an upright post 7, a limiting cover 8, a blind groove 9, a clamping groove 10, a sealing plate 11, an inserting piece 12 and a clamping block 13, wherein the accommodating groove 4 is formed in the lower surface of the base 1, the first socket 5 and the second socket 6 are respectively and fixedly arranged at the diagonal positions of the inner corners of the accommodating groove 4, the upright post 7 is fixedly arranged at the top position of the inner side of the accommodating groove 4, the limiting cover 8 is fixedly arranged at one end of the upright post 7, the blind groove 9 is formed in the rear surface of the inner wall of the accommodating groove 4, the clamping groove 10 is formed in the front surface of the inner wall of the accommodating groove 4, the inserting piece 12 is fixedly connected to the rear part of the sealing plate 11, and the clamping block 13 is connected to the front part of the sealing plate 11; the inserting piece 12 is matched with the blind groove 9 in a matching mode, and the clamping block 13 is connected with the clamping groove 10 in a clamping mode; the stand column 7 and the limit cover 8 form a winding structure, the number of the winding structures is four, and the four winding structures are in a rectangular array; the adjusting structure 14 comprises a shaft seat 15, an external gear 16, an internal gear disc 17, a rotating shaft 18, a notch 19 and a spring 20, wherein the shaft seat 15 is fixedly arranged at the rear position of the upper part of the base 1, the external gear 16 is fixedly arranged at the upper part of the base 1 and positioned at one side position of the shaft seat 15, the internal gear disc 17 is fixedly arranged at the bottom of the shell 2, the notch 19 is arranged on the outer surface of the shaft seat 15, the rotating shaft 18 penetrates through the shaft seat 15, and one end of the spring 20 is sleeved outside the rotating shaft 18 through a circular ring and positioned at the inner side of the notch 19; the lower surface of the shell 2 is provided with a mounting groove, and the interior of the mounting groove is connected with the other end of the spring 20 through a connecting shaft; the outer gear 16 is in meshed connection with the inner gear disc 17, and the number of the outer gear 16 and the number of the inner gear disc 17 are two; the auxiliary structure 21 comprises a sliding groove 22, an L-shaped stop block 23, a charging head 24, an alignment groove 25, a folding groove 26, a pushing strip 27 and a movable strip 28, wherein the sliding groove 22 is formed in the bottom position of the front surface of the shell 2, the Z-axis direction of the L-shaped stop block 23 is in sliding connection with the sliding groove 22, the X-axis direction of the charging head 24 is in sliding connection with the sliding groove 22, the alignment groove 25 is formed in the upper surface of the base 1, the folding groove 26 is formed in the bottom position of the rear surface of the shell 2, one end of the pushing strip 27 penetrates through the shell 2 and is fixedly connected with the charging head 24, and the movable strip 28 is rotatably connected to the other end of the pushing strip 27; the rear surface of casing 2 has seted up the interface that charges, and the interface that charges is connected with coil and charging head 24 circular telegram.
It should be noted that, when the magnetic attraction fixing multi-angle support all-in-one wireless charger is used, a base 1 is placed on a table board, then a shell 2 is held by a hand and pulled, so that the shell 2 drives an inner fluted disc 17 to be separated from an outer fluted disc 16, meanwhile, a spring 20 expands, then the shell 2 can be rotated to any direction, after the shell is rotated to a proper angle, the shell 2 is loosened, the spring 20 contracts, so that the inner fluted disc 17 is clamped with the outer toothed disc 16, the position of the shell 2 is fixed at the moment, the angle adjustment work is completed, after the adjustment is completed, a mobile phone is placed at the front part of the shell 2, the mobile phone is fixed through magnet attraction, then a power line is inserted into a charging interface at the rear part of the shell 2, so that a coil is electrified, the mobile phone is charged wirelessly, in the charging process, two L-shaped stoppers 23 can be moved to the bottom of the mobile phone through a sliding chute 22 to provide support for the mobile phone, when the mobile phone does not support wireless charging or the wireless charging function is damaged, the movable strip 28 is pulled out of the folding groove 26, the movable strip 28 and the pushing strip 27 are kept at the same horizontal line, then the pushing strip 27 is pushed by the movable strip 28, the charging head 24 is pushed out by the pushing strip 27, the charging interface of the mobile phone can be connected with the charging head 24 for wired charging after being pushed out, when the mobile phone is not used, the shell 2 is rotatably folded at the upper part of the base 1, the horizontal part of the L-shaped stop 23 is inserted into the sliding groove 22, the vertical part of the L-shaped stop 23 is overlapped into the alignment groove 25, the power line is pulled out from the charging interface, the clamping block 13 is pressed to be separated from the clamping groove 10, the sealing plate 11 can be taken down, then one plug of the power line is inserted into the inserting hole of the first socket 5, the power line is wound outside the four stand columns 7 and is limited by the limiting covers 8, the plug at the other end of the power line is inserted into the second socket 6, finally, the inserting piece 12 of the sealing plate 11 is inserted into the blind groove 9, and the clamping block 13 is clamped into the clamping groove 10 by pressing the sealing plate 11.
According to the invention, the adjusting structure 14 is arranged, the shell 2 is held by hand and pulled, so that the shell 2 drives the inner fluted disc 17 to be separated from the outer gear 16, meanwhile, the spring 20 expands, then the shell 2 can be rotated to any direction, after the shell 2 is rotated to a proper angle, the shell 2 is loosened, the spring 20 contracts, so that the inner fluted disc 17 is clamped with the outer gear 16, at the moment, the position of the shell 2 is fixed, the angle adjusting work is completed, the angle adjusting function is realized, the mobile phone can be conveniently placed at a proper angle in the process of charging the mobile phone, the mobile phone can be conveniently used by people in the charging process, the service performance is improved, and the folding function is realized, so that the carrying is more convenient; by arranging the auxiliary structure 21, in the charging process, the two L-shaped stoppers 23 can be moved to the bottom of the mobile phone through the sliding groove 22 to support the mobile phone, the movable strip 28 is pulled out of the folding groove 26, the movable strip 28 and the push strip 27 are kept at the same horizontal line, then the push strip 27 is pushed through the movable strip 28, the push strip 27 pushes out the charging connector 24, and after the push strip is pushed out, the charging interface of the mobile phone can be connected with the charging connector 24 for wired charging; accomodate structure 3 through setting up, press fixture block 13, make it break away from draw-in groove 10, can take off shrouding 11, then insert in the jack of first socket 5 with a plug of power cord, the power cord winding is in the outside of four stands 7, it is spacing through spacing lid 8, the plug of the power cord other end inserts second socket 6, finally insert the inside of blind groove 9 with inserted sheet 12 of shrouding 11, press shrouding 11 with fixture block 13 card income draw-in groove 10 in, can conveniently accomodate the power cord, when carrying, need not to carry the power cord in addition, possess portable's efficiency, do benefit to the use more.
The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (10)
1. The utility model provides a fixed multi-angle support of magnetism unifies wireless charger more which characterized in that: including base (1) and casing (2), the bottom of base (1) is equipped with accomodates structure (3), be equipped with between base (1) and casing (2) and adjust structure (14), the anterior bottom position of casing (2) is equipped with auxiliary structure (21), the inside of casing (2) is equipped with coil and magnet.
2. The magnetic attraction fixed multi-angle bracket all-in-one wireless charger of claim 1, characterized in that: the accommodating structure (3) comprises an accommodating groove (4), a first socket (5), a second socket (6), a stand column (7), a limiting cover (8), a blind groove (9), a clamping groove (10), a sealing plate (11), an inserting piece (12) and a clamping block (13), the accommodating groove (4) is arranged on the lower surface of the base (1), the first socket (5) and the second socket (6) are respectively and fixedly arranged at the diagonal positions of the inner side corner of the accommodating groove (4), the upright post (7) is fixedly arranged at the top of the inner side of the accommodating groove (4), the limit cover (8) is fixedly arranged at one end of the upright post (7), the blind groove (9) is arranged on the rear surface of the inner wall of the accommodating groove (4), draw-in groove (10) are seted up at the inner wall front surface of accomodating groove (4), inserted sheet (12) fixed connection is at the rear portion of shrouding (11), the front portion at shrouding (11) is connected in fixture block (13).
3. The magnetic attraction fixed multi-angle bracket all-in-one wireless charger of claim 2, which is characterized in that: the inserting pieces (12) are matched with the blind grooves (9), and the clamping blocks (13) are connected with the clamping grooves (10) in a clamping mode.
4. The magnetic attraction fixed multi-angle bracket all-in-one wireless charger of claim 2, which is characterized in that: the upright posts (7) and the limiting covers (8) form winding structures, the number of the winding structures is four, and the four winding structures are in rectangular arrays.
5. The magnetic attraction fixed multi-angle bracket all-in-one wireless charger of claim 1, characterized in that: adjusting structure (14) is including axle bed (15), external gear (16), internal tooth dish (17), pivot (18), scarce groove (19) and spring (20), axle bed (15) fixed mounting is in the upper portion rear portion position of base (1), external gear (16) fixed mounting is located one side position of axle bed (15) on the upper portion of base (1), internal tooth dish (17) fixed mounting is in the bottom of casing (2), the surface at axle bed (15) is seted up in scarce groove (19), axle bed (15) are run through in pivot (18), the one end of spring (20) is established the outside of pivot (18) through the ring cover and is located the inboard of scarce groove (19).
6. The magnetic attraction fixed multi-angle bracket all-in-one wireless charger of claim 5, which is characterized in that: the lower surface of the shell (2) is provided with a mounting groove, and the inside of the mounting groove is connected with the other end of the spring (20) through a connecting shaft.
7. The magnetic attraction fixed multi-angle bracket all-in-one wireless charger of claim 5, which is characterized in that: the external gear (16) is in meshed connection with the internal gear disc (17), and the number of the external gear (16) and the internal gear disc (17) is two.
8. The magnetic attraction fixed multi-angle bracket all-in-one wireless charger of claim 1, characterized in that: auxiliary structure (21) including spout (22), L shape dog (23), charge head (24), counterpoint groove (25), folding groove (26), push away strip (27) and activity strip (28), the front surface bottom position at casing (2) is seted up in spout (22), L shape dog (23) Z axle direction and spout (22) sliding connection, charge head (24) X axle direction and spout (22) sliding connection, the upper surface at base (1) is seted up in counterpoint groove (25), the rear surface bottom position at casing (2) is seted up in folding groove (26), the one end that pushes away strip (27) runs through casing (2) and charges head (24) fixed connection, activity strip (28) rotate to be connected at the other end that pushes away strip (27).
9. The magnetic attraction fixed multi-angle bracket all-in-one wireless charger of claim 1, characterized in that: the rear surface of the shell (2) is provided with a charging interface, and the charging interface is electrically connected with the coil and the charging connector (24).
10. The magnetic attraction fixed multi-angle bracket all-in-one wireless charger according to any one of claims 1-9, characterized in that: the wireless charger specifically comprises the following steps when in use:
the method comprises the following steps: the base (1) is placed on the table board, then the shell (2) is held by hand and pulled, so that the shell (2) drives the inner fluted disc (17) to be separated from the outer gear (16), meanwhile, the spring (20) expands, and then the shell (2) can be rotated to any direction;
step two: after the shell (2) is rotated to a proper angle, the shell (2) is loosened, the spring (20) is contracted, the inner fluted disc (17) is clamped with the outer gear (16), and the position of the shell (2) is fixed to finish the angle adjustment work;
step three: after the adjustment is finished, the mobile phone is placed at the front part of the shell (2) and is fixed through magnet adsorption, then a power line is inserted into a charging interface at the rear part of the shell (2), so that the coil is electrified, and the mobile phone is charged wirelessly after being electrified;
step four: in the charging process, the two L-shaped stoppers (23) can be moved to the bottom of the mobile phone through the sliding groove (22) to support the mobile phone;
step five: when the mobile phone does not support wireless charging or the wireless charging function is damaged, the movable strip (28) is pulled out of the folding groove (26), the movable strip (28) and the pushing strip (27) are kept on the same horizontal line, then the pushing strip (27) is pushed through the movable strip (28), the charging head (24) is pushed out by the pushing strip (27), and after the pushing strip (27) is pushed out, the charging interface of the mobile phone can be connected with the charging head (24) for wired charging;
step six: when the folding type base is not used, the shell (2) is folded on the upper part of the base (1) in a rotating mode, the horizontal part of the L-shaped stop block (23) is inserted into the sliding groove (22), and the vertical part of the L-shaped stop block (23) is overlapped into the aligning groove (25);
step seven: extract the power cord from the interface that charges, press fixture block (13), make it break away from draw-in groove (10), can take off shrouding (11), then insert a plug of power cord in the jack of first socket (5), the power cord winding is in the outside of four stands (7), it is spacing through spacing lid (8), the plug of the power cord other end inserts second socket (6), finally insert the inside of blind groove (9) with inserted sheet (12) of shrouding (11), press shrouding (11) to block fixture block (13) card into in draw-in groove (10).
