Top hanging type wine cabinet

Technical Field

The invention relates to the technical field of refrigeration equipment, in particular to a top-hung wine cabinet.

Background

The prior wine cabinets are mostly vertical refrigeration equipment placed on the ground, and are usually placed in a kitchen or a living room. For the house, the wine cabinet will occupy a part of living space, which affects the living experience of the user. In order to solve the problem, a wall-mounted wine cabinet is available on the market, for example, in the technical scheme disclosed in chinese patent CN207270129, the wine cabinet is suspended on a side wall, and when wine needs to be taken, the whole wine cabinet is lowered to the ground through a power mechanism. This solution has the following disadvantages: the scheme can be installed only by providing a wall surface without shielding, and in a home environment, the wall surface is usually provided with a window, a closet and the like, so that the scheme is not strong in applicability when being implemented; when taking wine, the wine cabinet needs to be wholly lowered to the ground, namely a certain space still needs to be reserved on the ground, which is equivalent to the problem that the occupied space is not reduced when taking wine; in addition, the wine cabinet needs to be lowered integrally when wine is taken, and the weight is heavy.

The above information disclosed in this background section is only for enhancement of understanding of the background of the application and therefore it may comprise prior art that does not constitute known to a person of ordinary skill in the art.

Disclosure of Invention

In view of this, the invention provides a top-hung wine cabinet, which is hung on the ceiling of a room, and when wine needs to be taken, a wine rack is pulled out from the cabinet body, so that the occupied area is reduced, the space utilization rate of the room is increased, and the wine is convenient to take.

In order to realize the purpose of the invention, the invention is realized by adopting the following technical scheme:

the invention provides a top-hung wine cabinet, which comprises: the cabinet body is arranged on the ceiling of a room, and the lower end of the cabinet body is provided with an opening; the door body is arranged at the opening, the cabinet body and the door body enclose a refrigerating space, and the refrigerating space is opened or closed by the door body; the wine rack assembly is arranged in the refrigerating space in a sliding mode along the vertical direction and used for placing wine bottles; the vertical slideway component is arranged between the cabinet body and the wine rack component, so that the wine rack component can move in the vertical direction in the refrigerating space; when wine is taken, the wine rack assembly moves downwards relative to the cabinet body and is exposed out of the opening.

Further, the cabinet body includes the last cabinet body and the lower cabinet body of fixed connection, go up the cabinet body with the shed roof is connected, the internal refrigeration unit that is equipped with of last cabinet, the internal wine frame subassembly that is equipped with of lower cabinet.

Furthermore, a locking switch is arranged between the wine rack assembly and the inner top wall of the lower cabinet body, and the wine rack assembly and the lower cabinet body are locked or separated by the locking switch.

Further, the top of going up the cabinet body is equipped with a plurality of spouts, it is equipped with a plurality of fixed blocks to correspond on the shed roof, the spout with the fixed block joint, in order to incite somebody to action the cabinet body with shed roof fixed connection.

Further, go up cabinet body top be close to user's preceding side and with the left and right sides limit that preceding side is connected is equipped with respectively the spout, the fixed block with the spout corresponds the setting, installs during hanging gradevin on the top, will the cabinet body is by preceding to back push into, the spout will be by preceding to back slip in the fixed block, with the fixed block joint.

Furthermore, the vertical slideway component comprises a first vertical slideway and a second vertical slideway which are connected in a sliding manner, the first vertical slideway is fixedly connected with the wine rack component, the second vertical slideway is fixedly connected with the inner wall of the lower cabinet body, a first stop part is arranged at the upper end of the first vertical slideway, a second stop part is arranged at the lower end of the second vertical slideway, and when the wine rack component moves downwards in place relative to the cabinet body, the first stop part is abutted against the second stop part.

Further, the wine frame subassembly includes horizontal slide subassembly and a plurality of wine frame body, and is a plurality of the wine frame body sets up along vertical direction interval, the horizontal slide subassembly includes sliding connection's first horizontal slide and second horizontal slide, first horizontal slide with wine frame body fixed connection, second horizontal slide with first vertical slide fixed connection.

Further, a lower fixing plate is arranged at the lower part of the wine rack assembly, an upper fixing plate is arranged at the upper part of the wine rack assembly, the lower end of the first vertical slide way is fixedly connected with the lower fixing plate, and the upper end of the first vertical slide way is fixedly connected with the upper fixing plate.

Further, the door body is fixedly connected with the lower fixing plate.

Furthermore, a water receiving box is arranged in the door body, the water receiving box can be drawn out from the interior of the door body along the horizontal direction, a water inlet hole is formed in the side, facing the cold storage space, of the door body, and the water inlet hole is communicated with the water receiving box.

Compared with the prior art, the invention has the advantages and positive effects that:

in the top-hung wine cabinet disclosed by the invention, the cabinet body is fixedly arranged on the ceiling, the door body is arranged at the opening at the lower end of the cabinet body so as to seal or open the refrigerating space, a wine rack assembly for placing wine bottles is arranged in the refrigerating space, and the wine rack assembly can move up and down along the vertical direction under the action of the vertical slide way assembly. The top-hung wine cabinet is hung on the ceiling, so that the floor area is reduced, and the space utilization rate of a room can be increased. When getting wine, pull out wine frame subassembly downwards, the opening part can be followed to wine frame subassembly and exposed, and then be convenient for get wine. Need not all to descend whole cabinet body when getting wine, only need with wine frame subassembly decline can, the weight greatly reduced of part that needs descend then the vertical slide subassembly that is used for realizing raising and lowering functions need bear weight just less a lot, and then help reducing energy consumption, structure simpler.

Other features and advantages of the present invention will become more apparent from the following detailed description of the invention when taken in conjunction with the accompanying drawings.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

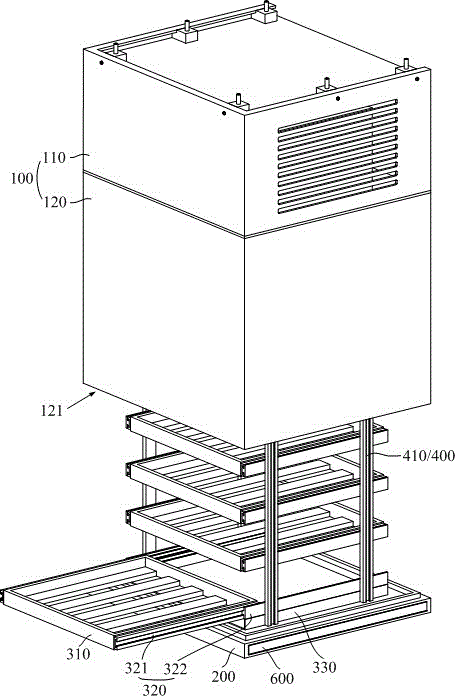

FIG. 1 is a first schematic structural diagram of a top-hung wine cabinet according to an embodiment of the present invention;

FIG. 2 is a schematic structural diagram of a top-hung wine cabinet according to an embodiment of the present invention;

FIG. 3 is a third schematic structural view of the top-hung wine cabinet of the present invention;

FIG. 4 is a schematic structural view of a portion of a top-hung wine cabinet of an embodiment of the present invention near the ceiling;

FIG. 5 is a schematic view of a vertical rack assembly of the top-hung wine cabinet embodiment of the present invention;

FIG. 6 is an exploded view of a vertical slide assembly of the top hung wine cabinet embodiment of the present invention;

FIG. 7 is a schematic view of the vertical ramp assembly shown in FIG. 6, as viewed from direction Q;

FIG. 8 is a schematic structural diagram of a locking switch according to an embodiment of the top-hung wine cabinet of the present invention.

Reference numerals:

100-cabinet body, 110-upper cabinet body, 111-chute, 112-heat dissipation hole, 120-lower cabinet body and 121-opening;

200-door body, 210-sealing strip;

300-a wine rack assembly, 310-a wine rack body, 320-a horizontal slideway assembly, 321-a first horizontal slideway, 322-a second horizontal slideway, and 330-a lower fixing plate;

400-a vertical slideway assembly, 410-a first vertical slideway, 411-a first stop portion, 420-a second vertical slideway, 421-a second stop portion;

500-locking switch, 510-press-in type lock catch, 511-lock catch body, 512-bolt;

600-a water receiving box;

700-fixing block;

800-bolt.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

It should be noted that in the description of the present invention, the terms of direction or positional relationship indicated by the terms "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. are based on the directions or positional relationships shown in the drawings, which are merely for convenience of description, and do not indicate or imply that the device or element must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

The invention discloses a top-hung wine cabinet, and the top-hung wine cabinet is shown in the figure 1 as a structural schematic diagram when the wine cabinet is closed, and the top-hung wine cabinet is shown in the figure 2 as a structural schematic diagram when the wine cabinet is opened.

The wine cabinet comprises a cabinet body 100 fixedly arranged on the ceiling of a room, and an opening 121 is arranged at the lower end of the cabinet body 100.

The door body 200 is arranged at the opening 121, the cabinet body 100 and the door body 200 enclose a refrigerating space, and the refrigerating space is closed or opened by the door body 200.

Be equipped with the wine frame subassembly 300 that is used for placing the beverage bottle in the cold-stored space, wine frame subassembly 300 can slide from top to bottom along vertical direction.

A vertical slideway component 400 is arranged between the cabinet body 100 and the wine rack component 300, and the wine rack component 300 can move up and down along the vertical direction under the action of the vertical slideway component 400.

The top-hung wine cabinet is hung on the ceiling, so that the floor area is reduced, and the space utilization rate of a room can be increased.

When wine is taken, the wine rack assembly 300 is pulled out downwards, and the wine rack assembly 300 moves downwards relative to the cabinet body 100 and is exposed from the opening 121, so that wine taking is facilitated.

Need not all to descend whole cabinet body 100 when getting wine, only need with wine frame subassembly 300 descend can, the weight greatly reduced of the part that needs to descend, then the weight that vertical slide subassembly 400 that is used for realizing raising and lowering functions need bear has just also been little a lot, and then helps reducing energy consumption, structure simpler.

As a preferred embodiment, the door body 200 is fixedly connected with the lower part of the wine rack assembly 300, and the door body 200 moves up and down along with the wine rack assembly 300.

As a preferred embodiment, the door 200 is provided with a weather strip 210 toward the refrigerating space, so as to improve the sealing performance of the door 200.

As a preferred embodiment, the cabinet 100 includes an upper cabinet 110 and a lower cabinet 120 fixedly connected to each other, the upper cabinet 110 is fixedly connected to the ceiling, a refrigeration unit (not shown) is disposed in the upper cabinet 120, and a wine rack assembly 300 is disposed in the lower cabinet 120.

The setting of refrigeration unit is the same with the refrigerating system setting among the conventional refrigeration plant, including parts such as compressor, condenser, evaporimeter, capillary, and this application is no longer repeated.

The side wall of the upper cabinet body 110 is provided with heat dissipation holes 112 for dissipating heat of the refrigeration unit and improving refrigeration efficiency.

As a preferred embodiment, a locking switch 500 is provided between the upper portion of the wine rack assembly 300 and the inner top wall of the lower cabinet 120, and the locking switch 500 is used for locking or separating the wine rack assembly 300 and the lower cabinet 120.

The lock switch 500 may be selected from a push-in type lock 510 commonly used in the art, and fig. 8 shows a simplified diagram of the push-in type lock 510, wherein the locking process of the push-in type lock 510 is performed from left to right, and the unlocking process of the push-in type lock 510 is performed from right to left. The push-in type lock catch 510 comprises a lock catch body 511 and a lock tongue 512, wherein the lock catch body 511 is fixedly connected with the upper part of the wine rack assembly 300, and the lock tongue 512 is fixedly connected with the inner fixed wall of the lower cabinet 120. Through the opening and closing of the snap-in lock 510, the wine rack assembly 300 is locked or separated from the lower cabinet 120.

As a preferred embodiment, referring to fig. 1, a plurality of sliding grooves 111 are formed at the top of the upper cabinet body 110, a plurality of fixing blocks 700 are correspondingly formed on the ceiling, and the sliding grooves 111 are engaged with the fixing blocks 700 to fixedly connect the cabinet body 100 with the ceiling.

During the installation, according to the settlement position of spout 111 earlier fixed block 700 to the shed top through bolt 800, install cabinet body 100 again, with spout 111 and fixed block 700 joint, can hoist and mount cabinet body 100 on the shed top, simple structure, be convenient for install.

Referring to fig. 4, in this embodiment, a front side (labeled as S1) of the top of the upper cabinet 110, which is close to a user, and left and right sides (labeled as S2 and S3) connected to the front side are respectively provided with a sliding slot 111, that is, the sliding slot 111 has three sections, and forms a U-shaped structure; the fixing blocks 700 are arranged corresponding to the sliding grooves 111, the fixing blocks 700 also enclose a U-shaped structure, when the wine cabinet is installed, the cabinet body 100 is pushed in from front to back, the sliding grooves 111 on the left side and the right side slide into the fixing blocks 700 on the left side and the right side from front to back, and after the sliding grooves 111 on the front side are clamped with the fixing blocks 700 on the front side, the cabinet body 100 is pushed in place at the moment. Under this situation, the top-hung wine cabinet is preferably hung on the side close to the wall, and the side wall has a limiting effect on the rear side of the cabinet body 100, so that the periphery of the cabinet body 100 is limited, and the fixing structure of the cabinet body 100 is more reliable and stable.

As a preferred embodiment, the schematic structural diagram of the vertical sliding path assembly 400 refers to fig. 5 to 7, wherein (a) in fig. 5 is a schematic structural diagram of the vertical sliding path assembly 400 when not sliding out, and (b) is a schematic structural diagram of the vertical sliding path assembly 400 after sliding out. The vertical sliding track assembly 400 includes a first vertical sliding track 410 and a second vertical sliding track 420 which are connected in a sliding manner, and referring to fig. 2 and fig. 3, the first vertical sliding track 410 is fixedly connected with both sides of the wine rack assembly 300, the second vertical sliding track 420 is fixedly connected with the inner wall of the lower cabinet 120, the upper end of the first vertical sliding track 410 is provided with a first stop portion 411, the lower end of the second vertical sliding track 420 is provided with a second stop portion 421, and when the wine rack assembly 300 moves downward relative to the cabinet 100 to a certain position, the first stop portion 411 abuts against the second stop portion 421, so that the wine rack assembly 300 is suspended at a fixed position, and wine taking is facilitated.

Referring to fig. 6, the first vertical chute 410 has a closed structure at the upper end to form a first stop 411, and an open structure at the lower end to facilitate the up-and-down sliding of the second vertical chute 420.

Referring to fig. 7, the second stop portion 421 is a protruding structure disposed at the lower end of the second vertical sliding path 420, the upper end of the second vertical sliding path 420 is an open structure, and the protruding structure abuts against the first stop portion 411 to limit the relative movement between the first vertical sliding path 410 and the second vertical sliding path 420.

As a preferred embodiment, referring to fig. 3, the wine rack assembly 300 includes a horizontal sliding assembly 320 and a plurality of wine rack bodies 310, the plurality of wine rack bodies 310 are arranged at intervals along a vertical direction, the wine rack bodies 310 are used for placing wine bottles, and the horizontal sliding assembly 320 is used for realizing the drawing movement of the wine rack bodies 310 along a horizontal direction so as to take wine.

The horizontal sliding way assembly 320 has the same structure as the vertical sliding way assembly 400, and comprises a first horizontal sliding way 321 and a second horizontal sliding way 322 which are in sliding connection, the first horizontal sliding way 321 is fixedly connected with the wine rack body 310, the second horizontal sliding way 322 is fixedly connected with the first vertical sliding way 410, and the horizontal drawing action of the wine rack body 310 is realized through the relative movement between the first horizontal sliding way 321 and the second horizontal sliding way 322.

Horizontal sliding subassembly 320 has realized the horizontal pull action of wine frame body 310 on the one hand, and on the other hand has still played the effect of fixed wine frame body 310, and multi-functional integrated is favorable to simplifying overall structure, reduce weight, is favorable to the hoist and mount of gradevin.

The horizontal sliding rail assembly 320 is also provided with a limiting part (not shown) to limit the horizontal drawing distance of the wine rack body 310 and prevent the wine rack body 310 from slipping. The arrangement of the limiting portion is the same as that of the first stop portion 411 and the second stop portion 421, and is not described herein again.

In a preferred embodiment, a lower fixing plate 330 is disposed at the lower portion of the wine rack assembly 300, an upper fixing plate (not shown) is disposed at the upper portion of the wine rack assembly 300, and the lower end of the first vertical sliding channel 410 is fixedly connected to the lower fixing plate 330, and the upper end thereof is fixedly connected to the upper fixing plate, so as to fix the vertical sliding channel assembly 400.

As a preferred embodiment, the door body 200 is fixedly connected with the lower fixing plate 330, so that the integration of the door body 300 and the wine rack assembly 300 is realized, and the door body 200 can move up and down along with the wine rack assembly 300.

As a preferred embodiment, the lock body 511 of the snap-in lock 510 is fixedly connected to the upper fixing plate, and the door 200 is pushed upward, so that the snap-in lock 510 can be locked or unlocked.

As a preferred embodiment, the interior of the door 200 is a hollow structure, the water receiving box 600 is disposed in the hollow structure, the water receiving box 600 can be horizontally drawn out from the interior of the door 200, and the door 200 is provided with a water inlet (not shown) toward the refrigerating space, and the water inlet is communicated with the water receiving box 600. The condensed water in the wine cabinet flows downwards under the action of gravity and finally flows into the water receiving box 600 through the water inlet hole, so that the water dripping phenomenon of the wine cabinet is avoided.

As a preferred embodiment, a water level sensor may be disposed in the water receiving box 600 to remind a user to pour out water in the water receiving box 600 in time when water in the box reaches a certain height.

Finally, it should be noted that: the above examples are only intended to illustrate the technical solution of the present invention, but not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it will be understood by those of ordinary skill in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; and such modifications or substitutions do not depart from the spirit and scope of the corresponding technical solutions of the embodiments of the present invention.

Claims

1. A top-hung wine cabinet, comprising:

the cabinet body is arranged on the ceiling of a room, and the lower end of the cabinet body is provided with an opening;

the door body is arranged at the opening, the cabinet body and the door body enclose a refrigerating space, and the refrigerating space is opened or closed by the door body;

the wine rack assembly is arranged in the refrigerating space in a sliding mode along the vertical direction and used for placing wine bottles;

the vertical slideway component is arranged between the cabinet body and the wine rack component, so that the wine rack component can move in the vertical direction in the refrigerating space;

when wine is taken, the wine rack assembly moves downwards relative to the cabinet body and is exposed out of the opening.

2. A top-hung wine cabinet as claimed in claim 1,

the cabinet body includes fixed connection's the upper cabinet body and the lower cabinet body, the upper cabinet body with the shed roof is connected, the internal refrigeration unit that is equipped with of upper cabinet, the internal wine frame subassembly that is equipped with of lower cabinet.

3. A top-hung wine cabinet as claimed in claim 2,

and a locking switch is arranged between the wine rack assembly and the inner top wall of the lower cabinet body, and the wine rack assembly and the lower cabinet body are locked or separated by the locking switch.

4. A top-hung wine cabinet as claimed in claim 2,

the top of going up the cabinet body is equipped with a plurality of spouts, it is equipped with a plurality of fixed blocks to correspond on the shed roof, the spout with the fixed block joint, in order to incite somebody to action the cabinet body with shed roof fixed connection.

5. A top-hung wine cabinet as claimed in claim 4,

go up cabinet body top be close to user's preceding side and with the left and right sides limit that preceding side is connected is equipped with respectively the spout, the fixed block with the spout corresponds the setting, installs during hanging gradevin on the top, will the cabinet body is by preceding to back push into, the spout will be by preceding to back slip in the fixed block, with the fixed block joint.

6. A top-hung wine cabinet as claimed in claim 1,

the vertical slide subassembly includes sliding connection's first vertical slide and the vertical slide of second, first vertical slide with wine frame subassembly fixed connection, the vertical slide of second with the inner wall fixed connection of the lower cabinet body, the upper end of first vertical slide is equipped with first stop portion, the lower extreme of the vertical slide of second is equipped with the second and ends the position portion, works as the wine frame subassembly for the cabinet body downstream targets in place the back, first stop portion with the butt of second stop portion.

7. A top-hung wine cabinet as claimed in claim 6,

the wine frame assembly comprises a horizontal slide assembly and a plurality of wine frame bodies, the wine frame bodies are arranged at intervals along the vertical direction, the horizontal slide assembly comprises a first horizontal slide and a second horizontal slide which are connected in a sliding mode, the first horizontal slide is fixedly connected with the wine frame bodies, and the second horizontal slide is fixedly connected with the first vertical slide.

8. A top-hung wine cabinet as claimed in claim 7,

the lower part of the wine rack assembly is provided with a lower fixing plate, the upper part of the wine rack assembly is provided with an upper fixing plate, the lower end of the first vertical slideway is fixedly connected with the lower fixing plate, and the upper end of the first vertical slideway is fixedly connected with the upper fixing plate.

9. A top-hung wine cabinet as claimed in claim 8,

the door body is fixedly connected with the lower fixing plate.

10. A top-hung wine cabinet as claimed in claim 1,

the refrigerator is characterized in that a water receiving box is arranged in the door body, the water receiving box can be drawn out from the interior of the door body along the horizontal direction, a water inlet hole is formed in the side, facing the refrigerating space, of the door body, and the water inlet hole is communicated with the water receiving box.
