CN113257523B - Remote anti-theft special transformer based on Internet of things - Google Patents
Remote anti-theft special transformer based on Internet of things Download PDFInfo
- Publication number
- CN113257523B CN113257523B CN202110759550.1A CN202110759550A CN113257523B CN 113257523 B CN113257523 B CN 113257523B CN 202110759550 A CN202110759550 A CN 202110759550A CN 113257523 B CN113257523 B CN 113257523B
- Authority
- CN
- China
- Prior art keywords
- rod
- sliding
- box body
- transformer
- wall
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 238000012544 monitoring process Methods 0.000 claims abstract description 26
- 238000007789 sealing Methods 0.000 claims abstract description 23
- 230000006855 networking Effects 0.000 claims abstract description 3
- 230000035939 shock Effects 0.000 claims description 16
- 238000001125 extrusion Methods 0.000 claims description 12
- 238000013016 damping Methods 0.000 claims description 4
- 238000009434 installation Methods 0.000 claims description 3
- 241000883990 Flabellum Species 0.000 claims 2
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims 1
- 239000006185 dispersion Substances 0.000 abstract description 2
- 230000000694 effects Effects 0.000 description 18
- 238000010521 absorption reaction Methods 0.000 description 8
- 238000007791 dehumidification Methods 0.000 description 5
- 230000017525 heat dissipation Effects 0.000 description 5
- 239000000428 dust Substances 0.000 description 4
- 239000012535 impurity Substances 0.000 description 4
- 238000012423 maintenance Methods 0.000 description 4
- 238000004804 winding Methods 0.000 description 4
- 230000002159 abnormal effect Effects 0.000 description 3
- 238000006243 chemical reaction Methods 0.000 description 3
- 238000005265 energy consumption Methods 0.000 description 3
- 230000009467 reduction Effects 0.000 description 3
- 230000003139 buffering effect Effects 0.000 description 2
- 230000004075 alteration Effects 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000033228 biological regulation Effects 0.000 description 1
- 230000005540 biological transmission Effects 0.000 description 1
- 238000010276 construction Methods 0.000 description 1
- 238000010586 diagram Methods 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 230000007613 environmental effect Effects 0.000 description 1
- 239000012530 fluid Substances 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 230000008569 process Effects 0.000 description 1
- 230000002035 prolonged effect Effects 0.000 description 1
- 230000001681 protective effect Effects 0.000 description 1
- 230000001568 sexual effect Effects 0.000 description 1
- 239000007787 solid Substances 0.000 description 1
- 238000006467 substitution reaction Methods 0.000 description 1
Images
Classifications
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01F—MAGNETS; INDUCTANCES; TRANSFORMERS; SELECTION OF MATERIALS FOR THEIR MAGNETIC PROPERTIES
- H01F27/00—Details of transformers or inductances, in general
- H01F27/02—Casings
-
- F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
- F16—ENGINEERING ELEMENTS AND UNITS; GENERAL MEASURES FOR PRODUCING AND MAINTAINING EFFECTIVE FUNCTIONING OF MACHINES OR INSTALLATIONS; THERMAL INSULATION IN GENERAL
- F16M—FRAMES, CASINGS OR BEDS OF ENGINES, MACHINES OR APPARATUS, NOT SPECIFIC TO ENGINES, MACHINES OR APPARATUS PROVIDED FOR ELSEWHERE; STANDS; SUPPORTS
- F16M11/00—Stands or trestles as supports for apparatus or articles placed thereon Stands for scientific apparatus such as gravitational force meters
- F16M11/02—Heads
- F16M11/04—Means for attachment of apparatus; Means allowing adjustment of the apparatus relatively to the stand
- F16M11/06—Means for attachment of apparatus; Means allowing adjustment of the apparatus relatively to the stand allowing pivoting
- F16M11/08—Means for attachment of apparatus; Means allowing adjustment of the apparatus relatively to the stand allowing pivoting around a vertical axis, e.g. panoramic heads
-
- G—PHYSICS
- G16—INFORMATION AND COMMUNICATION TECHNOLOGY [ICT] SPECIALLY ADAPTED FOR SPECIFIC APPLICATION FIELDS
- G16Y—INFORMATION AND COMMUNICATION TECHNOLOGY SPECIALLY ADAPTED FOR THE INTERNET OF THINGS [IoT]
- G16Y10/00—Economic sectors
- G16Y10/35—Utilities, e.g. electricity, gas or water
-
- G—PHYSICS
- G16—INFORMATION AND COMMUNICATION TECHNOLOGY [ICT] SPECIALLY ADAPTED FOR SPECIFIC APPLICATION FIELDS
- G16Y—INFORMATION AND COMMUNICATION TECHNOLOGY SPECIALLY ADAPTED FOR THE INTERNET OF THINGS [IoT]
- G16Y40/00—IoT characterised by the purpose of the information processing
- G16Y40/10—Detection; Monitoring
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01F—MAGNETS; INDUCTANCES; TRANSFORMERS; SELECTION OF MATERIALS FOR THEIR MAGNETIC PROPERTIES
- H01F27/00—Details of transformers or inductances, in general
- H01F27/06—Mounting, supporting or suspending transformers, reactors or choke coils not being of the signal type
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01F—MAGNETS; INDUCTANCES; TRANSFORMERS; SELECTION OF MATERIALS FOR THEIR MAGNETIC PROPERTIES
- H01F27/00—Details of transformers or inductances, in general
- H01F27/08—Cooling; Ventilating
- H01F27/085—Cooling by ambient air
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01F—MAGNETS; INDUCTANCES; TRANSFORMERS; SELECTION OF MATERIALS FOR THEIR MAGNETIC PROPERTIES
- H01F27/00—Details of transformers or inductances, in general
- H01F27/33—Arrangements for noise damping
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01F—MAGNETS; INDUCTANCES; TRANSFORMERS; SELECTION OF MATERIALS FOR THEIR MAGNETIC PROPERTIES
- H01F27/00—Details of transformers or inductances, in general
- H01F27/40—Structural association with built-in electric component, e.g. fuse
- H01F27/402—Association of measuring or protective means
-
- H—ELECTRICITY
- H02—GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
- H02S—GENERATION OF ELECTRIC POWER BY CONVERSION OF INFRARED RADIATION, VISIBLE LIGHT OR ULTRAVIOLET LIGHT, e.g. USING PHOTOVOLTAIC [PV] MODULES
- H02S20/00—Supporting structures for PV modules
- H02S20/30—Supporting structures being movable or adjustable, e.g. for angle adjustment
-
- H—ELECTRICITY
- H04—ELECTRIC COMMUNICATION TECHNIQUE
- H04N—PICTORIAL COMMUNICATION, e.g. TELEVISION
- H04N23/00—Cameras or camera modules comprising electronic image sensors; Control thereof
- H04N23/50—Constructional details
-
- H—ELECTRICITY
- H04—ELECTRIC COMMUNICATION TECHNIQUE
- H04N—PICTORIAL COMMUNICATION, e.g. TELEVISION
- H04N23/00—Cameras or camera modules comprising electronic image sensors; Control thereof
- H04N23/60—Control of cameras or camera modules
- H04N23/695—Control of camera direction for changing a field of view, e.g. pan, tilt or based on tracking of objects
-
- H—ELECTRICITY
- H04—ELECTRIC COMMUNICATION TECHNIQUE
- H04N—PICTORIAL COMMUNICATION, e.g. TELEVISION
- H04N7/00—Television systems
- H04N7/18—Closed-circuit television [CCTV] systems, i.e. systems in which the video signal is not broadcast
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01F—MAGNETS; INDUCTANCES; TRANSFORMERS; SELECTION OF MATERIALS FOR THEIR MAGNETIC PROPERTIES
- H01F27/00—Details of transformers or inductances, in general
- H01F27/40—Structural association with built-in electric component, e.g. fuse
- H01F27/402—Association of measuring or protective means
- H01F2027/406—Temperature sensor or protection
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/50—Photovoltaic [PV] energy
Abstract
The invention belongs to the technical field of special transformers, and particularly discloses a remote anti-theft special transformer based on the Internet of things, which comprises a box body and a transformer body, wherein a sealing door is installed on the inner side of the box body, the outer wall of the sealing door is connected with a hinge shaft, a first fixing rod is installed above the box body, a sliding rod is installed on the inner side of the first fixing rod, a rain baffle is fixed at the top of the sliding rod, a clamping block is installed in the middle of the sliding rod, a first sliding block is connected to the outer wall of the sliding rod, a sliding groove is reserved on the outer side of the first sliding block, a monitoring camera is installed in the middle of the top of the box body, and a first rotating shaft is installed on the outer wall of the monitoring camera. This long-range theftproof special transformer based on thing networking, sealing performance is better, and the theftproof performance is stronger, and stability is stronger, and the easy access is maintained, and heat dispersion is better, uses the continuation stronger, and the real-time supervision transformer humiture condition of being convenient for realizes remote control heat abstractor.
Description
Technical Field
The invention relates to the technical field of special transformers, in particular to a remote anti-theft special transformer based on the Internet of things.
Background
The special transformer is a device for converting a solid voltage into another level voltage for transmission, the transformer is one of the most important devices in a power supply link in power grid construction, and as a main device for power system operation, whether the transformer operates safely and stably is important, which depends on the operation conditions of the transformer to a great extent.
In chinese patent CN201110000401.3, a high-impedance combined transformer includes three single-phase transformers and three transformer oil tanks, the three single-phase transformers are respectively placed in the three transformer oil tanks, the three single-phase transformers are combined to form a three-phase transformer, in the three-phase transformer, each phase transformer includes a low-voltage winding, a medium-voltage winding and a high-voltage winding, a reactor is further disposed in each transformer oil tank, and the low-voltage winding of each phase transformer is connected in series with the reactor in the transformer oil tank where the phase transformer is located. This transformer can satisfy the high impedance operation, but also the components of a whole that can function independently transportation, the sexual valence relative altitude, this special transformer sealing performance is relatively poor, make the dust, impurity more easily enters into the transformer inside, protective properties is relatively poor, be not convenient for carry out real time monitoring to the transformer, make transformer theftproof performance relatively poor, the security is relatively poor, the inner structure is comparatively complicated, make transformer maintenance efficiency lower, the radiating effect is relatively poor, it is relatively poor to make the transformer use continuation, energy resource consumption is great, make transformer use cost is higher, it is better to need sealing performance, be convenient for carry out real time monitoring to the surrounding environment, theftproof performance is stronger, stability is stronger, convenient to overhaul and maintain, heat dispersion is better, it is stronger to use the continuation, be convenient for real time supervision transformer humiture condition, realize remote control heat abstractor, special transformer that energy consumption is lower.
In order to solve the problems, a novel remote anti-theft special transformer based on the Internet of things is provided.
Disclosure of Invention
The invention aims to provide a remote anti-theft special transformer based on the Internet of things, and aims to solve the problems of poor sealing performance, poor protection performance, poor anti-theft performance, low overhaul efficiency, poor use continuity and high use cost of similar products in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: a remote anti-theft special transformer based on the Internet of things comprises a box body and a transformer body, wherein a sealing door is installed on the inner side of the box body, the outer wall of the sealing door is connected with a hinge shaft, a first fixing rod is installed above the box body, a sliding rod is installed on the inner side of the first fixing rod, a rain baffle is fixed at the top of the sliding rod, a clamping block is installed at the middle position of the sliding rod, a first sliding block is connected to the outer wall of the sliding rod, a sliding groove is reserved on the outer side of the first sliding block, a monitoring camera is installed at the middle position of the top of the box body, a first rotating shaft is installed on the outer wall of the monitoring camera, a second fixing rod is installed on the inner wall of the box body, a hydraulic rod is installed on the inner side of the second fixing rod, second sliding blocks are installed on two sides of the hydraulic rod, a screw nail is fixed on the outer wall of the hydraulic rod, and an extrusion plate is fixed at the bottom of the hydraulic rod, the transformer body is arranged below the extrusion plate, a shock pad is fixed at the bottom of the transformer body, a support plate is arranged below the shock pad, an outer sleeve plate is arranged on the outer wall of the support plate, a gear is arranged at the bottom of the support plate, a second rotating shaft is connected to the middle position of the gear, a temperature and humidity sensor is arranged at the middle position of the inner side of the box body, a data transmitter is arranged at the bottom of the box body, a bottom plate is arranged below the data transmitter, positioning nails are arranged on two sides of the bottom plate, an installation block is fixed at the bottom of the positioning nails, a radiator is arranged on the right side of the outer wall of the box body, fan blades are arranged on the inner side of the radiator, a third rotating shaft is arranged at the middle position of the fan blades, an air outlet pipe is connected to the outer wall of the radiator, an air outlet is reserved on the outer side of the air outlet pipe, and a rotating rod is arranged above the rain baffle, and the intermediate position of dwang installs the fourth pivot to the photovoltaic board is installed at the top of dwang, tight piece is all installed to the both sides of transformer body, press from both sides tight piece's outer wall right side and install the tight pole of clamp, and the below of the tight pole of clamp installs the sleeve, and the slide rail pole is installed to telescopic inner wall.
Preferably, the sealing door and the transformer body form a rotating structure through a hinge shaft, and the transformer body and the shock pad are tightly attached.
Preferably, the sliding rod forms a lifting structure with the sliding groove through the first sliding block, and forms a clamping structure with the first fixing rod through the clamping block.
Preferably, the monitoring camera and the box body form a rotating structure through the first rotating shaft, and the central axis of the monitoring camera coincides with the central axis of the rain baffle.
Preferably, the hydraulic rod forms a sliding structure with the second fixed rod through the second sliding block, and the hydraulic rod forms a detachable structure with the extrusion plate through the threaded nail.
Preferably, the gear and the support plate form a rotating structure through a second rotating shaft, and the support plate and the outer sleeve plate are in nested connection.
Preferably, the radiator forms a communicating structure with the air outlet through the air outlet pipe, and the radiator is tightly attached to the box body.
Preferably, the radiator is electrically connected with the data transmitter through a temperature and humidity sensor, and the temperature and humidity sensor is in threaded connection with the box body.
Preferably, dwang one end is passed through the fourth pivot and is connected with the weather shield rotation, and the other end of dwang is passed through the fifth pivot and is connected with the photovoltaic board rotation.
Preferably, the clamping block is connected with the clamping rod in a clamping mode, and the clamping rod and the sliding rail rod form a sliding structure through the sleeve.
Compared with the prior art, the invention has the beneficial effects that:
1. the remote anti-theft special transformer based on the Internet of things can realize the sealing performance of the box body through the sealing door, effectively protect the transformer body in the box body, avoid the situation that the transformer body is directly exposed outside and causes dust, impurities and the like to enter the transformer body to cause abnormal operation, simultaneously endow the transformer body with the effect of buffering and damping through the damping pad, has stronger stability, can effectively reduce the vibration generated by the operation of the transformer body, achieve the effect of damping and noise reduction, can realize the height adjustment of the rain shield plate through adjusting the vertical position of the sliding rod, can flexibly adjust the height according to the specific weather condition, avoid rainwater from invading into the box body, further better shade the box body from the sun and rain, ensure the safe operation of the transformer body, and simultaneously when the height adjustment is carried out, the clamping block can effectively provide the supporting function for the sliding rod, the sliding rod cannot suddenly slide, the surrounding environment of the transformer body can be monitored in real time through the monitoring camera, the anti-theft performance of the transformer body is effectively improved, meanwhile, the shooting angle of the monitoring camera can be adjusted through the rotation of the first rotating shaft, the shooting record can be carried out more comprehensively, and the safety performance is better;
2. this long-range theftproof special transformer based on thing networking, through the vertical position of regulation fluid pressure pole, can realize the effect that supports the stripper plate against the transformer body, can effectively avoid the transformer body to appear the skew and lead to the condition of unexpected damage, satisfy the fixed of the transformer body of co-altitude, make the stripper plate possess quick dismantlement function through the screw thread nail simultaneously, reach the effect of quick replacement stripper plate, the rotation through the second pivot drives the gear and rotates, the gear can drive the backup pad and carry out horizontal removal immediately, the backup pad can carry out horizontal slip in the jacket plate inside, realize the effect of pushing the backup pad outwards fast, it provides convenience to the staff maintenance work;
3. the remote anti-theft special transformer based on the Internet of things can drive the fan blades to rotate ceaselessly through the rotation of the third rotating shaft, can increase the air circulation near the transformer body, dispel the heat generated by the operation of the transformer body, can effectively avoid the situation that the transformer body cannot normally operate due to too high temperature, greatly improves the use continuity of the transformer body, can monitor the temperature and the humidity in the box body in real time through the temperature and humidity sensor, can transmit the specific temperature and humidity situation to the command center by using the data transmitter when the temperature is too high, can timely take emergency measures, realizes remote heat dissipation and dehumidification operation on the box body, effectively prolongs the service life of the transformer body, improves the working efficiency of heat dissipation and dehumidification, and can flexibly adjust the inclination angle of the photovoltaic panel through the rotation of the rotating rod, can adjust the photic angle according to specific sunshine condition, realize absorbing light energy better, reach higher energy conversion rate, for surveillance camera head, the radiator etc. provides the electric power energy and supports, energy resource consumption is lower, environmental protection more, the mode of block makes the clamp block possess the effect of quick dismantlement, can effectively improve clamping device's use continuation, simultaneously through adjusting sleeve's horizontal position, can realize carrying out the centre gripping fixedly to the transformer body of different width specifications, improve clamping device's application scope.
Drawings

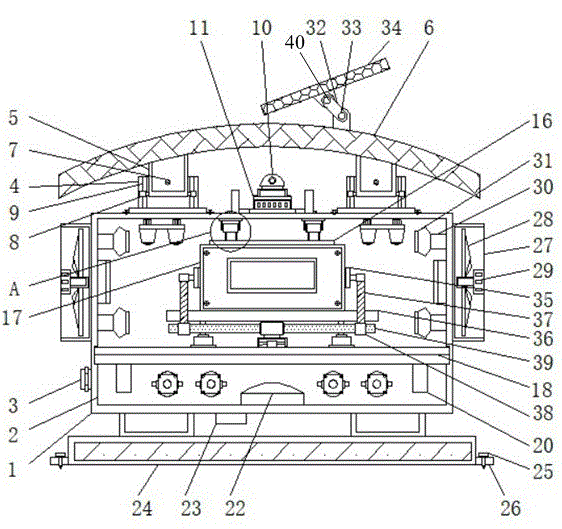

FIG. 1 is a schematic front sectional view of the present invention;
FIG. 2 is a side view of a cross-sectional structure of the support plate of the present invention;
FIG. 3 is an enlarged view of the structure at A in FIG. 1 according to the present invention;
FIG. 4 is a schematic cross-sectional front view of the first rotating shaft of the present invention;
FIG. 5 is a side view of the heat sink of the present invention;
FIG. 6 is a schematic diagram of a side view of a transformer body according to the present invention;
FIG. 7 is a schematic side view of a photovoltaic panel according to the present invention;
FIG. 8 is a schematic view of a front view of the case of the present invention.
In the figure: 1. a box body; 2. a sealing door; 3. a hinge shaft; 4. a first fixing lever; 5. a slide bar; 6. a rain shield; 7. a clamping block; 8. a first slider; 9. a chute; 10. a surveillance camera; 11. a first rotating shaft; 12. a second fixing bar; 13. a hydraulic lever; 14. a second slider; 15. a threaded nail; 16. a pressing plate; 17. a transformer body; 18. a support plate; 19. an outer race plate; 20. a gear; 21. a second rotating shaft; 22. a temperature and humidity sensor; 23. a data transmitter; 24. a base plate; 25. positioning nails; 26. mounting blocks; 27. a heat sink; 28. a fan blade; 29. a third rotating shaft; 30. an air outlet pipe; 31. an air outlet; 32. rotating the rod; 33. a fourth rotating shaft; 34. a photovoltaic panel; 35. a clamping block; 36. a shock pad; 37. a clamping lever; 38. a sleeve; 39. a slide rail rod 40 and a fifth rotating shaft.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-8, the present invention provides a technical solution: a remote anti-theft special transformer based on the Internet of things comprises a box body 1, a sealing door 2, a hinge shaft 3, a first fixing rod 4, a sliding rod 5, a rain baffle 6, a clamping block 7, a first sliding block 8, a sliding chute 9, a monitoring camera 10, a first rotating shaft 11, a second fixing rod 12, a hydraulic rod 13, a second sliding block 14, a threaded nail 15, an extrusion plate 16, a transformer body 17, a supporting plate 18, an outer sleeve plate 19, a gear 20, a second rotating shaft 21, a temperature and humidity sensor 22, a data transmitter 23, a bottom plate 24, a positioning nail 25, an installation block 26, a radiator 27, fan blades 28, a third rotating shaft 29, an air outlet pipe 30, an air outlet 31, a rotating rod 32, a fourth rotating shaft 33, a photovoltaic plate 34, a clamping block 35, a shock pad 36, a clamping rod 37, a sleeve 38 and a sliding rail rod 39, wherein the sealing door 2 is installed on the inner side of the box body 1, and the outer wall of the sealing door 2 is connected with the hinge shaft 3, a first fixing rod 4 is installed above the box body 1, a sliding rod 5 is installed on the inner side of the first fixing rod 4, a rain baffle 6 is fixed on the top of the sliding rod 5, a clamping block 7 is installed at the middle position of the sliding rod 5, a first sliding block 8 is connected with the outer wall of the sliding rod 5, a sliding groove 9 is reserved on the outer side of the first sliding block 8, a monitoring camera 10 is installed at the middle position of the top of the box body 1, a first rotating shaft 11 is installed on the outer wall of the monitoring camera 10, a second fixing rod 12 is installed on the inner wall of the box body 1, a hydraulic rod 13 is installed on the inner side of the second fixing rod 12, second sliding blocks 14 are installed on two sides of the hydraulic rod 13, a threaded nail 15 is fixed on the outer wall of the hydraulic rod 13, a squeezing plate 16 is fixed on the bottom of the hydraulic rod 13, a transformer body 17 is installed below the squeezing plate 16, and a shock absorption pad 36 is fixed on the bottom of the transformer body 17, a supporting plate 18 is arranged below the shock absorption pad 36, an outer sleeve plate 19 is arranged on the outer wall of the supporting plate 18, a gear 20 is arranged at the bottom of the supporting plate 18, a second rotating shaft 21 is connected to the middle position of the gear 20, a temperature and humidity sensor 22 is arranged at the middle position of the inner side of the box body 1, a data transmitter 23 is arranged at the bottom of the box body 1, a bottom plate 24 is arranged below the data transmitter 23, positioning nails 25 are arranged on two sides of the bottom plate 24, mounting blocks 26 are fixed at the bottoms of the positioning nails 25, a radiator 27 is arranged on the right side of the outer wall of the box body 1, fan blades 28 are arranged on the inner side of the radiator 27, a third rotating shaft 29 is arranged at the middle position of the fan blades 28, an air outlet pipe 30 is connected to the outer wall of the radiator 27, an air outlet 31 is reserved on the outer side of the air outlet pipe 30, a rotating rod 32 is arranged above the rain baffle 6, and a fourth rotating shaft 33 is arranged at the middle position of the rotating rod 32, and the photovoltaic board 34 is installed at the top of dwang 32, and the both sides of transformer body 17 are all installed and are pressed from both sides tight piece 35, and press from both sides tight pole 37 is installed on the outer wall right side of tight piece 35, and press from both sides the below of tight pole 37 and install sleeve 38 to the slide rail pole 39 is installed to the inner wall of sleeve 38.
Furthermore, the sealing door 2 and the transformer body 17 form a rotating structure through the hinge shaft 3, and the transformer body 17 and the shock absorption pad 36 are tightly attached, so that the sealing performance of the box body 1 can be realized through the sealing door 2, the transformer body 17 in the box body 1 is effectively protected, the situation that the transformer body 17 is directly exposed outside to cause dust, impurities and the like to enter the transformer body 17 to cause abnormal operation is avoided, meanwhile, the shock absorption effect can be given to the transformer body 17 through the shock absorption pad 36, the stability is stronger, the vibration generated by the operation of the transformer body 17 can be effectively reduced, and the shock absorption and noise reduction effects are achieved;
furthermore, the sliding rod 5 and the sliding groove 9 form a lifting structure through the first sliding block 8, and the sliding rod 5 and the first fixing rod 4 form a clamping structure through the clamping block 7, so that the height of the rain shield 6 can be adjusted by adjusting the vertical position of the sliding rod 5, the height can be flexibly adjusted according to specific weather conditions, rainwater is prevented from entering the box body 1, the box body 1 is better shielded from the sun and rain, the safe operation of the transformer body 17 is ensured, and meanwhile, when the height is adjusted, the clamping block 7 can effectively provide a supporting function for the sliding rod 5, so that the sliding rod 5 cannot suddenly slide;
furthermore, the monitoring camera 10 and the box body 1 form a rotating structure through the first rotating shaft 11, and the central axis of the monitoring camera 10 is overlapped with the central axis of the rain baffle 6, so that the arrangement can be used for monitoring the surrounding environment of the transformer body 17 in real time through the monitoring camera 10, the anti-theft performance of the transformer body 17 is effectively improved, meanwhile, the shooting angle of the monitoring camera 10 can be adjusted through the rotation of the first rotating shaft 11, the shooting record can be carried out more comprehensively, and the safety performance is better;
furthermore, the hydraulic rod 13 forms a sliding structure with the second fixing rod 12 through the second sliding block 14, and the hydraulic rod 13 forms a detachable structure with the extrusion plate 16 through the screw thread 15, so that the arrangement is realized, by adjusting the vertical position of the hydraulic rod 13, the effect of supporting the extrusion plate 16 against the transformer body 17 can be realized, the situation that the transformer body 17 is accidentally damaged due to position deviation can be effectively avoided, the fixation of the transformer bodies 17 with different heights is met, and meanwhile, the extrusion plate 16 has a quick detaching function through the screw thread 15, so that the effect of quickly replacing the extrusion plate 16 is achieved;
furthermore, the gear 20 and the support plate 18 form a rotating structure through the second rotating shaft 21, and the support plate 18 and the outer sleeve plate 19 are connected in a nested manner, so that the gear 20 is driven to rotate through the rotation of the second rotating shaft 21, the gear 20 can drive the support plate 18 to move transversely, the support plate 18 can slide transversely in the outer sleeve plate 19, the effect of rapidly pushing the support plate 18 outwards is achieved, and convenience is provided for the overhaul and maintenance work of workers;
furthermore, the radiator 27 and the air outlet 31 form a communicating structure through the air outlet pipe 30, and the radiator 27 and the box body 1 are tightly attached to each other, so that the fan blades 28 can be driven to rotate ceaselessly through the rotation of the third rotating shaft 29, the air circulation near the transformer body 17 can be increased through the air outlet 31, the heat generated by the operation of the transformer body 17 is dissipated, the condition that the transformer body 17 cannot normally operate due to too high temperature can be effectively avoided, and the use continuity of the transformer body 17 is greatly improved;
furthermore, the radiator 27 is electrically connected with the data transmitter 23 through the temperature and humidity sensor 22, and the temperature and humidity sensor 22 is in threaded connection with the box body 1, so that the temperature and humidity inside the box body 1 can be monitored in real time through the temperature and humidity sensor 22, when the temperature is too high, the specific temperature and humidity conditions are transmitted to the command center through the data transmitter 23, emergency measures can be made in time, the remote heat dissipation and dehumidification operation on the box body 1 is realized, the service life of the transformer body 17 is effectively prolonged, and the work efficiency of heat dissipation and dehumidification is improved;
furthermore, one end of the rotating rod 32 is rotatably connected with the protrusion on the rain shield 6 through the fourth rotating shaft 33, and the other end of the rotating rod 32 is rotatably connected with the protrusion on the photovoltaic panel 34 through the fifth rotating shaft 40, so that the inclination angle of the photovoltaic panel 34 can be flexibly adjusted through the rotation of the rotating rod 32, the light receiving angle can be adjusted according to specific sunshine conditions, the light energy can be better absorbed, the higher energy conversion rate is achieved, and the electric power energy support is provided for the monitoring camera 10, the radiator 27 and the like, so that the energy consumption is lower, and the environment is more protected;
furthermore, the clamping block 35 is connected with the clamping rod 37 in a clamping mode, the clamping rod 37 forms a sliding structure with the sliding rail rod 39 through the sleeve 38, the clamping block 35 has a quick disassembling effect due to the clamping mode, the using continuity of the clamping device can be effectively improved, and meanwhile, the transformer bodies 17 with different width specifications can be clamped and fixed by adjusting the transverse position of the sleeve 38, so that the application range of the clamping device is widened.
The working principle is as follows: the model of the transformer body 17 of the device is SG-5KVA, the application process of the remote anti-theft special transformer based on the Internet of things comprises the steps that firstly, a worker can flexibly adjust the height of the rain baffle 6 according to specific weather conditions, the sliding rod 5 can lift and slide in the sliding chute 9 along with the first sliding block 8 by adjusting the vertical position of the sliding rod 5, the height of the rain baffle 6 can be adjusted, rainwater is prevented from invading into the box body 1, the box body 1 can be better shaded and shielded, the safe operation of the transformer body 17 is ensured, meanwhile, when the height is adjusted, the clamping block 7 can effectively provide a supporting function for the sliding rod 5, so that the sliding rod 5 cannot suddenly slide off, then, the rotation of the rotating rod 32 can flexibly adjust the inclination angle of the photovoltaic panel 34, and the light receiving angle can be adjusted according to specific sunshine conditions, the light energy is better absorbed, the higher energy conversion rate is achieved, the electric power energy support is provided for the monitoring camera 10, the radiator 27 and the like, the energy consumption is lower, and the environment is more protected;
then, the worker can adjust the vertical position of the hydraulic rod 13, and then the hydraulic rod 13 can slide up and down in the second fixing rod 12 along with the second sliding block 14, so as to achieve the effect of pushing the extrusion plate 16 against the transformer body 17, and effectively avoid the situation that the transformer body 17 is accidentally damaged due to position deviation, the clamping block 35 is connected with the clamping rod 37 in a clamping manner, so that the clamping block 35 has the effect of quick detachment, the use continuity of the clamping device can be effectively improved, by adjusting the transverse position of the sleeve 38, the sleeve 38 can slide transversely on the outer wall of the sliding rail rod 39, so as to achieve the clamping and fixing of the transformer bodies 17 with different width specifications, improve the application range of the clamping device, and meanwhile, the shock pad 36 installed below the transformer body 17 can give the effect of buffering and shock absorption to the transformer body 17, so that the stability is stronger, the vibration generated by the operation of the transformer body 17 can be effectively reduced, the effects of shock absorption and noise reduction are achieved, then, the sealing performance of the box body 1 can be realized by a worker through closing the sealing door 2, the transformer body 17 in the box body 1 is effectively protected, the situation that dust, impurities and the like enter the transformer body 17 to cause abnormal operation is avoided because the transformer body 17 is directly exposed outside, then, the surrounding environment of the transformer body 17 can be monitored in real time through the monitoring camera 10, the anti-theft performance of the transformer body 17 is effectively improved, meanwhile, the shooting angle of the monitoring camera 10 can be adjusted through the rotation of the first rotating shaft 11, the shooting record can be carried out more comprehensively, the safety performance is better, then, the temperature and the humidity in the box body 1 can be monitored in real time through the temperature and humidity sensor 22, when the temperature is too high, the specific temperature and humidity condition is transmitted to the finger control center through the data transmitter 23, the radiator 27 is remotely controlled immediately, the fan blades 28 can be driven to rotate ceaselessly through the rotation of the third rotating shaft 29, the air circulation near the transformer body 17 can be increased, heat generated by the operation of the transformer body 17 is dissipated, the situation that the transformer body 17 cannot normally operate due to too high temperature can be effectively avoided, the use continuity of the transformer body 17 is greatly improved, the remote heat dissipation and dehumidification operation of the box body 1 is realized, then, when the transformer body 17 needs to be overhauled, the gear 20 is driven to rotate through the rotation of the second rotating shaft 21, the gear 20 can drive the supporting plate 18 to move transversely immediately, the supporting plate 18 can slide transversely inside the outer sleeve plate 19, the effect of pushing the supporting plate 18 outwards quickly is realized, and convenience is provided for the overhaul and maintenance work of workers.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (10)
1. The utility model provides a long-range theftproof special transformer based on thing networking, includes box (1) and transformer body (17), its characterized in that: the solar energy water heater is characterized in that a sealing door (2) is installed on the inner side of the box body (1), the outer wall of the sealing door (2) is connected with a hinge shaft (3), a first fixing rod (4) is installed above the box body (1), a sliding rod (5) is installed on the inner side of the first fixing rod (4), a rain baffle (6) is fixed at the top of the sliding rod (5), a clamping block (7) is installed at the middle position of the sliding rod (5), a first sliding block (8) is connected to the outer wall of the sliding rod (5), a sliding groove (9) is reserved on the outer side of the first sliding block (8), a monitoring camera (10) is installed at the middle position of the top of the box body (1), a first rotating shaft (11) is installed on the outer wall of the monitoring camera (10), a second fixing rod (12) is installed on the inner wall of the box body (1), and a hydraulic rod (13) is installed on the inner side of the second fixing rod (12), the hydraulic transformer comprises a hydraulic rod (13), two sliding blocks (14) are installed on two sides of the hydraulic rod (13), threaded nails (15) are fixed on the outer wall of the hydraulic rod (13), an extrusion plate (16) is fixed at the bottom of the hydraulic rod (13), a transformer body (17) is installed below the extrusion plate (16), a shock pad (36) is fixed at the bottom of the transformer body (17), a supporting plate (18) is installed below the shock pad (36), an outer sleeve plate (19) is installed on the outer wall of the supporting plate (18), a gear (20) is installed at the bottom of the supporting plate (18), a second rotating shaft (21) is connected at the middle position of the gear (20), a temperature and humidity sensor (22) is installed at the middle position of the inner side of a box body (1), a data transmitter (23) is installed at the bottom of the box body (1), a bottom plate (24) is installed below the data transmitter (23), and the both sides of bottom plate (24) all install location nail (25) to the bottom of location nail (25) is fixed with installation piece (26), radiator (27) are installed on the outer wall right side of box (1), and the inboard of radiator (27) installs flabellum (28), and third pivot (29) are installed to the intermediate position of flabellum (28), the outer wall of radiator (27) is connected with out tuber pipe (30), and the outside of going out tuber pipe (30) is reserved has air outlet (31), dwang (32) are installed to the top of weather shield (6), and the intermediate position of dwang (32) installs fourth pivot (33), and photovoltaic board (34) are installed at the top of dwang (32), tight piece (35) are all installed to the both sides of transformer body (17), press from both sides tight pole (37) are installed on the outer wall right side of tight piece (35), a sleeve (38) is arranged below the clamping rod (37), and a slide rail rod (39) is arranged on the inner wall of the sleeve (38).
2. The remote anti-theft special transformer based on the internet of things as claimed in claim 1, wherein: the sealing door (2) and the transformer body (17) form a rotating structure through the hinge shaft (3), and the transformer body (17) is tightly attached to the damping pad (36).
3. The remote anti-theft special transformer based on the internet of things as claimed in claim 1, wherein: the sliding rod (5) and the sliding groove (9) form a lifting structure through the first sliding block (8), and the sliding rod (5) and the first fixing rod (4) form a clamping structure through the clamping block (7).
4. The remote anti-theft special transformer based on the internet of things as claimed in claim 1, wherein: the monitoring camera (10) and the box body (1) form a rotating structure through the first rotating shaft (11), and the central axis of the monitoring camera (10) is overlapped with the central axis of the rain baffle (6).
5. The remote anti-theft special transformer based on the internet of things as claimed in claim 1, wherein: the hydraulic rod (13) and the second fixing rod (12) form a sliding structure through the second sliding block (14), and the hydraulic rod (13) and the extrusion plate (16) form a detachable structure through the threaded nail (15).
6. The remote anti-theft special transformer based on the internet of things as claimed in claim 1, wherein: the gear (20) and the support plate (18) form a rotating structure through a second rotating shaft (21), and the support plate (18) and the outer sleeve plate (19) are connected in a nested mode.
7. The remote anti-theft special transformer based on the internet of things as claimed in claim 1, wherein: the radiator (27) and the air outlet (31) form a communicating structure through the air outlet pipe (30), and the radiator (27) is tightly attached to the box body (1).
8. The remote anti-theft special transformer based on the internet of things as claimed in claim 1, wherein: the radiator (27) is electrically connected with the data transmitter (23) through the temperature and humidity sensor (22), and the temperature and humidity sensor (22) is in threaded connection with the box body (1).
9. The remote anti-theft special transformer based on the internet of things as claimed in claim 1, wherein: the one end of dwang (32) is passed through fourth pivot (33) and is connected with protruding rotation on weather shield (6), the other end of dwang (32) is connected with protruding rotation on photovoltaic board (34) through fifth pivot (40).
10. The remote anti-theft special transformer based on the internet of things as claimed in claim 1, wherein: the clamping block (35) is connected with the clamping rod (37) in a clamping mode, and the clamping rod (37) and the sliding rail rod (39) form a sliding structure through the sleeve (38).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110759550.1A CN113257523B (en) | 2021-07-06 | 2021-07-06 | Remote anti-theft special transformer based on Internet of things |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110759550.1A CN113257523B (en) | 2021-07-06 | 2021-07-06 | Remote anti-theft special transformer based on Internet of things |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN113257523A CN113257523A (en) | 2021-08-13 |
| CN113257523B true CN113257523B (en) | 2021-12-28 |
Family
ID=77190702
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202110759550.1A Active CN113257523B (en) | 2021-07-06 | 2021-07-06 | Remote anti-theft special transformer based on Internet of things |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN113257523B (en) |
Families Citing this family (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113421744B (en) * | 2021-08-23 | 2021-10-29 | 南通志和电气有限公司 | Transformer radiator |
| CN115691987B (en) * | 2022-11-18 | 2024-01-16 | 连云港明昊电子有限公司 | Novel intelligent transformer remote monitoring control system |
Citations (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN112228649A (en) * | 2020-11-20 | 2021-01-15 | 安徽中兴流体装备有限责任公司 | Flange capable of being rapidly disassembled and high in sealing performance |
| CN112885570A (en) * | 2021-01-26 | 2021-06-01 | 鲁飞飞 | Anti-theft transformer based on Internet of things and remote control anti-theft method thereof |
Family Cites Families (10)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN102543406B (en) * | 2011-01-04 | 2015-07-22 | 特变电工衡阳变压器有限公司 | High-impedance combined-type transformer |
| CN107086107A (en) * | 2017-06-19 | 2017-08-22 | 长兴恒业达电子有限公司 | A kind of transformer case with vibration-damping radiating function |
| CN107422709A (en) * | 2017-07-17 | 2017-12-01 | 杨新高 | Reading intelligent agriculture working rig system |
| CN108726452A (en) * | 2018-05-26 | 2018-11-02 | 芜湖市晨曦新型建材科技有限公司 | A kind of power equipment mounting bracket with function of auto-lift |
| CN208329871U (en) * | 2018-06-21 | 2019-01-04 | 广东电网有限责任公司 | Distribution safety warning guardrail and fence assembly |
| CN109286328A (en) * | 2018-10-26 | 2019-01-29 | 江苏宏胜达电子科技有限公司 | A kind of power supply adaptor cooling stand |
| EP3675145B1 (en) * | 2018-12-27 | 2021-10-06 | ABB Power Grids Switzerland AG | Static electrical device assembly comprising heat exchanger system |
| CN110957105A (en) * | 2019-11-26 | 2020-04-03 | 安徽中变变压器有限公司 | Protective device for transformer |
| CN212380258U (en) * | 2020-06-09 | 2021-01-19 | 江山海维科技有限公司 | On-load low-loss power transformer |
| CN112802673A (en) * | 2020-12-31 | 2021-05-14 | 南京敦韬建筑工程有限公司 | Temperature monitoring and early warning system for transformer |
-
2021
- 2021-07-06 CN CN202110759550.1A patent/CN113257523B/en active Active
Patent Citations (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN112228649A (en) * | 2020-11-20 | 2021-01-15 | 安徽中兴流体装备有限责任公司 | Flange capable of being rapidly disassembled and high in sealing performance |
| CN112885570A (en) * | 2021-01-26 | 2021-06-01 | 鲁飞飞 | Anti-theft transformer based on Internet of things and remote control anti-theft method thereof |
Also Published As
| Publication number | Publication date |
|---|---|
| CN113257523A (en) | 2021-08-13 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN113257523B (en) | Remote anti-theft special transformer based on Internet of things | |
| CN203083163U (en) | Manual and automatic system of solar photo-thermal energy-saving balcony | |
| CN214506259U (en) | Power management equipment with real-time monitoring function | |
| CN212435786U (en) | Monitoring device for engineering supervision | |
| CN210626593U (en) | Transient state record teletransmission fault indicator collects unit | |
| CN210630156U (en) | Security protection device based on thing networking | |
| CN112736728A (en) | Outdoor electric cabinet driven by solar energy and wind energy to dissipate heat and working method | |
| CN220205150U (en) | Video monitoring device of transformer substation | |
| CN210608256U (en) | Combined shielding cover for replacing disconnecting link in power distribution network emergency maintenance | |
| CN219019253U (en) | Prevent wind corrosion-resistant outdoor monitoring facilities protection device | |
| CN214789994U (en) | Monitoring device for construction management | |
| CN209571875U (en) | A kind of 4G power communications device | |
| CN220817087U (en) | Security protection engineering is with control frame | |
| CN217443602U (en) | Heat abstractor based on indoor optical cable distributing box of high-speed detachable | |
| CN218473125U (en) | Photovoltaic power plant subassembly monitoring facilities | |
| CN214588313U (en) | Totally enclosed oil-immersed transformer with protective structure | |
| CN213213681U (en) | Energy-saving warehouse safety monitoring device | |
| CN214580039U (en) | Online video monitoring device of transmission line | |
| CN213485292U (en) | 5GBBU outdoor cabinet based on Internet of things | |
| CN215818947U (en) | Outdoor protective box for electronic equipment | |
| CN212849340U (en) | Device for preventing high-voltage board from rain | |
| CN214756139U (en) | Photovoltaic power generation station resistance to compression protective structure | |
| CN214673552U (en) | Cubical switchboard convenient to heat dissipation | |
| CN218954448U (en) | Remote monitoring device for engineering management | |
| CN219473139U (en) | Side station supervision centralized control tower of construction site |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
