CN113228552B - Beam measurement method, device, communication equipment and storage medium - Google Patents

Abstract

An embodiment of the present disclosure provides a beam measurement method, wherein the method is performed by a base station, and the method includes: issuing downlink control information DCI; wherein, the DCI is at least used for: triggering a terminal in a terminal group based on aperiodic channel state information The reference signal AP-CSI-RS performs beam measurement; the terminal group includes: at least one terminal that is configured to use the same periodic CSI-RS to perform beam measurement and does not receive the periodic CSI-RS.

Description

Method, device, communication device and storage medium for beam measurement

technical field

The present disclosure relates to the technical field of wireless communication but is not limited to the technical field of wireless communication, and in particular relates to a beam measurement method, device, communication device and storage medium.

Background technique

To perform wireless communication on an unlicensed spectrum, a channel access mechanism of Listen before Talk (LBT) needs to be adopted. Before sending information, it is necessary to perform channel detection through LBT, and only after confirming that the channel is idle can the information be sent. When the LBT detection fails, periodic channel state information reference signals (CSI-RS, Channel-state-information reference signals) for beam management may not be sent, and thus the beam measurement result cannot be updated in time. At this time, beam measurement based on an aperiodic channel state information reference signal (AP-CSI-RS, AperiodicCSI-RS) may be triggered for compensation.

In related technologies, when AP-CSI-RS-based beam measurement is triggered, a large amount of time-frequency domain resources will be occupied, resulting in a waste of time-frequency domain resources.

Contents of the invention

The embodiment of the present disclosure discloses a beam measurement method, device, communication device and storage medium.

According to a first aspect of an embodiment of the present disclosure, a beam measurement method is provided, wherein the method is performed by a base station, and the method includes:

Send downlink control information DCI;

Wherein, the DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on the aperiodic channel state information reference signal AP-CSI-RS; the terminal group includes: configured to use the same periodic CSI-RS At least one terminal that performs beam measurement and does not receive the periodic CSI-RS.

In one embodiment, the sending downlink control information DCI includes:

sending the DCI in response to the measurement interval being greater than or equal to the sending period of the AP-CSI-RS;

Wherein, the measurement interval is the time interval between the time when the LBT detection is successful and the time of the previous beam measurement.

In an embodiment, the DCI includes: a CSI request field; wherein, the CSI request field indicates: a reporting method for terminals in the terminal group to report the measurement results of the beam measurement; wherein, the reporting ways, including:

A first reporting manner, instructing the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of each AP-CSI-RS set;

The second reporting method is to instruct the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of multiple AP-CSI-RS sets; where each AP-CSI-RS includes multiple APs -CSI-RS.

In one embodiment,

In response to determining to instruct terminals in the terminal group to report the measurement results in the first reporting manner, the CSI request field indicates a first value;

and / or,

In response to determining to instruct terminals in the terminal group to report the measurement result in the second reporting manner, the CSI request field indicates a second value.

In one embodiment, the method further includes:

In response to determining to instruct terminals in the terminal group to report the measurement results in the first reporting manner, configure different AP-CSI-RS sets used by the terminal to associate different CSI report configuration parameters;

and / or,

In response to determining that the terminals in the terminal group are instructed to report the measurement results using the second reporting method, configuring different AP-CSI-RS sets used by the terminals to associate the same CSI report configuration parameters; wherein the first reporting method , instructing the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of each AP-CSI-RS set; the second reporting method instructs the terminals in the terminal group to report from The measurement results satisfying the predetermined condition are determined from the measurement results of multiple AP-CSI-RS sets; wherein, each AP-CSI-RS includes multiple AP-CSI-RSs.

In an embodiment, in response to the terminal reporting the measurement result of the beam measurement through the physical uplink shared channel PUSCH, the DCI includes: a resource indication field; wherein, the resource indication field indicates: the terminal group The time-domain resource and/or frequency-domain resource information of the PUSCH used by the internal terminal to report the measurement result.

In one embodiment, the method further includes:

In response to the terminal reporting the measurement result of the beam measurement through the physical uplink control channel PUCCH, using a radio resource control RRC message to send the time domain resources of the PUCCH used by the terminals in the terminal group to report the measurement result and/or Or frequency domain resource information.

In one embodiment, the DCI includes: a state field; wherein the state field indicates an aperiodic trigger state; wherein each of the aperiodic trigger states is associated with at least one AP-CSI-RS set; The number of AP-CSI-RSs included in each AP-CSI-RS set is less than a number threshold; the number threshold is greater than a predetermined value.

In one embodiment, the method further includes:

Utilize the Radio Resource Control RRC message to send the aperiodic channel state information radio network temporary identifier AP-CSI-RNTI ;

Wherein, the AP-CSI-RNTI of terminals configured to perform beam measurement by using the same periodic CSI-RS is the same.

According to a second aspect of an embodiment of the present disclosure, a beam measurement method is provided, wherein the method is executed by a terminal, and the method includes:

Receive DCI;

Wherein, the DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on AP-CSI-RS; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement and not receive At least one terminal of the periodic CSI-RS.

In one embodiment, the method further includes:

In response to receiving the DCI, performing beam measurements based on the AP-CSI-RS.

In an embodiment, the DCI includes: a CSI request field; wherein, the CSI request field indicates: a reporting method for terminals in the terminal group to report the measurement results of the beam measurement; wherein, the reporting ways, including:

A first reporting manner, instructing the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of each AP-CSI-RS set;

The second reporting method is to instruct the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of multiple AP-CSI-RS sets; where each AP-CSI-RS includes multiple APs -CSI-RS.

In one embodiment, the method further includes:

In response to the CSI request field indicating a first value, report the measurement result in the first reporting manner;

and / or,

In response to the CSI request field indicating a second value, report the measurement result in the second reporting manner.

In one embodiment, the method further includes:

In response to different AP-CSI-RS sets used by the terminal being associated with different CSI report configuration parameters, report the measurement result in a first reporting manner;

and / or,

In response to the fact that different aperiodic CSI-RS sets used by the terminal are associated with the same CSI report configuration parameter, the measurement result is reported in a second reporting manner; wherein, the first reporting manner indicates that the terminals in the terminal group Report the measurement results that meet the predetermined conditions determined from the measurement results of each AP-CSI-RS set; the second reporting method instructs the terminals in the terminal group to report the results from multiple AP-CSI-RS sets The measurement results determined from the measurement results satisfy the predetermined condition; wherein, each AP-CSI-RS includes multiple AP-CSI-RSs.

In one embodiment, the DCI includes: a resource indication field; wherein, the resource indication field indicates: time domain resources and/or frequency domain resource information; wherein, the time domain resources and/or frequency domain resources The information is the time domain resource and/or frequency domain resource information of the PUSCH used by the terminals in the terminal group to report the measurement result.

In one embodiment, the method further includes:

Report the measurement result of the beam measurement on the PUSCH based on the time domain resource and/or frequency domain resource information.

In one embodiment, the method further includes:

receiving information on time domain resources and/or frequency domain resources sent by using an RRC message;

Wherein, the information of the time domain resources and/or frequency domain resources is the information of the time domain resources and/or frequency domain resources of the PUCCH used by the terminals in the terminal group to report the measurement results.

In one embodiment, the method further includes:

Report the measurement result of the beam measurement on the PUCCH based on the time domain resource and/or frequency domain resource information.

In one embodiment, the DCI includes: a state field; wherein, the state field indicates an aperiodic trigger state; wherein, each of the aperiodic trigger states is associated with at least one AP-CSI-RS set; each The number of AP-CSI-RSs included in the AP-CSI-RS set is less than a number threshold; the number threshold is greater than a predetermined value.

In one embodiment, the method further includes:

Receive an RRC message carrying AP-CSI-RNTI;

Wherein, the AP-CSI-RNTI of terminals configured to perform beam measurement by using the same periodic CSI-RS is the same.

According to a third aspect of the embodiments of the present disclosure, there is provided a beam measurement device, which is applied to a base station, and the device includes a delivery module, wherein,

The issuing module is configured to issue DCI;

Wherein, the DCI is at least used to: trigger the AP-CSI-RS of terminals in the terminal group to perform beam measurement; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement and not receive the at least one terminal of the periodic CSI-RS.

According to a fourth aspect of an embodiment of the present disclosure, there is provided a beam measurement device, which is applied to a terminal, and the device includes a receiving module; wherein,

The receiving module is configured to receive DCI;

Wherein, the DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on AP-CSI-RS; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement and not receive At least one terminal of the periodic CSI-RS.

According to a fifth aspect of the embodiments of the present disclosure, a communication device is provided, and the communication device includes:

processor;

memory for storing said processor-executable instructions;

Wherein, the processor is configured to implement the method described in any embodiment of the present disclosure when running the executable instruction.

According to a sixth aspect of the embodiments of the present disclosure, a computer storage medium is provided, the computer storage medium stores a computer executable program, and when the executable program is executed by a processor, the method described in any embodiment of the present disclosure is implemented.

In an embodiment of the present disclosure, downlink control information DCI is delivered; wherein, the DCI is at least used to: trigger terminals in the terminal group to perform beam measurement based on AP-CSI-RS; the terminal group includes: configured to use The same periodic CSI-RS performs beam measurement and at least one terminal that does not receive the periodic CSI-RS. Here, the DCI can trigger the terminals in the terminal group to perform beam measurement based on the AP-CSI-RS, that is, the DCI can trigger all the terminals in the terminal group to perform beam measurement based on the AP-CSI-RS at one time. The DCI can only trigger a single terminal to perform beam measurement based on the AP-CSI-RS, which can save time-frequency domain resources for sending the DCI.

Description of drawings

Fig. 1 is a schematic structural diagram of a wireless communication system according to an exemplary embodiment.

Fig. 2 is a schematic diagram showing beam measurement according to an exemplary embodiment.

Fig. 3 is a schematic diagram of beam measurement according to an exemplary embodiment.

Fig. 4 is a schematic diagram of beam measurement according to an exemplary embodiment.

Fig. 5 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 6 is a schematic diagram of beam measurement according to an exemplary embodiment.

Fig. 7 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 8 is a schematic diagram showing measurement result reporting according to an exemplary embodiment.

Fig. 9 is a schematic diagram of reporting measurement results according to an exemplary embodiment.

Fig. 10 is a schematic diagram showing measurement result reporting according to an exemplary embodiment.

Fig. 11 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 12 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 13 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 14 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 15 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 16 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 17 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 18 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 19 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 20 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 21 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 22 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 23 is a schematic flowchart of a beam measurement method according to an exemplary embodiment.

Fig. 24 is a schematic diagram of a device according to an exemplary embodiment.

Fig. 25 is a schematic diagram of a device according to an exemplary embodiment.

Fig. 26 is a schematic structural diagram of a terminal according to an exemplary embodiment.

Fig. 27 is a block diagram of a base station according to an exemplary embodiment.

Detailed ways

Reference will now be made in detail to the exemplary embodiments, examples of which are illustrated in the accompanying drawings. When the following description refers to the accompanying drawings, the same numerals in different drawings refer to the same or similar elements unless otherwise indicated. The implementations described in the following exemplary embodiments do not represent all implementations consistent with the embodiments of the present disclosure. Rather, they are merely examples of apparatuses and methods consistent with aspects of the disclosed embodiments as recited in the appended claims.

Terms used in the embodiments of the present disclosure are for the purpose of describing specific embodiments only, and are not intended to limit the embodiments of the present disclosure. As used in the examples of this disclosure and the appended claims, the singular forms "a" and "the" are also intended to include the plural unless the context clearly dictates otherwise. It should also be understood that the term "and/or" as used herein refers to and includes any and all possible combinations of one or more of the associated listed items.

It should be understood that although the embodiments of the present disclosure may use the terms first, second, third, etc. to describe various information, the information should not be limited to these terms. These terms are only used to distinguish information of the same type from one another. For example, without departing from the scope of the embodiments of the present disclosure, first information may also be called second information, and similarly, second information may also be called first information. Depending on the context, the word "if" as used herein may be interpreted as "at" or "when" or "in response to a determination."

For the purpose of brevity and ease of understanding, the term "greater than" or "less than" is used herein when characterizing a size relationship. However, those skilled in the art can understand that the term "greater than" also covers the meaning of "greater than or equal to", and "less than" also covers the meaning of "less than or equal to".

Please refer to FIG. 1 , which shows a schematic structural diagram of a wireless communication system provided by an embodiment of the present disclosure. As shown in FIG. 1 , the wireless communication system is a communication system based on mobile communication technology, and the wireless communication system may include: several user equipments 110 and several base stations 120 .

Wherein, the user equipment 110 may be a device that provides voice and/or data connectivity to the user. The user equipment 110 can communicate with one or more core networks via a radio access network (Radio Access Network, RAN), and the user equipment 110 can be an Internet of Things user equipment, such as a sensor device, a mobile phone, and a computer with an Internet of Things user equipment , for example, may be a fixed, portable, pocket, hand-held, computer built-in, or vehicle-mounted device. For example, Station (Station, STA), subscriber unit (subscriber unit), subscriber station (subscriber station), mobile station (mobile station), mobile station (mobile), remote station (remote station), access point, remote user equipment (remote terminal), access user equipment (access terminal), user device (user terminal), user agent (user agent), user equipment (user device), or user equipment (user equipment). Alternatively, the user equipment 110 may also be equipment of an unmanned aerial vehicle. Alternatively, the user equipment 110 may also be a vehicle-mounted device, for example, a trip computer with a wireless communication function, or a wireless user device connected externally to the trip computer. Alternatively, the user equipment 110 may also be a roadside device, for example, may be a street lamp, a signal lamp, or other roadside devices with a wireless communication function.

The base station 120 may be a network side device in a wireless communication system. Wherein, the wireless communication system may be a fourth generation mobile communication technology (the 4th generation mobile communication, 4G) system, also known as a long term evolution (Long Term Evolution, LTE) system; or, the wireless communication system may also be a 5G system, Also known as new air interface system or 5G NR system. Alternatively, the wireless communication system may also be a next-generation system of the 5G system. Among them, the access network in the 5G system may be called NG-RAN (New Generation-Radio Access Network, New Generation Radio Access Network).

Wherein, the base station 120 may be an evolved base station (eNB) adopted in a 4G system. Alternatively, the base station 120 may also be a base station (gNB) adopting a centralized distributed architecture in the 5G system. When the base station 120 adopts a centralized distributed architecture, it generally includes a central unit (central unit, CU) and at least two distributed units (distributed unit, DU). The centralized unit is provided with a packet data convergence protocol (Packet Data Convergence Protocol, PDCP) layer, a radio link layer control protocol (Radio Link Control, RLC) layer, a media access control (Media Access Control, MAC) layer protocol stack; A physical (Physical, PHY) layer protocol stack is set in the unit, and the embodiment of the present disclosure does not limit the specific implementation manner of the base station 120 .

A wireless connection may be established between the base station 120 and the user equipment 110 through a wireless air interface. In different embodiments, the wireless air interface is a wireless air interface based on the fourth-generation mobile communication network technology (4G) standard; or, the wireless air interface is a wireless air interface based on the fifth-generation mobile communication network technology (5G) standard, such as The wireless air interface is a new air interface; alternatively, the wireless air interface may also be a wireless air interface based on a technical standard of a next-generation mobile communication network based on 5G.

In some embodiments, an E2E (End to End, end-to-end) connection may also be established between user equipments 110 . For example, V2V (vehicle to vehicle, vehicle-to-vehicle) communication, V2I (vehicle to Infrastructure, vehicle-to-roadside equipment) communication and V2P (vehicle topedestrian, vehicle-to-person) communication in vehicle to everything (V2X) communication, etc. Scenes.

Here, the above user equipment may be regarded as the terminal equipment in the following embodiments.

In some embodiments, the foregoing wireless communication system may further include a network management device 130 .

Several base stations 120 are connected to the network management device 130 respectively. Wherein, the network management device 130 may be a core network device in a wireless communication system, for example, the network management device 130 may be a mobility management entity (Mobility Management Entity, MME). Alternatively, the network management device may also be other core network devices, such as a serving gateway (Serving GateWay, SGW), a public data network gateway (Public Data Network GateWay, PGW), a policy and charging rule functional unit (Policy and Charging Rules Function, PCRF) or Home Subscriber Server (Home Subscriber Server, HSS), etc. The implementation form of the network management device 130 is not limited in this embodiment of the present disclosure.

In order to facilitate the understanding of those skilled in the art, the embodiments of the present disclosure list a plurality of implementation manners to clearly illustrate the technical solutions of the embodiments of the present disclosure. Of course, those skilled in the art can understand that the multiple embodiments provided by the embodiments of the present disclosure can be executed independently, or combined with the methods of other embodiments in the embodiments of the present disclosure, and can also be executed alone or in combination It is then executed together with some methods in other related technologies; this is not limited in the embodiment of the present disclosure.

In order to better understand the technical solution described in any embodiment of the present disclosure, first, the AP-CSI-RS application scenario in the related art is described:

Please refer to FIG. 2 , when the LBT detection is successful, the terminal will detect the periodic CSI-RS to obtain the periodic CSI-RS detection result, so that the beam measurement result can be updated based on the periodic CSI-RS.

Referring to Fig. 3, when the LBT detection fails, the periodic CSI-RS used for beam management cannot be sent. At this time, since the terminal cannot detect the periodic CSI-RS, it cannot obtain the CSI-RS detection result, thus failing to update the beam measurement result. Due to the mobility of the terminal, the quality of the channel deteriorates, which may eventually lead to a large loss in the throughput of the terminal.

In one embodiment, when the periodic CSI-RS cannot be sent, beam measurement based on AP-CSI-RS may be triggered through DCI.

In one embodiment, the AP-CSI-RS-based beam measurement and the reporting scheme of the measurement results have restrictions on the number of beams. For example, only one AP-CSI-RS set can be triggered for beam measurement at a time, and each AP-CSI-RS set can only be associated with 64 beams at most. For 52.6 to 71 GHz, the number of corresponding beams is likely to be more than 64, which cannot meet the requirement at this time.

In one embodiment, AP-CSI-RS-based beam measurement and reporting cannot be triggered in a group-based manner, but only AP-CSI-RS-based beam measurement and reporting of a single terminal can be triggered. In this way, the triggering of the DCI needs to occupy a lot of time-frequency domain resources.

In an embodiment, referring to FIG. 4 , beam measurement is performed on terminals using the same periodic CSI-RS, for example, UE1 and UE2 in Group1, and UE3 and UE4 in Group2. For UE1 and UE2 in Group1, periodic CSI-RS cannot be sent due to LBT detection failure, and neither UE1 nor UE2 can perform beam measurement. In this case, an AP-CSI-RS-based beam measurement needs to be triggered at position A for UE1 and UE2 to obtain the latest beam measurement results. At this point, it can be considered to trigger together in a group to save resources.

In one embodiment, beam measurement and reporting based on AP-CSI-RS is triggered through DCI format 0_1 or DCI format0_2. At the same time, the DCI also schedules physical uplink shared channel (PUSCH, Physical Uplink Control Channel) resources for reporting measurement results. There is a CSI request information field in DCI format 0_1 and DCI format 0_2, and each value indicated by the information field corresponds to an aperiodic trigger state. Wherein, one aperiodic triggering state configures one or more AP-CSI-RS sets, and reports configuration corresponding to each reference signal set. In an embodiment, after receiving DCI format 0_1 or DCI format 0_2 including the CSI request information field, the terminal performs beam measurement, and reports the measurement result on the PUSCH scheduled by DCI format 0_1 or DCI format 0_2 according to the reporting configuration.

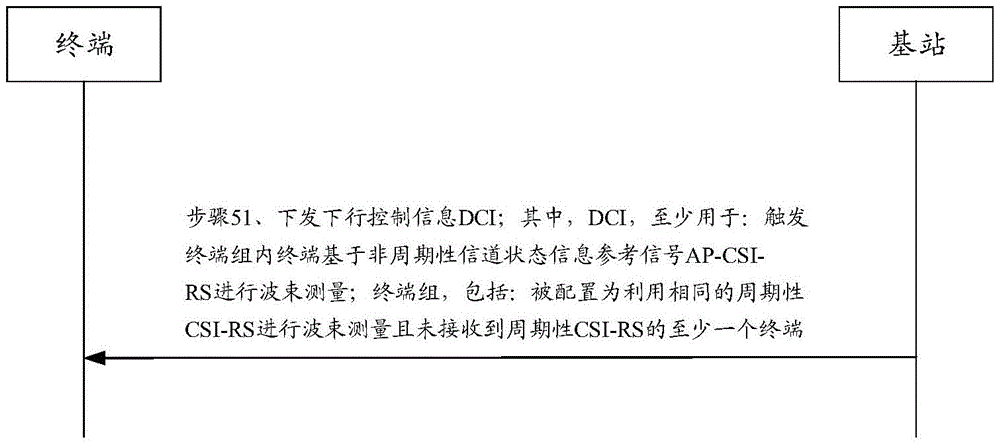

As shown in FIG. 5, a beam measurement method is provided in this embodiment, wherein the method is performed by a base station, and the method includes:

Step 51, issuing downlink control information DCI;

Among them, the DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on the aperiodic channel state information reference signal AP-CSI-RS; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement And at least one terminal that has not received the periodic CSI-RS.

Here, the terminal may be, but not limited to, a mobile phone, a wearable device, a vehicle-mounted terminal, a roadside unit (RSU, RoadSide Unit), a smart home terminal, an industrial sensor device, and/or a medical device. In one embodiment, the terminal may be a Redcap terminal.

Here, the base station may be an access device for the terminal to access the network. Here, the base station may be various types of base stations, for example, a base station of a third-generation mobile communication (3G) network, a base station of a fourth-generation mobile communication (4G) network, a base station of a fifth-generation mobile communication (5G) network, or other Evolved base station.

Here, the base station may deliver DCI to the terminal. Here, the DCI can be DCI format 0_1 or DCI format 0_2.

In one embodiment, DCI is delivered in response to the need for the terminal to perform beam measurement based on the AP-CSI-RS.

In an embodiment, the base station determines whether to perform beam measurement based on the AP-CSI-RS according to the measurement interval between the time when the LBT detection is successful and the time of the previous beam measurement.

In an embodiment, it may be that the periodic CSI-RS cannot be sent when the base station LBT detection fails. It should be noted that when the base station cannot send the periodic CSI-RS, the terminal cannot receive the periodic CSI-RS, and therefore cannot measure the periodic CSI-RS.

In one embodiment, in response to the measurement interval between the time of successful LBT detection and the time of the previous beam measurement being greater than or equal to the sending period of the AP-CSI-RS, the base station determines that beam measurement needs to be performed based on the AP-CSI-RS.

In one embodiment, in response to the measurement interval between the time of successful LBT detection and the time of the previous beam measurement being less than or equal to the transmission period of AP-CSI-RS, the base station determines that beam measurement based on AP-CSI-RS is not required .

For example, please refer to FIG. 6 , in example 1 and example 2 of FIG. 6 , the base station is at position A, and the LBT detection fails; at position B, the LBT detection is successful. Wherein, T1 is the period for sending the periodic CSI-RS in Example 1; T2 is the period for sending the periodic CSI-RS in Example 2. t1 is the interval between the time of the last successful LBT detection and the time of the previous beam measurement in Example 1; t2 is the interval between the time of the latest successful LBT-based detection and the time of the previous beam measurement in Example 2. Wherein, t1 is greater than T1, and t2 is less than T2. Then in Example 1, t1 is greater than T1, and it is determined that beam measurement needs to be performed based on the AP-CSI-RS. In Example 2, t2 is smaller than T2, and it is determined that beam measurement based on the AP-CSI-RS is not required. Certainly, in the embodiment of the present disclosure, the situation that t2 is equal to T2 may be according to the method of Example 1 or the method of Example 2, and details will not be described hereafter.

In an embodiment, using the same periodic CSI-RS to perform beam measurement includes: using the same periodic CSI-RS set to perform beam measurement. Here, each periodic CSI-RS set includes multiple periodic CSI-RSs. In an embodiment, if different terminals are terminals in the same terminal group, the different terminals are all configured to use the same periodic CSI-RS set to perform beam measurement. For example, if terminal 1 and terminal 2 belong to terminal group A, both terminal 1 and terminal 2 are configured to use the same periodic CSI-RS set to perform beam measurement. Of course, in all the embodiments of the present disclosure, the terminals configured to perform beam measurement by using the same periodic CSI-RS set can be regarded as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

In an embodiment, the beam measurement may be that the terminal measures multiple periodic CSI-RSs, and determines the transmission status of the beam corresponding to the periodic CSI-RS according to the measurement results, so that the base station can select from multiple periodic CSI-RSs according to the transmission status. The beam used for data transmission is determined among the beams. For example, the terminal can measure 3 periodic CSI-RS, the 3 periodic CSI-RS are CSI-RS1, CSI-RS2 and CSI-RS3 respectively, and each periodic CSI-RS corresponds to a CSI-RS in a different direction. The beams are beam 1, beam 2, and beam 3 in sequence. If the detection result indicates that the channel quality of CSI-RS3 is the best, beam 3 can be selected for data transmission.

In one embodiment, the DCI triggers all terminals in the terminal group to perform beam measurement based on the AP-CSI-RS. Here, compared to the way in which DCI can only trigger a single terminal to perform beam measurement based on the AP-CSI-RS, occupied time domain and frequency domain resources can be saved.

In an embodiment, the DCI may use a terminal group as a trigger unit to trigger all terminals in the corresponding terminal group to perform beam measurement based on the AP-CSI-RS.

In one embodiment, in response to the base station being unable to transmit the periodic CSI-RS, the terminal fails to receive the periodic CSI-RS.

In one embodiment, the DCI includes a CSI request field, and each value indicated by the CSI request field corresponds to an aperiodic trigger state. Wherein, each aperiodic trigger state indicates one or more AP-CSI-RS sets. Here, the AP-CSI-RS in the set of one or more AP-CSI-RS is used for the terminal to perform AP-CSI-RS measurement. For example, the CSI request field indicates the first aperiodic trigger state, and the first aperiodic trigger state indicates the first AP-CSI-RS set, that is, after the terminal is triggered to perform beam measurement based on the aperiodic AP-CSI-RS, it will Beam measurements may be performed using the AP-CSI-RS in the first AP-CSI-RS set.

In an embodiment, the aperiodic trigger state may also indicate a reporting configuration for reporting the beam measurement results of each AP-CSI-RS set. For example, the CSI request field indicates the second aperiodic trigger state, and the second aperiodic trigger state indicates the second reporting configuration. Here, the reporting configuration may include at least one of the following: reported measurement quantities, reported quantities, and codebook configuration parameters. After determining the reporting configuration, the terminal may report the measurement result of the beam measurement based on the reporting configuration.

In an embodiment, the mapping relationship between the aperiodic trigger state and the AP-CSI-RS set indicated by the aperiodic trigger state may be stored in the terminal in advance. In this way, in response to the terminal determining the aperiodic trigger state, the AP-CSI-RS set can be determined.

In an embodiment, the mapping relationship between the aperiodic trigger state and the reporting configuration may be stored in the terminal in advance. In this way, in response to the terminal determining the aperiodic trigger state, the reporting configuration can be determined.

In an embodiment of the present disclosure, the downlink control information DCI is issued; wherein the DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on AP-CSI-RS; wherein the terminal group includes: configured to use the same periodicity At least one terminal for which the CSI-RS performs beam measurement and does not receive the periodic CSI-RS. Here, DCI can trigger the terminals in the terminal group to perform beam measurement based on AP-CSI-RS, that is, DCI can trigger all terminals in the terminal group to perform beam measurement based on AP-CSI-RS at one time. Compared with DCI, it can only trigger a single The manner in which the terminal performs beam measurement based on the AP-CSI-RS can save time-frequency domain resources for sending DCI.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 7, a beam measurement method is provided in this embodiment, wherein the method is performed by a base station, and the method includes:

Step 71. Send DCI in response to the measurement interval being greater than or equal to the sending period of the AP-CSI-RS;

Wherein, the measurement interval is the time interval between the time when the LBT detection is successful and the time of the previous beam measurement.

Among them, the DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on the aperiodic channel state information reference signal AP-CSI-RS; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement And at least one terminal that has not received the periodic CSI-RS. In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

In one embodiment, the periodic CSI-RS cannot be transmitted in response to a previous LBT detection failure of the base station. It should be noted that when the base station cannot send the periodic CSI-RS, the terminal cannot receive the periodic CSI-RS, and therefore cannot measure the periodic CSI-RS.

For example, please refer to Example 1 in FIG. 6 again, the base station is at position A, the LBT detection fails, and at position B, the LBT detection succeeds. Wherein, T1 is the period for sending the periodic CSI-RS. t1 is the interval between the current successful LBT detection time and the previous beam measurement time. Wherein, t1 is greater than T1. Then in Example 1, the base station determines that beam measurement needs to be performed based on the AP-CSI-RS in response to t1 being greater than T1.

In one embodiment, the period of the periodic CSI-RS configured for the terminal is determined according to the beam change rate of the terminal. In one embodiment, in response to the terminal's beam change rate being less than the change rate threshold, determine that the period of the periodic CSI-RS is greater than the period threshold; in response to the terminal's beam change rate greater than the change rate threshold, determine the period of the periodic CSI-RS less than the period threshold. In this way, the period of the periodic CSI-RS can be adapted to the beam change rate of the terminal.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

In an embodiment, the DCI includes at least: a CSI request field; wherein, the CSI request field indicates: a reporting method for the terminals in the terminal group to report the measurement results of the beam measurement; wherein, the reporting method includes at least one of the following:

The first reporting method is to instruct the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of each AP-CSI-RS set;

The second reporting method is to instruct the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of multiple AP-CSI-RS sets; where each AP-CSI-RS contains multiple AP-CSI -RS.

That is, the terminal may be instructed to report in the first reporting manner, or the terminal may be instructed to report in the second reporting manner.

In one embodiment, in response to the CSI request field indicating that the terminals in the terminal group use the first reporting method to report the measurement results of the beam measurement, the terminal will use the first reporting method to report the measurement results; in response to the CSI request field indicating that the terminals in the terminal group The terminal reports the measurement result of the beam measurement in the second reporting manner, and the terminal reports the measurement result in the second reporting manner.

In some embodiments, the measurement result satisfying the predetermined condition may be one of the following:

Indicates the measurement result of the AP-CSI-RS set whose measured AP-CSI-RS signal strength is greater than the strength threshold.

Indicates the measurement results of the top N AP-CSI-RS sets whose measured AP-CSI-RS signal strength is ranked. Here, N is a positive integer greater than 1.

In one embodiment, the first reporting manner instructs the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined in the measurement results of each measured AP-CSI-RS set.

For example, referring to FIG. 8 , the CSI request field instructs the terminal to report the measurement result in the second reporting manner. After receiving the DCI, the terminal measures the first set of AP-CSI-RS set1, the second set of AP-CSI-RS set2 and the third set of AP-CSI-RS set3 respectively, and the obtained measurement results are the first A measurement, a second measurement, and a third measurement. Among them, the first episode includes: AP-CSI-RS1-1, AP-CSI-RS1-2 and AP-CSI-RS1-3, a total of 3 AP-CSI-RS, the first measurement results correspondingly include: result A, result B and result C. The measurement result satisfying the predetermined condition is result B. The second set includes: AP-CSI-RS1-4, AP-CSI-RS1-5 and AP-CSI-RS1-6, a total of 3 AP-CSI-RS, the second measurement results correspondingly include: result D, result E and Result F. The measurement result satisfying the predetermined condition is the result D. The third set includes: AP-CSI-RS1-7, AP-CSI-RS1-8 and AP-CSI-RS1-9, a total of 3 AP-CSI-RS, and the third measurement results include: result G, result H and Result I. The measurement results satisfying the predetermined conditions are result G and result I. Then the terminal reports the result B, the result D, the result G and the result I sequentially on the PUSCH resource. That is: the terminal may report the best one measurement result, or report the best N measurement results; or a combination of both.

In one embodiment, the second reporting manner is to instruct the terminals in the terminal group to report the measurement results determined from the measurement results of multiple AP-CSI-RS sets satisfying the predetermined condition.

For example, referring to FIG. 9 , in response to the CSI request field, the terminal is instructed to report the measurement result in the second reporting manner. After receiving the DCI, the terminal measures the first set of AP-CSI-RS set1, the second set of AP-CSI-RS set2 and the third set of AP-CSI-RS set3, and the obtained measurement results are the first measurement result, second measurement result and third measurement result. Among them, the first episode includes: AP-CSI-RS1-1, AP-CSI-RS1-2 and AP-CSI-RS1-3, a total of 3 AP-CSI-RS, the first measurement results correspondingly include: result A, result B and result C. The second set includes: AP-CSI-RS1-4, AP-CSI-RS1-5 and AP-CSI-RS1-6, a total of 3 AP-CSI-RS, the second measurement results correspondingly include: result D, result E and Result F. The third set includes: AP-CSI-RS1-7, AP-CSI-RS1-8 and AP-CSI-RS1-9, a total of 3 AP-CSI-RS, and the third measurement results include: result G, result H and Result I. The terminal determines that the result A, the result D, the result E and the result I meet the predetermined condition based on the measurement results of all the AP-CSI-RS1 in the three sets. Then the terminal reports the result A, the result D, the result E and the result I sequentially on the PUSCH resource. That is: the terminal may report the best one measurement result, or report the best N measurement results; or a combination of both.

For another example, referring to FIG. 10 , in response to the CSI request field, the terminal is instructed to report the measurement result in the second reporting manner. After receiving the DCI, the terminal measures the first set of AP-CSI-RS set1, the second set of AP-CSI-RS set2 and the third set of AP-CSI-RS set3, and the obtained measurement results are the first measurement result, second measurement result and third measurement result. Among them, the first episode includes: AP-CSI-RS1-1, AP-CSI-RS1-2 and AP-CSI-RS1-3, a total of 3 AP-CSI-RS, the first measurement results correspondingly include: result A, result B and result C. The second set includes: AP-CSI-RS1-4, AP-CSI-RS1-5 and AP-CSI-RS1-6, a total of 3 AP-CSI-RS, the second measurement results correspondingly include: result D, result E and Result F. The third set includes: AP-CSI-RS1-7, AP-CSI-RS1-8 and AP-CSI-RS1-9, a total of 3 AP-CSI-RS, and the third measurement results include: result G, result H and Result I. The terminal determines that the result A, the result D, the result E and the result I meet the predetermined condition based on the measurement results of all the AP-CSI-RS1 in the three sets. Then the terminal reports the result A, the result D, the result E and the result I sequentially on the PUCCH resource.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

In an embodiment, in response to determining that the terminal in the terminal group is instructed to report the measurement result in the first reporting manner, the CSI request field indicates the first value. Or, in response to determining that the terminal in the terminal group is instructed to report the measurement result in the second reporting manner, the CSI request field indicates the second value.

In one embodiment, the CSI request field includes a plurality of bits, and values of some bits in the plurality of bits are used to indicate the reporting manner of the terminal to report the measurement result.

In one embodiment, in response to determining that the terminal in the terminal group is instructed to report the measurement result in the first reporting manner, the number of bits in the CSI request field (for example, one bit, it should be noted that it can also be multiple bits) The value is configured as a first value, for example, the first value is "1"; in response to the CSI request field indicating the first value, the terminal reports the measurement result in the first reporting manner.

In one embodiment, in response to determining that the terminal in the terminal group is instructed to report the measurement result in the second reporting manner, the value of the bit in the CSI request field is configured as a second value, for example, the first value is "0"; In response to the second value indicated by the CSI request field, the terminal reports the measurement result in a second reporting manner.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 11, a beam measurement method is provided in this embodiment, wherein the method is performed by a base station, and the method includes:

Step 111, in response to determining that the terminal in the terminal group is instructed to report the measurement result using the first reporting method, configure different AP-CSI-RS sets used by the terminal to associate different CSI report configuration parameters;

Wherein, the first reporting manner instructs the terminals in the terminal group to report the measurement results determined from the measurement results of each AP-CSI-RS set that satisfy the predetermined condition.

Wherein, the terminal group includes: at least one terminal configured to use the same periodic CSI-RS to perform beam measurement and not receive the periodic CSI-RS. In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

Here, the report configuration parameter may include at least one of the following: the reported measurement amount of the reported measurement result, the number of reports, and a codebook configuration parameter.

In one embodiment, in response to determining that the terminals in the terminal group are instructed to report the measurement results using the first reporting method, the base station configures different AP-CSI-RS sets used by the terminals to associate different CSI report configuration parameters; The AP-CSI-RS set is associated with different CSI report configuration parameters, and it is determined to use the first reporting method to report the measurement result.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 12, a beam measurement method is provided in this embodiment, wherein the method is performed by a base station, and the method includes:

Step 121, in response to determining that the terminals in the terminal group are instructed to use the second reporting method to report the measurement results, configure different AP-CSI-RS sets used by the terminals to associate the same CSI report configuration parameters;

Wherein, the second reporting method instructs the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of multiple AP-CSI-RS sets; wherein, each AP-CSI-RS contains multiple AP-CSI-RS.

Wherein, the terminal group includes: at least one terminal configured to use the same periodic CSI-RS to perform beam measurement and not receive the periodic CSI-RS. In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

Here, the report configuration parameter may include at least one of the following: the reported measurement amount of the reported measurement result, the number of reports, and a codebook configuration parameter.

In one embodiment, in response to determining that the terminals in the terminal group are instructed to report the measurement results using the second reporting method, the base station configures the different AP-CSI-RS sets used by the terminals to be associated with the same CSI report configuration parameters; The AP-CSI-RS set is associated with the same CSI report configuration parameters, and it is determined to use the second reporting method to report the measurement results.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

This embodiment provides a beam measurement method, wherein the method is performed by a base station, and the method includes:

In response to the terminal reporting the measurement result of the beam measurement through the physical uplink shared channel PUSCH, downlink control information DCI is issued; wherein the DCI includes: a resource indication field; wherein the resource indication field is used to indicate: the terminals in the terminal group are used to report Time-domain resource and/or frequency-domain resource information of the PUSCH of the measurement result.

Wherein, the terminal group includes: at least one terminal configured to use the same periodic CSI-RS to perform beam measurement and not receive the periodic CSI-RS. In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

In one embodiment, the terminal reports the measurement result on the corresponding PUSCH resource according to the time domain resource and/or frequency domain resource information of the PUSCH indicated by the resource indication field.

In one embodiment, the resource parameters indicated by the time domain resource and/or frequency domain resource information are carried in the resource indication field. The terminal can directly obtain time domain resource and/or frequency domain resource information from the resource indication field.

In another embodiment, the identification information of time domain resource and/or frequency domain resource information is carried in the resource indication field. The terminal may determine time domain resources and/or frequency domain resource information based on the identification information and the mapping relationship between the identification information domain and time domain resource and/or frequency domain resource information. In an embodiment, the base station may send time domain resource and/or frequency domain resource information to the terminal through an RRC message in advance. The base station may also send the information of the mapping relationship between the identification information domain and the time domain resource and/or frequency domain resource information to the terminal in advance through an RRC message.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 13, a beam measurement method is provided in this embodiment, wherein the method is performed by a base station, and the method includes:

Step 131: In response to the terminal reporting the measurement result of the beam measurement through the physical uplink control channel PUCCH, use the radio resource control RRC message to send the time domain resource and/or frequency domain resource information of the PUCCH used by the terminal in the terminal group to report the measurement result.

Wherein, the terminal group includes: at least one terminal configured to use the same periodic CSI-RS to perform beam measurement and not receive the periodic CSI-RS. In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

In one embodiment, the terminal reports the measurement result on the PUCCH according to the time domain resource and/or frequency domain resource information of the PUCCH indicated by the RRC message.

In one embodiment, the resource parameters indicated by the time domain resource and/or frequency domain resource information are carried in the RRC message. The terminal can directly obtain time domain resource and/or frequency domain resource information from the RRC message.

In another embodiment, the identification information of time domain resource and/or frequency domain resource information is carried in the RRC message. The terminal may determine time domain resources and/or frequency domain resource information based on the identification information and the mapping relationship between the identification information domain and time domain resource and/or frequency domain resource information.

In an embodiment, the base station may send time domain resource and/or frequency domain resource information to the terminal through an RRC message in advance. The base station may also send the information of the mapping relationship between the identification information domain and the time domain resource and/or frequency domain resource information to the terminal in advance through an RRC message.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

In any of the above embodiments, the DCI includes: a state field; wherein, the state field indicates an aperiodic trigger state; wherein, each aperiodic trigger state is associated with at least one AP-CSI-RS set; each AP-CSI- The number of AP-CSI-RSs included in the RS set is less than the number threshold; the number threshold is greater than a predetermined value.

In one embodiment, the quantity threshold is determined according to the communication bandwidth. In one embodiment, in response to the communication bandwidth being greater than the bandwidth threshold, it is determined that the quantity threshold is greater than the first value. In response to the communication bandwidth being less than the bandwidth threshold, it is determined that the number of AP-CSI-RS in each AP-CSI-RS set is less than a first value. In this way, the number of AP-CSI-RS in each AP-CSI-RS set can be adapted to the communication bandwidth.

In one embodiment, the predetermined value is 64.

In an embodiment, the terminal can determine the AP-CSI-RS set that the terminal can use according to the aperiodic trigger state indicated by the state field and the mapping relationship between the aperiodic trigger state and the AP-CSI-RS set. And use the AP-CSI-RS set to perform AP-CSI-RS measurement.

In an embodiment, the mapping relationship further includes configuration parameters of the AP-CSI-RS set that can be used by the terminal indicated by the aperiodic trigger state and the measurement result reported. In this way, the terminal can report the measurement result based on the configuration parameter for reporting the measurement result.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 14, a beam measurement method is provided in this embodiment, wherein the method is performed by a base station, and the method includes:

Step 141, using the radio resource control RRC message to send the aperiodic channel state information radio network temporary identifier AP-CSI-RNTI;

Wherein, the AP-CSI-RNTI of the terminals in the terminal group configured to use the same periodic CSI-RS for beam measurement is the same.

Wherein, the terminal group includes: at least one terminal configured to use the same periodic CSI-RS to perform beam measurement and not receive the periodic CSI-RS. In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

In one embodiment, the base station may use AP-CSI-RNTI to scramble the DCI; in response to the fact that the RNTI obtained when the terminal descrambles the DCI is the same as the AP-CSI-RNTI, the DCI is used to trigger the terminals in the terminal group based on the aperiodic channel The state information reference signal AP-CSI-RS performs beam measurement DCI. In response to the fact that the RNTI obtained when the terminal descrambles the DCI is different from the AP-CSI-RNTI, the DCI is not the DCI that triggers the terminals in the terminal group to perform beam measurement based on the aperiodic channel state information reference signal AP-CSI-RS.

In an embodiment, the AP-CSI-RNTI configured by the terminals in the terminal group is the same. In this way, all the terminals in the terminal group can receive the DCI that triggers the terminals in the terminal group to perform beam measurement based on the aperiodic channel state information reference signal AP-CSI-RS. Thus, the terminals in the terminal group are triggered to perform beam measurement based on the aperiodic channel state information reference signal AP-CSI-RS.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 15, this embodiment provides a beam measurement method, wherein the method is executed by the terminal, and the method includes:

Step 151, receiving DCI;

Among them, DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on AP-CSI-RS; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement and not receive periodic CSI-RS At least one terminal of RS.

Here, the terminal may be, but not limited to, a mobile phone, a wearable device, a vehicle-mounted terminal, a roadside unit (RSU, RoadSide Unit), a smart home terminal, an industrial sensor device, and/or a medical device. In one embodiment, the terminal may be a Redcap terminal.

Here, the base station may be an access device for the terminal to access the network. Here, the base station may be various types of base stations, for example, a base station of a third-generation mobile communication (3G) network, a base station of a fourth-generation mobile communication (4G) network, a base station of a fifth-generation mobile communication (5G) network, or other Evolved base station.

Here, the terminal may receive the DCI sent by the base station.

In an embodiment, the base station determines whether to perform beam measurement based on the AP-CSI-RS according to the measurement interval between the time when the LBT detection is successful and the time of the previous beam measurement.

In an embodiment, it may be that the periodic CSI-RS cannot be sent when the base station LBT detection fails. It should be noted that when the base station cannot send the periodic CSI-RS, the terminal cannot receive the periodic CSI-RS, and therefore cannot measure the periodic CSI-RS.

In one embodiment, in response to the measurement interval between the time of successful LBT detection and the time of the previous beam measurement being greater than or equal to the sending period of the AP-CSI-RS, the base station determines that beam measurement needs to be performed based on the AP-CSI-RS.

In one embodiment, in response to being unable to transmit periodic CSI-RS and the measurement interval between the time when LBT detection is successful and the time of the previous beam measurement is less than or equal to the transmission period of AP-CSI-RS, the base station determines that it does not need Beam measurement based on AP-CSI-RS.

For example, please refer to FIG. 6 , in example 1 and example 2 of FIG. 6 , the base station is at position A, and the LBT detection fails; at position B, the LBT detection is successful. Wherein, T1 is the period for sending the periodic CSI-RS in Example 1; T2 is the period for sending the periodic CSI-RS in Example 2. t1 is the interval between the time of the last successful LBT detection and the time of the previous beam measurement in Example 1; t2 is the interval between the time of the latest successful LBT-based detection and the time of the previous beam measurement in Example 2. Wherein, t1 is greater than T1, and t2 is less than T2. Then in Example 1, t1 is greater than T1, and it is determined that beam measurement needs to be performed based on the AP-CSI-RS. In Example 2, t2 is smaller than T2, and it is determined that beam measurement based on the AP-CSI-RS is not required. Certainly, in the embodiment of the present disclosure, the situation that t2 is equal to T2 may be according to the method of Example 1 or the method of Example 2, and details will not be described hereafter.

In an embodiment, using the same periodic CSI-RS to perform beam measurement includes: using the same periodic CSI-RS set to perform beam measurement. Here, each periodic CSI-RS set includes multiple periodic CSI-RSs. In the embodiments of the present disclosure, a plurality refers to two or more than two. In an embodiment, if different terminals are terminals in the same terminal group, the different terminals are all configured to use the same periodic CSI-RS set to perform beam measurement. For example, if terminal 1 and terminal 2 belong to terminal group A, both terminal 1 and terminal 2 are configured to use the same periodic CSI-RS set to perform beam measurement.

In an embodiment, the beam measurement may be that the terminal measures multiple periodic CSI-RSs, and determines the transmission status of the beam corresponding to the periodic CSI-RS according to the measurement results, so that the base station can select from multiple periodic CSI-RSs according to the transmission status. The beam used for data transmission is determined among the beams. For example, the terminal can measure 3 periodic CSI-RS, the 3 periodic CSI-RS are CSI-RS1, CSI-RS2 and CSI-RS3 respectively, and each periodic CSI-RS corresponds to a CSI-RS in a different direction. The beams are beam 1, beam 2, and beam 3 in sequence. If the detection result indicates that the channel quality of CSI-RS3 is the best, beam 3 can be selected for data transmission.

In one embodiment, the DCI triggers all terminals in the terminal group to perform beam measurement based on the AP-CSI-RS. Here, compared to the way in which DCI can only trigger a single terminal to perform beam measurement based on the AP-CSI-RS, occupied time domain and frequency domain resources can be saved.

In an embodiment, the DCI may use a terminal group as a trigger unit to trigger all terminals in the corresponding terminal group to perform beam measurement based on the AP-CSI-RS.

In one embodiment, in response to the base station being unable to transmit the periodic CSI-RS, the terminal fails to receive the periodic CSI-RS.

In one embodiment, the DCI includes a CSI request field, and each value indicated by the CSI request field corresponds to an aperiodic trigger state. Wherein, each aperiodic trigger state indicates one or more AP-CSI-RS sets. Here, the AP-CSI-RS in the set of one or more AP-CSI-RS is used for the terminal to perform AP-CSI-RS measurement. For example, the CSI request field indicates the first aperiodic trigger state, and the first aperiodic trigger state indicates the first AP-CSI-RS set, that is, after the terminal is triggered to perform beam measurement based on the aperiodic AP-CSI-RS, it will Beam measurements may be performed using the AP-CSI-RS in the first AP-CSI-RS set.

In an embodiment, the aperiodic trigger state may also indicate a reporting configuration for reporting the beam measurement results of each AP-CSI-RS set. For example, the CSI request field indicates the second aperiodic trigger state, and the second aperiodic trigger state indicates the second reporting configuration. Here, the reporting configuration may include at least one of the following: reported measurement quantities, reported quantities, and codebook configuration parameters. After determining the reporting configuration, the terminal may report the measurement result of the beam measurement based on the reporting configuration.

In an embodiment, the mapping relationship between the aperiodic trigger state and the AP-CSI-RS set indicated by the aperiodic trigger state may be stored in the terminal in advance. In this way, in response to the terminal determining the aperiodic trigger state, the AP-CSI-RS set can be determined.

In an embodiment, the mapping relationship between the aperiodic trigger state and the reporting configuration may be stored in the terminal in advance. In this way, in response to the terminal determining the aperiodic trigger state, the reporting configuration can be determined.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 16, a beam measurement method is provided in this embodiment, where the method is executed by a terminal, and the method includes:

Step 161 , in response to receiving the DCI, perform beam measurement based on the AP-CSI-RS.

In one embodiment, the DCI triggers all terminals in the terminal group to perform beam measurement based on the AP-CSI-RS. Here, compared to the way in which DCI can only trigger a single terminal to perform beam measurement based on the AP-CSI-RS, occupied time domain and frequency domain resources can be saved.

In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

In one embodiment, the DCI includes: a CSI request field; wherein, the CSI request field indicates: a reporting method for the terminals in the terminal group to report the measurement results of the beam measurement; wherein, the reporting method includes at least one of the following:

The first reporting method is to instruct the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of each AP-CSI-RS set;

The second reporting method is to instruct the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of multiple AP-CSI-RS sets; where each AP-CSI-RS contains multiple AP-CSI -RS.

That is, the terminal may be instructed to report in the first reporting manner, or the terminal may be instructed to report in the second reporting manner.

In one embodiment, in response to the CSI request field indicating that the terminals in the terminal group use the first reporting method to report the measurement results of the beam measurement, the terminal will use the first reporting method to report the measurement results; in response to the CSI request field indicating that the terminals in the terminal group The terminal reports the measurement result of the beam measurement in the second reporting manner, and the terminal reports the measurement result in the second reporting manner.

In some embodiments, the measurement result satisfying the predetermined condition may be one of the following:

Indicates the measurement result of the AP-CSI-RS set whose measured AP-CSI-RS signal strength is greater than the strength threshold.

Indicates the measurement results of the top N AP-CSI-RS sets whose measured AP-CSI-RS signal strength is ranked. Here, N is a positive integer greater than 1.

In one embodiment, the first reporting manner instructs the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined in the measurement results of each measured AP-CSI-RS set.

For example, referring to FIG. 8 again, the CSI request field instructs the terminal to report the measurement result in the second reporting manner. After receiving the DCI, the terminal measures the first set of AP-CSI-RS set1, the second set of AP-CSI-RS set2 and the third set of AP-CSI-RS set3, and the obtained measurement results are the first measurement result, second measurement result and third measurement result. Among them, the first episode includes: AP-CSI-RS1-1, AP-CSI-RS1-2 and AP-CSI-RS1-3, a total of 3 AP-CSI-RS, the first measurement results correspondingly include: result A, result B and result C. The measurement result satisfying the predetermined condition is result B. The second set includes: AP-CSI-RS1-4, AP-CSI-RS1-5 and AP-CSI-RS1-6, a total of 3 AP-CSI-RS, the second measurement results correspondingly include: result D, result E and Result F. The measurement result satisfying the predetermined condition is the result D. The third set includes: AP-CSI-RS1-7, AP-CSI-RS1-8 and AP-CSI-RS1-9, a total of 3 AP-CSI-RS, and the third measurement results include: result G, result H and Result I. The measurement results satisfying the predetermined conditions are result G and result I. Then the terminal reports the result B, the result D, the result G and the result I sequentially on the PUSCH resource. That is: the terminal may report the best one measurement result, or report the best N measurement results; or a combination of both.

In one embodiment, the second reporting manner is to instruct the terminals in the terminal group to report the measurement results determined from the measurement results of multiple AP-CSI-RS sets satisfying the predetermined condition.

For example, referring to FIG. 9 again, in response to the CSI request field, the terminal is instructed to report the measurement result in the second reporting manner. After receiving the DCI, the terminal measures the first set of AP-CSI-RS set1, the second set of AP-CSI-RS set2 and the third set of AP-CSI-RS set3 respectively, and the obtained measurement results are the first A measurement, a second measurement, and a third measurement. Among them, the first episode includes: AP-CSI-RS1-1, AP-CSI-RS1-2 and AP-CSI-RS1-3, a total of 3 AP-CSI-RS, the first measurement results correspondingly include: result A, result B and result C. The second set includes: AP-CSI-RS1-4, AP-CSI-RS1-5 and AP-CSI-RS1-6, a total of 3 AP-CSI-RS, the second measurement results correspondingly include: result D, result E and Result F. The third set includes: AP-CSI-RS1-7, AP-CSI-RS1-8 and AP-CSI-RS1-9, a total of 3 AP-CSI-RS, and the third measurement results include: result G, result H and Result I. The terminal determines that the result A, the result D, the result E and the result I meet the predetermined condition based on the measurement results of all the AP-CSI-RS1 in the three sets. Then the terminal reports the result A, the result D, the result E and the result I sequentially on the PUSCH resource. That is: the terminal may report the best one measurement result, or report the best N measurement results; or a combination of both. For another example, referring to FIG. 10 again, the terminal is instructed to report the measurement result in the second reporting manner in response to the CSI request field. After receiving the DCI, the terminal measures the first set of AP-CSI-RS set1, the second set of AP-CSI-RS set2 and the third set of AP-CSI-RS set3 respectively, and the obtained measurement results are the first A measurement, a second measurement, and a third measurement. Among them, the first episode includes: AP-CSI-RS1-1, AP-CSI-RS1-2 and AP-CSI-RS1-3, a total of 3 AP-CSI-RS, the first measurement results correspondingly include: result A, result B and result C. The second set includes: AP-CSI-RS1-4, AP-CSI-RS1-5 and AP-CSI-RS1-6, a total of 3 AP-CSI-RS, the second measurement results correspondingly include: result D, result E and Result F. The third set includes: AP-CSI-RS1-7, AP-CSI-RS1-8 and AP-CSI-RS1-9, a total of 3 AP-CSI-RS, and the third measurement results include: result G, result H and Result I. The terminal determines that the result A, the result D, the result E and the result I meet the predetermined condition based on the measurement results of all the AP-CSI-RS1 in the three sets. Then the terminal reports the result A, the result D, the result E and the result I sequentially on the PUCCH resource. That is: the terminal may report the best one measurement result, or report the best N measurement results; or a combination of both.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 17, this embodiment provides a beam measurement method, where the method is executed by a terminal, and the method includes:

Step 171: In response to the first value indicated by the CSI request field, report the measurement result in the first reporting manner;

and / or,

In response to the second value indicated by the CSI request field, the measurement result is reported in a second reporting manner.

In an embodiment, in response to determining that the terminal in the terminal group is instructed to report the measurement result in the first reporting manner, the CSI request field indicates the first value;

In an embodiment, in response to determining that the terminal in the terminal group is instructed to report the measurement result in the second reporting manner, the CSI request field indicates the second value.

In one embodiment, the CSI request field includes a plurality of bits, and values of some bits in the plurality of bits are used to indicate the reporting manner of the terminal to report the measurement result.

In one embodiment, in response to determining that the terminal in the terminal group is instructed to report the measurement result in the first reporting manner, the number of bits in the CSI request field (for example, one bit, it should be noted that it can also be multiple bits) The value is configured as a first value, for example, the first value is "1"; in response to the CSI request field indicating the first value, the terminal reports the measurement result in the first reporting manner.

In one embodiment, in response to determining that the terminal in the terminal group is instructed to report the measurement result in the second reporting manner, the value of the bit in the CSI request field is configured as a second value, for example, the first value is "0"; In response to the second value indicated by the CSI request field, the terminal reports the measurement result in a second reporting manner.

In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 18, a beam measurement method is provided in this embodiment, where the method is executed by a terminal, and the method includes:

Step 181, in response to different CSI report configuration parameters associated with different AP-CSI-RS sets used by the terminal, report the measurement result in the first reporting manner;

Wherein, the first reporting manner instructs the terminals in the terminal group to report the measurement results determined from the measurement results of each AP-CSI-RS set that satisfy the predetermined condition.

In one embodiment, in response to determining that the terminals in the terminal group are instructed to report the measurement results using the first reporting method, the terminal configures that different AP-CSI-RS sets used by the terminal are associated with different CSI report configuration parameters; The AP-CSI-RS set is associated with different CSI report configuration parameters, and it is determined to use the first reporting method to report the measurement result.

In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 19, a beam measurement method is provided in this embodiment, where the method is executed by a terminal, and the method includes:

Step 191: In response to the fact that different aperiodic CSI-RS sets used by the terminal are associated with the same CSI report configuration parameters, the measurement results are reported in the second reporting manner; wherein, the second reporting manner indicates that the terminals in the terminal group report multiple The measurement results satisfying the predetermined condition determined from the measurement results of the AP-CSI-RS sets; wherein, each AP-CSI-RS includes multiple AP-CSI-RS.

In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

Here, the report configuration parameter may include at least one of the following: the reported measurement amount of the reported measurement result, the number of reports, and a codebook configuration parameter.

In one embodiment, in response to determining that the terminals in the terminal group are instructed to report the measurement results using the second reporting method, the terminal configures that different AP-CSI-RS sets used by the terminal are associated with the same CSI report configuration parameters; The AP-CSI-RS set is associated with the same CSI report configuration parameters, and it is determined to use the second reporting method to report the measurement results.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

In one embodiment, the DCI includes: a resource indication field; wherein, the resource indication field indicates: time domain resource and/or frequency domain resource information; wherein, time domain resource and/or frequency domain resource information is information within a terminal group Time-domain resource and/or frequency-domain resource information of the PUSCH used by the terminal to report the measurement result.

In one embodiment, the terminal reports the measurement result on the PUSCH according to the time domain resource and/or frequency domain resource information of the PUSCH indicated by the resource indication field.

In one embodiment, the resource parameters indicated by the time domain resource and/or frequency domain resource information are carried in the resource indication field. The terminal can directly obtain time domain resource and/or frequency domain resource information from the resource indication field.

In another embodiment, the identification information of time domain resource and/or frequency domain resource information is carried in the resource indication field. The terminal may determine time domain resources and/or frequency domain resource information based on the identification information and the mapping relationship between the identification information domain and time domain resource and/or frequency domain resource information.

In an embodiment, the terminal may receive time domain resource and/or frequency domain resource information sent by the base station through an RRC message in advance. The terminal may also receive in advance the information of the mapping relationship between the identification information field and time domain resource and/or frequency domain resource information sent by the base station through an RRC message.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 20, this embodiment provides a beam measurement method, where the method is executed by a terminal, and the method includes:

Step 201: Based on time domain resource and/or frequency domain resource information, report the measurement result of beam measurement on PUSCH.

Wherein, the time domain resource and/or frequency domain resource information is a part of DCI, and the DCI is aimed at the terminals in the terminal group. In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

In one embodiment, the resource parameters indicated by the time domain resource and/or frequency domain resource information are carried in the resource indication field. The terminal can directly obtain time-domain resource and/or frequency-domain resource information from the resource indication field; based on the time-domain resource and/or frequency-domain resource information, report the measurement result of the beam measurement on the PUSCH.

In another embodiment, the identification information of time domain resource and/or frequency domain resource information is carried in the resource indication field. The terminal may determine time domain resources and/or frequency domain resource information based on the identification information and the mapping relationship between the identification information domain and time domain resources and/or frequency domain resource information; based on the time domain resources and/or frequency domain resources information, and report the measurement result of the beam measurement on the PUSCH.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 21, this embodiment provides a beam measurement method, wherein the method is executed by a terminal, and the method includes:

Step 211, receiving information on time domain resources and/or frequency domain resources sent by using an RRC message;

Wherein, the time domain resource and/or frequency domain resource information is a part of RRC, and the RRC is aimed at the terminals in the terminal group. In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

Wherein, the time-domain resource and/or frequency-domain resource information is the time-domain resource and/or frequency-domain resource information of the PUCCH used by the terminals in the terminal group to report the measurement results.

In one embodiment, the resource parameters indicated by the time domain resource and/or frequency domain resource information are carried in the RRC message. The terminal can directly obtain time domain resource and/or frequency domain resource information from the RRC message.

In another embodiment, the identification information of time domain resource and/or frequency domain resource information is carried in the RRC message. The terminal may determine time domain resources and/or frequency domain resource information based on the identification information and the mapping relationship between the identification information domain and time domain resource and/or frequency domain resource information.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 22, this embodiment provides a beam measurement method, where the method is executed by a terminal, and the method includes:

Step 221: Report the measurement result of the beam measurement on the PUCCH based on the time domain resource and/or frequency domain resource information.

In one embodiment, the resource parameters indicated by the time domain resource and/or frequency domain resource information are carried in the RRC message. The terminal can directly obtain time-domain resource and/or frequency-domain resource information from the RRC message; based on the time-domain resource and/or frequency-domain resource information, report the measurement result of the beam measurement on the PUCCH.

In another embodiment, the identification information of time domain resource and/or frequency domain resource information is carried in the RRC message. The terminal may determine time domain resources and/or frequency domain resource information based on the identification information and the mapping relationship between the identification information domain and time domain resources and/or frequency domain resource information; based on the time domain resources and/or frequency domain resources information, and report the measurement result of the beam measurement on the PUCCH.

Wherein, the time domain resource and/or frequency domain resource information is a part of RRC, and the RRC is aimed at the terminals in the terminal group. In all embodiments of the present disclosure, terminals configured to perform beam measurement using the same periodic CSI-RS set may be considered as a terminal group. Certainly, terminals having the same periodic CSI-RS set for beam measurement may be classified into one group, or may be classified into two or more groups, which is not limited in this embodiment of the present disclosure. That is, there may be multiple terminal groups, and the same periodic CSI-RS parameters of each terminal group may be the same or different; in this way, it is convenient to further introduce other parameters or variables.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

In any of the above embodiments, the DCI includes a state field; where the state field is used to indicate an aperiodic trigger state; where each aperiodic trigger state is associated with at least one AP-CSI-RS set; each AP-CSI- The number of AP-CSI-RSs included in the RS set is less than the number threshold; the number threshold is greater than a predetermined value.

In one embodiment, the quantity threshold is determined according to the communication bandwidth. In one embodiment, in response to the communication bandwidth being greater than the bandwidth threshold, it is determined that the quantity threshold is greater than the first value. In response to the communication bandwidth being less than the bandwidth threshold, it is determined that the number of AP-CSI-RS in each AP-CSI-RS set is less than a first value. In this way, the number of AP-CSI-RS in each AP-CSI-RS set can be adapted to the communication bandwidth.

In one embodiment, the predetermined value is 64.

In an embodiment, the terminal can determine the AP-CSI-RS set that the terminal can use according to the aperiodic trigger state indicated by the state field and the mapping relationship between the aperiodic trigger state and the AP-CSI-RS set. And use the AP-CSI-RS set to perform AP-CSI-RS measurement.

In an embodiment, the mapping relationship further includes configuration parameters of the AP-CSI-RS set that can be used by the terminal indicated by the aperiodic trigger state and the measurement result reported. In this way, the terminal can report the measurement result based on the configuration parameter for reporting the measurement result.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 23, this embodiment provides a beam measurement method, wherein the method is executed by a terminal, and the method includes:

Step 231, receiving the RRC message carrying AP-CSI-RNTI;

Wherein, the AP-CSI-RNTI of the terminals in the terminal group configured to use the same periodic CSI-RS for beam measurement is the same.

In one embodiment, the base station may use AP-CSI-RNTI to scramble the DCI; in response to the fact that the RNTI obtained when the terminal descrambles the DCI is the same as the AP-CSI-RNTI, the DCI is used to trigger the terminals in the terminal group based on the aperiodic channel The state information reference signal AP-CSI-RS performs beam measurement DCI. In response to the fact that the RNTI obtained when the terminal descrambles the DCI is different from the AP-CSI-RNTI, the DCI is not the DCI that triggers the terminals in the terminal group to perform beam measurement based on the aperiodic channel state information reference signal AP-CSI-RS.

In an embodiment, the AP-CSI-RNTI configured by the terminals in the terminal group is the same. In this way, all the terminals in the terminal group can receive the DCI that triggers the terminals in the terminal group to perform beam measurement based on the aperiodic channel state information reference signal AP-CSI-RS. Thus, the terminals in the terminal group are triggered to perform beam measurement based on the aperiodic channel state information reference signal AP-CSI-RS.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 24 , an embodiment of the present disclosure provides a beam measurement device, which is applied to a base station, and the device includes a sending module 241, wherein,

The issuing module 241 is configured to issue DCI;

Wherein, the DCI is at least used to: trigger the AP-CSI-RS of terminals in the terminal group to perform beam measurement; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement and not receive the at least one terminal of the periodic CSI-RS.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

As shown in FIG. 25, an embodiment of the present disclosure provides a beam measurement device, which is applied to a terminal, and the device includes a receiving module 251; wherein,

The receiving module 251 is configured to receive DCI;

Wherein, the DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on AP-CSI-RS; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement and not receive At least one terminal of the periodic CSI-RS.

It should be noted that those skilled in the art can understand that the methods provided in the embodiments of the present disclosure may be executed independently, or together with some methods in the embodiments of the present disclosure or some methods in related technologies.

An embodiment of the present disclosure provides a communication device, which includes:

processor;

memory for storing processor-executable instructions;

Wherein, the processor is configured to implement the method applied to any embodiment of the present disclosure when executing the executable instructions.

Wherein, the processor may include various types of storage media, which are non-transitory computer storage media, and can continue to memorize and store information thereon after the communication device is powered off.

The processor can be connected to the memory through a bus or the like, and is used to read the executable program stored in the memory.

An embodiment of the present disclosure further provides a computer storage medium, wherein the computer storage medium stores a computer executable program, and when the executable program is executed by a processor, the method of any embodiment of the present disclosure is implemented.

Regarding the apparatus in the foregoing embodiments, the specific manner in which each module executes operations has been described in detail in the embodiments related to the method, and will not be described in detail here.

As shown in FIG. 26 , an embodiment of the present disclosure provides a terminal structure.

Referring to FIG. 26 , this embodiment provides a terminal 800, which specifically can be a mobile phone, computer, digital broadcast terminal, messaging device, game console, tablet device, medical device, fitness device, personal digital assistant, etc.

26, the terminal 800 may include one or more of the following components: a processing component 802, a memory 804, a power supply component 806, a multimedia component 808, an audio component 810, an input/output (I/O) interface 812, a sensor component 814, and communication component 816 .

The processing component 802 generally controls the overall operations of the terminal 800, such as operations associated with display, telephone calls, data communications, camera operations, and recording operations. The processing component 802 may include one or more processors 820 to execute instructions to complete all or part of the steps of the above method. Additionally, processing component 802 may include one or more modules that facilitate interaction between processing component 802 and other components. For example, processing component 802 may include a multimedia module to facilitate interaction between multimedia component 808 and processing component 802 .

The memory 804 is configured to store various types of data to support operations at the terminal 800 . Examples of such data include instructions for any application or method operating on the terminal 800, contact data, phonebook data, messages, pictures, videos, etc. The memory 804 can be implemented by any type of volatile or non-volatile storage device or their combination, such as static random access memory (SRAM), electrically erasable programmable read-only memory (EEPROM), erasable Programmable Read Only Memory (EPROM), Programmable Read Only Memory (PROM), Read Only Memory (ROM), Magnetic Memory, Flash Memory, Magnetic or Optical Disk.

The power supply component 806 provides power to various components of the terminal 800 . Power components 806 may include a power management system, one or more power supplies, and other components associated with generating, managing, and distributing power for terminal 800 .

The multimedia component 808 includes a screen providing an output interface between the terminal 800 and the user. In some embodiments, the screen may include a liquid crystal display (LCD) and a touch panel (TP). If the screen includes a touch panel, the screen may be implemented as a touch screen to receive input signals from a user. The touch panel includes one or more touch sensors to sense touches, swipes, and gestures on the touch panel. The touch sensor may not only sense a boundary of a touch or a swipe action, but also detect duration and pressure associated with the touch or swipe operation. In some embodiments, the multimedia component 808 includes a front camera and/or a rear camera. When the terminal 800 is in an operation mode, such as a shooting mode or a video mode, the front camera and/or the rear camera can receive external multimedia data. Each front camera and rear camera can be a fixed optical lens system or have focal length and optical zoom capability.

The audio component 810 is configured to output and/or input audio signals. For example, the audio component 810 includes a microphone (MIC), which is configured to receive an external audio signal when the terminal 800 is in an operation mode, such as a call mode, a recording mode and a voice recognition mode. Received audio signals may be further stored in memory 804 or sent via communication component 816 . In some embodiments, the audio component 810 also includes a speaker for outputting audio signals.

The I/O interface 812 provides an interface between the processing component 802 and a peripheral interface module, which may be a keyboard, a click wheel, a button, and the like. These buttons may include, but are not limited to: a home button, volume buttons, start button, and lock button.

The sensor component 814 includes one or more sensors for providing various aspects of a state assessment of the terminal 800 . For example, the sensor component 814 can detect the open/closed state of the terminal 800, the relative positioning of the components, such as the display and the keypad of the terminal 800, the sensor component 814 can also detect the position change of the terminal 800 or a component of the terminal 800, and the user The presence or absence of contact with the terminal 800, the terminal 800 orientation or acceleration/deceleration and the temperature change of the terminal 800. Sensor assembly 814 may include a proximity sensor configured to detect the presence of nearby objects in the absence of any physical contact. Sensor assembly 814 may also include an optical sensor, such as a CMOS or CCD image sensor, for use in imaging applications. In some embodiments, the sensor component 814 may also include an acceleration sensor, a gyroscope sensor, a magnetic sensor, a pressure sensor or a temperature sensor.

The communication component 816 is configured to facilitate wired or wireless communication between the terminal 800 and other devices. The terminal 800 can access a wireless network based on communication standards, such as Wi-Fi, 2G or 3G, or a combination thereof. In an exemplary embodiment, the communication component 816 receives broadcast signals or broadcast related information from an external broadcast management system via a broadcast channel. In an exemplary embodiment, the communication component 816 also includes a near field communication (NFC) module to facilitate short-range communication. For example, the NFC module may be implemented based on Radio Frequency Identification (RFID) technology, Infrared Data Association (IrDA) technology, Ultra Wide Band (UWB) technology, Bluetooth (BT) technology and other technologies.

In an exemplary embodiment, terminal 800 may be programmed by one or more application specific integrated circuits (ASICs), digital signal processors (DSPs), digital signal processing devices (DSPDs), programmable logic devices (PLDs), field programmable A gate array (FPGA), controller, microcontroller, microprocessor or other electronic component implementation for performing the methods described above.

In an exemplary embodiment, there is also provided a non-transitory computer-readable storage medium including instructions, such as the memory 804 including instructions, which can be executed by the processor 820 of the terminal 800 to complete the above method. For example, the non-transitory computer readable storage medium may be ROM, random access memory (RAM), CD-ROM, magnetic tape, floppy disk, optical data storage device, and the like.

As shown in FIG. 27 , an embodiment of the present disclosure shows a structure of a base station. For example, the base station 900 may be provided as a network side device. Referring to FIG. 27 , base station 900 includes processing component 922 , which further includes one or more processors, and a memory resource represented by memory 932 for storing instructions executable by processing component 922 , such as application programs. The application program stored in memory 932 may include one or more modules each corresponding to a set of instructions. In addition, the processing component 922 is configured to execute instructions, so as to perform any of the aforementioned methods applied to the base station.

Base station 900 may also include a power component 926 configured to perform power management of base station 900, a wired or wireless network interface 950 configured to connect base station 900 to a network, and an input-output (I/O) interface 958. The base station 900 can operate based on an operating system stored in the memory 932, such as Windows Server™, Mac OS X™, Unix™, Linux™, FreeBSD™ or the like.

Other embodiments of the invention will be readily apparent to those skilled in the art from consideration of the specification and practice of the invention disclosed herein. This disclosure is intended to cover any modification, use or adaptation of the present invention, these modifications, uses or adaptations follow the general principles of the present invention and include common knowledge or conventional technical means in the technical field not disclosed in this disclosure . The specification and examples are to be considered exemplary only, with a true scope and spirit of the invention being indicated by the following claims.

It should be understood that the present invention is not limited to the precise constructions which have been described above and shown in the accompanying drawings, and various modifications and changes may be made without departing from the scope thereof. The scope of the invention is limited only by the appended claims.

Claims (24)

1. A beam measurement method, wherein said method is performed by a base station, said method comprising: Send downlink control information DCI; Wherein, the DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on the aperiodic channel state information reference signal AP-CSI-RS; the terminal group includes: configured to use the same periodic CSI-RS At least one terminal that performs beam measurement and does not receive the periodic CSI-RS. 2. The method according to claim 1, wherein the sending downlink control information DCI comprises: sending the DCI in response to the measurement interval being greater than or equal to the sending period of the AP-CSI-RS; Wherein, the measurement interval is the time interval between the time when the LBT detection is successful and the time of the previous beam measurement. 3. The method according to claim 1, wherein the DCI includes: a CSI request field; wherein the CSI request field indicates that the terminals in the terminal group report the reporting of the measurement results of the beam measurement method; wherein, the reporting method includes: A first reporting manner, instructing the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of each AP-CSI-RS set; The second reporting method is to instruct the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of multiple AP-CSI-RS sets; wherein, each AP-CSI-RS includes multiple AP-CSI-RS sets Describe AP-CSI-RS. 4. The method of claim 3, wherein, In response to determining to instruct terminals in the terminal group to report the measurement results in the first reporting manner, the CSI request field indicates a first value; and / or, In response to determining to instruct terminals in the terminal group to report the measurement result in the second reporting manner, the CSI request field indicates a second value. 5. The method according to claim 1, wherein the method further comprises: In response to determining that the terminal in the terminal group is instructed to report the measurement result in the first reporting manner, configure different AP-CSI-RS sets used by the terminal to associate different CSI report configuration parameters; and / or, In response to determining to indicate that the terminals in the terminal group use the second reporting method to report the measurement results, configure the different AP-CSI-RS sets used by the terminals to associate the same CSI report configuration parameters; wherein, the first reporting method indicates The terminals in the terminal group report the measurement results that meet the predetermined conditions determined from the measurement results of each AP-CSI-RS set; the second reporting method instructs the terminals in the terminal group to report from multiple The measurement results satisfying the predetermined condition are determined from the measurement results of the AP-CSI-RS set; wherein, each AP-CSI-RS includes multiple AP-CSI-RSs. 6. The method according to claim 1, wherein, in response to the terminal reporting the measurement result of the beam measurement through a physical uplink shared channel (PUSCH), the DCI includes: a resource indication field; wherein the resource indication field , indicating: time domain resource and/or frequency domain resource information of the PUSCH used by terminals in the terminal group to report the measurement result. 7. The method according to claim 1, wherein the method further comprises: In response to the terminal reporting the measurement result of the beam measurement through the physical uplink control channel PUCCH, using a radio resource control RRC message to send the time domain resources of the PUCCH used by the terminals in the terminal group to report the measurement result and/or Or frequency domain resource information. 8. The method according to claim 1, wherein the DCI comprises: a state field; wherein the state field indicates an aperiodic trigger state; wherein each of the aperiodic trigger states is associated with at least one of the AP-CSI-RS sets; the number of AP-CSI-RSs included in each AP-CSI-RS set is less than a number threshold; the number threshold is greater than a predetermined value, and the predetermined value is 64. 9. The method according to claim 1, wherein the method further comprises: Sending the aperiodic channel state information radio network temporary identifier AP-CSI-RNTI by using the radio resource control RRC message; Wherein, the AP-CSI-RNTI of terminals configured to perform beam measurement by using the same periodic CSI-RS is the same. 10. A beam measurement method, wherein the method is executed by a terminal, and the method includes: Receive downlink control information DCI; Wherein, the DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on AP-CSI-RS; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement and not receive At least one terminal of the periodic CSI-RS. 11. The method according to claim 10, wherein the method further comprises: In response to receiving the DCI, performing beam measurements based on the AP-CSI-RS. 12. The method according to claim 10, wherein the DCI includes: a CSI request field; wherein the CSI request field indicates: the terminals in the terminal group report the reporting of the measurement results of the beam measurement method; wherein, the reporting method includes: A first reporting manner, instructing the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of each AP-CSI-RS set; The second reporting method is to instruct the terminals in the terminal group to report the measurement results that meet the predetermined conditions determined from the measurement results of multiple AP-CSI-RS sets; where each AP-CSI-RS includes multiple APs -CSI-RS. 13. The method according to claim 12, wherein the method further comprises: In response to the CSI request field indicating a first value, report the measurement result in the first reporting manner; and / or, In response to the CSI request field indicating a second value, report the measurement result in the second reporting manner. 14. The method according to claim 10, wherein the method further comprises: In response to the fact that different AP-CSI-RS sets used by the terminal are associated with different CSI report configuration parameters, the first reporting method is used to report the measurement results; and / or, In response to the fact that different aperiodic CSI-RS sets used by the terminal are associated with the same CSI report configuration parameters, report the measurement results in a second reporting manner; Wherein, the first reporting method indicates that the terminals in the terminal group report the measurement results that meet the predetermined conditions determined from the measurement results of each AP-CSI-RS set; the second reporting method indicates that the The terminals in the terminal group report the measurement results determined from the measurement results of multiple AP-CSI-RS sets that meet the predetermined condition; wherein, each AP-CSI-RS includes multiple AP-CSI-RSs. 15. The method according to claim 10, wherein the DCI includes: a resource indication field; wherein the resource indication field indicates: time domain resources and/or frequency domain resource information; wherein the time domain The resource and/or frequency domain resource information is the time domain resource and/or frequency domain resource information of the PUSCH used by the terminals in the terminal group to report the measurement result. 16. The method according to claim 15, wherein the method further comprises: Report the measurement result of the beam measurement on the PUSCH based on the time domain resource and/or frequency domain resource information. 17. The method according to claim 10, wherein the method further comprises: receiving information on time domain resources and/or frequency domain resources sent by using an RRC message; Wherein, the information of the time domain resource and/or the frequency domain resource is information of the time domain resource and/or the frequency domain resource of the PUCCH used by the terminals in the terminal group to report the measurement result. 18. The method according to claim 17, wherein the method further comprises: Report the measurement result of the beam measurement on the PUCCH based on the time domain resource and/or frequency domain resource information. 19. The method according to claim 10, wherein the DCI comprises: a state field; wherein the state field indicates an aperiodic trigger state; wherein each of the aperiodic trigger states is associated with at least one AP- CSI-RS sets; the number of AP-CSI-RSs included in each AP-CSI-RS set is less than a number threshold; the number threshold is greater than a predetermined value, and the predetermined value is 64. 20. The method according to claim 10, wherein said method, further comprising: Receive an RRC message carrying AP-CSI-RNTI; Wherein, the AP-CSI-RNTI of terminals configured to perform beam measurement by using the same periodic CSI-RS is the same. 21. A beam measurement device, which is applied to a base station, and the device includes a delivery module, wherein, The issuing module is configured to issue DCI; Wherein, the DCI is at least used to: trigger the AP-CSI-RS of terminals in the terminal group to perform beam measurement; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement and not receive the at least one terminal of the periodic CSI-RS. 22. A beam measurement device, which is applied to a terminal, and the device includes a receiving module; wherein, The receiving module is configured to receive DCI; Wherein, the DCI is at least used to: trigger the terminals in the terminal group to perform beam measurement based on AP-CSI-RS; the terminal group includes: configured to use the same periodic CSI-RS to perform beam measurement and not receive At least one terminal of the periodic CSI-RS. 23. A communication device, comprising: antenna; memory; The processor is respectively connected to the antenna and the memory, configured to control the sending and receiving of the antenna by executing the computer-executable instructions stored in the memory, and can realize claims 1 to 9, or claims 10 to 10. 20 any one of the methods provided. 24. A computer storage medium, the computer storage medium is stored with computer-executable instructions, and the computer-executable instructions are executed by a processor, and can realize the invention provided by any one of claims 1 to 9 or claims 10 to 20. method.

Images
