The invention relates to a device for producing cubilose and a production method thereof, wherein the device for producing cubilose is characterized in that: the material conveying device comprises an inclined rectangular material conveying disc and a conveying belt arranged at the discharge end of the material conveying disc, wherein the first end of the material conveying disc is rotatably hinged to a rack, the second end of the material conveying disc is movably supported on the rack, an eccentric wheel acting on the bottom surface of the material conveying disc is arranged below the second end of the material conveying disc in the rack, the eccentric wheel is driven to rotate by a driving mechanism, and a plurality of strip-shaped gaps are formed in the material conveying disc along the length direction of the material conveying disc. The equipment for producing the cubilose provided by the invention has the advantages that the inclined material conveying disc reciprocates up and down at the second end under the action of the eccentric wheel, so that the flock or impurities are removed through the strip-shaped gap, the removing efficiency is high, and the labor amount of workers is greatly reduced.
Description
The technical field is as follows:
the invention relates to equipment for producing cubilose and a production method thereof.
Background art:
the nidus Collocaliae is nest hole formed by mixing and bonding saliva secreted by several swiftlets of the family Radon delphinidae and their down feathers, and is mainly produced in southeast Asia countries such as Malaysia, Indonesia, Thailand and Burma, as well as in Fujian and Guangdong coastal zones of China.
The cubilose contains abundant saccharides, organic acids, free amino acids and a characteristic substance, namely sialic acid, and the main nutritional component in the cubilose is protein which has a better nutritional supplement effect on a human body.
The cubilose raw materials are mixed with a large amount of flock or impurities after being picked back, the mode adopted at present is mainly manual cleaning, the workload is huge, and the efficiency is low.
The glass tanks (or glass bowls) for cubilose canning have higher requirements on the appearance of the surfaces of the glass tanks, and the glass tanks are easy to collide and scrape by using the existing conveyor belt type cleaning and sterilizing device, so that the outer surfaces of the glass tanks are scratched, and the like, thereby affecting the product quality; and the manual cleaning is inefficient.
The invention content is as follows:
the invention aims to provide equipment for producing cubilose and a production method thereof.
The invention relates to equipment for producing cubilose, which is characterized in that: the material conveying device comprises an inclined rectangular material conveying disc and a conveying belt arranged at the discharge end of the material conveying disc, wherein the first end of the material conveying disc is rotatably hinged to a rack, the second end of the material conveying disc is movably supported on the rack, an eccentric wheel acting on the bottom surface of the material conveying disc is arranged below the second end of the material conveying disc in the rack, the eccentric wheel is driven to rotate by a driving mechanism, and a plurality of strip-shaped gaps are formed in the material conveying disc along the length direction of the material conveying disc.
Furthermore, an atomizing collision head is arranged above the feeding end of the conveying belt to moisten the raw materials of the cubilose on the conveying belt.
Furthermore, the rectangular material conveying disc is made of stainless steel materials, the long side of the rectangular material conveying disc is provided with a vertical bending side, and the short side of the rectangular material conveying disc is open.
Furthermore, the length of the strip-shaped gap is equivalent to the width of the material conveying disc, and the width of the strip-shaped gap is 0.2-1.2 mm.
Furthermore, a rubber supporting block is arranged below the second end of the material conveying disc on the rack, the supporting surface of the rubber supporting block is lower than the elevation position of the bottom surface of the material conveying disc on which the eccentric wheel is arranged, and the supporting surface of the rubber supporting block is higher than the low-range position of the eccentric wheel.
Furthermore, a degerming device suitable for the production of the cubilose is arranged beside the rack and comprises a cabinet body with an opening and closing door and a trolley arranged in the cabinet body, a plurality of layer frames which are arranged at intervals are fixedly arranged on the cart, a drawable supporting frame is supported on the layer frames, the supporting frame comprises a rectangular frame and a metal net arranged at the bottom in the rectangular frame, the metal net is used for bearing an upside-down glass tank for loading the cubilose, a plurality of spray pipes are horizontally arranged on the inner surface of the cabinet body, when the cart is pushed to the bottom, the spraying pipes are arranged between the upper adjacent layer frame and the lower adjacent layer frame, the positions, located at the upper part and the lower part, of the spraying pipes are provided with spraying openings, and the spraying openings correspond to the glass tanks on the upper adjacent layer frame and the lower adjacent layer frame in the length direction of the spraying pipes in a one-to-one mode so as to spray the inner wall surfaces and the outer wall surfaces of the glass tanks on the upper adjacent layer frame and the lower adjacent layer frame.
Furthermore, the trolley comprises a base plate and pulleys arranged below the base plate, a plurality of layer frames arranged at intervals and supporting columns fixedly arranged between the adjacent layer frames are sequentially arranged right above the base plate, the layer frames are sequentially and vertically welded by three angle steels to form a U shape, and the opening ends of the layer frames are used for pushing the supporting frames; the rectangular frame is formed by welding four square steels into a rectangular shape.
Further, the rear side wall body of the cabinet body is passed to the end of above-mentioned shower, and the shower of same row is connected to horizontal branch pipe, and each horizontal branch pipe is connected to vertical pipe, vertical pipe is through middle pipeline and suction pump and water storage tank intercommunication above that, the bottom of the cabinet body is connected with the drain pipe, with water storage tank intercommunication behind water piping connection water pump and the filter, be equipped with the electric heating rod in the water storage tank to the water of depositing in the heating water storage tank.
Furthermore, a side branch pipe is connected to the longitudinal pipe, a first electromagnetic valve and a high-pressure air pump are connected to the side branch pipe, and a second electromagnetic valve is arranged on one side, close to the water suction pump, of the longitudinal pipe; the shower is the stepped pipe that the stainless steel made, and the first end of this stepped pipe is sealed, and the second end has the undergauge pipeline section, and this undergauge pipeline section passes the through-hole of the cabinet body rear side wall body, and this undergauge pipeline section periphery has the external screw thread, and this external screw thread is used for the lock to establish the nut that is located cabinet body rear side wall body surface and is connected with the screw hole on the horizontal branch pipe.
The invention relates to a production method of equipment for producing cubilose, which comprises an inclined rectangular material conveying disc and a conveying belt arranged at the discharge end of the material conveying disc, wherein the first end of the material conveying disc is rotatably hinged on a rack, the second end of the material conveying disc is movably supported on the rack, an eccentric wheel acting on the bottom surface of the material conveying disc is arranged below the second end of the material conveying disc on the rack, and a plurality of strip-shaped gaps arranged at intervals are arranged on the material conveying disc along the length direction of the material conveying disc; during operation, the eccentric wheel is started to continuously rotate, so that the second end of the material conveying disc continuously and repeatedly moves up and down, in the moving process, the raw bird's nest materials on the inclined material conveying disc slide down from the high-position end to the low-position end along the trend, in the sliding process, flock or impurities in the raw bird's nest materials fall down from the strip-shaped gap, after the raw bird's nest materials are basically removed, the raw bird's nest materials fall onto the conveying belt, and workers on the side edge of the conveying belt take out individual raw bird's nest materials to remove the remaining flock or impurities on the raw bird's nest materials.
The equipment for producing the cubilose provided by the invention has the advantages that the inclined material conveying disc reciprocates up and down at the second end under the action of the eccentric wheel, so that the flock or impurities are removed through the strip-shaped gap, the removing efficiency is high, and the labor amount of workers is greatly reduced.
Description of the drawings:
FIG. 1 is a schematic configuration diagram of an apparatus for producing cubilose;
FIG. 2 is a schematic view of the front view configuration of the present invention;
FIG. 3 is a front view schematic of the cart;
FIG. 4 is a schematic cross-sectional configuration of a shelf;
FIG. 5 is a schematic view of the top configuration of FIG. 4;

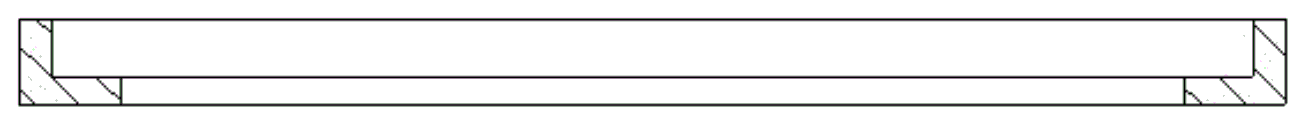

FIG. 6 is a schematic sectional configuration view of the support frame;
FIG. 7 is a schematic view of the top configuration of FIG. 6;
FIG. 8 is a schematic view of the rear of the cabinet;
FIG. 9 is a schematic view of a connection structure of the shower pipe and the rear wall of the cabinet body;
fig. 10 is a schematic sectional configuration view of the shower pipe.
The specific implementation mode is as follows:
the device for producing the cubilose comprises an inclined rectangular material conveying disc A1 and a conveying belt A2 arranged at the discharge end of the material conveying disc A1, wherein the first end of the material conveying disc A1 is rotatably hinged on a frame A3, the second end of the material conveying disc A1 is movably supported on the frame, an eccentric wheel A4 acting on the bottom surface of the material conveying disc is arranged below the second end of the material conveying disc on the frame, the eccentric wheel is driven to rotate by a driving mechanism, a plurality of strip-shaped gaps A5 arranged at intervals are arranged on the material conveying disc A1 along the length direction of the material conveying disc, when the device works, the eccentric wheel continuously rotates under the action of the driving mechanism, so that the second end of the material conveying disc continuously reciprocates upwards and downwards, during the movement, cubilose raw materials, namely raw materials, on the inclined material conveying disc slide down from a high end to a low end along the trend, during the sliding, flock or impurities in the raw materials of the cubilose fall from the, the raw bird's nest material falls onto the conveyer belt, and workers at the side of the conveyer belt take out individual bird's nest raw material to remove the remaining flock or impurities on the raw bird's nest raw material.
The eccentric wheel A4 can be driven by a motor to rotate, or the motor drives a belt pulley mechanism to drive the eccentric wheel to rotate, when the eccentric wheel rotates and acts on the lower part of the second end of the material conveying disc, the second end of the material conveying disc reciprocates up and down, the rotating speed of the eccentric wheel A4 is not too fast, the raw material of the cubilose is easily crushed too fast, and usually 0.5-1.5 revolutions per second are enough.
Furthermore, in order to facilitate subsequent manual removal of residual flock or impurities and the like in the cubilose raw materials, an atomization collision head A6 is arranged above the feeding end of the conveying belt to moisten the cubilose raw materials on the conveying belt, and after the cubilose raw materials are atomized and moistened, the impurities and the like in the cubilose raw materials can be removed more easily.
For reasonable design, the rectangular feed tray is made of stainless steel materials, the long side of the rectangular feed tray is provided with a vertical bent side A7, the short side of the rectangular feed tray is open, and the vertical bent side A7 of the long side is beneficial to preventing the raw bird's nest material from leaking out of the side part.
In order to design reasonably, the length of the strip-shaped gap is equivalent to the width of the feed delivery disc, the width of the strip-shaped gap is 0.2-1.2mm, the gap can allow the flock or impurities to pass through, but the raw materials of the cubilose cannot easily pass through, and a material containing disc A8 for collecting the flocks or impurities which are collected or a very small amount of fine scraps of the raw materials of the cubilose can be arranged below the feed delivery disc A1.
Furthermore, in order to be beneficial to playing a buffering role, a rubber supporting block A9 is arranged below the second end of the material conveying disc on the rack, the supporting surface of the rubber supporting block is lower than the elevation position of the bottom surface of the material conveying disc on which the eccentric wheel is arranged, the supporting surface of the rubber supporting block is higher than the low-distance position of the eccentric wheel, and the rubber supporting block A9 can play a role in small impact on the material conveying disc, so that raw bird nest materials on the material conveying disc can slide off from the first end to the second end easily.
The sterilizing equipment suitable for the cubilose production is arranged beside a rack of the equipment for producing the cubilose and comprises a cabinet body 1 with an opening and closing door and a trolley 2 arranged in the cabinet body 1, the cabinet body is in a cuboid shape and made of stainless steel materials, and a sealing strip is arranged at a closed seam between the opening and closing door and the cabinet body so as to realize water sealing when the opening and closing door and the cabinet body are closed.
The trolley 2 is fixedly provided with a plurality of layer frames 3 arranged at intervals, the layer frames 3 are supported by drawable supporting frames 4, specifically, the trolley 2 comprises a stainless steel base plate 10 and pulleys 11 arranged below the stainless steel base plate 10, the layer frames 3 arranged at intervals and supporting columns 13 fixedly arranged between adjacent layer frames are sequentially arranged right above the base plate 10, the supporting columns 13 can be square steel from bottom to top, the layer frames 3 are sequentially and vertically welded into a U shape by three angle steels 12, the openings of the three angle steels face to opposite inner sides, so that the angle steels can support the limiting supporting frames 4 to slide, and the opening ends of the layer frames are used for pushing the supporting frames 4; the support column 13 is welded at the end of two opposite parallel arranged angle steels.
The support frame 4 comprises a rectangular frame 5 and a metal net 6 arranged at the bottom in the rectangular frame, the rectangular frame 5 is in a rectangular shape formed by welding four square steels, and if the plane where the metal net 6 is arranged is higher than the bottom plane of the rectangular frame 5, the support frame 4 can be smoothly pulled in the layer frame 3.
The glass tank 7 which is used for loading the bird's nest and is inversely placed is placed on the metal net 6, a plurality of spray pipes 8 are horizontally distributed on the inner face (namely the 15 wall face of the rear side wall body) of the cabinet body 1, the spray pipes 8 are arranged between the upper adjacent layer frame and the lower adjacent layer frame when the cart 2 is pushed to the bottom, spray ports 9 are arranged at the upper part and the lower part of each spray pipe 8, and the spray ports 9 are in one-to-one correspondence with the glass tanks on the upper adjacent layer frame and the lower adjacent layer frame in the length direction of the spray pipes so as to spray the inner wall face and the outer wall face of the glass tanks on the upper adjacent layer frame and the lower adjacent layer frame.
The tail end of the spray pipe 8 penetrates through a rear side wall body 15 of the cabinet body, the spray pipes 8 in the same row are connected to transverse branch pipes 16, each transverse branch pipe 16 is connected to a longitudinal pipe 17, each transverse branch pipe 16 and the longitudinal pipe 17 can be fixed through welding and can be communicated with each other, the longitudinal pipe 17 is communicated with a water storage tank 20 through an intermediate pipeline 18 and a water suction pump 19 on the longitudinal pipe, the bottom of the cabinet body 1 is connected with a drain pipe 21, the drain pipe 21 is communicated with the water storage tank 20 after being connected with a water pump 22 and a filter 23, an electric heating rod 24 is arranged in the water storage tank 20 to heat water stored in the water storage tank 20, when the water storage tank works, water is added into the water storage tank 20 (or some solvents with a sterilization effect are added into the water), the electric heating rod 24 is started to heat the water in the water storage tank 20 to be higher than 80 ℃, and after the cart is pushed in and an opening, the water of water storage tank is sprayed out after passing through middle pipeline, longitudinal pipe and transverse branch pipe and spray pipe, and is washed and sterilized to the outer surface and the inner surface of the glass tank right above and below the spray opening, and the washed water flows to the bottom of the cabinet body and is re-conveyed to the water storage tank 20 after being filtered by the filter under the action of the water pump.
In order to avoid the need of additionally draining the glass tank after flushing, a side branch pipe 25 is connected to the longitudinal pipe 17, a first electromagnetic valve 26 and a high-pressure air pump 27 are connected to the side branch pipe 25, a second electromagnetic valve 28 is arranged on one side, close to the water suction pump 19, of the longitudinal pipe 17, and when the water tank is flushed, the second electromagnetic valve is opened, the first electromagnetic valve is closed, and the water suction pump sucks water from the water storage tank for flushing; when the draining glass tank works, the second electromagnetic valve is closed, the first electromagnetic valve is opened, the high-pressure air pump 27 works to continuously blow air to the inner surface and the outer surface of the glass tank through the spray pipe 8 and the spray port 9, and the water on the inner surface and the outer surface of the glass tank is drained.
In order to facilitate installation, the spraying pipe 8 is a stainless steel stepped pipe, a first end 29 of the stepped pipe is closed, a second end 30 of the stepped pipe is provided with a reducing pipe section, the reducing pipe section penetrates through a through hole 31 of the rear side wall body of the cabinet body, external threads are arranged on the periphery of the reducing pipe section and are used for being locked with a nut 32 located on the surface of the rear side wall body of the cabinet body and being connected with a threaded hole 33 on the transverse branch pipe, during installation, one end of the reducing pipe section of the spraying pipe penetrates through the through hole 31 of the rear side wall body of the cabinet body, the nut is screwed on the reducing pipe section but not screwed, then the spraying pipe is screwed into the threaded hole 33 of the transverse branch pipe (meanwhile, a sealing ring or sealant and the like are installed), and finally the nut.
The working principle of the degerming equipment suitable for cubilose production is as follows: be covered with pending glass jar on the metal mesh of carriage, the carriage that is covered with glass jar pushes the layer frame to the different layers one by one, each layer frame all carries behind the carriage, it is internal to push the cabinet with the shallow, close the door of opening and shutting of the cabinet body, the shower is under the effect of water pump, from the blowout washing water in the mouth that sprays, thereby wash the cleanness with the glass jar that the mouth corresponds that sprays, because in whole cleaning process, glass jar does not remove each other, the condition of colliding with can not appear, scraping etc., the damage to the glass jar outward appearance of canning bird's nest has significantly reduced.
The equipment for producing the cubilose is used for removing impurities in raw materials of the cubilose and the like, the sterilizing equipment suitable for producing the cubilose is used for cleaning and sterilizing the glass tank containing the cubilose, and the glass tank is used for containing the cubilose with the impurities removed, namely the cubilose output by the conveying belt is contained after the glass tank is cleaned and sterilized.
Finally, it should be noted that the above examples are only used to illustrate the technical solutions of the present invention and not to limit the same; although the present invention has been described in detail with reference to preferred embodiments, those skilled in the art will understand that: modifications to the specific embodiments of the invention or equivalent substitutions for parts of the technical features may be made; without departing from the spirit of the present invention, it is intended to cover all aspects of the invention as defined by the appended claims.
Claims (10)
1. An apparatus for producing cubilose, characterized in that: the material conveying device comprises an inclined rectangular material conveying disc and a conveying belt arranged at the discharge end of the material conveying disc, wherein the first end of the material conveying disc is rotatably hinged to a rack, the second end of the material conveying disc is movably supported on the rack, an eccentric wheel acting on the bottom surface of the material conveying disc is arranged below the second end of the material conveying disc in the rack, the eccentric wheel is driven to rotate by a driving mechanism, and a plurality of strip-shaped gaps are formed in the material conveying disc along the length direction of the material conveying disc.
2. The apparatus for producing cubilose according to claim 1, characterized in that: an atomizing collision head is arranged above the feeding end of the conveying belt to moisten the cubilose raw materials on the conveying belt.
3. The apparatus for producing cubilose according to claim 1, characterized in that: the rectangular material conveying disc is made of stainless steel materials, the long edge of the rectangular material conveying disc is provided with a vertical bending edge, and the short edge of the rectangular material conveying disc is open.
4. The apparatus for producing cubilose according to claim 3, characterized in that: the length of the strip-shaped gap is equivalent to the width of the material conveying disc, and the width of the strip-shaped gap is 0.2-1.2 mm.
5. The apparatus for producing cubilose according to claim 1, characterized in that: and a rubber supporting block is arranged below the second end of the material conveying disc on the rack, the supporting surface of the rubber supporting block is lower than the elevation position of the bottom surface of the material conveying disc on which the eccentric wheel is arranged, and the supporting surface of the rubber supporting block is higher than the low-range position of the eccentric wheel.
6. The apparatus for producing cubilose according to claim 1, characterized in that: the side of the frame is provided with a degerming device suitable for the production of the cubilose, the degerming device suitable for the production of the cubilose comprises a cabinet body with an opening and closing door and a trolley arranged in the cabinet body, a plurality of layer frames which are arranged at intervals are fixedly arranged on the cart, a drawable supporting frame is supported on the layer frames, the supporting frame comprises a rectangular frame and a metal net arranged at the bottom in the rectangular frame, the metal net is used for bearing an upside-down glass tank for loading the cubilose, a plurality of spray pipes are horizontally arranged on the inner surface of the cabinet body, when the cart is pushed to the bottom, the spraying pipes are arranged between the upper adjacent layer frame and the lower adjacent layer frame, the positions, located at the upper part and the lower part, of the spraying pipes are provided with spraying openings, and the spraying openings correspond to the glass tanks on the upper adjacent layer frame and the lower adjacent layer frame in the length direction of the spraying pipes in a one-to-one mode so as to spray the inner wall surfaces and the outer wall surfaces of the glass tanks on the upper adjacent layer frame and the lower adjacent layer frame.
7. The apparatus for producing bird's nest according to claim 6, characterized in that: the trolley comprises a base plate and pulleys arranged below the base plate, a plurality of layer frames arranged at intervals and supporting columns fixedly arranged between adjacent layer frames are sequentially arranged right above the base plate, the layer frames are sequentially and vertically welded by three angle steels to form a U shape, and the opening ends of the layer frames are used for pushing in supporting frames; the rectangular frame is formed by welding four square steels into a rectangular shape.
8. The apparatus for producing bird's nest according to claim 6, characterized in that: the terminal rear side wall body that passes the cabinet body of shower, the shower of same row is connected to horizontal branch pipe, and each horizontal branch pipe is connected to vertical pipe, vertical pipe is through middle pipeline and suction pump and the water storage tank intercommunication above that, the bottom of the cabinet body is connected with the drain pipe, behind water piping connection water pump and the filter with water storage tank intercommunication, be equipped with the electric heating rod in the water storage tank to the water of depositing in the heating water storage tank.
9. The apparatus for producing bird's nest according to claim 8, characterized in that: a side branch pipe is connected to the side of the longitudinal pipe, a first electromagnetic valve and a high-pressure air pump are connected to the side branch pipe, and a second electromagnetic valve is arranged on one side, close to the water suction pump, of the longitudinal pipe; the shower is the stepped pipe that the stainless steel made, and the first end of this stepped pipe is sealed, and the second end has the undergauge pipeline section, and this undergauge pipeline section passes the through-hole of the cabinet body rear side wall body, and this undergauge pipeline section periphery has the external screw thread, and this external screw thread is used for the lock to establish the nut that is located cabinet body rear side wall body surface and is connected with the screw hole on the horizontal branch pipe.
10. A production method of equipment for producing cubilose is characterized in that: the device for producing the cubilose comprises an inclined rectangular material conveying disc and a conveying belt arranged at the discharge end of the material conveying disc, wherein the first end of the material conveying disc is rotatably hinged on a rack, the second end of the material conveying disc is movably supported on the rack, an eccentric wheel acting on the bottom surface of the material conveying disc is arranged below the second end of the material conveying disc on the rack, the eccentric wheel is driven to rotate by a driving mechanism, and a plurality of strip-shaped gaps arranged at intervals are formed in the material conveying disc along the length direction of the material conveying disc; during operation, the eccentric wheel is started to continuously rotate, so that the second end of the material conveying disc continuously and repeatedly moves up and down, in the moving process, the raw bird's nest materials on the inclined material conveying disc slide down from the high-position end to the low-position end along the trend, in the sliding process, flock or impurities in the raw bird's nest materials fall down from the strip-shaped gap, after the raw bird's nest materials are basically removed, the raw bird's nest materials fall onto the conveying belt, and workers on the side edge of the conveying belt take out individual raw bird's nest materials to remove the remaining flock or impurities on the raw bird's nest materials.
