Abstract

The invention relates to the technical field of shock absorbers and discloses a reciprocating concentric sealing structure of a motorcycle shock absorber, which comprises two main cylinders, wherein fixed sleeves are fixedly mounted at the top ends of the two main cylinders, fixed grooves are formed in the front surfaces of the fixed sleeves, outer sealing rings are sleeved in inner cavities of the fixed grooves, and the outer diameters of the outer sealing rings are the same as the outer diameters of the fixed grooves. This reciprocal concentric seal structure of motorcycle bumper shock absorber, fix between the bolt hole of seting up on through fixing bolt and the fixed plate, the fluid that is located the main cylinder body inside this moment can be blockked by lower sealing pad and upper seal pad, the through-hole can make fluid pass through each other simultaneously, and block through interior sealing ring and external seal ring and prevent revealing many times, the strengthening rib can absorb partial pressure when the external seal ring receives pressure and prevent that the interior sealing ring takes place deformation and lead to appearing revealing, strengthen sealed effect, thereby the better advantage of sealed effect has been realized.

Description

Reciprocating concentric sealing structure of motorcycle shock absorber

Technical Field

The invention relates to the technical field of shock absorbers, in particular to a reciprocating concentric sealing structure of a motorcycle shock absorber.

Background

The shock Absorber (Absorber) is used to suppress the shock when the spring absorbs the shock and then rebounds and the impact from the road surface. The damping device is widely applied to automobiles and is used for accelerating the attenuation of the vibration of a frame and an automobile body so as to improve the driving smoothness of the automobiles. When the shock absorber passes through the uneven road surface, although the shock absorbing spring can filter the shock of the road surface, the spring can still reciprocate, and the shock absorber is used for inhibiting the spring from jumping. In order to improve the running smoothness of the automobile, a shock absorber is arranged in the suspension in parallel with the elastic element, and is used for attenuating the shock. At the moment, the friction between the hole wall and the oil and the internal friction between oil molecules form damping force on vibration, so that the vibration energy of the automobile is converted into oil heat energy, and then the oil heat energy is absorbed by the shock absorber and is emitted into the atmosphere. When the cross section and other factors of the oil passage are not changed, the damping force is increased and decreased along with the relative movement speed between the vehicle frame and the vehicle axle (or the vehicle wheel) and is related to the viscosity of the oil.

The utility model discloses a damping device, including motorcycle, front wheel, rear wheel, bumper shock absorber, the cylinder body of its outside can protect its inside damper, fluid has generally all been stored to the inside of its bumper shock absorber that uses at present, kneck department at the cylinder body generally all is provided with the sealing ring and prevents spilling over of fluid, the sealing ring can lead to sealed effect to take place to descend along with the ageing of time when in-service use, the serious person then can cause the bumper shock absorber to appear weeping and cause the shock attenuation effect to become invalid, influence in-service use.

Meanwhile, the sealing mechanism of the shock absorber used at present is generally supported by a metal cylinder, the cylinder with a larger diameter is generally arranged for preventing the metal cylinder from deforming to cause shock absorption failure, the length of the cylinder is fixed, the stroke of the shock absorber of the connecting rod in the cylinder can be limited, the maximum stroke of the whole shock absorber is limited immediately at the moment, and the shock absorption requirements of motorcycles with different specifications can not be met.

Because the bumper shock absorber generally all installs the side at the motorcycle, and the service environment of motorcycle is generally comparatively abominable, this surface that has just led to the bumper shock absorber can receive the invasion of rainwater or dust, and some rainwater itself has certain corrosivity, if do not clear up it for a long time will lead to the bumper shock absorber surface to appear corroding the phenomenon, and generally all need the manual work to clear up it among the current device, can not do the surface of quick clearance bumper shock absorber sealing tube.

Disclosure of Invention

The invention provides a reciprocating concentric sealing structure of a motorcycle shock absorber, which has the advantages of good sealing effect, adjustable device height and capability of quickly cleaning a cylinder body and solves the problems in the background technology.

The invention provides the following technical scheme: the motorcycle shock absorber reciprocating same-core sealing structure comprises two main cylinders, wherein fixed sleeves are fixedly arranged at the top ends of the two main cylinders, fixed grooves are formed in the front surfaces of the fixed sleeves, outer sealing rings are sleeved in inner cavities of the fixed grooves, the outer diameters of the outer sealing rings are the same as the outer diameters of the fixed grooves, inner sealing rings located inside the outer sealing rings are sleeved in inner cavities of the fixed grooves, the inner diameters of the inner sealing rings are the same as the inner diameters of the fixed grooves, reinforcing ribs are fixedly arranged on the outer side surfaces of the inner sealing rings at equal angles, the outer side surfaces of the reinforcing ribs and the inner side surfaces of the outer sealing rings are fixed with each other, fixed plates are fixedly arranged on the outer side surfaces of the fixed sleeves at equal angles, completely penetrating bolt holes are formed in the front surfaces of the fixed plates, fixing bolts are movably, the reinforcing rings and the fixing plates are distributed in a staggered mode.

Preferably, a thread groove is formed in the top end of the outer side face of the main cylinder body, an auxiliary cylinder body is arranged on the outer side face of the main cylinder body, and the auxiliary cylinder body is in threaded sleeve joint with the main cylinder body through the thread groove.

Preferably, the outer side surface of the main barrel body is sleeved with a cushion pad at the bottom end close to the thread groove, the upper end and the lower end of the outer side surface of the auxiliary barrel body are fixedly provided with slide rails, and the outer side surface of each slide rail is provided with a cleaning sleeve.

Preferably, the upper end and the lower end of the inner side surface of the cleaning sleeve are fixedly provided with sliding blocks, the cleaning sleeve is movably clamped with the sliding rail through the sliding blocks, and the inner side surface of the cleaning sleeve is in contact with the outer side surface of the auxiliary barrel.

Preferably, the top of the main cylinder body is equiangularly provided with a limiting hole, the top of the main cylinder body is sleeved with a lower sealing gasket, the top of the inner sealing ring is fixedly provided with an upper sealing gasket, the diameter of the lower sealing gasket is the same as the inner diameter of the main cylinder body, and the diameter of the upper sealing gasket is the same as the outer diameter of the main cylinder body.

Preferably, the bottom of the upper sealing gasket is fixedly provided with a magnetic column at equal angles, the bottom of the magnetic column is connected with the inner part of the limiting hole in an adsorption manner, and the front surfaces of the upper sealing gasket and the lower sealing gasket are provided with through holes which completely penetrate through.

Preferably, the inside cover of main barrel is equipped with the connecting rod, the top and the fixed mounting that run through main barrel on the top of connecting rod have a press plate, the lateral surface cover of main barrel is equipped with the spacing spring that is located main barrel inside, the one end of spacing spring and the lateral surface reciprocal anchorage of connecting rod and the other end contact with the back of lower sealing pad.

The invention has the following beneficial effects:

1. this reciprocal concentric seal structure of motorcycle shock absorber, it is fixed with fixed cover through the top at the main barrel body, and the fixed slot has been seted up in the inside of fixed cover, and the inside cover of fixed slot is equipped with the inside inner seal ring of external seal ring and external seal ring, two fixed cover of accessible correspond each other when in-service use, and fix between the bolt hole of seting up on through fixing bolt and the fixed plate, the fluid that lies in the main barrel body inside this moment can be blockked by lower sealing gasket and upper sealing gasket, the through-hole can make fluid pass through each other simultaneously, and block through inner seal ring and external seal ring many times and prevent revealing, the strengthening rib can absorb partial pressure when the external seal ring receives pressure and prevent that the inner seal ring takes place deformation and lead to appearing revealing, strengthen sealed effect, thereby the better advantage of sealed effect.

2. This reciprocal concentric seal structure of motorcycle bumper shock absorber has seted up the thread groove through the one end at the external side of the zhu barrel to be provided with the screw thread between vice barrel and the thread groove and cup joint, accessible can drive the height that takes place the displacement and increase whole device between the relative main barrel of vice barrel to the rotatory vice barrel in one side this moment under the drive of thread groove when the shock attenuation demand of different specifications is adapted to needs, thereby has realized the advantage of adjustable device height.

3. This reciprocal concentric seal structure of motorcycle shock absorber, both ends all are fixed with the slide rail through the upper and lower at the external side of vice barrel, and be equipped with clean cover at the lateral surface of vice barrel, and the medial surface of clean cover then be fixed with the slider and with the slide rail between the activity joint, accessible when needs are cleaned the surface of vice barrel to the clean cover of one side pulling can drive and take place to remove between the relative slide rail of clean cover, because contact between the medial surface of clean cover and the surface of vice barrel, so can directly strike off the dust and the spot of the external side of vice barrel, avoid the barrel corruption to appear, thereby the advantage of the clean barrel fast has been realized.

Drawings

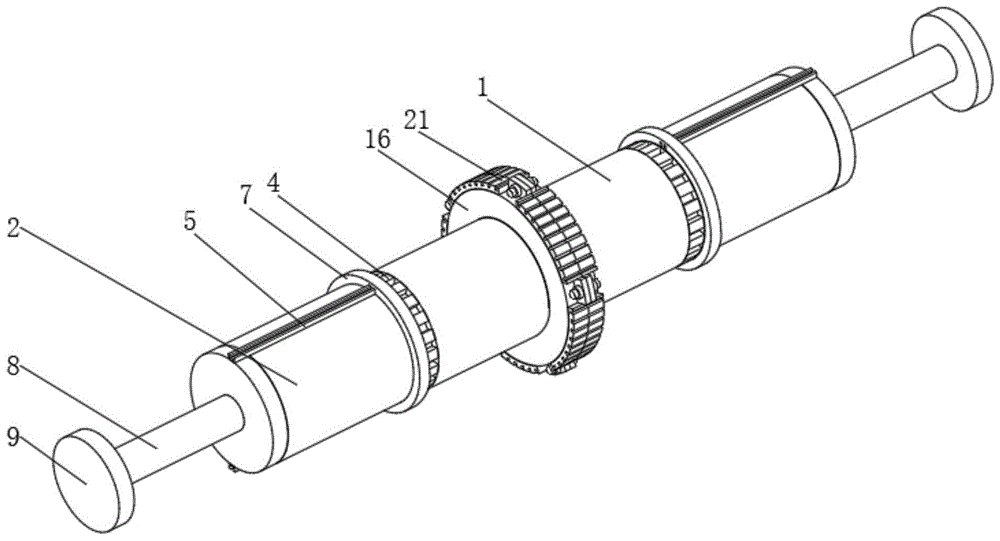

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an exploded view of two main cylinder structures of the present invention;

FIG. 3 is an exploded view of the cleaning sleeve of the present invention;

FIG. 4 is an exploded view of the internal structure of the present invention;

FIG. 5 is a schematic view of a magnetic pillar structure according to the present invention;

FIG. 6 is an enlarged schematic view of the structure at A in FIG. 2;

FIG. 7 is an enlarged schematic view of the structure at B in FIG. 3;

fig. 8 is an enlarged schematic view of the structure at C in fig. 4.

In the figure: 1. a main cylinder; 2. an auxiliary cylinder; 3. a thread groove; 4. a cushion pad; 5. a slide rail; 6. a slider; 7. cleaning the sleeve; 8. a connecting rod; 9. a pressing plate; 10. a limiting spring; 11. a limiting hole; 12. an upper seal gasket; 13. a lower seal gasket; 14. a through hole; 15. a magnetic column; 16. fixing a sleeve; 17. fixing grooves; 18. a fixing plate; 19. bolt holes; 20. fixing the bolt; 21. a reinforcement ring; 22. an outer seal ring; 23. an inner seal ring; 24. and (5) reinforcing ribs.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-8, the motorcycle shock absorber reciprocating concentric sealing structure comprises two main cylinders 1, wherein two main cylinders 1 are provided, fixed sleeves 16 are fixedly mounted at the top ends of the two main cylinders 1, a fixed groove 17 is formed in the front surface of the fixed sleeve 16, an outer sealing ring 22 is sleeved in an inner cavity of the fixed groove 17, the outer diameter of the outer sealing ring 22 is the same as that of the fixed groove 17, an inner sealing ring 23 located inside the outer sealing ring 22 is sleeved in the inner cavity of the fixed groove 17, the inner diameter of the inner sealing ring 23 is the same as that of the fixed groove 17, reinforcing ribs 24 are fixedly mounted on the outer side surface of the inner sealing ring 23 at equal angles, the outer side surface of each reinforcing rib 24 and the inner side surface of the outer sealing ring 22 are fixed with each other, a fixed plate 18 is fixedly mounted on the outer side surface of the, the outer side surface of the fixed sleeve 16 is fixedly provided with reinforcing rings 21 at equal angles, and the reinforcing rings 21 and the fixed plates 18 are distributed in a staggered manner.

Wherein, thread groove 3 has been seted up on the top of 1 lateral surface of main barrel, and the lateral surface of main barrel 1 is equipped with vice barrel 2, and vice barrel 2 cup joints through thread groove 3 and 1 screw thread of main barrel, and the accessible can drive the height that takes place the displacement and increase whole device between the relative main barrel 1 of vice barrel 2 to one side rotatory vice barrel 2 this moment under the drive of thread groove 3 when the shock attenuation demand of different specifications is adapted to needs.

Wherein, the bottom cover that the lateral surface of main barrel 1 is close to thread groove 3 is equipped with blotter 4, the equal fixed mounting in upper and lower both ends of 2 lateral surfaces of auxiliary barrel has slide rail 5, and the lateral surface of slide rail 5 is equipped with clean cover 7, and blotter 4 can restrict main barrel 1 and the maximum distance of 2 relative displacement of auxiliary barrel, and clean cover 7 is made for the rubber material.

Wherein, the equal fixed mounting in upper and lower both ends of clean cover 7 medial surface has slider 6, clean cover 7 passes through the activity joint between slider 6 and the slide rail 5, the medial surface of clean cover 7 contacts with the lateral surface of vice barrel 2, the accessible can drive to the clean cover 7 of one side pulling when needing to clean the surface of vice barrel 2 and take place to remove between the relative slide rail 5 of clean cover 7, because contact between the medial surface of clean cover 7 and the surface of vice barrel 2, so can directly strike off the dust and the spot of vice barrel 2 lateral surface.

Wherein, spacing hole 11 has been seted up to the top of main barrel 1 equiangular, and the top cover of main barrel 1 is equipped with lower sealing gasket 13, and the top of inner seal ring 23 is fixed to be installed and is changeed upper sealing gasket 12, and the diameter of lower sealing gasket 13 is the same with the internal diameter of main barrel 1, and the diameter of upper sealing gasket 12 is the same with the external diameter of main barrel 1, and the fluid that is located the inside of main barrel 1 can be blockked by lower sealing gasket 13 and upper sealing gasket 12, strengthens sealed effect.

Wherein, angle fixed mounting such as the bottom of upper seal pad 12 has magnetic column 15, the bottom of magnetic column 15 is connected with the inside absorption in spacing hole 11, the through-hole 14 that runs through completely is all seted up in the front of upper seal pad 12 and lower seal pad 13, through-hole 14 can make fluid pass through each other, because upper seal pad 12 and lower seal pad 13 adopt the bottom between magnetic column 15 and the spacing hole 11 to fix, so can directly can accomplish through upwards mentioning upper seal pad 12 and lower seal pad 13 and dismantle.

Wherein, the inside cover of main barrel 1 is equipped with connecting rod 8, top and the fixed mounting that main barrel 1 was run through on the top of connecting rod 8 have a pressure board 9, the lateral surface cover of main barrel 1 is equipped with the spacing spring 10 that is located main barrel 1 inside, the one end of spacing spring 10 and the lateral surface reciprocal anchorage of connecting rod 8 and the other end contact with the back of lower sealing pad 13, accessible pressure board 9 is connected with needs absorbing parts when using, spacing spring 10 can receive pressure to take place the compression when receiving pressure, fluid can prevent connecting rod 8's displacement simultaneously, make connecting rod 8's displacement volume reduce, and reduce spacing spring 10's the partial vibrations of compression volume absorption simultaneously, realize the shock attenuation effect.

The working principle is that when the reciprocating concentric sealing structure of the motorcycle shock absorber is used, the reciprocating concentric sealing structure can firstly correspond to each other through a fixed sleeve 16 between two main cylinders 1, the oil which is positioned in the main cylinders 1 at the moment can be blocked by a lower sealing gasket 13 and an upper sealing gasket 12 by fixing between a bolt hole 19 which is formed in a fixing plate 18 and a fixing bolt 20, meanwhile, the oil can pass through a through hole 14, the oil can be blocked for multiple times through an inner sealing ring 23 and an outer sealing ring 22 to prevent leakage, when the outer sealing ring 22 bears pressure, a reinforcing rib 24 can absorb partial pressure to prevent the inner sealing ring 23 from deforming to cause leakage, and because the upper sealing gasket 12 and the lower sealing gasket 13 are fixed between a magnetic column 15 at the bottom end and a limiting hole 11, the disassembly can be directly completed by lifting the upper sealing gasket 12 and the lower sealing gasket 13 upwards, when the shock absorption requirements of different specifications are met, the oil can pass through the one-side rotating auxiliary cylinder Can drive the vice barrel 2 and take place the height that the displacement increased whole device between the relative main cylinder body 1, accessible when needs clean the surface of vice barrel 2 to one side pulling clean cover 7 can drive and take place to remove between the relative slide rail 5 of clean cover 7, because contact between the medial surface of clean cover 7 and the surface of vice barrel 2, so can directly strike off the dust and the spot of vice barrel 2 lateral surface.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (7)

1. Reciprocal concentric seal structure of motorcycle bumper shock absorber, including main cylinder body (1), its characterized in that: the quantity of the main barrel body (1) is two, two the equal fixed mounting in top of main barrel body (1) has fixed cover (16), fixed slot (17) has been seted up in the front of fixed cover (16), the inner chamber cover of fixed slot (17) is equipped with external seal ring (22), the external diameter of external seal ring (22) is the same with the external diameter of fixed slot (17), the inner chamber cover of fixed slot (17) is equipped with inner seal ring (23) that is located external seal ring (22) inside, the internal diameter of inner seal ring (23) is the same with the internal diameter of fixed slot (17), the equal angle fixed mounting of lateral surface of inner seal ring (23) has strengthening rib (24), reciprocal anchorage between the lateral surface of strengthening rib (24) and the medial surface of external seal ring (22), equal angle fixed mounting of lateral surface of fixed cover (16) has fixed plate (18), the bolt hole (19) that runs through completely is seted up in, the inside movable mounting of bolt hole (19) has fixing bolt (20), the equal angle fixed mounting of the lateral surface of fixed cover (16) has strengthening ring (21), strengthening ring (21) and fixed plate (18) crisscross distribution.

2. The reciprocating concentric sealing structure of the motorcycle shock absorber according to claim 1, wherein: thread groove (3) have been seted up on the top of main barrel (1) lateral surface, the lateral surface of main barrel (1) is equipped with vice barrel (2), vice barrel (2) are through thread groove (3) and main barrel (1) threaded sleeve joint.

3. The reciprocating concentric sealing structure of the motorcycle shock absorber according to claim 2, wherein: the bottom cover that main barrel (1) lateral surface is close to thread groove (3) is equipped with blotter (4), equal fixed mounting in upper and lower both ends of vice barrel (2) lateral surface has slide rail (5), the lateral surface of slide rail (5) is equipped with clean cover (7).

4. The reciprocating concentric sealing structure of the motorcycle shock absorber according to claim 3, wherein: the equal fixed mounting in upper and lower both ends of clean cover (7) medial surface has slider (6), activity joint between clean cover (7) through slider (6) and slide rail (5), the medial surface of clean cover (7) contacts with the lateral surface of auxiliary barrel (2).

5. The reciprocating concentric sealing structure of the motorcycle shock absorber according to claim 1, wherein: spacing hole (11) have been seted up to the top isogonism of main barrel body (1), the top cover of main barrel body (1) is equipped with lower sealing gasket (13), the fixed ann in top of internal seal ring (23) changes has upper sealing gasket (12), the diameter of lower sealing gasket (13) is the same with the internal diameter of main barrel body (1), the diameter of upper sealing gasket (12) is the same with the external diameter of main barrel body (1).

6. The reciprocating concentric sealing structure of the motorcycle shock absorber according to claim 5, wherein: the bottom of the upper sealing gasket (12) is fixedly provided with a magnetic column (15) at equal angles, the bottom of the magnetic column (15) is connected with the inner part of the limiting hole (11) in an adsorption manner, and the front of the upper sealing gasket (12) and the front of the lower sealing gasket (13) are provided with through holes (14) which are completely penetrated.

7. The reciprocating concentric sealing structure of the motorcycle shock absorber according to claim 1, wherein: the inside cover of main cylinder body (1) is equipped with connecting rod (8), the top and the fixed mounting that run through main cylinder body (1) on the top of connecting rod (8) have press plate (9), the lateral surface cover of main cylinder body (1) is equipped with and is located the inside spacing spring (10) of main cylinder body (1), the one end of spacing spring (10) and the lateral surface reciprocal anchorage of connecting rod (8) and the other end contact with the back of lower seal pad (13).
