The invention discloses a dedusting landscape electric cabinet which comprises a shell, a dustproof assembly and a radiating assembly, wherein the shell is of a top opening structure, a plurality of air inlets are formed in the outer walls of the two sides of the shell, a rainproof cover is further arranged on the outer wall of the shell above the air inlets, a supporting column is arranged at the top of the shell, a flower basket is arranged at the top end of the supporting column, and positioning sliding blocks are symmetrically arranged on the bottom surface and the top inside the shell; the arrangement of the dustproof assembly can effectively filter dust entering the electric power cabinet and can clean the electric power cabinet by taking out the dustproof assembly, and meanwhile, the arrangement of the dustproof assembly can realize control of air volume entering the electric power cabinet, so that the dust entering the electric power cabinet along with a large amount of unnecessary cooling air when the temperature in the electric power cabinet is not high is effectively reduced; moreover, the structure of the heat dissipation assembly is higher in heat dissipation efficiency than that of a traditional electric power cabinet, the requirement of a cooling process on large air volume is reduced, and dust entering the electric power cabinet is further reduced.
Description
Technical Field
The invention relates to the field related to power equipment, in particular to a landscape power cabinet capable of removing dust.
Background
Electricity is that we can't lack an important part in our life, in order to make everywhere of our life production can both use the electricity, it is just indispensable just to take the electric power cabinet of equipment there as the arrangement, electric power cabinet among the prior art is very obvious in the urban street, can't integrate into the surrounding environment, electric power cabinet is when carrying out inside heat dissipation simultaneously, a large amount of dusts can be along with the air current gets into in the electric power cabinet, fall on the power equipment that surface structure is complicated, not only later maintenance clearance is difficult, the accumulation of dust still can influence power equipment's normal operating simultaneously, therefore a view formula electric power cabinet that can reduce the dust and get into and can make things convenient for the dust of clearance just seems very important.
Disclosure of Invention
The present invention has been made to solve the above-mentioned problems occurring in the background art.
In order to achieve the purpose, the invention provides the following technical scheme:
a landscape electric power cabinet capable of removing dust comprises a shell, a dustproof assembly and a heat dissipation assembly, wherein the shell is of a top opening structure, a plurality of air inlets are formed in the outer walls of two sides of the shell, a rainproof cover is further arranged on the outer wall of the shell above the air inlets, a support column is arranged at the top of the shell, a flower basket is arranged at the top end of the support column, and positioning sliders are further symmetrically arranged on the bottom surface and the top inside the shell;
the dustproof assembly comprises a dustproof box which is in sliding fit with the shell through a positioning sliding block, an adjusting control box is arranged at the top of the dustproof box, a sliding rod is vertically arranged on the inner wall of one side of the adjusting control box, a driven sliding block is in sliding fit with the sliding rod, the driven sliding block is sleeved on a vertically arranged driving screw rod, a driving motor is further arranged at the bottom of the driving screw rod, the output end of the driving motor is connected with the driving screw rod, a connecting rod is further vertically arranged on the opposite side of the sliding rod by the driven sliding block, a second air adjusting plate is fixedly connected to the bottom of the connecting rod, a plurality of uniformly distributed air adjusting grids are arranged on the second air adjusting plate, the opening width of each air adjusting grid from top to bottom is gradually reduced, the second air adjusting plate is parallel to the side wall of the shell, a first air adjusting plate is further parallel to the dustproof box on one side of the second air adjusting plate, air inlet grids which are the same as the air adjusting grids are arranged on the first air adjusting plate, and a dustproof net is arranged in parallel to the first air adjusting plate;
radiator unit is including setting up the cooling fin on the dust-proof box and setting up at casing open-top's fin, the cooling fin sets up the one side of the dust screen far away at the second air register, all be equipped with the cooling tube in cooling fin and the fin, the cooling tube is connected with the circulating pump that sets up at casing top inner wall through the installation lantern ring, the fin is connected with the casing through the collar that sets up in the bottom, radiator unit still including set up the radiator fan above the fin with be the heat dissipation motor, radiator fan is connected with the output of heat dissipation motor, the bottom at the basket of flowers is installed to the heat dissipation motor.
As a further scheme of the invention: still including setting up the equipment fixing base in the casing inboard bottom, the equipment fixing base is connected with the casing through the horizontal damping axle that sets up in both sides and the vertical damping axle that sets up in the bottom surface.
As a further scheme of the invention: the top edge of the shell is provided with a rainproof slope.
As a further scheme of the invention: and the bottom of the flower basket is also provided with a heat insulation cavity.
As a further scheme of the invention: still including setting up the dehumidification steamer tray in equipment fixing seat both sides.
As a further scheme of the invention: push-and-pull handles are arranged on the dehumidification drawer and the dust-proof box.
As a further scheme of the invention: the bottom of casing still is equipped with the electric power cabinet mount pad.
Compared with the prior art, the invention has the beneficial effects that: the invention provides a dedusting landscape electric power cabinet, wherein the arrangement of a dustproof assembly can effectively filter dust entering the electric power cabinet and can clean the dust by taking out the dustproof assembly, and meanwhile, the arrangement of the dustproof assembly can realize the control of the air volume entering the electric power cabinet, thereby effectively reducing the dust entering the electric power cabinet along with a large amount of unnecessary cooling air when the temperature in the electric power cabinet is not high; moreover, the structure of the heat dissipation assembly is higher in heat dissipation efficiency than that of a traditional electric power cabinet, the requirement of a cooling process on large air volume is reduced, and dust entering the electric power cabinet is further reduced.
Drawings

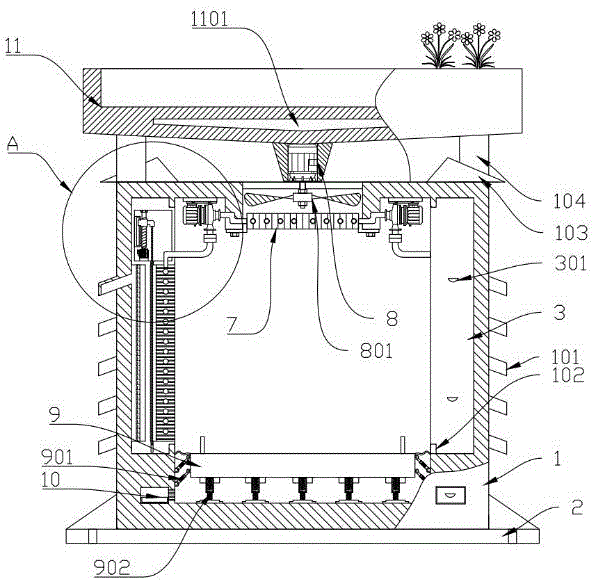

Fig. 1 is a schematic structural diagram of a landscape electric power cabinet capable of removing dust.
Fig. 2 is a schematic partial structure diagram of a landscape electric power cabinet capable of removing dust.
Fig. 3 is a schematic view of a matching structure of a first air adjusting plate and a second air adjusting plate in a dedusting landscape electric cabinet.
Fig. 4 is a schematic structural diagram of a first air regulating plate and a second air regulating plate in a landscape electric power cabinet capable of removing dust.
Fig. 5 is a schematic structural diagram of a cooling fin in a landscape electric cabinet capable of removing dust.
Fig. 6 is a schematic structural diagram of a mounting collar in a landscape electric cabinet capable of removing dust.
In the figure: 1-shell, 101-rain cover, 1011-air inlet, 102-positioning slide block, 103-rain-proof slope, 104-support column, 2-electric cabinet mounting seat, 3-dust-proof box, 301-push-pull handle, 302-cooling fin, 303-cooling pipe, 3031-mounting lantern ring, 304-dust screen, 305-first air adjusting plate, 3051-air inlet grid, 306-adjusting control box, 4-adjusting control mechanism, 401-slide bar, 402-driven slide block, 403-driving screw rod, 404-connecting rod, 405-driving motor, 406-control circuit, 5-second air adjusting plate, 501-air adjusting grid, 6-circulating pump, 7-cooling fin, 701-mounting ring, 8-heat dissipation motor, 801-heat dissipation fan, 9-equipment mounting seat, 901-horizontal damping shaft, 902-vertical damping shaft, 10-dehumidification drawer, 11-basket, 11-heat insulation cavity.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be obtained by a person skilled in the art without inventive step based on the embodiments of the present invention, are within the scope of protection of the present invention.
It should be noted that, if directional indications (such as up, down, left, right, front, and back) are provided in the embodiment of the present invention, they are only used to explain the relative position relationship between the components and the motion situation in a specific posture, and if the specific posture is changed, the directional indication is changed accordingly.
In addition, if the description of "first", "second", etc. is referred to in the present invention, it is used for descriptive purposes only and is not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In addition, technical solutions between the embodiments may be combined with each other, but must be based on the realization of the technical solutions by a person skilled in the art, and when the technical solutions are contradictory to each other or cannot be realized, such a combination should not be considered to exist, and is not within the protection scope of the present invention.
Referring to fig. 1, in the embodiment of the present invention, a dust-removing landscape electric power cabinet includes a housing 1, a dust-proof assembly and a heat dissipation assembly, where the housing 1 is of a top-opening structure, a plurality of air inlets 1011 are disposed on outer walls of two sides of the housing 1, a rain-proof cover 101 is further disposed on an outer wall of the housing 1 above the air inlets 1011, a support column 104 is disposed on a top of the housing 1, a flower basket 11 is disposed on a top end of the support column 104, and positioning sliders 102 are further symmetrically disposed on a bottom surface and a top portion inside the housing 1;
in this embodiment, a landscape electric power cabinet (hereinafter referred to as "device") capable of removing dust is described in an integral composition, which mainly includes a dust-proof component, a heat dissipation component, and a flower basket 11 disposed on the top; the dustproof assembly is used for controlling the cooling air volume entering the device so as to control the entering of the air volume and reduce the possibility that a large amount of circulating air flow is brought into the dust entering device when a large amount of cooling air is not needed, and meanwhile, the air entering the device is filtered to perform dust removal work to a certain degree so as to further reduce the entering of dust; the heat dissipation assembly is used for cooling airflow entering the device, so that the heat dissipation efficiency is improved, and meanwhile, airflow circulation in the device is promoted, and the purpose of heat dissipation is achieved; the function of the flower basket 11 is to beautify and hide the device, and can be integrated into the surrounding environment in the period, thereby improving the environmental consistency of the city and the aesthetic degree.
Referring to fig. 1 to 4, the dust-proof assembly includes a dust-proof box 3 slidably engaged with the housing 1 through a positioning slider 102, an adjustment control box 306 is disposed at the top of the dust-proof box 3, a slide bar 401 is vertically disposed on an inner wall of one side of the adjustment control box 306, a driven slider 402 is slidably engaged with the slide bar 401, the driven slider 402 is sleeved on a vertically disposed driving screw 403, a driving motor 405 is further disposed at the bottom of the driving screw 403, an output end of the driving motor 405 is connected with the driving screw 403, the driven slider 402 is further vertically disposed with a connecting bar 404 at an opposite side of the slide bar 401, a second air regulating plate 5 is fixedly connected to the bottom of the connecting bar 404, a plurality of uniformly distributed air regulating grids 501 are disposed on the second air regulating plate 5, an opening width of each air regulating grid 501 from top to bottom is gradually reduced, the second air regulating plate 5 is disposed in parallel with a side wall of the housing 1, a first air regulating plate 305 is further disposed in parallel with one side of the second air regulating plate 5, the first air regulating plate 305 is disposed with a grid 501 spaced at the same interval as the air regulating grid, the first air regulating plate 305, and a dust-proof net 305 is further disposed in parallel with the first dust-proof box 304, and the first dust-proof net 305, and the first dust-proof box 304 is disposed outside the first dust-proof net 305;
in this embodiment, the function of the dust-proof component has been generally described in the above embodiment, wherein, specifically, the main implementation manner is the dust-proof box 3, the dust-proof box 3 is a detachable installation manner in sliding fit with the housing 1, and the dust-proof net 304 is arranged on one side, when dust is deposited, the cleaning operation is completed by taking out the dust-proof net 304 to clean, further, the adjustment control mechanism 4 arranged in the adjustment control box 306 is matched with the first air adjusting plate 305 by controlling the second air adjusting plate 5 to move up and down, so as to change the overlapping area of the air inlet grid 3051 and the air adjusting grid 501, and change the size of the air inlet, thereby realizing the limitation of the air inlet amount, and preventing a large amount of dust which is not carried by the required air flow to enter the device due to unnecessary external air flow or device operation (this series of adjustment operations are completed by the sensor arranged inside the housing 1 in the adjustment control box 306 in cooperation with the circuit part, and the implementation manner of the related part related to the related art is obvious to those skilled in the related arts.
Referring to fig. 1, 2, 5 and 6, the heat dissipation assembly includes a cooling fin 302 disposed on the dust-proof box 3 and a heat dissipation fin 7 disposed at an opening at the top of the housing 1, the cooling fin 302 is disposed at a side of the second air adjusting plate 5 away from the dust screen 304, cooling pipes 303 are disposed in the cooling fin 302 and the heat dissipation fin 7, the cooling pipes 303 are connected to a circulation pump 6 disposed at an inner wall of the top of the housing 1 through a mounting collar 3031, the heat dissipation fin 7 is connected to the housing 1 through a mounting collar 701 disposed at the bottom, the heat dissipation assembly further includes a heat dissipation fan 801 disposed above the heat dissipation fin 7 and a heat dissipation motor 8, the heat dissipation fan 801 is connected to an output end of the heat dissipation motor 8, and the heat dissipation motor 8 is mounted at the bottom of the basket 11.
In this embodiment, a more detailed description of the structural cooperation is performed on the heat dissipation assembly of the device, wherein the cooling fins 302 are used for cooling the cooling airflow to improve the heat dissipation efficiency, the heat dissipation fins 7 are used for cooling the cooling fluid flowing through the cooling fins 302 to realize recycling, and the heat dissipation fan 801 plays a role in promoting the flow of the air inside the device and simultaneously realizes the cooling of the heat dissipation fins 7.
Referring to fig. 1, as a preferred embodiment of the present invention, the present invention further includes an equipment mounting base 9 disposed at the bottom inside the casing 1, and the equipment mounting base 9 is connected to the casing 1 through a horizontal shock absorbing shaft 901 disposed at both sides and a vertical shock absorbing shaft 902 disposed at the bottom.
In this embodiment, the equipment installation seat 9 is used for installing electrical equipment, and the damping device can effectively reduce the vibration generated during the operation of the electrical equipment, thereby prolonging the service life.
Referring to fig. 1, as a preferred embodiment of the present invention, a rain-proof slope 103 is provided at the top edge of the housing 1.
In this embodiment, the rain ramp 103 functions to prevent rain water or the like from flowing into the interior of the device through the top opening at the top of the device 1.
Referring to fig. 1, as a preferred embodiment of the present invention, a heat insulation chamber 1101 is further disposed at the bottom of the flower basket 11.
In this embodiment, the heat insulation chamber 1101 is used to prevent the heat of the motor from being transferred to the plant root system and affecting the growth of the plant.
Referring to fig. 1, as a preferred embodiment of the present invention, a dehumidifying drawer 10 is further included at both sides of the equipment mounting base 9.
In this embodiment, materials such as a desiccant are provided in the dehumidification drawer 10, so that the corrosion caused by too high moisture in the damping device at the bottom of the equipment installation base 9 can be prevented.
Referring to fig. 1, as a preferred embodiment of the present invention, the dehumidification drawer 10 and the dust-proof box 3 are both provided with a push-pull handle 301.
In this embodiment, the arrangement of the push-pull handle 301 can facilitate the taking out of the dehumidifying drawer 10 and the dust-proof box 3.
Referring to fig. 1, as a preferred embodiment of the present invention, an electric cabinet mounting seat 2 is further disposed at the bottom of the housing 1.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (7)
1. A landscape electric power cabinet capable of removing dust comprises a shell (1), a dustproof assembly and a heat dissipation assembly, and is characterized in that the shell (1) is of a top opening structure, a plurality of air inlets (1011) are formed in outer walls of two sides of the shell (1), a rainproof cover (101) is further arranged on the outer wall of the shell (1) above the air inlets (1011), a support column (104) is arranged at the top of the shell (1), a flower basket (11) is arranged at the top end of the support column (104), and positioning sliders (102) are further symmetrically arranged on the inner bottom surface and the top of the shell (1);
the dustproof assembly comprises a dustproof box (3) which is in sliding fit with a shell (1) through a positioning sliding block (102), an adjusting control box (306) is arranged at the top of the dustproof box (3), a sliding rod (401) is vertically arranged on the inner wall of one side of the adjusting control box (306), a driven sliding block (402) is arranged on the sliding rod (401) in a sliding fit manner, the driven sliding block (402) is sleeved on a vertically arranged driving screw rod (403), a driving motor (405) is further arranged at the bottom of the driving screw rod (403), the output end of the driving motor (405) is connected with the driving screw rod (403), a connecting rod (404) is further vertically arranged on the opposite side of the sliding rod (401) by the driven sliding block (402), a second air adjusting plate (5) is fixedly connected with the bottom of the connecting rod (404), a plurality of air adjusting grids (501) which are uniformly distributed are arranged on the second air adjusting plate (5), the opening width of each air adjusting grid (501) is gradually reduced from top to bottom, the second air adjusting plate (5) is parallel with the side wall of the shell (1), the dustproof box (3) is further provided with a first air adjusting grid (305) which is parallel to the first air adjusting grid (305), the dust screen (304) is arranged in parallel with the first air adjusting plate (305);
radiator unit is including setting up cooling fin (302) on dust proof box (3) and setting at casing (1) open-top's fin (7), cooling fin (302) set up the one side of dust screen (304) far away in second air register (5), all be equipped with cooling tube (303) in cooling fin (302) and fin (7), cooling tube (303) are connected with circulating pump (6) of setting at casing (1) top inner wall through installation lantern ring (3031), fin (7) are connected with casing (1) through setting up collar (701) in the bottom, radiator unit is still including setting up radiator fan (801) and radiating motor (8) in fin (7) top, radiator fan (801) are connected with the output of radiating motor (8), the bottom at basket of flowers (11) is installed to radiating motor (8).
2. A dedusting landscape electric cabinet according to claim 1, characterized by further comprising an equipment installation seat (9) arranged at the bottom of the inner side of the shell (1), wherein the equipment installation seat (9) is connected with the shell (1) through a horizontal damping shaft (901) arranged at two sides and a vertical damping shaft (902) arranged at the bottom surface.
3. A dust collectable landscape power cabinet according to claim 2, wherein the top edge of said housing (1) is provided with a rain-proof slope (103).
4. A dust-removable landscape electric cabinet according to claim 1, wherein the bottom of the flower basket (11) is further provided with a heat insulation cavity (1101).
5. A dedusting landscape power cabinet according to claim 1, characterized by further comprising dehumidification drawers (10) arranged on two sides of the equipment installation seat (9).
6. A dedusting landscape electric cabinet according to claim 5, characterized in that the dehumidification drawer (10) and the dust-proof box (3) are both provided with a push-pull handle (301).
7. A dust-removable landscape power cabinet according to claim 1, wherein the bottom of the shell (1) is further provided with a power cabinet mounting seat (2).
