Abstract
The invention relates to a nine-partition latex spring mattress, which comprises a protective coat mechanism and a supporting mechanism, wherein woven antibacterial layers are arranged on two sides inside the protective coat mechanism, the supporting mechanism is arranged on two sides inside the protective coat mechanism, air holes are formed in the periphery inside the supporting mechanism, and a limiting sponge is arranged on the periphery of the upper end of the supporting mechanism. According to the invention, through the arrangement of the independent bagged spring group mechanism, the comfortable supporting layer and the strong supporting layer, the independent bagged spring group mechanism comprises the comfortable supporting layer and the strong supporting layer which are reasonably distributed in a staggered manner according to a plurality of positions of the head, the shoulder, the back, the waist, the hip, the thigh, the shank and the like of a human body, so that the whole latex spring mattress conforms to the human engineering, the people can be guaranteed to find the most comfortable area and sleeping posture for sleeping by themselves, and more healthy and comfortable experience is brought to the human body during sleeping.
Description
Technical Field
The invention relates to the technical field of mattress production, in particular to a nine-partition latex spring mattress.
Background
People are in a sleep state for about one third of the time, and have sufficient and high-quality sleep to eliminate fatigue generated in daily life, so the sleep is very important rest for people, but not neglected, if the people need to obtain sufficient and high-quality sleep, the people can be rested stably by the comfortable bedding which has a great relationship with the selection of the bedding, and the people can feel tired when the people feel uncomfortable, and the people feel tired when sleeping more. The spring mattress belongs to the modern common mattress with better performance, and the mattress core consists of springs. The pad has the advantages of good elasticity, better bearing property, stronger air permeability, durability and the like. In terms of structure, the spring mattress can be roughly divided into a connected type, a bagged independent tube, a linear upright type, a linear integral type and a bagged linear integral type spring, etc., the mattress is an article between a human body and a bed used for ensuring that a consumer obtains healthy and comfortable sleep, the mattress is made of various materials, the mattresses made of different materials can bring different sleep effects to people, and with the continuous progress of material culture and technical process, the types of the mattresses used by modern people gradually tend to be diversified, and the main functions are as follows: spring mattresses, palm mattresses, latex mattresses, water mattresses, nose-up slope spine protection mattresses, air mattresses, magnetic mattresses, and the like.
The mattress on the existing market is generally harder in texture, the durability is poor, the deformation of easily collapsing, the bearing performance is poor, simultaneously the mattress still has the poor effect of ventilative type in the use, current mattress is too hard or too soft can not bring fine sleep experience for the user, and because people's posture when sleeping is different, the weight of each part of human body and mattress stress position are inhomogeneous, present softness and hardness of each part of latex mattress is unanimous, the position that the mattress atress is heavier after using a period of time collapses more obviously, the contact curve of mattress and human not enough laminates, user's sleep quality, the life of mattress is short, current inside spring of mattress all is with mattress lug connection, generally bad can not change, or it is more troublesome to change.
Disclosure of Invention
The invention aims to provide a nine-partition latex spring mattress, which solves the problems that the existing mattress in the market proposed in the background art is generally hard in texture, poor in durability, easy to collapse and deform and poor in bearing performance, meanwhile, the mattress has the effect of poor ventilation in the use process, the existing mattress cannot bring good sleep experience to a user due to over-hard or over-soft, the weight of each part of a human body and the stress position of the mattress are not uniform due to different postures of people during sleep, the hardness of each part of the existing latex mattress is consistent, the position of the mattress which is stressed heavily after being used for a period of time collapses obviously, the contact curve of the mattress and the human body cannot be attached, the sleep quality of the user is not high, the service life of the mattress is short, and the existing mattress is directly connected with the mattress and generally cannot be replaced due to the fact that the existing mattress is broken, or the problem that replacement is troublesome.
In order to achieve the purpose, the invention provides the following technical scheme: nine subregion latex spring mattresses, including protective coat mechanism and supporting mechanism, protective coat mechanism's inside both sides are provided with weaves antibiotic layer, supporting mechanism sets up in protective coat mechanism's inside both sides, supporting mechanism's inside is seted up the gas pocket all around, supporting mechanism's upper end is provided with spacing sponge all around, the inner wall of spacing sponge and supporting mechanism's upper end junction are provided with the silence gasket, the upper end top of silence gasket is provided with independent bagged spring group mechanism, protective coat mechanism's outer wall both sides are provided with the line groove.
Preferably, the protective outer sleeve mechanism comprises a mattress main body, a sealing zipper and a connecting chain, the sealing zipper is arranged at the middle end of the outer portion of the mattress main body, and the connecting chain is arranged on one side of the outer wall of the sealing zipper.
Preferably, the mattress main body forms a sealing structure through the connecting chain and the sealing zipper, and a wrapping structure is formed between the mattress main body and the woven antibacterial layer.
Preferably, the supporting mechanism comprises a latex layer, a natural jute layer and a porous high-density sponge layer, the natural jute layer is arranged on one side of the outer wall of the latex layer, and the porous high-density sponge layer is arranged on one side of the outer wall of the natural jute layer.
Preferably, the latex layer, the natural jute layer and the hole high-density sponge layer are distributed in parallel, and the latex layer, the natural jute layer and the hole high-density sponge layer are mutually attached.
Preferably, a wrapping structure is formed between the limiting sponge and the independent bagged spring group mechanism, and the limiting sponge and the supporting mechanism are mutually attached.
Preferably, the mute gaskets are symmetrically distributed along the central axis of the independent bagged spring group mechanism, and the mute gaskets and the limiting sponge are distributed in parallel.
Preferably, the independent bagged spring group mechanism comprises a comfortable supporting layer and a strong supporting layer, and the strong supporting layer is arranged on one side of the outer wall of the comfortable supporting layer.
Preferably, the comfortable supporting layer and the strong supporting layer are distributed in a staggered and symmetrical manner, and the independent bagged spring group mechanism are distributed in a parallel and vertical manner.
Compared with the prior art, the invention has the following beneficial effects:
1. the invention relates to a novel intelligent multifunctional fiber material which is formed by compounding a biomass graphene and various fibers, has a low-temperature function exceeding the international advanced level, and has an ultra-strong far infrared, far infrared and far infrared function, Degerming is antibacterial, moisture absorption sweat-releasing, ultraviolet protection, antistatic are warm material's key feature and performance in the heart side is provided with the connection chain in its mattress main part, can expand the inside of mattress main part to be convenient for carry out inside to it and dismantle cleanly, and upper and lower surface department is provided with the perpendicular antibiotic layer of weaving that forms of weaving of graphite alkene fibre, comes to carry out antibiotic ability enhancement to the upper and lower side of mattress, guarantees the long-term use of its mattress.
2. The invention produces the high-quality healthy sleeping article suitable for human bodies with various excellent performances by arranging a supporting mechanism, a latex layer, a natural jute layer and a hole high-density sponge layer, wherein the supporting mechanism comprises the latex layer, the natural jute layer and the hole high-density sponge layer, the latex layer, the natural jute layer and the hole high-density sponge layer are distributed in parallel, the latex layer, the natural jute layer and the hole high-density sponge layer are mutually attached, symmetrical supporting mechanisms are arranged at two ends of the inner side of a protective coat mechanism, the sizes of the joints of the supporting mechanism and the protective coat mechanism are mutually attached, the inner layer mechanism of the supporting mechanism is the latex layer, the natural jute layer and the hole high-density sponge layer, and the latex layer is positioned at the outermost side, the latex layer is the rubber tree juice collected from a rubber tree, and the high-quality healthy sleeping article suitable for human bodies with various excellent performances is produced by combining modern equipment and technology through exquisite technology, the natural jute layer is positioned at the innermost side of the supporting mechanism, is a fibrilia textile fabric, is a fiber obtained from jute plants, and has good mould resistance and is not easy to damp and mould; the mothproof and antifungal effects are good, and the natural gloss is good, so that the color is not easy to fade and shrink; heat conduction, moisture absorption are bigger than the cotton fabric, to good performance such as acid-base reaction insensitivity, guarantee that its supporting mechanism can guarantee the aridity of mattress when locating inside latex spring mattress, reduce the production of bacterium, and set up porose high density sponge layer in its inboard, improve supporting mechanism's whole compliance, guarantee the soft travelling comfort of whole mattress.
3. According to the invention, through the arrangement of the limiting sponge and the independent bagged spring group mechanism, a wrapping structure is formed between the limiting sponge and the independent bagged spring group mechanism, the limiting sponge and the supporting mechanism are mutually attached, the limiting sponge which is mutually attached is arranged at the periphery of the inner wall of the mattress main body, the section of the limiting sponge is rectangular, and the independent bagged spring group mechanism inside the limiting sponge is wrapped through the rectangular limiting of the limiting sponge, so that the stability of the structure of the independent bagged spring group mechanism is ensured, the phenomenon that the whole mattress is deformed in the using process, and the situation that the springs inside the independent bagged spring group mechanism are staggered, the damping structure of the whole mattress is broken down, and the replacement, treatment and maintenance are inconvenient.
4. The invention arranges the mute gaskets and the independent bagged spring group mechanism, the mute gaskets are symmetrically arranged along the central axis of the independent bagged spring group mechanism, the mute gaskets and the limit sponge are arranged in parallel, the mute gaskets are horizontally arranged at the two sides of the upper end of the independent bagged spring group mechanism, the shock absorption structure of the mattress on the market adopts the spring for buffering, but the spring is used as a metal component, in the shock absorption process, the structure can generate noise in the compression and reset, particularly, when a user has a sleep rest, the noise can affect the user and seriously affect the sleep quality, the mute gaskets are attached to the two sides of the independent bagged spring group mechanism, the upper surfaces of the mute gaskets and the upper surfaces of the limit sponges at the periphery of the independent bagged spring group mechanism are all positioned on the same horizontal plane, guarantee the stability of its mattress inner structure, utilize its spacing sponge to come the silence gasket to carry on spacingly simultaneously, guarantee that the mattress is buffering, its structural stability still can be guaranteed to its silence gasket, satisfies the long-term use of mattress.
5. The invention arranges an independent bagged spring group mechanism, a comfortable supporting layer and a strong supporting layer, wherein the independent bagged spring group mechanism comprises a comfortable supporting layer and a strong supporting layer which are distributed in a staggered and symmetrical way, and the independent bagged spring group mechanism are distributed in a parallel and vertical way, the independent bagged spring group mechanism is the main buffer structure of the latex spring mattress, the independent bagged spring group mechanism adopts a plurality of independent bags which are uniformly distributed, the independent bagged spring group mechanism presses each independent spring, fills the bags with non-woven bags, is connected and arranged, and then is a bed net by gluing, and the independent bagged spring group mechanism can independently stretch and retract because each spring body operates independently, so that one person of two persons lying on the bed stands over or leaves, the other person can not be influenced by a little, the stable and comfortable sleep can be ensured, the independent bagged spring group mechanism comprises a comfortable supporting layer and a strong supporting layer, the comfortable supporting layer and the strong supporting layer are reasonably and alternately distributed according to a plurality of positions of the head, the shoulder, the back, the waist, the hip, the thigh, the shank and the like of the human body, the whole latex spring mattress is made to accord with the ergonomics, the people can find the most comfortable area and sleep posture by themselves when sleeping, and more healthy and comfortable experience is brought to the human body when sleeping.
Drawings

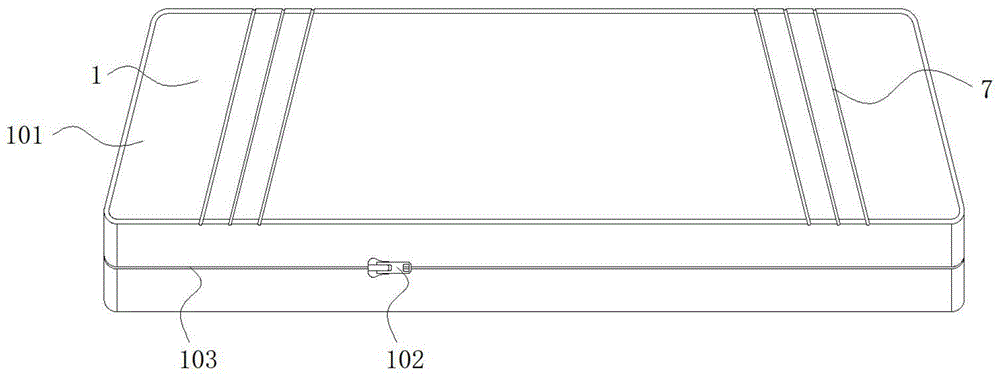

FIG. 1 is a schematic view of a nine-zone latex spring mattress according to the present invention;
FIG. 2 is a schematic view of the internal partial structure of a nine-zone latex spring mattress according to the present invention;
FIG. 3 is a schematic view of the internal structure of a nine-zone latex spring mattress according to the present invention;
FIG. 4 is an enlarged partial schematic view of the nine-zone latex spring mattress of the present invention at A of FIG. 3;
FIG. 5 is a schematic top view of the independent pocket spring set mechanism of the nine-zone latex spring mattress according to the present invention;
fig. 6 is a schematic perspective view of a supporting mechanism of the nine-zone latex spring mattress according to the invention.
In the figure: 1. a protective outer jacket mechanism; 101. a mattress body; 102. sealing the zipper; 103. connecting a chain; 2. a support mechanism; 201. a latex layer; 202. a natural jute layer; 203. 24-hole high-density sponge layer; 3. a limiting sponge; 4. a mute gasket; 5. an independent pocketed spring group mechanism; 501. a comfortable support layer; 502. a strong support layer; 6. weaving an antibacterial layer; 7. a pattern groove; 8. and (4) air holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: nine subregion latex spring mattresses, including protective coat mechanism 1, supporting mechanism 2, spacing sponge 3, silence gasket 4, independent spring assembly mechanism 5 in bags, weave antibiotic layer 6, line groove 7 and gas pocket 8, protective coat mechanism 1's inside both sides are provided with weaves antibiotic layer 6, supporting mechanism 2 sets up in protective coat mechanism 1's inside both sides, supporting mechanism 2's inside is seted up gas pocket 8 all around, supporting mechanism 2's upper end is provided with spacing sponge 3 all around, the inner wall of spacing sponge 3 and supporting mechanism 2's upper end junction are provided with silence gasket 4, silence gasket 4's upper end top is provided with independent spring assembly mechanism 5 in bags, protective coat mechanism 1's outer wall both sides are provided with line groove 7.
In the invention:
the protective coat mechanism 1 comprises a mattress main body 101, a sealing zipper 102 and a connecting chain 103, the sealing zipper 102 is arranged at the middle end of the outer part of the mattress main body 101, the connecting chain 103 is arranged on one side of the outer wall of the sealing zipper 102, the mattress main body 101 forms a sealing structure through the connecting chain 103 and the sealing zipper 102, a wrapping structure is formed between the mattress main body 101 and a woven antibacterial layer 6, the protective coat mechanism 1 is a main outer structure of the whole latex spring mattress, the mattress main body 101 is used as a main component of the protective coat mechanism 1, the inner material of the mattress main body 101 is compounded by a wool graphene fabric, the graphene is a two-dimensional crystal which is stripped from a graphite material and is formed by carbon atoms and only has one atomic thickness, and the graphene fabric is an intelligent multifunctional fiber new material formed by compounding biomass graphene and various fibers, possess the low temperature far infrared function beyond international advanced level, superstrong far infrared, degerming is antibacterial, moisture absorption sweat releasing, ultraviolet protection, it is the key feature and the performance of interior warm material to have, be provided with connection chain 103 in the well side of its mattress main part 101, can expand the inside of mattress main part 101, thereby be convenient for carry out inside to it and dismantle cleanly, and upper and lower surface department is provided with the perpendicular antibiotic layer 6 of weaving that forms of graphite alkene fibre, come to carry out the antibacterial ability enhancement to the upper and lower side of mattress, guarantee the long-term use of its mattress.
The supporting mechanism 2 comprises a latex layer 201, a natural jute layer 202 and a 24-hole high-density sponge layer 203, wherein the natural jute layer 202 is arranged on one side of the outer wall of the latex layer 201, the 24-hole high-density sponge layer 203 is arranged on one side of the outer wall of the natural jute layer 202, the latex layer 201, the natural jute layer 202 and the 24-hole high-density sponge layer 203 are distributed in a parallel mode, the latex layer 201, the natural jute layer 202 and the 24-hole high-density sponge layer 203 are attached to each other, the two ends of the inner side of the protective coat mechanism 1 are provided with symmetrical supporting mechanisms 2, the sizes of joints of the supporting mechanisms 2 and the protective coat mechanism 1 are attached to each other, the inner layer mechanism of the supporting mechanism 2 is formed by the latex layer 201, the natural jute layer 202 and the 24-hole high-density sponge layer 203, the latex layer 201 is located on the outermost side, the latex layer 201 is a rubber tree juice collected from a rubber tree, and modern equipment and technology are combined to produce high-quality health-fit for human bodies The good supporting force of the sleep-recovering article can adapt to various sleeping postures of sleepers, and the sleep-recovering article has the excellent performances of no noise, no vibration and good air permeability, the characteristics of the latex accord with the requirement of environmental protection, the breeding of germs and mites can be inhibited, static electricity does not exist, the natural frankincense taste is dispersed, the natural jute layer 202 is positioned at the innermost side of the supporting mechanism 2, the natural jute layer 202 is a jute fiber woven fabric, is a fiber obtained from jute plants, and has good mildew resistance and is not easy to damp and mildew; the mothproof and antifungal effects are good, and the natural gloss is good, so that the color is not easy to fade and shrink; heat conduction, moisture absorption are bigger than the cotton fabric, to good performance such as acid-base reaction insensitivity, guarantee that its supporting mechanism 2 can guarantee the aridity of mattress when locating inside the latex spring mattress, reduce the production of bacterium, and be provided with 24 holes high density sponge layers 203 in its inboard, improve the whole compliance of supporting mechanism 2, guarantee the soft travelling comfort of whole mattress.
Constitute the parcel structure between spacing sponge 3 and the independent spring group mechanism in bags 5, and laminate each other between spacing sponge 3 and the supporting mechanism 2, the department is provided with spacing sponge 3 of laminating each other around the inner wall of mattress main part 101, the section of this spacing sponge 3 is the rectangle form, come spacing through the spacing sponge 3 rectangle of its, come independent spring group mechanism in bags 5 of its inside to wrap up and live, guarantee the stability of its independent spring group mechanism in bags 5 structure, avoid its mattress whole in the use, the deformation appears, and lead to the condition that the dislocation appears in its independent spring group mechanism in bags 5 inside springs, the shock-absorbing structure that leads to whole mattress breaks down, and be not convenient for change the processing maintenance.
The silence gaskets 4 are symmetrically distributed along the central axis of the independent bagged spring group mechanism 5, the silence gaskets 4 and the limiting sponge 3 are distributed in parallel, the silence gaskets 4 are horizontally distributed on two sides of the upper end of the independent bagged spring group mechanism 5, the shock absorption structure of the mattress on the market adopts springs for buffering, the springs are used as metal components, in the shock absorption process, noise can be generated in the compression reset of the structure, particularly, when a user has a sleep rest, the influence on the user can be caused, the sleep quality is seriously influenced, the silence gaskets 4 are attached to two sides of the independent bagged spring group mechanism 5, the upper surfaces of the silence gaskets 4 and the upper surfaces of the limiting sponges 3 at the periphery of the independent bagged spring group mechanism 5 are all positioned on the same horizontal plane, and the stability of the internal structure of the mattress is ensured, utilize its spacing sponge 3 to come to carry on spacingly with silence gasket 4 simultaneously, guarantee that the mattress is in buffering, its stability of structure still can be guaranteed to its silence gasket 4, satisfies the long-term use of mattress.
The independent bagged spring group mechanism 5 comprises a comfortable supporting layer 501 and a strong supporting layer 502, the strong supporting layer 502 is arranged on one side of the outer wall of the comfortable supporting layer 501, the comfortable supporting layer 501 and the strong supporting layer 502 are in staggered symmetrical distribution, the independent bagged spring group mechanism 5 and the independent bagged spring group mechanism 5 are in parallel vertical distribution, the independent bagged spring group mechanism 5 is a main buffer structure of the latex spring mattress, the independent bagged spring group mechanism 5 adopts a plurality of independent bags which are uniformly distributed, the independent bagged spring group mechanism 5 packs each independent three-dimensional spring into a bag after pressing, then the bags are connected and arranged, then the bags are glued together to form a bed net, the independent bagged spring group mechanism 5 is independently supported and can independently stretch, therefore, two people lying on the bed can turn over or leave, the other person can not be influenced at all, the sleep can be ensured to be stable and comfortable, the independent bagged spring group mechanism 5 comprises a comfortable supporting layer 501 and a strong supporting layer 502, the comfortable supporting layer 501 and the strong supporting layer 502 are reasonably and alternately distributed according to a plurality of positions of the head, the shoulder, the back, the waist, the hip, the thigh, the shank and the like of the human body, the whole latex spring mattress is made to accord with the ergonomics, the people can be ensured to find the most comfortable area and sleep in the sleeping posture, and more healthy and comfortable experience is brought to the human body in the sleeping process.
The working principle of the embodiment is as follows: the nine-partition latex spring mattress is characterized in that the mattress is placed on the upper part of a bed body when in use to ensure the level stability of the latex spring mattress, the grain grooves 7 on the upper end surface of the latex spring mattress can ensure the non-smoothness of the surface of the latex spring mattress, the phenomenon of bedding slipping is avoided, the comfort of a human body when in use is ensured, the mattress main body 101 is adopted as a main protection structure outside the whole latex spring mattress, the graphene fiber material ensures that the whole mattress main body 101 has the main characteristics and performance of far infrared, degerming, bacteriostasis, moisture absorption, perspiration, ultraviolet resistance and antistatic materials, the sealed zipper 102 and the connecting chain 103 are arranged on the side surface of the mattress main body 101, the mattress main body 101 can be separated from the middle part to facilitate the cleaning and maintenance of the inside of the mattress, and the detachability and reusability of the whole latex spring mattress are ensured, the inner side of the latex spring mattress is provided with the limiting sponge 3 which has the limiting function at the periphery to prevent the latex spring mattress from collapsing at the periphery to cause the deformation of the whole structure, the inner wall of the limiting sponge 3 is provided with the independent bagged spring group mechanism 5 which is uniformly distributed, the spring structure in the independent spring bag in the independent bagged spring group mechanism 5 is divided into a comfortable supporting layer 501 and a strong supporting layer 502, the comfortable supporting layer 501 and the strong supporting layer 502 are reasonably and alternately distributed according to a plurality of parts of the head, the shoulder, the back, the waist, the hip, the thigh, the calf and the like of a human body, so that the whole latex spring mattress accords with the human engineering, and brings more healthy and comfortable experience for the sleeping of the human body, the upper side and the lower side of the independent bagged spring group mechanism 5 are provided with the mute gaskets 4 which are horizontally distributed, and the mute gaskets 4 are utilized to damp the spring, noise generated in compression resetting of the structure is isolated and silenced, so that the stability of a latex spring mattress in the shock absorption process is ensured, the tranquility of the external environment is ensured, and more comfortable experience is brought to a human body during sleeping, a supporting mechanism 2 is arranged on the outermost side of an independent bagged spring group mechanism 5 to provide support protection for the whole latex spring mattress, a latex layer 201 and a 24-hole high-density sponge layer 203 are arranged in the supporting mechanism 2, the high-density sponge layer has excellent performances of no noise, no vibration and better air permeability, the overall flexibility of the supporting mechanism 2 can be improved, the flexibility and comfort of the whole mattress are ensured, and a natural jute layer 202 is arranged and is woven by fibers obtained from jute plants, so that the high-density sponge mattress has good mould resistance and is not easy to damp and mould; the mothproof and antifungal effects are good, and the natural gloss is good, so that the color is not easy to fade and shrink; the heat conduction and moisture absorption are larger than those of cotton fabrics, the latex spring mattress is insensitive to acid-base reaction and the like, and the long-term stability and long-term use of the whole latex spring mattress can be ensured.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that various changes in the embodiments and/or modifications of the invention can be made, and equivalents and modifications of some features of the invention can be made without departing from the spirit and scope of the invention.
Claims (9)
1. Nine subregion latex spring mattresses, including protective coat mechanism (1) and supporting mechanism (2), its characterized in that: the utility model discloses a protection coat mechanism, including protection coat mechanism (1), supporting mechanism (2), limiting sponge (3), the inside both sides of protection coat mechanism (1) are provided with and weave antibiotic layer (6), supporting mechanism (2) set up in the inside both sides of protection coat mechanism (1), gas pocket (8) are seted up all around to the inside of supporting mechanism (2), the upper end of supporting mechanism (2) is provided with spacing sponge (3) all around, the inner wall of spacing sponge (3) and the upper end junction of supporting mechanism (2) are provided with silence gasket (4), the upper end top of silence gasket (4) is provided with independent bagged spring group mechanism (5), the outer wall both sides of protection coat mechanism (1) are provided with line groove (7).
2. The nine-zone latex spring mattress of claim 1, wherein: the protective coat mechanism (1) comprises a mattress main body (101), a sealing zipper (102) and a connecting chain (103), the sealing zipper (102) is arranged at the middle end of the outer portion of the mattress main body (101), and the connecting chain (103) is arranged on one side of the outer wall of the sealing zipper (102).
3. The nine-zone latex spring mattress of claim 2, wherein: the mattress main body (101) forms a sealing structure through the connecting chain (103) and the sealing zipper (102), and a wrapping structure is formed between the mattress main body (101) and the woven antibacterial layer (6).
4. The nine-zone latex spring mattress of claim 1, wherein: the supporting mechanism (2) comprises a latex layer (201), a natural jute layer (202) and a 24-hole high-density sponge layer (203), wherein the natural jute layer (202) is arranged on one side of the outer wall of the latex layer (201), and the 24-hole high-density sponge layer (203) is arranged on one side of the outer wall of the natural jute layer (202).
5. The nine-zone latex spring mattress of claim 4, wherein: the latex layer (201) and the natural jute layer (202) and the 24-hole high-density sponge layer (203) are distributed in a parallel shape, and the latex layer (201) and the natural jute layer (202) and the 24-hole high-density sponge layer (203) are mutually attached.
6. The nine-zone latex spring mattress of claim 1, wherein: the limiting sponge (3) and the independent bagged spring set mechanism (5) form a wrapping structure, and the limiting sponge (3) and the supporting mechanism (2) are mutually attached.
7. The nine-zone latex spring mattress of claim 1, wherein: the mute gasket (4) is symmetrically distributed along the central axis of the independent bagged spring set mechanism (5), and the mute gasket (4) and the limiting sponge (3) are distributed in a parallel manner.
8. The nine-zone latex spring mattress of claim 1, wherein: the independent bagged spring set mechanism (5) comprises a comfortable supporting layer (501) and a strong supporting layer (502), and the strong supporting layer (502) is arranged on one side of the outer wall of the comfortable supporting layer (501).
9. The nine-zone latex spring mattress of claim 8, wherein: the comfortable supporting layer (501) and the strong supporting layer (502) are distributed in a staggered symmetrical mode, and the independent bagged spring group mechanism (5) are distributed in a parallel vertical mode.
