Novel vacuum cup

Technical Field

The invention relates to the field of vacuum cups, in particular to a novel vacuum cup.

Background

The vacuum cup is developed from a vacuum bottle, the heat preservation principle is the same as that of the vacuum bottle, the vacuum cup is a container which is made of ceramic or stainless steel and a vacuum layer and is used for containing water conveniently, the top of the vacuum cup is provided with a cover, the vacuum cup is tightly sealed, and the vacuum heat insulation layer can delay heat dissipation of liquid such as water and the like in the vacuum cup so as to achieve the purpose of heat preservation.

The existing vacuum cup has some defects, firstly, the vacuum cup does not have a base, the vacuum cup is easy to pour, liquid in the cup flows out, the environment is polluted, secondly, cleaning devices such as a brush are not configured, the vacuum cup is inconvenient to clean and not easy to carry, in addition, when the cup cover is opened, people can pull out a gland in the vacuum cup with hands and pour the liquid into the gland, the liquid in the cup can be polluted, finally, the liquid in the cup can not be poured out under the condition that the cup cover is not unscrewed, a standby cup for containing the liquid is not configured, the use is inconvenient, and therefore a novel vacuum cup is provided.

Disclosure of Invention

Technical problem to be solved

Aiming at the defects of the prior art, the invention provides a novel vacuum cup which can clean the vacuum cup at any time, can be provided with a spare water cup, can prevent the vacuum cup from toppling over, can pour out liquid from the vacuum cup under the condition of not unscrewing a cup cover, can take up a gland through the cup cover and the like, and solves the problems that the traditional vacuum cup is easy to topple over when in use, causes environmental pollution, needs to unscrew the cup cover for drinking water, is not convenient enough to drink water, is not provided with the spare water cup, cannot clean the vacuum cup at any time, is inconvenient to use, needs to contact the gland with hands, and causes the liquid in the vacuum cup to be dir

Technical scheme

In order to prevent the vacuum cup from toppling over, clean the vacuum cup at any time, pour out water in the vacuum cup under the condition of not unscrewing the cup cover, use a spare cup and avoid the contact between a hand and a gland, the invention provides the following technical scheme: a novel vacuum cup comprises a heat-insulating cup body, wherein a supporting and accommodating device is connected to the lower end of the heat-insulating cup body, the supporting and accommodating device comprises a supporting body, a first supporting ring, a water cup and a first spring, a first groove is formed in the surface of the supporting body, the first supporting ring is connected to the inner surface of the supporting body, a movable plate is movably connected to the inner bottom end of the supporting body, a second supporting ring is connected to the inner surface of the heat-insulating cup body close to the upper end of the heat-insulating cup body, a connecting device is arranged at the upper end of the second supporting ring, the connecting device comprises a gland, a fixing rod is connected to the upper end of the gland, a clamping hook is connected to the surface of the fixing rod, a heat-insulating cup cover is movably connected above the gland at the upper end of the heat-insulating cup body, a clamping column, the water outlet device comprises a water outlet tank, first openings are formed in two ends of the water outlet tank, a water control device is movably connected inside the heat preservation cup body on one side of the water outlet tank and comprises a baffle plate and a round cap, a second connecting rod is connected to the surface, close to the upper end, of the baffle plate, one end of the second connecting rod is connected with a second vertical rod, a snap ring device is arranged at the upper end of the water outlet tank and comprises a snap ring column and a snap ring box, a third spring is arranged inside the snap ring box, the lower end of the snap ring column is connected with an elastic plate, a locking block is connected below the first opening in one end of the water outlet tank, a second opening is formed in the upper end of the locking block, a cleaning locking device is movably connected to one side of the water outlet tank and comprises a vertical block, a fixing device is arranged at the upper end of the vertical block and comprises a snap ring, First montant, second joint pole, the upper end of first montant is connected with holds the cap, the below that the cap was held on the surface of first montant is connected with the ring, the surface of first montant is held and is connected with the head rod between cap, the ring, the surface of perpendicular piece is close to the lower extreme department and runs through and be provided with the loose axle, the outside swing joint of the inside loose axle of perpendicular piece has cleaning device, cleaning device includes horizontal block, movable block, clean brush, second spring, the one end of movable block is connected with first joint pole, the through-hole has been seted up on the surface of first joint pole.

Preferably, the both ends of second connecting rod respectively with baffle, second montant fixed connection, cap fixed connection is in the bottom of second montant, the second montant runs through out the lower extreme surface of water tank, be sliding connection between second montant, the water tank, the surface of second montant goes out the water tank's lower extreme and is provided with the nut, second montant, water tank pass through nut fixed connection, be sliding connection between the internal surface of the end surface of baffle and heat preservation cup, the baffle size is greater than the size of second recess.

Preferably, the lower extreme fixed connection of snap ring post is in the upper end surface center department of elastic plate, the upper end of snap ring case is seted up jaggedly, the breach size and the elastic plate looks adaptation of snap ring case, the both ends of third spring respectively with the lower extreme of elastic plate, the inside bottom fixed connection of snap ring case.

Preferably, the both ends of head rod are fixed connection respectively in the surface of first montant, screens ring, the size and the snap ring post looks adaptation of screens ring, be sliding connection between screens ring, the snap ring post, ring fixed connection is in the upper end surface of riser block, first montant runs through the upper end surface of riser block, second screens rod fixed connection is in the lower extreme of first montant, second screens rod, second open-ended size looks adaptation, the riser block is the open hollow structure in one end.

Preferably, cleaning brush fixed connection is in the one end of crosspiece, the both ends difference fixed connection of second spring is in the surface of crosspiece, movable block, the round hole has been seted up to the inside first recess both sides of supporter, the size and the first joint pole looks adaptation of supporter round hole, the both sides of the first recess of upper end surface of supporter are run through and are provided with the joint tip, the joint tip is located same vertical line with first joint pole, the size and the through-hole looks adaptation of joint tip, first joint pole passes through the joint tip and fixes the inside at the supporter.

Preferably, be fixed connection between gland, the dead lever, the lower extreme of joint hook is located the center department of dead lever, be fixed connection between joint hook, the dead lever, the surface of joint post, lower extreme are seted up porosely, the size looks adaptation of joint hook, joint post, gland, heat preservation bowl cover pass through joint hook, joint post fixed connection.

Preferably, the inside of supporter is close to upper end department and is provided with the screw thread, the surface of insulating cup is close to lower extreme department and is provided with the screw thread, supporter, insulating cup pass through screw thread fixed connection, the both ends of first spring respectively with the fixed surface of first supporting ring, fly leaf be sliding connection between fly leaf, the supporter, the drinking cup is located the inside of fly leaf, first supporting ring fixed connection is in the internal surface of supporter.

Advantageous effects

Compared with the prior art, the invention provides a novel vacuum cup which has the following beneficial effects:

1. this novel thermos cup, through the screw thread on thermos cup, supporter surface, can install the thermos cup in the inside of supporter, can prevent through the supporter that the thermos cup from empting, with the drinking cup card in the inside of fly leaf, can stimulate the fly leaf through first spring and slide in the inside of supporter, can adapt unidimensional drinking cup, can connect the liquid in the thermos cup greatly through the drinking cup, be convenient for drink.

2. This novel thermos cup, can pour out the liquid in the heat preservation cup through the second recess, the position that second montant can the movable baffle slides from top to bottom, can open or plug up the breach of second recess through the baffle, the flow that liquid was poured out in the heat preservation cup can be adjusted through the position that changes the baffle, can fix the second montant at the lower extreme of play water tank through the nut, can prevent the baffle and slide downwards, can pour out the water in the heat preservation cup under the condition of not unscrewing the heat preservation bowl cover and drink, high durability and convenient use.

3. This novel thermos cup, can block the inside at the locking block with second joint pole card through rotating first montant, press the snap ring post, can be with the high turndown of snap ring post under the effect of snap ring case, can prevent first montant rotation on the surface of snap ring post with the screens ring cover, and then can lock the state of second joint pole, can be with clean locking device, go out water installation fixed connection together, can adjust cleaning device's angle through the loose axle, can insert the inside of supporter with first joint pole through pressing the movable block, insert the inside of through-hole with the card tip from the upper end of supporter, can fix cleaning device in the inside of supporter, and then can be with supporting storage device, clean locking device, it is integrative to go out water installation fixed connection, be convenient for carry on the cleanness brush, can clean the heat preservation cup at any time.

4. This novel thermos cup can mention the gland through the dead lever, goes into the inside of joint post with the joint hook, can mention the gland through operating the heat preservation bowl cover, avoids making dirty with the inside liquid of heat preservation cup.

Drawings

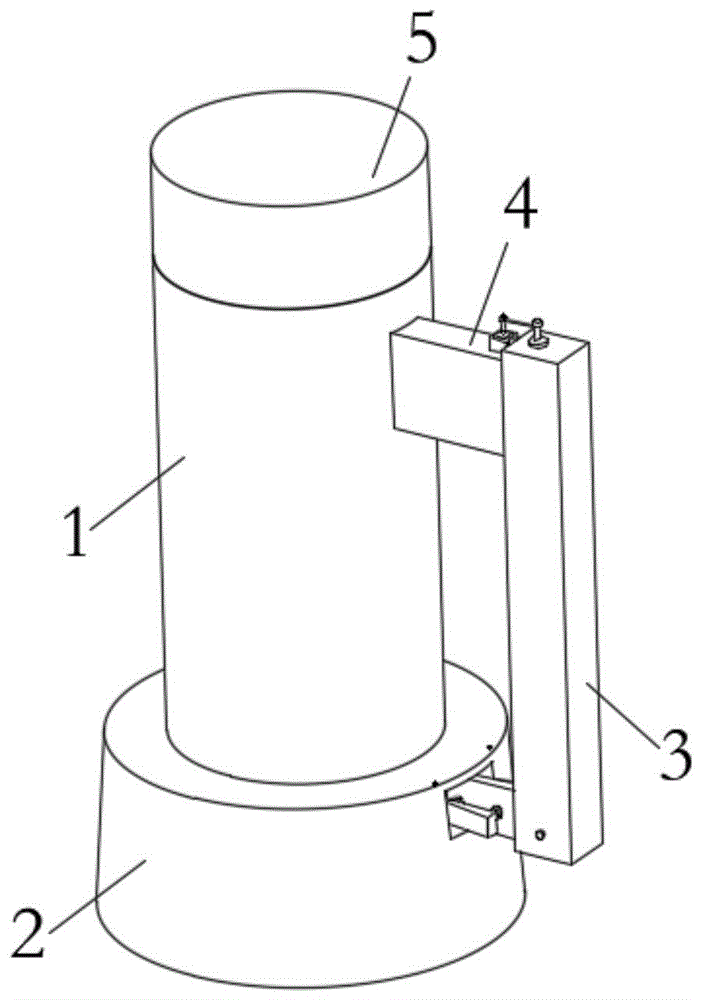

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an exploded schematic view of the present invention;

FIG. 3 is a schematic structural view of the supporting and accommodating device of the present invention;

FIG. 4 is a schematic view of the cleaning lockout device of the present invention;

FIG. 5 is a schematic view of the cleaning apparatus of the present invention;

FIG. 6 is a schematic view of the fixing device of the present invention;

FIG. 7 is a schematic structural view of the water outlet device of the present invention;

FIG. 8 is a schematic structural view of a water control device according to the present invention;

FIG. 9 is a schematic view of a portion of the structure of the present invention;

FIG. 10 is a schematic view of a portion of the structure of the present invention;

FIG. 11 is a schematic view of the construction of the connecting device of the present invention;

FIG. 12 is a schematic view of a snap ring apparatus of the present invention;

in the figure: 1. a heat insulation cup body; 2. supporting the storage device; 21. a support body; 22. a first groove; 23. clamping a tip; 24. a first support ring; 25. a water cup; 26. a first spring; 27. a movable plate; 3. cleaning the locking device; 31. a vertical block; 32. a movable shaft; 33. a cleaning device; 331. a transverse block; 332. a movable block; 333. a first clamping connection rod; 334. a through hole; 335. a cleaning brush; 336. a second spring; 34. a fixing device; 341. holding the cap; 342. a first connecting rod; 343. a position clamping ring; 344. a circular ring; 345. a first vertical bar; 346. a second clamping connection rod; 4. a water outlet device; 41. a water outlet tank; 42. a water control device; 421. a baffle plate; 422. a round cap; 423. a nut; 424. a second vertical bar; 425. a second connecting rod; 43. a snap ring device; 431. a snap ring post; 432. an elastic plate; 433. a snap ring box; 434. a third spring; 44. a first opening; 45. a second opening; 46. a locking block; 5. a heat preservation cup cover; 6. a connecting device; 61. a gland; 62. fixing the rod; 63. clamping hooks; 7. a second support ring; 8. a second groove; 9. the clamping column.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-12, a novel vacuum cup comprises a heat-insulating cup body 1, a supporting and accommodating device 2 is connected to the lower end of the heat-insulating cup body 1, the supporting and accommodating device 2 comprises a supporting body 21, a first supporting ring 24, a water cup 25 and a first spring 26, a first groove 22 is formed in the surface of the supporting body 21, the first supporting ring 24 is connected to the inner surface of the supporting body 21, a movable plate 27 is movably connected to the inner bottom end of the supporting body 21, a second supporting ring 7 is connected to the inner surface of the heat-insulating cup body 1 near the upper end, a connecting device 6 is arranged at the upper end of the second supporting ring 7, the connecting device 6 comprises a pressing cover 61, a fixing rod 62 is connected to the upper end of the pressing cover 61, a clamping hook 63 is connected to the surface of the fixing rod 62, a heat-insulating cup cover 5 is movably connected to the upper end of the heat, one side of the second groove 8 is provided with a water outlet device 4, the water outlet device 4 comprises a water outlet tank 41, two ends of the water outlet tank 41 are provided with first openings 44, the inside of the heat preservation cup body 1 on one side of the water outlet tank 41 is movably connected with a water control device 42, the water control device 42 comprises a baffle 421 and a round cap 422, the surface of the baffle 421 close to the upper end is connected with a second connecting rod 425, one end of the second connecting rod 425 is connected with a second vertical rod 424, the upper end of the water outlet tank 41 is provided with a snap ring device 43, the snap ring device 43 comprises a snap ring column 431 and a snap ring box 433, the inside of the snap ring box 433 is provided with a third spring 434, the lower end of the snap ring column 431 is connected with an elastic plate 432, the lower part of the first opening 44 on one end of the water outlet tank 41 is connected with a locking block 46, the upper end of the locking block 46 is provided with a second opening 45, the upper end of the vertical block 31 is provided with a fixing device 34, the fixing device 34 comprises a clamping ring 343, a first vertical rod 345 and a second clamping rod 346, the upper end of the first vertical rod 345 is connected with a holding cap 341, the lower part of the surface holding cap 341 of the first vertical rod 345 is connected with a circular ring 344, a first connecting rod 342 is connected between the surface holding cap 341 of the first vertical rod 345 and the circular ring 344, the surface of the vertical block 31 is provided with a movable shaft 32 near the lower end in a penetrating manner, the outer side of the inner movable shaft 32 of the vertical block 31 is movably connected with a cleaning device 33, the cleaning device 33 comprises a transverse block 331, a movable block 332, a cleaning brush 335 and a second spring 336, one end of the movable block 332 is connected with a first clamping rod 333, and a through hole 334 is formed in the surface of the first.

Referring to fig. 7-9, two ends of the second connecting rod 425 are respectively fixedly connected to the baffle 421 and the second vertical rod 424, the round cap 422 is fixedly connected to the bottom end of the second vertical rod 424, the second vertical rod 424 penetrates through the lower end surface of the water outlet tank 41, the second vertical rod 424 and the water outlet tank 41 are slidably connected, the nut 423 is arranged at the lower end of the water outlet tank 41 on the outer surface of the second vertical rod 424, the second vertical rod 424 and the water outlet tank 41 are fixedly connected through the nut 423, the surface of one end of the baffle 421 is slidably connected to the inner surface of the insulating cup body 1, and the size of the baffle 421 is larger than the size of the second groove 8.

In this embodiment, can pour out the liquid in the heat preservation cup 1 through second recess 8, can remove the position of baffle 421 through sliding second montant 424 from top to bottom, can open or plug up the breach of second recess 8 through baffle 421, can adjust the flow that liquid was poured out in the heat preservation cup 1 through the position that changes baffle 421, can fix the lower extreme at play water tank 41 with second montant 424 through nut 423, can prevent baffle 421 from sliding downwards.

Referring to fig. 3, 4 and 5, the lower end of the snap ring column 431 is fixedly connected to the center of the upper end surface of the elastic plate 432, the upper end of the snap ring box 433 is provided with a gap, the gap of the snap ring box 433 is matched with the elastic plate 432 in size, and two ends of the third spring 434 are respectively fixedly connected to the lower end of the elastic plate 432 and the inner bottom end of the snap ring box 433.

Both ends of the first connecting rod 342 are respectively and fixedly connected to the surfaces of the first vertical rod 345 and the clamping ring 343, the clamping ring 343 is matched with the snap ring 431 in size, the clamping ring 343 and the snap ring 431 are in sliding connection, the circular ring 344 is fixedly connected to the upper end surface of the vertical block 31, the first vertical rod 345 penetrates through the upper end surface of the vertical block 31, the second clamping rod 346 is fixedly connected to the lower end of the first vertical rod 345, the second clamping rod 346 and the second opening 45 are matched in size, and the vertical block 31 is of a hollow structure with one end open.

Cleaning brush 335 fixed connection is in the one end of crosspiece 331, the both ends difference fixed connection of second spring 336 is in crosspiece 331, the surface of movable block 332, the round hole has been seted up to the inside first recess 22 both sides of supporter 21, the size and the first joint pole 333 looks adaptation of supporter 21 round hole, the both sides of the first recess 22 of the upper end surface of supporter 21 run through and are provided with the bayonet catch 23, bayonet catch 23 is located same vertical line with first joint pole 333, the size and the through-hole 334 looks adaptation of bayonet catch 23, first joint pole 333 passes through the bayonet catch 23 and fixes in the inside of supporter 21.

In this embodiment, the second clamping rod 346 can be clamped inside the locking block 46 by rotating the first vertical rod 345, the clamping ring column 431 is pressed, the height of the clamping ring column 431 can be adjusted to be lower under the action of the clamping ring box 433, the clamping ring 343 is sleeved on the surface of the clamping ring column 431 to prevent the first vertical rod 345 from rotating, and further the state of the second clamping rod 346 can be locked, the cleaning and locking device 3 and the water outlet device 4 can be fixedly connected together, the angle of the cleaning device 33 can be adjusted by the movable shaft 32, the first clamping rod 333 can be inserted into the support body 21 by pressing the movable block 332, the clamping pin 23 is inserted into the through hole 334 from the upper end of the support body 21, the cleaning device 33 can be fixed inside the support body 21, and further the support and storage device 2, the cleaning and locking device 3 and the water outlet device 4 can be fixedly connected into a whole, and the cleaning brush 335 can be conveniently carried around, the heat preservation cup body 1 can be cleaned at any time.

Referring to fig. 10 and 11, the pressing cover 61 and the fixing rod 62 are fixedly connected, the lower end of the clamping hook 63 is located at the center of the fixing rod 62, the clamping hook 63 and the fixing rod 62 are fixedly connected, holes are formed in the surface and the lower end of the clamping column 9, the clamping hook 63 and the clamping column 9 are matched in size, and the pressing cover 61 and the heat-insulating cup cover 5 are fixedly connected through the clamping hook 63 and the clamping column 9.

In this embodiment, can mention gland 61 through dead lever 62, hang joint hook 63 into the inside of joint post 9, can mention gland 61 through operation heat preservation bowl cover 5, avoid making contact with the hand, can avoid making dirty with the inside liquid of heat preservation cup 1.

Referring to fig. 2 and 3, a screw thread is disposed inside the supporting body 21 near the upper end, a screw thread is disposed on the outer surface of the insulating cup 1 near the lower end, the supporting body 21 and the insulating cup 1 are fixedly connected by the screw thread, two ends of the first spring 26 are respectively fixedly connected with the surfaces of the first supporting ring 24 and the movable plate 27, the movable plate 27 and the supporting body 21 are connected in a sliding manner, the water cup 25 is located inside the movable plate 27, and the first supporting ring 24 is fixedly connected with the inner surface of the supporting body 21.

In this embodiment, through the screw thread on the surface of insulating cup 1, supporter 21, can install insulating cup 1 in the inside of supporter 21, can prevent insulating cup 1 through supporter 21 and empty, block drinking cup 25 in the inside of fly leaf 27, can stimulate fly leaf 27 through first spring 26 and slide in the inside of supporter 21, can adapt to the not drinking cup 25 of equidimension, can connect the liquid in insulating cup 1 greatly through drinking cup 25.

When the portable cup is in operation, the movable plate 27 is pulled by two hands to slide in the support body 21, the water cup 25 is placed in the movable plate 27, the lower end of the heat-insulating cup body 1 is inserted into the support body 21 and screwed, the vertical block 31 is sleeved at the upper end of the water outlet device 4, the holding cap 341 is held, the first vertical rod 345 is rotated, the second clamping rod 346 is inserted into the second opening 45, the first vertical rod 345 is rotated again, the upper end of the clamping column 431 is pressed, the clamping ring 343 is clamped on the outer surface of the clamping column 431, the surface of the transverse block 331 is grasped and rotated, two hands are put on the surface of the movable block 332 and pressed towards the direction of the transverse block 331, the first clamping rod 333 is inserted into the support body 21, the clamping tip 23 is inserted into the support body 21 and passes through the through hole 334, the cleaning brush 335 is clamped in the first groove 22 at the moment, the portable cup is convenient to carry, the clamping hook 63 is inserted into the clamping column 9, the upper end of the heat-, when drinking is needed, the nut 423 at the lower end of the water outlet tank 41 is unscrewed, the second vertical rod 424 is held and slides downwards, the baffle 421 slides downwards along the inner wall of the heat-insulating cup body 1, at the moment, the gap of the second groove 8 is opened, the cleaning locking device 3 is taken off from the surface of the water outlet device 4, the supporting and receiving device 2 is unscrewed from the lower end of the heat-insulating cup body 1, the water cup 25 is taken out from the inside of the movable plate 27, the surface of the heat-insulating cup body 1 is held, the first opening 44 is aligned with the cup opening of the water cup 25, water in the heat-insulating cup body 1 flows into the water cup 25 through the first opening 44, drinking is facilitated, when the heat-insulating cup body 1 needs to be cleaned, the cleaning locking device 3 is taken off from the surfaces of the supporting and receiving device 2 and the water outlet device 4, the heat-insulating cup cover 5 is unscrewed from the upper end of the heat-insulating cup, the cleaning device 33 is straightened, the surface of the vertical block 31 is held, the cleaning brush 335 is inserted into the heat-insulating cup body 1, and the dirt in the heat-insulating cup body 1 is cleaned.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a novel thermos cup, includes insulating cup body (1), its characterized in that: the lower end of the heat-insulating cup body (1) is connected with a supporting and containing device (2), the supporting and containing device (2) comprises a supporting body (21), a first supporting ring (24), a water cup (25) and a first spring (26), a first groove (22) is formed in the surface of the supporting body (21), the first supporting ring (24) is connected to the inner surface of the supporting body (21), a movable plate (27) is movably connected to the inner bottom end of the supporting body (21), a second supporting ring (7) is connected to the position, close to the upper end, of the inner surface of the heat-insulating cup body (1), a connecting device (6) is arranged at the upper end of the second supporting ring (7), the connecting device (6) comprises a gland (61), a fixing rod (62) is connected to the upper end of the gland (61), a clamping hook (63) is connected to the surface of the fixing rod (62), and a heat-insulating cup cover (5) is, the heat-insulating cup cover is characterized in that a clamping column (9) is arranged inside the heat-insulating cup cover (5), a second groove (8) is formed in the outer surface of the heat-insulating cup body (1), a water outlet device (4) is arranged on one side of the second groove (8), the water outlet device (4) comprises a water outlet tank (41), first openings (44) are formed in the two ends of the water outlet tank (41), a water control device (42) is movably connected inside the heat-insulating cup body (1) on one side of the water outlet tank (41), the water control device (42) comprises a baffle plate (421) and a round cap (422), a second connecting rod (425) is connected to the position, close to the upper end, of the surface of the baffle plate (421), one end of the second connecting rod (425) is connected with a second vertical rod (424), a clamping ring device (43) is arranged at the upper end of the water outlet tank (41), the clamping ring device, the inside of draw-ring case (433) is provided with third spring (434), the lower extreme of draw-ring post (431) is connected with elastic plate (432), the below of the first opening of one end (44) of play water tank (41) is connected with locking block (46), second opening (45) have been seted up to the upper end of locking block (46), one side swing joint of play water tank (41) has clean locking device (3), clean locking device (3) are including riser block (31), the upper end of riser block (31) is provided with fixing device (34), fixing device (34) are including screens ring (343), first montant (345), second card and are connect pole (346), the upper end of first montant (345) is connected with and holds cap (341), the below of cap (341) is held to the surface of first montant (345) is connected with ring (344), cap (341) are held to the surface of first montant (345), Be connected with head rod (342) between ring (344), the surface of riser block (31) is close to lower extreme department and runs through and is provided with loose axle (32), the outside swing joint of the inside loose axle (32) of riser block (31) has cleaning device (33), cleaning device (33) are including horizontal block (331), loose block (332), clean brush (335), second spring (336), the one end of loose block (332) is connected with first joint pole (333), through-hole (334) have been seted up on the surface of first joint pole (333).

2. A novel thermos cup according to claim 1, characterized in that: the both ends of second connecting rod (425) respectively with baffle (421), second montant (424) fixed connection, round cap (422) fixed connection is in the bottom of second montant (424), the lower extreme surface of play water tank (41) is run through in second montant (424), be sliding connection between second montant (424), play water tank (41), the lower extreme of the surface play water tank (41) of second montant (424) is provided with nut (423), second montant (424), play water tank (41) are through nut (423) fixed connection, be sliding connection between the one end surface of baffle (421) and the inside surface of heat preservation cup (1), the size of baffle (421) is greater than the size of second recess (8).

3. A novel thermos cup according to claim 1, characterized in that: the lower extreme fixed connection of snap ring post (431) is in the upper end surface center department of elastic plate (432), the upper end of snap ring case (433) is seted up jaggedly, the breach size and the elastic plate (432) looks adaptation of snap ring case (433), the both ends of third spring (434) respectively with the lower extreme of elastic plate (432), the inside bottom fixed connection of snap ring case (433).

4. A novel thermos cup according to claim 1, characterized in that: the utility model provides a vertical structure, including vertical piece (31), ring clip (431), ring clip (344), ring clip (346), first connecting rod (342) and vertical piece (31), the both ends of first connecting rod (342) are fixed connection respectively in the surface of first montant (345), ring clip (343), be sliding connection between ring clip (343), ring clip (431), ring clip (344) fixed connection is in the upper end surface of vertical piece (31), first montant (345) run through the upper end surface of vertical piece (31), second clamping rod (346) fixed connection is in the lower extreme of first montant (345), the size looks adaptation of second clamping rod (346), second opening (45), vertical piece (31) are the open hollow structure of one end.

5. A novel thermos cup according to claim 1, characterized in that: the cleaning brush (335) is fixedly connected to one end of the transverse block (331), two ends of the second spring (336) are respectively and fixedly connected to the surfaces of the transverse block (331) and the movable block (332), round holes are formed in two sides of the first groove (22) in the support body (21), the round holes in the support body (21) are matched with the first clamping rod (333), clamping tips (23) are arranged on two sides of the first groove (22) in the upper end surface of the support body (21) in a penetrating mode, the clamping tips (23) and the first clamping rod (333) are located on the same vertical line, the clamping tips (23) are matched with the through holes (334) in size, and the first clamping rod (333) is fixed to the inside of the support body (21) through the clamping tips (23).

6. A novel thermos cup according to claim 1, characterized in that: be fixed connection between gland (61), dead lever (62), the lower extreme of joint hook (63) is located the center department of dead lever (62), be fixed connection between joint hook (63), dead lever (62), it is porose that surface, the lower extreme of joint post (9) are seted up, the size looks adaptation of joint hook (63), joint post (9), gland (61), heat preservation bowl cover (5) are through joint hook (63), joint post (9) fixed connection.

7. A novel thermos cup according to claim 1, characterized in that: the inside of supporter (21) is close to upper end department and is provided with the screw thread, the surface of insulating cup (1) is close to lower extreme department and is provided with the screw thread, supporter (21), insulating cup (1) are through screw thread fixed connection, the both ends of first spring (26) are connected with the fixed surface of first support ring (24), fly leaf (27) respectively, be sliding connection between fly leaf (27), supporter (21), drinking cup (25) are located the inside of fly leaf (27), first support ring (24) fixed connection is in the internal surface of supporter (21).
