CN112537506A - Case sealer - Google Patents
Case sealer Download PDFInfo
- Publication number
- CN112537506A CN112537506A CN202011573784.9A CN202011573784A CN112537506A CN 112537506 A CN112537506 A CN 112537506A CN 202011573784 A CN202011573784 A CN 202011573784A CN 112537506 A CN112537506 A CN 112537506A
- Authority
- CN
- China
- Prior art keywords
- screw rod
- adjusting screw
- module
- adjusting
- conveying belt
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65B—MACHINES, APPARATUS OR DEVICES FOR, OR METHODS OF, PACKAGING ARTICLES OR MATERIALS; UNPACKING
- B65B59/00—Arrangements to enable machines to handle articles of different sizes, to produce packages of different sizes, to vary the contents of packages, to handle different types of packaging material, or to give access for cleaning or maintenance purposes
- B65B59/003—Arrangements to enable adjustments related to the packaging material
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65B—MACHINES, APPARATUS OR DEVICES FOR, OR METHODS OF, PACKAGING ARTICLES OR MATERIALS; UNPACKING
- B65B51/00—Devices for, or methods of, sealing or securing package folds or closures; Devices for gathering or twisting wrappers, or necks of bags
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65B—MACHINES, APPARATUS OR DEVICES FOR, OR METHODS OF, PACKAGING ARTICLES OR MATERIALS; UNPACKING
- B65B7/00—Closing containers or receptacles after filling
- B65B7/16—Closing semi-rigid or rigid containers or receptacles not deformed by, or not taking-up shape of, contents, e.g. boxes or cartons
- B65B7/20—Closing semi-rigid or rigid containers or receptacles not deformed by, or not taking-up shape of, contents, e.g. boxes or cartons by folding-down preformed flaps
Abstract
The invention discloses a box sealing machine which comprises a roller frame, a left side conveying belt, a right side conveying belt, a left and right adjusting module, a left and right cross beam and an up and down adjusting module, wherein the roller frame is arranged on the left side conveying belt; a plurality of rollers are sequentially hinged in the roller frame from front to back; the left conveying belt and the right conveying belt are oppositely arranged and provided with middle channels, the left conveying belt and the right conveying belt are respectively connected with a left-right adjusting module, and the left-right adjusting module drives the left conveying belt and the right conveying belt to synchronously adjust along the left-right direction; the front side of controlling the crossbeam is provided with bellows module, and the rear side of controlling the crossbeam is provided with the joint sealing module, and bellows module and joint sealing module set up in the top of centre passageway, and control the crossbeam and adjust the module from top to bottom and be connected, adjust the module from top to bottom and drive about the crossbeam along upper and lower direction synchronous regulation. In the embodiment of the invention, the carton sealing machine can flexibly adjust the position of the carton entering the carton sealing machine, can well adjust the vertical height position of the carton sealing machine, and has good practicability.
Description
Technical Field
The invention relates to the field of carton sealing equipment, in particular to a carton sealing machine.
Background
The carton is the most widely used packing product, and the product of batch production all adopts pipelining, disposes mechanical equipment at each corresponding position of assembly line to reduce workman's intensity of labour, can also improve production efficiency, the rearmost end of assembly line all is equipped with joint sealing equipment, and joint sealing equipment seals the opening of carton after the carton adorns the product, in order to make its storage and transportation of being convenient for with the packing of product joint sealing.
By adopting the existing carton sealing machine, on one hand, the position of the carton entering the carton sealing machine can be adjusted only by integrally moving the carton sealing machine, and the carton cannot be flexibly butted, and on the other hand, the upper and lower height positions of the carton sealing machine cannot be well adjusted, so that the carton sealing machine cannot well seal cartons with different heights; it can be seen that the existing case sealer has certain use limitation and certain disadvantages.
Disclosure of Invention
The invention aims to overcome the defects of the prior art, and provides the carton sealing machine which can flexibly adjust the position of a carton entering the carton sealing machine, can well adjust the upper and lower height positions of the carton sealing machine and has good practicability.
Correspondingly, the embodiment of the invention provides a box sealing machine, which comprises a roller frame, a left side conveying belt, a right side conveying belt, a left-right adjusting module, a left-right cross beam and an up-down adjusting module;
a plurality of rollers are sequentially hinged in the roller frame from front to back;
the left side conveying belt is arranged on the left side above the plurality of rollers in the front-back direction, the right side conveying belt is arranged on the right side above the plurality of rollers in the front-back direction, the left side conveying belt and the right side conveying belt are oppositely arranged and provided with middle channels, the left side conveying belt and the right side conveying belt are respectively connected with the left-right adjusting module, and the left-right adjusting module drives the left side conveying belt and the right side conveying belt to synchronously adjust in the left-right direction;
the front side of the left and right beams is provided with a box folding module, the rear side of the left and right beams is provided with a box sealing module, the box folding module and the box sealing module are arranged above the middle channel, the left and right beams are connected with the up-down adjusting module, and the up-down adjusting module drives the left and right beams to be synchronously adjusted along the up-down direction.
In an optional embodiment, the left-right adjusting module comprises a front left-right adjusting screw rod, a rear left-right adjusting screw rod and a first transmission module;
the front end left and right adjusting screw rod is hinged to the front end of the roller frame and located below the plurality of rollers, the left end of the front end left and right adjusting screw rod is connected with a front left end adjusting nut seat, the right end of the front end left and right adjusting screw rod is connected with a front right end adjusting nut seat, and the right end of the front end left and right adjusting screw rod is connected with a left and right adjusting hand wheel outside the roller frame;
the rear left and right adjusting screw rod is hinged to the rear end of the roller frame and is positioned below the plurality of rollers, the left end of the rear left and right adjusting screw rod is connected with a rear left end adjusting nut seat, and the right end of the rear left and right adjusting screw rod is connected with a rear right end adjusting nut seat;
the front end left and right adjusting screw rod and the rear end left and right adjusting screw rod are connected through the first transmission module and synchronously rotate;
the left side conveying belt is arranged on the front left end adjusting nut seat and the rear left end adjusting nut seat, and the right side conveying belt is arranged on the front right end adjusting nut seat and the rear right end adjusting nut seat.
In an optional implementation manner, a front-end left-side bearing seat is arranged on the left inner side of the front end of the roller frame, a front-end right-side bearing seat is arranged on the right inner side of the front end of the roller frame, the left end of the front-end left and right adjusting screw rod is hinged in the front-end left-side bearing seat, and the right end of the front-end left and right adjusting screw rod is hinged in the front-end right-side bearing seat;
the left inner side of the rear end of the roller frame is provided with a rear end left side bearing seat, the right inner side of the rear end of the roller frame is provided with a rear end right side bearing seat, the left end of the rear end left and right adjusting screw rod is hinged in the rear end left side bearing seat, and the right end of the rear end left and right adjusting screw rod is hinged in the rear end right side bearing seat.
In an optional embodiment, the first transmission module comprises a front end transmission gear, a rear end transmission gear and a first transmission sprocket belt;
the front end transmission gear is connected to the left end of the front end left and right adjusting screw rod, the rear end transmission gear is connected to the left end of the rear end left and right adjusting screw rod, and the front end transmission gear is connected with the rear end transmission gear through the first transmission chain wheel belt.
In an optional embodiment, the up-down adjusting module comprises a left up-down sliding upright post, a right up-down sliding upright post and a second transmission module;
the left side up-down sliding upright post is arranged on the left outer side of the roller frame, a left side up-down adjusting screw rod is arranged in the left side up-down sliding upright post, and a left side adjusting nut seat is connected to the left side up-down adjusting screw rod;
the right side up-down sliding upright post is arranged on the right outer side of the roller frame, a right side up-down adjusting screw rod is arranged in the right side up-down sliding upright post, and a right side adjusting nut seat is connected to the right side up-down adjusting screw rod;
the left end of the left cross beam and the right cross beam are connected with the left adjusting nut seat, and the right end of the left cross beam and the right cross beam are connected with the right adjusting nut seat;
the lower end of the left upper and lower adjusting screw rod is connected with the lower end of the right upper and lower adjusting screw rod through the second transmission module.
In an optional implementation manner, a left end connecting block is arranged at the left end of the left and right cross beams, the left end connecting block is connected with the left adjusting nut seat, and left end pulleys adapted to the left vertical sliding stand column are respectively arranged on the front side and the rear side of the left end connecting block;
the right end of the left and right cross beams is provided with a right end connecting block, the right end connecting block is connected with the right side adjusting nut seat, and right end pulleys matched with the right side vertical sliding column are arranged on the front side and the rear side of the right end connecting block respectively.
In an optional embodiment, the second transmission module comprises a left end transmission gear, a right end transmission gear and a second transmission sprocket belt;
the left end transmission gear is connected to the lower end of the left upper and lower adjusting screw rod, the right end transmission gear is connected to the lower end of the right upper and lower adjusting screw rod, and the left end transmission gear is connected with the right end transmission gear through the second transmission chain belt.
In an optional embodiment, a sprocket belt cover plate is arranged between the lower end of the left vertical sliding column and the lower end of the right vertical sliding column, and the second transmission sprocket belt is arranged in the sprocket belt cover plate.
In an optional implementation mode, a left up-and-down adjusting hand wheel is connected to the upper end of the left up-and-down adjusting screw rod on the upper side of the left up-and-down sliding upright post;
and the upper end of the right upper and lower adjusting screw rod is connected with a right upper and lower adjusting hand wheel on the upper side of the right upper and lower sliding upright post.
In an optional embodiment, the bottom of the roller frame is provided with support legs, the bottom of each support leg is provided with an upper height adjusting piece and a lower height adjusting piece, and one side of each upper height adjusting piece and one side of each lower height adjusting piece are provided with support leg rollers.
The embodiment of the invention provides a carton sealing machine, wherein a left-right adjusting module can drive a left side conveying belt and a right side conveying belt to synchronously adjust along the left-right direction, and the position of a carton entering the carton sealing machine can be flexibly adjusted through the left-right adjusting module, so that a preorder assembly line is flexibly butted; the upper and lower adjusting module drives the left and right cross beams to be synchronously adjusted in the vertical direction, and the upper and lower height positions of the folding box module and the sealing box module can be well adjusted through the upper and lower adjusting module, so that the upper and lower height positions of the sealing box can be better adjusted to be suitable for sealing cartons with different heights and sizes, and the carton sealing device has good practicability.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

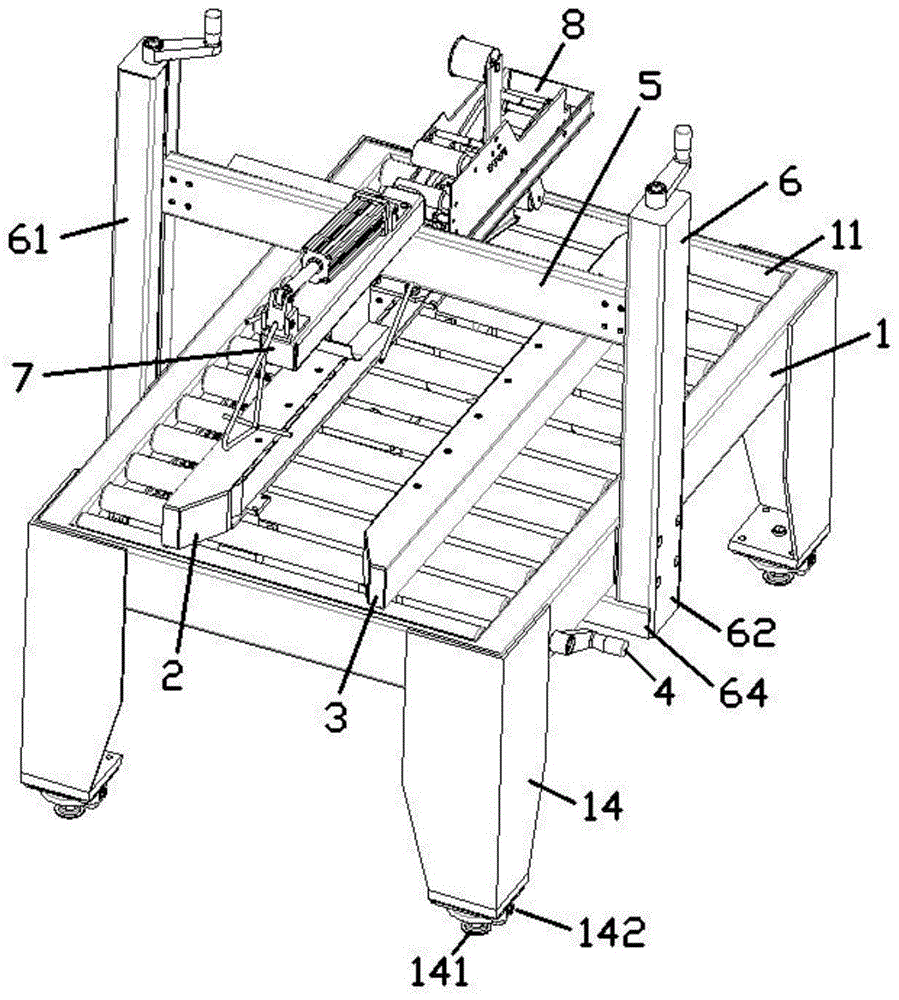

FIG. 1 is a schematic three-dimensional structure of a box sealing machine according to an embodiment of the present invention;
FIG. 2 is a schematic view of a first partial structure of a box sealing machine according to an embodiment of the present invention;
FIG. 3 is a second partial structural schematic view of the box sealing machine according to the embodiment of the present invention;
fig. 4 is a third partial structural schematic diagram of the carton sealing machine in the embodiment of the invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Fig. 1 is a schematic three-dimensional structure diagram of a box sealing machine according to an embodiment of the invention.
The embodiment of the invention provides a box sealing machine which comprises a roller frame 1, a left side conveying belt 2, a right side conveying belt 3, a left and right adjusting module 4, a left and right cross beam 5 and an up and down adjusting module 6.
A plurality of rollers 11 are sequentially hinged in the roller frame 1 from front to back.
The left side conveyer belt 2 sets up along the fore-and-aft direction a plurality of cylinders 11's top left side, right side conveyer belt 3 sets up along the fore-and-aft direction a plurality of cylinders 11's top right side, left side conveyer belt 2 with right side conveyer belt 3 sets up relatively and has the intermediate channel, the width looks adaptation of intermediate channel and carton, just left side conveyer belt 2 with right side conveyer belt 3 respectively with it connects to control regulation module 4, control and adjust module 4 and drive left side conveyer belt 2 with right side conveyer belt 3 is along controlling the direction synchronous regulation.
The front side of the left and right cross beams 5 is provided with a box folding module 7, the rear side of the left and right cross beams 5 is provided with a box sealing module 8, the box folding module 7 and the box sealing module 8 are arranged above the middle channel, the left and right cross beams 5 are connected with the up-down adjusting module 6, and the up-down adjusting module 6 drives the left and right cross beams 5 to be synchronously adjusted along the up-down direction.
In specific implementation, the cartons enter the middle channel, and are driven by the left side conveyor belt 2 and the right side conveyor belt 3 to move from front to back on the rollers 11; in the process that the carton moves in the middle channel, the top opening of the carton is firstly folded through the box folding module 7, and then the top opening of the carton is sealed through the box sealing module 8, so that the box sealing process of the carton is completed.
By adopting the case sealer, the left-right adjusting module 4 can drive the left-side conveying belt 2 and the right-side conveying belt 3 to synchronously adjust along the left-right direction, and the position of a carton entering the case sealer can be flexibly adjusted through the left-right adjusting module 4, so that a preorder assembly line is flexibly butted; in addition, the vertical adjusting module 6 drives the left and right beams 5 to be synchronously adjusted in the vertical direction, and the vertical height positions of the box folding module 7 and the box sealing module 8 can be well adjusted through the vertical adjusting module 6, so that the vertical height position of the box sealing can be better adjusted.
Fig. 2 is a first partial structure schematic diagram of a box sealing machine in an embodiment of the present invention, fig. 3 is a second partial structure schematic diagram of the box sealing machine in the embodiment of the present invention, and fig. 4 is a third partial structure schematic diagram of the box sealing machine in the embodiment of the present invention.
Specifically, the left-right adjusting module 4 includes a front left-right adjusting screw 41, a rear left-right adjusting screw 42, and a first transmission module 43.
The front end left and right adjusting screw rod 41 is hinged to the front end of the roller frame 1 and located below the plurality of rollers 11, a front left end adjusting nut seat 411 is connected to the left end of the front end left and right adjusting screw rod 41, and a front right end adjusting nut seat 412 is connected to the right end of the front end left and right adjusting screw rod 41.
The rear left-right adjusting screw rod 42 is hinged to the rear end of the roller frame 1 and located below the plurality of rollers 11, the left end of the rear left-right adjusting screw rod 42 is connected with a rear left-end adjusting nut seat 421, and the right end of the rear left-right adjusting screw rod 42 is connected with a rear right-end adjusting nut seat 422.
The front left-right adjusting screw rod 41 and the rear left-right adjusting screw rod 42 are connected through the first transmission module 43 and rotate synchronously.
The left side conveying belt 2 is arranged on the front left end adjusting nut seat 411 and the rear left end adjusting nut seat 421, and the right side conveying belt 3 is arranged on the front right end adjusting nut seat 412 and the rear right end adjusting nut seat 422.
Further, a left-right adjusting hand wheel 413 is connected to the right end of the front left-right adjusting screw 41 on the outside of the drum frame.
In a specific implementation, the left and right adjusting handwheel 413 is rotated, the left and right adjusting handwheel 413 drives the front left and right adjusting screw rod 41 to rotate, and the front left and right adjusting screw rod 41 drives the front left adjusting nut seat 411 and the front right adjusting nut seat 412 to synchronously move left and right; meanwhile, the front left-right adjusting screw rod 41 drives the rear left-right adjusting screw rod 42 to synchronously rotate through the first transmission module 43, and the rear left-right adjusting screw rod 42 drives the rear left-end adjusting nut seat 421 and the rear right-end adjusting nut seat 422 to synchronously move left and right; it can be seen that by rotating the left and right adjusting handwheels 413, the left and right positions of the left side conveyor belt 2 and the right side conveyor belt 3 can be conveniently, quickly and timely synchronously adjusted, so that the position of the carton entering the carton sealing machine can be flexibly adjusted, and the preceding assembly line can be flexibly butted.
The left inner side of the front end of the roller frame 1 is provided with a front left bearing seat 121, the right inner side of the front end of the roller frame 1 is provided with a front right bearing seat 122, the left end of the front left and right adjusting screw rod 41 is hinged in the front left bearing seat 121, and the right end of the front left and right adjusting screw rod 41 is hinged in the front right bearing seat 122.
The left inner side of the rear end of the roller frame 1 is provided with a rear left bearing seat 131, the right inner side of the rear end of the roller frame 1 is provided with a rear right bearing seat 132, the left end of the rear left and right adjusting screw rod 42 is hinged in the rear left bearing seat 131, and the right end of the rear left and right adjusting screw rod 42 is hinged in the rear right bearing seat 132.
The first transmission module 43 includes a front end transmission gear 431, a rear end transmission gear 432, and a first transmission chain wheel belt 433.
The front end transmission gear 431 is connected to the left end of the front end left and right adjusting screw rod 41, the rear end transmission gear 432 is connected to the left end of the rear end left and right adjusting screw rod 42, and the front end transmission gear 431 and the rear end transmission gear 432 are connected through the first transmission chain wheel belt 433.
In specific implementation, the front left and right adjusting screw 41 drives the front transmission gear 431 to rotate, the front transmission gear 431 drives the rear transmission gear 432 to synchronously rotate through the first transmission chain wheel belt 433, and the rear transmission gear 432 drives the rear left and right adjusting screw 42 to synchronously rotate, so that the front left and right adjusting screw 41 and the rear left and right adjusting screw 42 synchronously rotate.
Specifically, the up-down adjusting module 6 includes a left up-down sliding column 61, a right up-down sliding column 62 and a second transmission module 63.
The left vertical sliding column 61 is arranged on the left outer side of the roller frame 1, a left vertical adjusting screw rod 611 is arranged in the left vertical sliding column 61, and a left adjusting nut seat 612 is connected to the left vertical adjusting screw rod 611.
The right vertical sliding column 62 is arranged on the right outer side of the roller frame 1, a right vertical adjusting screw 621 is arranged in the right vertical sliding column 62, and a right adjusting nut seat 622 is connected to the right vertical adjusting screw 621.
The left end of the left and right cross beams 5 is connected with the left adjusting nut seat 612, and the right end of the left and right cross beams 5 is connected with the right adjusting nut seat 622.
The lower end of the left up-down adjusting screw 611 is connected with the lower end of the right up-down adjusting screw 621 through the second transmission module 63.
In addition, a left up-down adjusting handwheel 613 is connected to the upper end of the left up-down adjusting screw 611 above the left up-down sliding column 61; the upper end of the right vertical adjustment screw 621 is connected with a right vertical adjustment hand wheel 623 on the upper side of the right vertical sliding column 62.
In a specific implementation, the left up-down adjusting handwheel 613 is rotated, the left up-down adjusting handwheel 613 drives the left up-down adjusting screw rod 611 to rotate, and the left up-down adjusting screw rod 611 drives the left adjusting nut seat 612 to move up and down; meanwhile, the left up-down adjusting screw rod 611 drives the right up-down adjusting screw rod 621 to rotate synchronously through the second transmission module 63, and the right up-down adjusting screw rod 621 drives the right adjusting nut seat 622 to move synchronously up and down.
Or, the right up-down adjusting hand wheel 623 is rotated, the right up-down adjusting hand wheel 623 drives the right up-down adjusting screw 621 to rotate, and the right up-down adjusting screw 621 drives the right adjusting nut seat 622 to move up and down; meanwhile, the right up-down adjusting screw 621 drives the left up-down adjusting screw 611 to synchronously rotate through the second transmission module 63, and the left up-down adjusting screw 611 drives the left adjusting nut seat 612 to synchronously move up and down.
It can be seen that by rotating the left upper and lower adjusting hand wheel 613 or the right upper and lower adjusting hand wheel 623, the upper and lower positions of the left and right beams 5 can be conveniently, quickly and timely adjusted, and the upper and lower height positions of the box folding module 7 and the box sealing module 8 can be better adjusted, so that the upper and lower height positions of the box sealing can be better adjusted.
The left end of the left and right cross beam 5 is provided with a left end connecting block 51, the left end connecting block 51 is connected with the left side adjusting nut seat 612, the front side and the rear side of the left end connecting block 51 are respectively provided with a left end pulley 511 matched with the left side vertical sliding column 61, and the left end pulley 511 is arranged to enable the left side adjusting nut seat 612 to better slide along the left side vertical sliding column 61 up and down.
The right end of the left and right cross beams 5 is provided with a right end connecting block 52, the right end connecting block 52 is connected with the right side adjusting nut seat 622, the front side and the rear side of the right end connecting block 52 are respectively provided with a right end pulley 521 matched with the right side vertical sliding column 62, and the right end pulley 521 is arranged to enable the right side adjusting nut seat 622 to better slide up and down along the right side vertical sliding column 62.
The second transmission module 63 includes a left end transmission gear 631, a right end transmission gear 632, and a second transmission sprocket belt 633.
The left end transmission gear 631 is connected to the lower end of the left upper and lower adjusting screw 611, the right end transmission gear 632 is connected to the lower end of the right upper and lower adjusting screw 621, and the left end transmission gear 631 and the right end transmission gear 632 are connected through the second transmission chain wheel belt 633.
In specific implementation, the left upper and lower adjusting screw 611 drives the left transmission gear 631 to rotate, the left transmission gear 631 drives the right transmission gear 632 to synchronously rotate through the second transmission chain belt 633, the right transmission gear 632 drives the right upper and lower adjusting screw 621 to synchronously rotate, and in this way, the left upper and lower adjusting screw 611 and the right upper and lower adjusting screw 621 synchronously rotate.
Or, the right upper and lower adjusting screw 621 drives the right transmission gear 632 to rotate, the right transmission gear 632 drives the left transmission gear 631 to synchronously rotate through the second transmission chain belt 633, the left transmission gear 631 drives the left upper and lower adjusting screw 611 to synchronously rotate, and in this way, the left upper and lower adjusting screw 611 and the right upper and lower adjusting screw 621 synchronously rotate.
In addition, be provided with sprocket belt cover plate 64 between the lower extreme of slip stand 61 about the left side and the lower extreme of slip stand 62 about the right side, second transmission sprocket area 633 sets up in sprocket belt cover plate 64, sprocket belt cover plate 64 plays waterproof dustproof crashproof effect, right second transmission sprocket area 633 protects, guarantees driven normal clear.
Specifically, the bottom of the roller frame 1 is provided with a supporting leg 14, the supporting leg 14 can realize the integral stable support of the case sealer, the bottom of the supporting leg 14 is provided with an upper height adjusting part 141 and a lower height adjusting part 141, the integral upper height and the lower height of the case sealer can be adjusted through the upper height adjusting part 141 and the lower height adjusting part 141, one side of the upper height adjusting part 141 and the lower height adjusting part 141 is provided with a supporting leg roller 142, and the supporting leg roller 142 is convenient for the integral movement of the case sealer.
The embodiment of the invention provides a carton sealing machine, wherein a left-right adjusting module 4 can drive a left side conveying belt 2 and a right side conveying belt 3 to synchronously adjust along the left-right direction, and the position of a carton entering the carton sealing machine can be flexibly adjusted through the left-right adjusting module 4, so that a preorder assembly line is flexibly butted; the upper and lower adjusting module 6 drives the left and right beams 5 to be synchronously adjusted along the upper and lower directions, and the folding box module 7 and the upper and lower height positions of the sealing box module 8 can be well adjusted through the upper and lower adjusting module 6, so that the upper and lower height positions of the sealing box can be better adjusted to be suitable for sealing cartons with different heights and sizes, and the carton sealing machine has good practicability.
In addition, the above detailed description is provided for the case sealer provided by the embodiment of the present invention, and a specific example should be adopted herein to explain the principle and the implementation manner of the present invention, and the above description of the embodiment is only used to help understanding the method and the core idea of the present invention; meanwhile, for a person skilled in the art, according to the idea of the present invention, there may be variations in the specific embodiments and the application scope, and in summary, the content of the present specification should not be construed as a limitation to the present invention.
Claims (10)
1. The carton sealing machine is characterized by comprising a roller frame, a left conveying belt, a right conveying belt, a left and right adjusting module, a left and right cross beam and an up and down adjusting module;
a plurality of rollers are sequentially hinged in the roller frame from front to back;
the left side conveying belt is arranged on the left side above the plurality of rollers in the front-back direction, the right side conveying belt is arranged on the right side above the plurality of rollers in the front-back direction, the left side conveying belt and the right side conveying belt are oppositely arranged and provided with middle channels, the left side conveying belt and the right side conveying belt are respectively connected with the left-right adjusting module, and the left-right adjusting module drives the left side conveying belt and the right side conveying belt to synchronously adjust in the left-right direction;
the front side of the left and right beams is provided with a box folding module, the rear side of the left and right beams is provided with a box sealing module, the box folding module and the box sealing module are arranged above the middle channel, the left and right beams are connected with the up-down adjusting module, and the up-down adjusting module drives the left and right beams to be synchronously adjusted along the up-down direction.
2. A box sealer as claimed in claim 1, wherein said left and right adjustment modules include a front left and right adjustment screw, a rear left and right adjustment screw, and a first transmission module;
the front end left and right adjusting screw rod is hinged to the front end of the roller frame and located below the plurality of rollers, the left end of the front end left and right adjusting screw rod is connected with a front left end adjusting nut seat, the right end of the front end left and right adjusting screw rod is connected with a front right end adjusting nut seat, and the right end of the front end left and right adjusting screw rod is connected with a left and right adjusting hand wheel outside the roller frame;
the rear left and right adjusting screw rod is hinged to the rear end of the roller frame and is positioned below the plurality of rollers, the left end of the rear left and right adjusting screw rod is connected with a rear left end adjusting nut seat, and the right end of the rear left and right adjusting screw rod is connected with a rear right end adjusting nut seat;
the front end left and right adjusting screw rod and the rear end left and right adjusting screw rod are connected through the first transmission module and synchronously rotate;
the left side conveying belt is arranged on the front left end adjusting nut seat and the rear left end adjusting nut seat, and the right side conveying belt is arranged on the front right end adjusting nut seat and the rear right end adjusting nut seat.
3. A box sealing machine as claimed in claim 2, wherein the left inner side of the front end of the roller frame is provided with a left bearing seat of the front end, the right inner side of the front end of the roller frame is provided with a right bearing seat of the front end, the left end of the left and right adjusting screw rod of the front end is hinged in the left bearing seat of the front end, and the right end of the left and right adjusting screw rod of the front end is hinged in the right bearing seat of the front end;
the left inner side of the rear end of the roller frame is provided with a rear end left side bearing seat, the right inner side of the rear end of the roller frame is provided with a rear end right side bearing seat, the left end of the rear end left and right adjusting screw rod is hinged in the rear end left side bearing seat, and the right end of the rear end left and right adjusting screw rod is hinged in the rear end right side bearing seat.
4. A box sealer as claimed in claim 2 wherein the first drive module includes a front drive gear, a rear drive gear and a first drive sprocket belt;
the front end transmission gear is connected to the left end of the front end left and right adjusting screw rod, the rear end transmission gear is connected to the left end of the rear end left and right adjusting screw rod, and the front end transmission gear is connected with the rear end transmission gear through the first transmission chain wheel belt.
5. A box sealer as claimed in claim 1, wherein the up-down adjustment module comprises a left up-down sliding column, a right up-down sliding column and a second transmission module;
the left side up-down sliding upright post is arranged on the left outer side of the roller frame, a left side up-down adjusting screw rod is arranged in the left side up-down sliding upright post, and a left side adjusting nut seat is connected to the left side up-down adjusting screw rod;
the right side up-down sliding upright post is arranged on the right outer side of the roller frame, a right side up-down adjusting screw rod is arranged in the right side up-down sliding upright post, and a right side adjusting nut seat is connected to the right side up-down adjusting screw rod;
the left end of the left cross beam and the right cross beam are connected with the left adjusting nut seat, and the right end of the left cross beam and the right cross beam are connected with the right adjusting nut seat;
the lower end of the left upper and lower adjusting screw rod is connected with the lower end of the right upper and lower adjusting screw rod through the second transmission module.
6. A box sealing machine as claimed in claim 5, wherein left end connecting blocks are arranged at left ends of the left and right cross beams, the left end connecting blocks are connected with the left adjusting nut seats, and left end pulleys matched with the left vertical sliding columns are respectively arranged at front and rear sides of the left end connecting blocks;
the right end of the left and right cross beams is provided with a right end connecting block, the right end connecting block is connected with the right side adjusting nut seat, and right end pulleys matched with the right side vertical sliding column are arranged on the front side and the rear side of the right end connecting block respectively.
7. A box sealer as claimed in claim 5 wherein the second drive module includes a left end drive gear, a right end drive gear and a second drive sprocket belt;
the left end transmission gear is connected to the lower end of the left upper and lower adjusting screw rod, the right end transmission gear is connected to the lower end of the right upper and lower adjusting screw rod, and the left end transmission gear is connected with the right end transmission gear through the second transmission chain belt.
8. A box sealer as claimed in claim 7, wherein a sprocket belt cover is provided between the lower end of the left side up-down sliding upright and the lower end of the right side up-down sliding upright, the second driving sprocket belt being provided in the sprocket belt cover.
9. A box sealing machine as claimed in claim 5, wherein the upper end of the left up-down adjusting screw is connected with a left up-down adjusting hand wheel on the upper side of the left up-down sliding column;
and the upper end of the right upper and lower adjusting screw rod is connected with a right upper and lower adjusting hand wheel on the upper side of the right upper and lower sliding upright post.
10. A box sealer as claimed in claim 1, wherein the bottom of the roller frame is provided with a support leg, the bottom of the support leg is provided with an upper and lower height adjusting member, and one side of the upper and lower height adjusting member is provided with a support leg roller.
