The invention relates to a roller wiping device, belonging to the field of keeping a roller or rolling equipment in an effective state. The transmission device comprises a movable rack and two sets of gear motor transmission systems which are symmetrically arranged on two sides of the movable rack, and the wiping roller assembly is arranged on a bearing seat at the front end of the movable rack through a bearing; the gear motors in each set of gear motor transmission system are arranged on the movable rack through the motor base, the driving chain wheel is arranged at the output end of the gear motor, the driven chain wheel is arranged at the shaft end head of the wiping roller assembly, and the driving chain wheel is matched with the driven chain wheel through a chain; the width of the disc surface of the brush disc in the assembly of the wiping roller is not less than the width of the roller surface of the roller. An upper movable cover and a lower movable cover in the dust removing device are correspondingly arranged on the upper end surface and the lower end surface of the front end of the transition pipe, the rear end of the transition pipe is connected with the inner moving pipe, and the transition pipe and the inner moving pipe are both arranged on the moving rack. The device can effectively remove and suck away the iron scales and impurities adhered to the surface of the roller.
Description
Technical Field
The invention belongs to the field of keeping a roller or rolling equipment in an effective state, and particularly relates to a roller wiping device.
Background
The leveler can effectively improve the surface quality of the strip steel, the main control items comprise flatness and thickness dimension precision, the yield platform of the strip steel is eliminated or reduced, and the comprehensive mechanical property of the strip steel is improved. The leveling process generally includes a dry type leveling machine and a wet type leveling machine, wherein each contact surface of the dry type leveling machine is in a dry friction state, iron scales and various impurities on the surface of the strip steel can fall off and adhere to the surface of a roller in the rolling process, if the strip steel is not cleaned in time, the strip steel is rolled into the roller, the surface of the roller can be crushed, or various defects can be formed on the surface of a rolled product.
The prior roller cleaning modes include a wiping head type and a non-contact type. The existing wiping head type cleaning is non-full-roller-length wiping, a transverse moving device is required to be arranged for transverse movement, and meanwhile, the transverse movement is easy to form spiral marks on the surface of a roller or wipe defects such as unevenness and the like. And a dust collection structure is required to be arranged in a non-contact manner, so that large particles or impurities firmly adhered to the roller cannot be removed.
Disclosure of Invention
In view of the above, the present invention provides a roll wiping device to solve the disadvantages of the current roll cleaning method.
In order to achieve the purpose, the invention provides the following technical scheme:
a roller wiping device comprises a transmission device, a wiping roller assembly and a dust removal device.
The transmission device comprises a movable rack and two sets of gear motor transmission systems which are symmetrically arranged on two sides of the movable rack, and two ends of the wiping roller assembly are arranged on bearing seats at the front end of the movable rack through symmetrically arranged bearings; each set of gear motor transmission system comprises a gear motor, a driving chain wheel, a chain and a driven chain wheel, wherein the gear motor is arranged on the movable rack through a motor base, the driving chain wheel is arranged at the output end of the gear motor, the driven chain wheel is arranged at the shaft end of the wiping roller assembly, and the driving chain wheel is matched with the driven chain wheel through the chain.
The width of the disc surface of the brush disc in the assembly of the wiping roller is not less than the width of the roller surface of the roller.
The dust removing device comprises an upper movable cover, a lower movable cover, a transition pipe and an inner moving pipe; the upper movable cover and the lower movable cover are respectively and correspondingly arranged at the upper end surface and the lower end surface of the front end of the transition pipe in a detachable mode through connecting pieces, the upper movable cover and the lower movable cover are respectively provided with an arc-shaped part, the front end of the transition pipe is provided with an arc-shaped notch, and the arc-shaped part of the upper movable cover, the arc-shaped part of the lower movable cover and the arc-shaped notch of the front end of the transition pipe are matched to form a state of coating the periphery of the disc surface of the brush disc; the rear end of the transition pipe is connected with the inner moving pipe.
The transition pipe and the inner moving pipe are both arranged on the moving rack.
Further, the device also comprises a fixed machine base assembly and a wiping roller moving device; the fixed machine base assembly comprises a fixed machine frame, and the fixed machine frame is arranged between the memorial archways on the operation side and the transmission side through a fixed support; the wiping roller moving device comprises a linear guide rail arranged on the fixed rack, a sliding seat arranged on the linear guide rail and capable of moving back and forth along the rail, and a hydraulic cylinder connected with the movable rack and used for driving the movable rack, wherein the hydraulic cylinder is hinged in a shaft seat of the fixed rack; the movable frame is arranged on the sliding seat.
Furthermore, dust collector still includes outer fixed pipe, and outer fixed pipe setting is in fixed frame, and it sets up guide ring and dust ring to remove the intraductal and interior removal pipe and outer fixed pipe of cartridge in outer fixed frame.
Further, the transmission device also comprises a chain tensioning device arranged on the movable rack.
Further, the motor base comprises a base fixedly arranged on the movable rack and a seat frame movably connected with the base, and the gear motor is arranged on the seat frame; the chain tensioning device is a screw and nut mechanism, wherein a screw is arranged on the movable rack, and a nut sleeved on the screw is connected with a seat frame in the motor base.
Further, the gear motor is a parallel shaft type speed reducer.
Further, the axis of the output shaft of the gear motor is parallel to the wiping axis of the wiping roller assembly.
Furthermore, the outer sides of the driving chain wheel, the chain and the driven chain wheel in the transmission device are provided with protective covers.
Further, the hydraulic cylinder device also comprises a pressure switch, and the pressure switch is arranged on a pipeline connected with the hydraulic cylinder.
Furthermore, a safety locking pin matched with the linear guide rail is arranged on the movable rack.
Furthermore, brush wires with abrasive particles are arranged on a brush disc in the assembly of the wiping roller.
The invention has the beneficial effects that:
the roller wiping device adopts the wiping roller with the full roller length, and can perform online wiping with the full roller length on the working roller, the intermediate roller and the supporting roller of the temper mill. The moving device in the form of matching the hydraulic cylinder with the linear guide rail has the characteristic of large stroke design range, and when roll changing and other operations are carried out, the moving device can drive the transmission device and the wiping roll to be assembled and retreat to a safe standby position, so that enough operation space in the frame is ensured.
The device has compact structure and small requirement on installation space; the wiping roller assembly adopts double-motor drive, the wiping force is large, and the wiping effect is good; the negative pressure dust removal device is matched on the basis of the wiping roller with large friction force, so that impurities on the surface of the roller can be sucked away while iron scales and impurities are effectively removed, the surface of the roller can be kept clean, and the friction state of the surface of the roller is improved; the method not only reduces the defects of the strip steel, effectively improves the product quality, but also prolongs the service life of the roller and reduces the production cost. Can be widely applied to various dry rolling devices.
Additional advantages, objects, and features of the invention will be set forth in part in the description which follows and in part will become apparent to those having ordinary skill in the art upon examination of the following or may be learned from practice of the invention. The objectives and other advantages of the invention may be realized and attained by the means of the instrumentalities and combinations particularly pointed out hereinafter.
Drawings
For the purposes of promoting a better understanding of the objects, aspects and advantages of the invention, reference will now be made to the following detailed description taken in conjunction with the accompanying drawings in which:

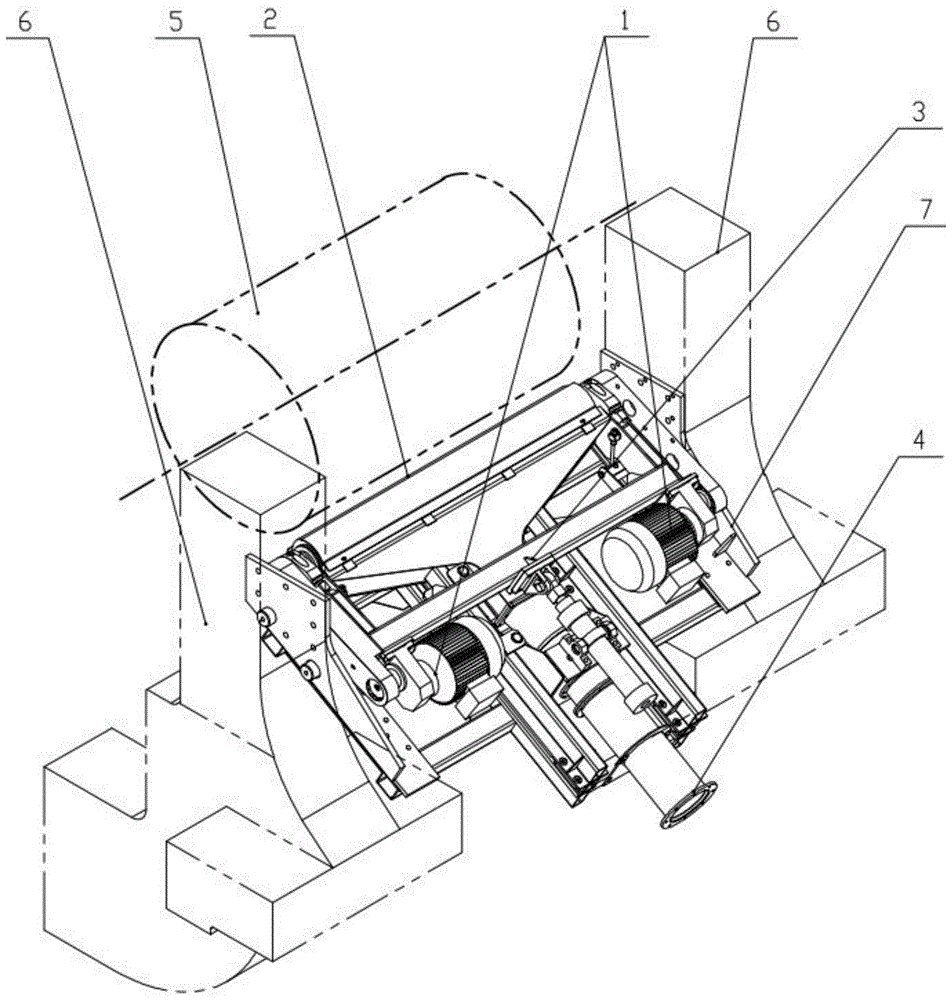

FIG. 1 is a schematic view of a roll wiping device;
FIG. 2 is a schematic view of the transmission;
FIG. 3 is a schematic view of the assembly of the wiping roller moving device and the fixed base;
fig. 4 is a schematic structural diagram of the dust removing device.
Reference numerals:
the device comprises a transmission device 1, a wiping roller assembly 2, a wiping roller moving device 3, a dust removal device 4, a roller 5, a housing 6 and a fixed base assembly 7;
in the transmission: the chain tensioning device comprises a gear motor 11, a chain tensioning device 12, a protective cover 13, a movable rack 14, a motor base 15, a driving chain wheel 16, a driven chain wheel 17, a bearing seat 18 and a safety locking pin 19;
in the wiping roller moving device: linear guide 31, hydraulic cylinder 32, linear guide rail 311, sliding seat 312;
in the dust removing device: an upper movable cover 41, a hinge 42, a transition pipe 43, an inner moving pipe 44, an outer fixing pipe 45, a guide ring 46, a dust ring 47 and a lower movable cover 48;
during the assembly of the fixed base: positioning pin 71, fixing support 72, and fixing frame 73.
Detailed Description
The embodiments of the present invention are described below with reference to specific embodiments, and other advantages and effects of the present invention will be easily understood by those skilled in the art from the disclosure of the present specification. The invention is capable of other and different embodiments and of being practiced or of being carried out in various ways, and its several details are capable of modification in various respects, all without departing from the spirit and scope of the present invention. It should be noted that the drawings provided in the following embodiments are only for illustrating the basic idea of the present invention in a schematic way, and the features in the following embodiments and examples may be combined with each other without conflict.
Wherein the showings are for the purpose of illustrating the invention only and not for the purpose of limiting the same, and in which there is shown by way of illustration only and not in the drawings in which there is no intention to limit the invention thereto; to better illustrate the embodiments of the present invention, some parts of the drawings may be omitted, enlarged or reduced, and do not represent the size of an actual product; it will be understood by those skilled in the art that certain well-known structures in the drawings and descriptions thereof may be omitted.
The same or similar reference numerals in the drawings of the embodiments of the present invention correspond to the same or similar components; in the description of the present invention, it should be understood that if there is an orientation or positional relationship indicated by terms such as "upper", "lower", "left", "right", "front", "rear", etc., based on the orientation or positional relationship shown in the drawings, it is only for convenience of description and simplification of description, but it is not an indication or suggestion that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and therefore, the terms describing the positional relationship in the drawings are only used for illustrative purposes, and are not to be construed as limiting the present invention, and the specific meaning of the terms may be understood by those skilled in the art according to specific situations.
Referring to fig. 1 to 4, a roller wiping device includes a transmission device 1, a wiping roller assembly 2 and a dust removing device 4. The transmission device 1 comprises a movable rack 14 and two sets of gear motor transmission systems symmetrically arranged on two sides of the movable rack 14, and two ends of the wiping roller assembly 2 are arranged on bearing seats 18 at the front end of the movable rack 14 through symmetrically arranged bearings; each set of gear motor transmission system all includes gear motor 11, drive sprocket 16, chain and driven sprocket 17, and wherein gear motor 11 passes through motor base 15 and sets up on moving frame 14, and drive sprocket 16 sets up the output at gear motor 11, and driven sprocket 17 sets up at the axle head of wiping roller assembly 2, and drive sprocket 16 cooperatees with driven sprocket 17 through the chain. The width of the disc surface of the brush disc in the wiping roller assembly 2 is not less than the width of the roller surface of the roller 5, and the wiping with the full roller length can be realized.
The dust removing device 4 comprises an upper movable cover 41, a lower movable cover 48, a transition pipe 43 and an inner moving pipe 44; the upper movable cover 41 and the lower movable cover 48 are respectively and correspondingly arranged at the upper end surface and the lower end surface of the front end of the transition pipe 43 in a detachable mode through connecting pieces, the upper movable cover 41 and the lower movable cover 48 are respectively provided with an arc-shaped part, the front end of the transition pipe 43 is provided with an arc-shaped notch, and the arc-shaped part of the upper movable cover 41, the arc-shaped part of the lower movable cover 48 and the arc-shaped notch of the front end of the transition pipe 43 are matched to form a state of being coated on the periphery of the disc surface of the brush disc; the rear end of the transition tube 43 is connected to the inner moving tube 44. The transition pipe 43 and the inner moving pipe 44 are both mounted on the moving gantry 14.
Specifically, the wiping roller assembly 2 is of an existing structure and comprises a brush roller and a brush disc arranged on the periphery of the brush roller, and brush wires with abrasive particles are arranged on the brush disc. The two ends (brush roll shaft) of the wiping roll assembly 2 are supported in bearing seats 18 at the front end of the movable frame 14 through bearings, and the bearing seats 18 are installed on the movable frame 14 through screws. The wiping roller assembly 2 has two working modes of forward transmission and reverse rotation, and different working modes can be selected according to different working conditions.
The transmission device 1 in the scheme adopts two sets of gear motor transmission systems which are symmetrical to the center line of the strip steel to provide power for the wiping roller assembly 2, a driving chain wheel 16 is installed at the output shaft end of a gear motor 11, the motion is transmitted to a driven chain wheel 17 through a chain, and the driven chain wheel 17 is installed at two ends of the wiping roller assembly 2, so that the motion is transmitted to the wiping roller assembly. The beneficial points of the structure are as follows: the structure is symmetrical, the balance is good, and the installation and the operation are facilitated; the two sets of transmission systems increase the wiping force and avoid the defect of large volume of a single transmission. It should be noted that: for a temper mill with low roller wiping force requirement, the gear motor transmission system can also be designed into belt transmission, namely, toothed belt transmission or V-shaped belt transmission.
One end of the dust removing device 4 is coated on the upper and lower roll surfaces of the wiping roller through the upper and lower movable covers, the upper and lower movable covers are provided with hinges 42, the hinges 42 are provided with fixing bolts, the fixed bolts are normally in a locking state, when the wiping roller needs to be replaced, the locking bolts are loosened, and the upper movable cover 41 and the lower movable cover 48 can be opened along the hinges 42, so that the wiping roller can be replaced quickly. The other end of the dust removing device 4 is connected with a workshop dust removing pipeline, and the workshop dust removing pipeline is provided with dust removing power by a workshop negative pressure dust removing system. The wiping roller is provided with the brush wire with the abrasive particles, so that the high-hardness abrasive particles can effectively remove impurities on the surface of the roller on the premise of not damaging the roller and are sucked away by the negative pressure dust removal system.
As a further optimization of the above scheme, the device also comprises a fixed base assembly 7 and a wiping roller moving device 3; the fixed base assembly 7 comprises a fixed frame 73, and the fixed frame 73 is arranged between the memorial archways 6 on the operation side and the transmission side through a fixed support 72; the wiping roller moving device 3 comprises a linear guide rail 311 arranged on the fixed frame 73, a sliding seat 312 which is arranged on the linear guide rail 311 and can move back and forth along the rail, and a hydraulic cylinder 32 which is connected with the movable frame 14 and is used for driving the movable frame 14, wherein the hydraulic cylinder 32 is hinged in a shaft seat of the fixed frame 73; the moving gantry 14 is mounted on a sliding mount 312.
Specifically, the wiping roller moving device 3 should be installed and operated without affecting the operation of each device in the frame of the leveler. The wiping roller moving device 3 is arranged on a fixed base assembly 7, in the fixed base assembly 7, a fixed support 72 is arranged on the memorial archway 6 through a positioning pin 71 and a bolt, and a fixed frame 73 is arranged on the fixed support 72 through a bolt. The linear guide rail 311 is installed on the fixed frame 73, and the sliding seat 312 is installed at the bottom end of the movable frame 14; the front end of the hydraulic cylinder 32 is mounted on the movable frame 14 through a bolt, and the middle swing shaft of the hydraulic cylinder 32 is mounted in a shaft seat on the fixed frame 73. The sliding block 312 cooperates with the linear guide track 311 to provide proper guidance of the mobile frame 14. The hydraulic cylinder 32 drives the movable frame 14 to act so as to drive the wiping roller assembly on the movable frame to move forward and backward, and when wiping is needed, the movable frame is moved close to the roller 5 to wipe the roller online; when the roller is changed, the roller is far away from the central line of the frame and moves back to a safe standby position.
As a further optimization of the above scheme, the dust removing device 4 further comprises an outer fixed pipe 45, the outer fixed pipe 45 is arranged on the fixed frame 73, the inner moving pipe 44 is inserted in the outer fixed pipe 45, and a guide ring 46 and a dust ring 47 are arranged between the inner moving pipe 44 and the outer fixed pipe 45.
The upper movable cover 41 and the lower movable cover 48 are installed on the transition pipe 43 through hinges 42, and a small gap is designed between the upper and lower movable covers and the wiping roller assembly 2 to ensure a good dust collection effect. The inner moving pipe 44 is connected with the outer fixing pipe 45 through a guide ring 46 and a dust ring 47 to ensure the negative pressure effect and the tightness of the dust removing system.
As a further optimization of the above solution, the transmission 1 further comprises a chain tensioner 12 arranged on the moving frame 14. In this embodiment, the motor base 15 is an adjustable and movable structure, and is engaged with the chain tensioning device 12 to tension the chain. Specifically, the motor base 15 includes a base fixedly disposed on the movable frame 14 and a seat frame movably connected to the base, the gear motor 11 is disposed on the seat frame, and a certain adjustable amount is provided between the base and the seat frame. The chain tensioner 12 is a screw and nut mechanism in which a screw is mounted on a moving frame 14 and a nut, which is fitted over the screw, is connected to a mounting in a motor base 15. Therefore, the gear motor 11 is arranged on the adjustable motor base 15, the motor base 15 is arranged on the movable rack 14, the motor base 15 is connected with the tensioning device 12, when the chain needs to be tensioned, the nut is adjusted, the motor base 15 can be driven to be adjusted to a set position, and the tensioning device 12 is locked again. Of course, the chain tensioner 12 may also be a tension wheel provided on the moving frame 14, by which a chain on the driving sprocket 16 and the driven sprocket 17 is tensioned. When the tension wheel is arranged, the motor base 15 can be replaced by a fixed (non-adjustable) structure.
Preferably, the gear motor is a parallel shaft type speed reducer. Compared with a bevel gear rectangular shaft speed reducer and a worm gear speed reducer, the parallel shaft speed reducer has smaller transmission ratio and can obtain larger wiping speed. In addition, the axis of the output shaft of the gear motor (specifically, the axis of the motor and the axis of the output shaft of the speed reducer) is parallel to the wiping axis of the wiping roller assembly 2, so that the structure is compact, the size in the thickness direction is effectively controlled, and the installation and the operation are facilitated. When the wiping device is arranged more compactly in the thickness direction, the roller wiping device is more suitable for roller wiping operation in the limited space layout in the assembly of the frame of the temper mill.
Preferably, the driving sprocket 16, the chain and the driven sprocket 17 in the transmission device 1 are provided with a protective cover 13 at the outer side, and the main function is to protect the sprocket and the chain from dust and dust.
In order to adapt to the wiping operation of the rollers with different roller diameters, a pressure switch is also arranged on a pipeline connected with the hydraulic cylinder, and the pipeline specifically refers to a valve table pipeline of a hydraulic system connected with the hydraulic cylinder 32. When the pressure reaches the preset pressure, namely the assembly of the wiping roller is judged to reach the working position, the hydraulic cylinder cannot extend continuously, the oil pressure of the pipeline rises, the action pressure of the pressure switch is reached, the pipeline is closed, the oil supply is stopped, and the hydraulic cylinder 32 is kept at the working position to carry out wiping operation.
As a further optimization of the above solution, the movable frame 14 is provided with a safety locking pin 19 which is engaged with the linear guide rail 311. The safety locking pin 19 is arranged at the safety standby position, and the safety locking pin 19 is ensured to be in a locking state during equipment debugging, maintenance and repair and when equipment and operators exist in the machine frame.
The roller wiping device adopts the wiping roller with the full roller length, and can perform online wiping with the full roller length on the working roller, the intermediate roller and the supporting roller of the temper mill. The moving device in the form of matching the hydraulic cylinder with the linear guide rail has the characteristic of large stroke design range, and when roll changing and other operations are carried out, the moving device can drive the transmission device and the wiping roll to be assembled and retreat to a safe standby position, so that enough operation space in the frame is ensured.
The device has compact structure and small requirement on installation space; the wiping roller assembly adopts double-motor drive, the wiping force is large, and the wiping effect is good; the negative pressure dust removal device is matched on the basis of the wiping roller with large friction force, so that impurities on the surface of the roller can be sucked away while iron scales and impurities are effectively removed, the surface of the roller can be kept clean, and the friction state of the surface of the roller is improved; the method not only reduces the defects of the strip steel, effectively improves the product quality, but also prolongs the service life of the roller and reduces the production cost. Can be widely applied to various dry rolling devices.
Finally, the above embodiments are only intended to illustrate the technical solutions of the present invention and not to limit the present invention, and although the present invention has been described in detail with reference to the preferred embodiments, it will be understood by those skilled in the art that modifications or equivalent substitutions may be made on the technical solutions of the present invention without departing from the spirit and scope of the technical solutions, and all of them should be covered by the claims of the present invention.
Claims (10)
1. A roll wiping device characterized by: comprises a transmission device, a wiping roller assembly and a dust removal device;
the transmission device comprises a movable rack and two sets of gear motor transmission systems which are symmetrically arranged on two sides of the movable rack, and two ends of the wiping roller assembly are arranged on bearing seats at the front end of the movable rack through symmetrically arranged bearings; each set of gear motor transmission system comprises a gear motor, a driving chain wheel, a chain and a driven chain wheel, wherein the gear motor is arranged on the movable rack through a motor base, the driving chain wheel is arranged at the output end of the gear motor, the driven chain wheel is arranged at the shaft end of the wiping roller assembly, and the driving chain wheel is matched with the driven chain wheel through the chain;
the width of the disc surface of a brush disc in the assembly of the wiping roller is not less than the width of the roller surface of the roller;
the dust removing device comprises an upper movable cover, a lower movable cover, a transition pipe and an inner moving pipe; the upper movable cover and the lower movable cover are respectively and correspondingly arranged at the upper end surface and the lower end surface of the front end of the transition pipe in a detachable mode through connecting pieces, the upper movable cover and the lower movable cover are respectively provided with an arc-shaped part, the front end of the transition pipe is provided with an arc-shaped notch, and the arc-shaped part of the upper movable cover, the arc-shaped part of the lower movable cover and the arc-shaped notch of the front end of the transition pipe are matched to form a state of coating the periphery of the disc surface of the brush disc; the rear end of the transition pipe is connected with the inner moving pipe;
the transition pipe and the inner moving pipe are both arranged on the moving rack.
2. The roll wiping device according to claim 1, characterized in that: the device also comprises a fixed machine base assembly and a wiping roller moving device; the fixed machine base assembly comprises a fixed machine frame, and the fixed machine frame is arranged between the memorial archways on the operation side and the transmission side through a fixed support; the wiping roller moving device comprises a linear guide rail arranged on the fixed rack, a sliding seat arranged on the linear guide rail and capable of moving back and forth along the rail, and a hydraulic cylinder connected with the movable rack and used for driving the movable rack, wherein the hydraulic cylinder is hinged in a shaft seat of the fixed rack; the movable frame is arranged on the sliding seat.
3. The roll wiping device according to claim 2, characterized in that: the dust removal device further comprises an outer fixed pipe, the outer fixed pipe is arranged on the fixed rack, the inner movable pipe is inserted in the outer fixed pipe, and a guide ring and a dust ring are arranged between the inner movable pipe and the outer fixed pipe.
4. The roll wiping apparatus according to any one of claims 1 to 3, characterized in that: the transmission device also comprises a chain tensioning device arranged on the movable rack.
5. The roll wiping device according to claim 4, characterized in that: the motor base comprises a base fixedly arranged on the movable rack and a seat frame movably connected with the base, and the gear motor is arranged on the seat frame; the chain tensioning device is a screw and nut mechanism, wherein a screw is arranged on the movable rack, and a nut sleeved on the screw is connected with a seat frame in the motor base.
6. The roll wiping device according to claim 1, characterized in that: the gear motor is a parallel shaft type speed reducer.
7. The roll wiping device according to claim 1, characterized in that: the axis of the output shaft of the gear motor is parallel to the wiping axis of the wiping roller assembly.
8. The roll wiping device according to claim 1, characterized in that: the outer sides of a driving chain wheel, a chain and a driven chain wheel in the transmission device are provided with protective covers.
9. The roll wiping device according to claim 2, characterized in that: the hydraulic cylinder is characterized by further comprising a pressure switch, and the pressure switch is arranged on a pipeline connected with the hydraulic cylinder.
10. The roll wiping device according to claim 2, characterized in that: and a safety locking pin matched with the linear guide rail is arranged on the movable rack.
