Abstract
The invention discloses a plugging device of a drainage pipeline, which relates to the field of municipal administration facilities and comprises the following components: a flexible blocking layer; the main supporting rod is arranged on one side of the flexible plugging layer; the flange plate is sleeved outside the main support rod in a sliding manner; the first support rods are movably arranged on the periphery of the flange plate, and one ends of the first support rods are hinged with the flange plate; one end of each second supporting rod is hinged with one end of each main supporting rod, and the other end of each first supporting rod is hinged with the middle of each second supporting rod; the flexible blocking layer is connected with the plurality of second supporting rods to form an umbrella-shaped structure; the annular air bag is arranged on the periphery of the flexible blocking layer and is provided with an inflation inlet; one end of the third supporting rod is hinged with the main supporting rod; one end of the supporting plate is hinged with the other end of the third supporting rod, and the other end of the supporting plate is connected with the annular air bag; the flexible plugging layer and the annular air bag are matched for plugging, and the flexible plugging device has the advantages of simple structure, high plugging efficiency, safety and reliability.
Description
Technical Field
The invention belongs to the technical field of plugging devices, and particularly relates to a plugging device for a drainage pipeline.
Background
Many drainage pipe networks in old cities of domestic cities are seriously affected by running, overflowing, blocking and leakage due to overdue service and long-term overhaul, and especially in rainy seasons where geological disasters are easy to occur, the conditions of pipe canal leakage and road collapse frequently occur, so that serious adverse effects and potential safety hazards are brought to the life and traveling of urban residents.
At present, drainage pipelines are blocked in a plurality of ways, and the general method is divided into three categories: temporary facility plugging, fixed facility plugging and tool plugging. The method mainly comprises the following steps:
(1) plugging a gunny bag: the method is applied to plugging of medium and small-sized drainage pipes and canals which lack reliable plugging equipment, are short in plugging time and are low in water pressure; its advantages are low cost and suitability for pipe channels of various diameters and cross-section shapes; the disadvantages are poor reliability and durability, and difficulty in removal.
(2) Plugging a wall body: wall body plugging can be divided into brick wall plugging and block plugging, and at present, large-scale and ultra-large-scale drainage pipe channels are influenced by various adverse factors and lack of reliable plugging devices and equipment, so that external water is guided to reduce the water level in the pipe channels, and then manual underground operation wall building plugging basically becomes the most common or even the only feasible measure in the current industry; the device has the advantages that the device is suitable for pipe ducts with different pipe diameters and section shapes, and the use safety coefficient is high; the defects are that the danger of manual underground operation is high, the dismantling cost is high and is extremely difficult, and the operation management is adversely affected due to the insufficient water passing capacity of the drainage pipe channel caused by the fact that the wall plug is not completely dismantled.
(3) Air bag plugging: the plugging agent is generally applied to plugging of medium and small-sized pipelines, and few practical cases of large-sized pipelines are also available; the sealing device has the advantages of convenient use, wide application conditions and effective sealing; the air bag has the disadvantages that the air bag is scratched by the surface barb of the drainage pipe canal due to material reasons to cause greater potential safety accidents, and the larger the pipe diameter is, the smaller the water head pressure born by the air bag is, and the greater the danger is. Major safety accidents are caused by airbag rupture at home and abroad, such as America and the like, and the situation that an oversize pipeline is plugged by adopting an inflation tube plug at home and abroad is rare.
(4) A water stop plate: the water stop plate is a non-standardized tool and consists of a wood plate, a rubber plate, a sponge water stop strip, a support and the like; the pipe duct plugging device has the advantages that the pipe duct plugging device is suitable for pipe ducts with various sizes and section sizes, safe in operation, effective in plugging and convenient to install and dismantle; the defect is that the device is only suitable for inspection wells and circular well walls with pipe orifices not provided with mud grooves.
(5) A slot gate plate: the flashboard gate belongs to a fixed facility and consists of a gate slot and a flashboard; the advantages are convenient sealing and dismounting, safety and effectiveness; the disadvantage is that it can only be used in a few places where the sluice trough and the associated hoisting equipment have been installed.
In the plugging method, for drainage pipeline plugging and water guiding, except for a fixing facility for fixing a slot flashboard which is already built at the initial stage of pipeline construction, air bag plugging is widely applied in recent years, but the dangerous situation of air bag puncture is easy to occur due to the influence of various factors in the air bag plugging, and the serious loss caused by air bag damage occurs at home and abroad every year.
Disclosure of Invention
Aiming at the defects in the prior art, the invention provides a drainage pipeline plugging device, which is mainly characterized in that a flexible plugging layer supported by an umbrella structure is unfolded in a pipeline for plugging, an annular air bag is assisted in inflation plugging between the inner wall of the pipeline and the flexible plugging layer, and is provided with a supporting plate, the supporting plate is supported on the inner wall of the pipeline during plugging, so that the annular air bag is stable in fixed position in the pipeline, the inflated annular air bag is prevented from being scratched by bulges on the inner wall of the pipeline, the pipeline is plugged by utilizing a mode of mutually matching the flexible plugging layer and the annular air bag, the rapid plugging operation is realized, and the device has the advantages of simple structure, simple, convenient and rapid operation, high plugging efficiency, safety and reliability.
In order to achieve the above object, the present invention provides a plugging device for a drainage pipeline, comprising:
a flexible blocking layer;
the main supporting rod is arranged on one side of the flexible plugging layer;
the flange plate is sleeved outside the main support rod in a sliding manner;
the first support rods are movably arranged on the periphery of the flange plate, and one ends of the first support rods are hinged with the flange plate;
one end of each second support rod is hinged with one end of each main support rod, and the other end of each first support rod is hinged with the middle of each second support rod;
the flexible blocking layer is connected with the second support rods to form an umbrella-shaped structure;
the annular air bag is arranged on the periphery of the flexible plugging layer and is provided with an inflation inlet;
one end of the third supporting rod is hinged with the main supporting rod;
and one end of the supporting plate is hinged with the other end of the third supporting rod, and the other end of the supporting plate is connected with the annular air bag.
Optionally, a sliding groove is formed in one end, close to the flexible blocking layer, of the main support rod, the sliding groove is formed in the periphery of the support rod along the axial direction of the support rod, a through hole is formed in the flange plate, a sliding block matched with the sliding groove is arranged on the inner periphery of the through hole, a first piston cylinder is arranged in the main support rod, and the telescopic end of the first piston cylinder is connected with the flange plate.
Optionally, the method further comprises:
the outer fixing bands are arranged on one side, away from the flange, of the flexible plugging layer and are arranged along the radial direction of the flexible plugging layer;
the inner fixing bands are arranged on one side, close to the flange, of the flexible blocking layer, and the positions of the inner fixing bands correspond to the positions of the outer fixing bands;
the fixing piece is arranged on one side, far away from the flange plate, of the flexible blocking layer, and the fixing piece fixes the outer fixing bandage and the inner fixing bandage at one end of the main support rod.
Optionally, the ends of the outer fixing band and the inner fixing band are provided with mounting holes, the outer fixing band and the inner fixing band are connected with the support plate through the mounting holes, the ends of the outer fixing band and the inner fixing band are formed with accommodating cavities, and the annular air bags are arranged in the accommodating cavities in a penetrating manner.
Optionally, the device further comprises an occlusion assisting mechanism, wherein the occlusion assisting mechanism comprises:
the telescopic rod is provided with an installation groove in one end;
the second piston cylinder is arranged in the mounting groove;
one end of each fourth supporting rod is movably connected with the telescopic end of the second piston cylinder;
one end of the fifth supporting rod is movably connected with the outer wall of one end, close to the second piston cylinder, of the telescopic rod, the other end of the fourth supporting rod is movably connected to the middle portions of the fifth supporting rods respectively, and the other end of the fifth supporting rod is detachably connected with the main supporting rod.
Optionally, the telescopic link is provided with two connecting seats along the axial direction on being close to the one end outer wall of second piston cylinder, the fifth support bar includes bracing piece, lower support bar and backup pad, go up the bracing piece with the one end of lower support bar respectively with connecting seat swing joint, go up the bracing piece with the other end of lower support bar respectively with the both ends swing joint of backup pad, the distance between two connecting seats with the length of backup pad is the same, keeping away from of backup pad one side of fourth bracing piece is provided with the hinge, the hinge with the connection can be dismantled to the bracing piece.
Optionally, the system further comprises an uphole retrieval mechanism, the uphole retrieval mechanism comprising:
the top of the supporting frame is detachably connected with the other end of the telescopic rod;
the air compressor is arranged on the supporting frame;
and the piston cylinder driving device is arranged on the supporting frame.
Optionally, the inflation port is connected to the air compressor.
Optionally, the piston-cylinder drive is connected to the first piston cylinder and the second piston cylinder.
Optionally, the material of the annular balloon and the flexible blocking layer is high molecular polyethylene.
The invention provides a drainage pipeline plugging device, which has the beneficial effects that:
1. the drainage pipeline plugging device adopts the flexible plugging layer supported by the umbrella structure to open and plug in the pipeline, the annular air bag is supported on the inner wall of the pipeline by the supporting plate during plugging, so that the fixed position of the annular air bag in the pipeline is stable, the inflatable annular air bag is prevented from being scratched by bulges on the inner wall of the pipeline, the pipeline is plugged by utilizing the mutual matching mode of the flexible plugging layer and the annular air bag, the rapid plugging operation is realized, and the drainage pipeline plugging device has the advantages of simple structure, simplicity, convenience and quickness in operation, high plugging efficiency, safety and reliability;
2. this drainage pipeline's plugging device adopts umbrella formula structure, and flexible blocking layer draws in on the main tributary vaulting pole to the exhaust of cyclic annular gasbag reduces, makes drainage pipeline's plugging device realize the state of minimum diameter and goes into the well, and shutoff complementary unit both ends are for dismantling the connection, and main tributary vaulting pole and telescopic link have flexible function, can be fit for the detection of all current model drainage pipeline shutoff and different well depths of going into the well.
Additional features and advantages of the invention will be set forth in the detailed description which follows.
Drawings
The above and other objects, features and advantages of the present invention will become more apparent by describing in more detail exemplary embodiments thereof with reference to the attached drawings, in which like reference numerals generally represent like parts throughout.

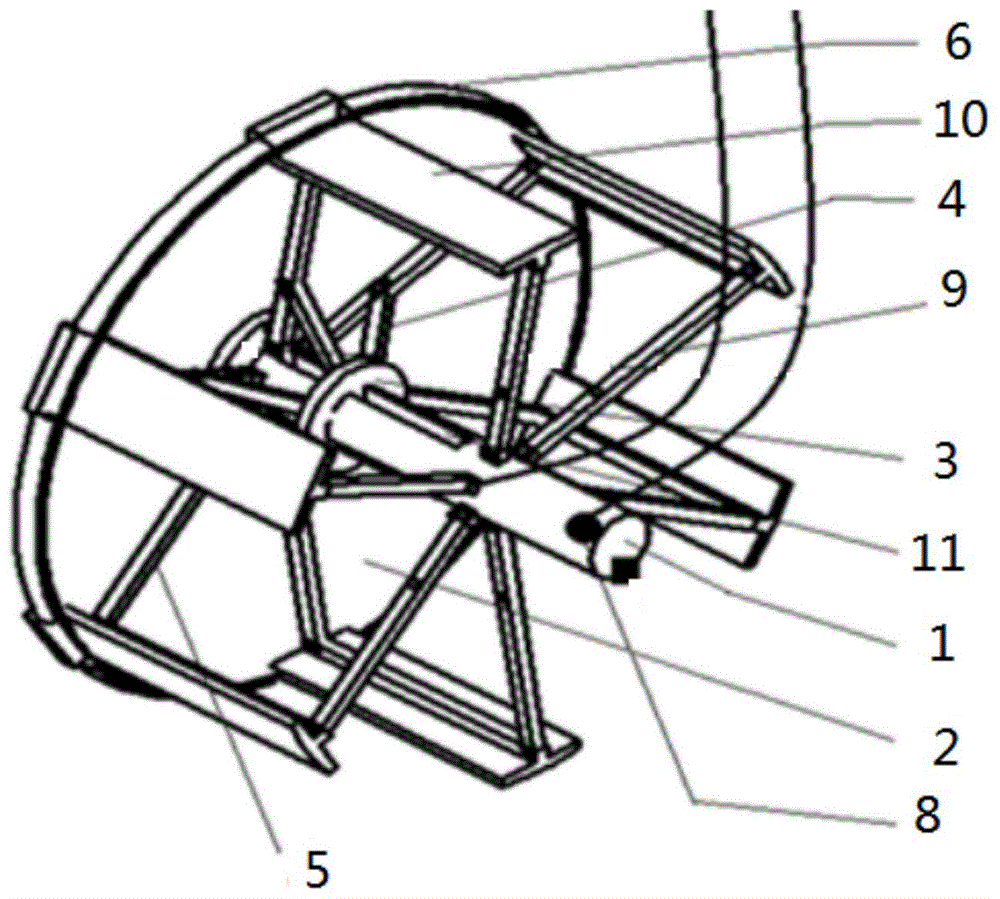

Fig. 1 shows a partial structural schematic view of a plugging device for a drain line according to an embodiment of the present invention.
Fig. 2 shows a schematic structural diagram of a plugging aid of a plugging device of a drainage pipeline according to an embodiment of the invention.
Fig. 3 shows a schematic view of the structure of the aboveground recovery mechanism of the plugging device of a drainage pipeline according to an embodiment of the invention.
Fig. 4 shows a partial structural plan view of a plugging device for a drain line according to an embodiment of the invention.
Fig. 5 shows a partial structural section of a closure device for a drain line according to an embodiment of the invention.
Description of reference numerals:
1. a main support bar; 2. a flexible blocking layer; 3. a flange plate; 4. a first support bar; 5. a second support bar; 6. an annular air bag; 7. an air compressor; 8. an inflation inlet; 9. a third support bar; 10. a support plate; 11. a first piston cylinder; 12. an external fixation bandage; 13. an internal fixation strap; 14. a fixing member; 15. an accommodating chamber; 16. a piston cylinder drive; 17. a telescopic rod; 18. a second piston cylinder; 19. a fourth support bar; 20 a fifth support bar; 21. a connecting seat; 22. a support plate; 23. a hinge; 24. a frame is supported.
Detailed Description
Preferred embodiments of the present invention will be described in more detail below. While the following describes preferred embodiments of the present invention, it should be understood that the present invention may be embodied in various forms and should not be limited by the embodiments set forth herein. Rather, these embodiments are provided so that this disclosure will be thorough and complete, and will fully convey the scope of the invention to those skilled in the art.
The invention provides a plugging device for a drainage pipeline, which comprises:
a flexible blocking layer;
the main supporting rod is arranged on one side of the flexible plugging layer;
the flange plate is sleeved outside the main support rod in a sliding manner;
the first support rods are movably arranged on the periphery of the flange plate, and one ends of the first support rods are hinged with the flange plate;
one end of each second supporting rod is hinged with one end of each main supporting rod, and the other end of each first supporting rod is hinged with the middle of each second supporting rod;
the flexible blocking layer is connected with the plurality of second supporting rods to form an umbrella-shaped structure;
the annular air bag is arranged on the periphery of the flexible blocking layer and is provided with an inflation inlet;
one end of the third supporting rod is hinged with the main supporting rod;
one end of the supporting plate is hinged with the other end of the third supporting rod, and the other end of the supporting plate is connected with the annular air bag.
Specifically, the flexible blocking layer that adopts umbrella formula structural support opens the shutoff in the pipeline and is given first place to, annular gasbag aerifys the shutoff between pipeline inner wall and flexible blocking layer and is for assisting, and be provided with the backup pad, support at the pipeline inner wall through the backup pad during shutoff, it is stable to make annular gasbag fixed position in the pipeline, avoid aerifing annular gasbag to be lacerated by pipeline inner wall bellying, utilize flexible blocking layer and annular gasbag to mutually support and carry out the pipeline shutoff through mechanical shutoff principle, quick shutoff operation has been realized, and the pipeline plugging device has the advantages of simple structure, and is easy and simple to handle swift, the shutoff is efficient, safety and reliability.
In one example, the flexible blocking layer is circular, all the second support rods are distributed in the radial direction of the flexible blocking layer, and all the second support rods are arranged at equal intervals at one circumferential end of the flexible blocking layer, so that the second support rods can drive the flexible blocking layer to be closed and opened conveniently; the flange plate moves along the axial line of the main supporting rod, and the flange plate pulls the second supporting rod to fold and unfold relative to the main supporting rod through the first supporting rod, so that the flexible blocking layer is closed and opened; the supporting plate is an arc-shaped supporting plate, the arc shape of the supporting plate is matched with the shape of the inner periphery of the pipeline, and the rubber pad covers the upper part of the supporting plate, so that the contact area and the supporting strength of the supporting plate and the inner wall of the pipeline are increased; one end of the supporting plate is hinged with one end of the second supporting rod in the circumferential direction of the flexible plugging layer, the other end of the supporting plate is hinged with one end of the third supporting rod, the other end of the third supporting rod is hinged in the middle of the main supporting rod, the second supporting rod, the supporting plate, the third supporting rod and the main supporting rod are hinged with each other to form a parallelogram structure, the flange drives the supporting plate to fold and unfold relative to the main supporting rod along with the sliding of the flange, when the plugging device of the drainage pipeline needs to unfold, the flange drives the second supporting rod to be in an unfolded state through the first supporting rod, the structure is kept stable, the annular air bag cannot move on the inner wall of the pipeline, the annular air bag is prevented from being scratched, when the plugging device of the drainage pipeline needs to fold, the flange pulls the second supporting rod to fold towards the main supporting rod through the first, The supporting plate, the third supporting rod and the main supporting rod are connected in a hinged mode, deformation is easy to achieve, the supporting plate is folded relative to the main supporting rod, the supporting plate and the inner wall of the pipeline are convenient to separate, and the blocking device of the drainage pipeline is easier to leave the pipeline.
Optionally, the main tributary vaulting pole is close to the one end on flexible shutoff layer and has seted up the spout, and the spout is seted up in the periphery of bracing piece along the axial of bracing piece, and the through-hole has been seted up to the inside of ring flange, is provided with the slider with spout matched with on the internal week of through-hole, and the inside of main tributary vaulting pole is provided with first piston cylinder, and the flexible end and the ring flange of first piston cylinder are connected.
Specifically, the first piston cylinder pushes the sliding block of the flange plate connected in the sliding groove to drive the flexible plugging layer to be folded and unfolded, and the flexible plugging layer is simple in structure and stable in operation.
Optionally, the method further comprises:
the outer fixing binding bands are arranged on one side of the flexible plugging layer, which is far away from the flange plate, and the outer fixing binding bands are arranged along the radial direction of the flexible plugging layer;
the inner fixing straps are arranged on one side of the flexible plugging layer close to the flange plate, and the positions of the inner fixing straps correspond to the positions of the outer fixing straps;
the mounting sets up the one side of keeping away from the ring flange at flexible shutoff layer, and the mounting is fixed the one end at the main tributary vaulting pole with external fixation bandage and internal fixation bandage.
Specifically, external fixation bandage and internal fixation bandage set up the both sides on flexible shutoff layer to all run through in the center on flexible shutoff layer, seted up the through-hole on the mounting, the one end correspondence of main tributary vaulting pole is provided with the screw hole, adopts the bolt to fix external fixation bandage and internal fixation bandage on the main tributary vaulting pole through the center on flexible shutoff layer, are favorable to flexible shutoff layer to guarantee that the hookup location of external fixation bandage and internal fixation bandage is stable when drawing in and expanding.
In one example, the outer and inner fastening bands are provided with 3 strips each, evenly disposed in the radial direction on both sides of the flexible containment layer.
Optionally, the end portions of the external fixation bandage and the internal fixation bandage are provided with mounting holes, the mounting holes are connected with the support plate, the end portions of the external fixation bandage and the internal fixation bandage are formed with accommodating cavities, and the annular air bags penetrate through the accommodating cavities.
Specifically, the outer fixing bandage and the inner fixing bandage are connected with the support plate through the mounting holes, and the annular air bag is fixed through the accommodating cavity formed between the outer fixing bandage and the inner fixing bandage, so that the relative position between the annular air bag and the support plate is ensured; when the flexible plugging layer is unfolded, the supporting plate is stably supported on the inner wall of the pipeline, the annular air bag cannot move on the inner wall of the pipeline, the phenomenon that the annular air bag is scratched by a bulge on the inner wall of the pipeline cannot occur, and the safety is improved.
Optionally, the device further comprises an occlusion assisting mechanism, wherein the occlusion assisting mechanism comprises:
the telescopic rod is provided with an installation groove inside one end;
the second piston cylinder is arranged in the mounting groove;
one end of each fourth supporting rod is movably connected with the telescopic end of the second piston cylinder;
the one end of fifth bracing piece and the outer wall swing joint of the one end that the telescopic link is close to the second piston cylinder, the other end of fourth bracing piece swing joint respectively at the middle part of a plurality of fifth bracing pieces, the other end and the main tributary bracing piece of fifth bracing piece can be dismantled and be connected.
Specifically, the plugging auxiliary mechanism is detachably connected with the main support rod, and in order to be suitable for plugging drainage pipelines of different types in a well, plugging devices of drainage pipelines of different sizes can be replaced; the telescopic rod has the length-adjustable function and is suitable for inspection wells with different well depths; the flexible end of second piston cylinder drives fourth bracing piece and the motion of fifth bracing piece, because the one end and the telescopic link swing joint of fifth bracing piece, the other end of fifth bracing piece is drawn in and is expanded along with the up-and-down motion realization of flexible end, when flexible end rebound, the fifth bracing piece draws in each other, make shutoff complementary unit go into the well with minimum diameter state, and is easy and simple to handle, when flexible end rebound, the fifth bracing piece expands each other, make things convenient for the other end and the mouth of pipe contact of fifth bracing piece, make shutoff complementary unit contact at the mouth of pipe stable, be favorable to drainage pipe's plugging device shutoff pipeline.
Optionally, the telescopic link is provided with two connecting seats along the axial direction on being close to the one end outer wall of second piston cylinder, the fifth support bar includes the bracing piece, lower support bar and backup pad, the one end of going up bracing piece and lower support bar respectively with connecting seat swing joint, the other end of going up bracing piece and lower support bar respectively with the both ends swing joint of backup pad, the distance is the same with the length of backup pad between two connecting seats, the one side of keeping away from the fourth bracing piece of backup pad is provided with the hinge, the hinge can be dismantled with the bracing piece and be connected.
Specifically, the upper support rod, the support plate, the lower support rod and the telescopic rod form a parallelogram structure, the parallelogram structure is driven to deform by the movement of the telescopic end of the second piston cylinder, the folding and unfolding of the plugging auxiliary mechanism are realized, and the structure is stable; the supporting plate is arranged, so that the contact area of the fifth supporting rod and the pipe orifice is increased, and the plugging auxiliary mechanism is more stably contacted; the supporting plate is provided with a hinge, so that the rotation angle of the plugging device of the drainage pipeline smoothly enters the pipeline to perform plugging operation after the plugging auxiliary mechanism reaches the pipe orifice.
In one example, the number of the fourth supporting rods, the number of the supporting plates, the number of the upper supporting rods and the number of the lower supporting rods are respectively two, the lower supporting rods are arranged on the circumference of one end, close to the second cylinder, of the telescopic rod, the upper supporting rods are arranged on the upper portion of the lower supporting rods, the fourth supporting rods are connected with the middle portion of the lower supporting rods, the telescopic ends of the second piston cylinder drive the upper supporting rods and the lower supporting rods to be linked through the fourth supporting rods, and the two supporting plates are folded and unfolded relatively.
Optionally, the system further comprises an uphole retrieval mechanism, the uphole retrieval mechanism comprising:
the top of the supporting frame is detachably connected with the other end of the telescopic rod;
the air compressor is arranged on the supporting frame;
and the piston cylinder driving device is arranged on the supporting frame.
Specifically, the aboveground recovery mechanism is fixed on the ground through a supporting frame, an air compressor and a piston cylinder driving device are arranged, and workers can operate on the ground to plug the pipeline.
Optionally, the inflation port is connected to an air compressor.
Specifically, the air compressor is connected with the annular air bag through the air pipe, and when the plugging device of the drainage pipeline is used for plugging, the annular air bag is inflated, so that the plugging area is increased, and the plugging is facilitated; when the plugging device of the drainage pipeline moves in the pipeline, the annular air bag is exhausted, and the diameter of the device is reduced so as to facilitate movement.
Optionally, a piston-cylinder drive is connected to the first piston cylinder and the second piston cylinder.
Specifically, first piston cylinder and second piston cylinder are connected with piston cylinder drive arrangement respectively, start the second piston cylinder when the mouth of pipe is fixed, improve the fixed stability of mouth of pipe, start first piston cylinder when drainage pipe's plugging device carries out the shutoff, make flexible shutoff layer expand, increase the intensity of shutoff area and shutoff.
Optionally, the material of the annular balloon and the flexible blocking layer is high molecular polyethylene.
Specifically, the high molecular polyethylene material has the effects of wear resistance and impact resistance, is beneficial to pipeline plugging, is low-temperature resistant and ageing resistant, and is suitable for various construction environments.
Examples
As shown in fig. 1 to 5, the present invention provides a plugging device for a drainage pipeline, comprising:
a flexible blocking layer;
the main supporting rod 1 is arranged on one side of the flexible plugging layer 2;
the flange plate 3 is sleeved outside the main support rod 1 in a sliding manner;
the first support rods 4 are movably arranged on the periphery of the flange plate 3, and one ends of the first support rods 4 are hinged with the flange plate 3;
one end of each second support rod 5 is hinged with one end of the main support rod 1, and the other end of each first support rod 4 is hinged with the middle of the corresponding second support rod 5;
the flexible blocking layer 2 is connected with a plurality of second support rods 5 to form an umbrella-shaped structure;
the annular air bag 6 is arranged on the periphery of the flexible plugging layer 2, and an inflation inlet 8 is arranged on the annular air bag 6;
one end of the third supporting rod 9 is hinged with the main supporting rod 1;
and one end of the supporting plate 10 is hinged with the other end of the third supporting rod 9, and the other end of the supporting plate is connected with the annular air bag 6.
In this embodiment, a sliding groove is formed in one end of the main support rod 1 close to the flexible blocking layer 2, the sliding groove is formed in the outer periphery of the main support rod 1 along the axial direction of the main support rod 1, a through hole is formed in the flange plate 3, a sliding block matched with the sliding groove is arranged on the inner periphery of the through hole, a first piston cylinder 11 is arranged in the main support rod 1, and the telescopic end of the first piston cylinder 11 is connected with the flange plate 3.
In this embodiment, the method further includes:
the outer fixing binding bands 12 are arranged on one side, away from the flange plate 3, of the flexible plugging layer 2, and the outer fixing binding bands 12 are arranged along the radial direction of the flexible plugging layer 2;
a plurality of inner fixing bands 13 arranged on one side of the flexible plugging layer 2 close to the flange plate 3, wherein the positions of the inner fixing bands 13 correspond to the positions of the plurality of outer fixing bands 12;
and the fixing piece 14 is arranged on one side of the flexible plugging layer 2 far away from the flange plate 3, and the fixing piece 14 fixes the outer fixing bandage 12 and the inner fixing bandage 13 at one end of the main support rod 1.
In this embodiment, the end portions of the outer fixing band 12 and the inner fixing band 13 are provided with mounting holes through which the support plate 10 is coupled, the end portions of the outer fixing band 12 and the inner fixing band 13 are formed with accommodating cavities 15, and the annular air bags 6 are inserted into the accommodating cavities 15.
In this embodiment, the device further comprises an occlusion assisting mechanism, wherein the occlusion assisting mechanism comprises:
the telescopic rod 17 is provided with an installation groove in one end;
the second piston cylinder 18 is arranged in the mounting groove;
one end of each fourth supporting rod 19 is movably connected with the telescopic end of the second piston cylinder 18;
one end of the fifth support rod 20 is movably connected with the outer wall of one end, close to the second piston cylinder 18, of the telescopic rod 17, the other end of the fourth support rod 19 is movably connected with the middle portions of the fifth support rods 20 respectively, and the other end of the fifth support rod 20 is detachably connected with the main support rod 1.
In this embodiment, the telescopic link 17 is provided with two connecting seats 21 along the axial direction on being close to the one end outer wall of second piston cylinder 18, fifth bracing piece 20 includes the bracing piece, lower support bar and backup pad 22, the one end of going up bracing piece and lower support bar respectively with connecting seat 21 swing joint, the other end of going up bracing piece and lower support bar respectively with backup pad 22's both ends swing joint, the distance is the same with backup pad 22's length between two connecting seats 21, one side of keeping away from the fourth bracing piece of backup pad 22 is provided with hinge 23, hinge 23 can dismantle with main tributary bracing piece 1 and be connected.
In this embodiment, still include aboveground recovery mechanism, aboveground recovery mechanism includes:
the top of the supporting frame 24 is detachably connected with the other end of the telescopic rod 17;
an air compressor 7 provided on the support frame 24;
the piston cylinder drive 16 is arranged on the support frame 24.
In this embodiment, the charging port 8 is connected to the air compressor 7.
In the present exemplary embodiment, the piston-cylinder drive 16 is connected to the first piston cylinder 11 and the second piston cylinder 18.
In the present embodiment, the material of the annular bladder 6 and the flexible blocking layer 2 is high molecular polyethylene.
To sum up, before plugging operation, the plugging device for the drainage pipeline firstly connects a support frame 24 of an aboveground recovery mechanism with a telescopic rod 17 of a plugging auxiliary mechanism, and a hinge 23 is connected with a main support rod, so that the aim of vertically hoisting the plugging auxiliary mechanism and the main support rod by the aboveground recovery mechanism is fulfilled, then a telescopic end of a second piston cylinder 18 is recovered through a piston cylinder driving device 16, a fourth support rod 19, a fifth support rod 20 and a support plate 22 are driven to be folded and retracted into a vertical strip shape, then a telescopic end of a first piston cylinder 11 is recovered through the piston cylinder driving device 16, a flange 3 is driven to slide along the main support rod 1, and the flange 3 drives a first support rod 4, a second support rod 5, a third support rod 9, the support plate 10, a flexible plugging layer 2 and an annular air bag 6 to be folded and retracted into a vertical strip shape; when the well plugging operation starts, the telescopic rod 17 extends and moves downwards to reach the bottom of an inspection well chamber, the main support rod 1 is changed from a vertical state to a horizontal state in a chute, at the moment, the piston cylinder driving device 16 extends the telescopic end of the second piston cylinder 18 to drive the fourth support rod 19, the fifth support rod 20 and the support plate 22 to expand outwards, after the support plate 22 is contacted with a pipe opening, the main support rod 1 finally enters the drainage pipeline, the telescopic end of the first piston cylinder 11 is extended through the piston cylinder driving device 16 to drive the flange 3 to slide along the main support rod 1, the flange 3 drives the first support rod 4, the second support rod 5, the third support rod 9, the support plate 10, the flexible plugging layer 2 and the annular air bag 6 to expand like an umbrella, at the moment, the support plate 10 is tightly supported on the wall of the drainage pipeline, then the air compressor 7 inflates the annular air bag 6, so that the annular air bag 6 expands into an annular strip shape to be tightly contacted with the, the flexible plugging layer 2 and the expanded annular air bag 6 form a plugging body to completely block water flow in the drainage pipeline so as to finally realize the plugging effect.
Aboveground recovery mechanism is equipped with braced frame 24 and air compressor machine 7, and braced frame 24's size is: length 600mm, wide 600mm, height 1600mm, the specification of air compressor machine 7 is: the volume flow is 0.3M3/min, and the power is 2.2 KW; the dimensions of the support plate 10 are: length 600mm, width 200mm, thickness 140mm, the size of the rubber pad on the backup pad 10 is: thickness 100mm, length 600mm, width 200mm, the size of first bracing piece 4 is: the length is 250mm, the width is 60mm, the height is 40mm, and the size of second bracing piece 5 is: length 730mm, width 60mm, height 40mm, the size of mounting 14 is: the diameter is 280mm, thickness 20mm, and the size of ring flange 3 is: diameter 180mm, thickness 20mm, the size of spout is: the length is 350mm, the groove width is 50mm, and the specification of first piston cylinder 11 is: the nominal pressure is 16MPa, the stroke is 400mm, the length is 560mm, the cylinder diameter is 100mm, and the size of the annular air bag 6 is as follows: hoop diameter 1600mm, gasbag diameter 300mm, three-layer polymer polyethylene material, flexible shutoff layer 2's size is: the diameter is 1600mm, six layers of high molecular polyethylene materials are adopted, and the main support rod 1 has the dimensions of 730mm in length, 60mm in width and 40mm in height; the plugging auxiliary mechanism has the following specifications of a telescopic rod 17: the total length of extension 10000mm, the total length of retraction 1600mm, the specification of second piston cylinder is: nominal pressure 16MPa, stroke 300mm, length 450mm, the size of fourth bracing piece 19 is: the length is 230mm, the width is 60mm, the height is 40mm, and the size of fifth bracing piece 20 is: length 730mm, width 60mm, height 40mm, the size of backup pad 22 is: 800mm in length, 100mm in width and 20mm in thickness.
Having described embodiments of the present invention, the foregoing description is intended to be exemplary, not exhaustive, and not limited to the embodiments disclosed. Many modifications and variations will be apparent to those of ordinary skill in the art without departing from the scope and spirit of the described embodiments.
Claims (10)
1. A plugging device of a drainage pipeline is characterized by comprising:
a flexible blocking layer;
the main supporting rod is arranged on one side of the flexible plugging layer;
the flange plate is sleeved outside the main support rod in a sliding manner;
the first support rods are movably arranged on the periphery of the flange plate, and one ends of the first support rods are hinged with the flange plate;
one end of each second support rod is hinged with one end of each main support rod, and the other end of each first support rod is hinged with the middle of each second support rod;
the flexible blocking layer is connected with the second support rods to form an umbrella-shaped structure;
the annular air bag is arranged on the periphery of the flexible plugging layer and is provided with an inflation inlet;
one end of the third supporting rod is hinged with the main supporting rod;
and one end of the supporting plate is hinged with the other end of the third supporting rod, and the other end of the supporting plate is connected with the annular air bag.
2. The plugging device for the drainage pipeline of claim 1, wherein a sliding groove is formed in one end, close to the flexible plugging layer, of the main support rod, the sliding groove is formed in the outer periphery of the support rod in the axial direction of the support rod, a through hole is formed in the flange, a sliding block matched with the sliding groove is arranged on the inner periphery of the through hole, a first piston cylinder is arranged in the main support rod, and the telescopic end of the first piston cylinder is connected with the flange.
3. The plugging device for a drainage pipeline of claim 1, further comprising:
the outer fixing bands are arranged on one side, away from the flange, of the flexible plugging layer and are arranged along the radial direction of the flexible plugging layer;
the inner fixing bands are arranged on one side, close to the flange, of the flexible blocking layer, and the positions of the inner fixing bands correspond to the positions of the outer fixing bands;
the fixing piece is arranged on one side, far away from the flange plate, of the flexible blocking layer, and the fixing piece fixes the outer fixing bandage and the inner fixing bandage at one end of the main support rod.
4. The plugging device for a drainage pipeline of claim 3, wherein the end portions of the outer fixing band and the inner fixing band are provided with mounting holes through which the outer fixing band and the inner fixing band are connected with the support plate, the end portions of the outer fixing band and the inner fixing band are formed with accommodating cavities, and the annular air bags are inserted into the accommodating cavities.
5. The device for plugging a drainage pipeline according to claim 1, further comprising a plugging assisting mechanism, said plugging assisting mechanism comprising:
the telescopic rod is provided with an installation groove in one end;
the second piston cylinder is arranged in the mounting groove;
one end of each fourth supporting rod is movably connected with the telescopic end of the second piston cylinder;
one end of the fifth supporting rod is movably connected with the outer wall of one end, close to the second piston cylinder, of the telescopic rod, the other end of the fourth supporting rod is movably connected to the middle portions of the fifth supporting rods respectively, and the other end of the fifth supporting rod is detachably connected with the main supporting rod.
6. The plugging device for the drainage pipeline according to claim 5, wherein two connecting seats are arranged on the outer wall of one end of the telescopic rod close to the second piston cylinder along the axial line direction, the fifth support rod comprises an upper support rod, a lower support rod and a support plate, one ends of the upper support rod and the lower support rod are movably connected with the connecting seats respectively, the other ends of the upper support rod and the lower support rod are movably connected with two ends of the support plate respectively, the distance between the two connecting seats is the same as the length of the support plate, and one side of the support plate far away from the fourth support rod is provided with a hinge which is detachably connected with the support rod.
7. The closure device for a drainline of claim 5, further comprising an uphole recovery mechanism, said uphole recovery mechanism comprising:
the top of the supporting frame is detachably connected with the other end of the telescopic rod;
the air compressor is arranged on the supporting frame;
and the piston cylinder driving device is arranged on the supporting frame.
8. The plugging device for a drainage pipeline of claim 7, wherein the air charging port is connected with the air compressor.
9. The plugging device for a drainpipe according to claim 7, wherein the piston cylinder drive is connected to the first piston cylinder and the second piston cylinder.
10. The device for plugging a drainage pipeline according to claim 1, wherein the material of the annular air bag and the flexible plugging layer is high molecular polyethylene.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011487444.4A CN112431988A (en) | 2020-12-16 | 2020-12-16 | Plugging device of drainage pipeline |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011487444.4A CN112431988A (en) | 2020-12-16 | 2020-12-16 | Plugging device of drainage pipeline |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN112431988A true CN112431988A (en) | 2021-03-02 |
Family
ID=74691621
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202011487444.4A Pending CN112431988A (en) | 2020-12-16 | 2020-12-16 | Plugging device of drainage pipeline |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN112431988A (en) |
Cited By (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113005913A (en) * | 2021-03-15 | 2021-06-22 | 中铁七局集团有限公司 | Quick plugging device of bridge outlet |
| CN113309213A (en) * | 2021-06-17 | 2021-08-27 | 江苏瑞金建设投资发展集团有限公司 | Quick plugging device for sewage pipeline |
| CN113606229A (en) * | 2021-06-15 | 2021-11-05 | 芜湖市零一精密工具制造有限公司 | Device for plugging preformed hole of cutter |
| CN113815785A (en) * | 2021-09-26 | 2021-12-21 | 中国电子科技集团公司第二十七研究所 | Autonomous synchronous unfolding and folding device for deep sea array |
| CN114506902A (en) * | 2022-04-19 | 2022-05-17 | 山东沃华远达环境科技股份有限公司 | Water softening device for sewage treatment |
| CN115159713A (en) * | 2022-05-19 | 2022-10-11 | 常州市长江热能有限公司 | Integrated water purifier capable of producing stable turbidity water |
-
2020
- 2020-12-16 CN CN202011487444.4A patent/CN112431988A/en active Pending
Cited By (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113005913A (en) * | 2021-03-15 | 2021-06-22 | 中铁七局集团有限公司 | Quick plugging device of bridge outlet |
| CN113606229A (en) * | 2021-06-15 | 2021-11-05 | 芜湖市零一精密工具制造有限公司 | Device for plugging preformed hole of cutter |
| CN113309213A (en) * | 2021-06-17 | 2021-08-27 | 江苏瑞金建设投资发展集团有限公司 | Quick plugging device for sewage pipeline |
| CN113815785A (en) * | 2021-09-26 | 2021-12-21 | 中国电子科技集团公司第二十七研究所 | Autonomous synchronous unfolding and folding device for deep sea array |
| CN114506902A (en) * | 2022-04-19 | 2022-05-17 | 山东沃华远达环境科技股份有限公司 | Water softening device for sewage treatment |
| CN114506902B (en) * | 2022-04-19 | 2022-06-24 | 山东沃华远达环境科技股份有限公司 | Water softening device for sewage treatment |
| CN115159713A (en) * | 2022-05-19 | 2022-10-11 | 常州市长江热能有限公司 | Integrated water purifier capable of producing stable turbidity water |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN112431988A (en) | Plugging device of drainage pipeline | |
| CN112196057B (en) | In-pipe grouting device and grouting method | |
| KR100697718B1 (en) | Repairing apparatus of non-excavation type for sewer pipe using PVC tube and methods of the same | |
| CN112031657B (en) | Tunnel lining permeation destruction treatment device and construction method thereof | |
| CN215928814U (en) | Maintenance plugging device of gas pipeline | |
| CN109138908B (en) | Inflatable hole packer for drilling grouting and application method thereof | |
| CN115076507B (en) | Grouting pipe network non-excavation repairing device | |
| CN213982494U (en) | Plugging device of drainage pipeline | |
| CN211525824U (en) | Pipeline plugging device for gas engineering | |
| CN112050024A (en) | Trenchless repair device and repair method for partial complete collapse of double-wall corrugated pipe | |
| CN109469096A (en) | A kind of minor diameter underground piping non-excavation type prosthetic appliance | |
| CN115288726A (en) | Inflatable folding type reinforcing structure for tunnel and construction method thereof | |
| CN214789769U (en) | Inflatable airbag pipeline plugging device | |
| CN114294506A (en) | Municipal drainage pipeline repairing device and construction method thereof | |
| CN111794688B (en) | Volatile stable drilling and hole collapse prevention supporting device and method for soft coal seam | |
| KR20130063067A (en) | Repairing apparatus being adaptable to sewer pipes of various inner diameter | |
| CN116928486A (en) | Pipeline joint repairing device and repairing method under non-excavation condition | |
| CN111911171B (en) | Tunnel portal sealing device and method for shield launching | |
| CN112377145A (en) | Pressure control equipment with leaking stoppage structure and implementation method thereof | |
| CN203770931U (en) | Concrete socket pipeline butting device with single-port pressure testing structure | |
| CN216195254U (en) | A plugging device for dirty pipeline of rain | |
| CN219795116U (en) | Telescopic flood prevention baffle | |
| CN221277760U (en) | Plugging device for tunnel construction | |
| CN221404591U (en) | Municipal sewage pipeline water-blocking test plug | |
| CN220668379U (en) | Temporary plugging structure for water supply and drainage construction |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
