Abstract

本发明涉及一种储存箱，尤其涉及一种便于储存充电宝的储存箱。本发明要解决的技术问题是：提供一种能够对充电宝进行清理的便于储存充电宝的储存箱。一种便于储存充电宝的储存箱，包括有：储存组件；充电组件，安装在储存组件上；升降组件，安装在充电组件上。本发明带有卡紧组件，在充电宝放回充电时能够自动对充电宝进行卡紧，防止他人随意将充电宝拔出；本发明带有滚刷和转动组件，滚刷在每次使用后，转动组件会带动滚刷自动旋转至另一面，保证下一位使用者能够使用到干净的充电宝；本发明带有垫块、导向孔和卡板，能够通过控制卡板，对连接板进行拆卸和固定，从而方便对滚刷进行清理和固定。

Figure 202011271175

The invention relates to a storage box, in particular to a storage box which is convenient for storing charging treasures. The technical problem to be solved by the present invention is to provide a storage box that can clean the charging treasure and is convenient for storing the charging treasure. A storage box convenient for storing a charging treasure includes: a storage component; a charging component, which is installed on the storage component; and a lifting component, which is installed on the charging component. The invention has a clamping component, which can automatically clamp the charging treasure when the charging treasure is put back for charging, so as to prevent others from pulling out the charging treasure at will; , the rotating component will drive the roller brush to automatically rotate to the other side to ensure that the next user can use a clean charging treasure; the present invention is provided with a pad, a guide hole and a card board, and the connecting board can be controlled by the card board. It can be disassembled and fixed to facilitate cleaning and fixing of the roller brush.

Figure 202011271175

Description

Storage box convenient for storage of charging treasures
Technical Field
The invention relates to a storage box, in particular to a storage box convenient for storing a charge pal.
Background
The treasured charges is a portable charger that collects power supply and charging function in an organic whole. The lithium battery cell is generally used as an electricity storage unit, is convenient and quick to use, and can be used for charging digital equipment such as mobile phones and tablet computers at any time and any place. There are many places to place the storage box of treasured that charges now.
Present treasured bin that charges only can realize charging the treasured, because the treasured of charging of placing in the bin is not private all, so can cause dirty precious treasured that charges and do not clear up just putting back the bin in, thereby lead to next user to take unclean precious that charges, thereby make user's experience feel relatively poor, and still can pollute the bin, the bin is difficult to wash, lead to clean precious that charges also can be contaminated.
Therefore need design one kind and can carry out the precious bin of charging of being convenient for storage that clears up to the treasured that charges.
Disclosure of Invention
In order to overcome the defects that the storage box of the existing charger easily causes a user to take an unclean charger and the storage box is not easy to clean, the technical problem of the invention is as follows: the utility model provides a can carry out the precious bin of charging of being convenient for storage that clears up to the treasured that charges.
The utility model provides a bin convenient to store treasured that charges, including: a storage assembly; the charging assembly is arranged on the storage assembly; the lifting component is installed on the charging component.
Further, the storage assembly comprises: the installation box is equipped with the mounting groove on, is equipped with two at least standing grooves on the installation box.
Further, the charging assembly includes: the storage battery is arranged in the mounting groove; the first charging wire is installed on the storage battery; the at least two charging connectors are uniformly arranged on two sides of the first charging wire at intervals; the sleeve pipe is installed on the charging connector.
Further, the lifting assembly comprises: the second charging wires are arranged on two sides of the charging connector; the electric push rod is arranged on the second charging wire; the L-shaped push rod is arranged on the electric push rod; the sliding plate is arranged between the electric push rods on the two sides in a sliding manner and is matched with the L-shaped push rod; the first common spring is arranged between the sliding plate and the electric push rod.
Further, still including the chucking subassembly, the chucking subassembly is including: the special-shaped connecting rods are arranged on two sides of the sliding plate; the ejector rod is arranged between the special-shaped connecting rods; the wedge blocks are symmetrically and slidably arranged on two sides of the mounting box body, and the wedge blocks on the two sides are matched with the ejector rod; the rubber pressing plate is arranged between the wedge blocks on the two sides; and the second common spring is arranged between the two sides of the rubber pressing plate and the mounting box body.
Further, still including the clearance subassembly, the clearance subassembly is including: the mounting frame is mounted on the mounting box body; the connecting plate is detachably arranged on the mounting frame; and at least two rolling brushes are rotatably arranged on two sides of the connecting plate.
Further, still including the rotating assembly, the rotating assembly includes: the guide rods are symmetrically and slidably arranged on two sides of the mounting frame; the square frame is slidably mounted on the mounting frame and is slidably connected with the guide rod; the L-shaped push plate is arranged on the two rubber press plates on one side and is connected with the mounting box body in a sliding mode, and the L-shaped push plate is matched with the square frame; at least two ratchets are arranged on two sides of the square frame; the ratchet wheel is arranged on the rolling brush and correspondingly matched with the ratchet; the third common spring is arranged between the mounting frame and the guide rod; and the fourth common spring is arranged between the square frame and the mounting box body.
Further, still including fixed subassembly, fixed subassembly includes: cushion blocks are arranged on two sides of the mounting frame, and guide holes are formed in the cushion blocks; the cardboard, slidingtype is installed between connecting plate and guiding hole.
The beneficial effects are that: 1. the clamping assembly is arranged, so that the charger can be automatically clamped when the charger is put back for charging, and the charger is prevented from being pulled out at will by other people, so that the charger is in poor contact with the charging connector, and the charging effect is influenced.
2. The invention is provided with the rolling brush and the rotating assembly, the rolling brush can clean the charger baby, and after the rolling brush is used each time, the rotating assembly can drive the rolling brush to automatically rotate to the other side, so that the next user can use the clean charger baby.
3. The rolling brush is provided with the cushion block, the guide hole and the clamping plate, and the connecting plate can be detached and fixed through the control clamping plate, so that the rolling brush can be conveniently cleaned and fixed.
Drawings

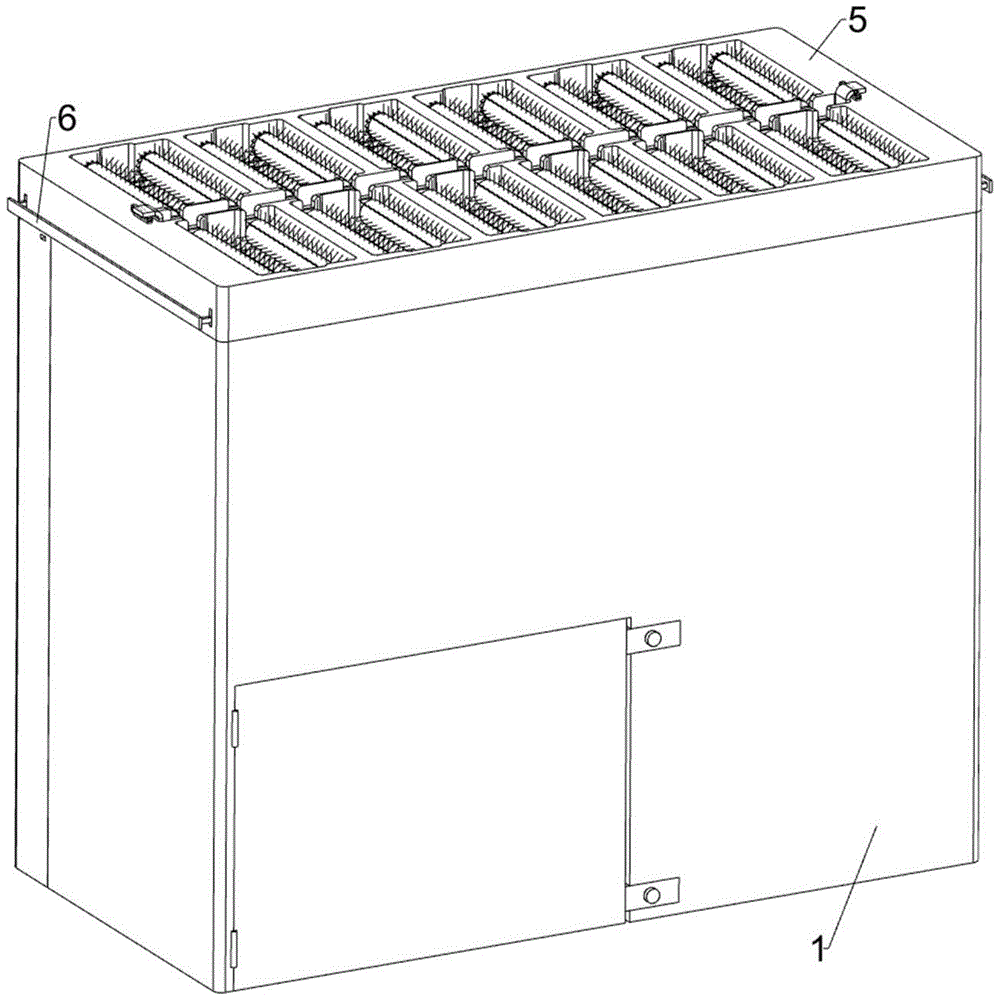

Fig. 1 is a schematic perspective view of the present invention.
Fig. 2 is a partial perspective view of the present invention.
Fig. 3 is a schematic perspective view of a storage assembly according to the present invention.
Fig. 4 is a schematic perspective view of the charging assembly of the present invention.
Fig. 5 is a schematic perspective view of the lifting assembly of the present invention.
Fig. 6 is a perspective view of the clamping assembly of the present invention.
FIG. 7 is a perspective view of the cleaning assembly of the present invention.
FIG. 8 is a perspective view of a portion of the cleaning assembly of the present invention.
Fig. 9 is a perspective view of the rotating assembly of the present invention.
Fig. 10 is a perspective view of the fixing member of the present invention.
Part names and serial numbers in the figure: 1_ storage component, 101_ installation box body, 102_ installation groove, 103_ placement groove, 2_ charging component, 21_ storage battery, 22_ first charging wire, 23_ charging connector, 24_ sleeve, 3_ lifting component, 31_ second charging wire, 32_ electric push rod, 33_ L-shaped push rod, 34_ sliding plate, 35_ first common spring, 4_ clamping component, 41_ special-shaped connecting rod, 42_ ejector rod, 43_ wedge block, 44_ rubber pressing plate, 45_ second common spring, 5_ cleaning component, 51_ installation frame, 52_ connection plate, 53_ rolling brush, 6_ rotating component, 61_ guide rod, 62_ square frame, 63_ L-shaped push plate, 64_ ratchet, 65_ ratchet, 66_ third common spring, 67_ fourth common spring, 7_ fixing component, 71_ cushion block, 72_ guide hole and 73_ snap plate.
Detailed Description
The present invention will be described in detail below with reference to the accompanying drawings.
Example 1
The utility model provides a bin convenient to store treasured that charges, as shown in fig. 1-5, including storage subassembly 1, the subassembly 2 and the lifting unit 3 charge, the lower part inboard of storage subassembly 1 is installed and is charged subassembly 2, charges and installs lifting unit 3 on the subassembly 2.
When the treasured that charges will use, control lifting unit 3 will charge the treasured and bounce, then will charge the treasured from storing subassembly 1 and take, the treasured that charges is no longer charged to the treasured that charges this moment, when will charge the treasured and put back the charge time, will charge the treasured and place in storing subassembly 1 for the treasured that charges is placed on lifting unit 3, then will charge the treasured and push down, thereby makes the subassembly 2 that charges charge to the treasured that charges.
The storage component 1 comprises an installation box body 101, wherein an installation groove 102 is arranged on the lower side of the left part of the installation box body 101, and a plurality of placing grooves 103 are arranged on the upper side of the installation box body 101.
When the treasured that charges will be used, control lifting unit 3 will charge the treasured and bounce, then alright from the standing groove 103 of installation box 101 will charge the treasured and take, when will charge the treasured and put back the time of charging, will charge the treasured and put back standing groove 103 can.
The subassembly 2 that charges has placed battery 21 in mounting groove 102 including battery 21, first charging wire 22, the joint 23 and the sleeve pipe 24 charge, and battery 21's front portion is connected with first charging wire 22, and the even spaced in both sides is equipped with six joints 23 that charge around the upper portion of first charging wire 22, and the middle part of the joint 23 that charges all is equipped with sleeve pipe 24.
When lifting unit 3 will charge when precious bounce, the joint 23 that charges just can break away from with the treasured that charges to stop charging the precious, when putting back the treasured that charges, the precious just can be connected with the joint 23 that charges, thereby battery 21 charges the precious through first charging wire 22 and the joint 23 that charges.
Lifting unit 3 is including second charging wire 31, electric putter 32, L shape push rod 33, slide 34 and first ordinary spring 35, both sides all are equipped with second charging wire 31 around the joint 23 charges, the upside of second charging wire 31 all is connected with electric putter 32, electric putter 32's left side all is connected with L shape push rod 33, sliding connection has slide 34 between the electric putter 32 of both sides around, slide 34 and the cooperation of L shape push rod 33, slide 34 and the joint 23 sliding connection that charges, all be connected with first ordinary spring 35 between slide 34 and the electric putter 32.
When the power bank is put back, the power bank is put in the placing groove 103, so that the power bank is connected to the charging connector 23, and then the power bank is pressed down, so that the slide plate 34 moves downward, the first normal spring 35 is compressed, when the sliding plate 34 is in contact with the L-shaped push rod 33, the sliding plate 34 does not move downwards any more, the resilience force of the spring is not enough to bounce the charger baby and the sliding plate 34, the charger baby can be charged through the charging connector 23, when the charger baby is used, the electric push rod 32 is controlled to push upwards, so that the L-shaped push rod 33 is moved upward, thereby moving the slide plate 34 upward, the first general spring 35 is stretched, so that the charger baby moves upwards and is separated from the charging connector 23, the charger baby can be taken up for use, and then the electric push rod 32 is controlled to reset, so that the L-shaped push rod 33, the slide plate 34 and the first normal spring 35 are restored and then the electric push rod 32 is closed.
Example 2
On the basis of embodiment 1, as shown in fig. 2, 6, 7, 8, 9 and 10, the clamping device further comprises a clamping assembly 4, the clamping assembly 4 comprises a special-shaped connecting rod 41, a push rod 42, wedge blocks 43, a rubber pressing plate 44 and a second common spring 45, the special-shaped connecting rod 41 is connected to the front side and the rear side of the lower portion of the sliding plate 34, the push rod 42 is connected between the upper sides of the special-shaped connecting rods 41, the wedge blocks 43 are arranged on the front side and the rear side of the placing groove 103 in a sliding manner, the wedge blocks 43 are matched with the push rods 42, the rubber pressing plate 44 is installed between the left sides of the wedge blocks 43 matched with the same push rod 42, and the second common spring 45 is connected between the front side and the rear side of the right portion of the rubber pressing plate 44 and the installing box 101.
When will charge when precious putting back, it can drive slide 34 downstream to charge precious pushing down, thereby make special-shaped connecting rod 41 and ejector pin 42 remove downwards, thereby make wedge 43 remove left, and then make rubber clamp 44 remove left and push down the treasured that charges, the ordinary spring 45 of second is stretched this moment, when will using the treasured that charges, control electric putter 32 makes slide 34 rebound, the ordinary spring 45 of second retracts back and drives rubber clamp 44 and remove right this moment, thereby make rubber clamp 44 no longer compress tightly the treasured that charges, and then can let the user easily take out the use of charging the treasured.
Still including clearance subassembly 5, clearance subassembly 5 is including installing frame 51, connecting plate 52 and round brush 53, and installing frame 51 is installed to the upside of installation box 101, and detachable installs connecting plate 52 on the installing frame 51, and the equal rotary type in both sides around the connecting plate 52 is equipped with a plurality of round brushes 53 that only can unidirectional rotation.
When putting into or extracting standing groove 103 the treasured that will charge, the treasured that charges all can pass through round brush 53, thereby make round brush 53 clear up the treasured that charges, make next user can use the clean treasured that charges, the one side clearance of round brush 53 charges the treasured back of making dirty, steerable round brush 53 rotates, thereby make next time equally can clean the treasured that charges with clean, after round brush 53 is whole to make dirty, accessible connecting plate 52 is dismantled round brush 53 from installing frame 51, thereby alright clear up round brush 53, clear up the back rethread connecting plate 52 install on installing frame 51 can.
The rubber rolling brush is characterized by further comprising a rotating assembly 6, the rotating assembly 6 comprises a guide rod 61, a square frame 62, an L-shaped push plate 63, ratchets 64, ratchets 65, a third common spring 66 and a fourth common spring 67, the guide rods 61 are symmetrically arranged on the front side and the rear side of the mounting frame 51 in a sliding mode, the square frame 62 is arranged on the mounting frame 51 in a sliding mode, the square frame 62 is connected with the guide rods 61 in a sliding mode, the L-shaped push plate 63 is connected with the mounting box 101 in a sliding mode, the L-shaped push plate 63 is matched with the square frame 62, a plurality of ratchets 64 are arranged on the front side and the rear side of the square frame 62, the ratchets 65 are arranged on the outer side of the rolling brush 53, the ratchets 65 are correspondingly meshed with the ratchets 64, the third common spring 66 is connected between the mounting frame 51 and the guide rods 61, and the fourth common spring 67 is connected between the square frame 62 and the mounting box 101.
When the charger is put into the placing groove 103 through the rolling brush 53 for charging, the rubber pressing plate 44 moves leftwards to drive the L-shaped pushing plate 63 to move leftwards, so as to push the square frame 62 to move leftwards, at the moment, the fourth common spring 67 is compressed, the square frame 62 moves leftwards to drive the ratchet 64 to move leftwards, so as to drive the ratchet 65 to rotate, so that the rolling brush 53 rotates the other side, when the charger is taken out, the rubber pressing plate 44 resets, at the moment, the fourth common spring 67 rebounds to drive the square frame 62 to move rightwards, so that the ratchet 64 is contacted with the ratchet 65 again, at the moment, the ratchet 65 cannot rotate reversely, so as to drive the square frame 62 to move downwards, so as to drive the guide rod 61 to move downwards, the third common spring 66 is compressed, when the ratchet 64 moves to be not contacted with the ratchet 65, the third common spring 66 rebounds to drive the guide rod 61 and the square frame 62 to move upwards, thereby allowing the square frame 62 to be repositioned so that the roll brush 53 can be rotated to clean the surface for reuse after use.
The fixing device is characterized by further comprising a fixing component 7, wherein the fixing component 7 comprises a cushion block 71 and a clamping plate 73, the cushion block 71 is arranged on each of the left side and the right side of the upper portion of the mounting frame 51, a guide hole 72 is formed in the cushion block 71, and the clamping plate 73 is arranged between the connecting plate 52 and the guide hole 72 in a sliding mode.
When will clearing up the round brush 53, can extract cardboard 73 from guiding hole 72 to make connecting plate 52 and cushion 71 no longer fixed, and then can dismantle connecting plate 52, thereby can clear up round brush 53, clear up the back, place the normal position back with connecting plate 52, again with cardboard 73 card in guiding hole 72 and connecting plate 52, thereby fixed connecting plate 52.
The above embodiments are merely illustrative of the technical ideas and features of the present invention, and the purpose thereof is to enable those skilled in the art to understand the contents of the present invention and implement the present invention, and not to limit the protection scope of the present invention. All equivalent changes and modifications made according to the spirit of the present invention should be covered within the protection scope of the present invention.

Claims (3)

1.一种便于储存充电宝的储存箱，其特征是，包括有：1. a storage box convenient for storing charging treasure, is characterized in that, comprises: 储存组件（1）；storage assembly (1); 充电组件（2），安装在储存组件（1）上；The charging assembly (2) is installed on the storage assembly (1); 升降组件（3），安装在充电组件（2）上；The lifting assembly (3) is installed on the charging assembly (2); 储存组件（1）包括有：The storage assembly (1) includes: 安装箱体（101），安装箱体（101）上设有安装槽（102），安装箱体（101）上设有至少两个放置槽（103）；an installation box (101), the installation box (101) is provided with an installation slot (102), and the installation box (101) is provided with at least two placement slots (103); 充电组件（2）包括有：The charging assembly (2) includes: 蓄电池（21），安装在安装槽（102）内；The battery (21) is installed in the installation slot (102); 第一充电线（22），安装在蓄电池（21）上；a first charging cable (22), installed on the battery (21); 充电接头（23），至少两个充电接头（23）均匀间隔的安装在第一充电线（22）两侧；a charging connector (23), at least two charging connectors (23) are installed on both sides of the first charging cable (22) at an even interval; 套管（24），安装在充电接头（23）上；The sleeve (24) is installed on the charging connector (23); 升降组件（3）包括有：The lifting assembly (3) includes: 第二充电线（31），安装在充电接头（23）两侧；The second charging cable (31) is installed on both sides of the charging connector (23); 电动推杆（32），安装在第二充电线（31）上；an electric push rod (32), mounted on the second charging cable (31); L形推杆（33），安装在电动推杆（32）上；The L-shaped push rod (33) is installed on the electric push rod (32); 滑板（34），滑动式安装在两侧电动推杆（32）之间，滑板（34）与L形推杆（33）配合；The sliding plate (34) is slidably installed between the electric push rods (32) on both sides, and the sliding plate (34) cooperates with the L-shaped push rod (33); 第一普通弹簧（35），安装在滑板（34）与电动推杆（32）之间；The first common spring (35) is installed between the slide plate (34) and the electric push rod (32); 还包括有卡紧组件（4），卡紧组件（4）包括有：It also includes a clamping assembly (4), and the clamping assembly (4) includes: 异形连接杆（41），安装在滑板（34）两侧；The special-shaped connecting rod (41) is installed on both sides of the slide plate (34); 顶杆（42），安装在异形连接杆（41）之间；The ejector rod (42) is installed between the special-shaped connecting rods (41); 楔形块（43），至少两个楔形块（43）对称的滑动式安装在安装箱体（101）两侧，两侧楔形块（43）与顶杆（42）配合；Wedge-shaped blocks (43), at least two wedge-shaped blocks (43) are installed symmetrically on both sides of the installation box (101) in a sliding manner, and the wedge-shaped blocks (43) on both sides are matched with the ejector rod (42); 橡胶压板（44），安装在两侧楔形块（43）之间；The rubber pressing plate (44) is installed between the wedge blocks (43) on both sides; 第二普通弹簧（45），安装在橡胶压板（44）的两侧与安装箱体（101）之间；The second common spring (45) is installed between the two sides of the rubber pressing plate (44) and the installation box (101); 还包括有清理组件（5），清理组件（5）包括有：Also includes a cleaning component (5), and the cleaning component (5) includes: 安装框（51），安装在安装箱体（101）上；The installation frame (51) is installed on the installation box (101); 连接板（52），可拆卸的安装在安装框（51）上；The connecting plate (52) is detachably mounted on the mounting frame (51); 滚刷（53），至少两个滚刷（53）转动式安装在连接板（52）两侧。Rolling brushes (53), at least two rolling brushes (53) are rotatably installed on both sides of the connecting plate (52). 2.按照权利要求1所述的一种便于储存充电宝的储存箱，其特征是，还包括有转动组件（6），转动组件（6）包括有：2. A storage box convenient for storing a charging treasure according to claim 1, characterized in that it further comprises a rotating assembly (6), and the rotating assembly (6) includes: 导杆（61），对称的滑动式安装在安装框（51）两侧；The guide rod (61) is symmetrically installed on both sides of the installation frame (51) by sliding; 方形框（62），滑动式安装在安装框（51）上，方形框（62）与导杆（61）滑动式连接；The square frame (62) is slidably mounted on the mounting frame (51), and the square frame (62) is slidably connected with the guide rod (61); L形推板（63），安装在一侧的两个橡胶压板上，L形推板（63）与安装箱体（101）滑动式连接，L形推板（63）与方形框（62）配合；The L-shaped push plate (63) is installed on the two rubber pressure plates on one side. The L-shaped push plate (63) is slidably connected to the installation box (101), and the L-shaped push plate (63) is connected to the square frame (62). Cooperate; 棘齿（64），至少两个棘齿（64）安装在方形框（62）两侧；Ratchet teeth (64), at least two ratchet teeth (64) are installed on both sides of the square frame (62); 棘轮（65），安装在滚刷（53）上，棘轮（65）与棘齿（64）对应配合；The ratchet wheel (65) is installed on the roller brush (53), and the ratchet wheel (65) is matched with the ratchet teeth (64) correspondingly; 第三普通弹簧（66），安装在安装框（51）与导杆（61）之间；The third common spring (66) is installed between the installation frame (51) and the guide rod (61); 第四普通弹簧（67），安装在方形框（62）与安装箱体（101）之间。The fourth common spring (67) is installed between the square frame (62) and the installation box (101). 3.按照权利要求2所述的一种便于储存充电宝的储存箱，其特征是，还包括有固定组件（7），固定组件（7）包括有：3. The storage box according to claim 2, characterized in that it further comprises a fixing component (7), and the fixing component (7) comprises: 垫块（71），安装在安装框（51）两侧，垫块（71）内开有导向孔（72）；The spacer block (71) is installed on both sides of the installation frame (51), and the spacer block (71) is provided with a guide hole (72); 卡板（73），滑动式安装在连接板（52）与导向孔（72）之间。The clamping plate (73) is slidably installed between the connecting plate (52) and the guide hole (72).
