Abstract
The invention discloses a novel mobile phone charger for feeding back information of a rechargeable battery, which comprises a charger shell, wherein a power plug is fixedly arranged at one end of the charger shell, a display screen is embedded and arranged at the other side of the upper part of the charger shell, a data line accommodating mechanism is arranged at one side of the upper part of the charger shell close to the front of the display screen and comprises an accommodating seat, a rotating handle, a rotating shaft, a fixing hole, a wire placing port, a hook plate and a fixing rod, and mobile phone placing mechanisms are arranged at the upper part and the bottom of the charger shell. The novel mobile phone charger capable of feeding back the information of the rechargeable battery can conveniently and directly place a mobile phone, is convenient to use the charger at a position where the mobile phone is not placed on a platform, has wider applicability range, can conveniently accommodate a data line, is more convenient to use, has a battery power feedback function, and has higher functionality.
Description
Technical Field
The invention relates to the field of mobile phone chargers, in particular to a novel mobile phone charger for feeding back information of a rechargeable battery.
Background
With the development of science and technology, mobile communication is an important basis of social progress, so that a mobile phone becomes an essential important communication tool in life of people, but the mobile phone needs to be supported by electric energy, so that a battery is arranged in the mobile phone, the electric quantity of the battery needs to be charged after the battery is used up, so that a mobile phone charger needs to be used, and the mobile phone charger generally consists of two parts, namely a charging head, a voltage-reducing and voltage-stabilizing adapter and a data line, wherein the data line is used for electric energy transmission;
the charging head of the existing mobile phone charger has certain defects to be improved when in use, firstly, a mobile phone cannot be placed, when the traditional charger charges the mobile phone, the mobile phone must be placed on a fixed table top to support the mobile phone, so that the charging can be carried out smoothly, but the position of a wall surface plug board is fixed, if no table top for placing the mobile phone is arranged around the plug board, and the length of a data line is not enough, the phenomenon of incapability of charging is caused, and the using effect is poor; secondly, the data line is inconvenient to store, the charging head and the data line are not available when the mobile phone is charged, but the existing charging head cannot store the data line, and the charging head and the data line need to be carried separately when the mobile phone is carried, so that the mobile phone is inconvenient to carry, and the use convenience is reduced; in addition, do not possess the electric energy feedback function, inconvenient people directly perceivedly see the electric quantity that charges, need start the cell-phone and just can see, the functionality is lower.
Disclosure of Invention
The invention mainly aims to provide a novel mobile phone charger for feeding back information of a rechargeable battery, which can effectively solve the problems in the background technology that: the mobile phone cannot be placed, when the traditional charger charges the mobile phone, the mobile phone must be placed on a fixed table top to support the mobile phone, so that smooth charging is ensured, but the position of the wall surface plug board is fixed, if no table top for placing the mobile phone is arranged around the plug board, and the length of the data line is not enough, the phenomenon that charging cannot be performed is caused, and the using effect is poor; secondly, the data line is inconvenient to store, the charging head and the data line are not available when the mobile phone is charged, but the existing charging head cannot store the data line, and the charging head and the data line need to be carried separately when the mobile phone is carried, so that the mobile phone is inconvenient to carry, and the use convenience is reduced; in addition, do not possess the electric energy feedback function, inconvenient people directly perceivedly see the electric quantity that charges, need start the cell-phone and just can see, the lower technical problem of functionality.
In order to achieve the purpose, the invention adopts the technical scheme that:
novel cell-phone charger of feedback rechargeable battery information, including charger housing, charger housing's one end fixed mounting has power plug, charger housing's upper portion opposite side position embedding is installed the display screen, one side that charger housing's upper portion is located the display screen is close to the place ahead position and is equipped with data line receiving mechanism, data line receiving mechanism is including the storage seat, change the handle, pivot, fixed orifices, the mouth of putting the line, hook plate and dead lever, charger housing's upper portion and bottom are equipped with cell-phone placing mechanism, cell-phone placing mechanism is including first standing groove, second standing groove, spout, spring groove, propulsion spring, slider, connecting axle, backup pad and slipmat.
As a further scheme of the invention, a USB socket is arranged in the middle of the other side surface of the charger shell.
As a further aspect of the present invention, the receptacle is embedded in the upper surface of the charger housing near the front position, the rotating shaft is rotatably connected to the inner center position of the receptacle, the fixing hole is formed in the center position of the upper surface of the rotating shaft, the wire releasing opening is formed in the front position of the outer surface of the receptacle, the hook plate is fixedly connected to the outside of the rotating shaft, one end of the fixing rod is fixedly installed at the bottom of the rotating handle, and the other end of the fixing rod penetrates through the receptacle and is fixedly connected to the fixing hole.
As a further scheme of the invention, the number of the hook plates is three, and thirty-degree-angle openings are kept between the three hook plates and the rotating shaft.
As a further aspect of the present invention, the first placement groove is formed in a side position of the upper surface of the charger housing, the second placement groove is formed in a side position of the upper surface of the charger housing on the first placement groove, the chute is formed in a side position of the lower surface of the charger housing, the spring groove is formed in a side position of the lower surface of the charger housing on one end of the chute, one end of the propulsion spring is fixedly connected to one end position of the inside of the spring groove, the slider is slidably connected to the inside of the chute, the support plate is slidably connected to the slider through a connection shaft, and the non-slip mat is fixedly connected to the bottom end of the support plate.
As a further scheme of the invention, the movable range of the supporting plate is 0-45 degrees, and the other end of the propelling spring is fixedly connected with the sliding block.
As a further scheme of the present invention, an input voltage stabilizing module, a high frequency voltage transforming module, an output voltage stabilizing module, a charging module, a control module and an electric energy collecting IC are arranged inside the charger housing, and the input voltage stabilizing module, the high frequency voltage transforming module, the output voltage stabilizing module, the charging module, the control module, the electric energy collecting IC and the display screen are electrically connected.
As a further aspect of the present invention, the novel mobile phone charger feeding back the information of the rechargeable battery specifically includes the following steps when in use:
the method comprises the following steps: a power plug is inserted into an external power plugboard, a USB plug of an external data line is inserted into a USB socket on the other side surface of the charger shell, and meanwhile, the other end of the data line is connected with the mobile phone, so that charging can be carried out;
step two: during charging, the control module controls the input voltage stabilizing module to stabilize voltage, the high-frequency voltage transformation module reduces voltage, the reduced voltage is conveyed to the charging die hole through the output voltage stabilizing module to be stably conveyed to charge the mobile phone, and meanwhile, the electric energy collecting IC collects the electric quantity of the mobile phone battery and displays the electric quantity through the display screen;
step three: the support plate is rotated to a maximum angle through the connecting shaft to be taken out of the sliding groove, the angle between the support plate and the charger shell is kept at 45 degrees, the pushing spring always pushes the sliding block to cause the sliding block to push the support plate to move, the anti-slip mat is contacted with the wall surface or the surface of the power plugboard to provide supporting force for the bottom of the charger shell, and at the moment, people can place the mobile phone in the first placing groove or the second placing groove;
step four: after charging, people locate the fifty percent discount with the data line from the center to insert the inside of containing seat through the unwrapping wire mouth with fifty percent discount department, rotate simultaneously and change the handle, change and drive the dead lever and rotate, the dead lever drives the pivot and rotates, and the pivot drives three hook plate and rotates, and when the data line of fifty percent discount was hooked to the hook plate, twine the data line in the outside of pivot, can accomodate the data line.
Compared with the prior art, the invention has the following beneficial effects:
by arranging the mobile phone placing mechanism, the supporting plate is rotated through the connecting shaft to be taken out of the sliding groove and rotated to the maximum angle, the sliding block is kept with the charger shell, the pushing spring always pushes the sliding block to cause the sliding block to push the supporting plate to move, the anti-slip mat is contacted with the wall surface or the surface of the power plugboard, and a supporting force is provided for the bottom of the charger shell;
through the arrangement of the data line storage mechanism, the data line is folded from the center, the folded part is inserted into the storage seat through the pay-off port, the rotating handle is rotated at the same time, the rotating handle drives the fixing rod to rotate, the fixing rod drives the rotating shaft to rotate, the rotating shaft drives the three hook plates to rotate, when the folded data line is hooked by the hook plates, the data line is wound outside the rotating shaft, the data line can be stored, the data line can be conveniently stored, after charging is finished, the data line can be directly stored in the storage seat, carrying is convenient, the data line and the charger shell are located at the same position when being carried, searching and using are convenient, and the phenomena of winding and disorder of the data line can be avoided;
through setting up electric energy collection IC and display screen, can gather rechargeable battery electric quantity to show through the display screen, people can audio-visually see battery electric quantity, need not to start the cell-phone and observe the electric quantity, and the functionality is better, and it is more convenient to use.
Drawings

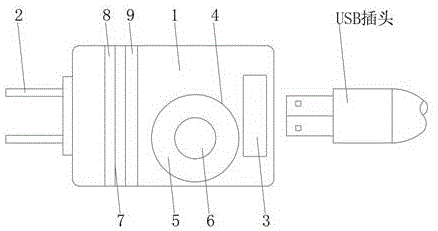

Fig. 1 is a schematic diagram of the overall structure of a novel mobile phone charger for feeding back information of a rechargeable battery according to the present invention;
FIG. 2 is a schematic diagram of the internal structure of the receptacle of the novel mobile phone charger for feeding back information of the rechargeable battery according to the present invention;
FIG. 3 is a side view of the novel cell phone charger of the present invention feeding back information about the charging battery;
FIG. 4 is a cross-sectional view of a slider of the novel mobile phone charger of the present invention feeding back information of a rechargeable battery;
fig. 5 is a system diagram of a novel mobile phone charger for feeding back information of a rechargeable battery according to the present invention.
In the figure: 1. a charger housing; 2. a power plug; 3. a display screen; 4. a data line storage mechanism; 5. a storage seat; 6. turning a handle; 7. a mobile phone placing mechanism; 8. a first placing groove; 9. a second placing groove; 10. a rotating shaft; 11. a fixing hole; 12. a wire releasing port; 13. a hook plate; 14. fixing the rod; 15. a chute; 16. a spring slot; 17. a propulsion spring; 18. a slider; 19. a connecting shaft; 20. a support plate; 21. a non-slip mat.
Detailed Description
In order to make the technical means, the creation characteristics, the achievement purposes and the effects of the invention easy to understand, the invention is further described with the specific embodiments.
As shown in fig. 1-5, a novel mobile phone charger for feeding back information of a rechargeable battery includes a charger housing 1, a power plug 2 is fixedly installed at one end of the charger housing 1, a display screen 3 is embedded at the other side of the upper portion of the charger housing 1, a data line storage mechanism 4 is arranged at a position, close to the front, of one side of the display screen 3 at the upper portion of the charger housing 1, the data line storage mechanism 4 includes a storage seat 5, a rotating handle 6, a rotating shaft 10, a fixing hole 11, a wire releasing opening 12, a hook plate 13 and a fixing rod 14, a mobile phone placing mechanism 7 is arranged at the upper portion and the bottom of the charger housing 1, and the mobile phone placing mechanism 7 includes a first placing groove 8, a second placing groove 9, a sliding groove 15, a spring groove 16, a pushing spring 17, a sliding block 18, a connecting shaft;
a USB socket is arranged in the middle of the surface of the other side of the charger shell 1; the storage seat 5 is embedded in the upper surface of the charger shell 1 and close to the front position, the rotating shaft 10 is rotatably connected to the inner center position of the storage seat 5, the fixing hole 11 is formed in the center position of the upper surface of the rotating shaft 10, the wire releasing port 12 is formed in the front position of the outer surface of the storage seat 5, the hook plate 13 is fixedly connected to the outer portion of the rotating shaft 10, one end of the fixing rod 14 is fixedly installed at the bottom of the rotating handle 6, and the other end of the fixing rod 14 penetrates through the storage seat 5 and is fixedly connected with the fixing hole 11; the number of the hook plates 13 is three, and thirty-degree angle openings are kept between the three hook plates 13 and the rotating shaft 10; the charger comprises a charger shell 1, a first placing groove 8, a second placing groove 9, a sliding groove 15, a spring groove 16, a support plate 20 and a non-slip mat 21, wherein the first placing groove 8 is formed in one side position of the upper surface of the charger shell 1, the second placing groove 9 is formed in one side position of the upper surface of the charger shell 1, the first placing groove 8 is formed in one side position of the upper surface of the charger shell 1, the sliding groove 15 is formed in one side position of the lower surface of the charger shell 1, the spring groove 16 is formed in one end of the lower surface of the charger shell 1, the spring groove 15 is formed in one end of the inner portion of the spring groove 17, the; the movable range of the supporting plate 20 is 0-45 degrees, and the other end of the pushing spring 17 is fixedly connected with the sliding block 18; the charger shell 1 is internally provided with an input voltage stabilizing module, a high-frequency voltage transformation module, an output voltage stabilizing module, a charging module, a control module and an electric energy acquisition IC, wherein the input voltage stabilizing module, the high-frequency voltage transformation module, the output voltage stabilizing module, the charging module, the control module, the electric energy acquisition IC and the display screen 3 are connected in an electrified way.
It should be noted that, when the novel mobile phone charger feeding back the information of the rechargeable battery is used, the power plug 2 is inserted into the external power plug board, the USB plug of the external data line is inserted into the USB plug socket on the other side surface of the charger housing 1, and the other end of the data line is connected with the mobile phone, so as to perform charging, when charging, the control module controls the input voltage stabilizing module to stabilize the voltage, the high frequency voltage transforming module reduces the voltage, the reduced voltage is transmitted to the charging module hole through the output voltage stabilizing module to charge the mobile phone, meanwhile, the electric energy collecting IC collects the electric quantity of the mobile phone battery, the display screen 3 displays the electric energy, the support plate 20 rotates the take-out chute 15 through the connecting shaft 19, rotates to the maximum angle, keeps 45 degrees with the charger housing 1, the pushing spring 17 pushes the sliding block 18 all the time, so that the sliding block 18 pushes the support plate 20 to move, for charger housing 1's bottom provides the holding power, at this moment, people can place the inside of first standing groove 8 or second standing groove 9 with the cell-phone, after charging, people are from center department fifty percent discount with the data line, and insert the inside of storage seat 5 through putting line mouth 12 with fifty percent discount department, rotate simultaneously and change 6, it drives dead lever 14 and rotates to change 6, dead lever 14 drives pivot 10 and rotates, pivot 10 drives three hook plate 13 and rotates, when the data line of fifty percent discount is hooked to hook plate 13, twine the data line in the outside of pivot 10, can accomodate the data line.
According to the invention, the mobile phone placing mechanism 7 is arranged, the supporting plate 20 is rotated through the connecting shaft 19 to the take-out chute 15 and is rotated to the maximum angle, the angle between the supporting plate 20 and the charger shell 1 is kept at 45 degrees, the pushing spring 17 always pushes the sliding block 18, so that the sliding block 18 pushes the supporting plate 20 to move, the anti-slip mat 21 is contacted with the wall surface or the surface of the power supply plugboard, and a supporting force is provided for the bottom of the charger shell 1; through the arrangement of the data line storage mechanism 4, the data line is folded from the center, the folded position is inserted into the storage seat 5 through the line releasing port 12, the rotating handle 6 is rotated at the same time, the rotating handle 6 drives the fixing rod 14 to rotate, the fixing rod 14 drives the rotating shaft 10 to rotate, the rotating shaft 10 drives the three hook plates 13 to rotate, when the folded data line is hooked by the hook plates 13, the data line is wound outside the rotating shaft 10, the data line can be stored, the data line can be conveniently stored, after charging is finished, the data line can be directly stored inside the storage seat 5, carrying is facilitated, the data line and the charger shell 1 are located at the same position during carrying, searching and using are facilitated, and the phenomena of winding and disorder of the data line can be avoided; through setting up electric energy collection IC and display screen 3, this electric energy collection IC's model is IM1253B, can gather rechargeable battery electric quantity to show through display screen 3, people can audio-visually see battery electric quantity, need not to start the cell-phone and observe the electric quantity, and the functionality is better, and it is more convenient to use.
