Abstract
The invention discloses a water-based ink production device for decorative paper, which comprises a base, a rotating rod, a fixed rod and a material cylinder, wherein two sides of the bottom end of the base are fixedly connected with supporting legs, two sides of the top end of the base are fixedly connected with supporting columns, the top end of each supporting column is fixedly connected with the material cylinder, the bottom end of each material cylinder is provided with a second valve, and the bottom end of each second valve is provided with a box body. The rotating shaft is driven to rotate by controlling the driving motor to start, the driving gear is driven to rotate by the rotating shaft, the driven gear rotates due to the meshing fit between the driving gear and the driven gear, the rotating rod rotates to drive the stirring rod to rotate to mix and stir the pigment and the water, meanwhile, the fixing rod rotates by the rotating shaft, and the fixing rod drives the stirring rod to rotate, so that the pigment and the water are stirred fully and uniformly, and the phenomenon that the quality of a product is influenced due to the fact that solid blocks appear due to insufficient stirring is avoided.
Description
Technical Field
The invention relates to the technical field of water-based ink production, in particular to a production device for water-based ink for decorative paper.
Background
The water-based ink is also called water-based ink, is mainly prepared by processing and grinding water-soluble resin, organic pigment, solvent and the like, has the characteristics of safety, no harm to human bodies, no combustion, no explosion, no volatile gas and the like, is widely applied to the industries of food, beverage, medicine, printing and the like, is prepared by fully stirring and mixing the pigment and water through a production device and then filtering, and has higher and higher quality requirements on water-based ink products along with the development of society and the improvement of science and technology, but the existing water-based ink production device has a plurality of defects in use.
When the first and the traditional water-based ink production devices for decorative paper are used, the filter screen is not detached and installed, and when the filter screen is inconvenient to clean, accumulation can be formed on the filter screen after long-term use, so that the filtering effect is poor;
secondly, when the traditional water-based ink production device for decorative paper is used, the inner wall of the charging barrel is inconvenient to clean, and a plurality of impurities are accumulated on the inner wall of the charging barrel after long-term use and are difficult to clean;
thirdly, when the traditional production device for the water-based ink for decorative paper is used, the stirring effect is poor, so that the pigment and water are mixed unevenly to generate blocky solids, and the production quality of the water-based ink is reduced.
Disclosure of Invention
The invention aims to provide a production device of water-based ink for decorative paper, which aims to solve the problems that the filter screen does not have the dismounting and mounting functions in the background art, the inner wall of a charging barrel is inconvenient to clean and the stirring effect is poor.
In order to achieve the purpose, the invention provides the following technical scheme: a production device of water-based ink for decorative paper comprises a base, a rotating rod, a fixed rod and a material cylinder, wherein two sides of the bottom end of the base are fixedly connected with supporting legs, two sides of the top end of the base are fixedly connected with supporting columns, the top end of each supporting column is fixedly connected with the material cylinder, the bottom end of the material cylinder is provided with a second valve, the bottom end of the second valve is provided with a box body, sliding grooves are formed in the two sides of the box body, a first filter screen is arranged between the inner walls of the two sides of each sliding groove, a handle is arranged in the middle of one end of the first filter screen, mounting structures are arranged in the first filter screen and the box body, a first valve is arranged at the bottom end of the box body, the bottom end of the first valve extends to the lower side of the base, a feed inlet is arranged at one side of, the top of feed inlet one side feed cylinder is passed through mounting fixedly connected with driving motor, driving motor keeps away from the top of feed inlet one side feed cylinder and is provided with the casing, and the bottom of casing extends to the inside of feed cylinder, one side of casing below feed cylinder is provided with the filler, and one side of filler extends to the inside one side of feed cylinder.
Preferably, the equal fixedly connected with mounting panel in one side of dead lever, and the even fixedly connected with connecting rod in one side of mounting panel, the equal fixedly connected with installation pole in one side of connecting rod, and one side of installation pole all transversely runs through there is the movable rod, the movable rod is close to the equal fixedly connected with scraper blade in one side of feed cylinder, the outer wall of movable rod all overlaps between installation pole and the scraper blade and is equipped with the bradyseism spring.
Preferably, driving motor's output end fixedly connected with pivot, and the bottom of pivot extends to the inside of feed cylinder, the dead lever is all installed to the outer wall at both ends about the pivot, and equal swing joint has the bull stick between the both ends of dead lever, the outer wall cover of bull stick one side pivot is equipped with the driving gear, and the outer wall of driving gear one side bull stick all overlaps and is equipped with driven gear, the puddler is evenly installed to the outer wall of driven gear below bull stick.
Preferably, a second filter screen is transversely arranged between the inner walls of the two sides of the shell, a fan is arranged between the inner walls of the two sides of the shell below the second filter screen through a fixing piece, and heating wires are evenly arranged between the inner walls of the two sides of the shell below the fan.
Preferably, mounting structure's inside has set gradually connecting block, first activity fixture block, first cavity, first activity spring, second activity fixture block, second activity spring, driving lever and second cavity, first cavity is all seted up in the inside of first filter screen one side, the both ends of the inside one side of first cavity all are provided with first activity spring, one side of first activity spring all is provided with second activity fixture block, and one side of second activity fixture block all extends to the one side of keeping away from first cavity, the inside of box one side is all seted up to the second cavity.
Preferably, one side inside the second cavity is provided with a second movable spring, one side of the second movable spring is provided with a first movable clamping block, one side of the first movable clamping block extends to one end of the second movable clamping block far away from one side of the second cavity, one end of the second movable clamping block inside the second cavity is fixedly connected with a connecting block, one side of the connecting block is fixedly connected with a shifting rod, and one side of the shifting rod extends to one side far away from the box body.
Compared with the prior art, the invention has the beneficial effects that:
(1) by installing the first movable clamping block, the first movable spring, the second movable clamping block, the second movable spring and the shifting lever, the handle is pushed to insert the first filter screen into the box body through the sliding fit effect of the sliding chute, one end of the second movable clamping block is contacted with the first movable clamping block, the second movable clamping block is enabled to move towards the inside of the first cavity, the first movable spring is forced to be stressed and compressed to play a buffering effect, meanwhile, the second movable clamping block pushes the first movable clamping block to move towards the inside of the second cavity, and the second movable spring is forced to be stressed and compressed;
(2) the connecting rod, the mounting rod, the cushioning spring, the movable rod and the scraper are arranged, the driving motor is controlled to start to drive the rotating shaft to rotate, the rotating shaft rotates to drive the fixed rod to rotate, the fixed rod drives the mounting plate to rotate, the mounting plate drives the mounting rod to rotate, and the cushioning spring and the movable rod are arranged, so that the scraper is tightly attached to the inner wall of the charging barrel to clean the inner wall of the charging barrel in the rotating process, the function of cleaning the inner wall of the charging barrel is realized, and the phenomenon that a lot of impurities are accumulated on the inner wall of the charging barrel and are difficult to clean;
(3) through installing the puddler, the bull stick, the driving gear, driven gear, the dead lever, pivot and driving motor, control driving motor starts the drive pivot and rotates, make the pivot drive the driving gear rotate, because for the meshing cooperation between driving gear and the driven gear, make driven gear rotate, because pass through bearing swing joint between bull stick and the dead lever, make the bull stick rotate and drive the puddler and rotate pigment and water and mix the stirring, the pivot rotates simultaneously and drives the dead lever and rotate, the dead lever drives the puddler and rotates, the stirring that carries out abundant even to pigment and water has been realized, prevent to lead to appearing the solid cubic because of the stirring inadequately, influence the quality of product.
Drawings

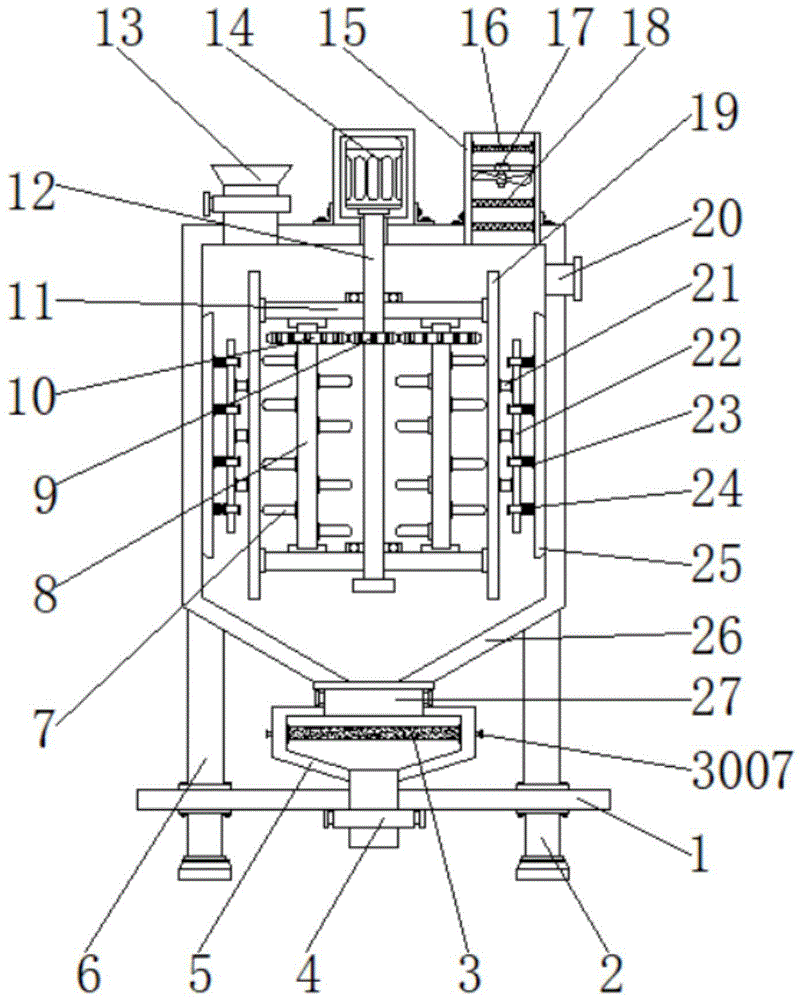

FIG. 1 is a front cross-sectional structural schematic view of the apparatus of the present invention;
FIG. 2 is a schematic front view of the apparatus of the present invention;
FIG. 3 is a schematic top sectional view of the apparatus housing of the present invention;
FIG. 4 is an enlarged view of the apparatus of the present invention shown at A in FIG. 1.
In the figure: 1. a base; 2. a support leg; 3. a first filter screen; 4. a first valve; 5. a box body; 6. a support pillar; 7. a stirring rod; 8. a rotating rod; 9. a driving gear; 10. a driven gear; 11. fixing the rod; 12. a rotating shaft; 13. a feed inlet; 14. a drive motor; 15. a housing; 16. a second filter screen; 17. a fan; 18. heating wires; 19. mounting a plate; 20. a water filling port; 21. a connecting rod; 22. mounting a rod; 23. a cushioning spring; 24. a movable rod; 25. a squeegee; 26. a charging barrel; 27. a second valve; 28. a handle; 29. a chute; 30. a mounting structure; 3001. connecting blocks; 3002. a first movable fixture block; 3003. a first cavity; 3004. a first movable spring; 3005. a second movable fixture block; 3006. a second movable spring; 3007. a deflector rod; 3008. a second cavity.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, an embodiment of the present invention is shown: a production device of water-based ink for decorative paper comprises a base 1, a rotating rod 8, a fixing rod 11 and a material cylinder 26, wherein both sides of the bottom end of the base 1 are fixedly connected with supporting legs 2, both sides of the top end of the base 1 are fixedly connected with supporting columns 6, the top end of each supporting column 6 is fixedly connected with the material cylinder 26, the bottom end of each material cylinder 26 is provided with a second valve 27, the bottom end of each second valve 27 is provided with a box body 5, sliding grooves 29 are formed in both sides of the box body 5, a first filter screen 3 is arranged between the inner walls of both sides of each sliding groove 29, a handle 28 is arranged in the middle of one end of each first filter screen 3, and mounting structures 30 are arranged in both the first filter;
the mounting structure 30 is internally provided with a connecting block 3001, a first movable clamping block 3002, a first cavity 3003, a first movable spring 3004, a second movable clamping block 3005, a second movable spring 3006, a shifting rod 3007 and a second cavity 3008 in sequence, wherein the first cavity 3003 is arranged inside one side of the first filter screen 3, the first movable spring 3004 is arranged at two ends of one side inside the first cavity 3003, the second movable clamping block 3005 is arranged at one side of the first movable spring 3004, one side of the second movable clamping block 3005 extends to one side far away from the first cavity 3003, and the second cavity 3008 is arranged inside one side of the box 5;
specifically, as shown in fig. 1 and 4, when the device is used, one end of the second movable latch 3005 contacts the first movable latch 3002, so that the second movable latch 3005 moves towards the inside of the first cavity 3003, and the first movable spring 3004 is forced to be compressed to play a buffering role;
a second movable spring 3006 is arranged on one side inside the second cavity 3008, a first movable clamping block 3002 is arranged on one side of the second movable spring 3006, one side of the first movable clamping block 3002 extends to one end of a second movable clamping block 3005 far away from one side of the second cavity 3008, one end of the second movable clamping block 3005 inside the second cavity 3008 is fixedly connected with a connecting block 3001, one side of the connecting block 3001 is fixedly connected with a shifting rod 3007, and one side of the shifting rod 3007 extends to one side far away from the box body 5;
specifically, as shown in fig. 1 and 4, when the device is used, the second movable latch 3005 pushes the first movable latch 3002 to move towards the inside of the second cavity 3008, so as to force the second movable spring 3006 to be compressed, and when the second movable latch 3005 passes through the first movable latch 3002, the positions of the first movable latch 3002 and the second movable latch 3005 are fixed;
the bottom end of the box body 5 is provided with a first valve 4, the bottom end of the first valve 4 extends to the lower part of the base 1, one side of the top end of the sliding groove 29 is provided with a feeding hole 13, the bottom end of the feeding hole 13 extends to the top end of the interior of the material cylinder 26, the top end of the material cylinder 26 at one side of the feeding hole 13 is fixedly connected with a driving motor 14 through a fixing piece, and the type of the driving motor 14 can be YE3-100L 2-4;
the output end of the driving motor 14 is fixedly connected with a rotating shaft 12, the bottom end of the rotating shaft 12 extends into the charging barrel 26, the outer walls of the upper end and the lower end of the rotating shaft 12 are respectively provided with a fixed rod 11, a rotating rod 8 is movably connected between the two ends of the fixed rods 11, the outer wall of the rotating shaft 12 on one side of the rotating rod 8 is sleeved with a driving gear 9, the outer wall of the rotating rod 8 on one side of the driving gear 9 is sleeved with a driven gear 10, and the outer wall of the rotating rod 8 below the driven gear 10 is uniformly provided with a;
specifically, as shown in fig. 1, when the device is used, the driving motor 14 is controlled to start to drive the rotating shaft 12 to rotate, so that the rotating shaft 12 drives the driving gear 9 to rotate, the driving gear 9 and the driven gear 10 are in meshing fit, so that the driven gear 10 rotates, and the rotating rod 8 and the fixed rod 11 are movably connected through a bearing, so that the rotating rod 8 rotates to drive the stirring rod 7 to rotate to mix and stir the pigment and the water;
one side of the fixed rod 11 is fixedly connected with an installation plate 19, one side of the installation plate 19 is uniformly and fixedly connected with a connecting rod 21, one side of the connecting rod 21 is fixedly connected with an installation rod 22, one side of the installation rod 22 is transversely penetrated with a movable rod 24, one side of the movable rod 24 close to the charging barrel 26 is fixedly connected with a scraping plate 25, and the outer wall of the movable rod 24 between the installation rod 22 and the scraping plate 25 is sleeved with a shock absorption spring 23;
specifically, as shown in fig. 1, when the device is used, the fixed rod 11 rotates, so that the fixed rod 11 drives the mounting plate 19 to rotate, the mounting plate 19 drives the mounting rod 22 to rotate, and the scraper 25 is arranged to cling to the inner wall of the charging barrel 26 to clean the inner wall of the charging barrel 26 in the rotating process through the damping spring 23 and the movable rod 24;
the top end of the charging barrel 26 on the side of the driving motor 14 far away from the feeding hole 13 is provided with a shell 15, and the bottom end of the shell 15 extends into the charging barrel 26;
a second filter screen 16 is transversely arranged between the inner walls of the two sides of the shell 15, a fan 17 is arranged between the inner walls of the two sides of the shell 15 below the second filter screen 16 through a fixing piece, and heating wires 18 are uniformly arranged between the inner walls of the two sides of the shell 15 below the fan 17;
specifically, as shown in fig. 1, when the device is used, the fan 17 and the heating wire 18 are controlled to be simultaneously started, the heating wire 18 heats air, the heated air is blown into the barrel 26 by the fan 17 to dry the barrel 26, and the second filter screen 16 is arranged in the shell 15 to prevent dust from entering the barrel 26;
a filler 20 is provided at one side of the cartridge 26 below the housing 15, and one side of the filler 20 extends to one side of the inside of the cartridge 26.
The working principle is as follows: when the device is used, firstly, the second valve 27 is closed, pigment is added into the material cylinder 26 through the feeding hole 13, water is added into the material cylinder 26 through the water adding hole 20, then the driving motor 14 is controlled to be started to drive the rotating shaft 12 to rotate, the rotating shaft 12 drives the driving gear 9 to rotate, the driving gear 9 and the driven gear 10 are in meshing fit, so that the driven gear 10 rotates, the rotating rod 8 is movably connected with the fixed rod 11 through a bearing, so that the rotating rod 8 rotates to drive the stirring rod 7 to rotate to mix and stir the pigment and the water, meanwhile, the rotating shaft 12 rotates to drive the fixed rod 11 to rotate, and the fixed rod 11 drives the stirring rod 7 to rotate to fully and uniformly stir the pigment and the water;
then, the second valve 27 and the first valve 4 are opened, the product after being stirred and mixed uniformly is conveyed to the next process through the first valve 4 after being filtered by the first filter screen 3, when the first filter screen 3 needs to be replaced after being used for a long time, the first movable clamping block 3002 is driven to move by manually pulling the connecting block 3001 of the shift lever 3007 towards two sides, so that the first movable clamping block 3002 is far away from the second movable clamping block 3005, meanwhile, the second movable spring 3006 is stressed and compressed to play a buffering role, then the handle 28 is manually pulled outwards, as the first filter screen 3 is in sliding fit with the box body 5 through the sliding groove 29, the first filter screen 3 is pulled out, after the filter screen 3 is cleaned manually, the handle 28 is pushed to insert the first filter screen 3 into the box body 5 through the sliding fit effect of the sliding groove 29, so that one end of the second movable clamping block 3005 is contacted with the first movable clamping block 3002, the second movable fixture block 3005 moves towards the inside of the first cavity 3003, so that the first movable spring 3004 is forced to be compressed under stress to play a buffering role, meanwhile, the second movable fixture block 3005 pushes the first movable fixture block 3002 to move towards the inside of the second cavity 3008, so that the second movable spring 3006 is forced to be compressed under stress, and when the second movable fixture block 3005 passes through the first movable fixture block 3002, the positions of the first movable fixture block 3002 and the second movable fixture block 3005 are fixed;
finally, when the inner wall of the charging barrel 26 needs to be cleaned, the second valve 27 is closed, water is added into the charging barrel 26 through the water adding port 20, then the driving motor 14 is controlled to be started to drive the rotating shaft 12 to rotate, the rotating shaft 12 rotates to drive the fixed rod 11 to rotate, the fixed rod 11 drives the mounting plate 19 to rotate, the mounting plate 19 drives the mounting rod 22 to rotate, the damping spring 23 and the movable rod 24 are arranged to drive the scraper 25 to cling to the inner wall of the charging barrel 26 in the rotating process to clean the inner wall of the charging barrel 26, after the cleaning is finished, the second valve 27 and the first valve 4 are opened to discharge the cleaned wastewater, then the fan 17 and the heating wire 18 are controlled to be started simultaneously, the heating wire 18 heats the air, the heated air is blown into the charging barrel 26 through the fan 17 to dry the charging barrel 26, the second filter screen 16 is arranged inside the shell 15, preventing dust from entering the interior of the cartridge 26.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a water-based ink apparatus for producing of decorative paper, includes base (1), bull stick (8), dead lever (11) and feed cylinder (26), its characterized in that: the support legs (2) are fixedly connected to two sides of the bottom end of the base (1), the support columns (6) are fixedly connected to two sides of the top end of the base (1), the material cylinder (26) is fixedly connected to the top end of the support columns (6), the second valve (27) is arranged at the bottom end of the material cylinder (26), the box body (5) is arranged at the bottom end of the second valve (27), the sliding grooves (29) are formed in two sides of the box body (5), the first filter screen (3) is arranged between the inner walls of two sides of each sliding groove (29), the handle (28) is arranged at the middle position of one end of the first filter screen (3), the mounting structures (30) are arranged in the first filter screen (3) and the box body (5), the first valve (4) is arranged at the bottom end of the box body (5), and the bottom end of the first valve (4) extends to the lower portion of the base, one side on spout (29) top is provided with feed inlet (13), and the bottom of feed inlet (13) extends to the inside top of feed cylinder (26), the top of feed inlet (13) one side feed cylinder (26) is passed through mounting fixedly connected with driving motor (14), the top that feed inlet (13) one side feed cylinder (26) was kept away from in driving motor (14) is provided with casing (15), and the bottom of casing (15) extends to the inside of feed cylinder (26), one side of casing (15) below feed cylinder (26) is provided with filler (20), and one side of filler (20) extends to the inside one side of feed cylinder (26).
2. The apparatus for producing an aqueous ink for decorative paper according to claim 1, wherein: the utility model discloses a damping spring, including the equal fixedly connected with mounting panel (19) in one side of dead lever (11), and the even fixedly connected with connecting rod (21) in one side of mounting panel (19), the equal fixedly connected with installation pole (22) in one side of connecting rod (21), and the equal transverse movable rod (24) that has run through in one side of installation pole (22), the equal fixedly connected with scraper blade (25) in one side that movable rod (24) are close to feed cylinder (26), the outer wall of movable rod (24) all overlaps between installation pole (22) and scraper blade (25) is equipped with damping spring (23).
3. The apparatus for producing an aqueous ink for decorative paper according to claim 1, wherein: the utility model discloses a feed cylinder, including drive motor (14), the bottom of pivot (12) extends to the inside of feed cylinder (26), dead lever (11) are all installed to the outer wall at both ends about pivot (12), and equal swing joint has bull stick (8) between the both ends of dead lever (11), the outer wall cover of bull stick (8) one side pivot (12) is equipped with driving gear (9), and the outer wall of driving gear (9) one side bull stick (8) all overlaps and is equipped with driven gear (10), puddler (7) are evenly installed to the outer wall of driven gear (10) below bull stick (8).
4. The apparatus for producing an aqueous ink for decorative paper according to claim 1, wherein: transversely be provided with second filter screen (16) between the both sides inner wall of casing (15), and be provided with fan (17) through the mounting between the both sides inner wall of second filter screen (16) below casing (15), evenly be provided with heater strip (18) between the both sides inner wall of fan (17) below casing (15).
5. The apparatus for producing an aqueous ink for decorative paper according to claim 1, wherein: the utility model discloses a filter screen, including mounting structure (30), the inside of mounting structure (30) has set gradually connecting block (3001), first activity fixture block (3002), first cavity (3003), first activity spring (3004), second activity fixture block (3005), second activity spring (3006), driving lever (3007) and second cavity (3008), the inside of first filter screen (3) one side is all seted up in first cavity (3003), the both ends of the inside one side of first cavity (3003) all are provided with first activity spring (3004), one side of first activity spring (3004) all is provided with second activity fixture block (3005), and one side of second activity fixture block (3005) all extends to the one side of keeping away from first cavity (3003), the inside of box (5) one side is all seted up in second cavity (3008).
6. The apparatus for producing an aqueous ink for decorative paper according to claim 5, wherein: the inside one side of second cavity (3008) all is provided with second activity spring (3006), and one side of second activity spring (3006) all is provided with first activity fixture block (3002), and one side of first activity fixture block (3002) all extends to the one end of keeping away from second cavity (3008) one side second activity fixture block (3005), the equal fixedly connected with connecting block (3001) of one end of the inside second activity fixture block (3005) of second cavity (3008), the equal fixedly connected with driving lever (3007) in one side of connecting block (3001), and one side of driving lever (3007) extends to the one side of keeping away from box (5).
