Abstract
The invention discloses a household automatic folding solar panel which comprises a bottom plate, wherein the top of the bottom plate is rotatably connected with a supporting upright post, a large bevel gear is fixedly arranged on the supporting upright post, a supporting plate is fixedly arranged on the top of the supporting upright post, a planetary servo reducing motor is fixedly arranged on the top of the bottom plate, a small bevel gear is fixedly connected with the driving end of the planetary servo reducing motor, the small bevel gear is meshed with the large bevel gear, an installation shell is fixedly arranged on the top of the supporting plate, two rotating rods are rotatably connected on the installation shell, a worm wheel and an expansion arm are fixedly arranged on each rotating rod, a double-shaft motor is fixedly arranged on the installation shell, a worm is fixedly connected with the driving end of the double-shaft motor, and the worm is meshed with the worm wheel. The invention relates to the technical field of solar panels, and has the advantages of simple structure, economy, environmental protection, small occupied area, sufficient solar energy absorption and improvement of solar energy absorption rate.
Description
Technical Field
The invention relates to the technical field of solar panels, in particular to a household automatic folding solar panel.
Background
The main power generation mode in China is thermal power generation, and 2018 data show that the thermal power generation accounts for 73.32%, the hydraulic power generation accounts for 16.24%, the nuclear power generation accounts for 4.33%, and the wind power generation accounts for 1.32%. In the current industrial development of China, the power consumption is continuously increased, and the proportions of a coal-fired unit and a thermal power generation unit still occupy the position of a main body at present. The thermal power generation has pollution of smoke, dust, acid rain and the like, and the environmental damage is very serious. Efforts are constantly being made to exploit clean energy and resource utilization, but there is still a long way to go. The solar energy is inexhaustible, the power generation cost is low, no pollution is caused, and the solar energy is an energy with huge potential, but the conversion rate of the solar panel is only 15% -17% at present, and the receiving area must be increased in order to obtain more electric energy, so that the popularization of the solar panel faces a great challenge for the cities with the large amount of earth.
At present, the traditional solar power generation makes the occupied area of the panel large in order to improve the generated energy, the solar absorption rate is low, and the traditional power generation has great influence on the environment.
Disclosure of Invention
The invention aims to solve the problems in the prior art and provides a household automatic folding solar panel.
In order to achieve the purpose, the invention adopts the following technical scheme:
the household automatic folding solar panel comprises a bottom plate, wherein the top of the bottom plate is rotatably connected with a supporting stand column, a large bevel gear is fixedly mounted on the supporting stand column, a supporting plate is fixedly mounted at the top of the supporting stand column, a planetary servo speed reduction motor is fixedly mounted at the top of the bottom plate, a small bevel gear is fixedly connected with a driving end of the planetary servo speed reduction motor and is meshed with the large bevel gear, a mounting shell is fixedly mounted at the top of the supporting plate, two rotating rods are rotatably connected on the mounting shell, a worm wheel and a spreading arm are fixedly mounted on the rotating rods, a double-shaft motor is fixedly mounted on the mounting shell, a worm is fixedly connected with the driving end of the double-shaft motor and is meshed with the worm wheel, a worm servo speed reduction motor is fixedly mounted at one end of the spreading arm, and a flange disc is fixedly connected with the driving end of the servo worm speed, one side fixedly connected with wall seat of ring flange, it is connected with the driving shaft to rotate on the wall seat, the drive shaft is provided with a plurality of flabellums, is located the drive shaft topmost the flabellum and drive shaft fixed connection are located the drive shaft bottommost the flabellum and wall seat fixed connection, every the equal fixed mounting in inside of flabellum has solar panel, every the equal fixed mounting in one side of flabellum has the second separation blade, every the first separation blade of the equal fixedly connected with of opposite side of flabellum, fixed mounting has driving motor on the wall seat, the bottom of wall seat is rotated and is connected with driving gear and driven gear, driving motor's drive end and driving gear fixed connection, the bottom and the driven gear fixed connection of drive shaft.
Preferably, the flange plate is a support flange plate, and the flange plate is made of stainless steel.
Preferably, the support column is a solid columnar structure, and the outer diameter of the support column is 50 mm.
Preferably, a thrust bearing ball is fixedly mounted at the top of the bottom plate, and the top of the thrust bearing ball is fixedly connected with the bottom of the large bevel gear.
Preferably, the bottom of the bottom plate is fixedly provided with a rubber pad, and the outer surface of the rubber pad is integrally formed with anti-skid grains.
Preferably, the total number of solar panels is two, and the specification of each solar panel is the same.
Preferably, the two worms are in the same horizontal plane, and the rotation directions of the two worms are different.
Preferably, the rotating parts of the fan blades located in the middle of the driving shaft are connected with bearings, and gaskets are fixedly mounted between the bearings.
Preferably, be equipped with the gasket between turbine and the exhibition arm, the outside of installation shell is fixed with PLC microprocessor, and fixed mounting has photosensitive sensor on the flabellum that is located the outside, and photosensitive sensor is connected with PLC microprocessor's data receiving port electricity, and PLC microprocessor's signal output port is connected with planet servo gear motor, worm servo gear motor, driving motor, biax motor electricity respectively.
Preferably, a sleeve is integrally formed at the top of the large bevel gear, the sleeve is sleeved outside the support column, a threaded hole is prefabricated in the sleeve, and a bolt for assisting in fixing the support column is screwed in the threaded hole.
Compared with the prior art, the invention has the beneficial effects that:
1. the worm servo speed reducing motor is arranged at the joint of the expansion arm and the wall seat, so that the angle of the solar panel can be adjusted, the solar panel can always face the sun and rotate along with the sun, and the problem of low solar absorption rate is solved;
2. the small bevel gear is driven to rotate by the planetary servo reducing motor and then driven to rotate by the large bevel gear through meshing transmission, so that the whole process of enabling solar energy to be absorbed more horizontally is realized, and the solar energy is absorbed more fully;
3. the worm with different rotation directions is driven to rotate by the double-shaft motor, the worm drives the worm wheel to rotate, the rotation of the rotating rod is realized, and the unfolding and folding of the unfolding arm are realized, so that the solar panel has the advantages of simple structure, economy, environmental protection and small occupied area;
4. drive the driving gear through driving motor and rotate, the meshing through driving gear and driven gear makes driven gear rotate, realizes the rotation of drive shaft, drives the flabellum rotation at top, realizes solar panel's expansion and folding through the cooperation of second separation blade and first separation blade, and solar panel expandes absorption solar energy when having the sunshine, and solar panel is folding at sleet weather and night, reduces the loss of wind and rain, increase of service life.
Drawings

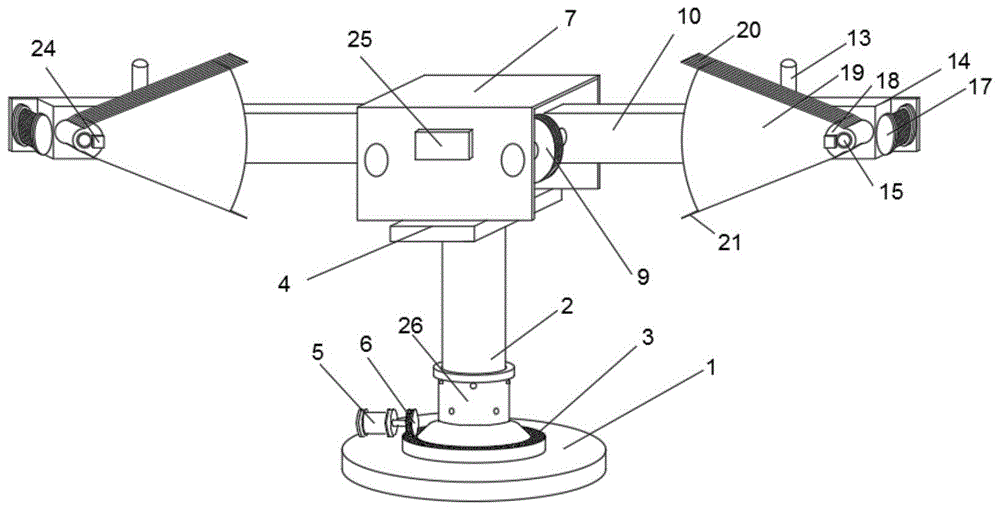

FIG. 1 is a schematic diagram of a main structure of a household automatic folding solar panel according to the present invention;
fig. 2 is a schematic structural view of a front view of a household automatic folding solar panel according to the present invention;
FIG. 3 is a schematic diagram of a rear view structure of a household automatic folding solar panel according to the present invention;
fig. 4 is a schematic view illustrating an unfolding process of a solar panel of the home-use automatic folding solar panel according to the present invention;
fig. 5 is an enlarged view of a structure at a in fig. 3.
In the figure: 1. a base plate; 2. supporting the upright post; 3. a large bevel gear; 4. a support plate; 5. a planetary servo reduction motor; 6. a bevel pinion gear; 7. mounting a shell; 8. a rotating rod; 9. a worm gear; 10. Stretching the arm; 11. a double-shaft motor; 12. a worm; 13. a worm servo gear motor; 14. a wall seat; 15. a drive shaft; 16. a flange plate; 17. a drive motor; 18. a fan blade; 19. solar energy board; 20. a second baffle plate; 21. a first baffle plate; 22. a driven gear; 23. a driving gear 24, a photosensitive sensor; 25. a PLC microprocessor; 26. a sleeve.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are only for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention.
Referring to fig. 1-5, the household automatic folding solar panel comprises a bottom plate 1, a supporting upright post 2 is rotatably connected to the top of the bottom plate 1, a large bevel gear 3 is fixedly installed on the supporting upright post 2, a supporting plate 4 is fixedly installed on the top of the supporting upright post 2, a planetary servo gear motor 5 is fixedly installed on the top of the bottom plate 1, a small bevel gear 6 is fixedly connected to the driving end of the planetary servo gear motor 5, the small bevel gear 6 is meshed with the large bevel gear 3, an installation shell 7 is fixedly installed on the top of the supporting plate 4, two rotating rods 8 are rotatably connected to the installation shell 7, a worm wheel 9 and an expansion arm 10 are fixedly installed on the rotating rods 8, a double-shaft motor 11 is fixedly installed on the installation shell 7, a worm 12 is fixedly connected to the driving end of the double-shaft motor 11, the worm 12 is meshed with the worm wheel 9, and a worm, a flange 16 is fixedly connected to the driving end of the worm servo reducing motor 13, a wall seat 14 is fixedly connected to one side of the flange 16, a driving shaft 15 is rotatably connected to the wall seat 14, the driving shaft 15 is provided with a plurality of fan blades 18, the fan blade 18 positioned at the topmost part of the driving shaft 15 is fixedly connected with the driving shaft 15, the fan blade 18 positioned at the bottommost part of the driving shaft 15 is fixedly connected with the wall seat 14, a solar panel 19 is fixedly arranged inside each fan blade 18, a second baffle plate 20 is fixedly arranged at one side of each fan blade 18, a first baffle plate 21 is fixedly connected to the other side of each fan blade 18, a driving motor 17 is fixedly arranged on the wall seat 14, a driving gear 23 and a driven gear 22 are rotatably connected to the bottom of the wall seat 14, the driving end of the driving motor 17 is fixedly connected with the driving gear 23, and, the household automatic folding solar panel is designed aiming at the defect that the occupied area of solar panels in small cities is large, a telescopic unfolding mechanism is adopted, the maximum utilization of solar energy and the full utilization of space are realized according to environmental characteristics, a new solution is provided for using solar energy in cities, the household automatic folding solar panel is suitable for public places such as parks and fitness, sunshine is collected for cities in sunny days, the urban automatic folding solar panel is automatically contracted at night, more leisure space is provided for the cities, the household automatic folding solar panel is a new attempt for city construction, the use of green clean energy is a great trend in the future in terms of implementing sustainable development war in China, and solar power generation can occupy larger market share without coming.
The flange plate 16 is a supporting flange plate, the flange plate 16 is made of stainless steel, and the stainless steel has the advantages of high hardness and corrosion resistance, so that the connection stability of the wall seat 14 is improved.
Wherein, support post 2 is solid columnar structure, and support post 2's external diameter is 50mm, plays fine support effect through support post 2, and accords with the strength requirement.
Wherein, the top fixed mounting of bottom plate 1 has the thrust bearing ball, and the top of thrust bearing ball and the bottom fixed connection of big bevel gear 3 make big bevel gear 3 quiet and smooth and easy when high-speed rotation through the installation of thrust bearing ball, have fine noise reduction effect, the error when can reduce big bevel gear 3 and little bevel gear 6 meshing simultaneously is favorable to domestic automatic folding solar panel's use.
Wherein, bottom plate 1's bottom fixed mounting has the rubber pad, and the surface integrated into one piece of rubber pad has anti-skidding line, adopts the rubber pad to have the advantage of fine elasticity and compliance, can reach fine buffering shock attenuation effect, makes the use of equipment more stable, has increased the stability when further having improved equipment use with the frictional force on ground through anti-skidding line.
Wherein, the total quantity of solar panel 19 is 16, and every solar panel 19's specification is the same, has improved the absorptivity of solar energy, makes the utilization of solar energy more abundant.
Wherein, the two worms 12 are in the same horizontal plane, and the rotation directions of the two worms 12 are different, so as to ensure that the two arms 10 are unfolded and folded simultaneously.
Wherein, the rotation position of flabellum 18 that is located drive shaft 15 middle all is connected with the bearing, and fixed mounting has the gasket between the bearing, thereby realizes through the installation of bearing that drive shaft 15 rotates relatively, realizes sealed effect through the gasket, can avoid the inside dust that gets into of bearing and reduce the loss of lubricating oil, improves the life of bearing.
Wherein, a gasket is arranged between the turbine 9 and the extending arm 10, a PLC microprocessor 25 is fixed on the outer side of the mounting shell 7, a photosensitive sensor 24 is fixedly mounted on the fan blade 18 positioned on the outermost side, the photosensitive sensor 24 is electrically connected with a data receiving port of the PLC microprocessor 25, a signal output port of the PLC microprocessor 25 is respectively and electrically connected with the planetary servo deceleration motor 5, the worm servo deceleration motor 13, the driving motor 17 and the double-shaft motor 11, the photosensitive sensor 24 and the PLC microprocessor 25 are arranged, and then the planetary servo deceleration motor 5, the worm servo deceleration motor 13, the driving motor 17 and the double-shaft motor 11 are combined to form a complete solar energy light-following driving system, so that the solar energy device can always keep the maximum energy conversion rate in the working process, the solar energy utilization efficiency is improved, and the solar energy device has high automation degree, Intelligent control effect.
Wherein, the top integrated into one piece of big bevel gear 3 has a sleeve 26, and the suit of this sleeve 26 is in the outside of support post 2, and prefabricated threaded hole on the sleeve 26, and the threaded hole is twisted soon to have the bolt that is used for supplementary fixed support post 2, and this structural design can be further guarantee support post 2 and big bevel gear 3 between stability, improves the stability of whole solar device when the operation.
The working principle is as follows: in the invention, a worm rod servo reducing motor 13 is arranged at the joint of an extending arm 10 and a wall seat 14, and a photosensitive sensor 24 and a PLC micro processor 25 are arranged, and a planetary servo reducing motor 5, a worm servo reducing motor 13, a driving motor 17 and a double-shaft motor 11 are matched for use, so that the angle of a solar panel of the device has an automatic adjusting effect, the solar panel can always face the sun and rotate along with the sun, the problem of low solar absorptivity is solved, a small bevel gear 6 is driven to rotate by the planetary servo reducing motor 5, the small bevel gear 6 drives a large bevel gear 3 to rotate by meshing transmission, the whole process of enabling solar energy to be absorbed more horizontally is realized, the solar energy is absorbed more fully, worms 12 rotating in different rotating directions are driven by the double-shaft motor 11, and the worm 12 drives a worm wheel 9 to rotate, the rotation of the rotating rod 8 is realized, the display arm 10 is driven to rotate, the expansion and folding of the display arm 10 are realized, and the solar panel has the advantages of simple structure, economy, environmental protection and small occupied area, the driving gear 23 is driven to rotate by the driving motor 17, the driven gear 22 is driven to rotate by the meshing of the driving gear 23 and the driven gear 22, the rotation of the driving shaft 15 is realized, the topmost fan blade 18 is driven to rotate, the expansion and folding of the solar panel 19 are realized by the matching of the second blocking piece 20 and the first blocking piece 21, the solar panel is expanded to absorb solar energy when sunlight exists, the solar panel is folded in rainy and snowy weather and at night, the loss of wind and rain is reduced, the service life is prolonged, because the second blocking piece 20 arranged on the fan blade 18 can only move between the second blocking piece 20 arranged on the fan blade 18 positioned below the fan blade 20 and the first blocking piece 21, the upper fan blade 18 is driven to drive the lower fan blade 18 after rotating by a certain, by analogy, the uppermost fan blade 18 rotates by a large angle to drive all the fan blades 18 below, so that one fan blade 18 can drive all the fan blades to unfold, and the fan blade 18 at the bottommost part of the driving shaft 15 is fixedly connected with the wall seat 14, so that the fan blade 18 cannot rotate after rotating by a certain angle, and the folding principle of the fan blades 18 is similar, and the uppermost fan blade 18 can be folded by reversing.
It needs to be further explained that: the PLC micro-processor 25 is programmed with a solar tracking driving control program, which is consistent with the tracking driving program of the solar photovoltaic panel in the solar power generation technology field, and the driving control program is mature in the solar power generation technology field, and therefore will not be further described herein.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution and the inventive concept of the present invention should be covered by the scope of the present invention.
Claims (10)
1. Domestic automatic folding solar panel, including bottom plate (1), its characterized in that, the top of bottom plate (1) is rotated and is connected with support post (2), fixed mounting has big bevel gear (3) on support post (2), the top fixed mounting of support post (2) has backup pad (4), the top fixed mounting of bottom plate (1) has planet servo gear motor (5), the drive end fixedly connected with little bevel gear (6) of planet servo gear motor (5), little bevel gear (6) are connected with big bevel gear (3) meshing, the top fixed mounting of backup pad (4) has installation shell (7), it is connected with two bull sticks (8) to rotate on installation shell (7), fixed mounting has worm wheel (9) and exhibition arm (10) on bull stick (8), fixed mounting has biax motor (11) on installation shell (7), the driving end of the double-shaft motor (11) is fixedly connected with a worm (12), the worm (12) is meshed with a worm wheel (9) and connected with one end of an expansion arm (10) in a meshed mode, a worm servo speed reducing motor (13) is fixedly installed at one end of the expansion arm (10), a flange plate (16) is fixedly connected with the driving end of the worm servo speed reducing motor (13), a wall seat (14) is fixedly connected to one side of the flange plate (16), a driving shaft (15) is rotatably connected to the wall seat (14), the driving shaft (15) is provided with a plurality of fan blades (18), the fan blades (18) located at the top of the driving shaft (15) are fixedly connected with the driving shaft (15), the fan blades (18) located at the bottom of the driving shaft (15) are fixedly connected with the wall seat (14), a solar panel (19) is fixedly installed in each fan blade (18), and a second blocking piece (20), every the equal first separation blade (21) of fixedly connected with of opposite side of flabellum (18), fixed mounting has driving motor (17) on wall seat (14), the bottom rotation of wall seat (14) is connected with driving gear (23) and driven gear (22), the drive end and the driving gear (23) fixed connection of driving motor (17), the bottom and driven gear (22) fixed connection of drive shaft (15).
2. The household automatic folding solar panel according to claim 1, characterized in that said flange (16) is a supporting flange, said flange (16) being made of stainless steel.
3. The household automatic folding solar panel according to claim 1, characterized in that said support upright (2) is of solid cylindrical structure, the outer diameter of said support upright (2) being 50 mm.
4. The automatic folding solar panel for household use according to claim 1, characterized in that the top of the bottom plate (1) is fixedly mounted with a thrust bearing ball, the top of which is fixedly connected with the bottom of the large bevel gear (3).
5. The automatic folding solar panel for households of claim 1, characterized in that a rubber mat is fixedly mounted at the bottom of the bottom plate (1), and anti-skid lines are integrally formed on the outer surface of the rubber mat.
6. A household automatic folding solar panel according to claim 1, characterized in that the total number of solar panels (19) is 16, each solar panel (19) being of the same size.
7. The household automatic folding solar panel according to claim 1, characterized in that said two worms (12) are in the same horizontal plane, the rotation directions of said two worms (12) being different.
8. The automatic folding solar panel for household use according to claim 1, characterized in that the rotating parts of the fan blades (18) located in the middle of the driving shaft (15) are connected with bearings, and a gasket is fixedly installed between the bearings.
9. The automatic folding solar panel for household use according to claim 1, wherein a gasket is disposed between the turbine (9) and the spreading arm (10), a PLC microprocessor (25) is fixed to the outer side of the mounting case (7), a photosensitive sensor (24) is fixedly mounted on the outermost fan blade (18), the photosensitive sensor (24) is electrically connected to a data receiving port of the PLC microprocessor (25), and a signal output port of the PLC microprocessor (25) is electrically connected to the planetary servo gear motor (5), the worm servo gear motor (13), the driving motor (17) and the double-shaft motor (11) respectively.
10. The automatic folding solar panel for household use according to claim 1, characterized in that the top of said large bevel gear (3) is integrally formed with a sleeve (26), the sleeve (26) is fitted on the outside of the support column (2), and the sleeve (26) is preformed with threaded holes in which bolts for auxiliary fixing of the support column (2) are screwed.
