Abstract
The invention discloses a cement pouring and feeding device for producing electric poles, which comprises a rotating mechanism for forming, a transmission mechanism for feeding and a feeding lifting mechanism for driving the transmission mechanism to lift, wherein the lower end of the rotating mechanism is connected with a vibration mechanism, a power mechanism is arranged on the inner side of the vibration mechanism, the feeding lifting mechanism is arranged on one side of the rotating mechanism, and the transmission mechanism is arranged on one side of the feeding lifting mechanism. According to the invention, the power mechanism is utilized to drive the rotating disc to rotate during pouring, so that the poured concrete can be fully poured in the electric pole mould, the pouring effect is improved, the blockage is avoided, the rotating disc is matched with the bottom supporting disc, the vibration force can be generated during rotation, the bubbles are avoided, and the pouring quality is improved.
Description
Technical Field
The invention relates to the field of electric pole production, in particular to a cement pouring feeding device for electric pole production.
Background
The pole is the bridge of electricity, lets the electricity transport each place, and we common pole have wooden system pole, has the cement pole, and their height differs, stands upright in the plain mountain, spreads all over around people. The general category of poles is many, and concrete poles are commonly made of concrete and steel bars or wires. The iron pole is cast by pig iron, and the concrete pole has two types of prestress and non-prestress. The section of the electric rod is square, octagonal, I-shaped, annular or other special-shaped sections.
At present, the feeding device utilizes the matching of a mold and a pouring pipeline to feed or adopts a transverse pouring method, bubbles are easily generated in the pouring process, a worker is required to operate a vibrating bar to remove and bin the bubbles, and the working efficiency is not high.
Disclosure of Invention
The invention aims to solve the problems and provide a cement pouring feeding device for producing electric poles.
The invention realizes the purpose through the following technical scheme:
a cement pouring feeding device for producing electric poles comprises a rotating mechanism for forming, a conveying mechanism for feeding and a feeding lifting mechanism for driving the conveying mechanism to lift, wherein the lower end of the rotating mechanism is connected with a vibrating mechanism, a power mechanism is arranged on the inner side of the vibrating mechanism, the feeding lifting mechanism is arranged on one side of the rotating mechanism, and the conveying mechanism is arranged on one side of the feeding lifting mechanism;
the rotary mechanism comprises an electric pole die, a fixed disc, a rotary disc and supporting seats, the lower end of the electric pole die is connected with the fixed disc, the rotary disc is arranged at the lower end of the fixed disc, four supporting seats are uniformly arranged outside the rotary disc, and supporting wheels are arranged between the rotary disc and the supporting seats;
the feeding lifting mechanism comprises a lifting frame, a lifting seat, a slide rail and a slide block, wherein the slide rail is arranged at one end of the lifting frame, the slide block is connected onto the slide rail, one end of the slide block is connected with the lifting seat, the conveying mechanism is connected onto the lifting seat, one end of the lifting seat is connected with a lifting screw rod, and a lifting motor is arranged at the power end of the lifting screw rod;
the conveying mechanism comprises a feeding pipe, a flexible pipe, a spiral conveying pipe and a conveying motor, wherein the feeding end of the feeding pipe is connected with the flexible pipe, the flexible pipe is connected with the discharging end of the spiral conveying pipe, the conveying motor is arranged at the power end of the spiral conveying pipe, and a supporting wheel is arranged between the feeding pipe and the lifting frame;
the vibration mechanism comprises a bottom supporting disk, a matching groove and a vibration generation block, wherein the bottom supporting disk is arranged at the lower end of the rotating disk, the bottom supporting disk and the matching groove are arranged between the rotating disks, and the vibration generation block is arranged on the inner side of the bottom supporting disk and on the inner side of the matching groove.
Preferably: the power mechanism comprises a rotating motor, a connecting rod and a worm and gear set, wherein the power output end of the rotating motor is connected with the connecting rod, and the connecting rod is connected with the rotating disk through the worm and gear set.
According to the arrangement, when the rotating disc needs to rotate, the rotating motor drives the worm and gear set to drive the rotating disc to rotate through the connecting rod, so that concrete can be fully filled in the electric pole mould in the feeding process, and air bubbles can be effectively removed by matching with the vibration mechanism.
Preferably: the power mechanism comprises a rotating motor, a reduction gearbox, a belt and a belt pulley, wherein the power output end of the rotating motor is connected with the reduction gearbox, the reduction gearbox is connected with the belt pulley through the belt, and the belt pulley is connected with the rotating disc.
According to the arrangement, when the rotating disc needs to rotate, the rotating motor drives the reduction gearbox and the belt to enable the belt pulley to drive the rotating disc to rotate, so that concrete can be fully filled in the electric pole mould in the feeding process, and air bubbles can be effectively removed by matching with the vibrating mechanism.
Preferably: the pole mould passes through bolted connection the fixed disk, the fixed disk passes through bolted connection the rotary disk, supporting wheel pin junction the supporting seat.
So set up, the fixed disk plays the installation and fixes the pole mould effect, the carousel plays the rotation effect, the supporting wheel plays spacing and supporting role.
Preferably: the slide rail passes through bolted connection the crane, slider sliding connection the slide rail, the slider passes through bolted connection the lift seat.
So set up, the slide rail with the slider plays limiting displacement, the seat that goes up and down plays to promote the feed pipe effect.
Preferably: the lifting screw rod is connected with the lifting seat through threads, the lifting motor is connected with the lifting screw rod through a coupler, and the lifting motor is connected with the lifting frame through bolts.
According to the arrangement, the lifting screw rod is matched with the lifting seat to enable the lifting seat to lift, so that the discharge hole of the feeding pipe can be driven to lift in the feeding process.
Preferably: the supporting wheel is connected with the lifting frame through a pin, the feeding pipe is connected with the flexible pipe through a flange, and the flexible pipe is connected with the spiral conveying pipe through a flange.
So set up, the supporting wheel plays the supporting role, feeding pipe, the flexible pipe plays the transmission effect.
Preferably: the vibration generating block is formed on the bottom supporting disk and the matching groove.
So set up, the bottom supporting disk with the cooperation groove passes through the piece cooperation takes place in the vibration, makes the rotary disk can produce the vibration when rotatory, improves the pouring effect of concrete, effectively gets rid of the bubble.
Preferably: the rotating motor is connected with the connecting rod through a coupler, the connecting rod is connected with the worm gear set through a coupler, and the worm gear set is connected with the rotating disk through a key.
According to the arrangement, the connecting rod plays a linkage role, and the worm and gear set plays a transmission role.
Preferably: the rotating motor key is connected with the reduction gearbox, and the belt pulley key is connected with the rotating disk.
So set up, the belt pulley plays the drive effect.
Compared with the prior art, the invention has the following beneficial effects:
1. the power mechanism is utilized to drive the rotating disc to rotate during pouring, so that the poured concrete can be fully poured in the electric pole mould, the pouring effect is improved, and blockage is avoided;
2. the rotary disk utilizes the cooperation of bottom supporting disk, can produce the vibrational force when rotatory, avoids the bubble, improves the pouring quality.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

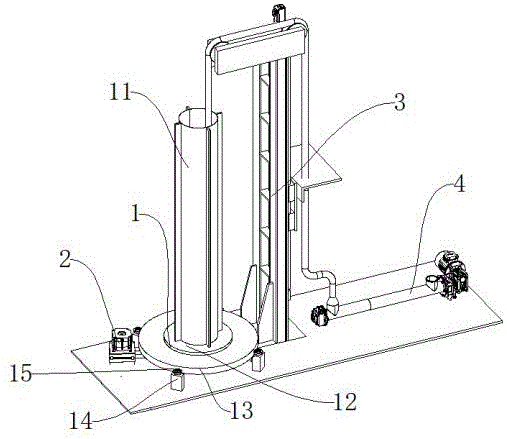

FIG. 1 is a schematic view of a first structure of a cement pouring and feeding device for producing electric poles, which is disclosed by the invention;
FIG. 2 is a schematic diagram of a second structure of the cement pouring and feeding device for producing electric poles, which is disclosed by the invention;
FIG. 3 is a schematic structural diagram of a transmission mechanism of a cement pouring feeding device for producing electric poles, which is disclosed by the invention;
FIG. 4 is a schematic view of a first structure of a rotary disc of the cement pouring and feeding device for producing electric poles in accordance with the present invention;
FIG. 5 is a second structural schematic diagram of a rotating disc of the cement pouring feeding device for producing electric poles, which is disclosed by the invention;
FIG. 6 is a schematic structural diagram of a vibration mechanism of a cement pouring and feeding device for producing electric poles, which is disclosed by the invention;
FIG. 7 is a schematic structural diagram of a worm and gear set of the cement pouring and feeding device for producing electric poles, which is disclosed by the invention;
fig. 8 is a schematic diagram of the structure of a belt pulley of the cement pouring feeding device for producing electric poles.
The reference numerals are explained below:
1. a rotation mechanism; 2. a power mechanism; 3. a feeding lifting mechanism; 4. a transport mechanism; 5. a vibration mechanism; 11. an electric pole mold; 12. fixing the disc; 13. rotating the disc; 14. a supporting seat; 15. a support wheel; 21. a rotating electric machine; 22. a connecting rod; 23. a worm gear group; 211. a reduction gearbox; 212. a belt; 213. a belt pulley; 31. a lifting frame; 32. a lifting seat; 33. a slide rail; 34. a slider; 35. a lifting screw; 36. a lifting motor; 41. a feed pipe; 42. a flexible tube; 43. a helical conveying pipe; 44. a transmission motor; 45. a support wheel; 51. a bottom support disk; 52. a mating groove; 53. a vibration generating block.
Detailed Description
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are used only for convenience in describing the present invention and for simplicity in description, and do not indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention. Furthermore, the terms "first", "second", etc. are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first," "second," etc. may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.
The invention will be further described with reference to the accompanying drawings in which:
example 1
As shown in fig. 1-7, a cement pouring feeding device for electric pole production comprises a rotating mechanism 1 for molding, a conveying mechanism 4 for feeding and a feeding lifting mechanism 3 for driving the conveying mechanism 4 to lift, wherein the lower end of the rotating mechanism 1 is connected with a vibrating mechanism 5, a power mechanism 2 is arranged inside the vibrating mechanism 5, the feeding lifting mechanism 3 is arranged on one side of the rotating mechanism 1, and the conveying mechanism 4 is arranged on one side of the feeding lifting mechanism 3;
the rotating mechanism 1 comprises an electric pole die 11, a fixed disc 12, a rotating disc 13 and supporting seats 14, wherein the lower end of the electric pole die 11 is connected with the fixed disc 12, the rotating disc 13 is arranged at the lower end of the fixed disc 12, the four supporting seats 14 are uniformly arranged outside the rotating disc 13, and supporting wheels 15 are arranged between the rotating disc 13 and the supporting seats 14;
the feeding lifting mechanism 3 comprises a lifting frame 31, a lifting seat 32, a slide rail 33 and a slide block 34, wherein the slide rail 33 is arranged at one end of the lifting frame 31, the slide rail 33 is connected with the slide block 34, one end of the slide block 34 is connected with the lifting seat 32, the conveying mechanism 4 is connected with the lifting seat 32, one end of the lifting seat 32 is connected with a lifting screw 35, and a power end of the lifting screw 35 is provided with a lifting motor 36;
the transmission mechanism 4 comprises a feeding pipe 41, a flexible pipe 42, a spiral conveying pipe 43 and a transmission motor 44, wherein the feeding end of the feeding pipe 41 is connected with the flexible pipe 42, the flexible pipe 42 is connected with the discharging end of the spiral conveying pipe 43, the power end of the spiral conveying pipe 43 is provided with the transmission motor 44, and a support wheel 45 is arranged between the feeding pipe 41 and the lifting frame 31;
the vibration mechanism 5 comprises a bottom supporting disk 51, a matching groove 52 and a vibration generating block 53, wherein the bottom supporting disk 51 is arranged at the lower end of the rotating disk 13, the matching groove 52 is arranged between the bottom supporting disk 51 and the rotating disk 13, and the vibration generating block 53 is arranged on the inner sides of the bottom supporting disk 51 and the matching groove 52.
Preferably: the power mechanism 2 comprises a rotating motor 21, a connecting rod 22 and a worm gear group 23, the power output end of the rotating motor 21 is connected with the connecting rod 22, the connecting rod 22 is connected with the rotating disc 13 through the worm gear group 23, when the rotating disc 13 needs to rotate, the rotating motor 21 enables the worm gear group 23 to drive the rotating disc 13 to rotate through the connecting rod 22, so that concrete can be fully filled in the electric pole mold 11 in the feeding process, and bubbles can be effectively removed by matching with the vibrating mechanism 5; the electric pole mould 11 is connected with a fixed disc 12 through bolts, the fixed disc 12 is connected with a rotating disc 13 through bolts, a supporting wheel 15 is in pin connection with a supporting seat 14, the fixed disc 12 plays a role in mounting and fixing the electric pole mould 11, the rotating disc 13 plays a role in rotation, and the supporting wheel 15 plays a role in limiting and supporting; the slide rail 33 is connected with the lifting frame 31 through a bolt, the slide block 34 is connected with the slide rail 33 in a sliding way, the slide block 34 is connected with the lifting seat 32 through a bolt, the slide rail 33 and the slide block 34 play a limiting role, and the lifting seat 32 plays a role in lifting the feeding pipe 41; the lifting screw 35 is connected with the lifting seat 32 through threads, the lifting motor 36 is connected with the lifting screw 35 through a coupler, the lifting motor 36 is connected with the lifting frame 31 through bolts, and the lifting screw 35 is matched with the lifting seat 32 to enable the lifting seat 32 to be lifted, so that a discharge hole of the feeding pipe 41 can be driven to be lifted in the feeding process; the supporting wheel 45 is connected with the lifting frame 31 through a pin, the feeding pipe 41 is connected with the flexible pipe 42 through a flange, the flexible pipe 42 is connected with the spiral conveying pipe 43 through a flange, the supporting wheel 45 plays a supporting role, and the feeding pipe 41 and the flexible pipe 42 play a transmission role; the vibration generating block 53 is formed on the bottom supporting disc 51 and the matching groove 52, and the bottom supporting disc 51 and the matching groove 52 are matched through the vibration generating block 53, so that the rotating disc 13 can generate vibration during rotation, the pouring effect of concrete is improved, and air bubbles are effectively removed; the rotating motor 21 is connected with the connecting rod 22 through a coupler, the connecting rod 22 is connected with the worm gear group 23 through a coupler, the worm gear group 23 is connected with the rotating disk 13 in a key mode, the connecting rod 22 plays a linkage role, and the worm gear group 23 plays a transmission role.
Example 2
As shown in fig. 8, the present embodiment is different from embodiment 1 in that:
the power mechanism 2 comprises a rotating motor 21, a reduction gearbox 211, a belt 212 and a belt pulley 213, wherein the power output end of the rotating motor 21 is connected with the reduction gearbox 211, the reduction gearbox 211 is connected with the belt pulley 213 through the belt 212, the belt pulley 213 is connected with the rotating disc 13, when the rotating disc 13 needs to rotate, the rotating motor 21 drives the reduction gearbox 211 and the belt 212 to enable the belt pulley 213 to drive the rotating disc 13 to rotate, so that concrete can be fully filled in the electric pole mold 11 in the feeding process, and bubbles can be effectively removed by matching with the vibration mechanism 5; the rotary motor 21 is in key connection with the reduction box 211, the belt pulley 213 is in key connection with the rotary disk 13, and the belt pulley 213 plays a transmission role.
The working principle is as follows: after fixing pole mould 11 in fixed disk 12 upper end, fixed disk 12 and rotary disk 13 are fixed, start transmission device 4 and power unit 2, it is rotatory to make rotating electrical machines 21 drive rotary disk 13, thereby the vibration that makes on the bottom supporting disk 51 takes place the piece 53 and cooperates the vibration that takes place the piece 53 cooperation in the groove 52 in the rotary disk 13 is rotatory, thereby make pole mould 11 receive the vibration, simultaneously through the conveying screw pipe 43, flexible pipe 42, feeding pipe 41 is to the inside feed of pole mould 11, the feed is lift seat 32 simultaneously and is driven crane 31 and rise, thereby make the feed process guarantee the feed quality.
