Abstract

本发明公开了一种移动通信终端，包括通信终端，所述通信终端放置于地面上，所述地面内设有开口向上的传动腔，所述通信终端内设有用于检测风速的保护机构，所述保护机构包括位于所述通信终端内且连通外部的四个旋转腔，所述旋转腔靠近所述传动腔的内壁上转动连接有旋转轴，所述旋转轴上固定连接有四个叶片，上方所述叶片上设有开口向上的离心腔，本发明结构简单、操作便捷，使通信终端能够定时上下移动，防止通信设备影响正常通行，另外该装置还能够避免通信终端被高速风影响，在高风天气自动下降，避免通信终端被破坏，另外该装置还能够在雨天时自动排水，防止积水影响通信，同时防止平时下水道反味。

Figure 202010977555

The invention discloses a mobile communication terminal, comprising a communication terminal, the communication terminal is placed on the ground, a transmission cavity with an upward opening is arranged in the ground, and a protection mechanism for detecting wind speed is arranged in the communication terminal, so the The protection mechanism includes four rotating cavities located in the communication terminal and communicating with the outside. A rotating shaft is rotatably connected to the inner wall of the rotating cavity close to the transmission cavity, and four blades are fixedly connected to the rotating shaft. The blade is provided with a centrifugal cavity with an upward opening. The present invention is simple in structure and convenient in operation, so that the communication terminal can move up and down at regular intervals, preventing the communication equipment from affecting normal traffic. In addition, the device can also prevent the communication terminal from being affected by high-speed wind. In windy weather, it will automatically drop to prevent the communication terminal from being damaged. In addition, the device can also automatically drain water in rainy weather, preventing accumulated water from affecting communication, and preventing the usual sewer smell.

Figure 202010977555

Description

Mobile communication terminal
Technical Field
The invention relates to the field of mobile terminals, in particular to a mobile communication terminal.
Background
The communication terminal is a direct tool for people to enjoy different information applications (communication services), and undertakes various tasks such as providing a good user interface for users, completing required service functions, accessing a communication network and the like, and the mobile communication terminal is a communication terminal capable of being used in moving;
therefore, a large-sized communication terminal is easily influenced to normal traffic when installed on the ground, but is easily influenced by wind, rain and thunder when installed at a high place, and thus is easily influenced to normal communication.
Disclosure of Invention
The technical problem to be solved by the invention is to provide a mobile communication terminal, which solves the influence of extreme weather and thunderstorm weather on the communication terminal and can drain water in rainy days.
The invention relates to a mobile communication terminal, which comprises a communication terminal, wherein the communication terminal is placed on the ground, a transmission cavity with an upward opening is arranged in the ground, a protection mechanism for detecting wind speed is arranged in the communication terminal, the protection mechanism comprises four rotating cavities which are positioned in the communication terminal and communicated with the outside, the inner wall of the rotating cavity, which is close to the transmission cavity, is rotatably connected with a rotating shaft, four blades are fixedly connected with the rotating shaft, a centrifugal cavity with an upward opening is arranged on the upper blade, a centrifugal block is connected in the centrifugal cavity in a sliding manner, the lower end of the centrifugal block is fixedly connected with a centrifugal spring, the lower end of the centrifugal spring is fixedly connected with the lower inner wall of the centrifugal cavity, a moving cavity with a rightward opening is arranged in the left inner wall of the transmission cavity, a moving block is connected in a sliding manner, the upper end of the moving spring is fixedly connected with the upper inner wall of the moving cavity, a pneumatic cavity is arranged in the ground, a pneumatic plate is connected in the pneumatic cavity in a sliding manner, a pneumatic spring is fixedly connected at the upper end of the pneumatic plate, the upper end of the pneumatic spring is fixedly connected with the upper inner wall of the pneumatic cavity, a pneumatic pipe communicated with the centrifugal cavity is fixedly connected with the upper inner wall of the pneumatic cavity, a fine wire is fixedly connected at the lower end of the pneumatic plate, the fine wire penetrates through the lower inner wall of the pneumatic cavity and the lower inner wall of the moving cavity is fixedly connected with the moving block, a reciprocating cavity communicated with the moving cavity is arranged in the front inner wall of the moving cavity, a rack penetrating through the moving block is connected in the reciprocating cavity in a sliding manner, a sliding groove is arranged in the rack, a sliding block is connected in the sliding groove in a sliding manner, a reciprocating spring is, the communication terminal is internally provided with a transmission mechanism for transmission, the communication terminal is internally provided with a drainage mechanism for controlling drainage, and the communication terminal is internally provided with a moving mechanism for controlling movement.
Furthermore, the moving mechanism comprises two driven shafts which are rotationally connected with the lower inner wall of the transmission cavity, the driven shaft is fixedly connected with a driven belt wheel, the front driven shaft is fixedly connected with a gear and a connecting sleeve, the inner key of the connecting sleeve is connected with a connecting shaft, the upper end of the connecting shaft is fixedly connected with the communication terminal, a limiting cavity with an upward opening is arranged on the ground, a limiting block is connected on the connecting shaft in a sliding way, the lower end of the limiting block is fixedly connected with a limiting spring, the lower end of the limiting spring is fixedly connected with the lower inner wall of the limiting cavity, a clamping groove with a leftward opening is arranged on the limiting block, a positioning cavity with a rightward opening is arranged in the communication terminal, the positioning cavity is internally and slidably connected with a positioning block, the left end of the positioning block is fixedly connected with a positioning spring, and the left end of the positioning spring is fixedly connected with the left inner wall of the positioning cavity.
Further, the transmission mechanism comprises a transmission motor fixedly connected to the lower inner wall of the transmission cavity, the transmission motor is in power connection with a driving shaft, two driving belt wheels are fixedly connected to the driving shaft and the driven belt wheels through belt transmission, a wire wheel is fixedly connected to the driven shaft at the rear, a long wire is fixedly connected to the wire wheel, the long wire penetrates through the rear inner wall of the transmission cavity and the front inner wall of the reciprocating cavity and is fixedly connected with the sliding block, a telescopic cavity with a downward opening is arranged in the upper inner wall of the transmission cavity, a tensioning block is slidably connected in the telescopic cavity, a telescopic spring is fixedly connected to the upper end of the tensioning block, the upper end of the telescopic spring is fixedly connected to the upper inner wall of the telescopic cavity, a groove with a backward opening is arranged on the driven shaft at the rear, a pushing cavity with a forward opening is arranged in the rear inner wall of, the centrifugal chamber centrifugal pump is characterized in that a pull rope and a pushing spring are fixedly connected to the rear end of the pushing block, the rear end of the pushing spring is fixedly connected with the rear inner wall of the pushing chamber, the pull rope penetrates through the rear inner wall of the pushing chamber and the lower inner wall of the transmission chamber and the tensioning block, and the rear inner wall of the pushing chamber is fixedly connected with a pipeline communicated with the centrifugal chamber.
Furthermore, the drainage mechanism comprises a sliding cavity which is positioned in the communication terminal and has an upward opening, an extending cavity with a rightward opening is arranged in the left inner wall of the sliding cavity, a sliding plate with a left end positioned in the extending cavity is connected in the sliding cavity in a sliding manner, the lower end of the sliding plate is fixedly connected with a sliding spring, the lower end of the sliding spring is fixedly connected with the lower inner wall of the sliding cavity, the upper end of the sliding plate is fixedly connected with a string, the string penetrates through the upper inner wall of the extending cavity and the left inner wall of the positioning cavity and is fixedly connected with the positioning block, four water pipes communicated with the outside are arranged in the ground, a compression cavity communicated with the water pipes is arranged in the ground, a compression plate is connected in the compression cavity in a sliding manner, a through hole is arranged on the compression plate, one end of the compression plate, which is far away from the transmission cavity, the inner wall of the compression cavity close to the transmission cavity is fixedly connected with a connecting pipe communicated with the sliding cavity.
Further, the elastic force of the push spring is greater than that of the extension spring.
The invention has the beneficial effects that: the device has the advantages of simple structure and convenient operation, ensures that the communication terminal can move up and down at regular time, prevents the communication equipment from influencing normal passing, can avoid the influence of high-speed wind on the communication terminal, automatically descends in high-wind weather, avoids the damage of the communication terminal, can automatically drain water in rainy days, prevents water accumulation from influencing communication, and simultaneously prevents the smell of a sewer from reflecting in normal times.
Drawings
In order to more clearly illustrate the embodiments of the invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the invention, and it is obvious for those skilled in the art that other drawings can be obtained based on these drawings without creative efforts.

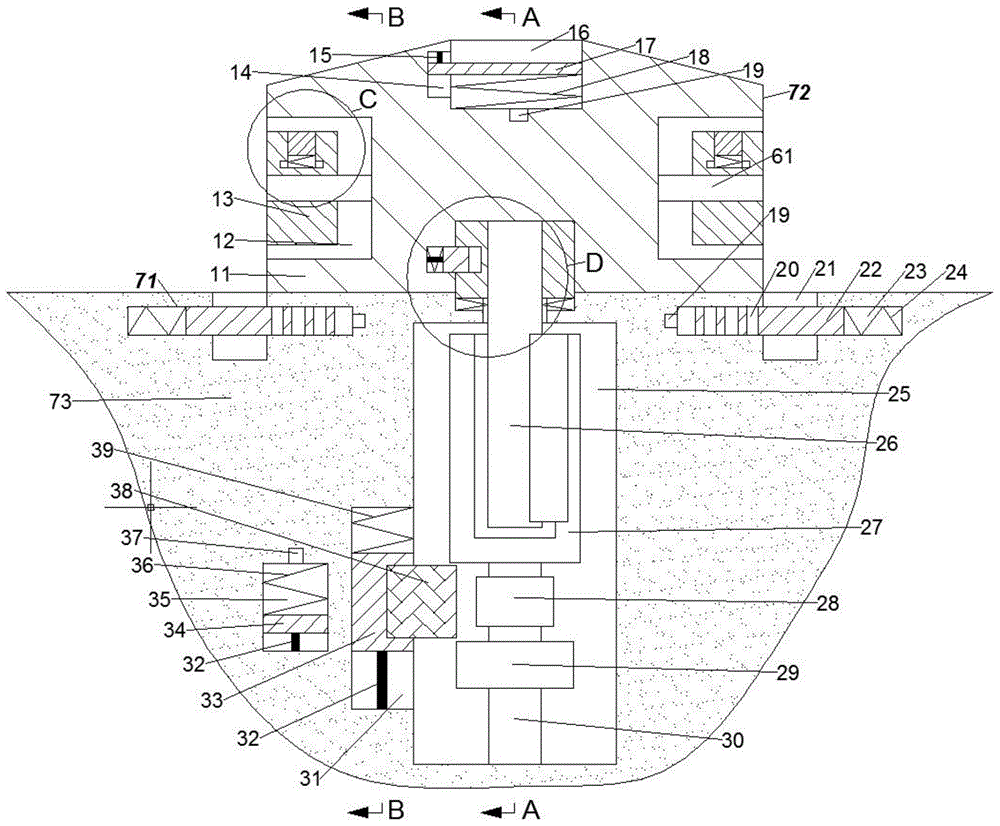

FIG. 1 is a schematic structural diagram of an embodiment of the present invention;
FIG. 2 is a schematic structural diagram at A-A in FIG. 1 according to an embodiment of the present invention;
FIG. 3 is a schematic structural diagram at B-B in FIG. 1 according to an embodiment of the present invention;
FIG. 4 is an enlarged schematic view of the structure at C in FIG. 1 according to an embodiment of the present invention;
fig. 5 is an enlarged schematic structural diagram at D in fig. 1 according to an embodiment of the present invention.
Detailed Description
The invention will now be described in detail with reference to fig. 1-5, wherein for ease of description the orientations described hereinafter are now defined as follows: the up, down, left, right, and front-back directions described below correspond to the up, down, left, right, and front-back directions in the projection relationship of fig. 1 itself.
Referring to fig. 1-5, a mobile communication terminal is described, which includes a communication terminal 11, the communication terminal 11 is placed on a ground 73, a transmission cavity 25 with an upward opening is provided in the ground 73, a protection mechanism 69 for detecting a wind speed is provided in the communication terminal 11, the protection mechanism 69 includes four rotation cavities 12 located in the communication terminal 11 and communicated with the outside, a rotation shaft 61 is rotatably connected to an inner wall of the rotation cavity 12 near the transmission cavity 25, four blades 13 are fixedly connected to the rotation shaft 61, a centrifugal cavity 58 with an upward opening is provided on the upper blade 13, a centrifugal block 60 is slidably connected to the centrifugal cavity 58, a centrifugal spring 59 is fixedly connected to a lower end of the centrifugal block 60, a movable cavity 31 with a rightward opening is provided in a left inner wall of the transmission cavity 25, a moving block 33 is connected in the moving cavity 31 in a sliding manner, a moving spring 39 is fixedly connected at the upper end of the moving block 33, the upper end of the moving spring 39 is fixedly connected with the upper inner wall of the moving cavity 31, a pneumatic cavity 35 is arranged in the ground 73, a pneumatic plate 34 is connected in the pneumatic cavity 35 in a sliding manner, a pneumatic spring 36 is fixedly connected at the upper end of the pneumatic plate 34, the upper end of the pneumatic spring 36 is fixedly connected with the upper inner wall of the pneumatic cavity 35, a pneumatic tube 37 communicated with the centrifugal cavity 58 is fixedly connected to the upper inner wall of the pneumatic cavity 35, a fine wire 32 is fixedly connected at the lower end of the pneumatic plate 34, the fine wire 32 penetrates through the lower inner wall of the pneumatic cavity 35 and the lower inner wall of the moving cavity 31 and is fixedly connected with the moving block 33, a reciprocating cavity 54 communicated with the moving cavity 31 is arranged in the front inner wall of the moving cavity 31, and, a sliding groove 56 is arranged in the rack 38, a sliding block 55 is connected in the sliding groove 56 in a sliding manner, a reciprocating spring 57 is fixedly connected to the rear end of the rack 38, the rear end of the reciprocating spring 57 is fixedly connected with the rear inner wall of the reciprocating cavity 54, a transmission mechanism 70 for transmission is arranged in the communication terminal 11, a drainage mechanism 71 for controlling drainage is arranged in the communication terminal 11, and a moving mechanism 72 for controlling movement is arranged in the communication terminal 11.
Beneficially, the moving mechanism 72 includes two driven shafts 30 rotatably connected to the lower inner wall of the transmission cavity 25, a driven pulley 28 is fixedly connected to the driven shaft 30, a gear 29 and a connecting sleeve 27 are fixedly connected to the driven shaft 30 in front, a connecting shaft 26 is connected to the inner key of the connecting sleeve 27, the upper end of the connecting shaft 26 is fixedly connected to the communication terminal 11, a limiting cavity 67 with an upward opening is formed on the ground 73, a limiting block 66 is slidably connected to the connecting shaft 26, a limiting spring 68 is fixedly connected to the lower end of the limiting block 66, the lower end of the limiting spring 68 is fixedly connected to the lower inner wall of the limiting cavity 67, a clamping groove 65 with a leftward opening is formed on the limiting block 66, a positioning cavity 62 with a rightward opening is formed in the communication terminal 11, a positioning block 64 is slidably connected to the positioning cavity 62, and a, the left end of the positioning spring 63 is fixedly connected with the left inner wall of the positioning cavity 62.
Beneficially, the transmission mechanism 70 includes a transmission motor 40 fixedly connected to the lower inner wall of the transmission cavity 25, the transmission motor 40 is power-connected with a driving shaft 41, two driving pulleys 42 fixedly connected to the driving shaft 41 and driven pulleys 28 through belt transmission, and a rear pulley 47 fixedly connected to the driven shaft 30, a long line 48 fixedly connected to the line wheel 47, the long line 48 penetrates through the rear inner wall of the transmission cavity 25 and the front inner wall of the reciprocating cavity 54 and the sliding block 55, a telescopic cavity 45 with a downward opening is arranged in the upper inner wall of the transmission cavity 25, a tensioning block 44 is slidably connected to the telescopic cavity 45, a telescopic spring 46 is fixedly connected to the upper end of the tensioning block 44, the upper end of the telescopic spring 46 is fixedly connected to the upper inner wall of the telescopic cavity 45, and a rearward groove 53 with a rearward opening is arranged on the driven shaft 30, be equipped with the promotion chamber 51 that the opening is preceding in the transmission chamber 25 back inner wall, it has promotion piece 52 to promote sliding connection in chamber 51, promote piece 52 rear end fixedly connected with stay cord 43 and promotion spring 49, promotion spring 49 rear end with promote chamber 51 back inner wall fixed connection, stay cord 43 pierces through promote chamber 51 back inner wall and transmission chamber 25 lower inner wall with tensioning block 44 fixed connection, promote chamber 51 back inner wall fixedly connected with intercommunication the pipeline 50 of centrifugation chamber 58.
Advantageously, the drainage mechanism 71 includes a sliding cavity 16 located in the communication terminal 11 and having an upward opening, an extending cavity 14 having a rightward opening is provided in a left inner wall of the sliding cavity 16, a sliding plate 17 having a left end located in the extending cavity 14 is slidably connected in the sliding cavity 16, a sliding spring 18 is fixedly connected to a lower end of the sliding plate 17, a lower end of the sliding spring 18 is fixedly connected to a lower inner wall of the sliding cavity 16, a string 15 is fixedly connected to an upper end of the sliding plate 17, the string 15 penetrates through an upper inner wall of the extending cavity 14 and a left inner wall of the positioning cavity 62 and is fixedly connected to the positioning block 64, four water pipes 21 communicating with the outside are provided in the ground 73, a compression cavity 23 communicating with the water pipes 21 is provided in the ground 73, a compression plate 22 is slidably connected to the compression cavity 23, a through hole 20 is provided in the compression plate 22, and a compression spring 24 is fixedly connected to an end, the other end of the compression spring 24 is fixedly connected with the inner wall of the compression cavity 23, and the inner wall of the compression cavity 23 close to the transmission cavity 25 is fixedly connected with a connecting pipe 19 communicated with the sliding cavity 16.
Advantageously, the elastic force of said push spring 49 is greater than the elastic force of said telescopic spring 46.
In the initial state, the extension spring 46 is in a stretched state.
During operation, the transmission motor 40 starts to operate, so that the driving shaft 41 is driven to rotate, the driving belt wheel 42 is driven to rotate, the front driven belt wheel 28 is driven to rotate, the front driven shaft 30 is driven to rotate, the connecting sleeve 27 is driven to rotate, the connecting shaft 26 is driven to move upwards, the communication terminal 11 and the limiting block 66 are driven to move upwards, the limiting spring 68 is stretched, the communication terminal 11 moves to the highest position at the moment, the passing is prevented from being blocked, the transmission motor 40 is timed, and the communication terminal rotates backwards after the passing amount is reduced at night, so that all the parts are driven to reset;
when the communication terminal 11 is at the highest position, if the wind speed is too high, the blade 13 is driven to rotate, so as to drive the rotating shaft 61 to rotate, the centrifugal block 60 is driven to move away from the rotating shaft 61 when the wind speed is too high, so as to drive the pneumatic plate 34 to move upwards, so as to tension the thin wire 32, so as to drive the moving block 33 to move downwards, so as to enable the rack 38 to be meshed with the gear 29, meanwhile, the centrifugal block 60 drives the pushing block 52 to move backwards, so as to enable the pushing block 52 to be separated from the groove 53, and at the same time, the pull rope 43 is loosened, at the same time, the tensioning block 44 moves upwards under the action of the expansion spring 46, so as to enable the belt between the front driven pulley 28 and the driving pulley 42 to be loosened, at the driving pulley 42 drives the rear driven pulley 28 to rotate, so as to drive the rear driven shaft 30 to rotate, so as to drive the pulley 47 to rotate, so, thereby driving the gear 29 to rotate, driving the front driven shaft 30 to rotate reversely, driving the transmission cavity 25 to rotate reversely, and driving the communication terminal 11 and the connecting shaft 26 to move downwards until reset, and preventing the communication terminal 11 from being damaged by high-speed wind;
when raining, rainwater falls into the sliding cavity 16, so that the sliding plate 17 is pushed to move downwards, the string 15 is tensioned, the positioning block 64 is driven to move leftwards, the positioning block is separated from the clamping groove 65, the limiting block 66 moves downwards under the action of the limiting spring 68 at the moment, the transmission cavity 25 is not communicated with the outside any more, the sliding plate 17 moves downwards at the moment, the compression plate 22 is pushed to move towards the direction far away from the transmission cavity 25, rainwater flows to a sewer along the through hole 20 through the water pipe 21, drainage is carried out, and when the weather is clear, all the parts are reset.
The above embodiments are merely illustrative of the technical ideas and features of the present invention, and the purpose thereof is to enable those skilled in the art to understand the contents of the present invention and implement the present invention, and not to limit the protection scope of the present invention. All equivalent changes and modifications made according to the spirit of the present invention should be covered within the protection scope of the present invention.

Claims (5)

1.一种移动通信终端，包括通信终端，其特征在于：所述通信终端放置于地面上，所述地面内设有开口向上的传动腔，所述通信终端内设有用于检测风速的保护机构，所述保护机构包括位于所述通信终端内且连通外部的四个旋转腔，所述旋转腔靠近所述传动腔的内壁上转动连接有旋转轴，所述旋转轴上固定连接有四个叶片，上方所述叶片上设有开口向上的离心腔，所述离心腔内滑动连接有离心块，所述离心块下端固定连接有离心弹簧，所述离心弹簧下端与所述离心腔下内壁固定连接，所述传动腔左内壁内设有开口向右的移动腔，所述移动腔内滑动连接有移动块，所述移动块上端固定连接有移动弹簧，所述移动弹簧上端与所述移动腔上内壁固定连接，所述地面内设有气动腔，所述气动腔内滑动连接有气动板，所述气动板上端固定连接有气动弹簧，所述气动弹簧上端与所述气动腔上内壁固定连接，所述气动腔上内壁固定连接有连通所述离心腔的气动管，所述气动板下端固定连接有细线，所述细线穿透所述气动腔下内壁以及所述移动腔下内壁与所述移动块固定连接，所述移动腔前内壁内设有连通所述移动腔的往复腔，所述往复腔内滑动连接有贯穿所述移动块的齿条，所述齿条内设有滑槽，所述滑槽内滑动连接有滑动块，所述齿条后端固定连接有往复弹簧，所述往复弹簧后端与所述往复腔后内壁固定连接，所述通信终端内设有用于传动的传动机构，所述通信终端内设有用于控制排水的排水机构，所述通信终端内设有用于控制移动的移动机构。1. A mobile communication terminal, comprising a communication terminal, characterized in that: the communication terminal is placed on the ground, the ground is provided with a transmission cavity with an upward opening, and the communication terminal is provided with a protection mechanism for detecting wind speed , the protection mechanism includes four rotating cavities located in the communication terminal and communicating with the outside, a rotating shaft is rotatably connected to the inner wall of the rotating cavity close to the transmission cavity, and four blades are fixedly connected to the rotating shaft , the upper blade is provided with a centrifugal cavity with an upward opening, a centrifugal block is slidably connected in the centrifugal cavity, a centrifugal spring is fixedly connected to the lower end of the centrifugal block, and the lower end of the centrifugal spring is fixedly connected to the lower inner wall of the centrifugal cavity The left inner wall of the transmission cavity is provided with a moving cavity with an opening to the right, a moving block is slidably connected in the moving cavity, a moving spring is fixedly connected to the upper end of the moving block, and the upper end of the moving spring is connected to the upper end of the moving cavity. The inner wall is fixedly connected, the ground is provided with a pneumatic cavity, the pneumatic cavity is slidably connected with a pneumatic plate, the upper end of the pneumatic plate is fixedly connected with a pneumatic spring, and the upper end of the pneumatic spring is fixedly connected with the upper inner wall of the pneumatic cavity, The upper inner wall of the pneumatic cavity is fixedly connected with a pneumatic tube that communicates with the centrifugal cavity, and the lower end of the pneumatic plate is fixedly connected with a thin line, which penetrates the lower inner wall of the pneumatic cavity and the lower inner wall of the moving cavity and the The moving block is fixedly connected, the front inner wall of the moving cavity is provided with a reciprocating cavity that communicates with the moving cavity, the reciprocating cavity is slidably connected with a rack running through the moving block, and the rack is provided with a chute , a sliding block is slidably connected in the chute, a reciprocating spring is fixedly connected to the rear end of the rack, and the rear end of the reciprocating spring is fixedly connected to the rear inner wall of the reciprocating cavity. A transmission mechanism, the communication terminal is provided with a drainage mechanism for controlling drainage, and the communication terminal is provided with a moving mechanism for controlling movement. 2.根据权利要求1所述的一种移动通信终端，其特征在于：所述移动机构包括转动连接于所述传动腔下内壁的两个从动轴，所述从动轴上固定连接有从动带轮，前方所述从动轴上固定连接有齿轮和连接套，所述连接套内键连接有连接轴，所述连接轴上端与所述通信终端固定连接，所述地面上设有开口向上的限位腔，所述连接轴上滑动连接有限位块，所述限位块下端固定连接有限位弹簧，所述限位弹簧下端与所述限位腔下内壁固定连接，所述限位块上设有开口向左的卡槽，所述通信终端内设有开口向右的定位腔，所述定位腔内滑动连接有定位块，所述定位块左端固定连接有定位弹簧，所述定位弹簧左端与所述定位腔左内壁固定连接。2 . The mobile communication terminal according to claim 1 , wherein the moving mechanism comprises two driven shafts rotatably connected to the lower inner wall of the transmission cavity, and the driven shafts are fixedly connected with slave shafts. 3 . a driving pulley, a gear and a connecting sleeve are fixedly connected to the driven shaft in the front, a connecting shaft is connected to the inner key of the connecting sleeve, the upper end of the connecting shaft is fixedly connected to the communication terminal, and an opening is provided on the ground The upper limit cavity is slidably connected to a limit block, the lower end of the limit block is fixedly connected to a limit spring, and the lower end of the limit spring is fixedly connected to the lower inner wall of the limit cavity, and the limit The block is provided with a card slot that opens to the left, the communication terminal is provided with a positioning cavity that opens to the right, a positioning block is slidably connected in the positioning cavity, and a positioning spring is fixedly connected to the left end of the positioning block. The left end of the spring is fixedly connected with the left inner wall of the positioning cavity. 3.根据权利要求2所述的一种移动通信终端，其特征在于：所述传动机构包括固定连接于所述传动腔下内壁的传动电机，所述传动电机动力连接有主动轴，所述主动轴上固定连接有两个与所述从动带轮通过皮带传动的主动带轮，后方所述从动轴上固定连接有线轮，所述线轮上固定连接有长线，所述长线穿透所述传动腔后内壁以及所述往复腔前内壁与所述滑动块固定连接，所述传动腔上内壁内设有开口向下的伸缩腔，所述伸缩腔内滑动连接有张紧块，所述张紧块上端固定连接有伸缩弹簧，所述伸缩弹簧上端与所述伸缩腔上内壁固定连接，后方所述从动轴上设有开口向后的凹槽，所述传动腔后内壁内设有开口向前的推动腔，所述推动腔内滑动连接有推动块，所述推动块后端固定连接有拉绳和推动弹簧，所述推动弹簧后端与所述推动腔后内壁固定连接，所述拉绳穿透所述推动腔后内壁以及所述传动腔下内壁与所述张紧块固定连接，所述推动腔后内壁固定连接有连通所述离心腔的管道。3. A mobile communication terminal according to claim 2, wherein the transmission mechanism comprises a transmission motor fixedly connected to the lower inner wall of the transmission cavity, the transmission motor is powered with a driving shaft, and the driving The shaft is fixedly connected with two driving pulleys that are driven by belts with the driven pulley, and the driven shaft at the rear is fixedly connected with a wire pulley, and a long wire is fixedly connected to the wire pulley, and the long wire penetrates all the The rear inner wall of the transmission cavity and the front inner wall of the reciprocating cavity are fixedly connected to the sliding block, the upper inner wall of the transmission cavity is provided with a telescopic cavity with an opening downward, and a tension block is slidably connected in the telescopic cavity, and the A telescopic spring is fixedly connected to the upper end of the tensioning block. The upper end of the telescopic spring is fixedly connected to the upper inner wall of the telescopic cavity. The driven shaft at the rear is provided with a rearward opening groove, and the rear inner wall of the transmission cavity is provided with a groove. A push cavity with a forward opening, a push block is slidably connected in the push cavity, a pull rope and a push spring are fixedly connected to the rear end of the push block, and the rear end of the push spring is fixedly connected with the rear inner wall of the push cavity, so The pulling rope penetrates the rear inner wall of the pushing chamber and the lower inner wall of the transmission chamber and is fixedly connected with the tensioning block, and the rear inner wall of the pushing chamber is fixedly connected with a pipeline communicating with the centrifugal chamber. 4.根据权利要求2所述的一种移动通信终端，其特征在于：所述排水机构包括位于所述通信终端内且开口向上的滑动腔，所述滑动腔左内壁内设有开口向右的延伸腔，所述滑动腔内滑动连接有左端位于所述延伸腔的滑动板，所述滑动板下端固定连接有滑动弹簧，所述滑动弹簧下端与所述滑动腔下内壁固定连接，所述滑动板上端固定连接有细绳，所述细绳穿透所述延伸腔上内壁以及所述定位腔左内壁与所述定位块固定连接，所述地面内设有连通外部的四个水管，所述地面内设有连通所述水管的压缩腔，所述压缩腔内滑动连接有压缩板，所述压缩板上设有通孔，所述压缩板远离所述传动腔的一端固定连接有压缩弹簧，所述压缩弹簧另一端与所述压缩腔内壁固定连接，所述压缩腔靠近所述传动腔的内壁固定连接有连通所述滑动腔的连接管。4 . The mobile communication terminal according to claim 2 , wherein the drainage mechanism comprises a sliding cavity located in the communication terminal with an upward opening, and a left inner wall of the sliding cavity is provided with a rightward opening. 5 . an extension cavity, the sliding cavity is slidably connected with a sliding plate whose left end is located in the extension cavity, the lower end of the sliding plate is fixedly connected with a sliding spring, and the lower end of the sliding spring is fixedly connected with the lower inner wall of the sliding cavity, and the sliding The upper end of the board is fixedly connected with a thin rope, and the thin rope penetrates the upper inner wall of the extension cavity and the left inner wall of the positioning cavity and is fixedly connected to the positioning block. There is a compression cavity connected to the water pipe in the ground, a compression plate is slidably connected in the compression cavity, a through hole is formed on the compression plate, and a compression spring is fixedly connected to the end of the compression plate away from the transmission cavity, The other end of the compression spring is fixedly connected with the inner wall of the compression cavity, and a connecting pipe communicating with the sliding cavity is fixedly connected with the inner wall of the compression cavity close to the transmission cavity. 5.根据权利要求3所述的一种移动通信终端，其特征在于：所述推动弹簧的弹力大于所述伸缩弹簧的弹力。5 . The mobile communication terminal according to claim 3 , wherein the elastic force of the pushing spring is greater than the elastic force of the telescopic spring. 6 .
